MERCEDES-BENZ SL-Class 2007 R230 Comand Manual

119 Telephone*
Telephone operation
Use g or G to select Home, Cell or
Work.
Press E.
An input menu appears.
Input menu
The Surname field is automatically
marked.Entering a surname, name or number
Use g or G to select the name or
the number field.
You can input data:
using the selection menu
via the number keys 1 - #
Using the selection menu:
Press the Keypad soft key.
The selection menu appears.
Selection menu
Enter the data using the selection
menu (
page 209).
After input using the selection menu,
the input menu is displayed again. You
can select the next data field and enter
data.
Input via the number keys 1 - #:
Use buttons 1 - # to enter the data
(
page 211).
i
If you have select the Cell Phone
entry, the input menu displays the
surname and number field.

120 Telephone*
Telephone operation
Saving the entry
In the Input menu, press the OK soft
key.
If you have not assigned a name, the
system will save the entry in the
Other
category, otherwise under the name
you have assigned.
Cell Phone
The message Transmitting Data
to Telephone is displayed.
If transmission is succesful, the
message
Data Has Been Saved will
appear and the phone book is
displayed again.
Otherwise the message
Error
Occured While Saving Data
will
appear.
Press E to confirm.
The phone book is displayed again.
Address Book
If transmission is succesful, the
message
Data Has Been Saved will
appear and the phone book is
displayed again.
Otherwise the message
Error
Occured While Saving Data
will
appear.
Press E to confirm.
The phone book is displayed again.Deleting a phone book entry
Select a phone book entry at the
COMAND (
page 116).
Press the Delete soft key.
The delete dialogue will appear.
Press E to confirm with Yes.
The message is deleted.
If you do not wish to delete the message
Press h to highlight No and then
press E.
or
Press the Back soft key.
i
If you select an address book entry, the
Delete soft key is greyed out. The
selected entry must be deleted from
within the address book (
page 202).

121 Telephone*
Telephone operation
Saving a phone book entry on the tele-
phone
Use button g or G to select a pho-
ne book entry.
Press the Save softkey.
The message
Transmitting Data
to Telephone
will appear.
If transmission is succesful, the mes-
sage
Data Has Been Saved will ap-
pear.You can save phone numbers
in the internal memory of the mobile
phone
in the address book.
Open one of the lists:
Dialed numbers list (page 112)
Received calls list (page 113)
Use g or G to select an entry.
Press the Save softkey.
A selection menu appears.Saving a single phone number on the
telephonePress E to confirm Cell Phone.
An input menu will appear. The
Number
field contains the phone number to be
saved.
i
If you select a phone book entry from
the internal memory, the
Save soft key
is greyed out.
If a phone book entry contains several
numbers (address book entry), they are
transferred together.
Saving phone numbers

122 Telephone*
Telephone operation
Enter a name in the Surname field:
You can input data:
using the selection menu by
pressing the
Keypad soft key
(
page 209)
via the number keys 1 - #
(
page 211)Finishing data input and saving the phone
number:
Input via selection menu:
Press the OK soft key.
Input via 12-button keypad:
Press E.
The message
Transmitting Data
to Telephone
is displayed.
If the transfer was successful, the mes-
sage
Data Has Been Saved will ap-
pear and the list is displayed again.
Otherwise the message
Error
Occured While Saving Data
will
appear.
Press E to confirm.
The list is displayed again.Saving in the address book
In the selection menu (page 121),
use G to select
Address book.
Press E.
A selection menu will appear.
Saving as a new entry
Press E to confirm New Entry.
Another selection menu will appear.

123 Telephone*
Telephone operation
Use g or G to select the phone
number type.
Press E.
An input menu will appear.
You can input data:
using the selection menu by
pressing the
Keypad soft key
(
page 209)
via the number keys 1 - #
(
page 211)
Finishing data input and saving:
Press E or the OK soft key.
If the transfer was successful, the
message Data Has Been Saved will
appear and the list is displayed again.Adding to an existing entry
In the selection menu (page 122),
use G to select
Addition.
Press E.
The phone book will appear.
Select the phone book entry
(
page 117).
Press E.
A selection menu will appear.

124 Telephone*
Telephone operation
Use g or G to select the phone
number type.
Press E.
Phone number type available:
The message
Data Has Been Saved
will appear. After around three se-
conds, the list from where you started
the saving process will appear.Phone number type occupied:
The message
Do You Want to Over-
write Entry?
will appear.
Press E if you wish to overwrite the
entry.
The message
Data Has Been Saved
will appear. After around three se-
conds, the list from where you started
the saving process will appear.
If you do not wish to overwrite the entry
Press h to highlight No if you do not
wish to overwrite the entry.
Press E.
The list from where you started the sto-
rage will appear.
i
If transmission is not succesful the
message
Error Occured While
Saving Data
will appear.
Press E to confirm.
The phone book is displayed again.

125 Navigation
Important notes
Navigation main menu
Destination input
Route guidance
During route guidance
Last destinations and destination memory
POIs
Software updates

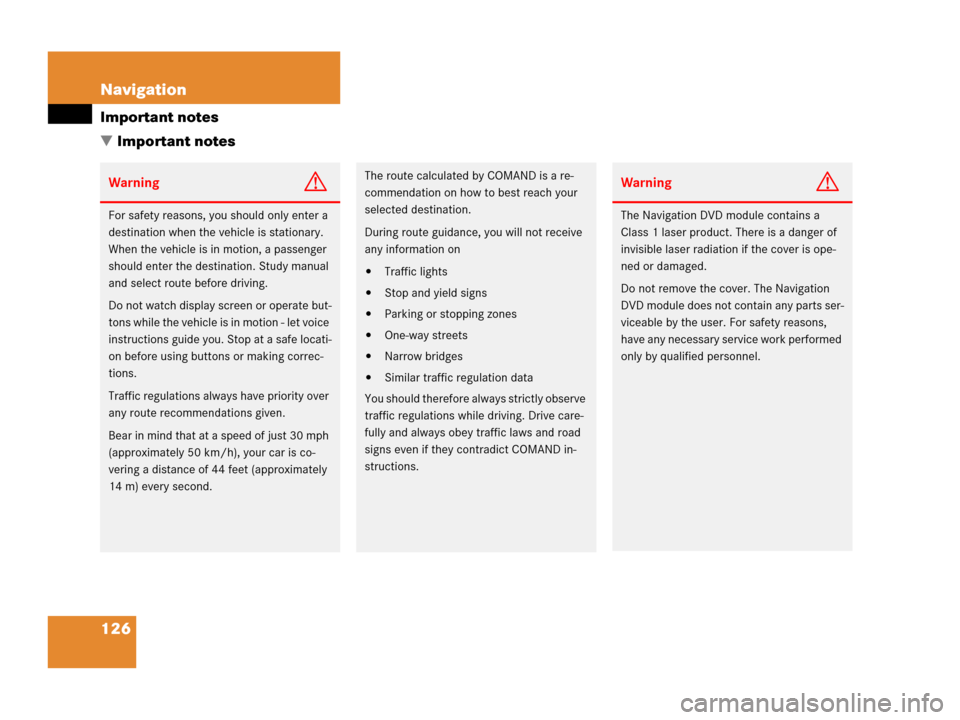

126 Navigation
Important notes

Important notes
WarningG
For safety reasons, you should only enter a
destination when the vehicle is stationary.
When the vehicle is in motion, a passenger
should enter the destination. Study manual
and select route before driving.
Do not watch display screen or operate but-
tons while the vehicle is in motion - let voice
instructions guide you. Stop at a safe locati-
on before using buttons or making correc-
tions.
Traffic regulations always have priority over
any route recommendations given.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is co-
vering a distance of 44 feet (approximately
14 m) every second.
The route calculated by COMAND is a re-
commendation on how to best reach your
selected destination.
During route guidance, you will not receive
any information on
Traffic lights
Stop and yield signs
Parking or stopping zones
One-way streets
Narrow bridges
Similar traffic regulation data
You should therefore always strictly observe
traffic regulations while driving. Drive care-
fully and always obey traffic laws and road
signs even if they contradict COMAND in-
structions.
WarningG
The Navigation DVD module contains a
Class 1 laser product. There is a danger of
invisible laser radiation if the cover is ope-
ned or damaged.
Do not remove the cover. The Navigation
DVD module does not contain any parts ser-
viceable by the user. For safety reasons,
have any necessary service work performed
only by qualified personnel.

127 Navigation
Important notes
COMAND calculates the route with the
help of data that is stored on the navigati-
on DVD.
Only use Mercedes-Benz navigation DVDs.
Using other navigation DVDs or CDs will
cause malfunctions and/or damage.
Because of changes in local traffic patterns
(e.g. road works) and/or incomplete data,
errors in calculation may occur.
As a result, the recommended route may
deviate from the ideal route. The data
stored on the DVD only reflects local con-
ditions at the time of DVD production. DVD
maps do not cover all areas nor all routes
within an area.Loading/ejecting a DVD
DVDs are loaded and ejected at the
navigation computer. The navigation
computer is located on the left side in the
trunk.
Open panel cover to get access to the
navigation computer. 1Ejecting DVDs
2DVD slot
Ejecting
Press l.
The navigation computer ejects the
DVD.
Navigation DVD
i
The message No DVD Available
Please Insert Navigation DVD

will appear if no DVD is currently
loaded in the navigation computer.
!
GPS (Global Positioning System) sig-
nals received make it possible to deter-
mine the current vehicle position.
Deviations from the actual position
may occur
if the reception of GPS signals is
disturbed e.g. in parking garages
and tunnels
if road conditions are bad
depending on the vehicle’s conditi-
on
i
If you do not remove the DVD from
the slot within around 15 seconds, the
COMAND will pull the DVD into the
drive.

128 Navigation
Important notes
Loading
Insert the DVD into the DVD slot 2
with the label side up.
The navigation computer pulls the DVD
in.
If your vehicle has been transported (e.g.
by a car, train or ferry) the system may
make navigation announcements which do
not correspond to the vehicle’s position.
The system needs to redetermine its
position.Determining the location after the
vehicle has been transported
The system will need some time to
determine its location after the car has
been transported. The time required for
the system to do so varies from case to
case.
Switch the COMAND on.
Activate the Navigation main menu
(
page 130).
The navigation DVD needs to be in the
navigation computer (
page 127).
Drive and press c.
The display will change to the map
display.Drive until the position or the road
indicated correspond to the real
circumstances. The system is now
correctly adjusted.
Route guidance after the vehicle has
been transported
