Page 11 of 376

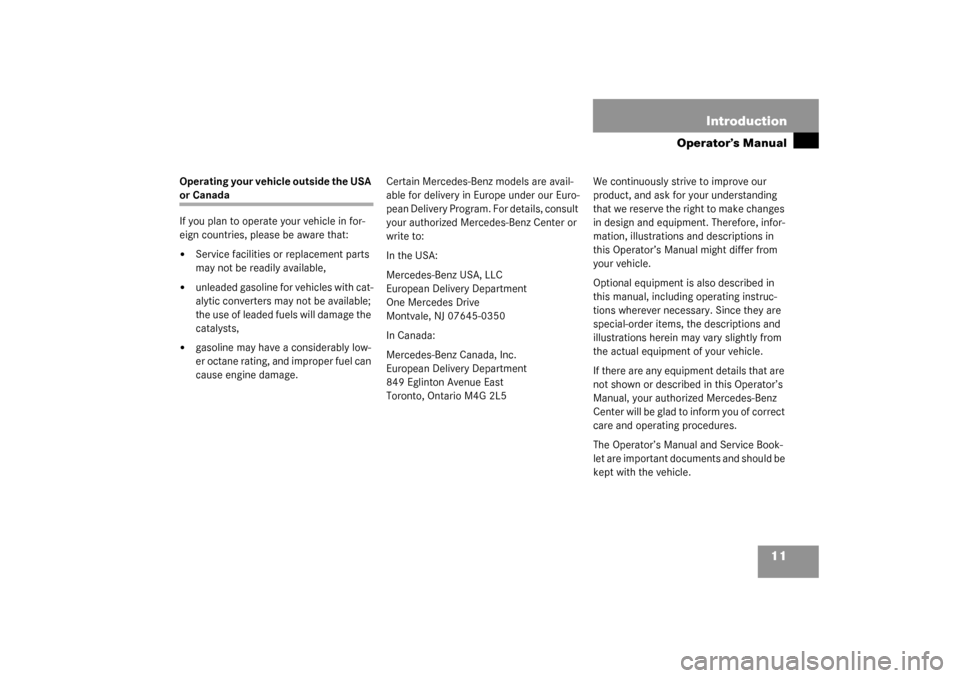

11 Introduction
Operator’s Manual
Operating your vehicle outside the USA or Canada
If you plan to operate your vehicle in for-
eign countries, please be aware that:
Service facilities or replacement parts
may not be readily available,
unleaded gasoline for vehicles with cat-
alytic converters may not be available;
the use of leaded fuels will damage the
catalysts,
gasoline may have a considerably low-
er octane rating, and improper fuel can
cause engine damage.Certain Mercedes-Benz models are avail-
able for delivery in Europe under our Euro-
pean Delivery Program. For details, consult
your authorized Mercedes-Benz Center or
write to:
In the USA:
Mercedes-Benz USA, LLC
European Delivery Department
One Mercedes Drive
Montvale, NJ 07645-0350
In Canada:
Mercedes-Benz Canada, Inc.
European Delivery Department
849 Eglinton Avenue East
Toronto, Ontario M4G 2L5We continuously strive to improve our
product, and ask for your understanding
that we reserve the right to make changes
in design and equipment. Therefore, infor-
mation, illustrations and descriptions in
this Operator’s Manual might differ from
your vehicle.
Optional equipment is also described in
this manual, including operating instruc-
tions wherever necessary. Since they are
special-order items, the descriptions and
illustrations herein may vary slightly from
the actual equipment of your vehicle.
If there are any equipment details that are
not shown or described in this Operator’s
Manual, your authorized Mercedes-Benz
C e nt e r w i l l b e g l a d t o i n f o r m y o u o f co r r e c t
care and operating procedures.
The Operator’s Manual and Service Book-
let are important documents and should be
kept with the vehicle.
Page 12 of 376

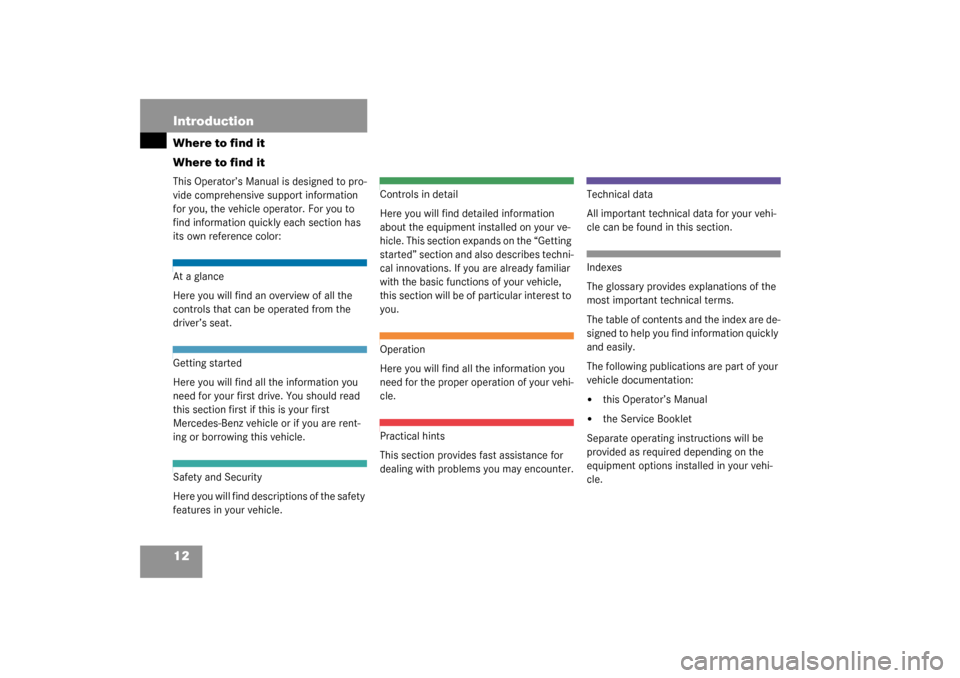

12 IntroductionWhere to find it
Where to find itThis Operator’s Manual is designed to pro-
vide comprehensive support information
for you, the vehicle operator. For you to
find information quickly each section has
its own reference color:At a glance
Here you will find an overview of all the
controls that can be operated from the
driver’s seat.Getting started
Here you will find all the information you
need for your first drive. You should read
this section first if this is your first
Mercedes-Benz vehicle or if you are rent-
ing or borrowing this vehicle.Safety and Security
H e r e y o u w i l l f i n d d e s c r i p t i o n s o f t h e s a f e t y
features in your vehicle.
Controls in detail
Here you will find detailed information
about the equipment installed on your ve-
hicle. This section expands on the “Getting
started” section and also describes techni-
cal innovations. If you are already familiar
with the basic functions of your vehicle,
this section will be of particular interest to
you.Operation
Here you will find all the information you
need for the proper operation of your vehi-
cle.Practical hints
This section provides fast assistance for
dealing with problems you may encounter.
Technical data
All important technical data for your vehi-
cle can be found in this section.Indexes
The glossary provides explanations of the
most important technical terms.
The table of contents and the index are de-
signed to help you find information quickly
and easily.
The following publications are part of your
vehicle documentation:
this Operator’s Manual
the Service Booklet
Separate operating instructions will be
provided as required depending on the
equipment options installed in your vehi-
cle.
Page 13 of 376
13 Introduction

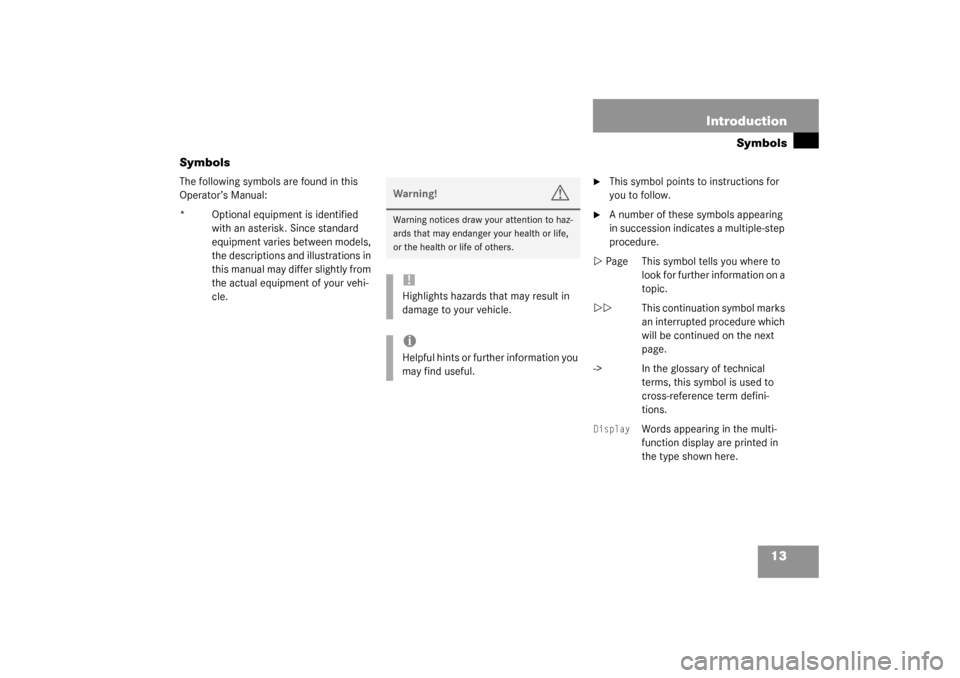

Symbols
Symbols
The following symbols are found in this
Operator’s Manual:
* Optional equipment is identified
with an asterisk. Since standard
equipment varies between models,
the descriptions and illustrations in
this manual may differ slightly from
the actual equipment of your vehi-
cle.
This symbol points to instructions for
you to follow.
A number of these symbols appearing
in succession indicates a multiple-step
procedure.
Page This symbol tells you where to
look for further information on a
topic.
This continuation symbol marks
an interrupted procedure which
will be continued on the next
page.
-> In the glossary of technical
terms, this symbol is used to
cross-reference term defini-
tions.
Display
Words appearing in the multi-
function display are printed in
the type shown here.
Warning!
G
Warning notices draw your attention to haz-
ards that may endanger your health or life,
or the health or life of others.!Highlights hazards that may result in
damage to your vehicle.iHelpful hints or further information you
may find useful.
Page 14 of 376
14 IntroductionOperating safety
Operating safety
Proper use of the vehicle
Proper use of the vehicle requires that you
are familiar with the following information
and rules:
the safety precautions in this manual
the “Technical data” section in this
manual
traffic rules and regulations
motor vehicle laws and safety stan-
dards
Warning!
G
Work improperly carried out on electronic
components and associated software could
cause them to cease functioning. Because
the vehicle’s electronic components are in-
terconnected, any modification made may
produce an undesired effect on other sys-
tems.
Electronic system malfunctions could seri-
ously impair the operating safety of your ve-
hicle.
Ensure that any repairs or modifications to
electronic components are carried out by an
authorized Mercedes-Benz Center.
Other improper work or modifications on the
vehicle could also have a negative impact on
the operating safety of the vehicle.
Some safety systems only function while the
engine is running. You should therefore nev-
er turn off the engine while driving.
Page 15 of 376
15 Introduction
Problems with your vehicle
Problems with your vehicle
If you should experience a problem with your vehicle, particularly one that you believe may affect its safe operation, we urge you to
immediately contact your authorized Mercedes-Benz Center to have the problem diagnosed and corrected if required. If the matter is
not handled to your satisfaction, please discuss the problem with the Mercedes-Benz Center management, or if necessary contact us
at one of the following addresses:
In the USA:
Customer Assistance Center
Mercedes-Benz USA, LLC
One Mercedes Drive
Montvale, NJ 07645-0350
In Canada:
Customer Relations Department
Mercedes-Benz Canada, Inc.
849 Eglinton Avenue East
Toronto, Ontario, M4G 2L5
Page 16 of 376
16 IntroductionReporting safety defects
Reporting safety defectsFor the USA only:
The following text is published as required of manufacturers under Title 49, Code of U.S. Federal Regulations, Part 575 pursuant to the
“National Traffic and Motor Vehicle Safety Act of 1966”.Reporting safety defects
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Mercedes-Benz USA, LLC.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer,
or Mercedes-Benz USA, LLC.
To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-888-327-4236 (or 366-0123 in Washington, D.C. area) or
write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain other information about motor ve-
hicle safety from the Hotline.
Page 17 of 376
17 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel
Page 18 of 376

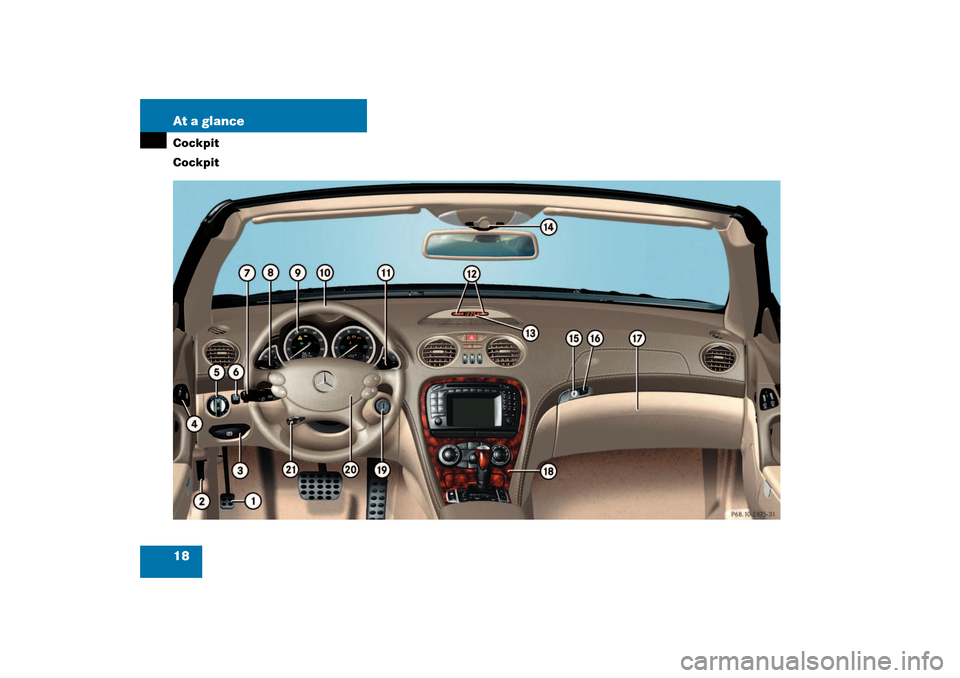

18 At a glanceCockpit
Cockpit
Page 19 of 376
19 At a glance
Cockpit
Item
Page
1
Parking brake pedal
41
2
Hood lock release
227
3
Parking brake release
47
4
Door control panel
26
5
Exterior lamp switch
43,
102
6
Headlamp washer switch
146
7
Combination switch
Turn signals
Windshield wipers
High beam
43
44
104
8
Cruise control switch
Cruise control
Distronic*
168
171
9
Instrument cluster
20,
108
10
Multifunction steering
wheel
22,
111
11
Lever for voice control
system, see separate
operating instructions
12
Front Parktronic* warn-
ing indicator
186
13
Digital clock
122
14
Overhead control panel
25
15
Interior storage compart-
ments (locking/unlock-
ing)
194
16
7
indicator lamp
64
17
Glove box
190
18
Center console
23, 24
19
Starter switch
31
20
Horn
21
Steering wheel adjust-
ment stalk
Heated steering wheel*
34
197
Item
Page
Page 20 of 376
20 At a glanceInstrument cluster
Instrument cluster
