MERCEDES-BENZ SL55AMG 2003 R230 Owner's Guide
Manufacturer: MERCEDES-BENZ, Model Year: 2003, Model line: SL55AMG, Model: MERCEDES-BENZ SL55AMG 2003 R230Pages: 376, PDF Size: 6.35 MB

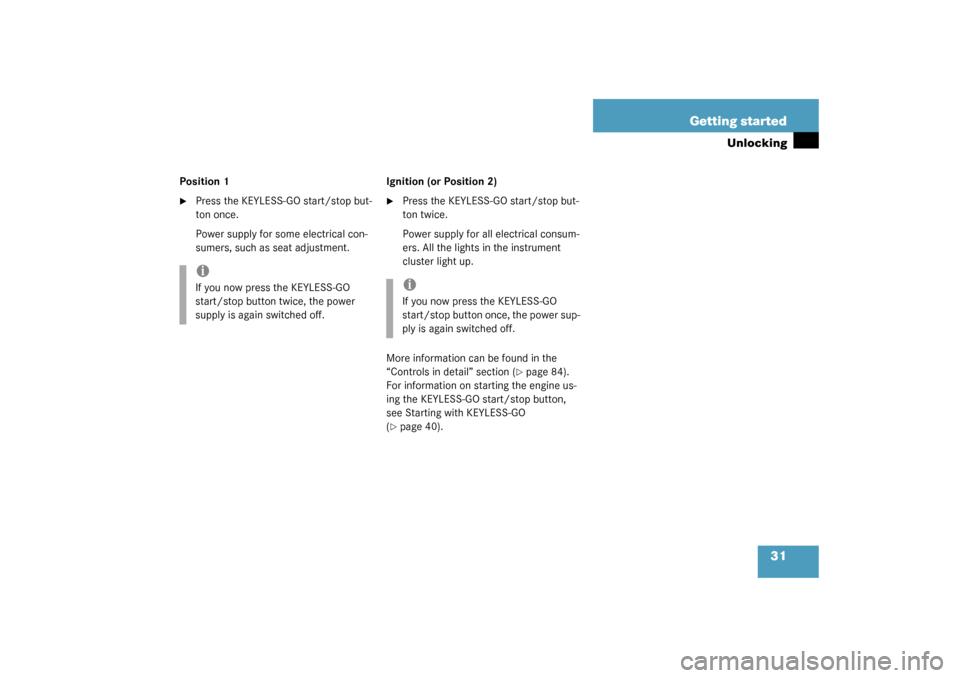

Page 31 of 376
31 Getting started
Unlocking
Position 1
Press the KEYLESS-GO start/stop but-
ton once.
Power supply for some electrical con-
sumers, such as seat adjustment.Ignition (or Position 2)
Press the KEYLESS-GO start/stop but-
ton twice.
Power supply for all electrical consum-
ers. All the lights in the instrument
cluster light up.
More information can be found in the
“Controls in detail” section (
page 84).
For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see Starting with KEYLESS-GO
(
page 40).
iIf you now press the KEYLESS-GO
start/stop button twice, the power
supply is again switched off.
iIf you now press the KEYLESS-GO
start/stop button once, the power sup-
ply is again switched off.

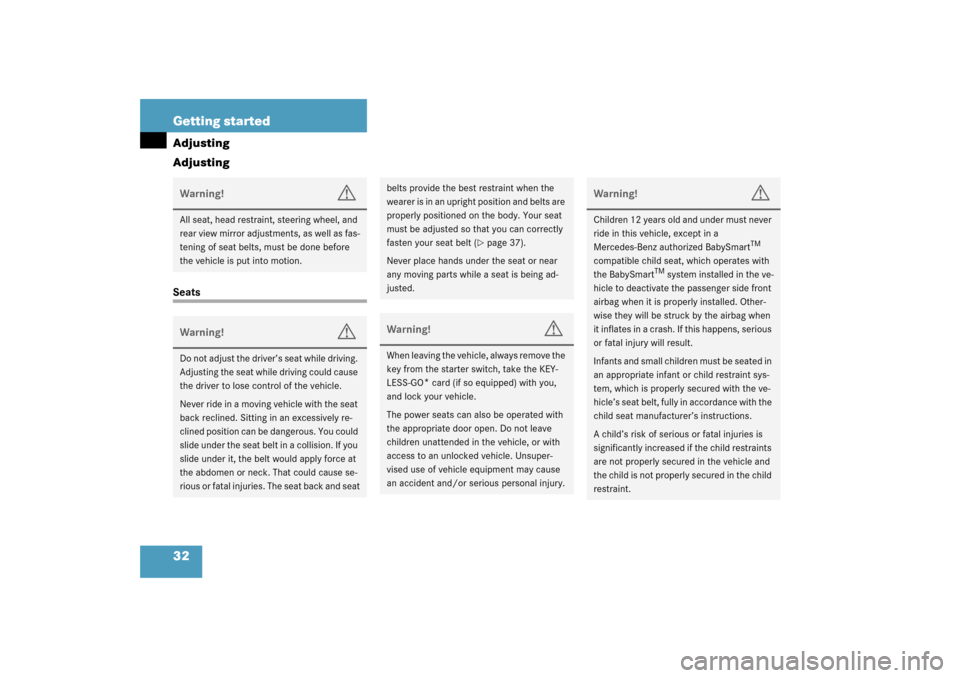

Page 32 of 376
32 Getting startedAdjusting
AdjustingSeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck. That could cause se-
rious or fatal injuries. The seat back and seat
belts provide the best restraint when the
wearer is in an upright position and belts are
properly positioned on the body. Your seat
must be adjusted so that you can correctly
fasten your seat belt (
page 37).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, take the KEY-
LESS-GO
* card (if so equipped) with you,
and lock your vehicle.
The power seats can also be operated with
the appropriate door open. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
Warning!
G
Children 12 years old and under must never
ride in this vehicle, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger side front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
Infants and small children must be seated in
an appropriate infant or child restraint sys-
tem, which is properly secured with the ve-
hicle’s seat belt, fully in accordance with the
child seat manufacturer’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.

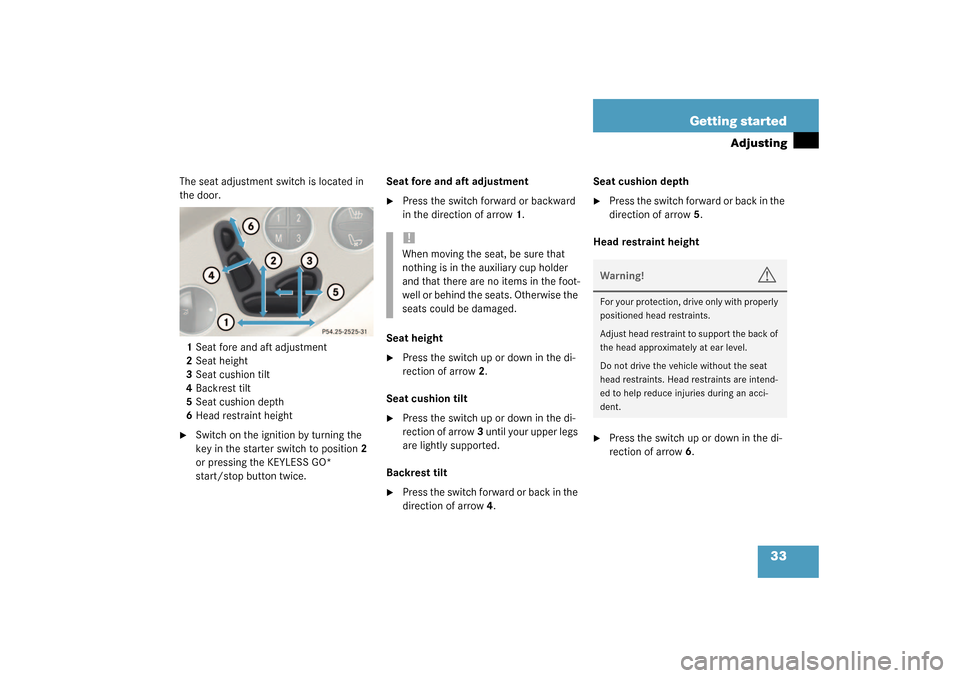

Page 33 of 376
33 Getting started
Adjusting
The seat adjustment switch is located in
the door.
1Seat fore and aft adjustment
2Seat height
3Seat cushion tilt
4Backrest tilt
5Seat cushion depth
6Head restraint height
Switch on the ignition by turning the
key in the starter switch to position2
or pressing the KEYLESS GO*
start/stop button twice.Seat fore and aft adjustment
Press the switch forward or backward
in the direction of arrow1.
Seat height
Press the switch up or down in the di-
rection of arrow2.
Seat cushion tilt
Press the switch up or down in the di-
rection of arrow3 until your upper legs
are lightly supported.
Backrest tilt
Press the switch forward or back in the
direction of arrow4.Seat cushion depth
Press the switch forward or back in the
direction of arrow5.
Head restraint height
Press the switch up or down in the di-
rection of arrow6.
!When moving the seat, be sure that
nothing is in the auxiliary cup holder
and that there are no items in the foot-
well or behind the seats. Otherwise the
seats could be damaged.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint to support the back of
the head approximately at ear level.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.

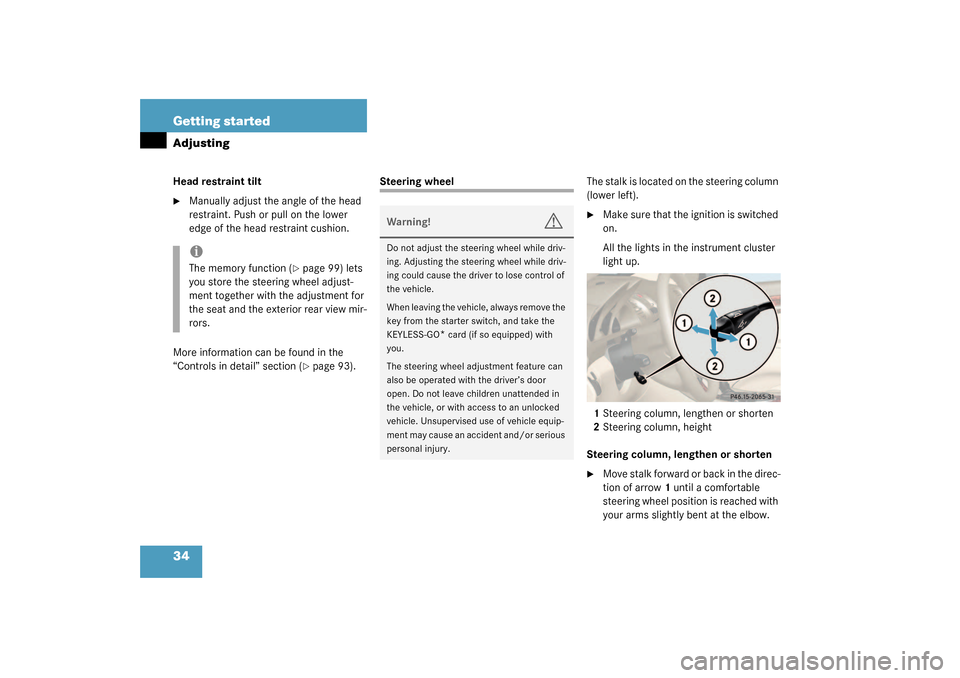

Page 34 of 376
34 Getting startedAdjustingHead restraint tilt
Manually adjust the angle of the head
restraint. Push or pull on the lower
edge of the head restraint cushion.
More information can be found in the
“Controls in detail” section (
page 93).
Steering wheelThe stalk is located on the steering column
(lower left).
Make sure that the ignition is switched
on.
All the lights in the instrument cluster
light up.
1Steering column, lengthen or shorten
2Steering column, height
Steering column, lengthen or shorten
Move stalk forward or back in the direc-
tion of arrow1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
iThe memory function (
page 99) lets
you store the steering wheel adjust-
ment together with the adjustment for
the seat and the exterior rear view mir-
rors.
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
key from the starter switch, and take the
KEYLESS-GO
* card (if so equipped) with
you.
The steering wheel adjustment feature can
also be operated with the driver’s door
open. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.

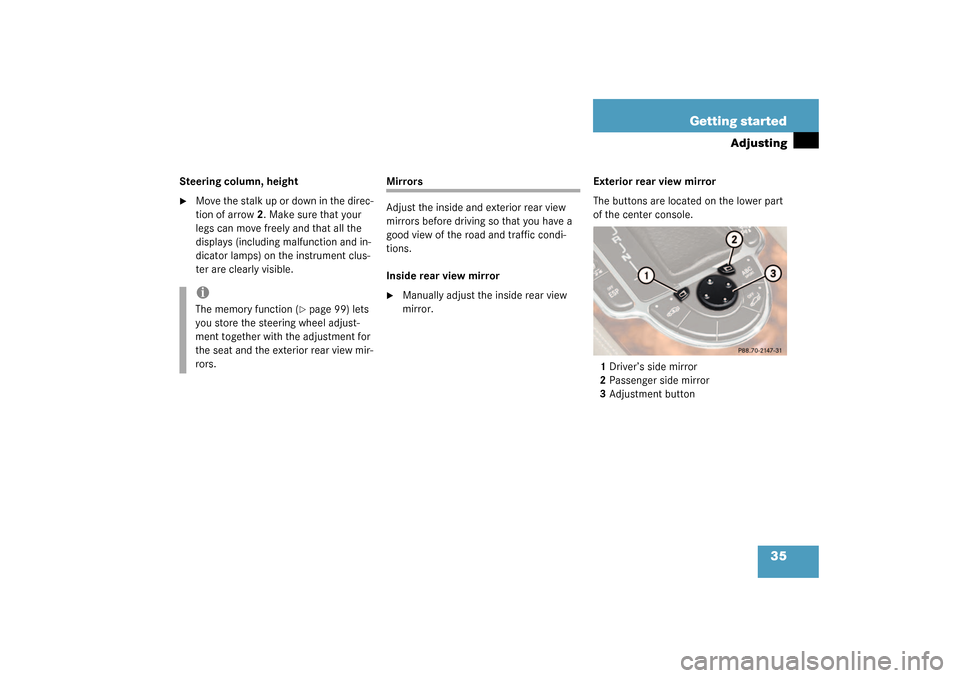

Page 35 of 376
35 Getting started
Adjusting
Steering column, height
Move the stalk up or down in the direc-
tion of arrow2. Make sure that your
legs can move freely and that all the
displays (including malfunction and in-
dicator lamps) on the instrument clus-
ter are clearly visible.
Mirrors
Adjust the inside and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.
Inside rear view mirror
Manually adjust the inside rear view
mirror.Exterior rear view mirror
The buttons are located on the lower part
of the center console.
1Driver’s side mirror
2Passenger side mirror
3Adjustment button
iThe memory function (
page 99) lets
you store the steering wheel adjust-
ment together with the adjustment for
the seat and the exterior rear view mir-
rors.

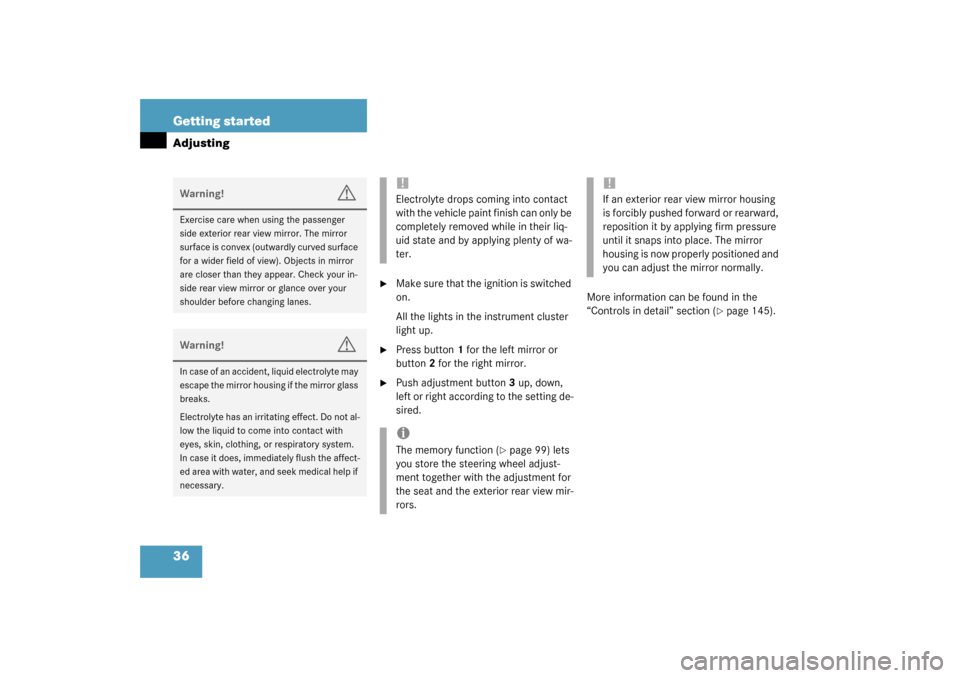

Page 36 of 376
36 Getting startedAdjusting
Make sure that the ignition is switched
on.
All the lights in the instrument cluster
light up.
Press button1 for the left mirror or
button2 for the right mirror.
Push adjustment button3 up, down,
left or right according to the setting de-
sired.More information can be found in the
“Controls in detail” section (
page 145).
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes. Warning!
G
In case of an accident, liquid electrolyte may
escape the mirror housing if the mirror glass
breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush the affect-
ed area with water, and seek medical help if
necessary.
!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their liq-
uid state and by applying plenty of wa-
ter.iThe memory function (
page 99) lets
you store the steering wheel adjust-
ment together with the adjustment for
the seat and the exterior rear view mir-
rors.
!If an exterior rear view mirror housing
is forcibly pushed forward or rearward,
reposition it by applying firm pressure
until it snaps into place. The mirror
housing is now properly positioned and
you can adjust the mirror normally.

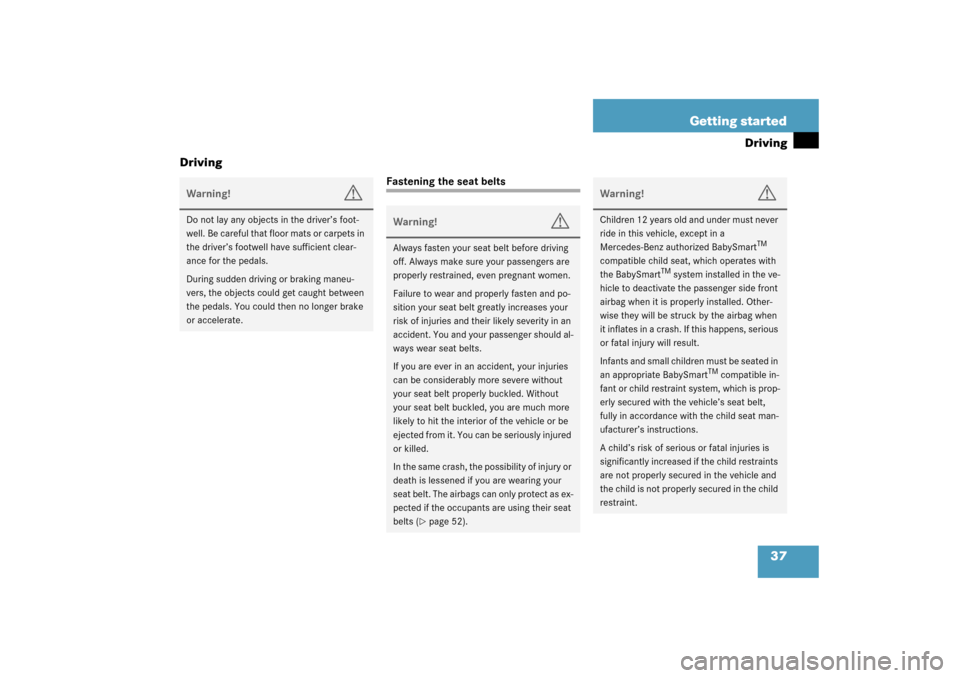

Page 37 of 376
37 Getting started
Driving
Driving
Fastening the seat belts
Warning!
G
Do not lay any objects in the driver’s foot-
well. Be careful that floor mats or carpets in
the driver’s footwell have sufficient clear-
ance for the pedals.
During sudden driving or braking maneu-
vers, the objects could get caught between
the pedals. You could then no longer brake
or accelerate.
Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passenger should al-
ways wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The airbags can only protect as ex-
pected if the occupants are using their seat
belts (
page 52).
Warning!
G
Children 12 years old and under must never
ride in this vehicle, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger side front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
Infants and small children must be seated in
an appropriate BabySmart
TM compatible in-
fant or child restraint system, which is prop-
erly secured with the vehicle’s seat belt,
fully in accordance with the child seat man-
ufacturer’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.

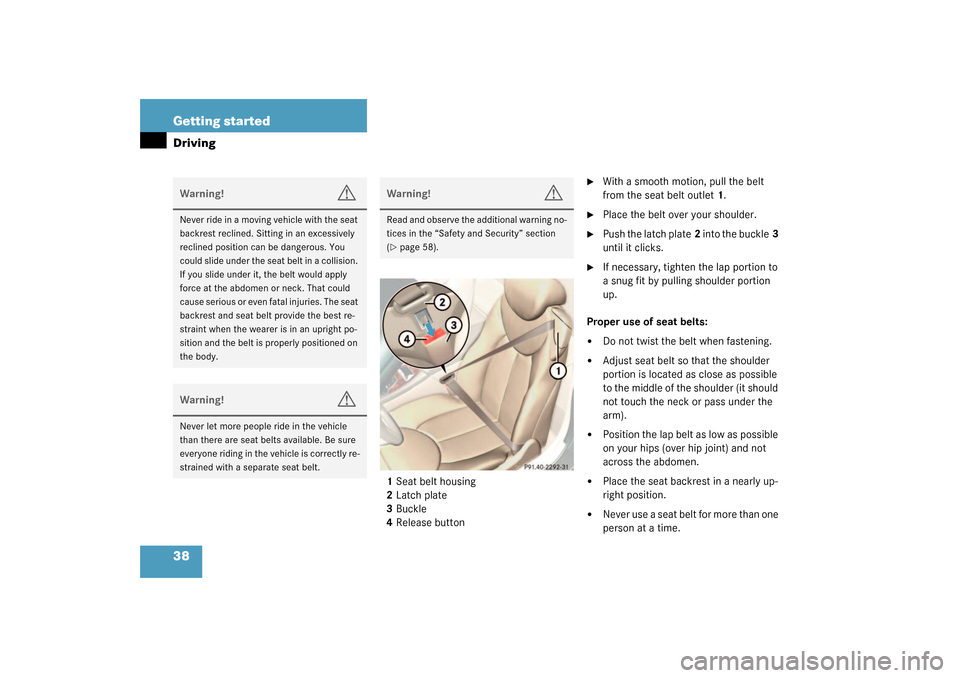

Page 38 of 376
38 Getting startedDriving
1Seat belt housing
2Latch plate
3Buckle
4Release button
With a smooth motion, pull the belt
from the seat belt outlet1.
Place the belt over your shoulder.
Push the latch plate2 into the buckle3
until it clicks.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Proper use of seat belts:
Do not twist the belt when fastening.
Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck or pass under the
arm).
Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.
Place the seat backrest in a nearly up-
right position.
Never use a seat belt for more than one
person at a time.
Warning!
G
Never ride in a moving vehicle with the seat
backrest reclined. Sitting in an excessively
reclined position can be dangerous. You
could slide under the seat belt in a collision.
If you slide under it, the belt would apply
force at the abdomen or neck. That could
cause serious or even fatal injuries. The seat
backrest and seat belt provide the best re-
straint when the wearer is in an upright po-
sition and the belt is properly positioned on
the body.Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly re-
strained with a separate seat belt.
Warning!
G
Read and observe the additional warning no-
tices in the “Safety and Security” section
(page 58).
Page 39 of 376

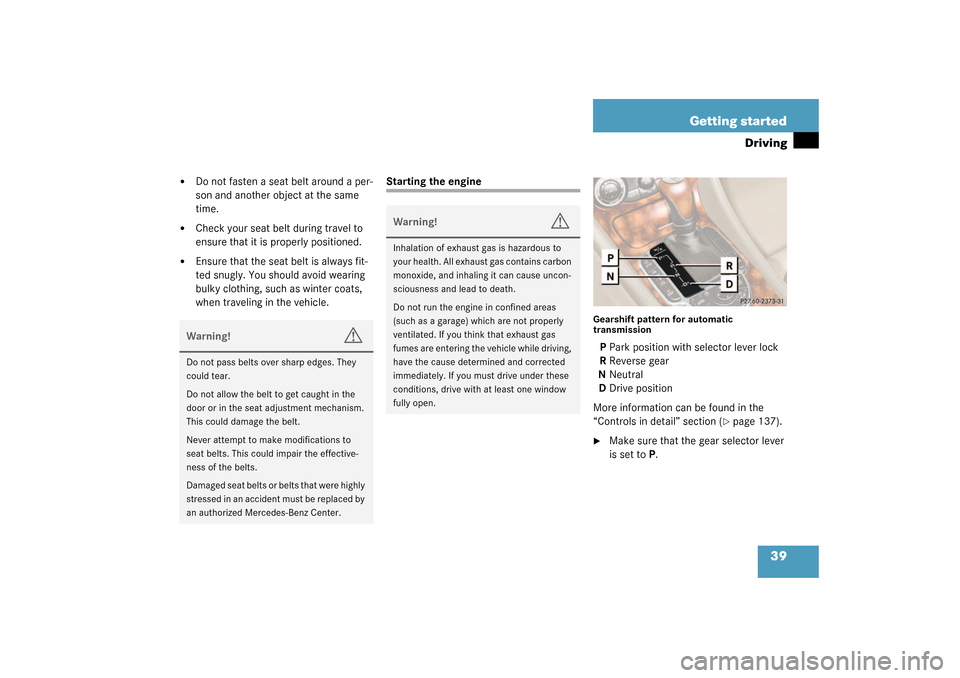

39 Getting started
Driving
Do not fasten a seat belt around a per-
son and another object at the same
time.
Check your seat belt during travel to
ensure that it is properly positioned.
Ensure that the seat belt is always fit-
ted snugly. You should avoid wearing
bulky clothing, such as winter coats,
when traveling in the vehicle.
Starting the engine
Gearshift pattern for automatic
transmissionP Park position with selector lever lock
R Reverse gear
N Neutral
D Drive position
More information can be found in the
“Controls in detail” section (
page 137).
Make sure that the gear selector lever
is set to P.
Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced by
an authorized Mercedes-Benz Center.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open.
Page 40 of 376
40 Getting startedDrivingStarting with the SmartKey
Turn the key in the starter switch to
position3 and hold until the engine
starts (
page 29).
Depress the brake pedal.
The selector lever lock is released.
For information on turning off the engine
with the key, see “Turning off engine with
the key” (
page 48).Starting with KEYLESS-GO*
You can start your vehicle without a key
using the KEYLESS-GO start/stop button
on the gear selector lever.
1KEYLESS-GO start/stop button
Depress the brake pedal during the
starting procedure. Do not depress ac-
celerator.
The selector lever lock is released.
Press the KEYLESS-GO start/stop
button1 once.
The engine starts automatically.
For information on turning off the engine
with KEYLESS-GO, see “Turning off engine
with KEYLESS-GO*” (
page 49).
iYou can also use the “touch-start”
function. Turn the key to position3 and
release it again immediately. The en-
gine then starts automatically.
