MERCEDES-BENZ SL55AMG 2005 R230 Owner's Guide

19 Introduction
Vehicle data recording
Vehicle data recording
Information regarding electronic recording devices
(Including notice pursuant to California Code § 9951)
Please note that your vehicle is equipped with devices that can record vehicle systems data and, if equipped with the Tele Aid system,
may transmit some data in certain accidents.
This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety.
DaimlerChrysler may access the information and share it with others

for safety research or vehicle diagnosis purposes


with the consent of the vehicle owner or lessee


in response to an official request by law enforcement or other government agency


for use in dispute resolution involving DaimlerChrysler, its affiliates or sales/service organization and/or


as otherwise required or permitted by law.
Please check the Tele Aid subscription service agreement for details regarding the information that may be recorded or transmitted
via that system.

20

21 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel

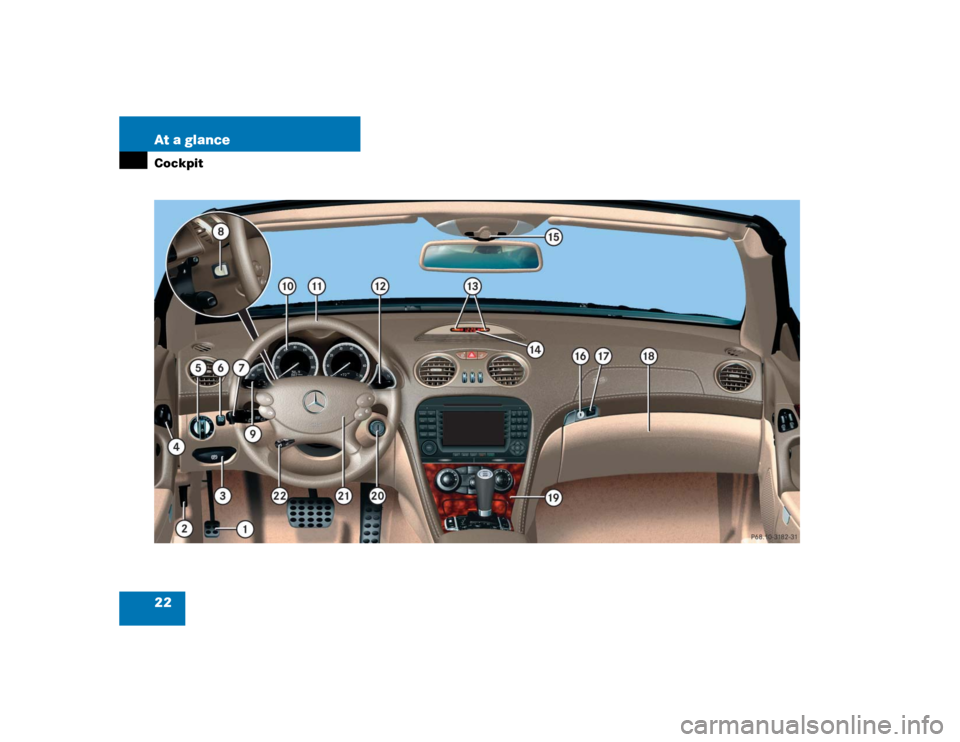

22 At a glanceCockpit

23 At a glance
Cockpit
Item
Page
1
Parking brake pedal
50
2
Hood lock release
270
3
Parking brake release
57
4
Door control panel
32
5
Exterior lamp switch
51,
123
6
Headlamp washer button
178
7
Combination switch

Turn signals


Windshield wipers


High beam
52
53
128
Item
Page
8
Steering wheel gearshift
control
(SL55AMG,SL65AMG,
and vehicles with
Sport Package* only)
172
9
Cruise control switch

Cruise control


Distronic*
205
208
a
Instrument cluster
24,
131
b
Multifunction steering
wheel
28,
135
c
Lever for voice control
system*, see separate
operating instructions
d
Front Parktronic* warn-
ing indicator
225
Item
Page
e
Digital clock
149
f
Overhead control panel
31
g
Interior storage compart-
ments (locking/unlock-
ing)
230
h
7 indicator lamp
76
j
Glove box
228
k
Center console
29, 30
l
Starter switch
38
m
Horn
n
Steering wheel adjust-
ment lever
Heated steering wheel*
42
234

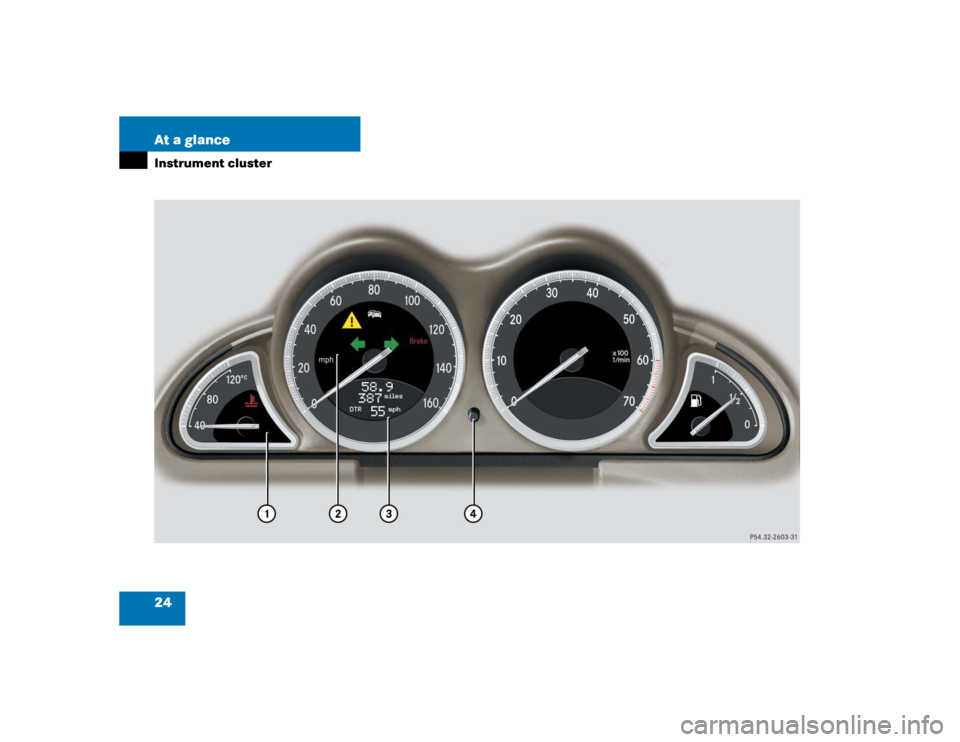

24 At a glanceInstrument cluster

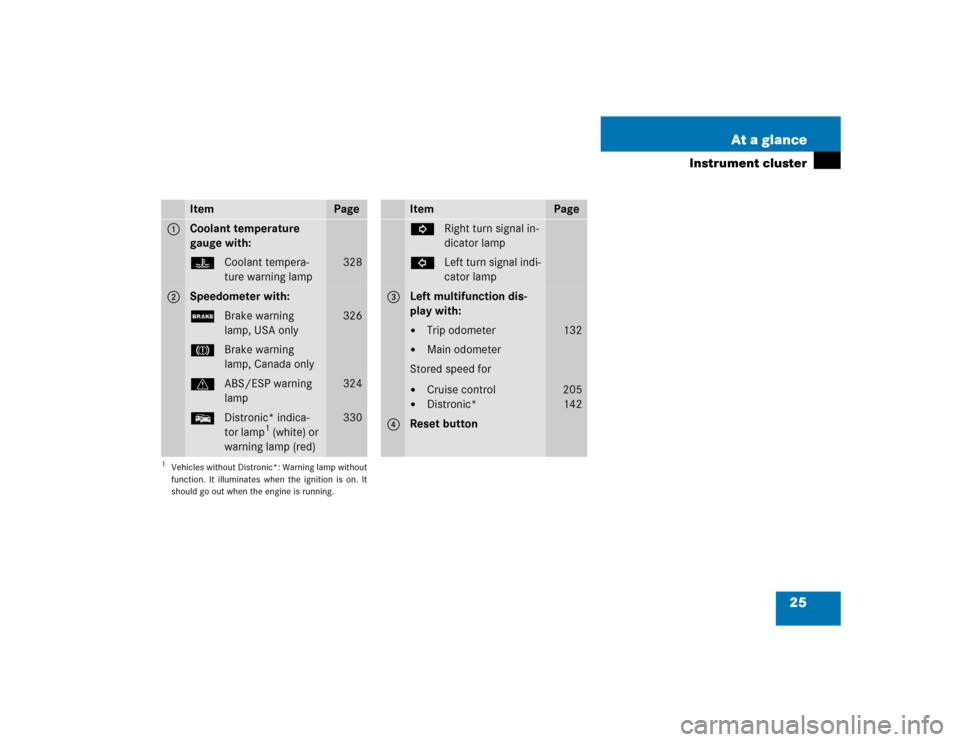

25 At a glance
Instrument cluster
Item
Page
1
Coolant temperature
gauge with:DCoolant tempera-
ture warning lamp
328
2
Speedometer with:;Brake warning
lamp, USA only
326
3Brake warning
lamp, Canada onlyvABS/ESP warning
lamp
324
EDistronic* indica-
tor lamp
1 (white) or
warning lamp (red)
1Vehicles without Distronic*: Warning lamp without
function. It illuminates when the ignition is on. It
should go out when the engine is running.
330
Item
Page
KRight turn signal in-
dicator lampLLeft turn signal indi-
cator lamp
3
Left multifunction dis-
play with:

Trip odometer
132


Main odometer
Stored speed for

Cruise control


Distronic*
205
142
4
Reset button

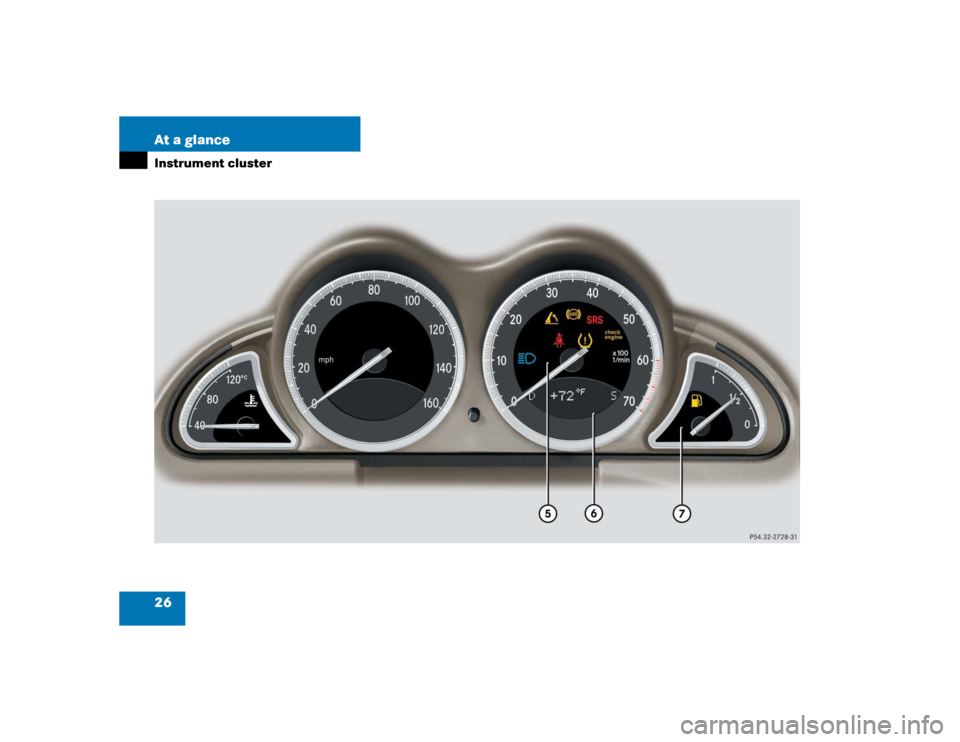

26 At a glanceInstrument cluster

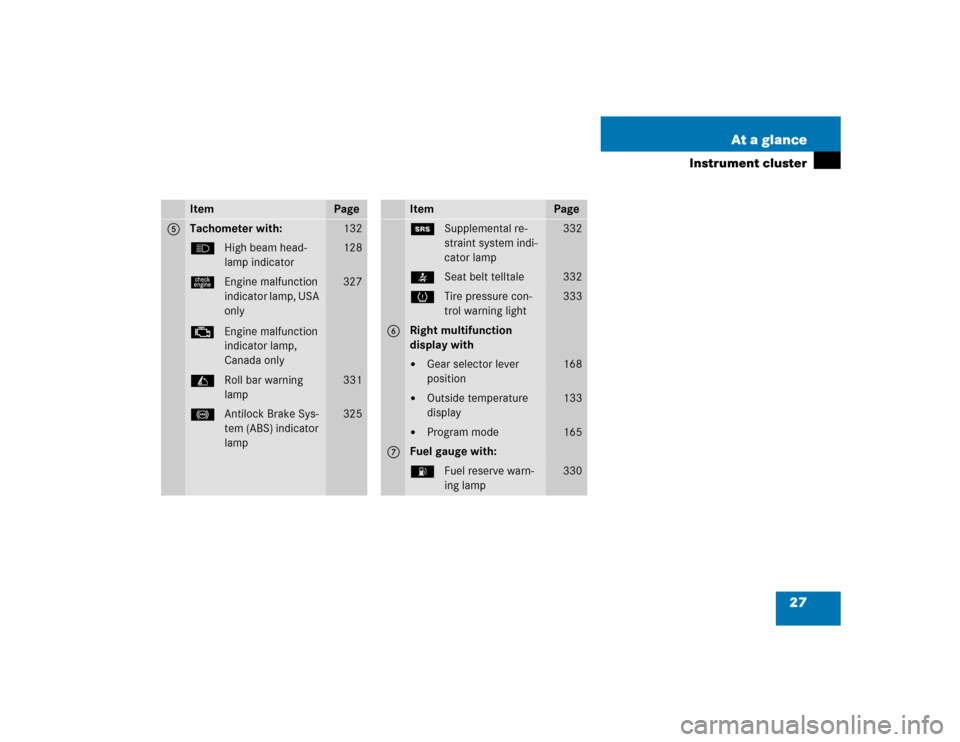

27 At a glance
Instrument cluster
Item
Page
5
Tachometer with:
132
AHigh beam head-
lamp indicator
128
úEngine malfunction
indicator lamp, USA
only
±Engine malfunction
indicator lamp,
Canada only
327
CRoll bar warning
lamp
331
-Antilock Brake Sys-
tem (ABS) indicator
lamp
325
Item
Page
1Supplemental re-
straint system indi-
cator lamp
332
332
XTire pressure con-
trol warning light
333
6
Right multifunction
display with

Gear selector lever
position
168


Outside temperature
display
133


Program mode
165
7
Fuel gauge with:AFuel reserve warn-
ing lamp
330

28 At a glanceMultifunction steering wheel
Item
Page
1
Left multifunction display
in the speedometer
134
2
Right multifunction display
in the tachometer
134
Operating the control
system
135
3
Selecting the submenu or
setting the volume:
Press buttonçdown/to decreaseæup/to increase
4
Telephone*:
Press buttoníto take a callìto end a call
Item
Page
5
Menu systems:
Press buttonÿfor previous menuèfor next menu
6
Moving within a menu:
Press buttonjfor next displaykfor previous display
