90 Safety and SecurityDriving safety systems
For more information, see the
“Practical hints” section (
page 332) and
(
page 355).

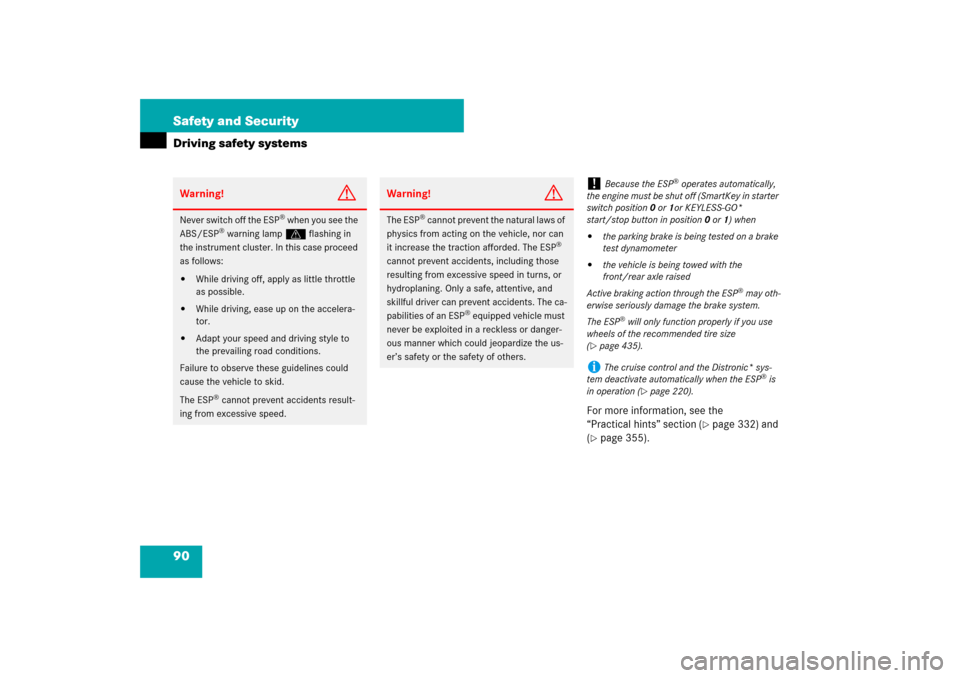

Warning!
G
Never switch off the ESP
® when you see the
ABS/ESP
® warning lamp v flashing in
the instrument cluster. In this case proceed
as follows:


While driving off, apply as little throttle
as possible.


While driving, ease up on the accelera-
tor.


Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP
® cannot prevent accidents result-
ing from excessive speed.
Warning!
G
The ESP
® cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded. The ESP
®
cannot prevent accidents, including those
resulting from excessive speed in turns, or
hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ESP
® equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.
!
Because the ESP
® operates automatically,
the engine must be shut off (SmartKey in starter
switch position 0 or 1or KEYLESS-GO*
start/stop button in position 0 or 1) when


the parking brake is being tested on a brake
test dynamometer


the vehicle is being towed with the
front/rear axle raised
Active braking action through the ESP
® may oth-
erwise seriously damage the brake system.
The ESP
® will only function properly if you use
wheels of the recommended tire size
(
page 435).
i
The cruise control and the Distronic* sys-
tem deactivate automatically when the ESP
® is
in operation (
page 220).

91 Safety and Security
Driving safety systems
Electronic traction system
The electronic traction system is a compo-
nent of ESP
®.
The electronic traction system improves
the vehicle’s ability to utilize available trac-
tion, especially under slippery road condi-
tions by applying the brakes to a spinning
wheel.
When you switch off the ESP
®, the elec-
tronic traction system is still enabled.Switching off the ESP
®
To improve the vehicle’s traction, switch
off the ESP
® in driving situations where it
would be advantageous to have the drive
wheels spin and thus cut into surfaces for
better grip such as:


when driving with snow chains


in deep snow


in sand or gravelWhen you switch off the ESP
®


the ESP
® does not stabilize the vehicle


the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip


the electronic traction system will still
apply the brakes to a spinning wheel


the ESP
® continues to operate when
you are braking


you cannot activate the cruise control
or the Distronic* system


the cruise control or the Distronic* sys-
tem switch off if currently activated

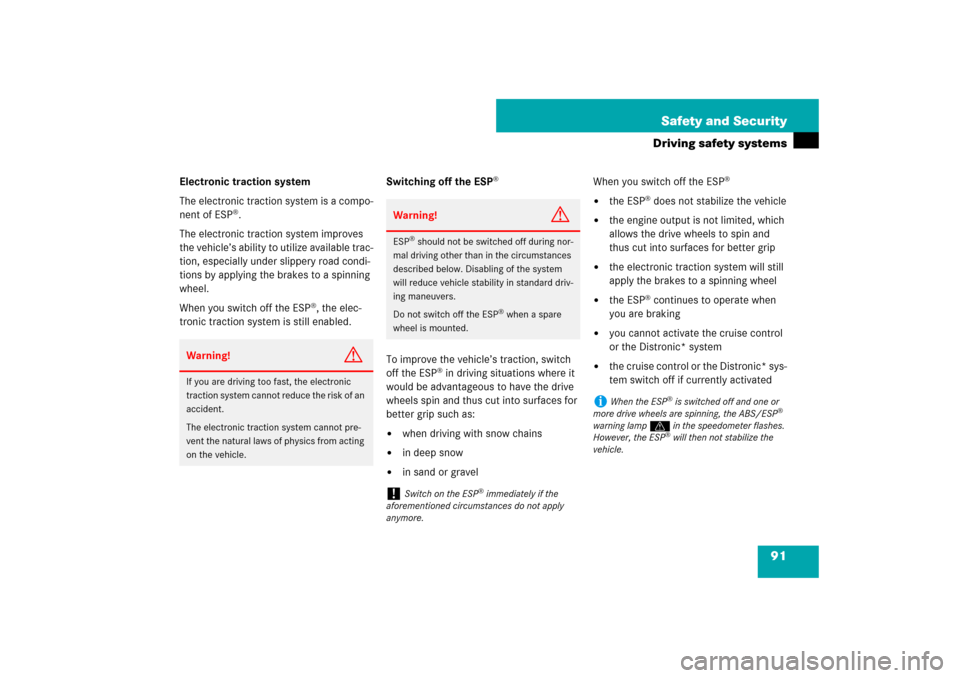

Warning!
G
If you are driving too fast, the electronic
traction system cannot reduce the risk of an
accident.
The electronic traction system cannot pre-
vent the natural laws of physics from acting
on the vehicle.
Warning!
G
ESP
® should not be switched off during nor-
mal driving other than in the circumstances
described below. Disabling of the system
will reduce vehicle stability in standard driv-
ing maneuvers.
Do not switch off the ESP
® when a spare
wheel is mounted.
!
Switch on the ESP
® immediately if the
aforementioned circumstances do not apply
anymore.
i
When the ESP
® is switched off and one or
more drive wheels are spinning, the ABS/ESP
®
warning lamp v in the speedometer flashes.
However, the ESP
® will then not stabilize the
vehicle.

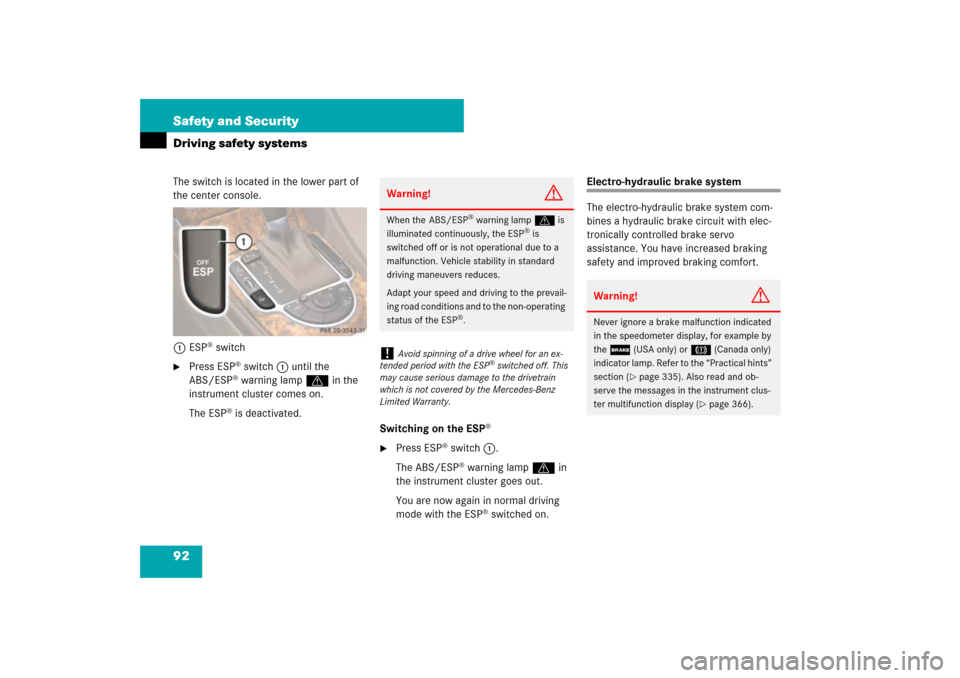

92 Safety and SecurityDriving safety systemsThe switch is located in the lower part of
the center console.
1ESP
® switch

Press ESP
® switch1 until the
ABS/ESP® warning lamp v in the
instrument cluster comes on.
The ESP
® is deactivated.
Switching on the ESP
®

Press ESP
® switch1.
The ABS/ESP® warning lamp v in
the instrument cluster goes out.
You are now again in normal driving
mode with the ESP
® switched on.
Electro-hydraulic brake system
The electro-hydraulic brake system com-
bines a hydraulic brake circuit with elec-
tronically controlled brake servo
assistance. You have increased braking
safety and improved braking comfort.
Warning!
G
When the ABS/ESP
® warning lampv is
illuminated continuously, the ESP
® is
switched off or is not operational due to a
malfunction. Vehicle stability in standard
driving maneuvers reduces.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP
®.
!
Avoid spinning of a drive wheel for an ex-
tended period with the ESP
® switched off. This
may cause serious damage to the drivetrain
which is not covered by the Mercedes-Benz
Limited Warranty.
Warning!
G
Never ignore a brake malfunction indicated
in the speedometer display, for example by
the;(USA only) or3(Canada only)
indicator lamp. Refer to the “Practical hints”
section (
page 335). Also read and ob-
serve the messages in the instrument clus-
ter multifunction display (
page 366).

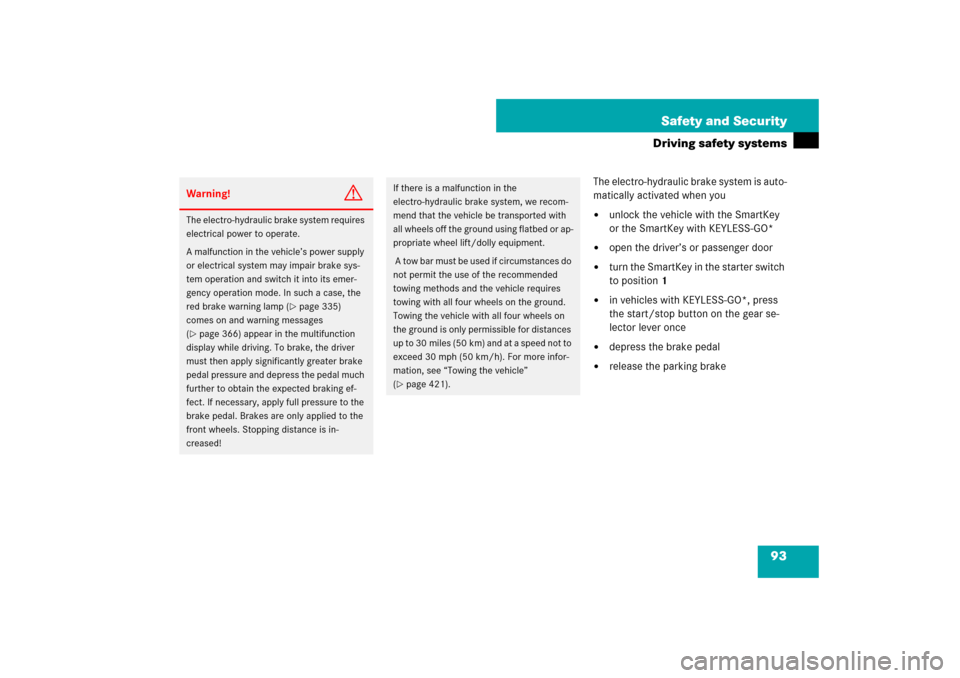

93 Safety and Security
Driving safety systems
The electro-hydraulic brake system is auto-
matically activated when you

unlock the vehicle with the SmartKey
or the SmartKey with KEYLESS-GO*


open the driver’s or passenger door


turn the SmartKey in the starter switch
to position1


in vehicles with KEYLESS-GO*, press
the start/stop button on the gear se-
lector lever once


depress the brake pedal


release the parking brake
Warning!
G
The electro-hydraulic brake system requires
electrical power to operate.
A malfunction in the vehicle’s power supply
or electrical system may impair brake sys-
tem operation and switch it into its emer-
gency operation mode. In such a case, the
red brake warning lamp (
page 335)
comes on and warning messages
(
page 366) appear in the multifunction
display while driving. To brake, the driver
must then apply significantly greater brake
pedal pressure and depress the pedal much
further to obtain the expected braking ef-
fect. If necessary, apply full pressure to the
brake pedal. Brakes are only applied to the
front wheels. Stopping distance is in-
creased!
If there is a malfunction in the
electro-hydraulic brake system, we recom-
mend that the vehicle be transported with
all wheels off the ground using flatbed or ap-
propriate wheel lift/dolly equipment.
A tow bar must be used if circumstances do
not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
up to 30 miles (50 km) and at a speed not to
exceed 30 mph (50 km/h). For more infor-
mation, see “Towing the vehicle”
(page 421).

94 Safety and SecurityDriving safety systems
The electro-hydraulic brake system switch-
es off automatically

approximately 2 minutes after you
turned the SmartKey in the starter
switch to position0 or removed the
SmartKey


approximately 2 minutes after you
pressed the KEYLESS-GO* start/stop
button to turn off the engine or power
supply and opened the driver’s door
(with driver’s door open, the starter
switch is set to position 0, same as
SmartKey removed from starter
switch)


approximately 20 seconds after you
locked the vehicle from outside
i
If the electro-hydraulic brake system is acti-
vated as the brake pedal is first depressed, you
may feel a reduced pedal resistance and longer
pedal travel than normal. When releasing the
pedal, you may also feel the brake pedal pulsate
and you may hear a sound which is caused by the
activation of the electro-hydraulic brake system
pump. This is normal and not an indication of a
malfunction. Pedal travel returns to normal when
you release the brake pedal and the sound soon
ceases.
If you experience the above while driving and the
red brake warning lamp (
page 335) illumi-
nates and/or warning messages appear in the
multifunction display (
page 366), the brake
system is malfunctioning. Follow the instructions
of the warning message(s) and have the brake
system checked immediately.

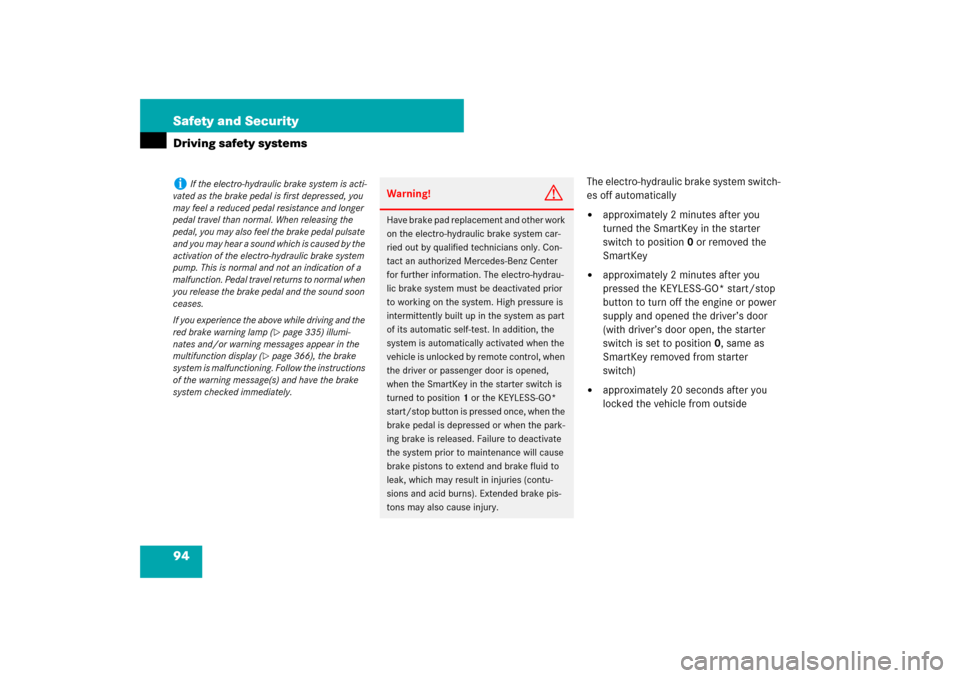

Warning!
G
Have brake pad replacement and other work
on the electro-hydraulic brake system car-
ried out by qualified technicians only. Con-
tact an authorized Mercedes-Benz Center
for further information. The electro-hydrau-
lic brake system must be deactivated prior
to working on the system. High pressure is
intermittently built up in the system as part
of its automatic self-test. In addition, the
system is automatically activated when the
vehicle is unlocked by remote control, when
the driver or passenger door is opened,
when the SmartKey in the starter switch is
turned to position1 or the KEYLESS-GO*
start/stop button is pressed once, when the
brake pedal is depressed or when the park-
ing brake is released. Failure to deactivate
the system prior to maintenance will cause
brake pistons to extend and brake fluid to
leak, which may result in injuries (contu-
sions and acid burns). Extended brake pis-
tons may also cause injury.

95 Safety and Security
Driving safety systems
Notes on driving with the
electro-hydraulic brake system

Following extended periods of only mi-
nor loads to your brake system, you
should occasionally apply the brakes
when traveling at high speeds. This im-
proves the grip of the brake pads.
After driving on wet or snow-covered
roads, you should apply your brakes
firmly before parking your vehicle. This
produces heat which serves to dry the
brake disks and help prevent corro-
sion.


On long and steep grades, shift to a
lower gear (gear range1, 2, or 3) to
prevent the brakes from overheating
and to reduce brake wear.


After hard braking, it is advisable to
drive on for some time so that the air
stream will cool down the brakes fast-
er.


Only Mercedes-Benz approved compo-
nents (e.g. brake pads) should be in-
stalled on your vehicle. Brake pads not
approved by Mercedes-Benz may im-
pair the safety of your vehicle.

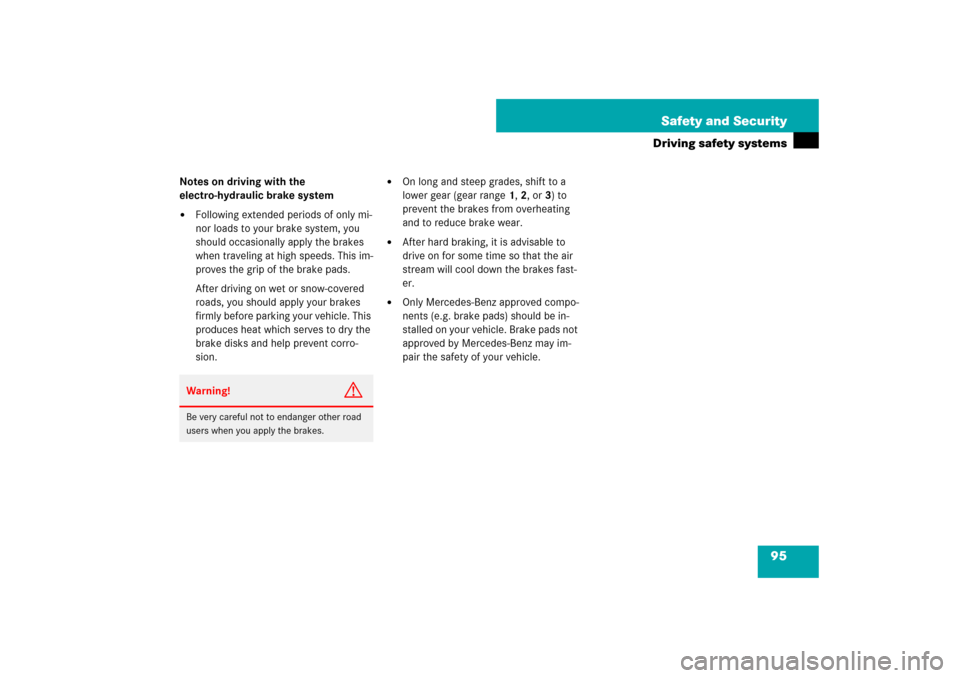

Warning!
G
Be very careful not to endanger other road
users when you apply the brakes.

96 Safety and SecurityAnti-theft systemsImmobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey
Remove the SmartKey from the starter
switch.
With KEYLESS-GO*

Press the start/stop button on the gear
selector lever once.
The engine is turned off.

Open the driver’s door.Deactivating
With the SmartKey

Turn the SmartKey in the starter switch
to position2 (
page 40).
With KEYLESS-GO*

Switch on the ignition (
page 41).
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the trunk lid


the hood


a storage compartment in the rear


the glove box


the storage compartment under the
armrest
The alarm will stay on, even if the activat-
ing element (a door, for example) is imme-
diately closed.
i
Starting the engine will also deactivate the
immobilizer.
In case the engine cannot be started (yet the
vehicle’s battery is charged), the system is not
operational. Contact an authorized
Mercedes-Benz Center or call
1-800-FOR-MERCedes (in the USA), or
1-800-387-0100 (in Canada).

97 Safety and Security
Anti-theft systems
The alarm system will also be triggered
when

someone attempts to raise the vehicle


unlocking and opening the driver’s
door with the mechanical key


someone opens a door from the inside


someone opens the trunk lid with the
emergency release buttonArming the alarm system
The alarm system is armed after locking
the vehicle with the SmartKey or
KEYLESS-GO*. The turn signal lamps flash
three times to indicate that the alarm sys-
tem is activated. The indicator lamp in the
central locking switch (
page 31) begins
to flash after arming the alarm system.
Disarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the SmartKey or
KEYLESS-GO*. The turn signal lamps flash
once to indicate that the alarm system is
disarmed.Canceling the alarm
To cancel the alarm:
With the SmartKey

Insert the SmartKey in the starter
switch.
or

Press theŒor‹button on the
SmartKey.
With KEYLESS-GO*

Grasp an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft. (1 m) of the vehicle.
or

Press the KEYLESS-GO start/stop but-
ton (
page 40).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
i
If the alarm stays on for more than
30 seconds, a call to the Response Center is ini-
tiated automatically by the Tele Aid system
(
page 245) provided Tele Aid service was sub-
scribed to and properly activated, and that nec-
essary cellular service and GPS coverage are
available.
i
If the turn signal lamps do not flash three
times, a door or the trunk lid may not be properly
closed.
Close the respective element and lock the vehi-
cle again.
i
The alarm system will rearm automatically
again after approximately 40 seconds if no door
was opened.

98 Safety and SecurityAnti-theft systemsTow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle. Arming tow-away alarm
When you lock your vehicle, the tow-away
alarm is automatically armed after about
30 seconds.
When you unlock your vehicle, the
tow-away protection disarms automatical-
ly.
Disabling tow-away alarm
To prevent triggering the tow-away alarm,
disable the tow-away alarm feature before
towing the vehicle, or when parking on a
surface subject to movement, such as a
ferry or auto train.

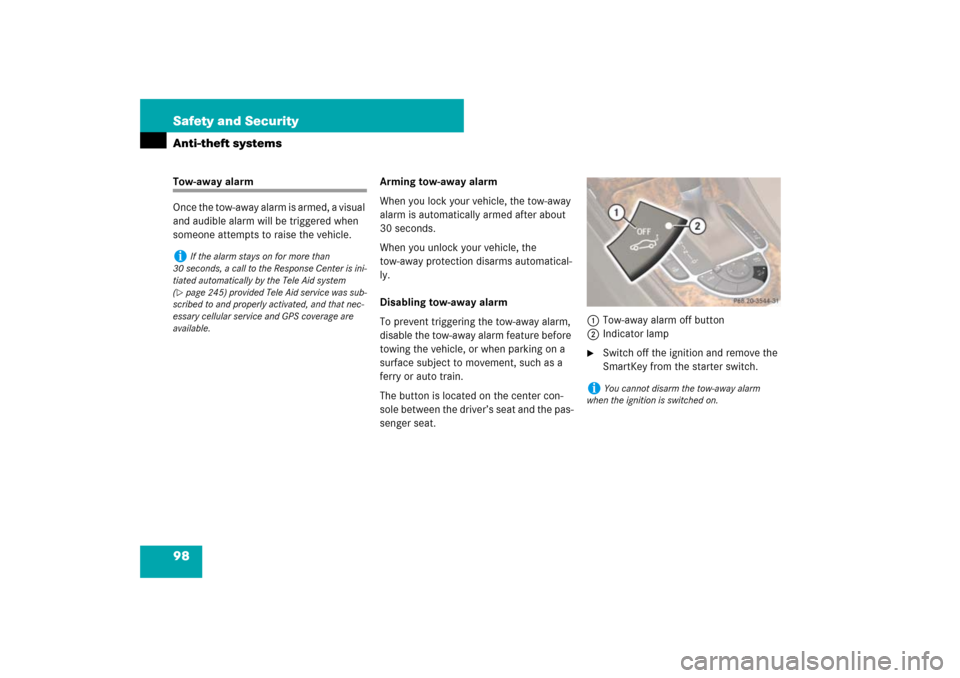

The button is located on the center con-
sole between the driver’s seat and the pas-
senger seat.1Tow-away alarm off button
2Indicator lamp

Switch off the ignition and remove the
SmartKey from the starter switch.
i
If the alarm stays on for more than
30 seconds, a call to the Response Center is ini-
tiated automatically by the Tele Aid system
(
page 245) provided Tele Aid service was sub-
scribed to and properly activated, and that nec-
essary cellular service and GPS coverage are
available.
i
You cannot disarm the tow-away alarm
when the ignition is switched on.

99 Safety and Security
Anti-theft systems

Press button1.
The indicator lamp2 in the switch
comes on briefly.

Exit and lock your vehicle with the
SmartKey or (vehicles with
KEYLESS-GO*) with the lock button on
each door handle or trunk lid.
The tow-away alarm remains disarmed un-
til you lock the vehicle again.
Canceling the alarm
To cancel the alarm:
With the SmartKey

Insert the SmartKey in the starter
switch.
or

Press theŒor‹button on the
SmartKey.With KEYLESS-GO*

Grasp an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft. (1 m) of the vehicle.
or

Press the KEYLESS-GO start/stop
button (
page 40).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
