50 Getting startedDriving

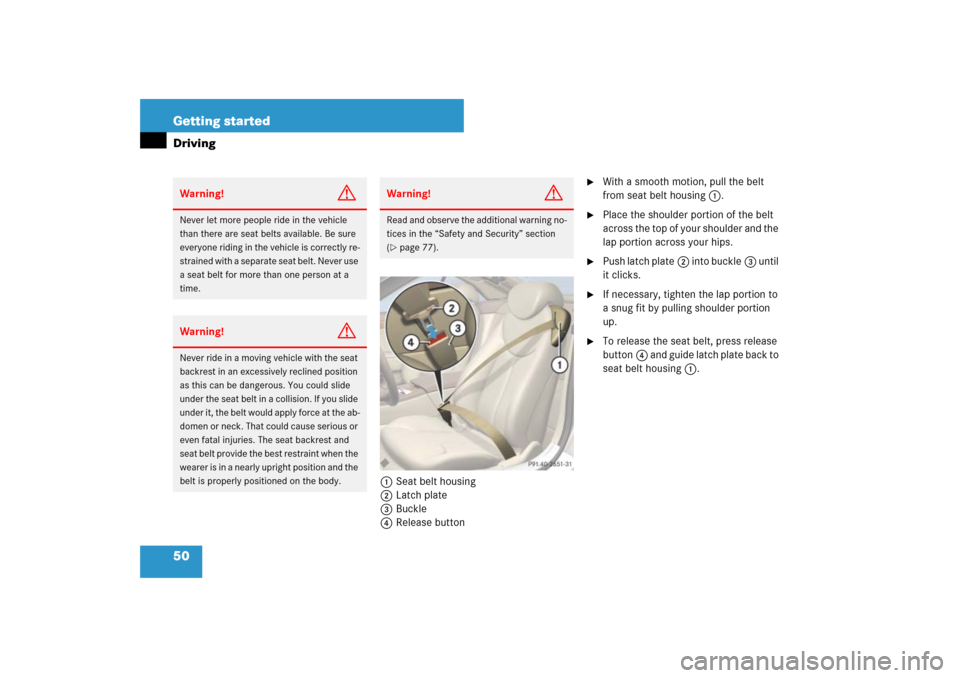

1Seat belt housing
2Latch plate
3Buckle
4Release button

With a smooth motion, pull the belt
from seat belt housing1.

Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.

Push latch plate2 into buckle3 until
it clicks.

If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.

To release the seat belt, press release
button4 and guide latch plate back to
seat belt housing1.
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly re-
strained with a separate seat belt. Never use
a seat belt for more than one person at a
time.Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!
G
Read and observe the additional warning no-
tices in the “Safety and Security” section
(page 77).

51 Getting started
Driving
Proper use of seat belts

Do not twist the belt when fastening.


Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm.


Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.


Place the seat backrest in a nearly up-
right position.


Never use a seat belt for more than one
person at a time.


Do not fasten a seat belt around a per-
son and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer’s instructions


Check your seat belt during travel to
make sure that it is properly
positioned.


Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.

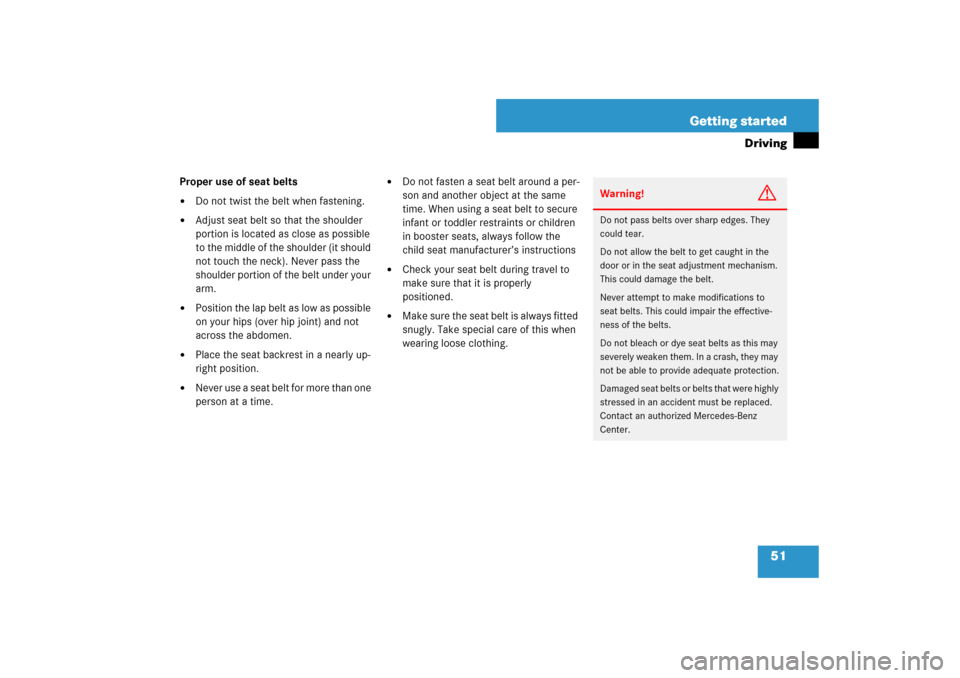

Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.

52 Getting startedDrivingStarting the engine Automatic transmission
Gearshift pattern for automatic
transmissionP Park position with gear selector lever
lock
R Reverse gear
N Neutral
D Drive position
For more information, see “Automatic
transmission” (
page 168).Starting with the SmartKey

Make sure the gear selector lever is set
to P.

Do not depress the accelerator.

Turn the SmartKey in the starter switch
to position3 and hold until the engine
starts (
page 40).
For information on turning off the engine
with the SmartKey, see “Turning off with
the SmartKey” (
page 62).
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause un-
consciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open.
i
You can also use the “touch-start” function.
Turn the SmartKey to position3 and release it
again immediately. The engine then starts auto-
matically.

53 Getting started
Driving
Starting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button on the
gear selector lever.KEYLESS-GO start/stop button1USA only
2Canada only
Make sure the gear selector lever is set
to P.

Depress the brake pedal during the
starting procedure. Do not depress ac-
celerator.

Press the KEYLESS-GO start/stop
button once.
The engine starts if the SmartKey with
KEYLESS-GO is in the vehicle.
For information on turning off the engine
with KEYLESS-GO, see “Turning off with
KEYLESS-GO*” (
page 62).
Starting difficulties
If the engine does not start as described,
carry out the following steps:

If you are starting the engine with the
SmartKey: Turn SmartKey in starter
switch to position0 and repeat starting
procedure.

If you are starting the engine with
KEYLESS-GO*: Close any doors that
may be open to allow for better detec-
tion of the SmartKey with
KEYLESS-GO.
Or:
Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO*.

Repeat the starting procedure
(page 52). Remember that extended
starting attempts can drain the battery.

Get a jump start (
page 419).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Contact an authorized Mercedes-Benz
Center.

54 Getting startedDrivingParking brake
1Release handle
2Parking brake pedal

Release the parking brake by pulling on
release handle1.
The indicator lamp;(USA only)
or3 (Canada only) in the instru-
ment cluster goes out.
Driving off
Depress the brake pedal.

Place the gear selector lever in
positionD orR.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Children
could release the parking brake, which
could result in an accident and/or serious
injury.
Warning!
G
It is dangerous to shift the gear selector le-
ver out ofP orN if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.

55 Getting started
Driving

Release the brake pedal.

Carefully depress the accelerator
pedal.
Once the vehicle is in motion, the automat-
ic central locking system engages and the
locking knobs drop down.After a cold start, the transmission engag-
es at a higher revolution. This allows the
catalytic converter to reach its operating
temperature earlier.
Switching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch1Off
2Low beam headlamps on
Turn the exterior lamp switch to
position B.
The low beam headlamps come on.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.!
In order to avoid damage to the transmis-
sion:


Wait for the gear selection process to com-
plete before setting the vehicle in motion.


Place the gear selector lever in positionD
orR only when the vehicle is stopped.
!
If you hear a warning signal and the mes-
sage Release parking brake
appears in the
multifunction display when driving off, you have
forgotten to release the parking brake.
Release the parking brake.
!
Do not run cold engine at high engine speed.
Running a cold engine at high engine speed may
shorten the service life of the engine.
!
Simultaneously depressing the accelerator
pedal and applying the brake reduces engine
performance and causes premature brake and
drivetrain wear.
i
You can open a locked door from the inside.
Open door only when conditions are safe to do
so.
You can deactivate the automatic locking using
the control system (
page 162).

56 Getting startedDrivingHigh beam
The combination switch is located on the
left of the steering column.Combination switch1High beam
2High beam flasher
Push the combination switch in direc-
tion of arrow 1.
The high beam headlamps come on.
The high beam headlamp indicator
A in the instrument cluster comes
on (
page 29).
For more information, see “Lighting”
(
page 128).
Turn signals
The combination switch is located on the
left of the steering column.Combination switch1Turn signals, right
2Turn signals, left
Press the combination switch in direc-
tion of arrow1 or2.
The corresponding turn signal indicator
lampKorLin the instrument
cluster flashes (
page 27).The combination switch resets automati-
cally after major steering wheel move-
ments.
i
To signal minor directional changes such as
changing lanes, press combination switch only
to point of resistance and release. The corre-
sponding turn signals will flash three times.

57 Getting started
Driving
Windshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Switching on windshield wipers
2Single wipe
Wiping with windshield washer fluid
Switch on the ignition (
page 39).Switching on windshield wipers

Turn the combination switch in direc-
tion of arrow 1 to the desired position,
depending on the intensity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speedIntermittent wiping
The intermittent wiping interval is depen-
dent on the wetness of the windshield.

Turn the combination switch in direc-
tion of arrow 1 to positionI.
After the initial wipe, pauses between
wipes are controlled by the rain sensor.
!
Do not operate the windshield wipers when
the windshield is dry. Dust that accumulates on
a windshield might scratch the glass and/or
damage the wiper blades when wiping occurs on
a dry windshield. If it is necessary to operate the
windshield wipers in dry weather conditions, al-
ways operate the windshield wipers with wind-
shield washer fluid (
page 58).
!
Do not leave windshield wipers in intermit-
tent setting when the vehicle is taken to an auto-
matic car wash or during windshield cleaning.
Windshield wipers will operate in the presence of
water sprayed on the windshield, and windshield
wipers may be damaged as a result.
!
If you have set intermittent wiping, dirt on
the surface of the rain sensor or optical effects
may cause the windshield wipers to wipe in an
undesired fashion. This could then damage the
windshield wiper blades or scratch the windows.
You should therefore switch off the windshield
wipers when weather conditions are dry.


58 Getting startedDrivingSingle wipe
Press the combination switch briefly in
direction of arrow2 to the resistance
point.
The windshield wipers wipe one time
without washer fluid.Wiping with windshield washer fluid

Push the combination switch in direc-
tion of arrow2 past the resistance
point.
The windshield wipers operate with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 282).
i
Intermittent wiping is interrupted when the
vehicle is at a standstill and a front door is
opened. This protects persons getting into or out
of the vehicle from being sprayed.
Intermittent wiping will be continued when


all doors are closed and the gear selector
lever is in positionD or R
or


the wiper setting is changed using the com-
bination switch
i
To prevent smears on the windshield, wipe
with windshield washer fluid every now and then
even when it is raining.
!
If anything blocks the windshield wipers
(leaves, snow, etc.), switch them off immediate-
ly.


For safety reasons, stop the vehicle in a safe
location and

remove the SmartKey from the starter
switch
or


turn off the engine by pressing the
KEYLESS-GO* start/stop button and
open the driver’s door (with the driver’s
door open, the starter switch is in posi-
tion 0, same as with the SmartKey re-
moved from the starter switch)
before attempting to remove any blockage.


Remove blockage.


Turn the windshield wipers on again.
If the windshield wipers fail to function at all in
switch positionI,


set the combination switch to the next high-
er wiper speed


have the windshield wipers checked at the
nearest authorized Mercedes-Benz Center


59 Getting started
Driving
Problems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.The coolant temperature gauge is
above 248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible in
a safe location and turn off the engine.
Allow engine and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 280).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.
