180 Controls in detailAutomatic climate control

181 Controls in detail
Automatic climate control

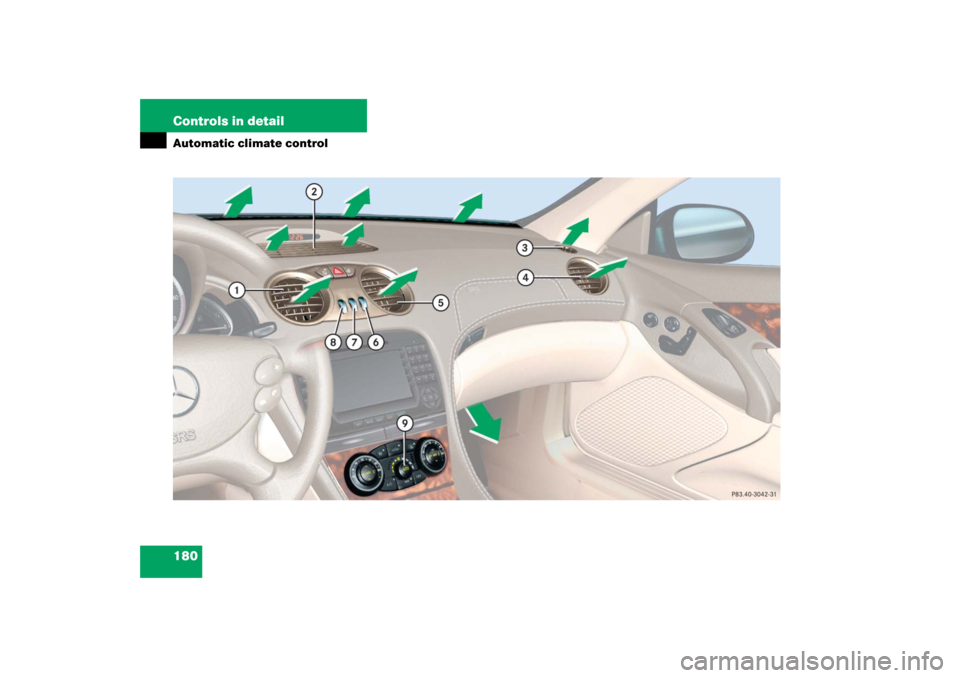

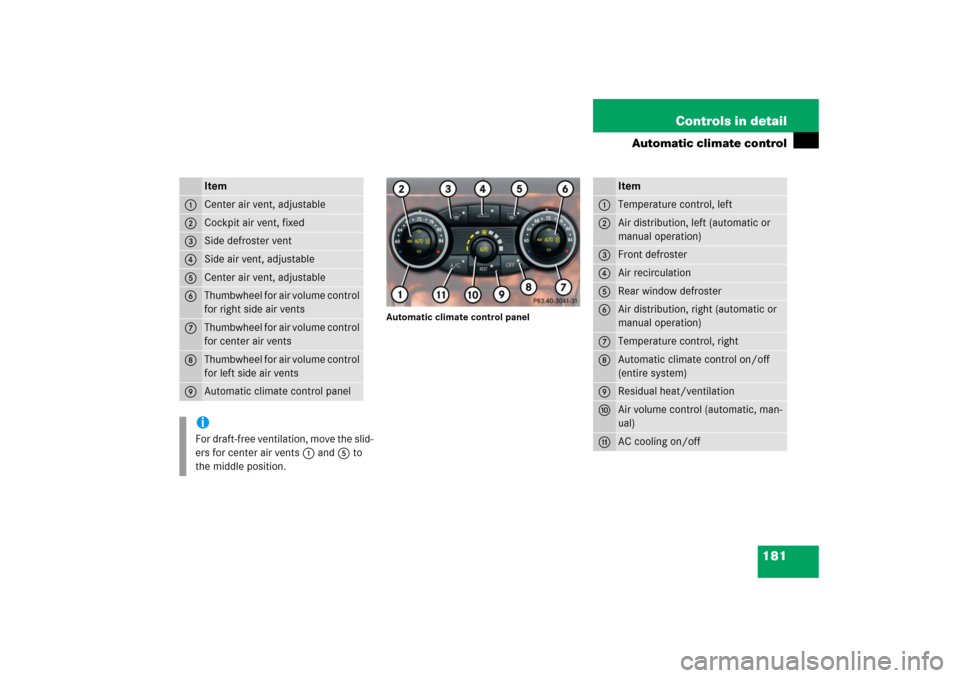

Automatic climate control panel
Item
1
Center air vent, adjustable
2
Cockpit air vent, fixed
3
Side defroster vent
4
Side air vent, adjustable
5
Center air vent, adjustable
6
Thumbwheel for air volume control
for right side air vents
7
Thumbwheel for air volume control
for center air vents
8
Thumbwheel for air volume control
for left side air vents
9
Automatic climate control paneliFor draft-free ventilation, move the slid-
ers for center air vents 1 and 5 to
the middle position.
Item
1
Temperature control, left
2
Air distribution, left (automatic or
manual operation)
3
Front defroster
4
Air recirculation
5
Rear window defroster
6
Air distribution, right (automatic or
manual operation)
7
Temperature control, right
8
Automatic climate control on/off
(entire system)
9
Residual heat/ventilation
a
Air volume control (automatic, man-
ual)
b
AC cooling on/off

182 Controls in detailAutomatic climate controlThe automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control system in ei-
ther the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/Cmode is deactivated
(
page 189).

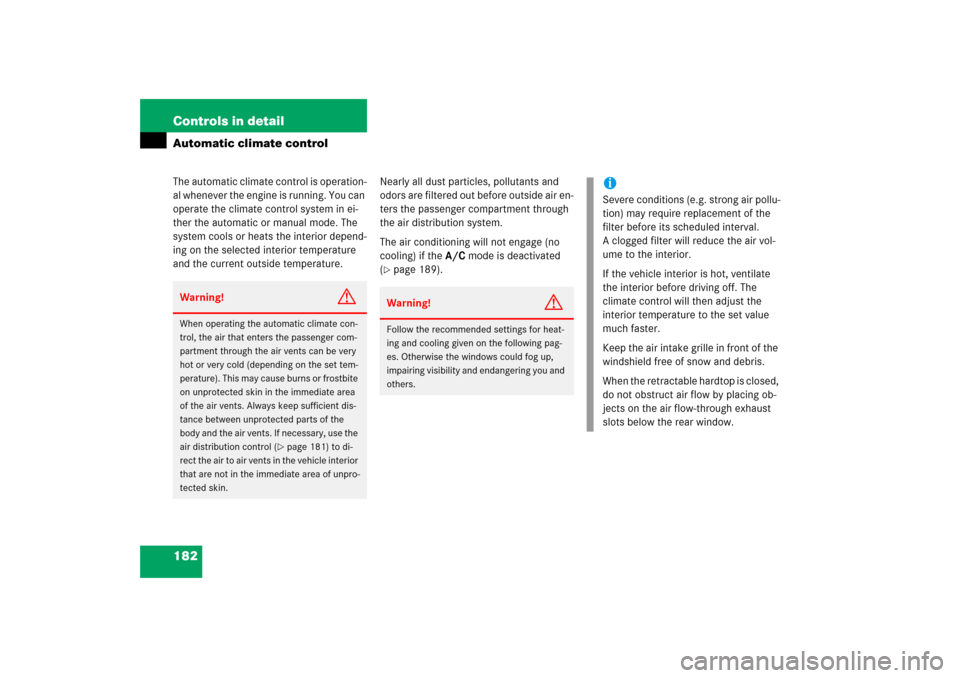

Warning!
G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents can be very
hot or very cold (depending on the set tem-
perature). This may cause burns or frostbite
on unprotected skin in the immediate area
of the air vents. Always keep sufficient dis-
tance between unprotected parts of the
body and the air vents. If necessary, use the
air distribution control (
page 181) to di-
rect the air to air vents in the vehicle interior
that are not in the immediate area of unpro-
tected skin.
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air pollu-
tion) may require replacement of the
filter before its scheduled interval.
A clogged filter will reduce the air vol-
ume to the interior.
If the vehicle interior is hot, ventilate
the interior before driving off. The
climate control will then adjust the
interior temperature to the set value
much faster.
Keep the air intake grille in front of the
windshield free of snow and debris.
When the retractable hardtop is closed,
do not obstruct air flow by placing ob-
jects on the air flow-through exhaust
slots below the rear window.

183 Controls in detail
Automatic climate control
Deactivating the automatic climate control system
Deactivating
Press button ´ (
page 181).
The indicator lamp on the button
comes on.Reactivating

Press button ´ (
page 181).
The indicator lamp on the button goes
out.
The previous settings are in effect
again.
or

Turn one of the temperature controls
on the automatic climate control panel
(page 181).
The indicator lamp on button ´
goes out.Operating the climate control system
in automatic mode
Air distribution and air volume can be ad-
justed automatically by the automatic cli-
mate control system. You can also adjust
the settings for air distribution and air vol-
ume manually.
iWhen the automatic climate control
system is switched off, the outside air
supply and circulation are also
switched off. Only choose this setting
when the retractable hardtop is open.
Otherwise the windows could fog up.
iWhen operating the climate control
system in automatic mode, you will
only rarely need to adjust the tempera-
ture, air volume and air distribution.
In automatic mode, cooling with dehu-
midify is switched on. This function can
be switched off if necessary
(page 181).

184 Controls in detailAutomatic climate controlAir distribution in automatic mode
You can separately adjust the air distribu-
tion for each side of the passenger com-
partment.
Activating
Press control button2 or 6
(page 181).
The control button is engaged. The
U symbol on the control button
comes on. Air distribution for the re-
spective side of the passenger com-
partment is adjusted automatically.
Deactivating

Press control button 2 or 6
(page 181) once more.
The control button sticks up slightly.
The U symbol on the control button
goes out. Automatic air distribution for
the respective side of the passenger
compartment is switched off. Adjust
the air distribution manually
(page 185).Air volume in automatic mode
The air volume settings are the same for
the entire passenger compartment.
Activating

Press control button a (
page 181).
The control button is engaged. The
U symbol on the control button
comes on.
Deactivating

Press control button a (
page 181)
again.
The control button sticks up slightly.
The U symbol on the control button
goes out. Adjust the air volume manu-
ally (
page 186).
Setting the temperature
Use temperature controls1 and7
(page 181) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The automatic climate control will adjust
to the set temperature as fast as possible.
Increasing

Turn temperature control1 and/or
7 (
page 181) slightly clockwise.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Decreasing

Turn temperature control1 and/or
7 (
page 181) slightly counterclock-
wise.
The automatic climate control system
will correspondingly adjust the interior
air temperature.

185 Controls in detail
Automatic climate control
Adjusting air distribution
Use air distribution controls2 and6
(page 181) to separately adjust the air
distribution on each side of the passenger
compartment. The following symbols are
found on the controls:

Press control button 2 or 6
(page 181) until the control button
sticks up slightly and the U symbol
on the control button is out.
Automatic air distribution for the re-
spective side of the passenger com-
partment is switched off.

Turn control button to the desired sym-
bol.
The air distribution is adjusted accord-
ing to the chosen setting.
Opening the center air vents

Turn the thumbwheel 7 (
page 180)
upward to the first stop.
Center air vents 1 and 5
(
page 180) are open.
Opening the cockpit air vent and center
air vents

Turn the thumbwheel 7 (
page 180)
upward all the way.
Cockpit air vent 2 and center air vents
1 and 5 (
page 180) are open.Closing the cockpit air vent and center
air vents

Turn the thumbwheel 7 (
page 180)
downward.
Cockpit air vent 2 and center air vents
1 and 5 (
page 180) are closed.
Opening the side air vents

Turn the thumbwheel 6 and 8
(page 180) upward.
The corresponding side air vent is
open.
Closing the side air vents

Turn the thumbwheel 6 and 8
(page 180) upward.
The corresponding side air vent is
closed.

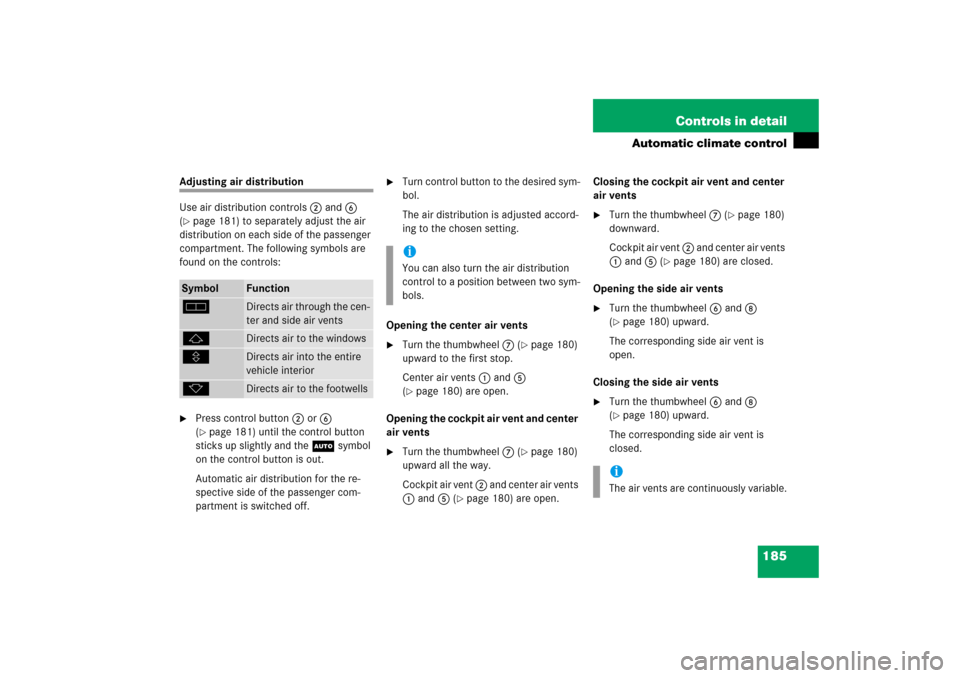

Symbol
Function
h
Directs air through the cen-
ter and side air vents
j
Directs air to the windows
V
Directs air into the entire
vehicle interior
k
Directs air to the footwells
iYou can also turn the air distribution
control to a position between two sym-
bols.
iThe air vents are continuously variable.

186 Controls in detailAutomatic climate controlAdjusting air volume
Use air volume controla (
page 181) for
both automatic (
page 183) and manual
air volume adjustment. Nine blower
speeds are available.

Press control buttona (
page 181).
The control button sticks up slightly.
The U symbol on the control button
goes out. Automatic air volume control
is switched off. The air volume is ad-
justed corresponding to the set blower
speed.
Maximum cooling MAXCOOL
If the left and right air distribution controls
as well as the airflow volume control are
set to U and there is a high need for
cooling, MAXCOOL is activated.
“MAXCOOL” appears on the temperature
controls 1 and 7 (
page 181).
This provides the fastest possible cooling
of the vehicle interior (when retractable
hardtop is closed).

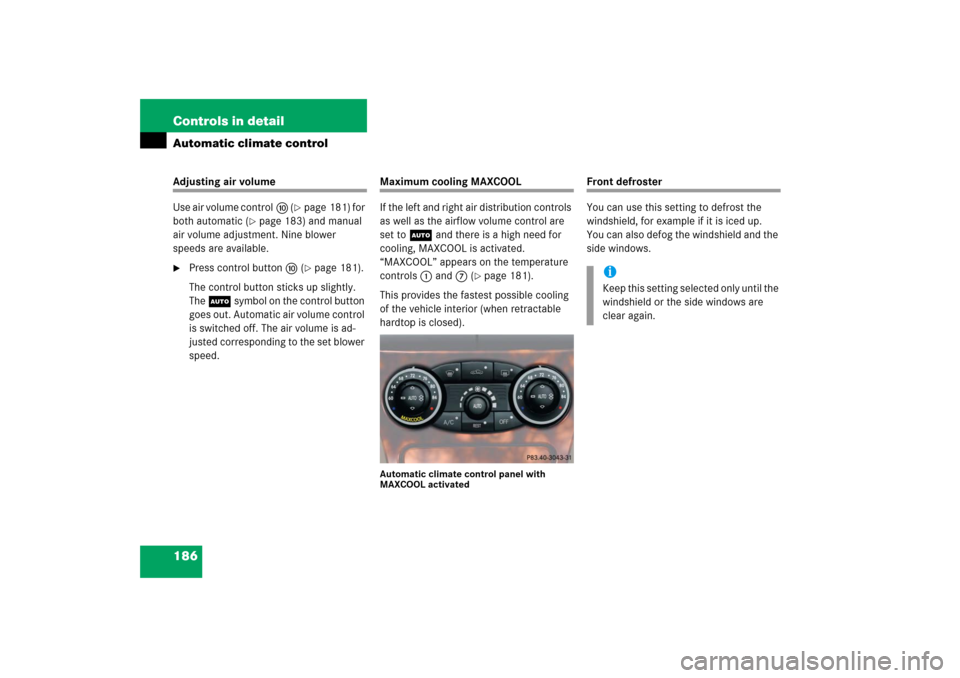

Automatic climate control panel with
MAXCOOL activated
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up.
You can also defog the windshield and the
side windows.
iKeep this setting selected only until the
windshield or the side windows are
clear again.

187 Controls in detail
Automatic climate control
Activating
Press button P (
page 181).
The indicator lamp on the button
comes on.
The air conditioning switches to the fol-
lowing functions automatically:


cooling on to dehumidify


maximum blower speed and
heating power


air flows onto the windshield
and the front side windows


the air recirculation mode is
switched off
Deactivating

Press button P (
page 181).
The indicator lamp on the button goes
out. Defrosting is turned off.
The previous settings are in effect
again.Windshield fogged on the outside

Switch the windshield wipers on
(page 54).
If the automatic air distribution and air vol-
ume are switched off:

Turn air distribution controls2 and 6
(page 181) to position h ork.
or

Press control buttons 2, 6 and a
(page 181).
The control buttons are engaged. The
U symbol on the control buttons
come on. Air distribution and air vol-
ume are adjusted automatically.
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside. This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.
iThe cooling remains switched on.iKeep this setting selected only until the
windshield is clear again.

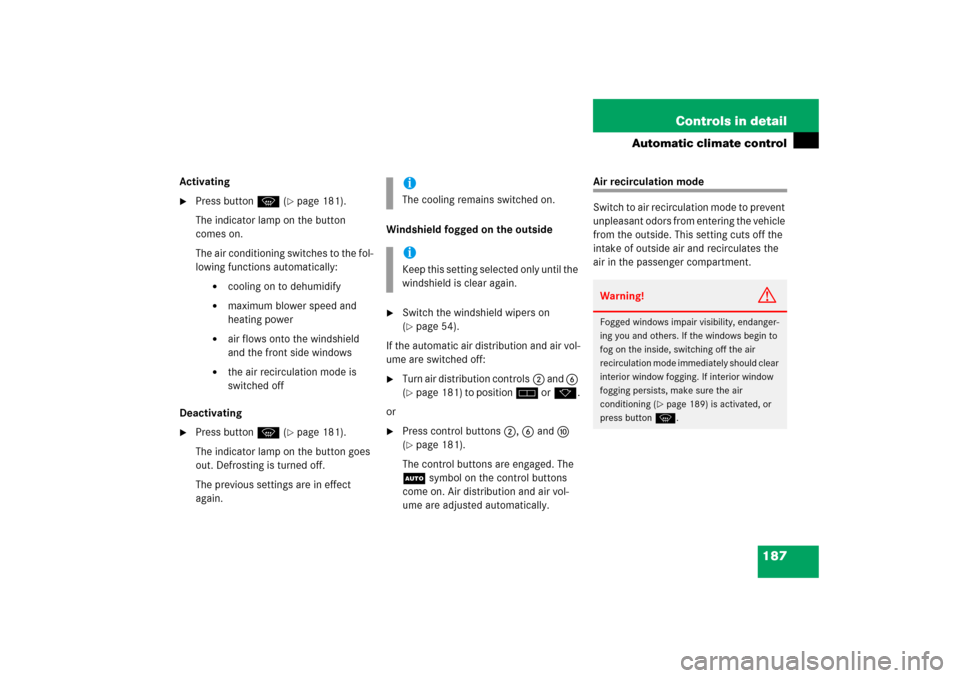

Warning!
G
Fogged windows impair visibility, endanger-
ing you and others. If the windows begin to
fog on the inside, switching off the air
recirculation mode immediately should clear
interior window fogging. If interior window
fogging persists, make sure the air
conditioning (
page 189) is activated, or
press buttonP.

188 Controls in detailAutomatic climate controlActivating
Briefly press button,
(page 181).
The indicator lamp on the button
comes on.Deactivating

Briefly press button ,
(page 181).
The indicator lamp on the button goes
out.
iThe air recirculation mode is activated
automatically

at high outside temperatures


if the concentration of carbon mon-
oxide and nitrogen oxide in the out-
side air increases, for example in a
tunnel
The indicator lamp on button, is
not lit when the air recirculation mode
is automatically switched on.
A quantity of outside air is added after
approximately 30 minutes.
Warning!
G
Never operate the side windows if there is
the possibility of anyone being harmed by
the closing procedure.
In the event that the procedure causes po-
tential danger, the closing of the side win-
dows can be immediately halted by
releasing the, button.iPress and hold button,. The win-
dows will close.
The closing of the windows can be im-
mediately halted by releasing
button,.
iThe air recirculation mode is deactivat-
ed automatically

after five minutes if the outside
temperature is below approximate-
ly 41°F (5 °C)


after five minutes if the air condi-
tioner is turned off


after 30 minutes if the outside tem-
perature is above approximately
41°F (5 °C)

189 Controls in detail
Automatic climate control
At outside temperatures above 79°F
(26 °C) the system will not automatically
switch back to outside air.
Air conditioning
The air conditioning (cooling) function is
operational when the engine is running and
cools the vehicle interior down to the se-
lected temperature. In addition, the cool-
ing function dehumidifies the air in the
vehicle interior, thus preventing the win-
dows from fogging up.Deactivating
It is possible to deactivate the cooling
function of the automatic climate control
system. The air in the vehicle will then no
longer be cooled or dehumidified.

Press button 2 (
page 181).
The indicator lamp on the button goes
out. The cooling function switches off
after a short delay.
iPress and hold button,. The win-
dows will open.
The opening of the windows can be im-
mediately halted by releasing
button,.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.Warning!
G
If you turn off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog
up more quickly. Window fogging may
impair visibility and endanger you and
others.
