MERCEDES-BENZ SL65AMG 2006 R230 Owner's Manual

200 Controls in detailRetractable hardtopClosing the retractable hardtop with
the SmartKey (Convenience feature)
Aim the transmitter eye at the door
handle.
The SmartKey must be in close proxim-
ity to the outside door handle.

Press and hold button ‹ until the
retractable hardtop is completely
closed.
The retractable hardtop and the side
windows close. In the tachometer dis-
play you will see the message Retractable roof Closed
.Problems when operating the
retractable hardtop
Indicator lamp in the retractable hard-
top switch is flashing
Several conditions may cause the indicator
lamp in the hardtop switch to flash when
activated:


The luggage cover in the trunk is not
closed.
Close the luggage cover in the
trunk.


The trunk lid is open.
Close the trunk lid.


The battery voltage is too low.
Start engine and let run while acti-
vating switch.
Warning!
G
If the retractable hardtop does not com-
pletely open or close, a warning sounds and
the retractable hardtop switch flashes. In
the speedometer display you will see K,
in the tachometer display you will see the
message
being lowered
. After about
15 seconds the roof hydraulics lose pres-
sure.
Properly lock the retractable hardtop
(
page 198) before continuing to drive.

201 Controls in detail
Retractable hardtop


The hardtop drive system has shut it-
self down. For safety reasons, no more
than five consecutive attempts may be
made to raise or lower the hardtop.
After about 10 minutes you may
again attempt to open or close the
retractable hardtop.
If the indicator lamp in the retractable
hardtop switch flashes when starting off or
while driving and you hear a warning sound
for a maximum of 10 seconds, the retract-
able hardtop is not locked.

Properly lock the retractable hardtop
(page 198) before continuing to
drive.
If the indicator lamp continues to flash af-
ter you have carried out the above actions,
there is a malfunction.

Have the retractable hardtop system
checked at an authorized
Mercedes-Benz Center.Indicator lamp in the retractable hard-
top switch is on when vehicle is stopped
If the indicator lamp in the retractable
hardtop switch comes on while the vehicle
is standing still and the switch was not ac-
tivated, then the retractable hardtop is not
locked.

Properly lock the retractable hardtop
(page 198) before continuing to
drive.
The retractable hardtop will not lock
There is a malfunction in the retractable
hardtop system.

Notify an authorized Mercedes-Benz
Center.Wind screen
The wind screen deflects drafts away from
the driver and passenger when the hardtop
is lowered. It is stored in a separate stor-
age bag.
Installing

Leave the wind screen folded and place
it on the roll bar.Warning!
G
The wind screen can restrict the driver’s vi-
sion to the rear of the vehicle. To prevent a
possible accident when visibility is limited
(e.g. in darkness), the upper part of the wind
screen should be folded back.

202 Controls in detailRetractable hardtop1Guide tabs
Slide the wind screen into the roll bar
until the guide taps on each side latch
underneath the roll bar. Make sure the
fastening straps do not get caught.

Raise the roll bar slightly (
page 75).2Buckle

Guide the fastening straps around the
top of the roll bar and close buckles 2.

Tighten the fastening straps if neces-
sary.

Lower the roll bar.

Fold the upper section of the wind
screen up towards the head restraints
until it stops.Removing

Fold the upper section of the wind
screen back down.

Raise the roll bar slightly (
page 75).
1Release button

Undo the buckles on the upper section
of the roll bar by pressing release
button1.

203 Controls in detail
Retractable hardtop

Lower the roll bar. Make sure the fas-
tening straps do not get caught.

Pull the wind screen out towards the
front of the vehicle. Be careful not to
damage interior trim with the guide
tabs.

Place the wind screen back into the
bag.Sunshade for panorama roof*
The sunshade protects you from excessive
sunlight coming in through the panorama
roof.
1Stop buttons
2HandleOpening

Squeeze stop buttons1 and guide the
sunshade towards the rear.
Closing

Using handle2, slide the sunshade
towards the front of the vehicle.
Warning!
G
Do not operate the sunshade while driving.
Adjusting the sunshade while driving could
cause the driver to lose control of the vehi-
cle.

204 Controls in detailDriving systemsThe driving systems of your vehicle are de-
scribed on the following pages:

Cruise control and Distronic*, with
which the vehicle can maintain a preset
speed


ABC with vehicle level control systems,
with which you can change vehicle sus-
pension characteristics


Parktronic*, which assists the driver
during parking maneuvers
For information on the BAS, ABS, and
ESP®, see “Driving safety systems”
(
page 82).
Cruise control
The cruise control automatically maintains
the speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. Cruise control can be set
at any speed above 20 mph (30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever found on the left-hand side of the
steering column (
page 22).
Warning!
G
The cruise control is a convenience system
designed to assist the driver during vehicle
operation. The driver is and must remain at
all times responsible for the vehicle speed
and for safe brake operation.
Only use the cruise control if the road,
traffic, and weather conditions make it ad-
visable to travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate the cruise control when driv-
ing in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

205 Controls in detail
Driving systems
1Set current or higher speed
2Set current or lower speed
3Cancel cruise control
4Resume at last set speedSetting current speed

Accelerate or decelerate to the desired
speed.

Briefly lift1 or depress2 the cruise
control lever.
The current speed is set.

Remove your foot from the accelerator
pedal.
The cruise control is activated.
The selected speed appears in the multi-
function display.Canceling cruise control
There are several ways to cancel the cruise
control:

Step on the brake pedal.
The cruise control is canceled. The last
speed set is stored for later use.
or

Briefly push the cruise control lever in
direction of arrow3.
The cruise control is canceled. The last
speed set is stored for later use.
Warning!
G
Cruise control brakes automatically so that
the set speed is not exceeded.
Keep in mind that cruise control is a conve-
nience system designed to assist the driver
during vehicle operation. The driver is and
must remain at all times responsible for the
vehicle speed and for safe brake operation.
iOn uphill or downhill grades, the cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
On downhill grades, the cruise control
maintains the set speed with active
braking action. In addition, on longer
downhill grades, the automatic trans-
mission will automatically downshift.

206 Controls in detailDriving systems
Setting a higher speed
Lift the cruise control in direction of
arrow1 (
page 205) and hold it
there until the desired speed is
reached.

Release the cruise control lever.
The new speed is set.
Setting a lower speed

Depress the cruise control in direction
of arrow2 (
page 205) and hold it
there until the desired speed is
reached.

Release the cruise control lever.
The new speed is set.
iThe cruise control switches off auto-
matically if

you step on the brake pedal


you depress the parking brake
pedal
The cruise control also switches off au-
tomatically when


the vehicle speed is below
20 mph (30 km/h) (
page 204)


the ESP
® is in operation or switched
off with the ESP
® switch
(
page 86)


you move the gear selector lever to
positionN while driving
An acoustic warning sounds and the
message
CC Off
appears in the multi-
function display for approximately
5 seconds.
iDepressing the accelerator pedal does
not deactivate the cruise control. After
brief acceleration (e.g. for passing), the
cruise control will resume the last
speed set.iThe last stored speed is canceled when
you turn off the engine.!Moving the gear selector lever to
positionN while driving also cancels
cruise control. However, the gear se-
lector lever should not be moved to
positionN while driving except to coast
when the vehicle is in danger of skid-
ding (e.g. on icy roads).
iWhen you use the cruise control lever
to decelerate, the brake system will au-
tomatically brake the vehicle if the en-
gine’s braking power does not brake
the vehicle sufficiently.

207 Controls in detail
Driving systems
Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster
Briefly tip the cruise control lever in
direction of arrow1 (
page 205).
Slower

Briefly tip the cruise control lever in
direction of arrow2 (
page 205).Setting to last stored speed
(“Resume” function)

Briefly pull the cruise control lever in di-
rection of arrow4 (
page 205).
The cruise control will resume the last
set speed.

Remove your foot from the accelerator
pedal.
The selected speed appears in the mul-
tifunction display.
Distronic*
When activated, the Distronic adaptive
cruise control system increases the driving
convenience afforded by the cruise control
during travel on expressways and other
major roads.

If the Distronic distance sensor detects
a slower moving vehicle directly ahead,
your vehicle speed will be reduced so
that you follow that vehicle at a preset
distance.


If there is no vehicle directly ahead of
you, Distronic will function in the same
way as cruise control (
page 204).
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to the pre-
set speed could cause an accident and/or
serious injury to you and others.
Warning!
G
Distronic adaptive cruise control is no sub-
stitute for active driving involvement. It does
not react to stationary objects, nor recog-
nize or predict the curvature and lane layout
or the movement of vehicles ahead. Distron-
ic can only apply a maximum of 20% of the
vehicle’s braking power.


208 Controls in detailDriving systemsIt is the driver’s responsibility at all times to
be attentive to road, weather and traffic con-
ditions and to provide the steering, braking
and other driving inputs necessary to retain
control of the vehicle.Warning!
G
Distronic is a convenience system, its speed
adjustment reduction capability is intended
to make cruise control more effective and
usable when traffic speeds vary. It is not
however, intended to, nor does it, replace
the need for extreme care. The responsibili-
ty for the vehicle speed and the distance to
the vehicle ahead, including most impor-
tantly brake operation to assure safe stop-
ping distance, always rests with the driver.
Distronic cannot take street and traffic con-
ditions into account.
Warning!
G
Distronic requires familiarity with its opera-
tional characteristics. We strongly recom-
mend that you review the following
information carefully before operating the
system.iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.Warning!
G
Distronic cannot take street and traffic con-
ditions into account. Only use Distronic if
the weather and traffic conditions make it
advisable to travel at a steady speed.


209 Controls in detail
Driving systems
Distronic displays in the speedometer
dial
If Distronic detects a vehicle directly
ahead, the DTR indicator lamp E in the
speedometer dial comes on white.
If Distronic calculates that there is a dan-
ger of collision

the DTR warning lamp E in the
speedometer comes on red


an intermittent warning sounds

Immediately brake the vehicle to avoid
a collision.
Under no circumstances should the
driver await the intermittent warning
sound before braking. See the follow-
ing warning note.
The intermittent warning sound ceases
and the red DTR warning lamp E
goes out when the necessary distance
to the vehicle ahead is again estab-
lished.

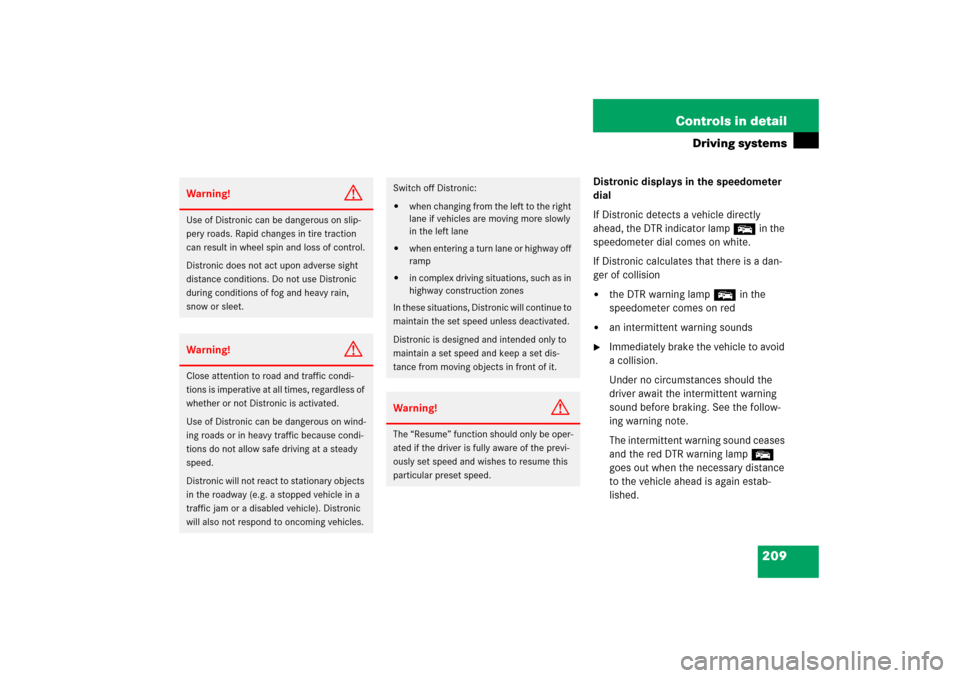

Warning!
G
Use of Distronic can be dangerous on slip-
pery roads. Rapid changes in tire traction
can result in wheel spin and loss of control.
Distronic does not act upon adverse sight
distance conditions. Do not use Distronic
during conditions of fog and heavy rain,
snow or sleet.Warning!
G
Close attention to road and traffic condi-
tions is imperative at all times, regardless of
whether or not Distronic is activated.
Use of Distronic can be dangerous on wind-
ing roads or in heavy traffic because condi-
tions do not allow safe driving at a steady
speed.
Distronic will not react to stationary objects
in the roadway (e.g. a stopped vehicle in a
traffic jam or a disabled vehicle). Distronic
will also not respond to oncoming vehicles.
Switch off Distronic:

when changing from the left to the right
lane if vehicles are moving more slowly
in the left lane


when entering a turn lane or highway off
ramp


in complex driving situations, such as in
highway construction zones
In these situations, Distronic will continue to
maintain the set speed unless deactivated.
Distronic is designed and intended only to
maintain a set speed and keep a set dis-
tance from moving objects in front of it.
Warning!
G
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.
