MERCEDES-BENZ SLK-Class 2005 R171 Comand Manual

90 Satellite radio*Satellite radio operationTuning using the multifunction steering
wheel
Switch the multifunction display in the
instrument cluster to Satellite radio
display (
page 25).

Pressk.
The search proceeds in ascending or-
der;
or

Pressj.
The search proceeds in descending or-
der.
The search stops at the first receivable
station. Tuning via scan search
Scan search is characterized as follows:

Scan search plays a channel for
approx. 8 seconds and then skips to
the next channel within the current
category.

Scan search can be ended manually.

Scan search stops automatically at the
station that was playing when scan
search was started.

Press the
Scan
soft key.
The scan search starts.

Press the
Scan
soft key again.
The scan search stops.Additional text information (artist and
track title) related to the current broadcast
can be displayed.

Press the
Info
soft key.
Obtaining additional text
information

91 Satellite radio*
Satellite radio operation
Two options are available:
Storing using the number keys

Storing using the Presets menu
Storing via number keys

Press and hold a number key between
3 and " for more than 2 seconds.
The currently selected station is stored
in the corresponding preset location.Storing via Presets menu

Press the
Presets
soft key.
The Preset list appears.

Use or  to select a preset loca-
tion.

Press for more than 2 seconds.
The currently selected station is stored
in the corresponding preset location.
Resetting Presets menu
The Presets
soft key is active indicated by
its color.

Press the
Presets
soft key again.
All channels in the Preset list are delet-
ed.
Storing stationsiWhen storing a station out of the cate-
gory
All
, later selection of this channel
does not lead into the category mode.

92 Satellite radio*Satellite radio operation

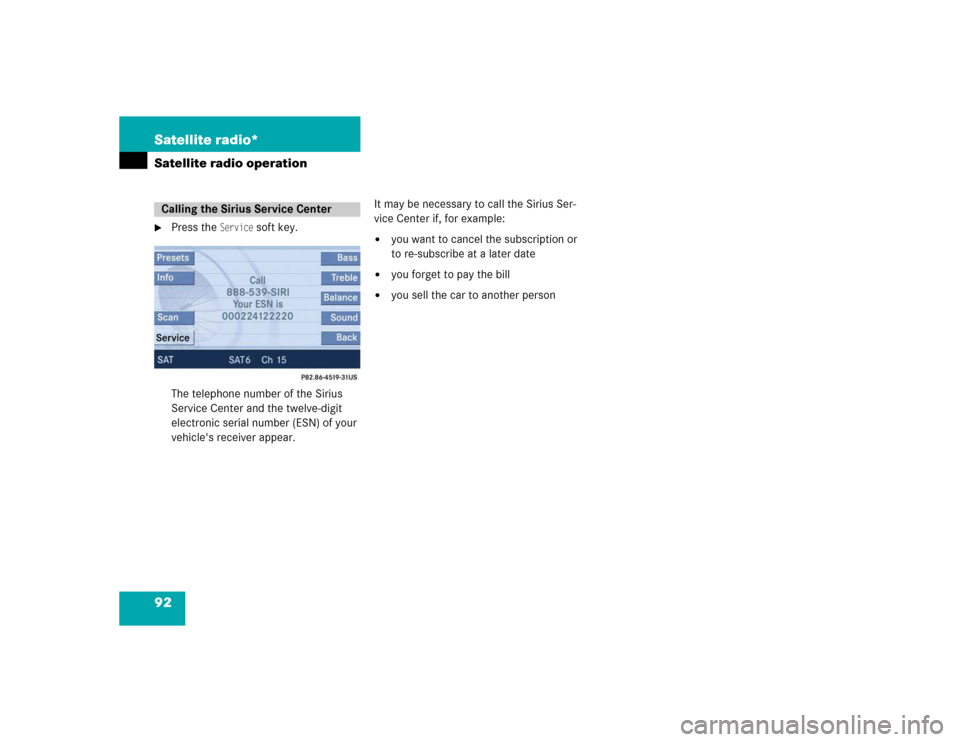

Press the
Service
soft key.
The telephone number of the Sirius
Service Center and the twelve-digit
electronic serial number (ESN) of your
vehicle's receiver appear.It may be necessary to call the Sirius Ser-
vice Center if, for example:

you want to cancel the subscription or
to re-subscribe at a later date

you forget to pay the bill

you sell the car to another person
Calling the Sirius Service Center

93
Important notes
Telephone operation
Phone book
SMS (Mail)
Telephone*

94 Telephone*Important notes1 Observe all legal requirementsSafety instructionsWarning
G
Some jurisdictions prohibit the driver from
using a cellular telephone while driving.
Whether or not prohibited by law, for safety
reasons, the driver should not use the cellu-
lar telephone while the vehicle is in motion.
Stop the vehicle in a safe location before
placing or answering a call.
If you nonetheless choose to use the cellular
phone while driving, please use the hands-
free device and be sure to pay attention to
the traffic situation at all times. Use the cel-
lular phone
1 only when road, weather and
traffic conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
Warning
G
Never operate radio transmitters provided
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to malfunction
of the vehicle's electronic system, possibly
resulting in an accident and/or personal
injury.
Tips on telephone operationiOnce the cellular phone is inserted into
the telephone cradle*, it can be operat-
ed:
using the cell phone itself,

using the COMAND control unit,

using the multifunction steering
wheel, or

using the voice control system*.
Descriptions in this Operator’s Manual
presume that the mobile phone is in-
serted into the telephone cradle*.

95 Telephone*
Important notes

Please read chapter “Telephone*” be-
fore attempting to operate your tele-
phone.

Always drive with extreme caution
when operating the telephone hands-
free.

For safety reasons, the mobile tele-
phone handset should not be used to
place or receive a call while driving.

If the signal is very weak (display in the
status bar):
Wait until reception improves before
placing a call.

Close the windows and reduce all ex-
ternal noise as much as possible when
using hands-free operation.
iThis Operator's Manual describes op-
eration of the telephone using the
COMAND control unit and the multi-
function steering wheel. Unless other-
wise specified, the descriptions and
the illustrated displays refer to the
COMAND control unit.
Operation of the cellular phone and
voice control system* are explained in
separate operation guides.
!Radio transmitters, such as a portable
telephone or a citizens band unit,
should only be used inside the vehicle if
they are connected to a separate exte-
rior antenna approved by Mercedes-
Benz.


96 Telephone*Important notes
Make sure that the air vents are not
pointed in the direction of the micro-
phones located in the overhead control
panel near the rear view mirror. Adjust
air vents and/or reduce blower speed
if necessary.

A brief disconnection from the cellular
network is not a malfunction, as this
can occur when the network switches
areas. The phone automatically at-
tempts to again sign on with a network.

If the message
Enter unlock code
is dis-
played, enter the unlock code
(
page 101). Only then will you be
able to use all the telephone functions.
You will still be able to make 911 emer-
gency calls (
page 98) if the tele-
phone is locked. The telephone cannot, or not yet, be used
in the following situations:

The telephone is already unlocked, but
it is not yet registered with the net-
work.
The message
NO SERV.
appears in the
status bar. The telephone automatical-
ly attempts to register with a network.
If there is no network available, “911”
emergency calls can NOT be placed.
If you try to place an outgoing call, the
message
Call not possible
is displayed
temporarily.

If the message
Telephone being
activated, please wait
is displayed,

If the message
Please insert phone
is
displayed.

Insert the cell phone into the tele-
phone cradle*.

97 Telephone*
Telephone operation

Telephone operation
Switching ON
The telephone is switched ON automatical-
ly when COMAND is activated. The cell
phone must be readily inserted into the
cradle*.
If COMAND is switched ON, the switched
OFF telephone can also be switched ON
manually:
Press and hold for a few seconds
until the telephone is switched ON.
The Telephone main menu appears
(page 102).One of the following messages could also
appear:

Please insert phone
Insert the mobile phone into the
cradle*.

Phone not installed

Your vehicle is not configured for cellu-
lar telephone operation.

Please insert SIM cardThis message appears only when using
a GSM cell phone.
Insert a SIM card (
Telephone Op-
eration Guide).Switching OFF

In the Telephone main menu
(page 102), press and hold  for
longer than 2 seconds;
or

Switch COMAND OFF (
page 30).
The telephone switches OFF after a
one-minute delay. If a call is in progress
during this time, the telephone switch-
es OFF approx. one minute after the
call is ended.
Switching the phone ON/OFF
iIf a call is in progress (handsfree) you
cannot switch the COMAND OFF, . is
disabled.

98 Telephone*Telephone operationThe following conditions must be met for a
“911” emergency call:
cell phone readily inserted in cradle

telephone switched ON

available cell phone networkThe 911 emergency call will also function if
the telephone is locked.
Placing an emergency call
An emergency call can be placed using the
cell phone or the COMAND control unit.
Using the cell phone
(
Telephone Operation Guide).Using the COMAND control unit before
PIN or unlock code entry

Press the
911
soft key.
The system opens an inquiry menu
prompting you if you want to dial a
911 call.

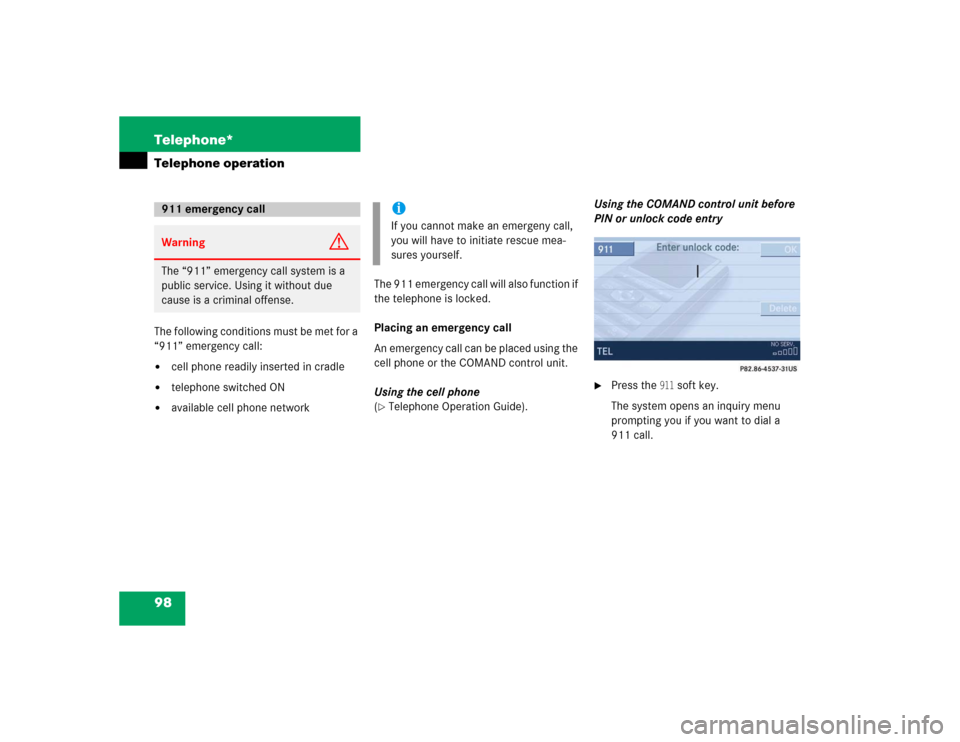

911 emergency callWarning
G
The “911” emergency call system is a
public service. Using it without due
cause is a criminal offense.
iIf you cannot make an emergeny call,
you will have to initiate rescue mea-
sures yourself.

99 Telephone*
Telephone operation

If necessary, press  to select
Yes
.

Press  to confirm
Yes
if you want to
place the 911 emergency call.
The telephone establishes the connec-
tion, the ringing tone is audible.

Wait until the emergency call center
answers, then describe the emergency.
If you do not want to place the emergency
call:

Press  to select
No when the inquiry
menu appears.

Press  to confirm
No.Using the COMAND control unit after
PIN and unlock code entry

Press repeatedly until the Tele-
phone main menu appears.
In succession, press the number keys !,
3 and 3.

Press0.
The telephone establishes the connec-
tion, the ringing tone is audible.

Wait until the emergency call center
answers, then describe the emergency.Entering the PIN (only GSM) iThe PIN may be entered on the cell
phone itself (
Telephone Operation
Guide).
