ESP MERCEDES-BENZ SLK-Class 2008 R171 Comand Manual

Welcome to COMAND! Please make yourself familiar with your
COMAND control unit and read the instruc
-
tions in this manual before operating the
COMAND system. This will help you derive
a greater benefit from the system. Please
also follow the instructions and warnings
contained in this manual. Ignoring them
could result in damage to the vehicle or
personal injury to you or others.The asterisk* identifies optional equip
-
ment. Depending on model, version and
configuration, your COMAND system
equipment may differ. Therefore, you may
find explanations for optional equipment
not installed in your vehicle. If you have
any questions about the operation of any
equipment, your authorized Mercedes-
Benz Center will be glad to demonstrate
the proper procedures.
We continuously strive to improve our
product and ask for your understanding
that we reserve the right to make changes
in design and equipment. Therefore, infor
-
mation, illustrations and descriptions in
this manual might differ from the equip
-
ment installed in your vehicle. As such, the
information, illustrations and descriptions
contained in this manual may not be rea
-
sonably relied upon in making any claims
with respect to the actual performance of
the product.These operating instructions form an inte
-
gral part of the vehicle and should there
-
fore always be kept inside the vehicle and
passed on to the new owner if the vehicle
is sold.We extend our best wishes for many miles
of safe, pleasurable driving.Mercedes-Benz USA, LLC

A DaimlerChrysler Company

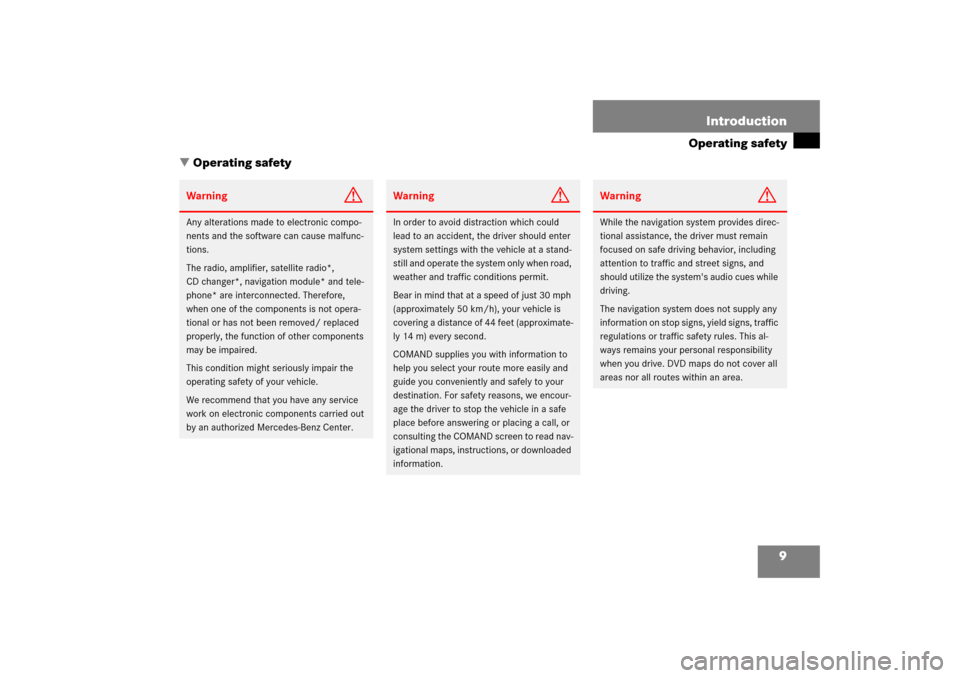

9 Introduction
Operating safety


Operating safetyWarning
G
Any alterations made to electronic compo
-
nents and the software can cause malfunc
-
tions.The radio, amplifier, satellite radio*,
CD
changer*, navigation module* and tele
-
phone* are interconnected. Therefore,
when one of the components is not opera
-
tional or has not been removed/ replaced
properly, the function of other components
may be impaired.This condition might seriously impair the

operating safety of your vehicle.We recommend that you have any service
work on electronic components carried out
by an authorized Mercedes-Benz Center.
Warning
G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a stand
-
still and operate the system only when road,
weather and traffic conditions permit.Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate
-
ly 14 m) every second.COMAND supplies you with information to
help you select your route more easily and
guide you conveniently and safely to your
destination. For safety reasons, we encour
-
age the driver to stop the vehicle in a safe
place before answering or placing a call, or
consulting the COMAND screen to read nav
-
igational maps, instructions, or downloaded
information.
Warning
G
While the navigation system provides direc
-
tional assistance, the driver must remain

focused on safe driving behavior, including
attention to traffic and street signs, and
should utilize the system's audio cues while
driving.The navigation system does not supply any
information on stop signs, yield signs, traffic
regulations or traffic safety rules. This al
-
ways remains your personal responsibility
when you drive. DVD maps do not cover all
areas nor all routes within an area.

27 At a glance
Multifunction steering wheel
You can switch the multifunction display to
the respective operating mode if you wish
to operate the system using the buttons on
the multifunction steering wheel.
On the multifunction steering wheel,
press
è or ÿ repeatedly until
Radio, Single CD, MP3, CD changer*,
Satellite radio* or Telephone* display
appears in the multifunction display of
the instrument cluster.
Radio operation1Waveband and position in Preset menu2Station frequency
Single CD operation1Single CD operation 2Current trackCD changer* operation1Current CD2Current track
MP3 operation1MP3 operation 2Current track
Selecting the multifunction display

31 At a glance
Quick reference COMAND


Quick reference COMAND
Switching ON
Turn the key in the steering lock to po
-
sition 1 or 2,
or

Press
.
.
COMAND switches on the last active
system and displays the corresponding
menu.
Switching OFF
Turn the key in the steering lock to po
-
sition 0 and remove it,
or
Press
.
.
Different volume settings are possible for
Navigation* or Telephone*.A common volume setting is provided for
Radio, Single CD, MP3, CD changer*, AUX
and Satellite radio* operating modes.When setting the volume, the system auto
-
matically stores the setting for the current
-
ly active operating mode. The volume of
navigation announcements can be
changed only during an actual announce
-
ment.Setting the volume
Turn the rotary control
4
located on
the COMAND control unit,
or
iThe system can be operated as follows:
from COMAND itself, or

from the multifunction steering
wheel
This operating manual describes oper
-
ation from COMAND and from the mul
-
tifunction steering wheel.

Unless otherwise specified, the de
-
scriptions and the displays illustrated
relate to the COMAND control unit.Switching COMAND ON/OFF
iWithout the key in position 1 or 2 of the
steering lock, the system automatically
switches OFF again after approx. 30
minutes of inactivity.iIf a telephone call is in progress (hands
-
free) you cannot switch the COMAND
OFF,
.
is disabled.
Volume


44 AudioRadio operationEnding Scan search manually
Press the
Scan
soft key again.
Manual tuning
Switch to the desired waveband ( page
40)
.

Press
-
or
,
for at least 2
seconds to scroll up or down.
Manual tuning is activated.

Keep the button pressed or release it
and keep tapping
-
or
,
in
quick succession.
The frequency will change by the tuning
increments for the respective wave
-
band each time one of the buttons is
pressed or for as long as a button is
pressed and held.

Manual tuning is deactivated if no but
-
ton is pressed for approx. 3 seconds.
Tuning via direct frequency input Entry example:

98.5 MHz in FM waveband
Switch to the FM waveband ( page
40)
.

Press
2
.
The frequency input display appears.
The frequency range of the FM wave
-
band is shown.
iManual tuning is also possible in all
wavebands by pressing

or
.
The frequency will change by the tuning
increments for the respective wave
-
band each time one of the buttons is
pressed.Frequency increments for manual

tuning:
FM
0.2 MHz

AM
10 kHz

46 AudioRadio operationTen presets each are available for the

FM and AM waveband.The following options are available:
Storing manually using number keys

Storing manually using the Presets
menu

Storing using Autostore
( page
46)
Storing manually using the number

keys
3
- "

Tune to the station to be stored ( page
41)
.

Press a number key between
3
and
"
and hold it for more than 2 sec
-
onds.The station is now stored in the respec
-
tive memory location.
Storing manually using the Presets
menu
Tune to the station to be stored ( page
41)
.

Press the
Presets
soft key.
The Presets menu appears.

Use

,
,
or

to select a
preset.

Press

for more than 2 seconds.
The station will be stored in the respec
-
tive memory location.
Storing using Autostore The Autostore function places stations into
the Autostore memory sorted by reception
quality.

The system stores the station with the
strongest signal in preset
1.

Switch to the desired waveband ( page
40)
.

Press the
Autost.
soft key.
The Autostore preset list appears.
Storing FM/AM stations
iThe Autostore feature stores presets in
a separate memory, not in the regular
presets seen under the
Presets
soft
key. As such, the Autostore memory is
only temporary.

49 Audio
Single CD operation
aaThe COMAND CD drive holds one CD. The
slot for inserting a CD is located above the
display
( page
15)
.
Loading a CDWarning
G
In order to avoid distraction which could
lead to an accident, the driver should insert
CDs with the vehicle at a standstill and oper
-
ate the audio system only when road, weath
-
er and traffic conditions permit.Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate
-
ly 14 m) every second.
!Do not attach labels of any type to the
CD. They may become detached and
damage the drive.Your CD drive has been designed to
play CDs which correspond to the IEC
60908 standard. Therefore only CDs
not exceeding a thickness of 1.3 mm
can be used. If you insert thicker data carriers, e.g.
ones that have data on both sides (one
side with DVD data, the other side with
audio data), they will become stuck and
damage the drive.

Data carriers which contain data on
both sides can cause play-back prob
-
lems because the storage layers are
thinner than one-sided data carriers.
!Do not play single-CDs (80 mm) with an
adapter. An adapter could become
stuck and damage the drive. Only use
12 cm diameter CDs.iThe COMAND CD drive may not be able
to play audio CDs with copy protection.!If a CD is already loaded, it must be
ejected before inserting the new CD.

Inserting a second CD in the slot with
another CD still loaded will cause dam
-
age to the CD drive not covered by the
Mercedes-Benz Limited Warranty.

53 Audio
Single CD operation
The following options are available:
Normal
sequence


Repeat
track

Random
track
Explanation of the playback options
Normal
sequence
The tracks are played in the normal se
-
quence (e.g. track 1, 2, 3 etc.).The last track is followed by the first
track of the CD.

Repeat
track

The current track will be repeated until
this function is deactivated.

Random trackThe tracks are played in random order
(e.g. track 3, 8, 5 etc.).
Changing the playback option
In the Single CD main menu ( page
50)
press the
Setting
soft
key. The Settings menu is displayed.

The solid circle
indicates which op
-
tion is currently selected.

Press
 or  to select a different
option.

Press
.
The option is activated. A correspond
-
ing display will appear in the status bar
for all options except Normal
sequence
.
An option will remain activated even if
COMAND is switched OFF and then ON
again.
Playback options

54 AudioMP3 operationSafety InstructionsWarning
G
In order to avoid distraction which could
lead to an accident, the driver should insert
CDs with the vehicle at a standstill and oper
-
ate the audio system only when road, weath
-
er and traffic conditions permit.Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate
-
ly 14 m) every second.
Warning
G
The CD drive is a Class 1 laser product.
There is a danger of invisible laser radiation
when you open or damage the cover.Do not remove the cover. The CD drive does
not contain any parts serviceable by the us
-
er. For safety reasons, have any necessary
service work performed by qualified person
-
nel.Tips on data storage media!Do not attach labels of any type to the
CD. They may become detached and
damage the drive.Do not play single CDs (80mm) with an
adapter. An adapter could become
stuck and damage the drive. Only use
12 cm diameter CDs.
!Your CD drive has been designed to
play CDs which correspond to the IEC
60908 standard. Therefore only CDs
not exceeding a thickness of 1.3 mm
can be used. If you insert thicker data carriers, e.g.
ones that have data on both sides (one
side with DVD data, the other side with
audio data), they will become stuck and
damage the drive.Data carriers which contain data on
both sides can cause playback prob
-
lems because the storage layers are
thinner than one-sided data carriers.

56 AudioMP3 operationTrack names and folder namesWhen creating an MP3 CD, you can assign
names to the MP3 tracks and folders.

COMAND uses these names in MP3 mode
for the corresponding display.Please note the following when assigning
folder and track names:
Per folder a maximum of 1800 charac
-
ters are available for title and folder
names combined.

Exceeding this number, COMAND can
-
not display all titles and folders.

Track and folder names must contain
at least 1 character.

Track names may contain up to fifty
characters. If a name exceeds this
character limit, COMAND will not be
able to display it in full.

Track names must have the extension
“mp3”.

A period must appear between the
track name and the file extension.Example of a correct track name:
Track1.mp3
Empty folders or folders containing data
other than MP3 tracks will not be dis
-
played by COMAND.If MP3 files are stored in the root directory
itself, the root directory also counts as a
folder. COMAND will then display the root
directory name as a folder name. Permissible MP3 formatsCOMAND supports the MPEG1
Audio
Layer
3 format.
Permissible bit and scan rates
Fixed and variable bit rates up to 320
kbps

Scan rates from 24 kHz - 48 kHz
.
iCOMAND does not support ID3
tags.
Tips on creating MP3 tracks
iIn everyday speech, this format has
been replaced by the designation
“MP3”.iIt is recommended to use MP3 tracks
with a bit rate of128 kbps or higher and
with a scan rate of 44.1 kHz or higher.
Lower rates may impair quality. This is
particularly true if the sound function LOGIC7 Surround
has been activated.
