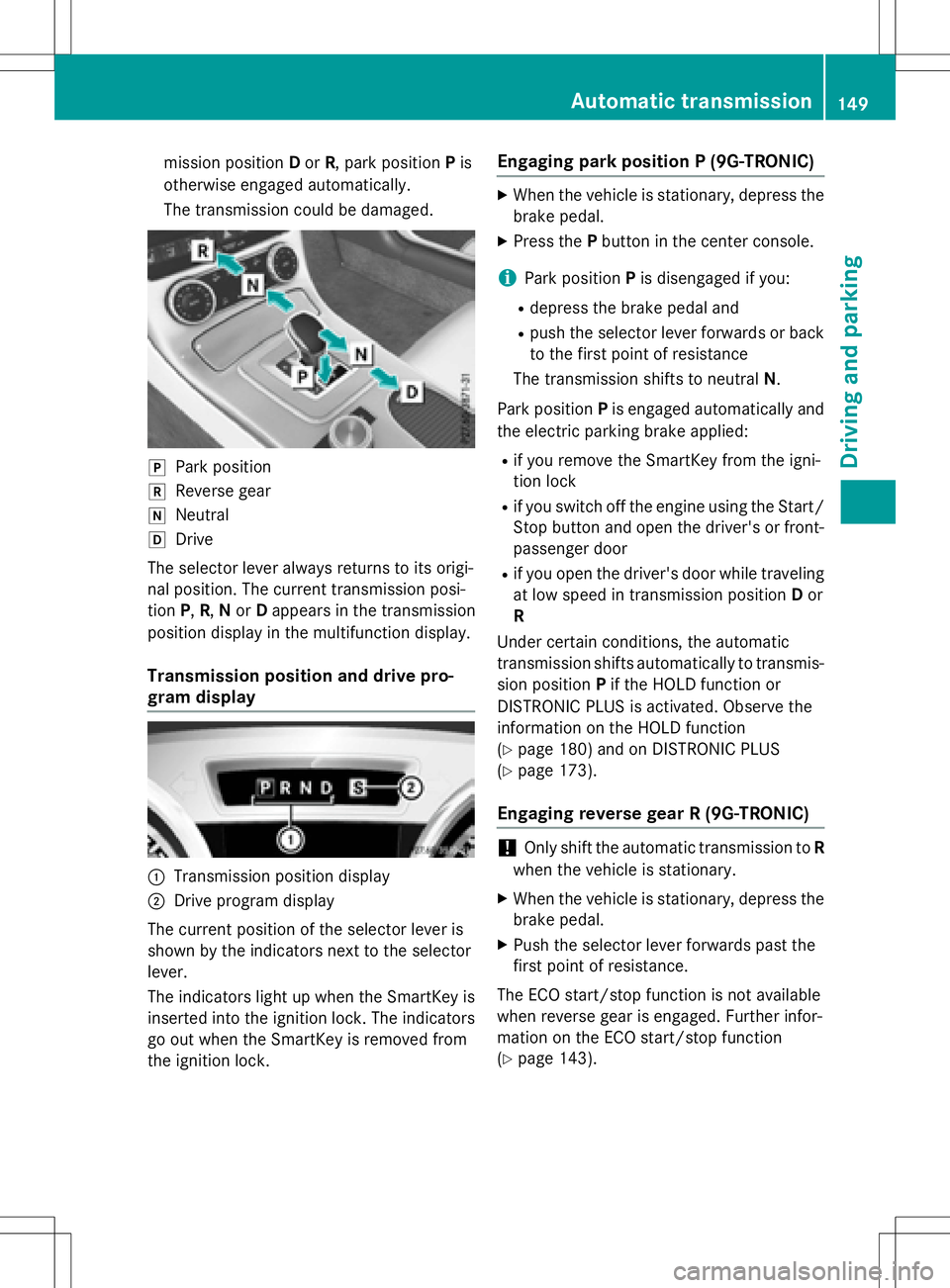

mission positionDor R, park position Pis
otherwise engaged automatically.
The transmission could be damaged.
jPark position
kReverse gear
iNeutral
hDrive
The selector lever always returns to its origi-
nal position. The current transmission posi-
tion P,R, Nor Dappears in the transmission
position display in the multifunction display.
Transmission position and drive pro-
gram display
:Transmission position display
;Drive program display
The current position of the selector lever is
shown by the indicators next to the selector
lever.
The indicators light up when the SmartKey is
inserted into the ignition lock. The indicators
go out when the SmartKey is removed from
the ignition lock.
Engaging park position P (9G-TRONIC)
XWhen the vehicle is stationary, depress the
brake pedal.
XPress the Pbutton in the center console.
iPark position Pis disengaged if you:
Rdepress the brake pedal and
Rpush the selector lever forwards or back
to the first point of resistance
The transmission shifts to neutral N.
Park position Pis engaged automatically and
the electric parking brake applied:
Rif you remove the SmartKey from the igni-
tion lock
Rif you switch off the engine using the Start/
Stop button and open the driver's or front-
passenger door
Rif you open the driver's door while traveling
at low speed in transmission position Dor
R
Under certain conditions, the automatic
transmission shifts automatically to transmis-
sion position Pif the HOLD function or
DISTRONIC PLUS is activated. Observe the
information on the HOLD function
(
Ypage 180) and on DISTRONIC PLUS
(
Ypage 173).
Engaging reverse gear R (9G-TRONIC)
!Only shift the automatic transmission to R
when the vehicle is stationary.
XWhen the vehicle is stationary, depress the
brake pedal.
XPush the selector lever forwards past the
first point of resistance.
The ECO start/stop function is not available
when reverse gear is engaged. Further infor-
mation on the ECO start/stop function
(
Ypage 143).
Automatic transmission149
Driving and parking
Z

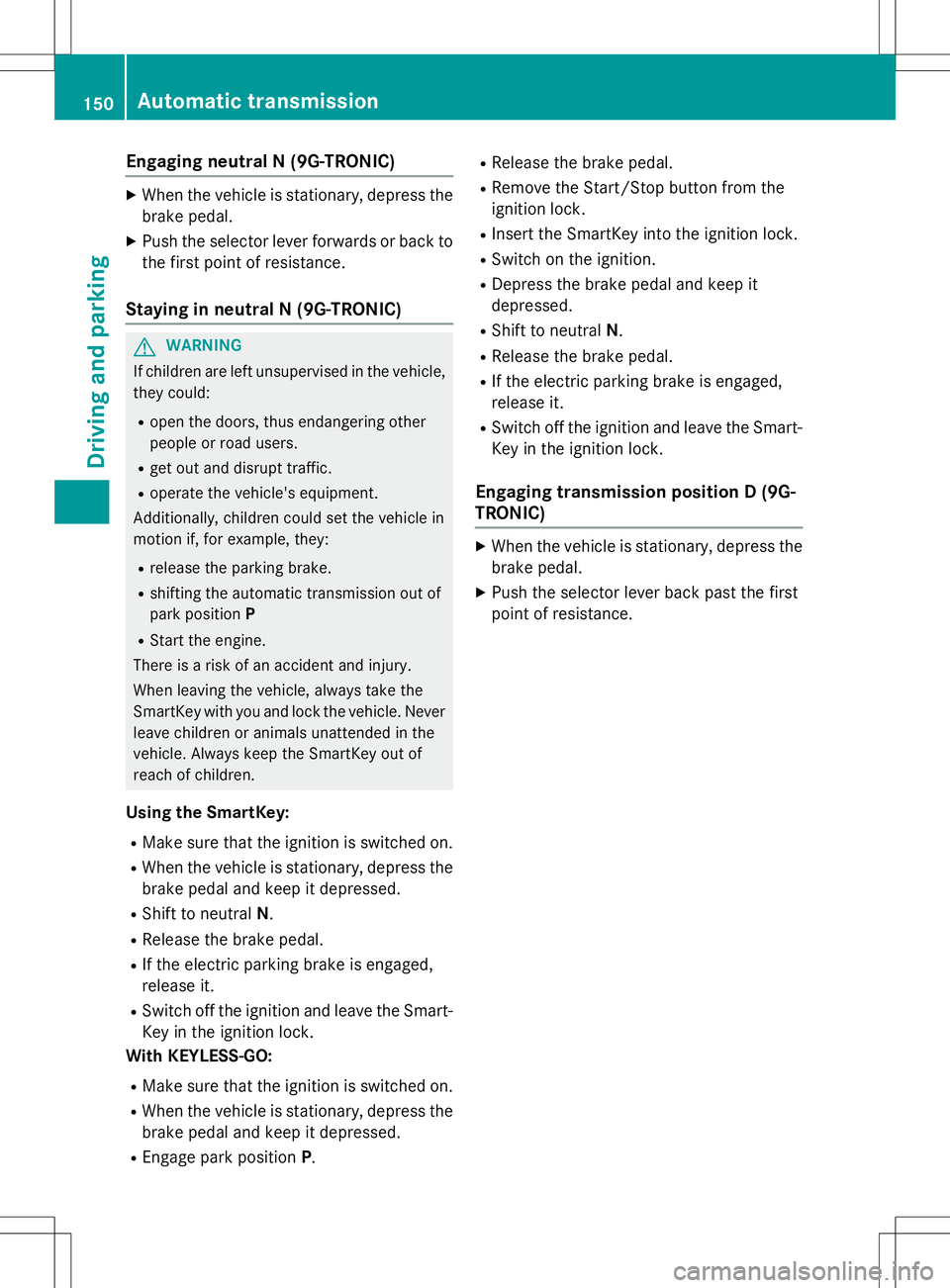

Engaging neutral N (9G-TRONIC)
XWhen the vehicle is stationary, depress the
brake pedal.
XPush the selector lever forwards or back to
the first point of resistance.
Staying in neutral N (9G-TRONIC)
GWARNING
If children are left unsupervised in the vehicle,
they could:
Ropen the doors, thus endangering other
people or road users.
Rget out and disrupt traffic.
Roperate the vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they:
Rrelease the parking brake.
Rshifting the automatic transmission out of
park position P
RStart the engine.
There is a risk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reach of children.
Using the SmartKey:
RMake sure that the ignition is switched on.
RWhen the vehicle is stationary, depress the
brake pedal and keep it depressed.
RShift to neutral N.
RRelease the brake pedal.
RIf the electric parking brake is engaged,
release it.
RSwitch off the ignition and leave the Smart-
Key in the ignition lock.
With KEYLESS-GO:
RMake sure that the ignition is switched on.
RWhen the vehicle is stationary, depress the
brake pedal and keep it depressed.
REngage park position P.
RRelease the brake pedal.
RRemove the Start/Stop button from the
ignition lock.
RInsert the SmartKey into the ignition lock.
RSwitch on the ignition.
RDepress the brake pedal and keep it
depressed.
RShift to neutralN.
RRelease the brake pedal.
RIf the electric parking brake is engaged,
release it.
RSwitch off the ignition and leave the Smart-
Key in the ignition lock.
Engaging transmission position D (9G-
TRONIC)
XWhen the vehicle is stationary, depress the
brake pedal.
XPush the selector lever back past the first
point of resistance.
150Automatic transmission
Driving and parking

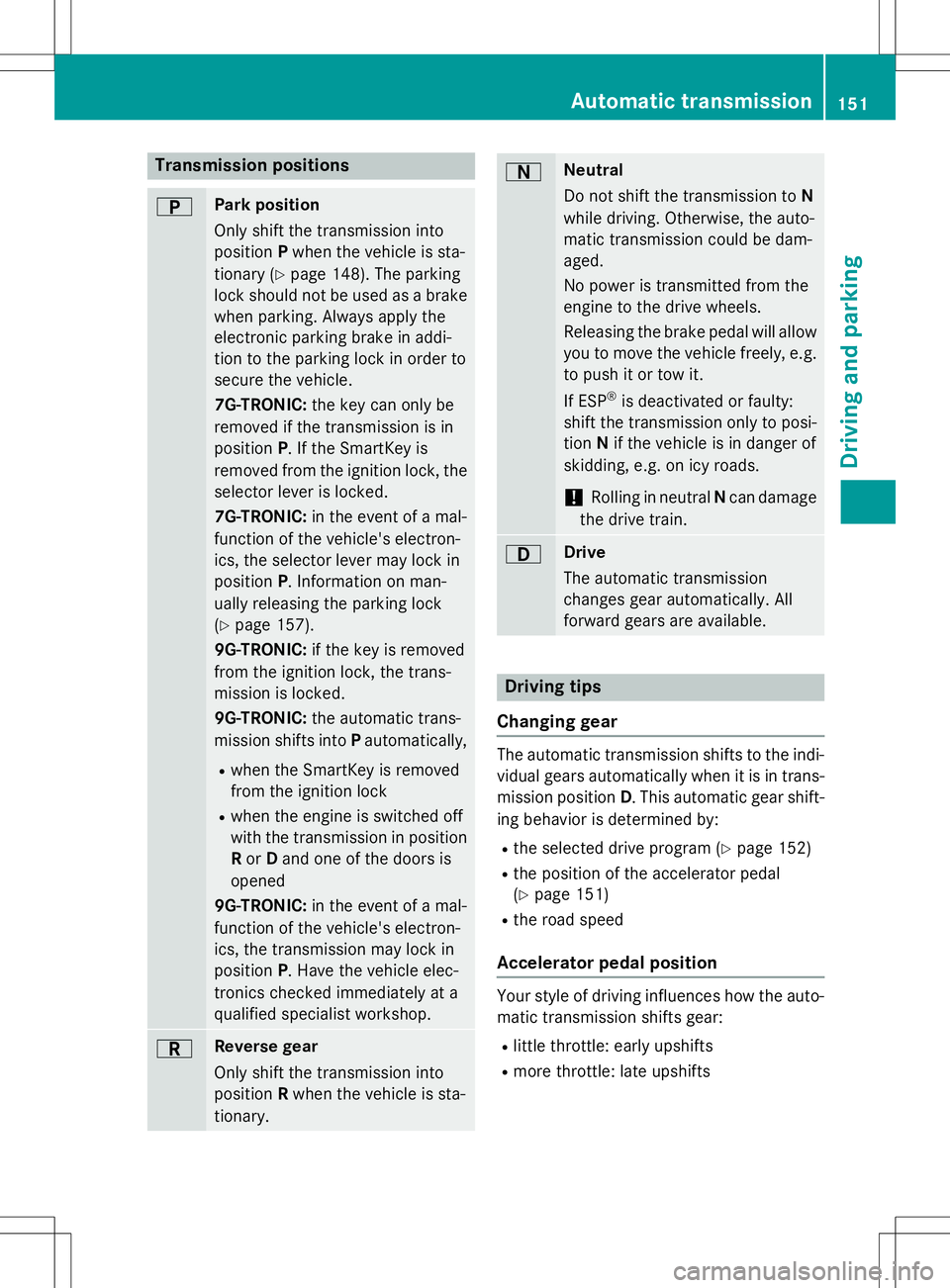

Transmission positions
BPark position
Only shift the transmission into
positionPwhen the vehicle is sta-
tionary (
Ypage 148). The parking
lock should not be used as a brake
when parking. Always apply the
electronic parking brake in addi-
tion to the parking lock in order to
secure the vehicle.
7G-TRONIC: the key can only be
removed if the transmission is in
position P. If the SmartKey is
removed from the ignition lock, the
selector lever is locked.
7G-TRONIC: in the event of a mal-
function of the vehicle's electron-
ics, the selector lever may lock in
position P. Information on man-
ually releasing the parking lock
(
Ypage 157).
9G-TRONIC: if the key is removed
from the ignition lock, the trans-
mission is locked.
9G-TRONIC: the automatic trans-
mission shifts into Pautomatically,
Rwhen the SmartKey is removed
from the ignition lock
Rwhen the engine is switched off
with the transmission in position
R or Dand one of the doors is
opened
9G-TRONIC: in the event of a mal-
function of the vehicle's electron-
ics, the transmission may lock in
position P. Have the vehicle elec-
tronics checked immediately at a
qualified specialist workshop.
CReverse gear
Only shift the transmission into
position Rwhen the vehicle is sta-
tionary.
ANeutral
Do not shift the transmission to N
while driving. Otherwise, the auto-
matic transmission could be dam-
aged.
No power is transmitted from the
engine to the drive wheels.
Releasing the brake pedal will allow
you to move the vehicle freely, e.g. to push it or tow it.
If ESP
®is deactivated or faulty:
shift the transmission only to posi-
tion Nif the vehicle is in danger of
skidding, e.g. on icy roads.
!Rolling in neutral Ncan damage
the drive train.
7Drive
The automatic transmission
changes gear automatically. All
forward gears are available.
Driving tips
Changing gear
The automatic transmission shifts to the indi-
vidual gears automatically when it is in trans-
mission position D. This automatic gear shift-
ing behavior is determined by:
Rthe selected drive program (Ypage 152)
Rthe position of the accelerator pedal
(
Ypage 151)
Rthe road speed
Accelerator pedal position
Your style of driving influences how the auto-
matic transmission shifts gear:
Rlittle throttle: early upshifts
Rmore throttle: late upshifts
Automatic transmission151
Driving an d parking
Z

Double-clutch function
Whenshiftin gdown ,th edouble-clutch func-
tion is active regardles sof th ecurrentl yselec -
te ddrive program. The double-clutch function
reduce sload chang ereaction sand is condu-
cive to asport ydrivin gstyle. The soun dgen -
erate dby th edouble-clutch function depend s
on th edrive program selected.
Kickdown
Use kickdown fo rmaximum acceleration .
XDepress theaccelerator peda lbeyond th e
pressure point.
The automatic transmissio nshift sto a
lowe rgear dependin gon th eengin espeed.
XEase of fth eaccelerator peda lonce th e
desire dspeed is reached.
The automatic transmissio nshift sbac kup.
Program selector butto n
General notes
Example: program selecto rbutto n
The program selecto rbutto nallow syou to
choos ebetween differen tdrivin gcharacter-
istics.
XPress program selecto rbutto n: repeat -
edly until th elette rfo rth edesire ddrive
program appears in th emultifunction dis -
play.
On Mercedes-AMG vehicles ,drive program E
is called drive program C.
EEconom y
C Controlle d
EfficiencyComfortable, economical
drivin g
SSpor tSporty drivin gstyle
M ManualManual gear shiftin g
iThe automatic transmissio nswitches to
automatic drive program E(drive program
C in Mercedes-AMG vehicles).
iMercedes-AMG vehicles :when in drive
program Cand under low load ,th eengin e
operates on just four cylinders. Thi sis th e
cas ein city traffic or on acountry road, fo r
example. Thi sreduce sfue lconsumption .
Cylinder shut-off is inactive in drive pro -
grams Sand M,so that th eengin ewill
operat ewit hall eigh tcylinders.
iFurther information about permanen t
drive program M(
Ypage 155).
As well as this permanen tdrive program M,
you can also activat etemporar ydrive pro -
gram M(
Ypage 153).
iForfurther information on th eautomatic
drive program, see (
Ypage 153).
Steering wheel paddle shifter s
:Left-handsteerin gwhee lpaddle shifter
;Right-han dsteerin gwhee lpaddle shifter
In th emanual drive program, you can chang e
gear usin gth esteerin gwhee lpaddle shifters

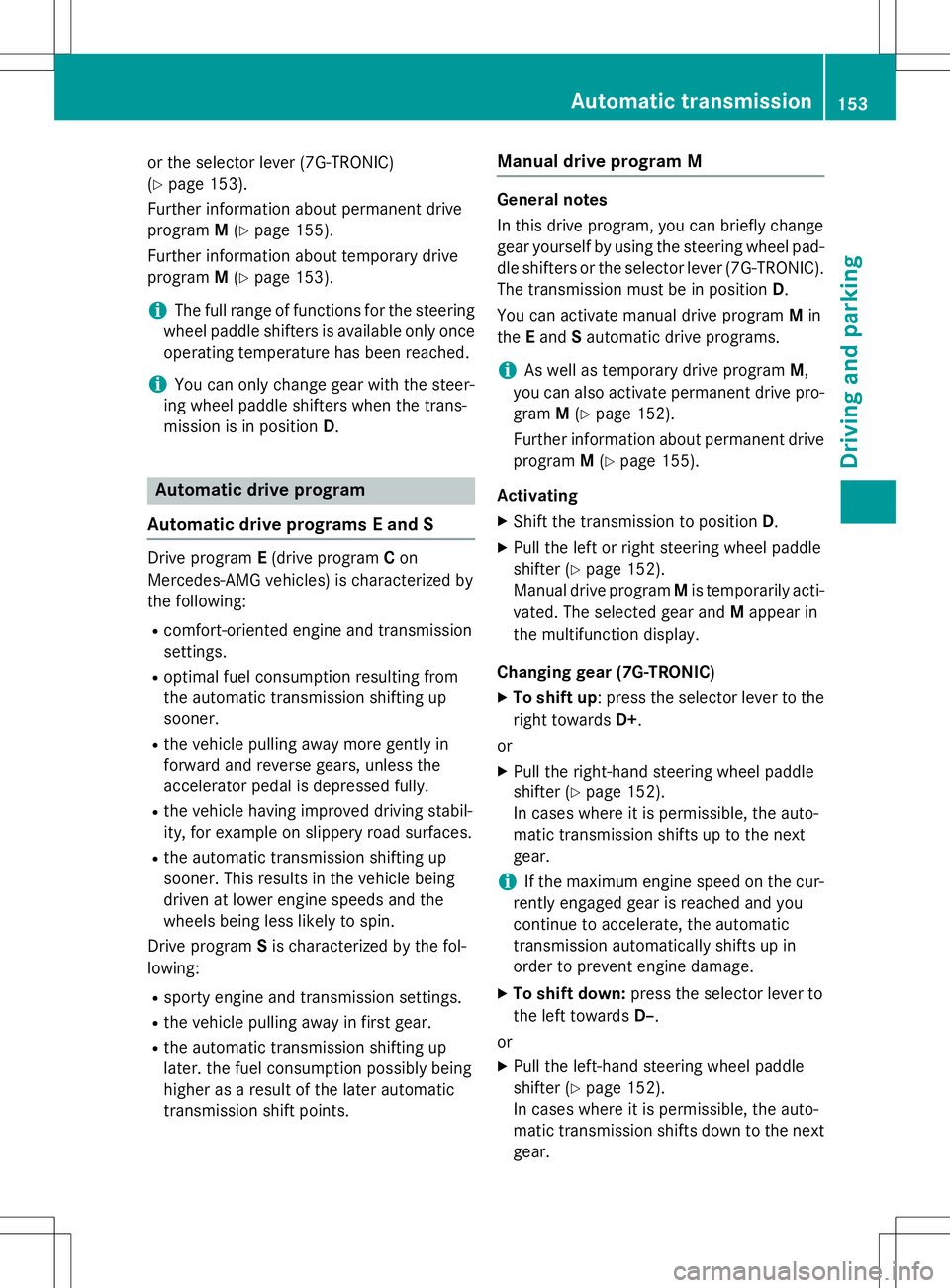

152Automatic transmission
Driving and parking

or the selector lever (7G-TRONIC)
(
Ypage 153).
Further information about permanent drive
program M(
Ypage 155).
Further information about temporary drive
program M(
Ypage 153).
iThe full range of functions for the steering
wheel paddle shifters is available only once
operating temperature has been reached.
iYou can only change gear with the steer-
ing wheel paddle shifters when the trans-
mission is in position D.
Automatic drive program
Automatic drive programs E and S
Drive program E(drive program Con
Mercedes-AMG vehicles) is characterized by
the following:
Rcomfort-oriented engine and transmission
settings.
Roptimal fuel consumption resulting from
the automatic transmission shifting up
sooner.
Rthe vehicle pulling away more gently in
forward and reverse gears, unless the
accelerator pedal is depressed fully.
Rthe vehicle having improved driving stabil-
ity, for example on slippery road surfaces.
Rthe automatic transmission shifting up
sooner. This results in the vehicle being
driven at lower engine speeds and the
wheels being less likely to spin.
Drive program Sis characterized by the fol-
lowing:
Rsporty engine and transmission settings.
Rthe vehicle pulling away in first gear.
Rthe automatic transmission shifting up
later. the fuel consumption possibly being
higher as a result of the later automatic
transmission shift points.
Manual drive program M
General notes
In this drive program, you can briefly change
gear yourself by using the steering wheel pad-
dle shifters or the selector lever (7G-TRONIC).
The transmission must be in position D.
You can activate manual drive program Min
the Eand Sautomatic drive programs.
iAs well as temporary drive program M,
you can also activate permanent drive pro-
gram M(
Ypage 152).
Further information about permanent drive
program M(
Ypage 155).
Activating
XShift the transmission to position D.
XPull the left or right steering wheel paddle
shifter (
Ypage 152).
Manual drive program Mis temporarily acti-
vated. The selected gear and Mappear in
the multifunction display.
Changing gear (7G-TRONIC)
XTo shift up: press the selector lever to the
right towards D+.
or
XPull the right-hand steering wheel paddle
shifter (
Ypage 152).
In cases where it is permissible, the auto-
matic transmission shifts up to the next
gear.
iIf the maximum engine speed on the cur-
rently engaged gear is reached and you
continue to accelerate, the automatic
transmission automatically shifts up in
order to prevent engine damage.
XTo shift down: press the selector lever to
the left towards D–.
or
XPull the left-hand steering wheel paddle
shifter (
Ypage 152).
In cases where it is permissible, the auto-
matic transmission shifts down to the next
gear.
Automatic transmission153
Driving and parking
Z

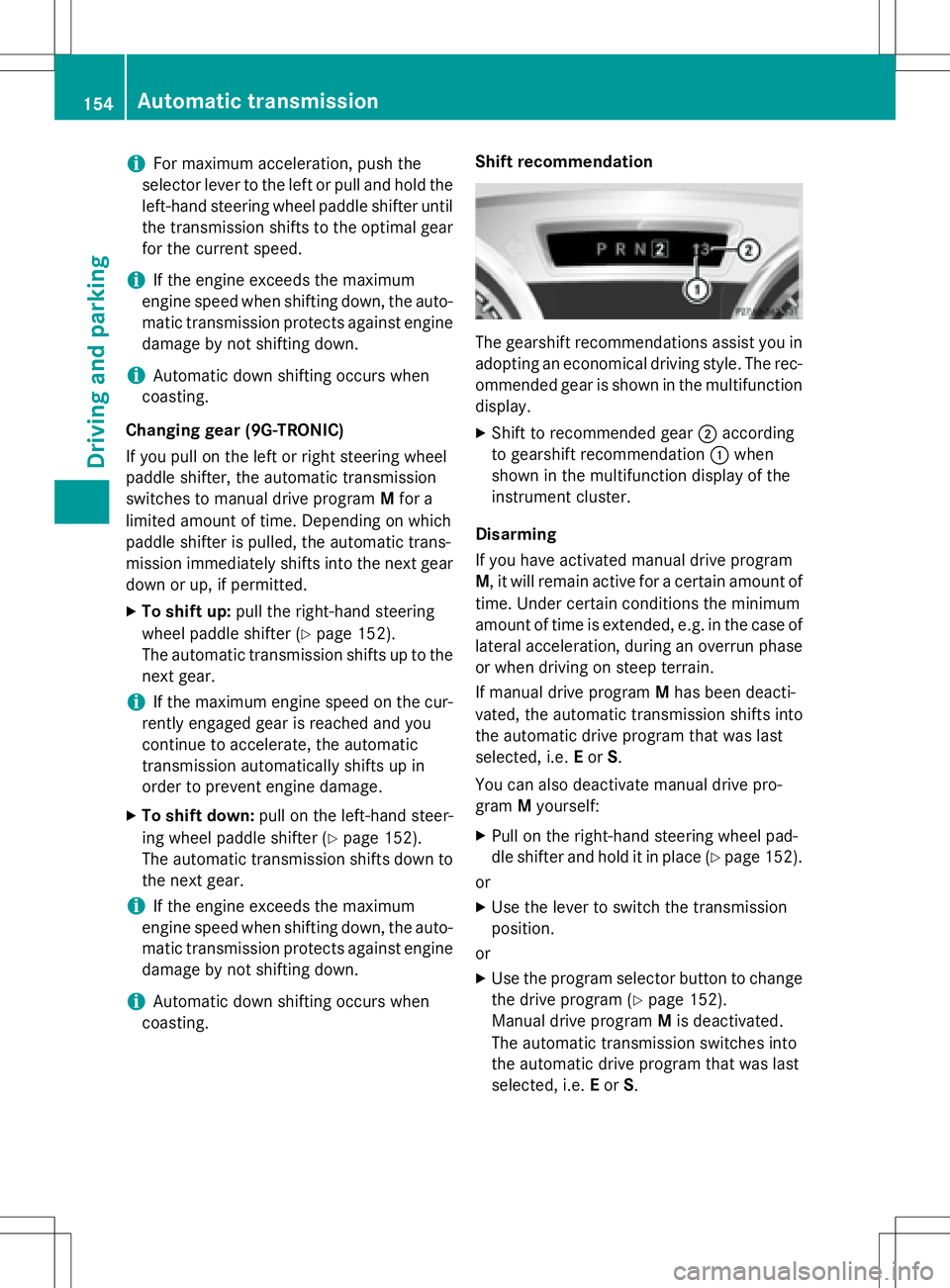

iFor maximum acceleration, push the
selector lever to the left or pull and hold the
left-hand steering wheel paddle shifter until
the transmission shifts to the optimal gear
for the current speed.
iIf the engine exceeds the maximum
engine speed when shifting down, the auto-
matic transmission protects against engine
damage by not shifting down.
iAutomatic down shifting occurs when
coasting.
Changing gear (9G-TRONIC)
If you pull on the left or right steering wheel
paddle shifter, the automatic transmission
switches to manual drive program Mfor a
limited amount of time. Depending on which
paddle shifter is pulled, the automatic trans-
mission immediately shifts into the next gear
down or up, if permitted.
XTo shift up: pull the right-hand steering
wheel paddle shifter (
Ypage 152).
The automatic transmission shifts up to the
next gear.
iIf the maximum engine speed on the cur-
rently engaged gear is reached and you
continue to accelerate, the automatic
transmission automatically shifts up in
order to prevent engine damage.
XTo shift down: pull on the left-hand steer-
ing wheel paddle shifter (
Ypage 152).
The automatic transmission shifts down to
the next gear.
iIf the engine exceeds the maximum
engine speed when shifting down, the auto- matic transmission protects against engine
damage by not shifting down.
iAutomatic down shifting occurs when
coasting. Shift recommendation
The gearshift recommendations assist you in
adopting an economical driving style. The rec-
ommended gear is shown in the multifunction
display.
XShift to recommended gear ;according
to gearshift recommendation :when
shown in the multifunction display of the
instrument cluster.
Disarming
If you have activated manual drive program
M , it will remain active for a certain amount of
time. Under certain conditions the minimum
amount of time is extended, e.g. in the case of
lateral acceleration, during an overrun phase
or when driving on steep terrain.
If manual drive program Mhas been deacti-
vated, the automatic transmission shifts into
the automatic drive program that was last
selected, i.e. Eor S.
You can also deactivate manual drive pro-
gram Myourself:
XPull on the right-hand steering wheel pad-
dle shifter and hold it in place (
Ypage 152).
or
XUse the lever to switch the transmission
position.
or
XUse the program selector button to change
the drive program (
Ypage 152).
Manual drive program Mis deactivated.
The automatic transmission switches into
the automatic drive program that was last
selected, i.e. Eor S.
154Automatic transmission
Driving and parking

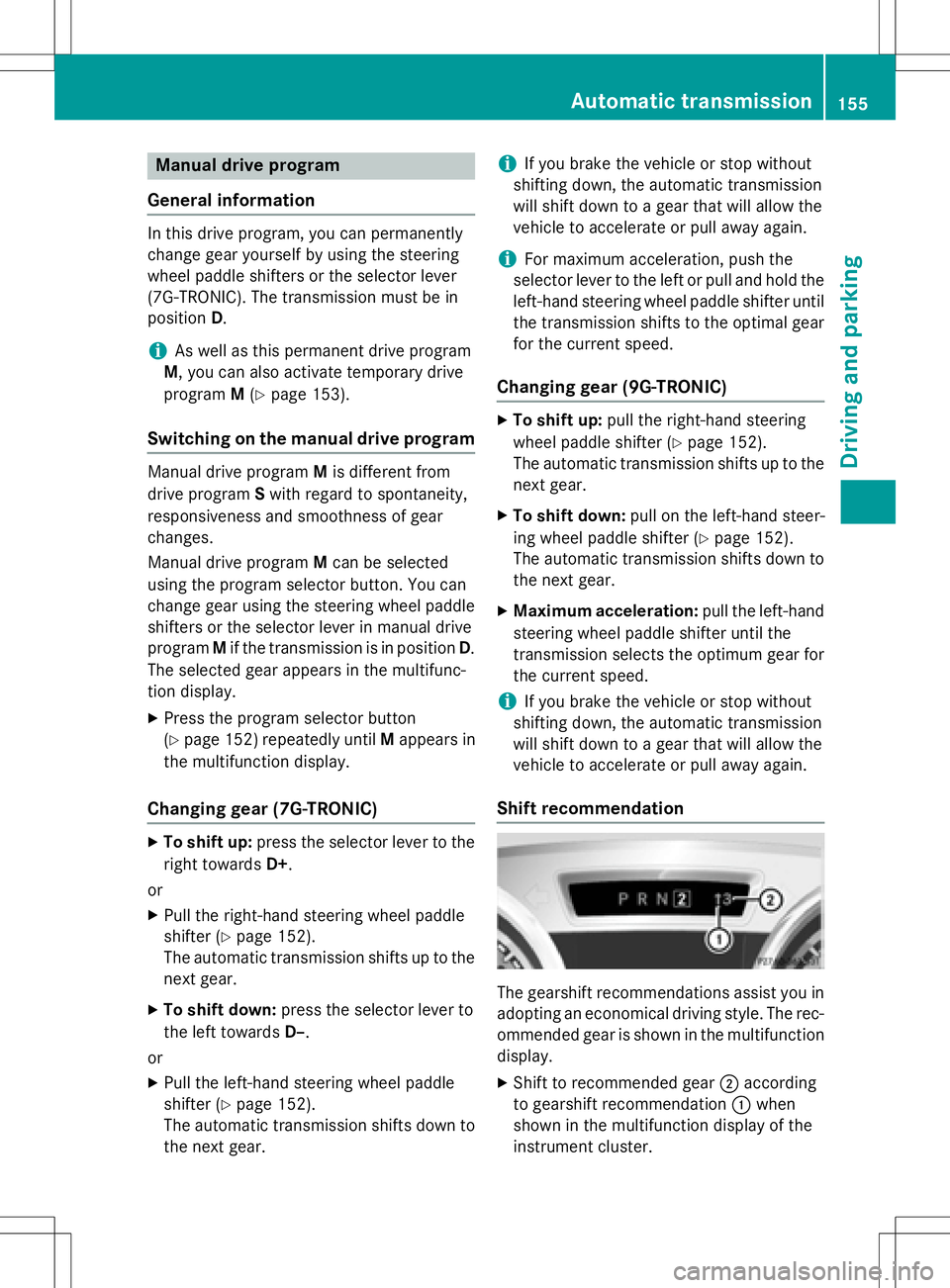

Manual drive program
General information
In this drive program, you can permanently
change gear yourself by using the steering
wheel paddle shifters or the selector lever
(7G-TRONIC). The transmission must be in
position D.
iAs well as this permanent drive program
M, you can also activate temporary drive
program M(
Ypage 153).
Switching on the manual drive program
Manual drive program Mis different from
drive program Swith regard to spontaneity,
responsiveness and smoothness of gear
changes.
Manual drive program Mcan be selected
using the program selector button. You can
change gear using the steering wheel paddle
shifters or the selector lever in manual drive
program Mif the transmission is in position D.
The selected gear appears in the multifunc-
tion display.
XPress the program selector button
(
Ypage 152) repeatedly until Mappears in
the multifunction display.
Changing gear (7G-TRONIC)
XTo shift up: press the selector lever to the
right towards D+.
or
XPull the right-hand steering wheel paddle
shifter (
Ypage 152).
The automatic transmission shifts up to the next gear.
XTo shift down: press the selector lever to
the left towards D–.
or
XPull the left-hand steering wheel paddle
shifter (
Ypage 152).
The automatic transmission shifts down to the next gear.
iIf you brake the vehicle or stop without
shifting down, the automatic transmission
will shift down to a gear that will allow the
vehicle to accelerate or pull away again.
iFor maximum acceleration, push the
selector lever to the left or pull and hold the
left-hand steering wheel paddle shifter until
the transmission shifts to the optimal gear
for the current speed.
Changing gear (9G-TRONIC)
XTo shift up: pull the right-hand steering
wheel paddle shifter (
Ypage 152).
The automatic transmission shifts up to the
next gear.
XTo shift down: pull on the left-hand steer-
ing wheel paddle shifter (
Ypage 152).
The automatic transmission shifts down to
the next gear.
XMaximum acceleration: pull the left-hand
steering wheel paddle shifter until the
transmission selects the optimum gear for
the current speed.
iIf you brake the vehicle or stop without
shifting down, the automatic transmission
will shift down to a gear that will allow the
vehicle to accelerate or pull away again.
Shift recommendation
The gearshift recommendations assist you in
adopting an economical driving style. The rec-
ommended gear is shown in the multifunction
display.
XShift to recommended gear ;according
to gearshift recommendation :when
shown in the multifunction display of the
instrument cluster.
Automatic transmission155
Driving and parking
Z

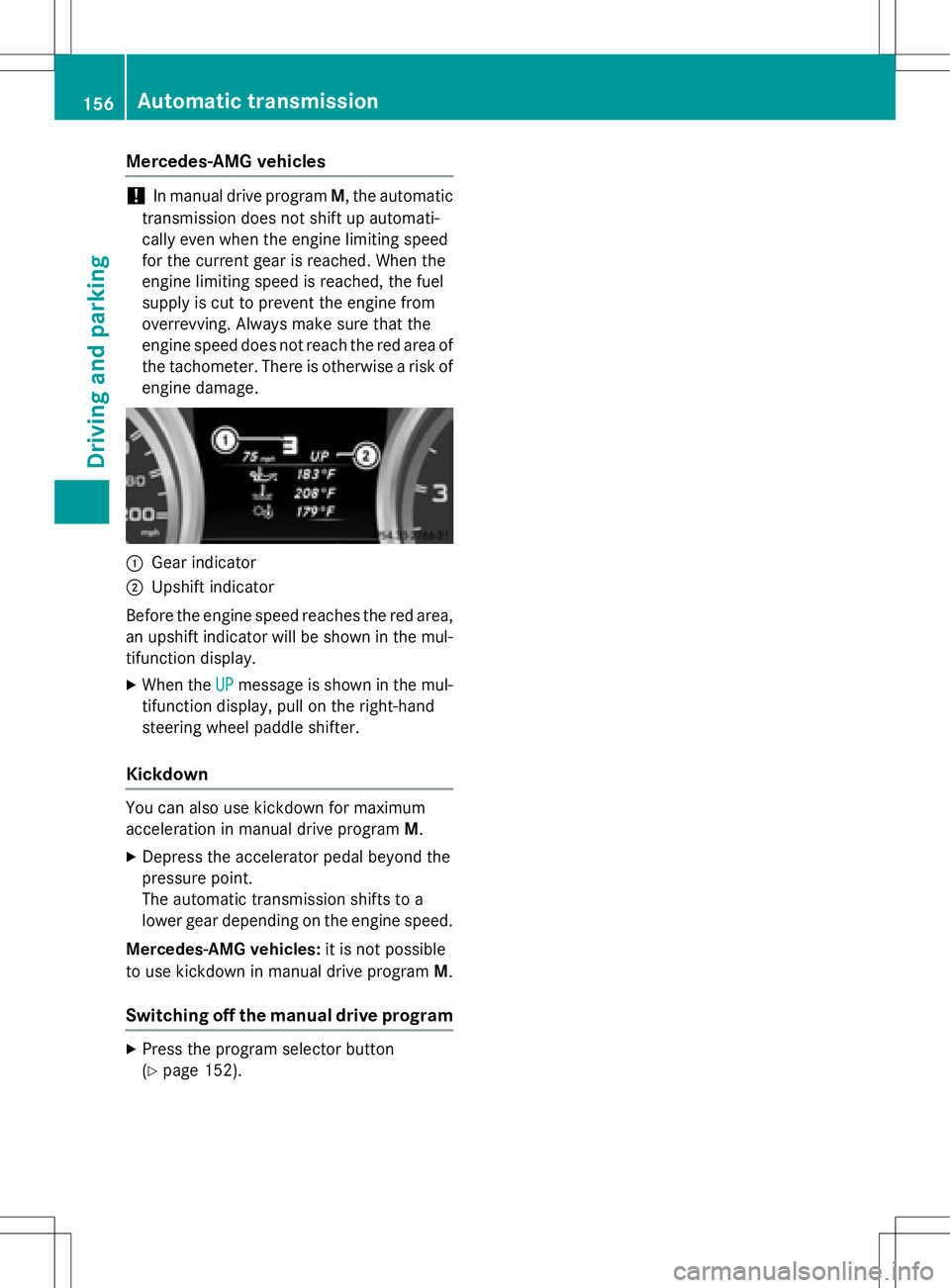

Mercedes-AMG vehicles
!In manual drive programM, the automatic
transmission does not shift up automati-
cally even when the engine limiting speed
for the current gear is reached. When the
engine limiting speed is reached, the fuel
supply is cut to prevent the engine from
overrevving. Always make sure that the
engine speed does not reach the red area of
the tachometer. There is otherwise a risk of
engine damage.
:Gear indicator
;Upshift indicator
Before the engine speed reaches the red area,
an upshift indicator will be shown in the mul-
tifunction display.
XWhen the UPmessage is shown in the mul-
tifunction display, pull on the right-hand
steering wheel paddle shifter.
Kickdown
You can also use kickdown for maximum
acceleration in manual drive program M.
XDepress the accelerator pedal beyond the
pressure point.
The automatic transmission shifts to a
lower gear depending on the engine speed.
Mercedes-AMG vehicles: it is not possible
to use kickdown in manual drive program M.
Switching off the manual drive program
XPress the program selector button
(
Ypage 152).
156Automatic transmission
Driving and parking

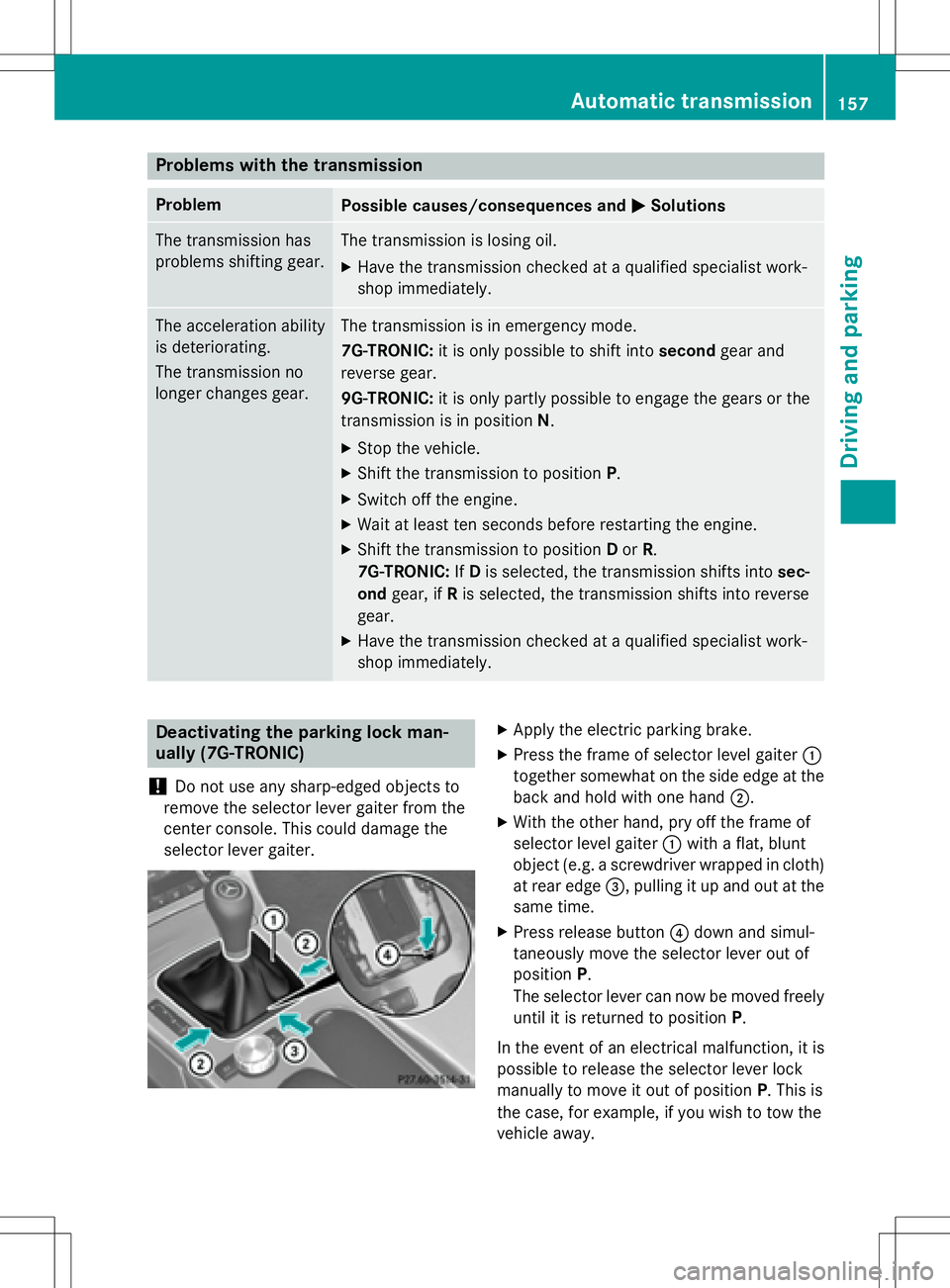

Problems with the transmission
ProblemPossible causes/consequences andMSolutions
The transmission has
problems shifting gear.The transmission is losing oil.
XHave the transmission checked at a qualified specialist work-
shop immediately.
The acceleration ability
is deteriorating.
The transmission no
longer changes gear.The transmission is in emergency mode.
7G-TRONIC:it is only possible to shift into secondgear and
reverse gear.
9G-TRONIC: it is only partly possible to engage the gears or the
transmission is in position N.
XStop the vehicle.
XShift the transmission to position P.
XSwitch off the engine.
XWait at least ten seconds before restarting the engine.
XShift the transmission to positionDor R.
7G-TRONIC: IfD is selected, the transmission shifts into sec-
ond gear, if Ris selected, the transmission shifts into reverse
gear.
XHave the transmission checked at a qualified specialist work-
shop immediately.
Deactivating the parking lock man-
ually (7G-TRONIC)
!
Do not use any sharp-edged objects to
remove the selector lever gaiter from the
center console. This could damage the
selector lever gaiter.
XApply the electric parking brake.
XPress the frame of selector level gaiter :
together somewhat on the side edge at the
back and hold with one hand ;.
XWith the other hand, pry off the frame of
selector level gaiter:with a flat, blunt
object (e.g. a screwdriver wrapped in cloth) at rear edge =, pulling it up and out at the
same time.
XPress release button ?down and simul-
taneously move the selector lever out of
position P.
The selector lever can now be moved freely
until it is returned to position P.
In the event of an electrical malfunction, it is
possible to release the selector lever lock
manually to move it out of position P. This is
the case, for example, if you wish to tow the
vehicle away.
Automatic transmission157
Driving and parking
Z

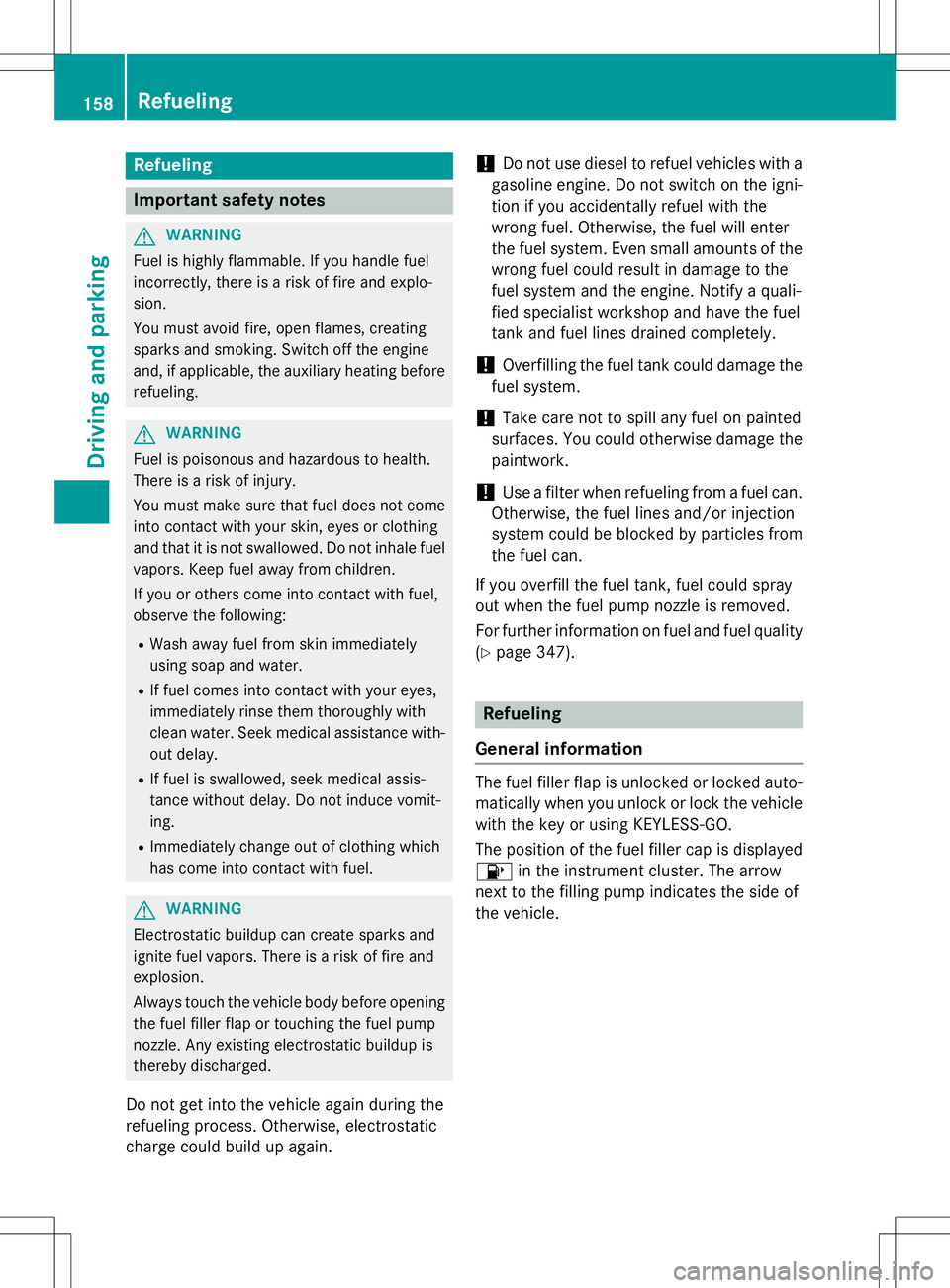

Refueling
Important safety notes
GWARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is a risk of fire and explo-
sion.
You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine
and, if applicable, the auxiliary heating before refueling.
GWARNING
Fuel is poisonous and hazardous to health.
There is a risk of injury.
You must make sure that fuel does not come into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children.
If you or others come into contact with fuel,
observe the following:
RWash away fuel from skin immediately
using soap and water.
RIf fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance with-
out delay.
RIf fuel is swallowed, seek medical assis-
tance without delay. Do not induce vomit-
ing.
RImmediately change out of clothing which
has come into contact with fuel.
GWARNING
Electrostatic buildup can create sparks and
ignite fuel vapors. There is a risk of fire and
explosion.
Always touch the vehicle body before opening
the fuel filler flap or touching the fuel pump
nozzle. Any existing electrostatic buildup is
thereby discharged.
Do not get into the vehicle again during the
refueling process. Otherwise, electrostatic
charge could build up again.
!Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the igni-
tion if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the wrong fuel could result in damage to the
fuel system and the engine. Notify a quali-
fied specialist workshop and have the fuel
tank and fuel lines drained completely.
!Overfilling the fuel tank could damage the
fuel system.
!Take care not to spill any fuel on painted
surfaces. You could otherwise damage the
paintwork.
!Use a filter when refueling from a fuel can.
Otherwise, the fuel lines and/or injection
system could be blocked by particles from
the fuel can.
If you overfill the fuel tank, fuel could spray
out when the fuel pump nozzle is removed.
For further information on fuel and fuel quality
(
Ypage 347).
Refueling
General information
The fuel filler flap is unlocked or locked auto-
matically when you unlock or lock the vehicle
with the key or using KEYLESS-GO.
The position of the fuel filler cap is displayed
8 in the instrument cluster. The arrow
next to the filling pump indicates the side of
the vehicle.
158Refueling
Driving and parking
