60 Getting started
Parking and locking
1Parking brake lever
Pull up parking brake lever1 firmly.
When the ignition is switched on or the
engine is running, the brake warning
lamp; (USA only) or3 (Canada
only) in the speedometer dial comes
on.
Warning!G
Getting out of your vehicle with the gear se-
lector lever* not fully engaged in positionP
(manual transmission: first or reverse gear)
is dangerous. Also, when parked on an in-
cline, positionP (manual transmission: first
or reverse gear) alone may not prevent your
vehicle from moving, possibly hitting people
or objects.
Always set the parking brake in addition to
shifting to positionP (manual transmission:
first or reverse gear).
When parked on an incline, also turn the
front wheels towards the road curb.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever* from
positionP (manual transmission: into
Neutral), either of which could result in an
accident and/or serious personal injury.

61 Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch toM
(
page 109).
For more information, see “Lighting”
(
page 109).
Turning off engine
Manual transmission: Move the gear-
shift lever into first or reverse gear.
Automatic transmission*: Place the
gear selector lever in positionP.
Apply the parking brake (page 59).
Turn the SmartKey in the starter switch
to position0 and remove the SmartKey
from the starter switch.
The immobilizer is activated.
Releasing seat belts
Press the seat belt release button
(
page 49).
Allow the retractor to completely
rewind the seat belt by guiding the
latch plate.
iAlways set the parking brake in addition to
shifting into first or reverse gear (automatic
transmission*: gear selector lever in positionP).
When parked on an incline, also turn the front
wheels towards the road curb.
iVehicles with automatic transmission*: The
SmartKey can only be removed from the starter
switch with the gear selector lever in positionP.
!Make sure the seat belt retracts fully so that
the seat belt and/or latch plate cannot get
caught or pinched in the door or in the seat
mechanism. This can damage the seat belt and
impair the effectiveness of the seat belt, and/or
cause damage to the door and/or door trim
panel. Such damage is not covered by the
Mercedes-Benz Limited Warranty.
Damaged seat belts must be replaced. Contact
an authorized Mercedes-Benz Center.

62 Getting started
Parking and locking
LockingExit the vehicle and close all doors.Press the lock button‹on the
SmartKey (
page 36).

All turn signal lamps flash three
times.

An acoustic warning sounds three
times (if equipped and feature acti-
vated). For more information, see
“Factory setting” (
page 96).

The locking knobs in the doors
move down.

The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 94).
Warning!G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors.
Be especially careful when small children
are around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle.
A child’s unsupervised access to a vehicle
could result in an accident and/or serious
personal injury.
iIf you hear a warning signal, you have forgot-
ten to switch off the headlamps before opening
the driver’s door.
In addition, the message
Turn off lights
appears in the multifunction display.
Switch off the headlamps.
!Failure to switch off the headlamps when
leaving the vehicle may result in a discharged
battery.
!Opening a door causes the windows on that
side of the car to open slightly. They will return to
the up position when the door is closed.
The side windows will not open or close if the
battery is discharged or the windows are imped-
ed by ice. As a result, you may no longer be able
to properly close the door. Do not attempt to
force the door shut. Doing so may damage the
door or the side window. Correct the condition
that prevents the windows from operating before
attempting to close the door.
iWithout the antenna on the left rear side of
the vehicle installed, the SmartKey signaling
range is considerably reduced. Hold the
SmartKey in close proximity towards the anten-
na base when locking or unlocking the vehicle.

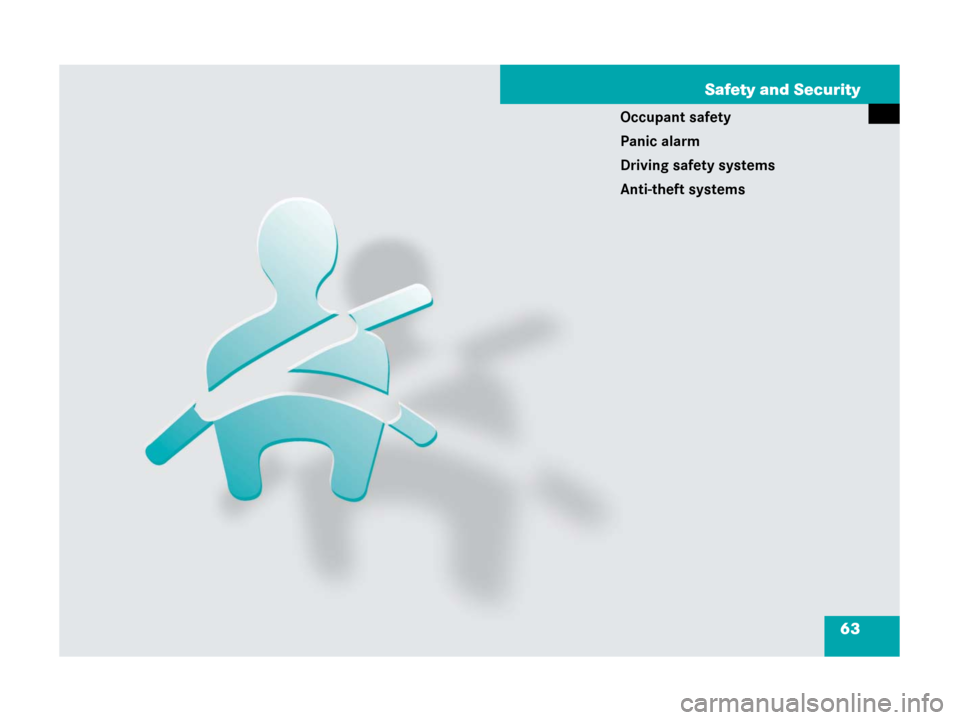

63 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems

64 Safety and Security
Occupant safety
In this section you will learn the most
important facts about the restraint system
components of the vehicle.

Seat belts (page 76)

Child restraints (page 80)
Additional protection potential provided by

Supplemental Restraint System (SRS)
with

Air bags (page 66)

Air bag control unit (with crash
sensors)

Emergency Tensioning Device
(ETD) for seat belts (
page 79)Air bag system components with

Front passenger front air bag off
indicator lamp (
page 74)

Passenger seat with Occupant
C
lassification System (OCS)
(
page 71)
Although independent systems, their
protective functions work in conjunction
with each other.The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates detection of malfunctions. The
1indicator lamp in the instrument
cluster comes on when the ignition is
switched on and goes out no later than a
few seconds after the engine has been
started.
The SRS components are in operational
readiness if the 1indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the 1indicator lamp:

fails to go out after approximately
4 seconds after the engine was started

does not come on at all

comes on after the engine was started
or while driving
iFor information on infants and children
traveling with you in the vehicle and restraint
systems for infants and children, see “Children
in the vehicle” (
page 79).

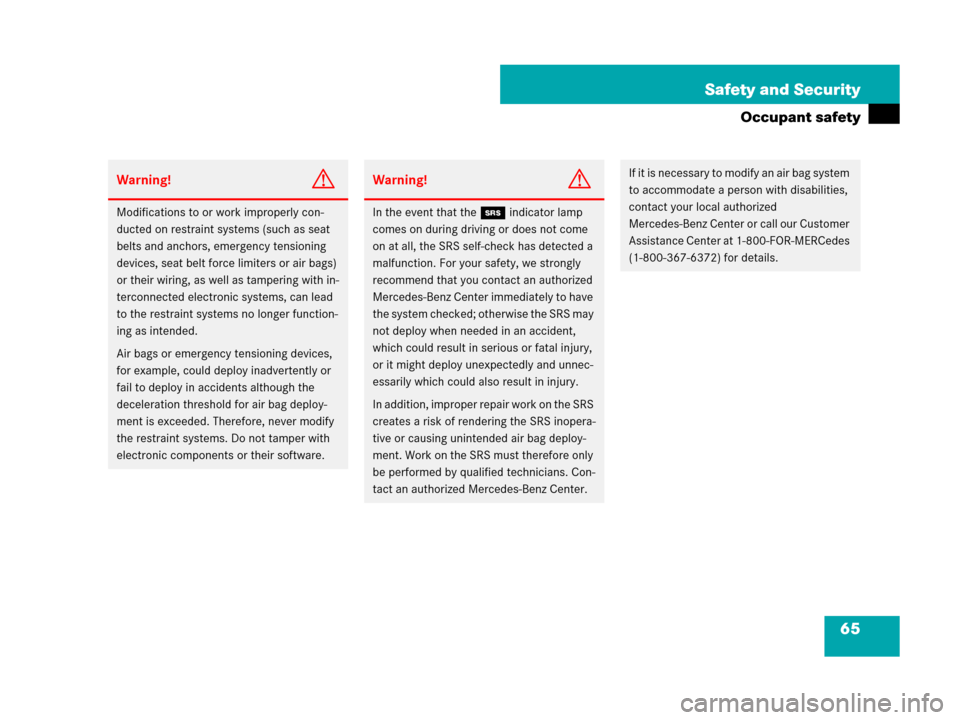

65 Safety and Security
Occupant safety
Warning!G
Modifications to or work improperly con-
ducted on restraint systems (such as seat
belts and anchors, emergency tensioning
devices, seat belt force limiters or air bags)
or their wiring, as well as tampering with in-
terconnected electronic systems, can lead
to the restraint systems no longer function-
ing as intended.
Air bags or emergency tensioning devices,
for example, could deploy inadvertently or
fail to deploy in accidents although the
deceleration threshold for air bag deploy-
ment is exceeded. Therefore, never modify
the restraint systems. Do not tamper with
electronic components or their software.
Warning!G
In the event that the 1 indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you contact an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not deploy when needed in an accident,
which could result in serious or fatal injury,
or it might deploy unexpectedly and unnec-
essarily which could also result in injury.
In addition, improper repair work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.

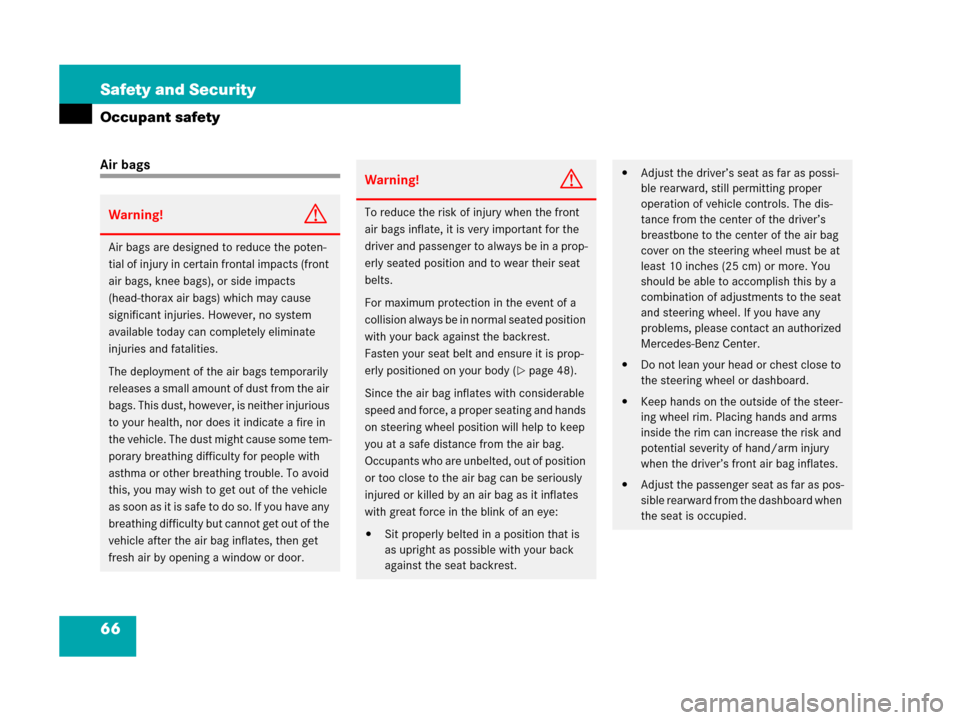

66 Safety and Security
Occupant safety
Air bags
Warning!G
Air bags are designed to reduce the poten-
tial of injury in certain frontal impacts (front
air bags, knee bags), or side impacts
(head-thorax air bags) which may cause
significant injuries. However, no system
available today can completely eliminate
injuries and fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.
Warning!G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and passenger to always be in a prop-
erly seated position and to wear their seat
belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest.
Fasten your seat belt and ensure it is prop-
erly positioned on your body (
page 48).
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:

Sit properly belted in a position that is
as upright as possible with your back
against the seat backrest.

Adjust the driver’s seat as far as possi-
ble rearward, still permitting proper
operation of vehicle controls. The dis-
tance from the center of the driver’s
breastbone to the center of the air bag
cover on the steering wheel must be at
least 10 inches (25 cm) or more. You
should be able to accomplish this by a
combination of adjustments to the seat
and steering wheel. If you have any
problems, please contact an authorized
Mercedes-Benz Center.

Do not lean your head or chest close to
the steering wheel or dashboard.

Keep hands on the outside of the steer-
ing wheel rim. Placing hands and arms
inside the rim can increase the risk and
potential severity of hand/arm injury
when the driver’s front air bag inflates.

Adjust the passenger seat as far as pos-
sible rearward from the dashboard when
the seat is occupied.

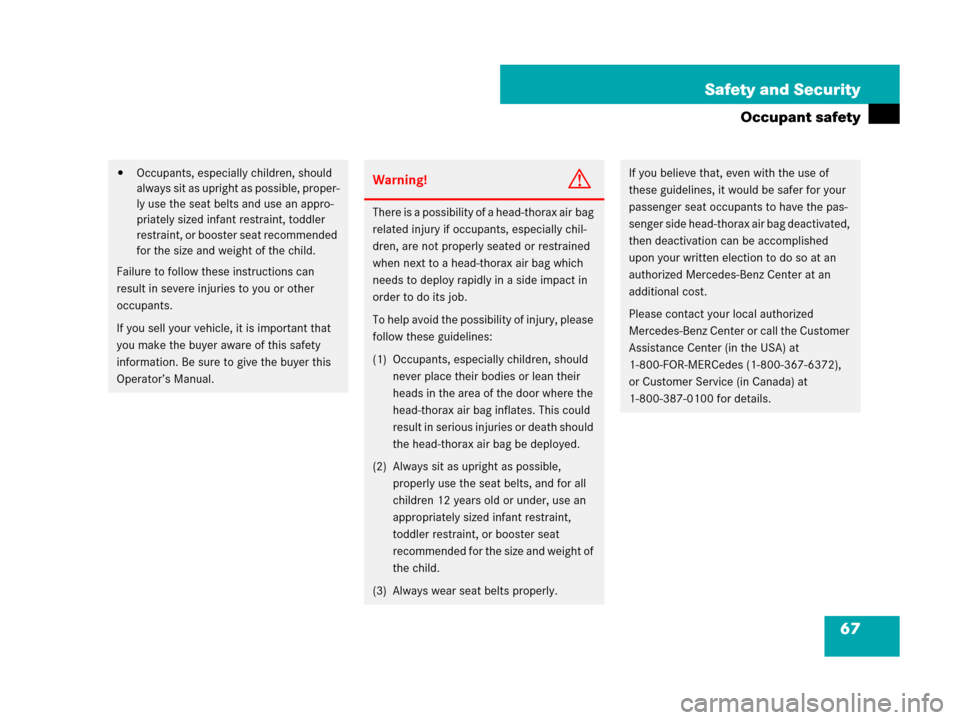

67 Safety and Security
Occupant safety

Occupants, especially children, should
always sit as upright as possible, proper-
ly use the seat belts and use an appro-
priately sized infant restraint, toddler
restraint, or booster seat recommended
for the size and weight of the child.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator’s Manual.Warning!G
There is a possibility of a head-thorax air bag
related injury if occupants, especially chil-
dren, are not properly seated or restrained
when next to a head-thorax air bag which
needs to deploy rapidly in a side impact in
order to do its job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
head-thorax air bag inflates. This could
result in serious injuries or death should
the head-thorax air bag be deployed.
(2) Always sit as upright as possible,
properly use the seat belts, and for all
children 12 years old or under, use an
appropriately sized infant restraint,
toddler restraint, or booster seat
recommended for the size and weight of
the child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
passenger seat occupants to have the pas-
senger side head-thorax air bag deactivated,
then deactivation can be accomplished
upon your written election to do so at an
authorized Mercedes-Benz Center at an
additional cost.
Please contact your local authorized
Mercedes-Benz Center or call the Customer
Assistance Center (in the USA) at
1-800-FOR-MERCedes (1-800-367-6372),
or Customer Service (in Canada) at
1-800-387-0100 for details.

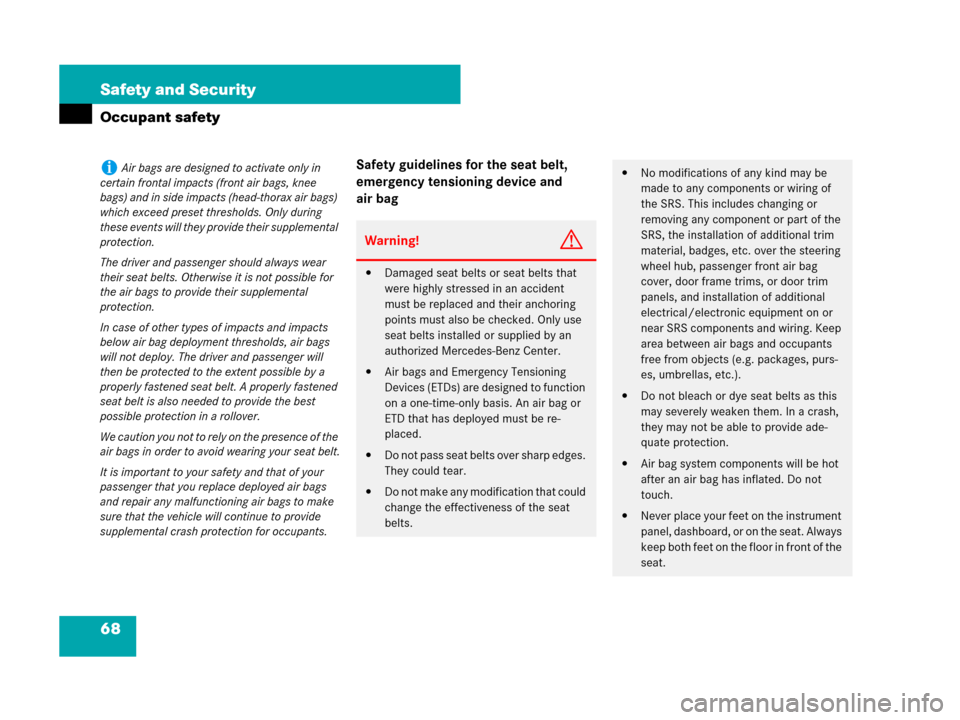

68 Safety and Security
Occupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
air bagiAir bags are designed to activate only in
certain frontal impacts (front air bags, knee
bags) and in side impacts (head-thorax air bags)
which exceed preset thresholds. Only during
these events will they provide their supplemental
protection.
The driver and passenger should always wear
their seat belts. Otherwise it is not possible for
the air bags to provide their supplemental
protection.
In case of other types of impacts and impacts
below air bag deployment thresholds, air bags
will not deploy. The driver and passenger will
then be protected to the extent possible by a
properly fastened seat belt. A properly fastened
seat belt is also needed to provide the best
possible protection in a rollover.
We caution you not to rely on the presence of the
air bags in order to avoid wearing your seat belt.
It is important to your safety and that of your
passenger that you replace deployed air bags
and repair any malfunctioning air bags to make
sure that the vehicle will continue to provide
supplemental crash protection for occupants.
Warning!G

Damaged seat belts or seat belts that
were highly stressed in an accident
must be replaced and their anchoring
points must also be checked. Only use
seat belts installed or supplied by an
authorized Mercedes-Benz Center.

Air bags and Emergency Tensioning
Devices (ETDs) are designed to function
on a one-time-only basis. An air bag or
ETD that has deployed must be re-
placed.

Do not pass seat belts over sharp edges.
They could tear.

Do not make any modification that could
change the effectiveness of the seat
belts.

No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or
removing any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, passenger front air bag
cover, door frame trims, or door trim
panels, and installation of additional
electrical/electronic equipment on or
near SRS components and wiring. Keep
area between air bags and occupants
free from objects (e.g. packages, purs-
es, umbrellas, etc.).

Do not bleach or dye seat belts as this
may severely weaken them. In a crash,
they may not be able to provide ade-
quate protection.

Air bag system components will be hot
after an air bag has inflated. Do not
touch.

Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.

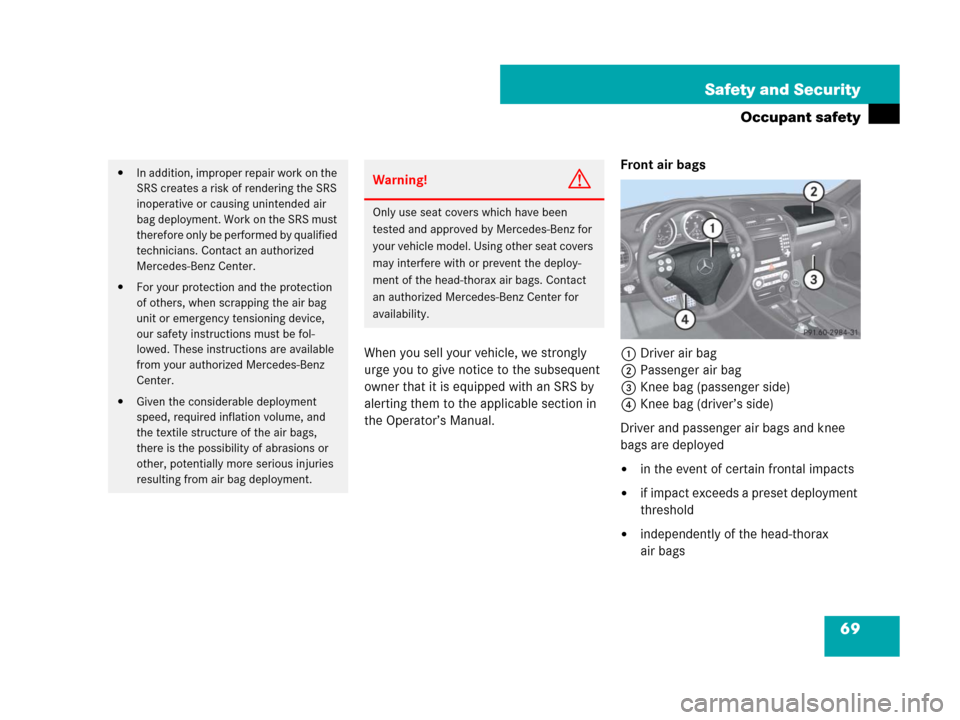

69 Safety and Security
Occupant safety
When you sell your vehicle, we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.Front air bags
1Driver air bag
2Passenger air bag
3Knee bag (passenger side)
4Knee bag (driver’s side)
Driver and passenger air bags and knee
bags are deployed

in the event of certain frontal impacts

if impact exceeds a preset deployment
threshold

independently of the head-thorax
air bags

In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Center.

For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.

Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other, potentially more serious injuries
resulting from air bag deployment.
Warning!G
Only use seat covers which have been
tested and approved by Mercedes-Benz for
your vehicle model. Using other seat covers
may interfere with or prevent the deploy-
ment of the head-thorax air bags. Contact
an authorized Mercedes-Benz Center for
availability.
