36 Getting started
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section (
page 93) will provide you
with further information. The correspond-
ing page references are located at the end
of each segment.
Unlocking
Unlocking with the SmartKey

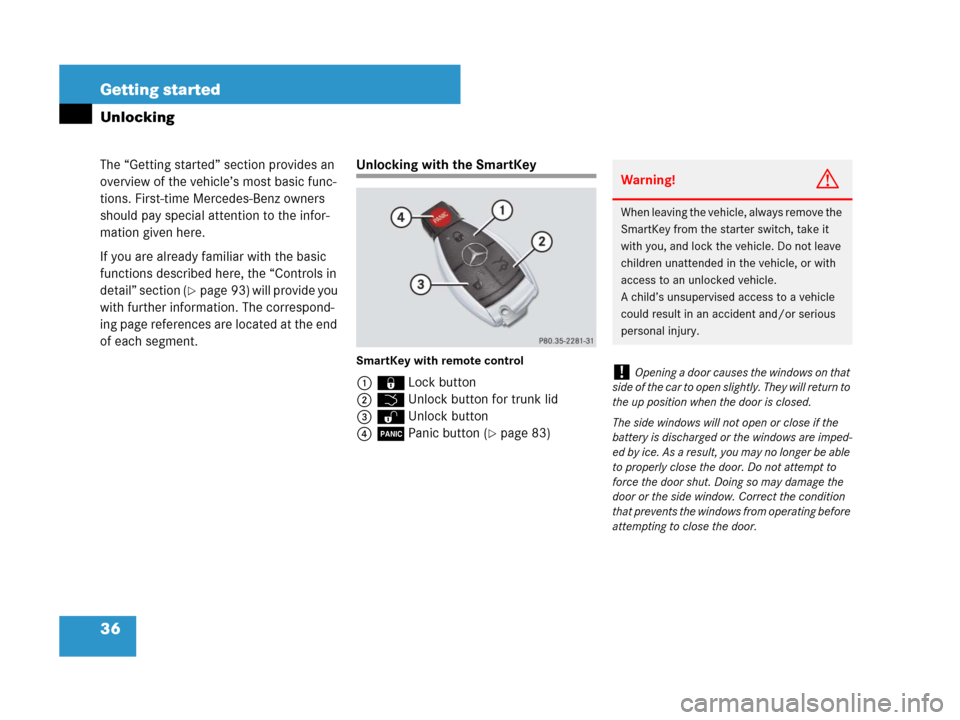

SmartKey with remote control
1‹Lock button
2ŠUnlock button for trunk lid
3ŒUnlock button
4ÂPanic button (
page 83)
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle.
A child’s unsupervised access to a vehicle
could result in an accident and/or serious
personal injury.
!Opening a door causes the windows on that
side of the car to open slightly. They will return to
the up position when the door is closed.
The side windows will not open or close if the
battery is discharged or the windows are imped-
ed by ice. As a result, you may no longer be able
to properly close the door. Do not attempt to
force the door shut. Doing so may damage the
door or the side window. Correct the condition
that prevents the windows from operating before
attempting to close the door.

94 Controls in detail
In the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed in your vehicle.
If you are already familiar with the basic
functions of your vehicle, this section will
be of particular interest to you.
To quickly familiarize yourself with the
basic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are
given at the beginning of each segment.
For more information on unlocking and
locking, see (
page 36) and (page 59).
Locking and unlocking
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys are a
different color to help distinguish each
SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors

the trunk

the fuel filler flap

the glove box

the storage/telephone* compartment
under the armrest

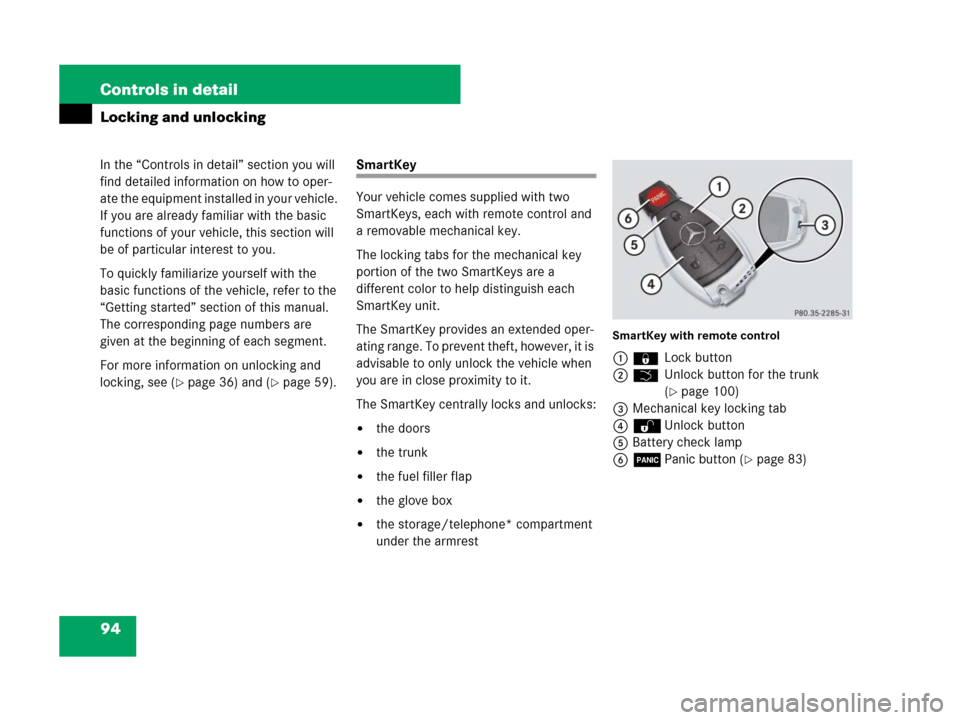

SmartKey with remote control
1‹Lock button
2
ŠUnlock button for the trunk
(
page 100)
3Mechanical key locking tab
4ŒUnlock button
5Battery check lamp
6ÂPanic button (
page 83)

271 Controls in detail
Useful features
Programming the integrated remote
control
Step 1:
Switch on the ignition (page 37).Step 2:
If you have previously programmed a
signal transmitter button and wish to
retain its programming, proceed to
step 3.
If you are programming the integrated
remote control for the first time, press
and hold the two outer signal transmit-
ter buttons2 and4 and release
them only when indicator lamp1
begins to flash after approximately
20 seconds (do not hold the button for
longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory.
If you later wish to program a second
and/or third hand-held transmitter to
the remaining two signal transmitter
buttons, do not repeat this step and
begin directly with step 3.Step 3:Hold the end of hand-held remote
control5 of the device you wish
to train approximately
2 to 5 in (5 to12 cm) away from the
signal transmitter button (2, 3 or4)
to be programmed, while keeping indi-
cator lamp1 in view.
Step 4:
Using both hands, simultaneously
press hand-held remote control
button6 and the desired signal trans-
mitter button (2, 3 or4). Do not
release the buttons until step 5 is com-
pleted.
Indicator lamp1 will flash, first slowly
and then rapidly.
When programming a garage door opener, it
is advised to park outside the garage.
Do not run the engine while programming
the integrated remote control. Inhalation of
exhaust gas is hazardous to your health.
All exhaust gas contains carbon monoxide
(CO), and inhaling it can cause unconscious-
ness and possible death.
iIndicator lamp1 flashes immediately the
first time the signal transmitter button is pro-
grammed. If this button has already been pro-
grammed, the indicator lamp will only start
flashing after 20 seconds.


272 Controls in detail
Useful features
Step 5:
After indicator lamp1 changes from a
slow to a rapidly flashing light, release
the hand-held remote control button
and the signal transmitter button.
Step 6:
Press and hold the just-trained signal
transmitter button (2, 3 or4) and
observe indicator lamp1.
If indicator lamp1 stays on
constantly, programming is complete
and your device should activate when
the respective signal transmitter
button (2, 3 or4) is pressed and
released.
Step 7:
To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.Rolling code programming
To train a garage door opener (or other
rolling code devices) with the rolling code
feature, follow these instructions after
completing the “Programming” portion
(steps 1 through 6) of this text. (A second
person may make the following training
procedures quicker and easier.)
Step 8:
Locate “training” button on the garage
door opener motor head unit.
Exact location and color of the button
may vary by garage door opener brand.
Depending on manufacturer, the
“training” button may also be referred
to as “learn”or “smart” button. If there
is difficulty locating the transmitting
button, refer to the garage door opener
Operator’s Manual. Step 9:
Press the “training” button on the
garage door opener motor head unit.
The “training light” is activated.
You have 30 seconds to initiate the follow-
ing step.
Step 10:
Return to the vehicle and firmly press,
hold for 2 seconds and release the
programmed signal transmitter
button (2, 3 or4).
iIf indicator lamp1 flashes rapidly for about
2 seconds and then turns to a constant light,
continue with programming steps 8 through 12
as your garage door opener may be equipped
with the “rolling code” feature.


273 Controls in detail
Useful features
Step 11:
Press, hold for 2 seconds and release
same signal transmitter button a
second time to complete the training
process.
Step 12:
Confirm the garage door operation by
pressing the programmed signal trans-
mitter button (2, 3 or4).
Step 13:
To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.Gate operator/Canadian programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
which may not be long enough for the
integrated signal transmitter to pick up the
signal during programming. Similar to this
Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.
If you live in Canada or if you are having
difficulties programming a gate operator
(regardless of where you live) by using the
programming procedures, replace step 4
with the following:
Step 4:Press and hold the signal transmitter
button (2, 3 or4). Do not
release this button until it has been
successfully trained.
While still holding down the signal
transmitter button (2, 3 or4),
“cycle” your hand-held remote control
button6 as follows: Press and hold
button6 for 2 seconds, then release
it for 2 seconds, and again press and
hold it for 2 seconds. Repeat this
sequence on the hand-held remote
control until the frequency signal has
been learned. Upon successful train-
ing, indicator lamp1 will flash slowly
and then rapidly after several seconds.
Proceed with programming step 5 and
step 6 to complete.
iSome garage door openers (or other rolling
code equipped devices) may require you to
press, hold for 2 seconds and release the same
signal transmitter button a third time to
complete the training process.
iUpon completion of programming the inte-
grated remote control, make sure you retain the
hand-held remote control that came with the ga-
rage door opener, gate operator or other device.
You may need it for use in other vehicles, for fu-
ture programming of an integrated remote con-
trol, or simply for continued use as a hand-held
remote control to operate the respective device
in other situations.

274 Controls in detail
Useful features
Reprogramming a single signal trans-
mitter button
To program a device using a signal trans-
mitter button previously trained, follow
these steps:
Switch on the ignition (page 37).
Press and hold the desired signal
transmitter button (2, 3 or4).
Do not release the button.
Indicator lamp1 will begin to flash
after 20 seconds. Without releasing
the signal transmitter button, proceed
with programming starting with step 3.Operation of integrated remote control
Switch on the ignition (page 37).
Select and press the appropriate inte-
grated signal transmitter button (2,
3 or4) to activate the remote con-
trolled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.Erasing the integrated remote control
memorySwitch on the ignition (page 37).
Simultaneously press and hold outer
signal transmitter buttons2 and 4,
for approximately 20 seconds, until
indicator lamp1 flashes rapidly. Do
not hold for longer than 30 seconds.
The codes of all three channels are
erased.
iIf you sell your vehicle, erase the codes of all
three channels.

455 Index
Delayed shut-off
Exterior lamps 144
Interior lighting 145
Department of Transportation see DOT
Difficulties
Wile driving 58
With starting the engine 52
Digital speedometer 128
Dimensions, Vehicle 441
Dipstick see Oil dipstick
Direction of rotation (Tires) 307
Display text see Messages in the
multifunction display
Displays
Digital speedometer 128
Maintenance service indicator 334
Multifunction display 121
Outside temperature 128
Symbol messages 366
Text messages 358
Vehicle status message memory 135
Vehicle status messages 356Distance to empty (range), Trip
computer 149
Door
Control panel 34
Entry lamps 117
Locking in an emergency 388
Locking/unlocking, SmartKey 94
Opening from inside 99
Remote door unlock, Tele Aid* 269
Unlocking in an emergency 387
DOT 328
Drink holder see Cup holder
Drinking and driving 279
Driver’s air bag see Air bagsDriving 53
Abroad 287
Accelerator position 159
Automatic transmission* 53
Driving off 282
Fuel saving 279
Hydroplaning 284
In winter 286
Instructions 48, 279
Kickdown 159
Manual transmission 53
Standing water 287
Tires 283
Driving safety systems 84
ABS 84
BAS 86
Electronic traction system 88
ESP
®86
Driving systems
Cruise control 247
Driving tips 159

456 Index
E
Easy-entry/exit feature* 44, 147
Electric air pump
Inflating collapsible tire 411
Sealing tires with TIREFIT 401
Vehicle tool kit 382
Electrical system (Technical data) 440
Electronic Stability Program see ESP
®
Emergency call (911) 233
Emergency call system 262
Tele Aid* 263
Emergency operations
Automatic transmission* (Limp-Home
Mode) 167
Remote door unlock, Tele Aid* 269
Retractable hardtop 390
Selector lever*, unlocking
manually 389
Trunk lid, Releasing from the
inside 101
Unlocking/locking the vehicle 387Emergency Tensioning Device see ETD
Emission control 289
Information label 431
System warranties 10
Vacuum line routing diagram 431
Engine
Cleaning 339
Compartment 294
Malfunction indicator lamp 27, 349
Number 431
Poly-V-belt layout 432
Starting 51
Tachometer 119
Technical data 433
Turning off 61Engine oil 296, 445
Adding 299
Additives 445
Checking level (Control system) 296
Checking level (Dipstick) 298
Consumption 296
Messages in the multifunction
display 297, 372–373
ESP®84, 86
Messages in the multifunction
display 358, 359
Warning lamp 350
ETD 79
Safety guidelines 68
Warning and indicator lamps 353
Exterior lamp switch 109
Exterior lighting
Lamps 393
Replacing bulbs 393
Exterior rear view mirrors see Mirrors

464 Index
Service system
Maintenance service indicator 334
Parts service 428
Settings menu (Control system) 136
Shelf behind roll bar 254
Shift program mode, Automatic
transmission* 161
Shifting, Automatic transmission 155
Side marker lamps 394
Side windows see Power windows
Sidewall 329
SmartKey 94
Checking batteries 98
Factory setting 96
Global locking 96
Global unlocking 96
Locking and unlocking 94
Loss of SmartKey or mechanical
key 98Mechanical key 387
Panic button 83
Positions in starter switch 37
Power windows,
opening/closing* 238
Remote control 94
Replacing batteries 391
Restoring to factory setting 98
Retractable hardtop,
opening/closing* 244
Selective setting 97
Starting engine 51
Turning off engine 61
Snow chains 333
Spare fuses (Vehicle tool kit) 382
Spare parts see Parts service
Spare wheel 385SRS
Indicator lamp 353
Messages in the multifunction
display 360
Standard display menu (Control
system) 127
Standing lamps 109, 394
Standing water, driving instructions 287
Starter switch positions 37
Starting 37, 51
Difficulties with 52
Position in starter switch 37
Steering column see Steering wheel
Steering wheel
Adjusting 43
Heating* 276
Lock 52
