MERCEDES-BENZ SLK32AMG 2004 R171 Owner's Manual

151 Controls in detail
Useful features
Remote door unlock
In case you have locked your vehicle unin-
tentionally (e.g. key inside vehicle), and the
reserve key is not handy:
Contact the Mercedes-Benz Response
Center at 1-800-756-9018 (in the USA)
or 1-888-923-8367 (in Canada).
You will be asked to provide your pass-
word which you provided when you
completed the subscriber agreement.

Then return to your vehicle and pull
outside trunk handle for minimum of
20 seconds until the SOS button is
flashing.
As an alternative, you may unlock the vehi-
cle via Internet using the ID and password
sent to you shortly after the completion of
your acquaintance call.
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.
iThe indicator lamp in the respective
button flashes until the call is conclud-
ed. Calls can only be terminated by a
Response Center or Customer Assis-
tance Center representative, except
Roadside Assistance and Information
calls.iWhen a Tele Aid call has been initiated,
the audio system is muted and the se-
lected mode (radio, tape or CD) paus-
es. The optional cellular phone (if
installed) switches off. If you must use
this phone, the vehicle must be parked.
Disconnect the coiled cord and place
the call.
iThe remote door unlock feature is avail-
able if the relevant cellular phone net-
work is available.
The SOS button will flash to indicate re-
ceipt of the door unlock command.
Once the vehicle is unlocked, a Re-
sponse Center specialist will attempt
to establish voice contact with the ve-
hicle occupants.
If the trunk handle was pulled for more
than 20 seconds before door unlock
authorization was received by the Re-
sponse Center, you must wait
15 minutes before pulling the trunk
handle again.

152 Controls in detailUseful featuresStolen vehicle tracking services
In the event your vehicle was stolen:
Report the incident to the police.
The police will issue a numbered inci-
dent report.

Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s
Tele Aid system. Once the vehicle is lo-
cated, the Response Center will con-
tact the local law enforcement and you.
The vehicle’s location will only be pro-
vided to law enforcement.

153 Controls in detail
Useful features
Garage door opener
The built-in remote control is capable of
operating up to three separately controlled
devices, for example garage door openers,
gate openers, or other devices compatible
with HomeLink
® or some other systems.
You can program the signal transmitter
buttons.
Remote control integrated into the interior
rear view mirror1 2 3Signal transmitter button
4Indicator lamp
5Hand-held transmitter button
6Hand-held remote control trans-
mitter (not part of the vehicle
equipment)
Warning!
G
Before programming the integrated remote
control to a garage door opener or gate op-
erator, make sure people and objects are
out of the way of the device to prevent po-
tential harm or damage.
When programming a garage door opener,
the door moves up or down. When program-
ming a gate operator, the gate opens or
closes.
Do not use the integrated remote control
with any garage door opener that lacks safe-
ty stop and reverse features as required by
U.S. federal safety standards (this includes
any garage door opener model manufac-
tured before April 1, 1982). A garage door
that cannot detect an object - signaling the
door to stop and reverse - does not meet
current U.S. federal safety standards.

154 Controls in detailUseful features
Programming or reprogramming the in-
tegrated remote control
Step 1:
Switch on ignition.
Step 2:

If you have previously programmed an
integrated signal transmitter button
and wish to retain its programming,
proceed to step 3. Otherwise, press
and hold the two outer signal transmit-
ter buttons1 and3 and release
them only when the indicator light be-
gins to flash after approximately 20
seconds (do not hold the button for
longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory. If you later wish to program a
second and/or third hand-held trans-
mitter to the remaining two signal
transmitter buttons, do not repeat this
step and begin directly with step 3.
iCertain types of garage door openers
are incompatible with the integrated
opener. If you should experience diffi-
culties with programming the transmit-
ter, contact your authorized
Mercedes-Benz Center, or call
Mercedes-Benz Customer Assistance
Center (in the USA only) at
1-800-FOR-MERCedes, or Customer
Service (in Canada) at
1-800-387-0100.
iFor operation in the USA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

155 Controls in detail
Useful features
Step 3:
Hold the end of the hand-held remote
control transmitter6 of the device
you wish to train approximately 2 to
5 in (5 to12 cm) away from the surface
of the integrated remote control locat-
ed on the interior rear view mirror,
keeping the indicator lamp4 in view.
Step 4:

Using both hands, simultaneously
press the hand-held transmitter
button5 and the desired integrated
signal transmitter button (1, 2
or3). Do not release the buttons until
completing step 5.
The indicator lamp4 on the integrat-
ed remote control will flash, first slowly
and then rapidly.Step 5:

When the indicator lamp4 flashes
rapidly, release both buttons.
Step 6:

Press and hold the just-trained inte-
grated signal transmitter button and
observe the indicator lamp4.
If the indicator lamp4 stays on con-
stantly, programming is complete and
your device should activate when the
integrated signal transmitter button is
pressed and released.Step 7:

To program the remaining two buttons,
repeat the steps above starting with
step 3.
iThe indicator lamp4 flashes the first
time the signal transmitter button is
programmed. If this button has already
been programmed, the indicator lamp
will only start flashing after 20 sec-
onds.
iIf the indicator lamp4 blinks rapidly
for about two seconds and then turns
to a constant light, continue with pro-
gramming steps 8 through 12 as your
garage door opener may be equipped
with the “rolling code” feature.

156 Controls in detailUseful featuresRolling code programming
To train a garage door opener (or other roll-
ing code devices) with the rolling code fea-
ture, follow these instructions after
completing the “Programming” portion
(steps 1 through 6) of this text. (A second
person may make the following training
procedures quicker and easier.)
Step 8:
Locate “training” button on the garage
door opener motor head unit.
Exact location and color of the button
may vary by garage door opener brand.
Depending on manufacturer, the “train-
ing” button may also be referred to as
“learn”or “smart” button. If there is dif-
ficulty locating the transmitting button,
refer to the garage door opener opera-
tor’s manual. Step 9:

Press “training” button on the garage
door opener motor head unit.
The “training light” is activated.
You have 30 seconds to initiate the follow-
ing step.
Step 10:

Firmly press, hold for two seconds and
release the programmed integrated
signal transmitter button (1, 2
or3).
Step 11:

Press, hold for two seconds and re-
lease same button a second time to
complete the training process.
Some garage door openers (or other rolling
code equipped devices) may require you to
perform this procedure a third time to
complete the training.Step 12:

Confirm the garage door operation by
pressing the programmed integrated
signal transmitter button (1, 2
or3).
Step 13:

To program the remaining two buttons,
repeat the steps above starting with
step 3.

157 Controls in detail
Useful features
Gate operator/Canadian programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
which may not be long enough for the inte-
grated signal transmitter to pick up the sig-
nal during programming. Similar to this
Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.
I f y o u l i v e i n C a n a d a or i f y o u a r e h a v i n g d i f -
ficulties programming a gate operator (re-
gardless of where you live) by using the
programming procedures, replace step 4
with the following:Step 4:

Continue to press and hold the inte-
grated signal transmitter button (1,
2 or3) while you press and re-press
(“cycle”) your hand-held remote con-
trol transmitter6 every two seconds
until the frequency signal has been
learned. Upon successful training, the
indicator lamp4 will flash slowly and
then rapidly after several seconds.

Proceed with programming step 5 and
step 6 to complete.
Operation of integrated remote control

Switch on ignition.

Select and press the appropriate inte-
grated signal transmitter button (1,
2 or3) to activate the remote con-
trolled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.Erasing the integrated remote control
memory

Switch on ignition.

Simultaneously hold down the signal
transmitter buttons1 and 3, for ap-
proximately 20 seconds, until the indi-
cator lamp4 blinks rapidly. Do not
hold for longer than 30 seconds.
The codes of all three channels are
erased.iIf you sell your vehicle, erase the codes
of all three channels.

158 Controls in detailUseful featuresReprogramming a single integrated
signal transmitter button
To program a device using a signal trans-
mitter button previously trained, follow
these steps:
Press and hold the desired signal trans-
mitter button (1, 2 or3). Do not re-
lease the button.

The indicator lamp will begin to flash af-
ter 20 seconds. Without releasing the
integrated signal transmitter button,
proceed with programming starting
with step 3.

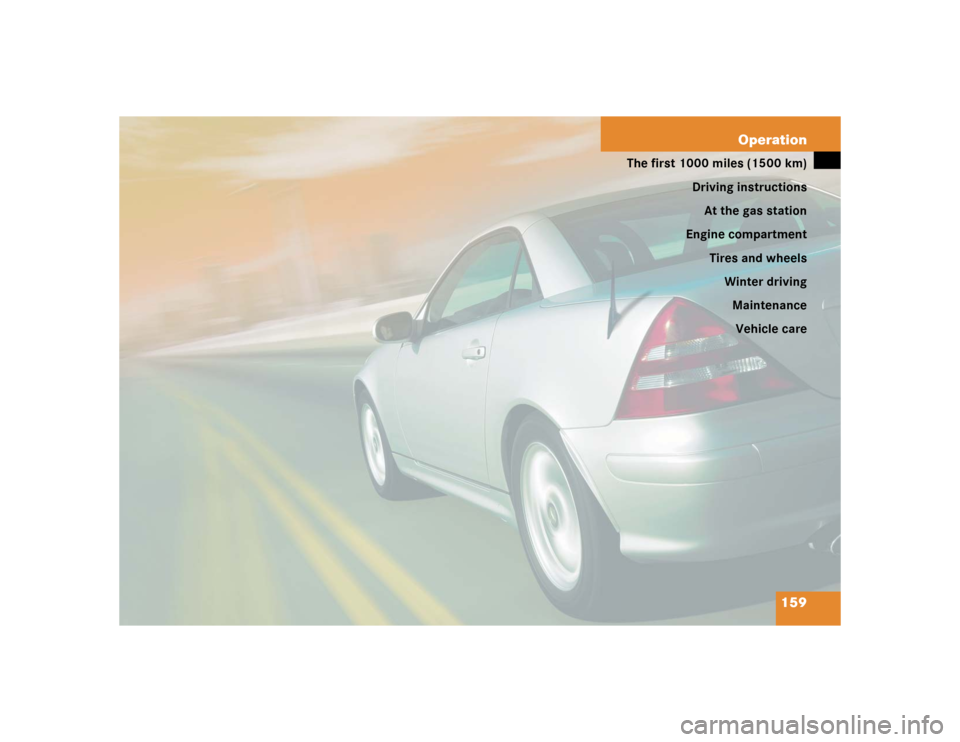

159 Operation
The first 1000 miles (1500 km)
Driving instructions
At the gas station
Engine compartment
Tires and wheels
Winter driving
Maintenance
Vehicle care

160 OperationThe first 1000 miles (1500 km)
In the “Operation” section you will find de-
tailed information on operating, maintain-
ing and caring for your vehicle.
The first 1000 miles (1500 km)
The more cautiously you treat your vehicle
during the break-in period, the more satis-
fied you will be with its performance later
on.

Drive your vehicle during the first
1000 miles (1500 km) at varying but
moderate vehicle and engine speeds.


During this period, avoid heavy loads
(full throttle driving) and excessive en-
gine speeds (no more than
2/3 of max-
imum rpm in each gear).


Do not attempt to slow the vehicle
down by shifting to a lower gear using
the selector lever or the gearshift lever.


Shift gears in a timely manner.


Avoid accelerating by kick-down.


Select positions3,2 or1 only when
driving at moderate speeds (for hill
driving).
After 1000 miles (1500 km) you may grad-
ually increase vehicle and engine speeds
to the permissible maximum.
!Additional instructions for AMG vehi-
cles:

During the first 1000 miles
(1500 km), do not exceed a speed
of 85 mph (140 km/h).


During this period, avoid engine
speeds above 4500 rpm in each
gear.
All of the above, as may apply to your
vehicle type, also apply when driving
the first 1000 miles (1500 km) after the
engine or the rear differential has been
replaced.
iAlways obey applicable speed limits.
