MERCEDES-BENZ SLK32AMG 2004 R171 Owner's Manual

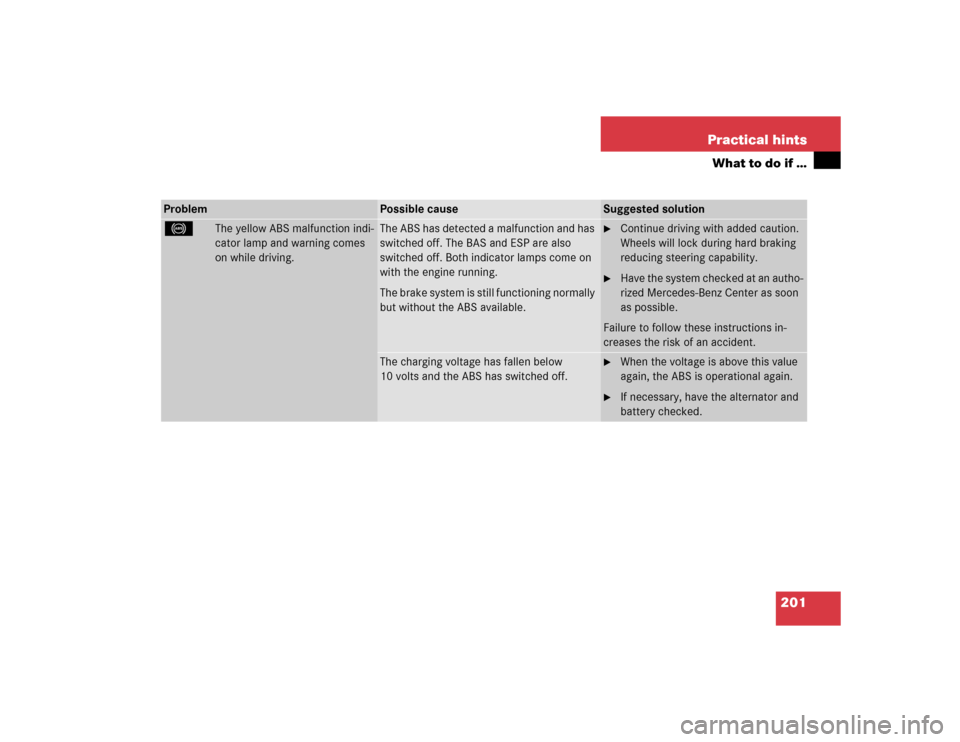

201 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
-
The yellow ABS malfunction indi-
cator lamp and warning comes
on while driving.
The ABS has detected a malfunction and has
switched off. The BAS and ESP are also
switched off. Both indicator lamps come on
with the engine running.
The brake system is still functioning normally
but without the ABS available.

Continue driving with added caution.
Wheels will lock during hard braking
reducing steering capability.

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of an accident.
The charging voltage has fallen below
10 volts and the ABS has switched off.

When the voltage is above this value
again, the ABS is operational again.

If necessary, have the alternator and
battery checked.

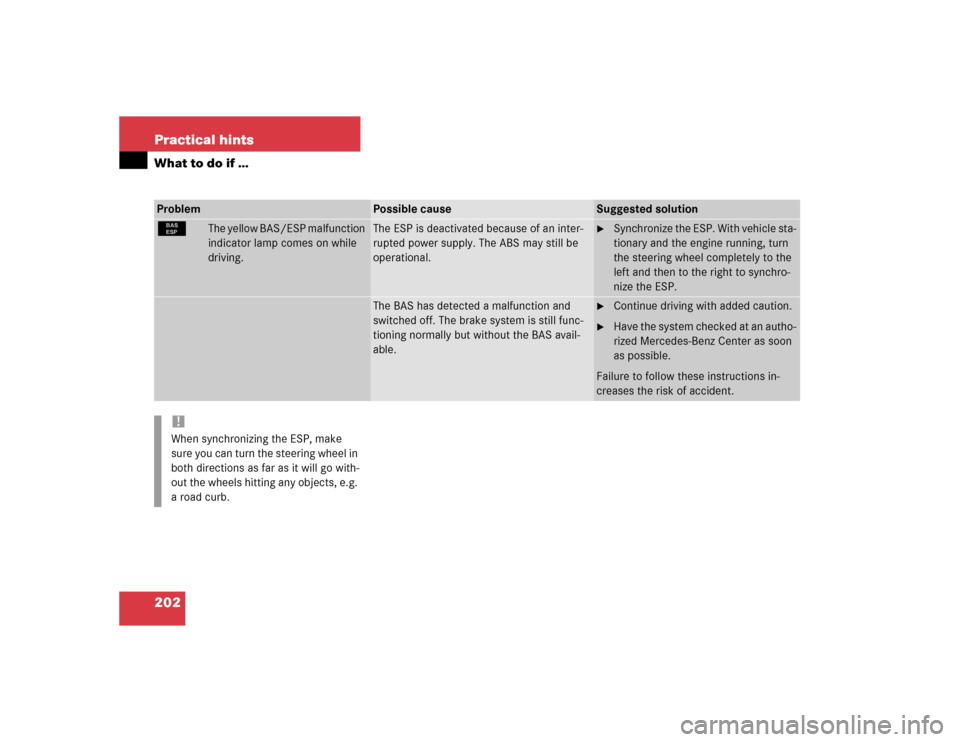

202 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
¿
The yellow BAS/ESP malfunction
indicator lamp comes on while
driving.
The ESP is deactivated because of an inter-
rupted power supply. The ABS may still be
operational.

Synchronize the ESP. With vehicle sta-
tionary and the engine running, turn
the steering wheel completely to the
left and then to the right to synchro-
nize the ESP.
The BAS has detected a malfunction and
switched off. The brake system is still func-
tioning normally but without the BAS avail-
able.

Continue driving with added caution.

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of accident.
!When synchronizing the ESP, make
sure you can turn the steering wheel in
both directions as far as it will go with-
out the wheels hitting any objects, e.g.
a road curb.

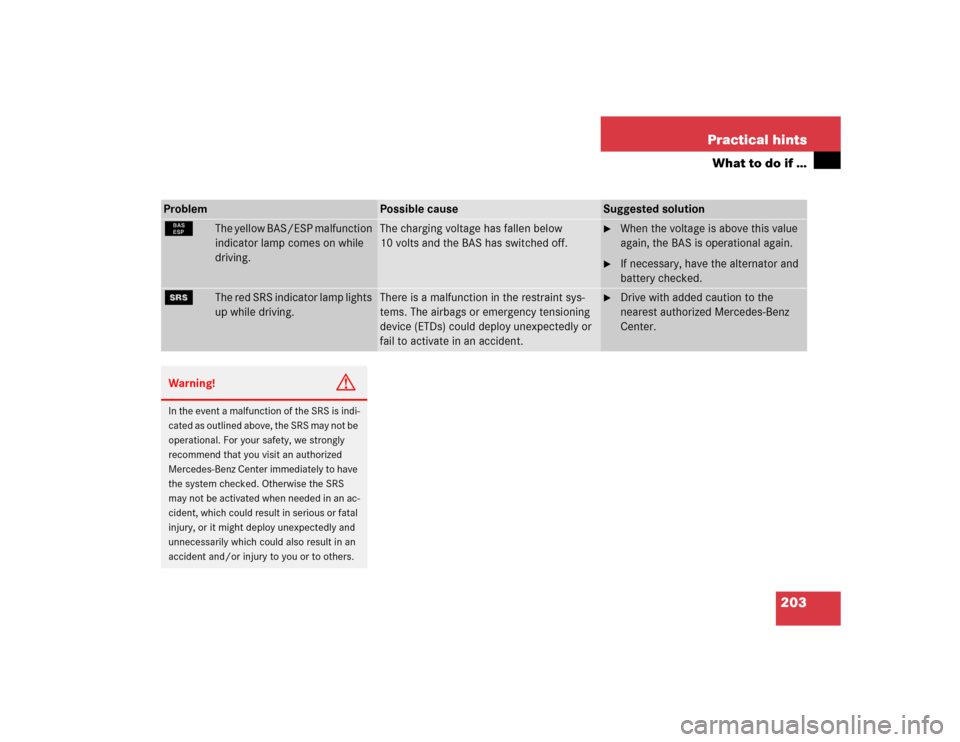

203 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
¿
The yellow BAS/ESP malfunction
indicator lamp comes on while
driving.
The charging voltage has fallen below
10 volts and the BAS has switched off.

When the voltage is above this value
again, the BAS is operational again.

If necessary, have the alternator and
battery checked.
1
The red SRS indicator lamp lights
up while driving.
There is a malfunction in the restraint sys-
tems. The airbags or emergency tensioning
device (ETDs) could deploy unexpectedly or
fail to activate in an accident.

Drive with added caution to the
nearest authorized Mercedes-Benz
Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked. Otherwise the SRS
may not be activated when needed in an ac-
cident, which could result in serious or fatal
injury, or it might deploy unexpectedly and
unnecessarily which could also result in an
accident and/or injury to you or to others.

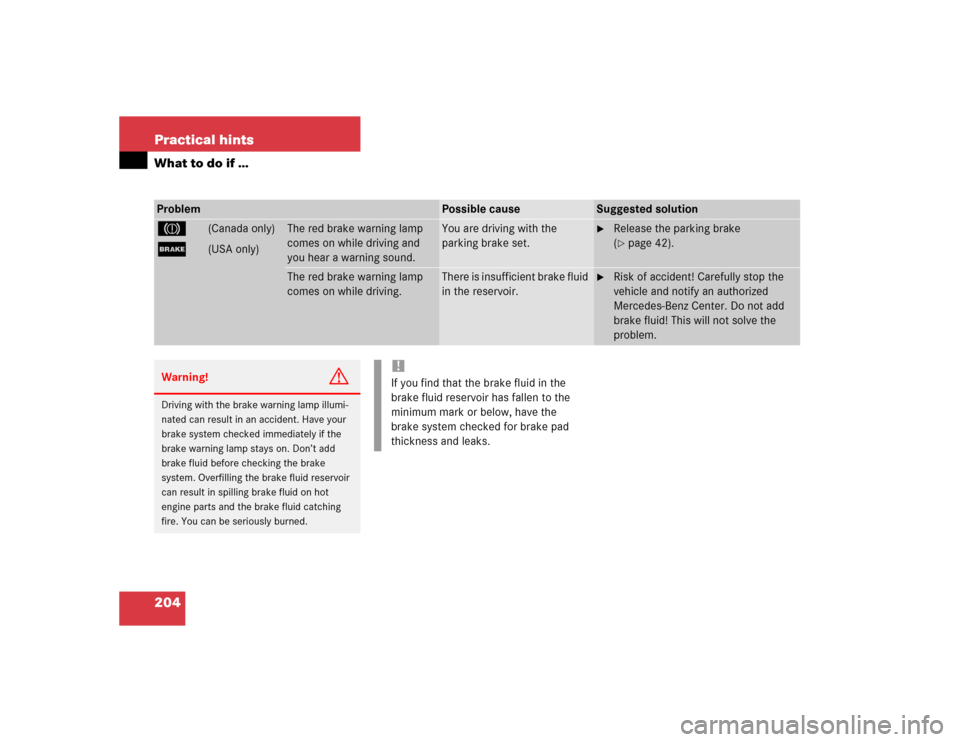

204 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
3
(Canada only)
;
(USA only)
The red brake warning lamp
comes on while driving and
you hear a warning sound.
You are driving with the
parking brake set.

Release the parking brake
(page 42).
The red brake warning lamp
comes on while driving.
There is insufficient brake fluid
in the reservoir.

Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the
problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Don’t add
brake fluid before checking the brake
system. Overfilling the brake fluid reservoir
can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

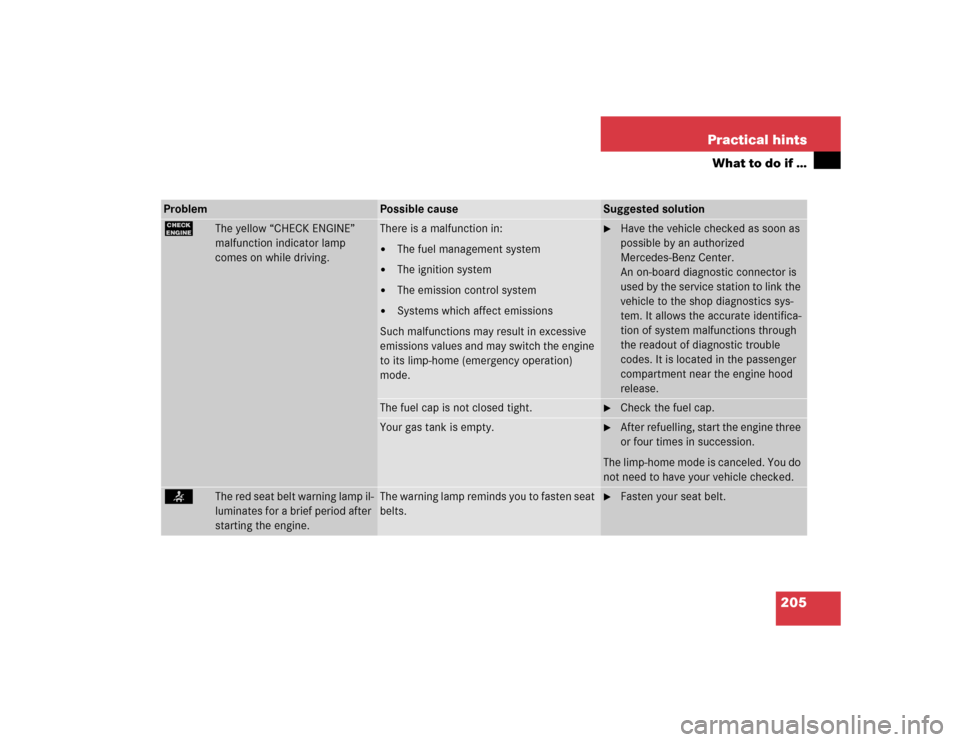

205 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
?
The yellow “CHECK ENGINE”
malfunction indicator lamp
comes on while driving.
There is a malfunction in:

The fuel management system


The ignition system


The emission control system


Systems which affect emissions
Such malfunctions may result in excessive
emissions values and may switch the engine
to its limp-home (emergency operation)
mode.

Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics sys-
tem. It allows the accurate identifica-
tion of system malfunctions through
the readout of diagnostic trouble
codes. It is located in the passenger
compartment near the engine hood
release.
The fuel cap is not closed tight.

Check the fuel cap.
Your gas tank is empty.

After refuelling, start the engine three
or four times in succession.
The limp-home mode is canceled. You do
not need to have your vehicle checked.
<
The red seat belt warning lamp il-
luminates for a brief period after
starting the engine.
The warning lamp reminds you to fasten seat
belts.

Fasten your seat belt.

206 Practical hintsWhat to do if …When the low engine oil level warning lamp
does not go out after starting the engine,
or comes on while the engine is running
and at operating temperature, the engine
oil level has dropped to approximately the
minimum mark on the dipstick.When this occurs, the warning lamp will
first come on intermittently and then stay
on if the oil level drops further.
If no oil leaks are noted, continue to drive
to the nearest service station where the
engine oil should be topped to the “full”
mark on the dipstick with an approved oil.Problem
Possible cause
Suggested solution
_
The red telescoping steering
column* warning lamp remains
lit after starting the engine.
The adjustable steering column is not locked
properly.

Lock the steering column
(page 34).
W
The yellow low windshield and
headlamp* washer system fluid
level warning lamp remains lit af-
ter starting the engine or lights
up while driving.
The fluid level has dropped to about
1/3 of
total reservoir capacity.

Add washer fluid (
page 184).
N
The yellow low engine oil level
warning lamp remains lit after
starting the engine or comes on
while driving.
The engine oil level has sunk to the minimum
level.

Check the engine oil level
(page 175) and add oil as required
(page 179).

If you must add engine oil frequently,
have the engine checked for possible
leaks.!The low engine oil level warning light
should not be ignored. Extended driv-
ing with the light illuminated could re-
sult in serious engine damage that is
not covered by the Mercedes-Benz
Limited Warranty.

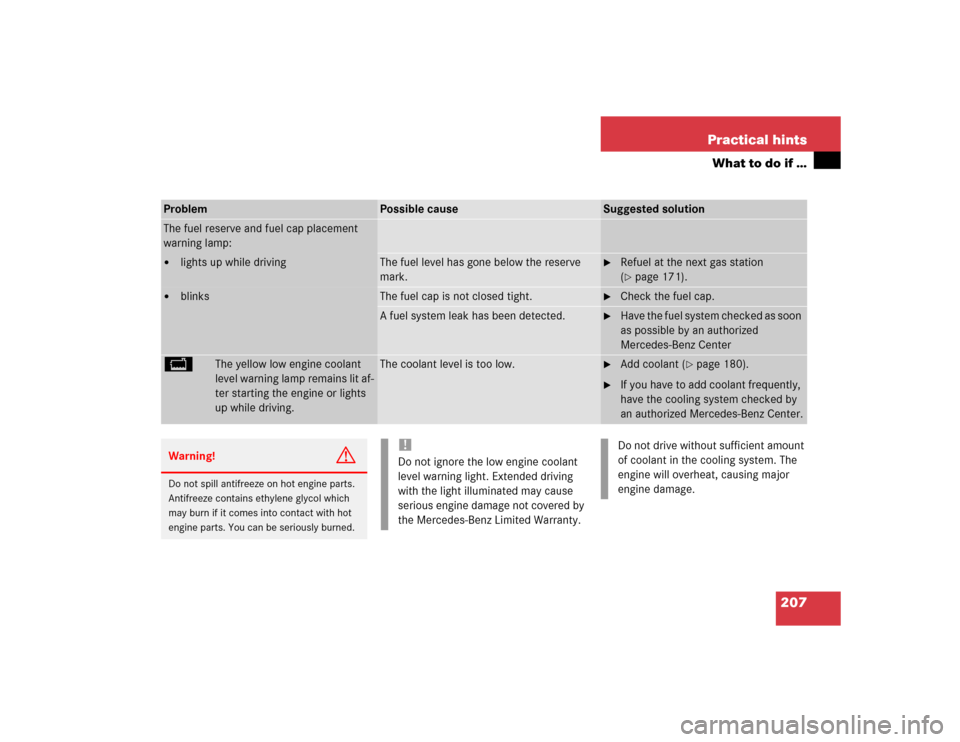

207 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
The fuel reserve and fuel cap placement
warning lamp:

lights up while driving
The fuel level has gone below the reserve
mark.

Refuel at the next gas station
(page 171).


blinks
The fuel cap is not closed tight.

Check the fuel cap.
A fuel system leak has been detected.

Have the fuel system checked as soon
as possible by an authorized
Mercedes-Benz Center
B
The yellow low engine coolant
level warning lamp remains lit af-
ter starting the engine or lights
up while driving.
The coolant level is too low.

Add coolant (
page 180).

If you have to add coolant frequently,
have the cooling system checked by
an authorized Mercedes-Benz Center.
Warning!
G
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which
may burn if it comes into contact with hot
engine parts. You can be seriously burned.
!Do not ignore the low engine coolant
level warning light. Extended driving
with the light illuminated may cause
serious engine damage not covered by
the Mercedes-Benz Limited Warranty.
Do not drive without sufficient amount
of coolant in the cooling system. The
engine will overheat, causing major
engine damage.

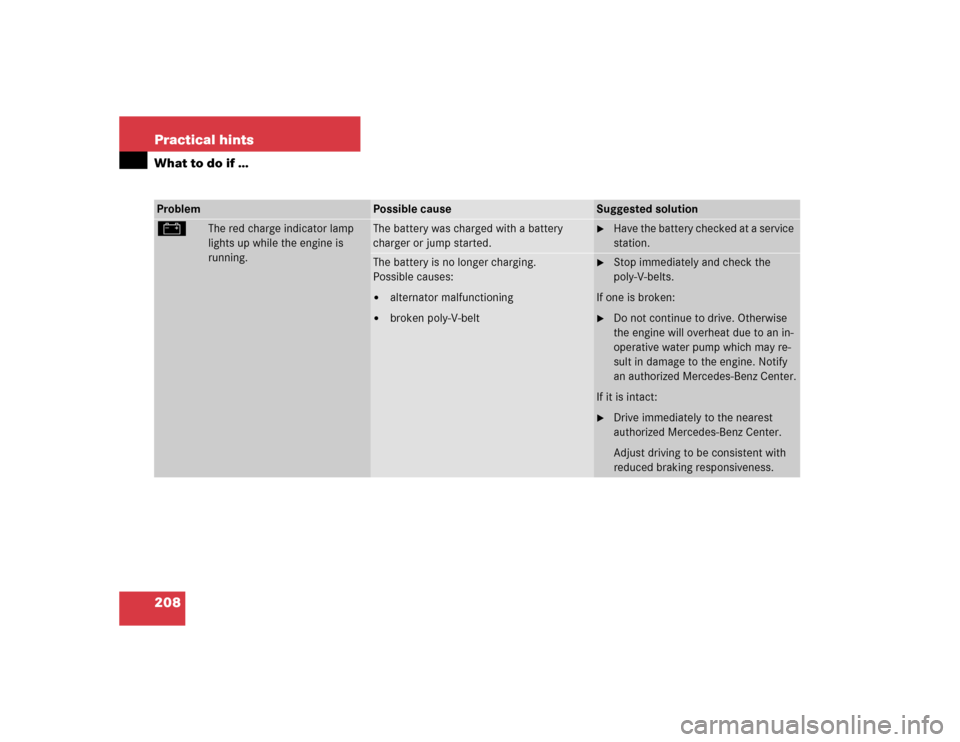

208 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
#
The red charge indicator lamp
lights up while the engine is
running.
The battery was charged with a battery
charger or jump started.

Have the battery checked at a service
station.
The battery is no longer charging.
Possible causes:

alternator malfunctioning


broken poly-V-belt

Stop immediately and check the
poly-V-belts.
If one is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an in-
operative water pump which may re-
sult in damage to the engine. Notify
an authorized Mercedes-Benz Center.
If it is intact:

Drive immediately to the nearest
authorized Mercedes-Benz Center.
Adjust driving to be consistent with
reduced braking responsiveness.

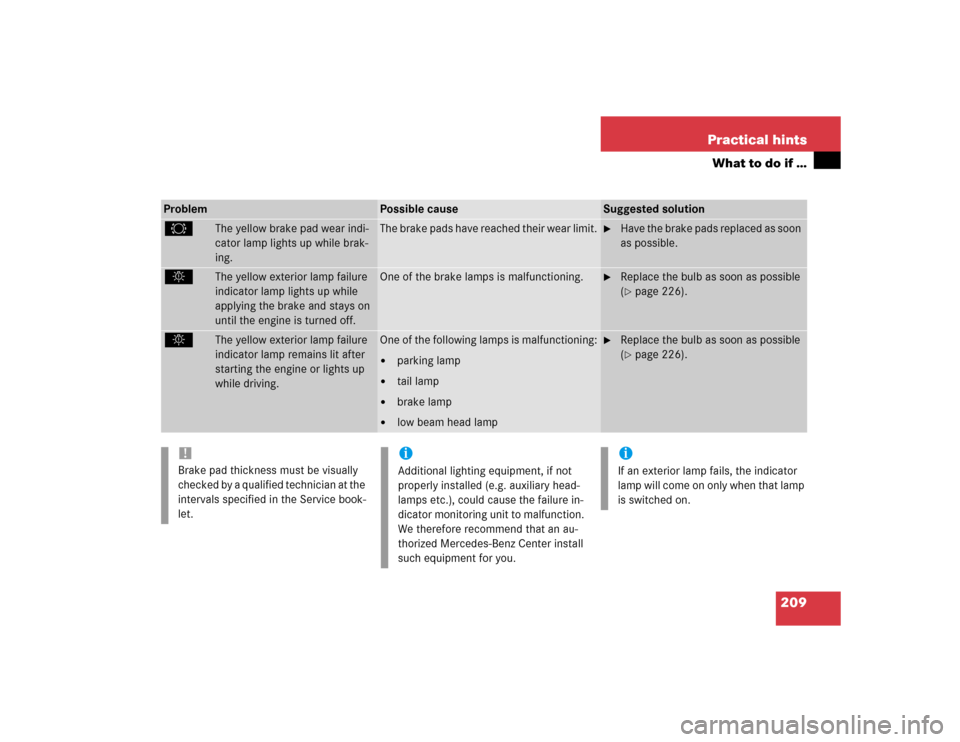

209 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
2
The yellow brake pad wear indi-
cator lamp lights up while brak-
ing.
The brake pads have reached their wear limit.

Have the brake pads replaced as soon
as possible.
.
The yellow exterior lamp failure
indicator lamp lights up while
applying the brake and stays on
until the engine is turned off.
One of the brake lamps is malfunctioning.

Replace the bulb as soon as possible
(page 226).
.
The yellow exterior lamp failure
indicator lamp remains lit after
starting the engine or lights up
while driving.
One of the following lamps is malfunctioning:

parking lamp


tail lamp


brake lamp


low beam head lamp

Replace the bulb as soon as possible
(page 226).
!Brake pad thickness must be visually
checked by a qualified technician at the
intervals specified in the Service book-
let.
iAdditional lighting equipment, if not
properly installed (e.g. auxiliary head-
lamps etc.), could cause the failure in-
dicator monitoring unit to malfunction.
We therefore recommend that an au-
thorized Mercedes-Benz Center install
such equipment for you.
iIf an exterior lamp fails, the indicator
lamp will come on only when that lamp
is switched on.

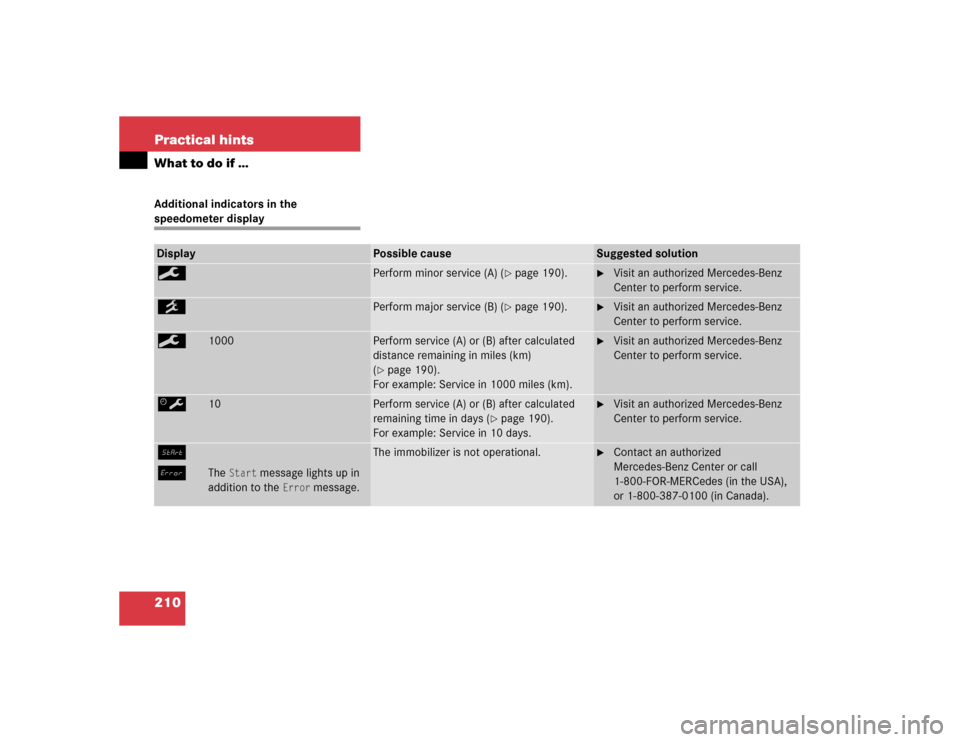

210 Practical hintsWhat to do if …Additional indicators in the speedometer displayDisplay
Possible cause
Suggested solution
9
Perform minor service (A) (
page 190).

Visit an authorized Mercedes-Benz
Center to perform service.
´
Perform major service (B) (
page 190).

Visit an authorized Mercedes-Benz
Center to perform service.
9
1000
Perform service (A) or (B) after calculated
distance remaining in miles (km)
(page 190).
For example: Service in 1000 miles (km).

Visit an authorized Mercedes-Benz
Center to perform service.
š
10
Perform service (A) or (B) after calculated
remaining time in days (
page 190).
For example: Service in 10 days.

Visit an authorized Mercedes-Benz
Center to perform service.
Á
î
The
Start
message lights up in
addition to the
Error
message.
The immobilizer is not operational.

Contact an authorized
Mercedes-Benz Center or call
1-800-FOR-MERCedes (in the USA),
or 1-800-387-0100 (in Canada).
