MERCEDES-BENZ SLK32AMG 2004 R171 Owner's Manual

221 Practical hints
Opening/closing in an emergency
Opening/closing in an emergency
Raising retractable hardtop manually
If the retractable hardtop cannot be closed
automatically, make certain that all points
listed under the “Retractable hardtop” sec-
tion (
page 130) were observed.
If the automatic operation still does not
function properly, you can close the re-
tractable hardtop manually.
This procedure should be performed with
great care by two persons.

Open doors or lower windows
(page 128).

Set parking brake (
page 47).

Remove key from steering lock
(page 29).

Open trunk lid (
page 78).

Remove CD changer (
page 122).

Open the right side trim panel in the
trunk. Remove cover, if necessary.
!Manually closing the retractable hard-
top is a complicated and technically de-
manding procedure. Close the
retractable hardtop manually in emer-
gency cases only. Otherwise, visit an
authorized Mercedes-Benz Center.
Warning!
G


It is important that a second person
helps you. Otherwise, you could become
trapped or injured.


Remove any wristwatches or jewelry
such as rings or bracelets. Otherwise,
they could get caught in the vehicle
mechanism, causing personal injury to
yourself or damage to the vehicle.


Always use the grips provided. Other-
wise you could injure yourself.
iIf your CD changer holder does not
have the fasteners 1 as shown under
“Installing and removing the CD chang-
er*” (
page 122), your vehicle may be
equipped with a non-factory installed
CD changer holder. The holder then
does not need to be removed as there
should be enough room between the
CD changer holder and the right side
trim panel in the trunk to remove the
cover and gain access to the screw for
hydraulic pump should you need to
raise the retractable hardtop manually.


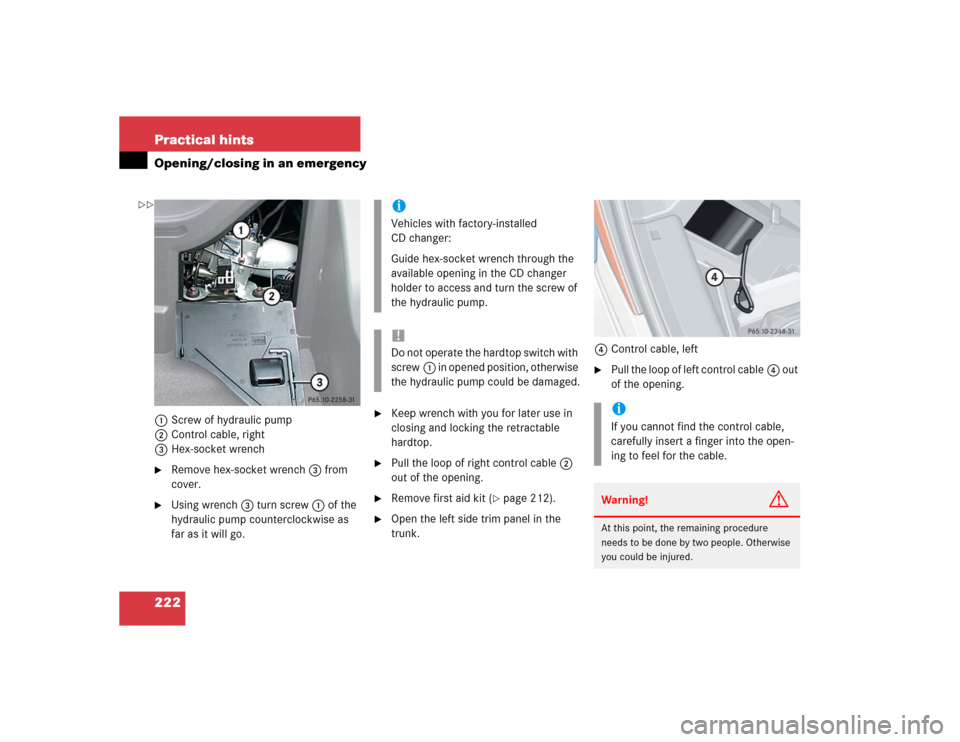

222 Practical hintsOpening/closing in an emergency1Screw of hydraulic pump
2Control cable, right
3Hex-socket wrench
Remove hex-socket wrench3 from
cover.

Using wrench3 turn screw1 of the
hydraulic pump counterclockwise as
far as it will go.

Keep wrench with you for later use in
closing and locking the retractable
hardtop.

Pull the loop of right control cable2
out of the opening.

Remove first aid kit (
page 212).

Open the left side trim panel in the
trunk. 4Control cable, left

Pull the loop of left control cable4 out
of the opening.
iVehicles with factory-installed
CD changer:
Guide hex-socket wrench through the
available opening in the CD changer
holder to access and turn the screw of
the hydraulic pump. !Do not operate the hardtop switch with
screw1 in opened position, otherwise
the hydraulic pump could be damaged.
iIf you cannot find the control cable,
carefully insert a finger into the open-
ing to feel for the cable. Warning!
G
At this point, the remaining procedure
needs to be done by two people. Otherwise
you could be injured.


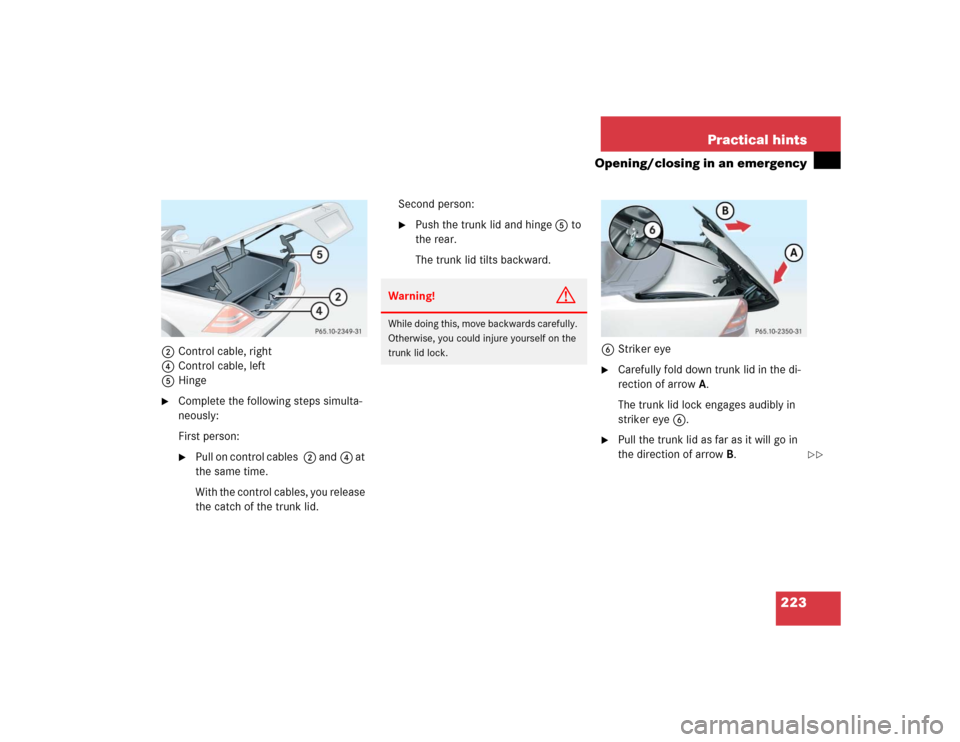

223 Practical hints
Opening/closing in an emergency
2Control cable, right
4Control cable, left
5Hinge
Complete the following steps simulta-
neously:
First person:
Pull on control cables 2 and4 at
the same time.
With the control cables, you release
the catch of the trunk lid.Second person:

Push the trunk lid and hinge5 to
the rear.
The trunk lid tilts backward.
6Striker eye

Carefully fold down trunk lid in the di-
rection of arrowA.
The trunk lid lock engages audibly in
striker eye6.

Pull the trunk lid as far as it will go in
the direction of arrowB.
Warning!
G
While doing this, move backwards carefully.
Otherwise, you could injure yourself on the
trunk lid lock.


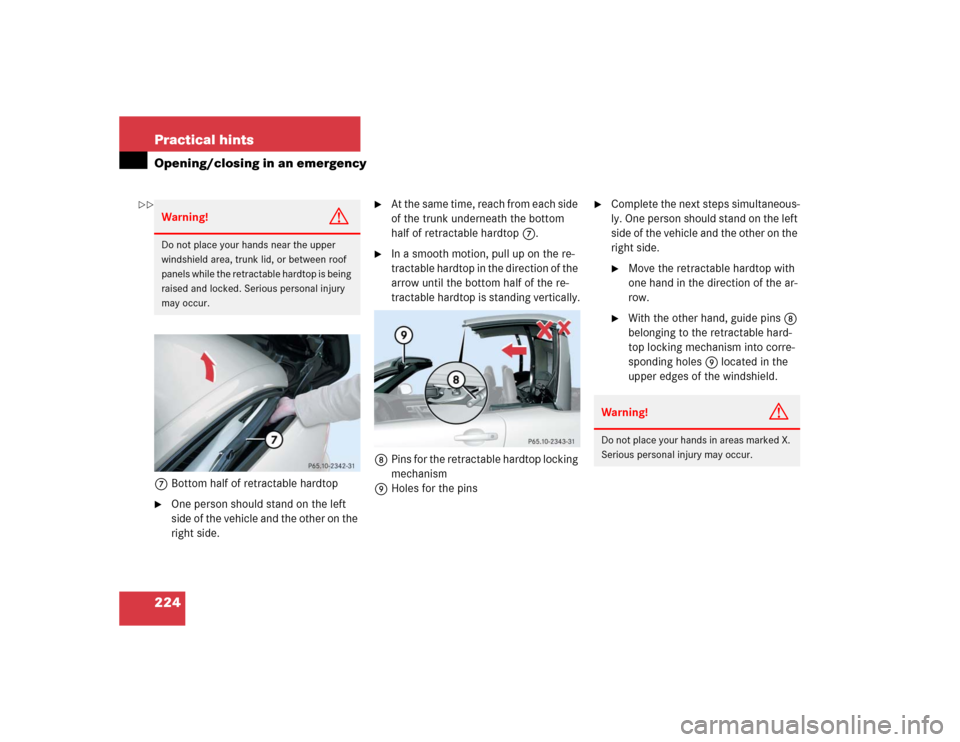

224 Practical hintsOpening/closing in an emergency7Bottom half of retractable hardtop
One person should stand on the left
side of the vehicle and the other on the
right side.

At the same time, reach from each side
of the trunk underneath the bottom
half of retractable hardtop7.

In a smooth motion, pull up on the re-
tractable hardtop in the direction of the
arrow until the bottom half of the re-
tractable hardtop is standing vertically.
8Pins for the retractable hardtop locking
mechanism
9Holes for the pins

Complete the next steps simultaneous-
ly. One person should stand on the left
side of the vehicle and the other on the
right side.
Move the retractable hardtop with
one hand in the direction of the ar-
row.

With the other hand, guide pins8
belonging to the retractable hard-
top locking mechanism into corre-
sponding holes9 located in the
upper edges of the windshield.
Warning!
G
Do not place your hands near the upper
windshield area, trunk lid, or between roof
panels while the retractable hardtop is being
raised and locked. Serious personal injury
may occur.
Warning!
G
Do not place your hands in areas marked X.
Serious personal injury may occur.


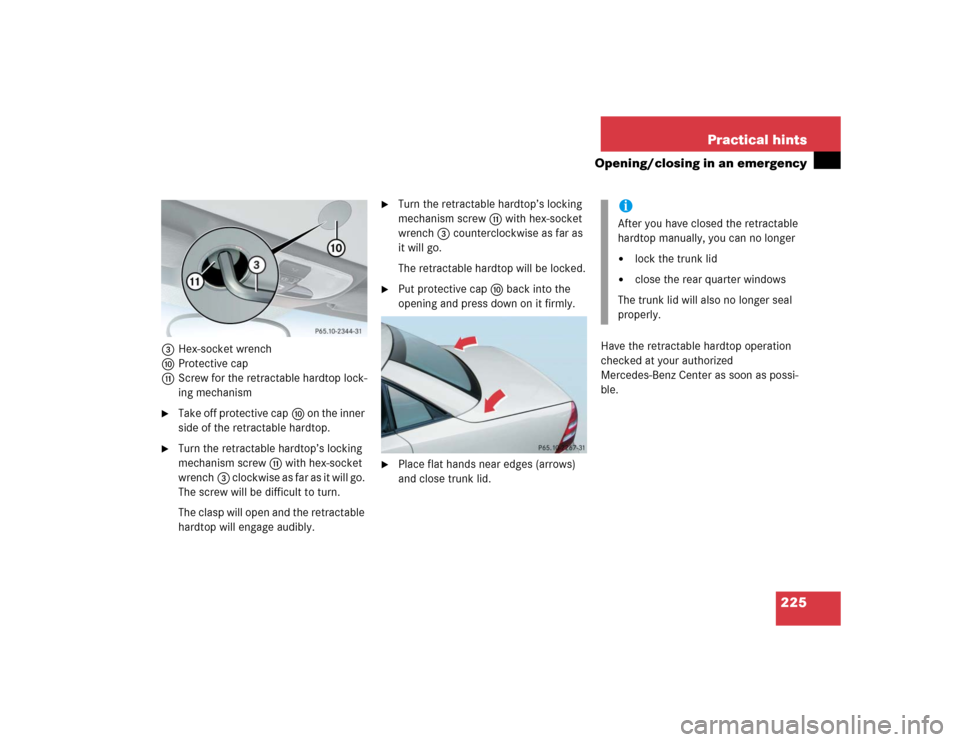

225 Practical hints
Opening/closing in an emergency
3Hex-socket wrench
aProtective cap
bScrew for the retractable hardtop lock-
ing mechanism
Take off protective capa on the inner
side of the retractable hardtop.

Turn the retractable hardtop’s locking
mechanism screwb with hex-socket
wrench3 clockwise as far as it will go.
The screw will be difficult to turn.
The clasp will open and the retractable
hardtop will engage audibly.

Turn the retractable hardtop’s locking
mechanism screwb with hex-socket
wrench3 counterclockwise as far as
it will go.
The retractable hardtop will be locked.

Put protective capa back into the
opening and press down on it firmly.

Place flat hands near edges (arrows)
and close trunk lid.Have the retractable hardtop operation
checked at your authorized
Mercedes-Benz Center as soon as possi-
ble.
iAfter you have closed the retractable
hardtop manually, you can no longer

lock the trunk lid


close the rear quarter windows
The trunk lid will also no longer seal
properly.

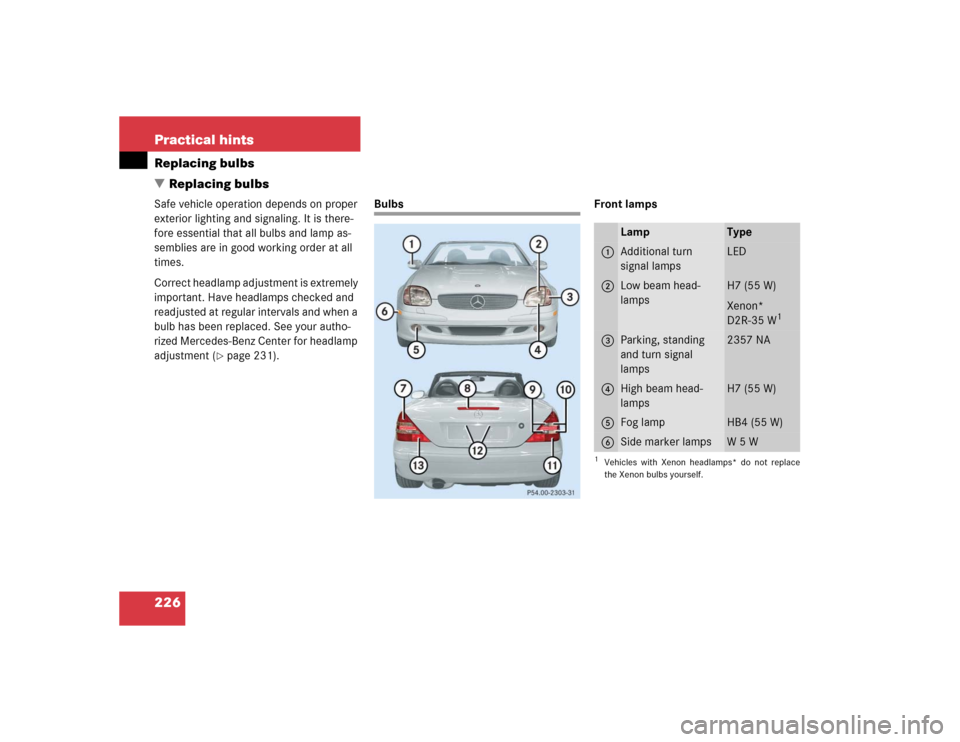

226 Practical hintsReplacing bulbs
Replacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Center for headlamp
adjustment (
page 231).
Bulbs Front lamps
Lamp
Type
1
Additional turn
signal lamps
LED
2
Low beam head-
lamps
H7 (55 W)
Xenon*
D2R-35 W
1
1Vehicles with Xenon headlamps* do not replace
the Xenon bulbs yourself.3
Parking, standing
and turn signal
lamps
2357 NA
4
High beam head-
lamps
H7 (55 W)
5
Fog lamp
HB4 (55 W)
6
Side marker lamps
W5W

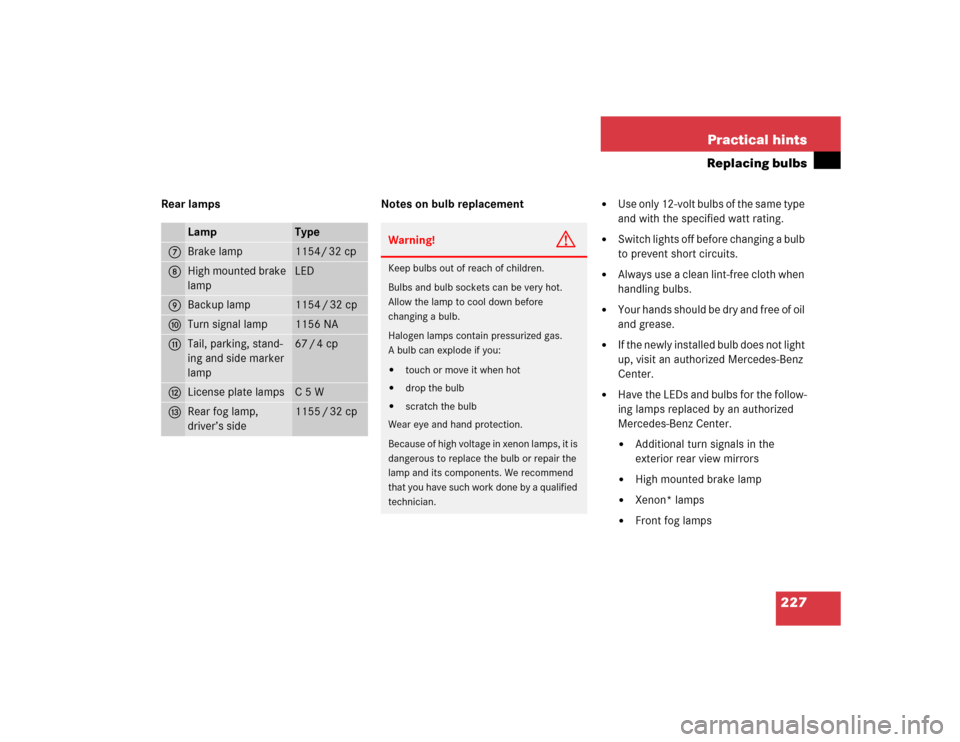

227 Practical hints
Replacing bulbs
Rear lamps Notes on bulb replacement


Use only 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Center.


Have the LEDs and bulbs for the follow-
ing lamps replaced by an authorized
Mercedes-Benz Center.

Additional turn signals in the
exterior rear view mirrors


High mounted brake lamp


Xenon* lamps


Front fog lamps
Lamp
Type
7
Brake lamp
1154/ 32 cp
8
High mounted brake
lamp
LED
9
Backup lamp
1154 / 32 cp
a
Turn signal lamp
1156 NA
b
Tail, parking, stand-
ing and side marker
lamp
67 / 4 cp
c
License plate lamps
C5W
d
Rear fog lamp,
driver’s side
1155 / 32 cp
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before
changing a bulb.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.

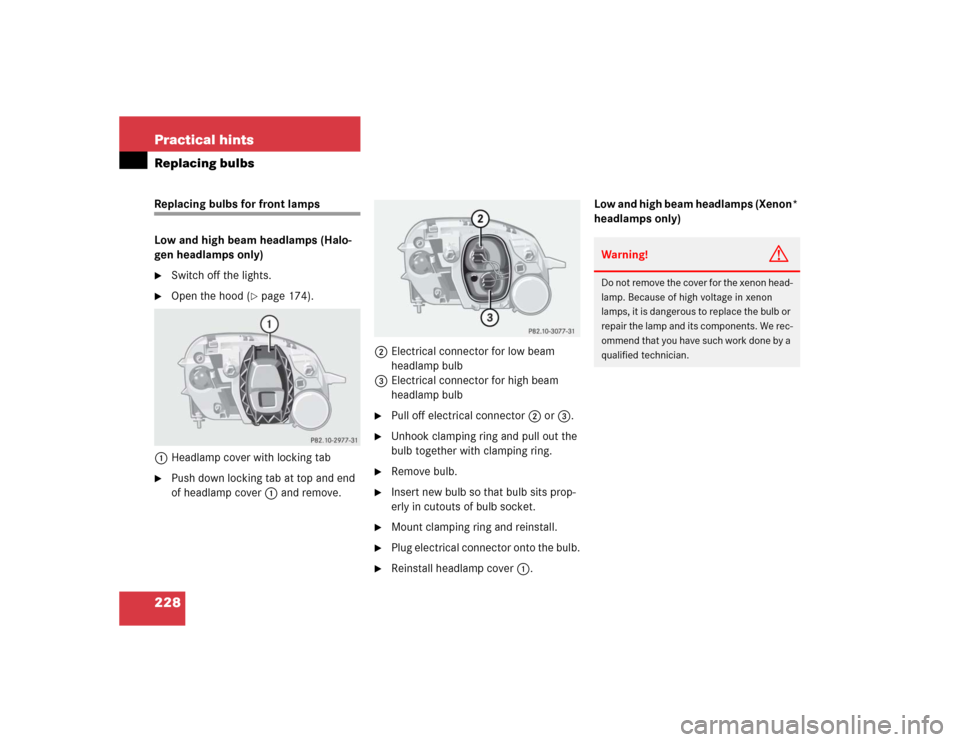

228 Practical hintsReplacing bulbsReplacing bulbs for front lamps
Low and high beam headlamps (Halo-
gen headlamps only)
Switch off the lights.

Open the hood (
page 174).
1Headlamp cover with locking tab

Push down locking tab at top and end
of headlamp cover1 and remove.2Electrical connector for low beam
headlamp bulb
3Electrical connector for high beam
headlamp bulb

Pull off electrical connector2 or3.

Unhook clamping ring and pull out the
bulb together with clamping ring.

Remove bulb.

Insert new bulb so that bulb sits prop-
erly in cutouts of bulb socket.

Mount clamping ring and reinstall.

Plug electrical connector onto the bulb.

Reinstall headlamp cover1.Low and high beam headlamps (Xenon*
headlamps only)
Warning!
G
Do not remove the cover for the xenon head-
lamp. Because of high voltage in xenon
lamps, it is dangerous to replace the bulb or
repair the lamp and its components. We rec-
om men d t ha t y ou ha ve s uc h w o rk do n e by a
qualified technician.

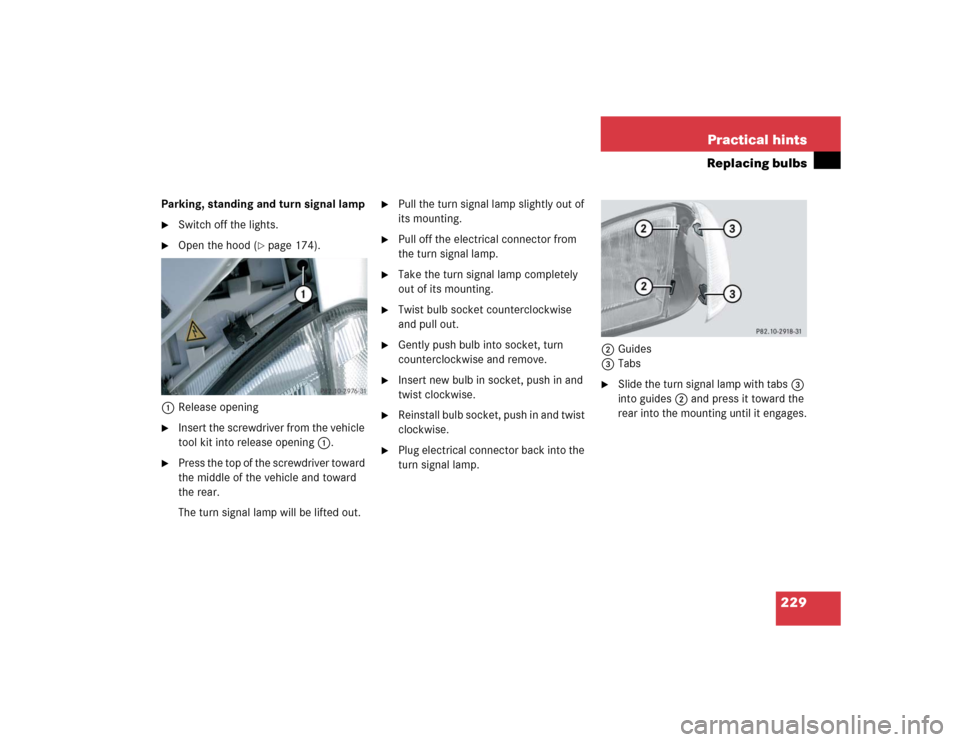

229 Practical hints
Replacing bulbs
Parking, standing and turn signal lamp
Switch off the lights.

Open the hood (
page 174).
1Release opening

Insert the screwdriver from the vehicle
tool kit into release opening1.

Press the top of the screwdriver toward
the middle of the vehicle and toward
the rear.
The turn signal lamp will be lifted out.

Pull the turn signal lamp slightly out of
its mounting.

Pull off the electrical connector from
the turn signal lamp.

Take the turn signal lamp completely
out of its mounting.

Twist bulb socket counterclockwise
and pull out.

Gently push bulb into socket, turn
counterclockwise and remove.

Insert new bulb in socket, push in and
twist clockwise.

Reinstall bulb socket, push in and twist
clockwise.

Plug electrical connector back into the
turn signal lamp.2Guides
3Tabs

Slide the turn signal lamp with tabs3
into guides2 and press it toward the
rear into the mounting until it engages.

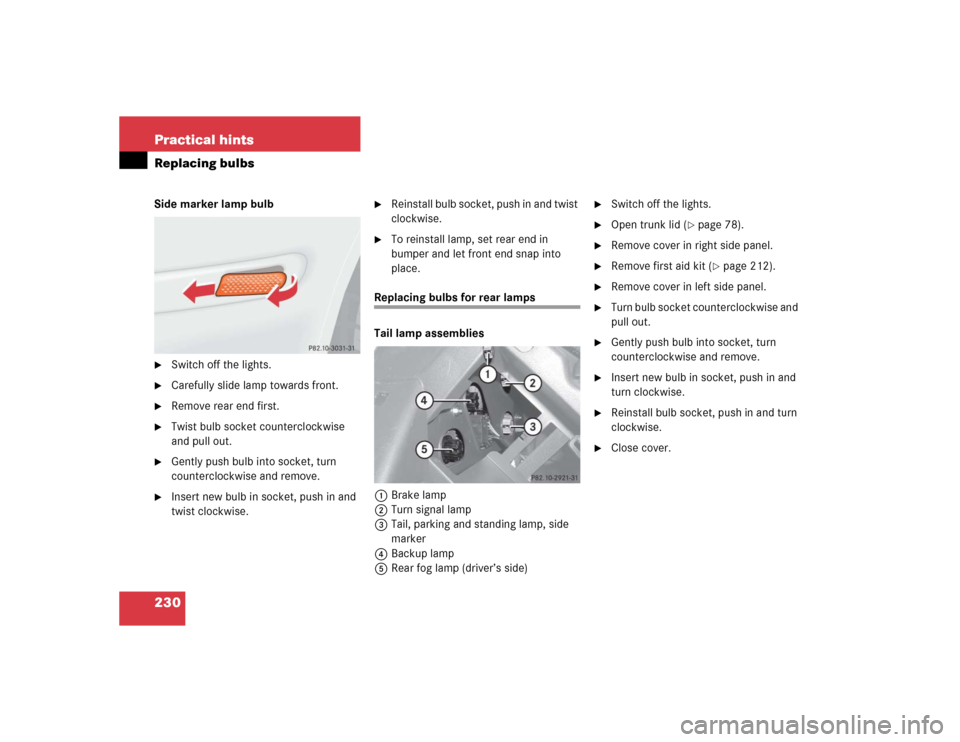

230 Practical hintsReplacing bulbsSide marker lamp bulb
Switch off the lights.

Carefully slide lamp towards front.

Remove rear end first.

Twist bulb socket counterclockwise
and pull out.

Gently push bulb into socket, turn
counterclockwise and remove.

Insert new bulb in socket, push in and
twist clockwise.

Reinstall bulb socket, push in and twist
clockwise.

To reinstall lamp, set rear end in
bumper and let front end snap into
place.
Replacing bulbs for rear lamps
Tail lamp assemblies
1Brake lamp
2Turn signal lamp
3Tail, parking and standing lamp, side
marker
4Backup lamp
5Rear fog lamp (driver’s side)

Switch off the lights.

Open trunk lid (
page 78).

Remove cover in right side panel.

Remove first aid kit (
page 212).

Remove cover in left side panel.

Turn bulb socket counterclockwise and
pull out.

Gently push bulb into socket, turn
counterclockwise and remove.

Insert new bulb in socket, push in and
turn clockwise.

Reinstall bulb socket, push in and turn
clockwise.

Close cover.
