261 Practical hintsFuses
Auxiliary fuse box
The auxiliary fuse box is located on the left
hand side of the exterior lamp switch.
The auxiliary fuse box contains fuses for
lights.
1Auxiliary fuse boxOpening

Turn locks (arrows) using a coin and
remove fuse box cover1.
Closing

Reinstall fuse box cover1 and turn
locks using a coin.

262

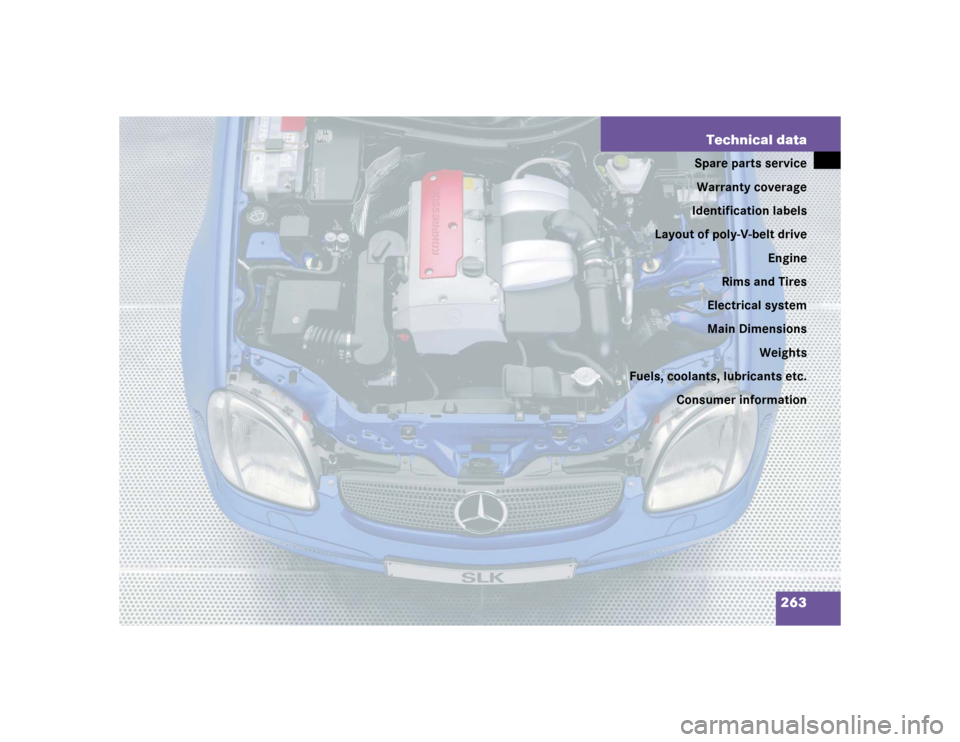

263 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and Tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants etc.
Consumer information

264 Technical dataSpare parts service
The “Technical data” section provides the
necessary technical data for your vehicle.
Spare parts service
All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different spare parts
for Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, genuine Mercedes-Benz parts
original spare parts should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.

265 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the “warranties” printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New vehicle limited warranty


Emission system warranty


Emission performance warranty


California, Maine, Massachusetts, and
Vermont emission control systems
warrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories warranties, copies of
which are available at any Mercedes-Benz
Center.
Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

266 Technical dataIdentification labels
Identification labels1Certification label2Vehicle Identification Number (VIN)
3Engine number (engraved on engine)4Emission control label
5Information label, California version
Vacuum line routing for emission con-
trol system
6VIN, visible (lower edge of windshield)
When ordering spare parts, please specify
vehicle identification and engine numbers.

267 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
SLK 230 KompressorThe SLK 230 Kompressor has two
poly-V-belts (belt one shown in purple/belt
two shown in black).1Coolant pump
2Automatic belt tensioner
3Power steering pump
4Air conditioning compressor
5Crankshaft
6Automatic belt tensioner
7Generator (alternator)
8Supercharger
SLK 320
1Automatic belt tensioner
2Power steering pump
3Air conditioner compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
SLK 32 AMG
1Idler pulley
2Idler pulley
3Supercharger
4Automatic belt tensioner
5Power steering pump
6Air conditioner compressor
7Crankshaft
8Coolant pump
9Generator (alternator)

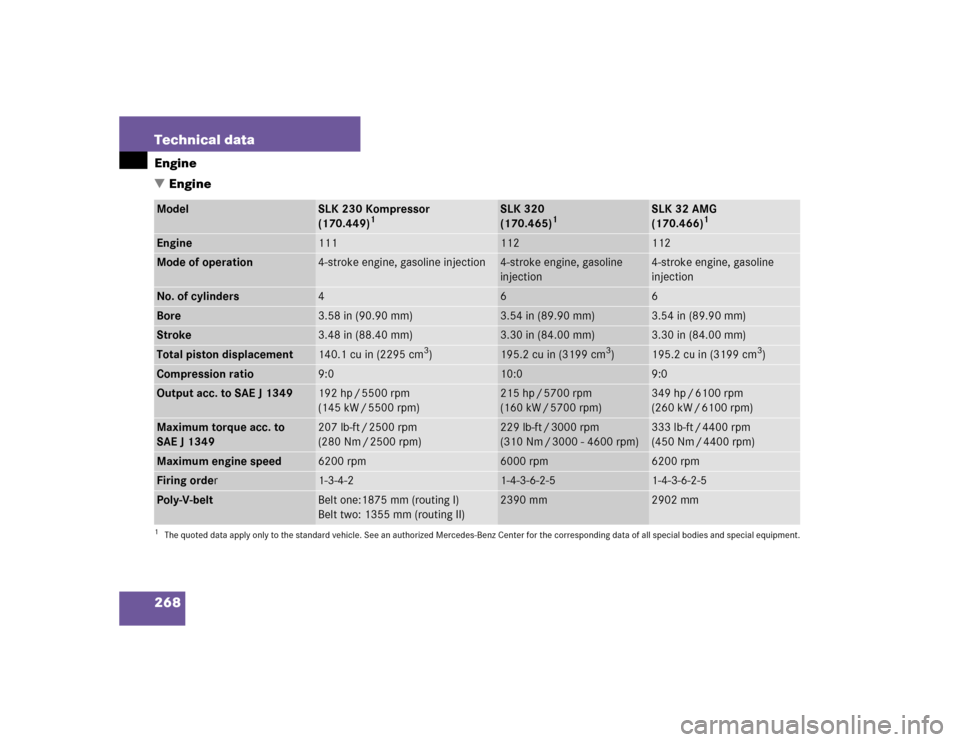

268 Technical dataEngine
EngineModel
SLK 230 Kompressor
(170.449)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
SLK 320
(170.465)
1
SLK 32 AMG
(170.466)
1
Engine
111
112
112
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline
injection
4-stroke engine, gasoline
injection
No. of cylinders
4
6
6
Bore
3.58 in (90.90 mm)
3.54 in (89.90 mm)
3.54 in (89.90 mm)
Stroke
3.48 in (88.40 mm)
3.30 in (84.00 mm)
3.30 in (84.00 mm)
Total piston displacement
140.1 cu in (2295 cm
3)
195.2 cu in (3199 cm
3)
195.2 cu in (3199 cm
3)
Compression ratio
9:0
10:0
9:0
Output acc. to SAE J 1349
192 hp / 5500 rpm
(145 kW / 5500 rpm)
215 hp / 5700 rpm
(160 kW / 5700 rpm)
349 hp / 6100 rpm
(260 kW / 6100 rpm)
Maximum torque acc. to
SAE J 1349
207 lb-ft / 2500 rpm
(280 Nm / 2500 rpm)
229 lb-ft / 3000 rpm
(310 Nm / 3000 - 4600 rpm)
333 lb-ft / 4400 rpm
(450 Nm / 4400 rpm)
Maximum engine speed
6200 rpm
6000 rpm
6200 rpm
Firing order
1-3-4-2
1-4-3-6-2-5
1-4-3-6-2-5
Poly-V-belt
Belt one:1875 mm (routing I)
Belt two: 1355 mm (routing II)
2390 mm
2902 mm

269 Technical data
Rims and Tires
Rims and Tires
Use only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er flap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

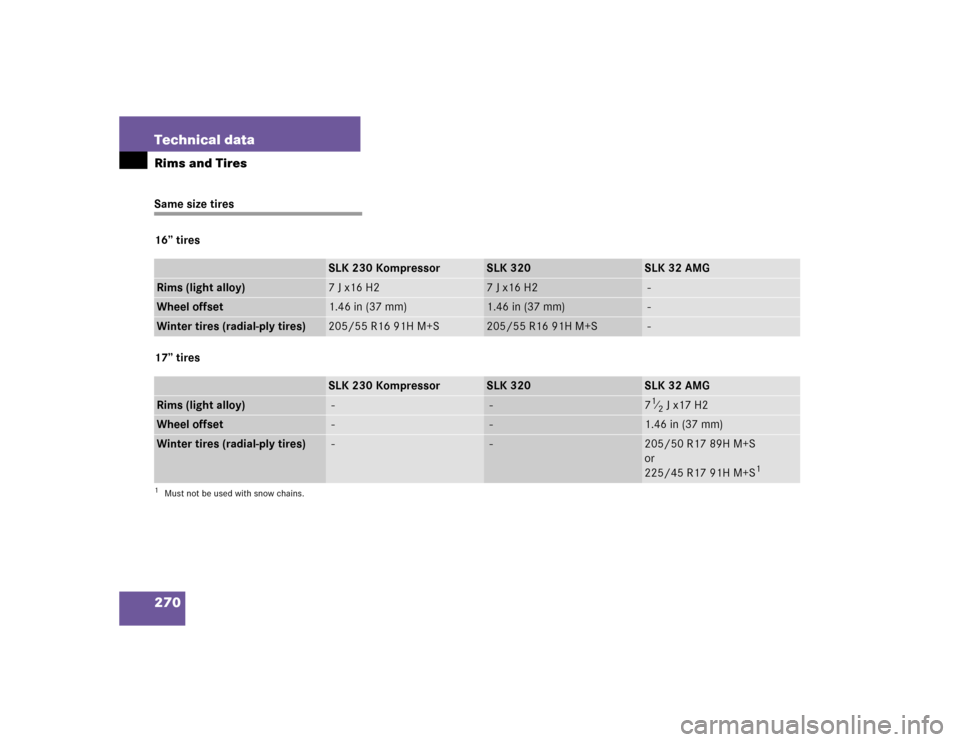

270 Technical dataRims and TiresSame size tires
16’’ tires
17’’ tires
SLK 230 Kompressor
SLK 320
SLK 32 AMG
Rims (light alloy)
7 J x16 H2
7 J x16 H2
-
Wheel offset
1.46 in (37 mm)
1.46 in (37 mm)
-
Winter tires (radial-ply tires)
205/55 R16 91H M+S
205/55 R16 91H M+S
-
SLK 230 Kompressor
SLK 320
SLK 32 AMG
Rims (light alloy)
-
-
71⁄2 J x17 H2
Wheel offset
-
-
1.46 in (37 mm)
Winter tires (radial-ply tires)
-
-
205/50 R17 89H M+S
or
225/45 R17 91H M+S
1
1Must not be used with snow chains.
