MERCEDES-BENZ SLK350 2007 R171 Owner's Manual

380 Practical hints
What to do if …

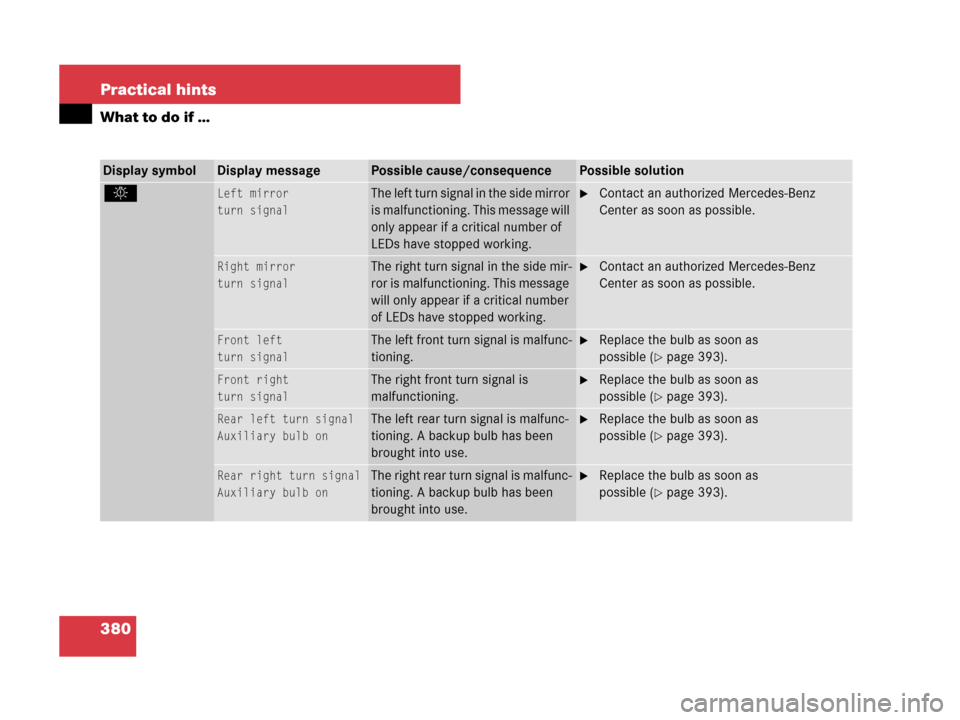

Display symbolDisplay messagePossible cause/consequencePossible solution
.Left mirror
turn signalThe left turn signal in the side mirror
is malfunctioning. This message will
only appear if a critical number of
LEDs have stopped working.Contact an authorized Mercedes-Benz
Center as soon as possible.
Right mirror
turn signalThe right turn signal in the side mir-
ror is malfunctioning. This message
will only appear if a critical number
of LEDs have stopped working.Contact an authorized Mercedes-Benz
Center as soon as possible.
Front left
turn signalThe left front turn signal is malfunc-
tioning.Replace the bulb as soon as
possible (
page 393).
Front right
turn signalThe right front turn signal is
malfunctioning.Replace the bulb as soon as
possible (
page 393).
Rear left turn signal
Auxiliary bulb onThe left rear turn signal is malfunc-
tioning. A backup bulb has been
brought into use.Replace the bulb as soon as
possible (
page 393).
Rear right turn signal
Auxiliary bulb onThe right rear turn signal is malfunc-
tioning. A backup bulb has been
brought into use.Replace the bulb as soon as
possible (
page 393).

381 Practical hints
What to do if …

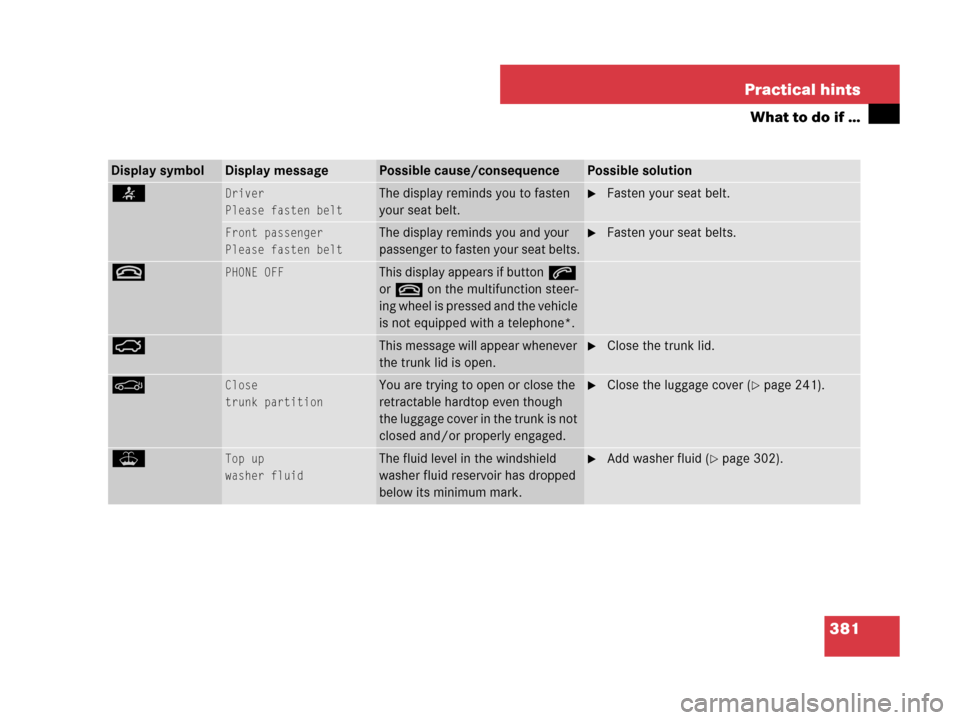

Display symbolDisplay messagePossible cause/consequencePossible solution
Please fasten beltThe display reminds you to fasten
your seat belt.Fasten your seat belt.
Front passenger
Please fasten beltThe display reminds you and your
passenger to fasten your seat belts.Fasten your seat belts.
tPHONE OFFThis display appears if buttons
ort on the multifunction steer-
ing wheel is pressed and the vehicle
is not equipped with a telephone*.
ÊThis message will appear whenever
the trunk lid is open.Close the trunk lid.
MClose
trunk partitionYou are trying to open or close the
retractable hardtop even though
the luggage cover in the trunk is not
closed and/or properly engaged.Close the luggage cover (page 241).
WTop up
washer fluidThe fluid level in the windshield
washer fluid reservoir has dropped
below its minimum mark.Add washer fluid (page 302).

382 Practical hints
Where will I find...?
First aid kit
The first aid kit is stored in a parcel net
behind the driver’s seat.Vehicle tool kit, vehicle jack
The vehicle tool kit is stored in a storage
compartment under the trunk floor.
The following is included:

Collapsible wheel chock

Vehicle jack

Protective wrap (except SLK 55 AMG
with Performance Package)

Alignment bolt

Towing eye bolt

Wheel wrench

Spare fuses

Fuse extractor

Valve extractor

Electric air pump

TIREFIT kit (SLK 55 AMG with
Performance Package only)Removing the vehicle tool kit
Vehicles with spare wheel
Open the trunk (page 100).
Lift up trunk floor.
Remove the spare wheel (page 385).
You can now access the vehicle tool
kit.
iCheck expiration dates and contents for
completeness at least once a year and replace
missing/expired items.

383 Practical hints
Where will I find...?

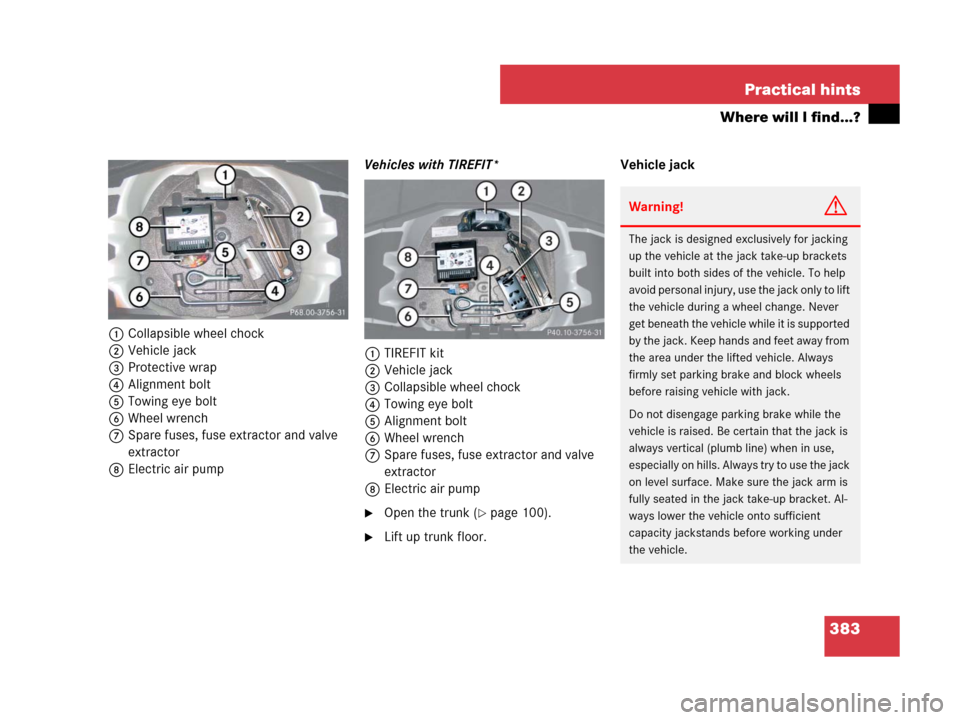

1Collapsible wheel chock
2Vehicle jack
3Protective wrap
4Alignment bolt
5Towing eye bolt
6Wheel wrench
7Spare fuses, fuse extractor and valve
extractor
8Electric air pumpVehicles with TIREFIT*
1TIREFIT kit
2Vehicle jack
3Collapsible wheel chock
4Towing eye bolt
5Alignment bolt
6Wheel wrench
7Spare fuses, fuse extractor and valve
extractor
8Electric air pump
Open the trunk (page 100).
Lift up trunk floor.Vehicle jack
Warning!G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket. Al-
ways lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.

384 Practical hints
Where will I find...?

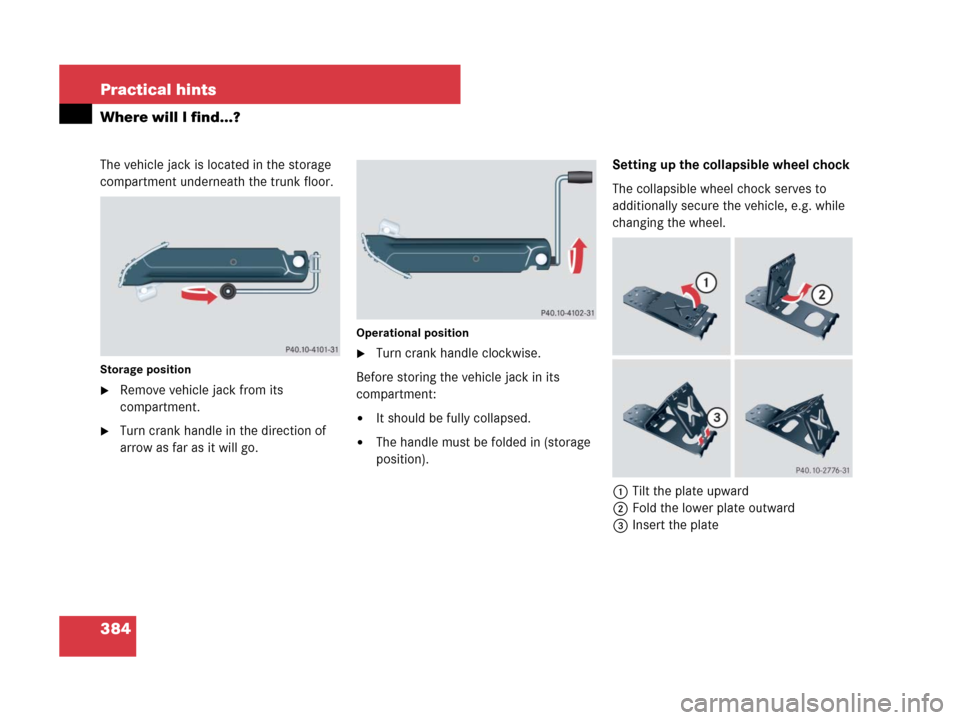

The vehicle jack is located in the storage
compartment underneath the trunk floor.
Storage position
Remove vehicle jack from its
compartment.
Turn crank handle in the direction of
arrow as far as it will go.
Operational position
Turn crank handle clockwise.
Before storing the vehicle jack in its
compartment:

It should be fully collapsed.

The handle must be folded in (storage
position).Setting up the collapsible wheel chock
The collapsible wheel chock serves to
additionally secure the vehicle, e.g. while
changing the wheel.
1Tilt the plate upward
2Fold the lower plate outward
3Insert the plate

385 Practical hints
Where will I find...?
Tilt both plates upward1.
Fold the lower plate outward2.
Guide the tabs of the lower plate all the
way into the openings of the base
plate3.
For information on where to place wheel
chocks when changing a wheel, see
“Lifting the vehicle” (
page 407).
Spare wheel with collapsible tire
The spare wheel is located in the storage
compartment underneath the trunk floor.
1Spare wheel, spare wheel bolts
(located under plastic cover on the
outside of spare wheel rim)
2Vehicle tool kit (under spare wheel)
3Retaining screwOpen the trunk (page 100).
Lift up trunk floor.
Loosen retaining screw3by turning it
counterclockwise.
Remove spare wheel1.
Take off the wheel bolts for spare
wheel1.
Storing the spare wheel with
collapsible tire
If you wish to store the spare wheel after
use, carry out the following steps. Other-
wise the spare wheel will not fit the storage
compartment.
Unscrew the valve cap from the valve
of the collapsible tire.
Take the valve extractor from the vehi-
cle tool kit (
page 382).
!Make sure the collapsible tire is dry when
storing it.


386 Practical hints
Where will I find...?
Unscrew the valve insert from the valve
and allow the air to escape.
Screw the valve insert back into the
valve.
Screw the valve cap back on the valve.
Pull the protective wrap provided with
the vehicle tool kit over the spare
wheel.
Store the spare wheel and the valve
extractor in the storage compartment
underneath the trunk floor.
Pierce the protective wrap with retain-
ing screw3.
Secure the spare wheel by turning
retaining screw3 clockwise.
For information on mounting the spare
wheel, see “Flat tire” (
page 401).
Spare wheel bolts
1Wheel bolt for light alloy rims
2Wheel bolt for spare wheel with
collapsible tire (located under plastic
cover on the outside of spare wheel
rim)
iIt may take a few minutes for the collapsible
tire to deflate completely.
!Wheel bolts2 must be used when mount-
ing the spare wheel with collapsible tire. The use
of any wheel bolts other than wheel bolts2 for
the spare wheel with collapsible tire will physi-
cally damage the vehicle’s brakes.


387 Practical hints
Unlocking/locking in an emergency
Unlocking/locking in an emergency
Unlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey, open the driver’s door and the
trunk using the mechanical key. Removing the mechanical key
1Mechanical key locking tab
2Mechanical key
Move locking tab1 in direction of
arrow.
Slide mechanical key2 out of the
housing.Unlocking the driver’s door
Insert mechanical key 2 into the
driver’s door lock until it stops.
Turn mechanical key 2 counterclock-
wise to position1 until the locking
knobs moves up.
The driver’s door is unlocked.
Pull the door handle to open the
driver’s door.
iUnlocking the vehicle with the mechanical
key and opening the driver’s door or the trunk
will trigger the anti-theft alarm system
(
page 90).
To cancel the alarm, insert the SmartKey in the
starter switch.
1Unlocking
2Mechanical key

388 Practical hints
Unlocking/locking in an emergency
Unlocking and opening the trunk
A minimum height clearance of
5.78 ft (1.76 m) is required to open the
trunk lid.Insert mechanical key 3 into the trunk
lid lock until it stops.
Turn mechanical key 3 counterclock-
wise to position1 until it stops,
and simultaneously
pull trunk lid handle 2 and lift lid.
Turn mechanical key 3 back and
remove it from the trunk lid lock.
Locking the vehicle
If you cannot lock the vehicle with the
SmartKey, do the following:
Close the passenger door and the trunk
lid.
Press the central locking switch in the
upper part of the center console
(
page 103).
Check to see whether the locking knob
on the passenger door has moved
down.
If necessary, push it down manually.
The passenger door is locked.
Exit the vehicle and close the driver’s
door.
1Unlocking
2Handle
3Mechanical key
!Always make sure there is sufficient over-
head clearance.

389 Practical hints
Unlocking/locking in an emergency
Insert mechanical key 2 into the
driver’s door lock until it stops.
Turn mechanical key 2 clockwise to
position1.
The driver’s door is locked.
Turn back mechanical key 2 and
remove it from driver’s door lock.Manually unlocking the gear selector
lever (automatic transmission*)
In case of power failure, the gear selector
lever can be manually unlocked, e.g. to tow
the vehicle.
1Gear selector lever cover
2Release
Insert flat, blunt object (e.g. screw-
driver) into the left edge of cover1 at
the position indicated by the arrows.
Loosen cover1 using this object.
Using your hands, pull cover1 out
and remove.
Push down and hold release2 in
direction of arrow.
Simultaneously move gear selector
lever out of positionP.
The gear selector lever is unlocked
now.1Locking
2Mechanical key
iThis procedure does not arm the anti-theft
alarm system, nor does it lock the fuel filler flap.
iThe gear selector lever is locked again as
soon as you place it in positionP again.
