Page 31 of 464
31 At a glance

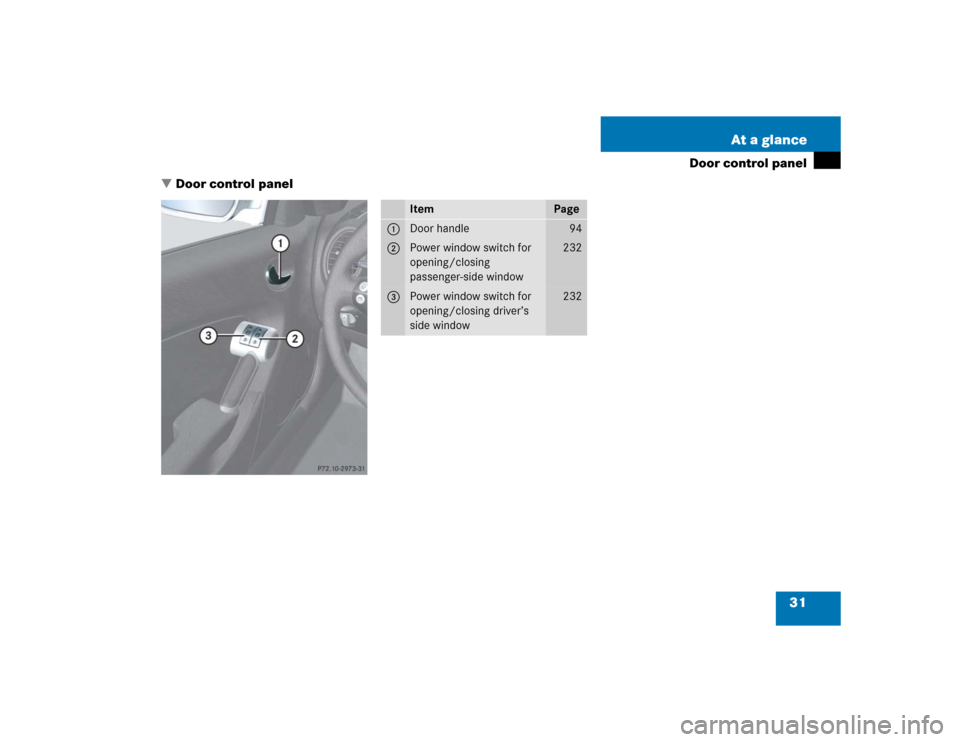

Door control panel
Door control panel
Item
Page
1
Door handle
94
2
Power window switch for
opening/closing
passenger-side window
232
3
Power window switch for
opening/closing driver’s
side window
232
Page 32 of 464
32
Page 33 of 464
33 Getting started
Unlocking
Adjusting
Driving
Parking and locking
Page 34 of 464
34 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section (
page 89) will provide you
with further information. The correspond-
ing page references are located at the end
of each segment.
Unlocking
Unlocking with the SmartKey SmartKey with remote control1‹Lock button
2ŠUnlock button for trunk lid
3ŒUnlock button
4ÂPanic button (
page 78)
Press unlock buttonŒ on the
SmartKey.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
Get in the vehicle and insert the
SmartKey in the starter switch.For more information, see “Locking and
unlocking” (
page 90).
iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up position when
the door is closed.iWithout the antenna on the left rear
side of the vehicle installed, the
SmartKey signaling range is consider-
ably reduced. Hold the SmartKey in
close proximity towards the antenna
base when locking or unlocking the
vehicle.
Page 35 of 464
35 Getting started
Unlocking
Starter switch positions SmartKey
Starter switch0For removing the SmartKey
The steering is locked when the
SmartKey is removed from the starter
switch. If necessary, move steering
wheel slightly to allow the locking
mechanism to engage.
1Power supply to some electrical con-
sumers, such as seat adjustment2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to see
“Lamps in instrument cluster”
(
page 342).
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
Page 36 of 464
36 Getting startedUnlocking
For information on starting the engine, see
(page 47).
iWhen you switch on ignition, the indi-
cator and warning lamps (except high
beam headlamp indicator lamp and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. This indicates that the respective
system is operational. The indicator
and warning lamps (except high beam
headlamp indicator lamp and turn sig-
nal indicator lamps if activated) should
go out when the engine is running.iVehicles with automatic transmission*:
The SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
!If the SmartKey cannot be turned in the
starter switch, the vehicle battery may
not be sufficiently charged.
Check the vehicle battery and
charge it if necessary (
page 396).
Get a jump start (
page 399).
To prevent accelerated vehicle battery
discharge or a completely discharged
vehicle battery, always remove the
SmartKey from the starter switch when
the engine is not in operation.
Page 37 of 464
37 Getting started
Adjusting
Adjusting
Seats
The seats can be adjusted either manually
or electrically, depending on the vehicle’s
equipment.
For more information on seats, see “Seats”
(page 99).Warning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.iThe memory function* (
page 103)
lets you store the setting for power
seats*, steering wheel adjustment
(electrical)*, and exterior rear view mir-
rors.
Warning!
G
Do not adjust the driver seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat back and seat belts
provide the best restraint when the wearer
is in a nearly upright position and belts are
properly positioned on the body. Your seat
must be adjusted so that you can correctly
fasten your seat belt (
page 44).
Never place hands under the seat or near
moving parts while the seat is being
adjusted.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the power seats* can be op-
erated when the respective door is open.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
Page 38 of 464
38 Getting startedAdjusting
Manual seat adjustment
1Seat fore and aft adjustment
2Seat height
3Backrest tiltSeat fore and aft adjustment
Pull handle1.
Slide the seat to the desired position.
Adjust seat to a comfortable seating
position that allows you to reach the
accelerator/ brake pedal safely. The
position should be as far rearward as
possible, consistent with ability to
properly operate controls.
Allow handle1 to reengage with an
audible click.
Check for proper engagement before
driving.
Warning!
G
Children 12 years old and under must never
ride in this vehicle, except in a
Mercedes-Benz authorized BabySmart
TM1
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front
air bag when it is properly installed.
Otherwise they will be struck by the air bag
when it inflates in a crash. If this happens,
serious or fatal injury will result.
Infants and small children must be seated in
an appropriate BabySmart
TM compatible in-
fant or child restraint system, which is prop-
erly secured with the vehicle’s seat belt,
fully in accordance with the child seat
manufacturer’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
!When moving the seats, make sure
there are no items in the footwell or
behind the seats. Otherwise you could
damage the seats.
Page 39 of 464
39 Getting started
Adjusting
Seat height
Pull or push handle2 up or down and
adjust the seat cushion until your legs
are slightly supported.
Backrest tilt
Pull handle3 and adjust the backrest
until your arms are slightly angled
when holding the steering wheel.
For more information, see “Seats”
(
page 99).Power seat* adjustment
The seat adjustment switches are located
on the outer side of each seat.
1Seat fore and aft adjustment
2Seat height
3Backrest tilt
4Seat cushion tilt
Switch on the ignition (
page 35).
or
Open the respective door.Seat fore and aft adjustment
Press the horizontal switch forward or
backward in direction of arrow1.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator / brake pedal safely.
The position should be as far rearward
as possible, consistent with ability to
properly operate controls.
Seat height
Press the horizontal switch up or down
in direction of arrow2 until your legs
are slightly supported.
Backrest tilt
Press the vertical switch forward or
backward in direction of arrow3 until
your arms are slightly angled when
holding the steering wheel.
Page 40 of 464
40 Getting startedAdjustingSeat cushion tilt
Press the horizontal switch up or down
in direction of arrow4 until your up-
per legs are lightly supported.
Head restraint height
Head restraint
Adjust the height of head restraints
manually by pulling them upwards or
pushing them downwards.
Steering wheel
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the head re-
straint supports the back of the head at eye
level. This will reduce the potential for injury
to the head and neck in the event of an ac-
cident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
iAdjust the head restraint in such a way
that it is as close to the head as
possible.
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing, or driving without the steering wheel
adjustment feature locked could cause the
driver to lose control of the vehicle.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the electrical steering wheel
adjustment feature* can be operated when
the driver’s door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
