MERCEDES-BENZ SLK55AMG 2005 R171 Service Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2005, Model line: SLK55AMG, Model: MERCEDES-BENZ SLK55AMG 2005 R171Pages: 464, PDF Size: 4 MB
Page 41 of 464
41 Getting started
Adjusting
Steering wheel adjustment, manual
1Adjustment handle
To unlock the steering column, pull
handle1 out to its stop limit.
Move the steering wheel to the desired
position.
Push handle1 back to its original po-
sition to relock the steering column.
When you hear an audible click, the
steering column is again fixed into
place.
Make sure the steering column is se-
curely locked by trying to move the
steering wheel up and down, in and out
before driving off.Steering wheel adjustment, electrical*
The lever for the electrical steering wheel
adjustment is located on the steering col-
umn (lower left).
1Adjusting steering column, in or out
2Adjusting steering column, up or down
Switch on the ignition (
page 35).
or
Open the driver’s door.
!Do not drive the vehicle until you have
properly locked the steering column.Warning!
G
Only adjust the steering wheel with the vehi-
cle at a standstill and make sure the steer-
ing column is securely locked in place
before driving off.
Driving without the steering column locked
may cause an unexpected steering wheel
movement which could cause the driver to
lose control of the vehicle. Make sure the
steering column is securely locked by trying
to move it up and down, and in and out be-
fore driving off.
Page 42 of 464
42 Getting startedAdjustingAdjusting steering column in or out
Move the lever in direction of
arrows1 until a comfortable steering
wheel position is reached with your
arms slightly bent at the elbow.
Adjusting steering column up or down
Move the lever in direction of
arrows2.
Make sure your legs can move freely
and all the displays (including malfunc-
tion and indicator lamps) on the instru-
ment cluster are clearly visible.
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.
Interior rear view mirror
Adjust the interior rear view mirror
manually.
For more information, see “Rear view mir-
rors” (
page 167).
iThe memory function* (
page 103)
lets you store the settings for the steer-
ing wheel together with the settings for
the exterior rear view mirrors and the
driver’s seat position.
Warning!
G
In the case of an accident, liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their
liquid state and by applying plenty of
water.
Page 43 of 464
43 Getting started
Adjusting
Exterior rear view mirrorThe switches are located on the lower part
of the center console.
1Driver’s side exterior rear view mirror
2Adjustment switch
3Passenger-side exterior rear view
mirror
Switch on the ignition (
page 35).
Press switch1 or3 to select the
respective exterior rear view mirror.
Press adjustment switch2 forward,
rearward, left, or right according to the
desired setting.For more information, see “Storing exterior
rear view mirror parking position (parking
aid)” (
page 105).
Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
terior rear view mirror or glance over your
shoulder before changing lanes. !If an exterior rear view mirror housing
is forcibly pushed forward (hit from the
rear) or rearward (hit from the front),
reposition it by applying firm pressure
until it snaps into place. The exterior
rear view mirror housing is now proper-
ly positioned and you can adjust the
mirror normally.
iAt low ambient temperatures, the exte-
rior rear view mirrors will be heated au-
tomatically.iThe memory function (
page 103) lets
you store the settings for the exterior
rear view mirrors together with the set-
tings for the steering wheel and the
driver’s seat position.
!Before driving the vehicle through an
automatic car wash, fold the exterior
mirrors in. Otherwise they may get
damaged.
Page 44 of 464
44 Getting startedDriving
Fastening the seat belts
Warning!
G
Do not lay objects in the driver’s footwell. Be
careful that floor mats or carpets in the driv-
er’s footwell have sufficient clearance for
the pedals.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate.
Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passenger should al-
ways wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(page 62).
Page 45 of 464

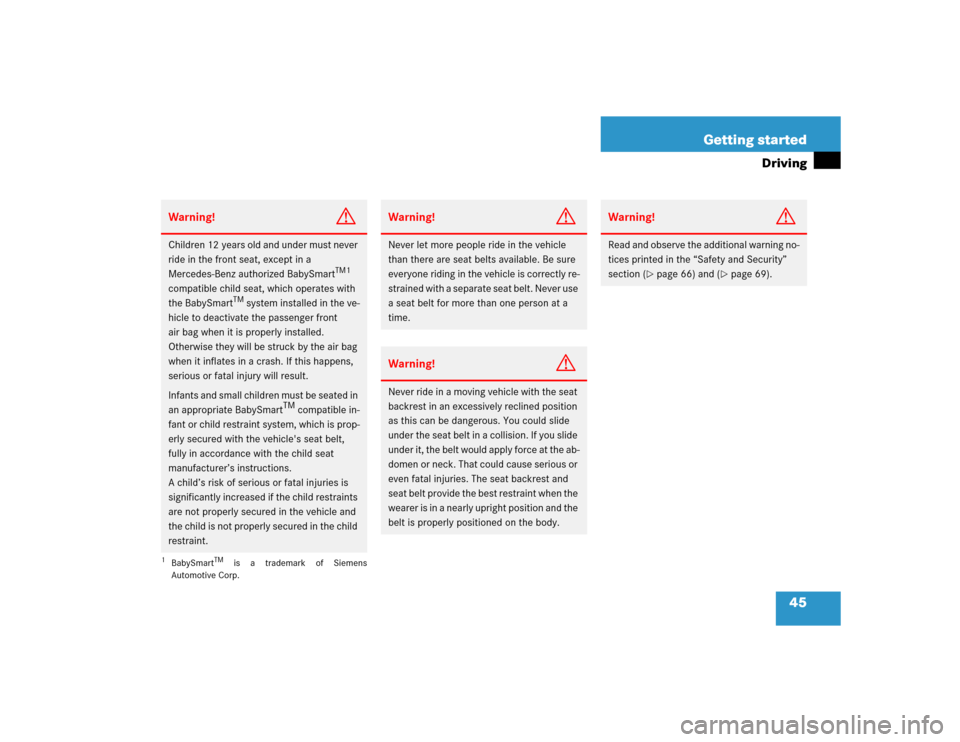

45 Getting started
Driving
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM1
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front
air bag when it is properly installed.
Otherwise they will be struck by the air bag
when it inflates in a crash. If this happens,
serious or fatal injury will result.
Infants and small children must be seated in
an appropriate BabySmart
TM compatible in-
fant or child restraint system, which is prop-
erly secured with the vehicle's seat belt,
fully in accordance with the child seat
manufacturer’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly re-
strained with a separate seat belt. Never use
a seat belt for more than one person at a
time.Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 66) and (
page 69).
Page 46 of 464
46 Getting startedDriving1Loop for seat belt guidance
2Latch plate
3Release button
4Buckle
With a smooth motion, pull the belt
from the belt outlet.
Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.
Push latch plate2 into buckle4 until
it engages.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
For more information, see “Safety guide-
lines for the seat belt, emergency tension-
ing device and air bag” (
page 66).Proper use of seat belts
Do not twist the seat belt when fasten-
ing.
Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm.
Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.
Place the seat backrest in a nearly up-
right position.
Page 47 of 464
47 Getting started
Driving
Never use a seat belt for more than one
person at a time.
Do not fasten a seat belt around a per-
son and another object at the same
time.
When using a seat belt to secure infant
or toddler restraints or children in
booster seats, always follow the child
seat manufacturer’s instructions.
Check your seat belt during travel to
make sure it is properly positioned.
Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.
Starting the engine
Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive only with at least one win-
dow fully open.
Page 48 of 464
48 Getting startedDrivingManual transmissionGearshift pattern for manual transmissionFor more information, see “Manual trans-
mission” (
page 150).Starting
Depress brake pedal.
Make sure the gearshift lever is in neu-
tral position (no gear selected).
Fully depress the clutch pedal.
Otherwise the engine cannot be start-
ed due to the integrated safety inter-
lock.
Do not depress accelerator.
Turn the SmartKey in the starter switch
to position3 (
page 35) and hold until
the engine starts.
For information on turning off the engine,
see “Turning off engine” (
page 58).Automatic transmission*
Gearshift pattern for automatic
transmissionPPark position with gear selector lever
lock
RReverse gear
NNeutral position
DDrive position
For more information, see “Automatic
transmission*” (
page 152).
Page 49 of 464
49 Getting started
Driving
Starting
Place the gear selector lever in
positionP.
Do not depress the accelerator.
Turn the SmartKey in the starter switch
to position3 (
page 35) and release it
again immediately. The engine starts
automatically.
Depress the brake pedal.
The gear selector lever lock is released.
For information on turning off the engine,
see “Turning off engine” (
page 58).Starting difficulties
If the engine does not start as described,
carry out the following steps:
Turn the SmartKey in the starter switch
to position0 and repeat the starting
procedure.
Remember that extended starting at-
tempts can drain the vehicle battery.
Get a jump start (
page 399).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.
Notify an authorized Mercedes-Benz
Center.Parking brake
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake, which
could result in an accident and/or serious
injury.
Page 50 of 464
50 Getting startedDriving1Parking brake lever
2Release button
Pull up slightly on parking brake
lever1 and press release button2.
Push parking brake lever1 down to
its original position.
The brake warning lamp; (USA
only) or3 (Canada only) in the
speedometer dial goes out.Driving
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
!If you hear a warning signal when driv-
ing off, you have forgotten to release
the parking brake.!Simultaneously depressing the acceler-
ator pedal and the brake pedal reduces
engine performance and causes pre-
mature brake and drivetrain wear.iOnce the vehicle is in motion, the auto-
matic central locking system engages
and the locking knobs drop down.
For more information, see “Opening
the doors from the inside” (
page 94).
