MERCEDES-BENZ SLK55AMG 2008 R171 Owners Manual

90 Safety and Security
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle.
The engine can be started by anyone with
a valid SmartKey that is left inside the
vehicle.
Activating
Remove the SmartKey from the starter
switch.
Deactivating
Switch on the ignition (page 37).
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door

the trunk lid

the hood

the glove box

the storage/telephone* compartment
in the center console
The alarm system will also be triggered
when

someone attempts to raise the vehicle

unlocking and opening the driver’s
door or the trunk with the mechanical
key

someone opens a door from the inside

someone opens the trunk lid with the
emergency release buttonArming the alarm system
The alarm system indicator lamp is located
in the locking switch in the center console.
1Alarm system indicator lamp
iStarting the engine will also deactivate the
immobilizer.
In case the engine cannot be started (yet the
vehicle’s battery is charged), the system is not
operational. Contact an authorized
Mercedes-Benz Center or call
1-800-FOR-MERCedes (in the USA), or
1-800-387-0100 (in Canada).
iThe alarm will stay on, even if the activating
element (e.g. a door) is immediately closed.
iIf the alarm stays on for more than
30 seconds, a call to the Response Center is
initiated automatically by the Tele Aid* system
(
page 262), provided Tele Aid* service was
subscribed to and properly activated, and that
necessary cellular service and GPS coverage are
available (
page 262).

91 Safety and Security
Anti-theft systems
Lock the vehicle with the SmartKey.
The turn signal lamps flash three times
and an acoustic warning sounds three
times to indicate that the alarm system
is armed.
Alarm system indicator lamp 1 starts
flashing.Disarming the alarm system
Unlock the vehicle with the SmartKey.
The turn signal lamps flash once and
an acoustic warning sounds once to
indicate that the alarm system is
disarmed.
Alarm system indicator lamp 1 goes
out.
Canceling the alarm
To cancel the alarm:
Press theŒ or‹button on the
SmartKey.
or
Insert the SmartKey in the starter
switch.
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
iIf the turn signal lamps do not flash three
times and no acoustic warning sounds three
times, a door or the trunk lid may not be properly
closed.
Close the respective element and lock the
vehicle again.
iThe alarm system will rearm automatically
again after approximately 40 seconds if no door
was opened.
iThe tow-away protection alarm is triggered,
for example, if the vehicle is lifted on one side.
If the alarm stays on for more than 30 seconds,
a call to the Response Center is initiated auto-
matically by the Tele Aid* system (
page 262),
provided Tele Aid* service was subscribed to
and properly activated, and that necessary cellu-
lar service and GPS coverage are available
(
page 262).

92 Safety and Security
Anti-theft systems
Arming tow-away alarm
Lock your vehicle with the SmartKey.
The tow-away alarm is automatically
armed after about 30 seconds.
Disarming tow-away alarm
To prevent triggering the tow-away alarm,
switch off the tow-away alarm feature be-
fore towing the vehicle, or when parking on
a surface subject to movement, such as a
ferry or auto train.The switch is located on the lower part of
the center console.
1Indicator lamp
2Tow-away alarm deactivation switch
Switch off the ignition (page 37).
Remove the SmartKey from the starter
switch.
Press tow-away alarm deactivation
switch2.
Indicator lamp1 in the tow-away
alarm deactivation switch comes on
briefly.
Exit your vehicle.
Lock your vehicle with the SmartKey.
The tow-away alarm remains disarmed un-
til you lock your vehicle again.
Canceling tow-away alarm
To cancel the alarm:
Press theŒ or‹button on the
SmartKey.
or
Insert the SmartKey in the starter
switch.
iWhen you unlock your vehicle, the tow-away
protection disarms automatically. The tow-away
alarm remains disarmed until you lock the
vehicle again.
iYou cannot disarm the tow-away alarm while
the ignition is switched on.

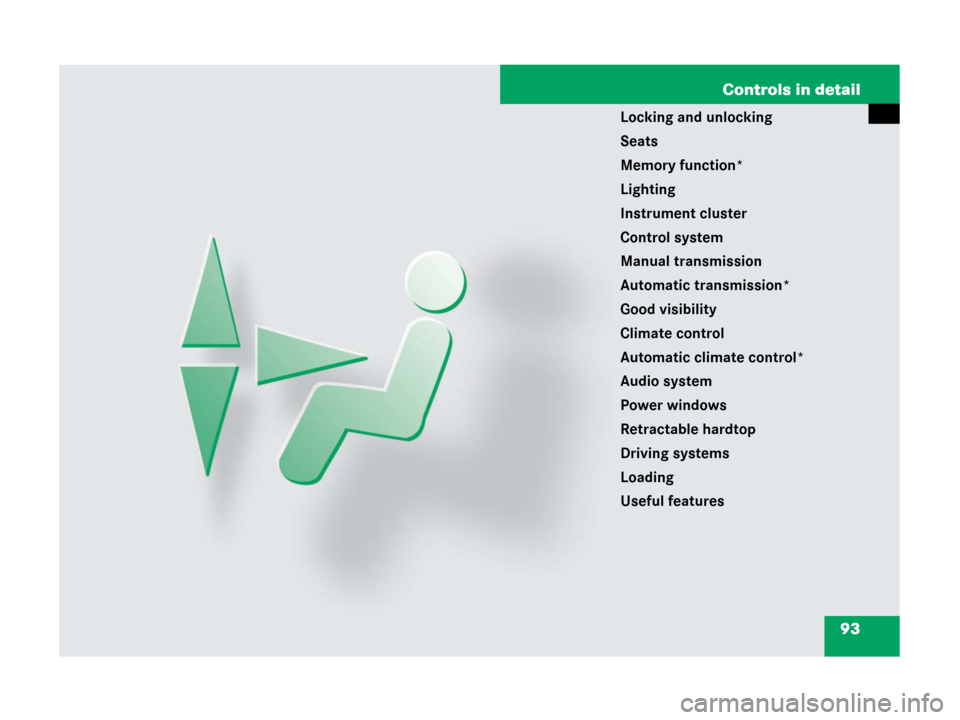

93 Controls in detail
Locking and unlocking
Seats
Memory function*
Lighting
Instrument cluster
Control system
Manual transmission
Automatic transmission*
Good visibility
Climate control
Automatic climate control*
Audio system
Power windows
Retractable hardtop
Driving systems
Loading
Useful features

94 Controls in detail
In the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed in your vehicle.
If you are already familiar with the basic
functions of your vehicle, this section will
be of particular interest to you.
To quickly familiarize yourself with the
basic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are
given at the beginning of each segment.
For more information on unlocking and
locking, see (
page 36) and (page 59).
Locking and unlocking
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors

the trunk

the fuel filler flap

the glove box

the storage/telephone* compartment
under the armrest
SmartKey with remote control
1‹Lock button
2
ŠUnlock button for the trunk
(
page 99)
3Mechanical key locking tab
4ŒUnlock button
5Battery check lamp
6ÂPanic button (
page 83)

95 Controls in detail
Locking and unlocking
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.
!To prevent possible malfunction, avoid
exposing the SmartKey to high levels of electro-
magnetic radiation.
!If you can no longer lock or unlock the
vehicle with the SmartKey, the batteries in the
SmartKey are discharged, the SmartKey is
malfunctioning, or the vehicle battery is drained.

Check the batteries in the SmartKey and
replace them if necessary (
page 398).

Use the mechanical key to unlock the
driver’s door (
page 394) and the trunk
(
page 395).

Use the mechanical key to lock the vehicle
(
page 395).

Have the vehicle battery and the battery
connections checked (
page 422).
If the SmartKey is malfunctioning, contact
Roadside Assistance or an authorized
Mercedes-Benz Center.
iWithout the antenna on the left rear side of
the vehicle installed, the SmartKey signaling
range is considerably reduced. Hold the
SmartKey in close proximity towards the
antenna base when locking or unlocking the
vehicle.
iYou can also open and close the retractable
hardtop using the SmartKey* (
page 244).
iUSA only:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.

96 Controls in detail
Locking and unlocking
Factory settingGlobal unlocking
Press buttonŒ.

All turn signal lamps flash once.

An acoustic warning sounds once.

The locking knobs in the doors
move up.

The anti-theft alarm system is
disarmed.
The vehicle will lock again automatically
and rearm the anti-theft alarm system
within approximately 40 seconds of un-
locking if:

neither door nor trunk is opened

the SmartKey is not inserted in the
starter switch

the central locking switch is not
activatedGlobal locking
Press button‹.
With all doors and the trunk closed:

All turn signal lamps flash three
times.

An acoustic warning sounds three
times.

The locking knobs in the doors
move down.

The anti-theft alarm system is
armed.
iWhen unlocking or locking the vehicle with
the SmartKey, an acoustic signal sounds. The
signal is activated at the factory. If you wish to
deactivate the feature or adjust its signal
volume, contact an authorized Mercedes-Benz
Center.

97 Controls in detail
Locking and unlocking
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that press-
ing buttonŒ only unlocks the driver’s
door, the storage/telephone* compart-
ment under the armrest, the glove box, and
the fuel filler flap.
Press and hold buttonsŒand‹
simultaneously for about 5 seconds
until battery check lamp5
(
page 94) flashes twice.
The SmartKey will then function as fol-
lows:
Unlocking driver’s door and fuel filler
flap
Press buttonΠonce.

All turn signal lamps flash once.

An acoustic warning sounds once.

The locking knob in the driver’s
door moves up.

The anti-theft alarm system is
disarmed.Global unlocking
Press buttonΠtwice.

All turn signal lamps flash once.

An acoustic warning sounds once.

The locking knobs in the doors
move up.

The anti-theft alarm system is
disarmed.
Global locking
Press button‹.
With all doors and the trunk closed:

All turn signal lamps flash three
times.

An acoustic warning sounds three
times.

The locking knobs in the doors
move down.

The anti-theft alarm system is
armed.Restoring to factory setting
Press and hold buttonsŒand‹
simultaneously for about 5 seconds
until battery check lamp5
(
page 94) flashes twice.
Checking the batteries
Press button‹orŒ.
The battery check lamp (
page 94)
comes on briefly to indicate that the
SmartKey batteries are in order.
iIf the battery check lamp (page 94) does
not come on briefly during check, the SmartKey
batteries are discharged.

Replace the batteries (page 398).
You can obtain the required batteries at any
authorized Mercedes-Benz Center.
iIf the batteries are checked within signal
range of the vehicle, pressing
button‹orŒ will lock or unlock the
vehicle accordingly.

98 Controls in detail
Locking and unlocking
Loss of SmartKey or mechanical key
If you lose a SmartKey or mechanical key,
you should do the following:
Have the SmartKey deactivated by an
authorized Mercedes-Benz Center.
Report the loss of the SmartKey or the
mechanical key to your car insurance
company immediately.
If necessary have the mechanical lock
replaced.
Any authorized Mercedes-Benz Center will
be glad to supply you with a replacement.
Opening the doors from the inside
You can open a locked door from the in-
side. Open door only when conditions are
safe to do so.
1Inside door handle
2Locking knob
Pull on door handle1 on the respec-
tive door.
If the door was locked, locking knob2
will move up.
Opening a door causes its window to
open slightly. It will fully close when the
door is shut.
!A side window will not work if it is blocked
with ice or if the battery needs charging. If you
cannot shut a door, do not force it or you could
damage the door or the side window.
Fix whatever is affecting the window before
trying to shut the door.
iIf you hear a warning signal, you have forgot-
ten to switch off the low beam headlamps or the
parking lamps before opening the driver’s door.
In addition, the message
Switch Off Lights
appears in the multifunction display.
Switch off the low beam headlamps or the park-
ing lamps.
If the message
Switch off lights or
remove key.
appears in the multifunction
display, remove the SmartKey from the starter
switch or switch off the automatic headlamp
mode.
!Failure to switch off the exterior lamps when
leaving the vehicle may result in a discharged
battery.

99 Controls in detail
Locking and unlocking
Opening the trunk
You can open the trunk if the vehicle is
stationary.
A minimum height clearance of 5.78 ft
(1.76 m) is required to open the trunk lid.Press and hold buttonŠ on the
SmartKey.
The trunk is unlocked and opens
slightly.
Pull on the handle.
Lift the trunk lid and swing it open.
The trunk lid can also be opened from the
inside in an emergency, see “Trunk lid
emergency release” (
page 102).
iIf the vehicle has previously been centrally
locked with the SmartKey, opening a door from
the inside will trigger the anti-theft alarm system.
To cancel the alarm, do one of the following:

Press buttonŒor‹on the
SmartKey.

Insert the SmartKey in the starter switch.
Warning!G
Make sure the trunk is closed when the
engine is running and while driving.
Among other dangers, deadly carbon
monoxide (CO) gases may enter vehicle
interior resulting in unconsciousness and
death.
!Always make sure there is sufficient over-
head clearance.
iThe vehicle or trunk must be unlocked
before the trunk lid can be opened.
The trunk lid can only be opened when the vehi-
cle is not in motion and the retractable hardtop
is fully opened or closed.
