MERCEDES-BENZ SLK55AMG 2008 R171 Owner's Manual

430 Practical hints
Towing the vehicle
Removing
Press mark on cover1.
Cover1 springs open at the top right
corner.
Pull at the protruding part of cover1
and fold cover down to reveal the
threaded hole for the towing eye bolt.
Do not disconnect cover1 from its
check strap.
Screw towing eye bolt in to its end stop
and tighten with wheel wrench.Installing
Unscrew the towing eye bolt using the
wheel wrench.
To reinstall cover1, tilt the marked
lower left corner towards the opening.
Maintaining its tilted position, insert
cover1 by applying the latches at the
top left and lower right corner into the
opening.
To close cover1, press on the diago-
nal opposite side of the marked corner
until it fully engages.Rear coverExample illustration (AMG vehicles and
vehicles with Sport Package* have a square
cover)
1Cover in rear bumperiMake sure the cover’s check strap does not
get caught when closing.

431 Practical hints
Towing the vehicle
Removing
Press mark on cover1.
Cover1 springs open at the top.
Pull at the protruding part of cover1
and fold cover down to reveal the
threaded hole for the towing eye bolt.
Do not disconnect cover1 from its
check strap.
Screw towing eye bolt in to its end stop
and tighten with wheel wrench.Installing
Unscrew the towing eye bolt using the
wheel wrench.
To reinstall cover1, tilt the marked
lower edge towards the opening.
Maintaining its tilted position, insert
cover1 by applying the latches at the
marked lower edge into the opening.
To close cover1, press on the un-
marked top until it fully engages.
iMake sure the cover’s check strap does not
get caught when closing.

432 Practical hints
Fuses
The electrical fuses in your vehicle serve to
switch off malfunctioning power circuits.
If a fuse is blown, the components and
systems secured by that fuse will stop
operating.If a newly inserted fuse blows again, have
the cause determined and rectified by an
authorized Mercedes-Benz Center.
A fuse chart explains the fuse allocation
and fuse amperages. It is located in the
fuse box in the passenger compartment
(
page 433).
The electrical fuses are located in different
fuse boxes:

in the passenger compartment on the
driver’s side (
page 433)

on the driver’s side of the engine
compartment (
page 433)Before replacing fuses:
Apply the parking brake (page 59).
Make sure the gear selector lever* is
set to positionP (
page 157) (manual
transmission to Neutral).
Turn off all electrical consumers.
Turn off the engine (page 61).
Remove the SmartKey from the starter
switch.
Warning!G
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system
in question and do not attempt to repair or
bridge a blown fuse. Using other than
approved fuses or using repaired or bridged
fuses may cause an overload leading to a
fire, and/or cause damage to electrical
components and/or systems. Have the
cause determined and remedied by an
authorized Mercedes-Benz Center.
iA blown fuse must be replaced by an
appropriate spare fuse (recognizable by its color
or the fuse rating given on the fuse) of the
amperage recommended in the fuse chart.
Any Mercedes-Benz Center will be glad to advise
you on this subject.
iIn case of a blown fuse contact Roadside
Assistance or an authorized Mercedes-Benz
Center.

433 Practical hints
Fuses
Fuse box in passenger compartment
1Fuse box cover
Opening
Open the driver’s door.
Insert flat, blunt object as a lever into
recess on the edge of cover1 at the
position indicated by the arrow.
Loosen cover1 from dashboard using
the lever.
Pull cover1 out and remove.Closing
Attach cover1 in the front.
Fold cover1 in until it engages.
Fuse box in engine compartment
The fuse box is located in the engine com-
partment on the driver’s side.
1Fuse box
2Clamp
3Fuse box cover
Opening
Open the hood (page 294).
With a dry cloth, remove any moisture
from the fuse box.
Release clamps2.
Remove fuse box cover3.
Closing
Make sure the sealing rubber is
properly positioned.
Press fuse box cover3 down and
secure with clamps2.
!Do not use sharp objects such as a
screw driver to open fuse box cover1 in the
dashboard, as this could damage it.
!Fuse box cover3 must be properly
positioned as described to prevent moisture or
dirt from entering the fuse box and possibly
impairing fuse operation.

434

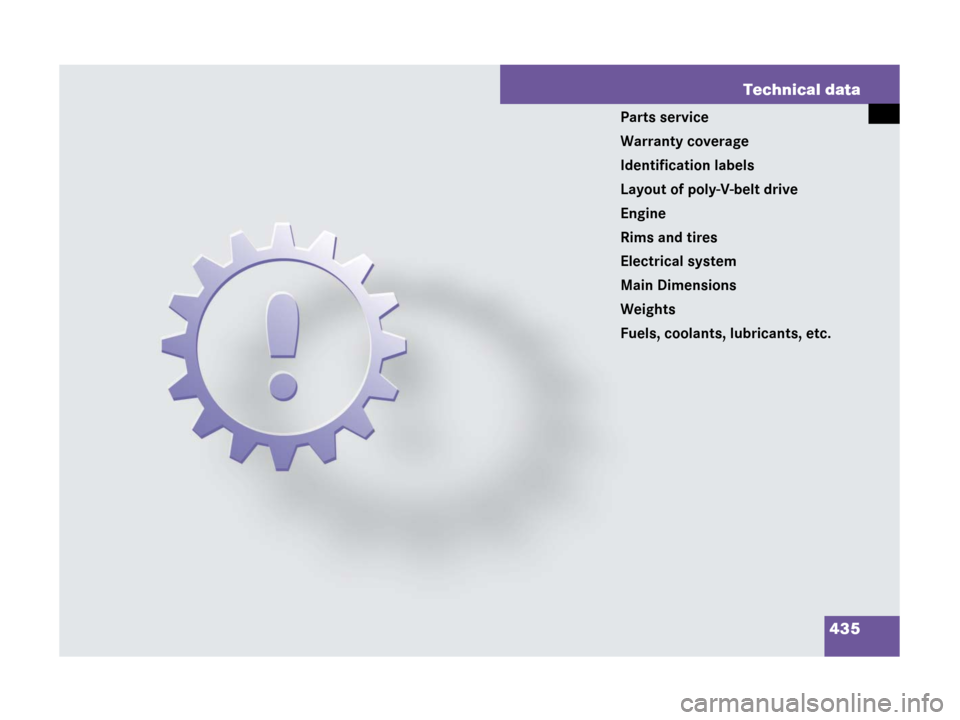

435 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants, etc.

436 Technical data
The “Technical data” section provides the
necessary technical data for your vehicle.
Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz Parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz Parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed,
manufactured or selected for and adapted
to Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz Parts
should be installed.!The use of non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz could damage the vehicle, which
is not covered by the Mercedes-Benz Limited
Warranty, or could compromise the vehicle’s
durability or safety.

437 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will
exchange or repair any defective parts
originally installed in the vehicle in
accordance with the terms of the following
warranties:

New Vehicle Limited Warranty

Emission System Warranty

Emission Performance Warranty

California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a
replacement. It will be mailed to you.

438 Technical data
Identification labels
1Certification label (on driver’s door
B-pillar)
The V
ehicle Identification Number (VIN)
can be found in the following locations:

on the certification label

on the center tunnel, under a carpet
cover behind the passenger seat
(
page 439)

on the lower edge of the windshield
(
page 439)
Example certification label (U.S. vehicles)
2VIN
3Paintwork code
Example certification label
(Canada vehicles)
2VIN
3Paintwork code
iData shown on certification label are for
illustration purposes only. These data are
specific to each vehicle and may vary from data
shown in the illustration. Refer to certification
label on vehicle for actual data specific to your
vehicle.

439 Technical data
Identification labels
4VIN 5Engine number (engraved on engine)
6VIN (lower edge of windshield)
7Emission control information label,
includes both federal and California
certification exhaust emission
standards
iWhen ordering parts, please specify vehicle
identification and engine numbers.
