440 Technical data
Layout of poly-V-belt drive
SLK 280, SLK 350
1Idler pulley
2Idler pulley
3Automatic belt tensioner
4Power steering pump
5Air conditioning compressor
6Crankshaft
7Coolant pump
8Generator (alternator)SLK 55 AMG
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley

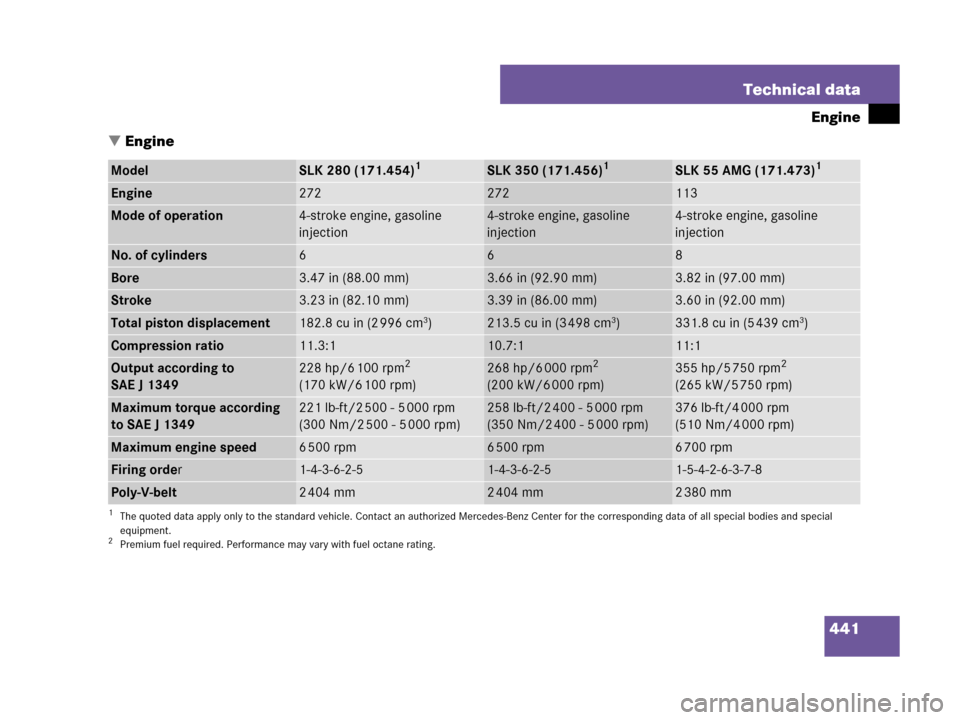

441 Technical data
Engine
Engine
ModelSLK 280 (171.454)1
1The quoted data apply only to the standard vehicle. Contact an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special
equipment.
SLK 350 (171.456)1SLK 55 AMG (171.473)1
Engine272272113
Mode of operation4-stroke engine, gasoline
injection4-stroke engine, gasoline
injection4-stroke engine, gasoline
injection
No. of cylinders668
Bore3.47 in (88.00 mm)3.66 in (92.90 mm)3.82 in (97.00 mm)
Stroke3.23 in (82.10 mm)3.39 in (86.00 mm)3.60 in (92.00 mm)
Total piston displacement182.8 cu in (2 996 cm3)213.5 cu in (3 498 cm3)331.8 cu in (5 439 cm3)
Compression ratio11.3:110.7:111:1
Output according to
SAE J 1349228 hp/6 100 rpm2
(170 kW/6 100 rpm)
268 hp/6 000 rpm2
(200 kW/6 000 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
355 hp/5 750 rpm2
(265 kW/5 750 rpm)
Maximum torque according
to SAE J 1349221 lb-ft/2 500 - 5 000 rpm
(300 Nm/2 500 - 5 000 rpm)258 lb-ft/2 400 - 5 000 rpm
(350 Nm/2 400 - 5 000 rpm)376 lb-ft/4 000 rpm
(510 Nm/4 000 rpm)
Maximum engine speed6500 rpm6500 rpm6700 rpm
Firing order1-4-3-6-2-51-4-3-6-2-51-5-4-2-6-3-7-8
Poly-V-belt2404 mm2404 mm2380 mm

442 Technical data
Rims and tires
!Only use tires which have been tested and
approved by Mercedes-Benz. Tires approved by
Mercedes-Benz are developed to provide best
possible performance in conjunction with the
driving safety systems on your vehicle such as
ABS or ESP
®. Tires specially developed for your
vehicle and tested and approved by
Mercedes-Benz can be identified by finding the
following on the tire’s sidewall:

MO = Mercedes-Benz Original equipment
tires
AMG vehicles:
Does not apply to all approved tires on AMG
vehicles. For information on tested and
approved tires for AMG vehicles, contact an
authorized Mercedes-Benz Center.

MOE = Mercedes-Benz Original Extended
(tires with limited run-flat characteristics)
original equipment tires
Using tires other than those approved by
Mercedes-Benz may result in damage that is not
covered by the Mercedes-Benz Limited
Warranty.
iFor information on driving with MOExtended
tires, see “MOExtended system*” (
page 421).
!Using tires other than those approved by
Mercedes-Benz can have detrimental effects,
such as

poor handling characteristics

increased noise

increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit
dimensional variations and different tire defor-
mation characteristics that could cause them to
come into contact with the vehicle body or axle
parts. Damage to the tires or the vehicle may be
the result.
iFurther information on tires and rims is
available at any authorized Mercedes-Benz
Center. A placard with the recommended tire
inflation pressures is located on the driver’s door
B-pillar. Some vehicles may have supplemental
tire inflation pressure information for driving at
high speeds (
page 313) or for vehicle loads
less than the maximum loaded vehicle condition
(
page 313). If such information is provided, it
can be found on the placard located on the in-
side of the fuel filler flap.The tire inflation pressure should be checked
regularly and should only be adjusted on cold
tires. Follow tire manufacturer’s maintenance
recommendation included with vehicle.
iThe following pages also list the approved
wheel rim and tire sizes for equipping your
vehicles with winter tires. Winter tires are not
available as standard or optional factory
equipment, but can be purchased from an
authorized Mercedes-Benz Center.
Depending on vehicle model and the standard or
optional factory-equipped wheel rim/tire config-
uration on your vehicle (Performance Package,
Sport Package etc.), equipping your vehicle with
winter tires approved for your vehicle model may
also require the purchase of two or four wheel
rims of the recommended size for use with these
winter tires. Contact an authorized
Mercedes-Benz Center for more information.

443 Technical data
Rims and tires
Same size tires
ModelSLK 280SLK 280*
SLK 280 (Appearance Package*)
SLK 350
SLK 350 (Appearance Package*)
Rims (light alloy)7Jx16H27.5 J x 17 H2
Wheel offset1.34 in (34 mm)1.42 in (36 mm)
Winter tires1,2
1Radial-ply tires2Not available as factory equipment.
205/55 R16 91H M+S.225/45 R17 91H M+S.
or
225/45 R17 91H M+S.MOExtended
3
3Must be used in conjunction with Tire Pressure Monitoring System (U.S. vehicles) or Run Flat Indicator* (Canada vehicles) only.

444 Technical data
Rims and tires
ModelSLK 280 (Sport Package*)
SLK 350 (Sport Package*)
SLK 55 AMGSLK 55 AMG
SLK 55 AMG (Performance Package*)
AMG rims (light alloy)7.5 J x 17 H27.5 J x 18 H2
Wheel offset1.46 in (37 mm)1.46 in (37 mm)
Winter tires1,2,3
1Radial-ply tires2Not available as factory equipment.3For use with snow chains contact an authorized Mercedes-Benz Center.
205/50 R17 89H M+S.
or
225/45 R17 91H M+S.225/40 R18 92H XL (Extra Load) M+S.

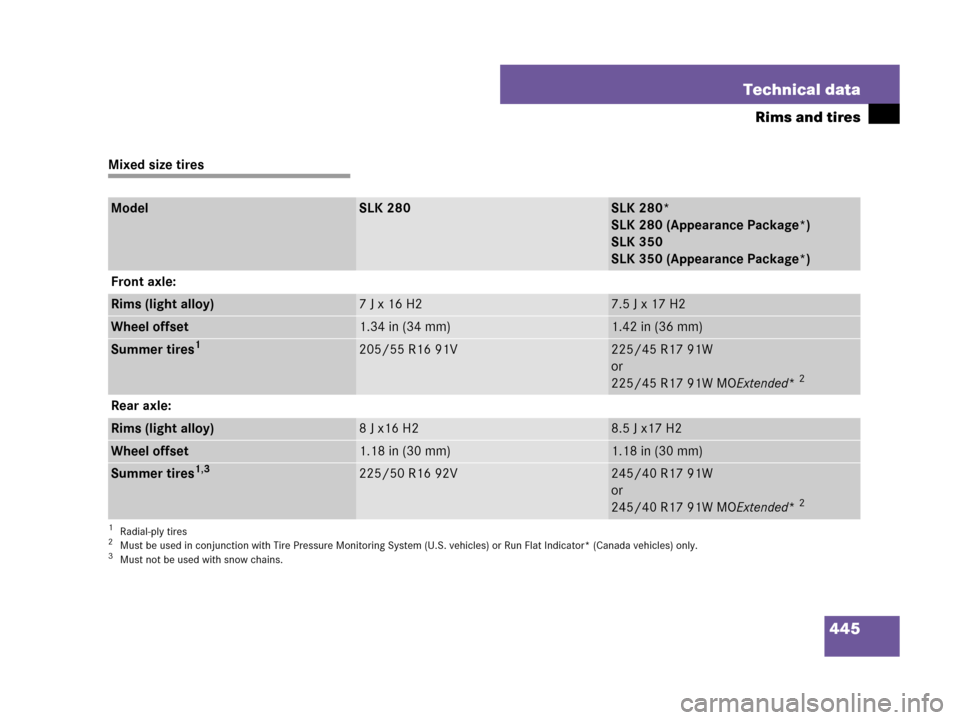

445 Technical data
Rims and tires
Mixed size tires
ModelSLK 280SLK 280*
SLK 280 (Appearance Package*)
SLK 350
SLK 350 (Appearance Package*)
Front axle:
Rims (light alloy)7Jx16 H27.5 J x 17 H2
Wheel offset1.34 in (34 mm)1.42 in (36 mm)
Summer tires1205/55 R16 91V225/45 R17 91W
or
225/45 R17 91W MOExtended*
2
Rear axle:
Rims (light alloy)8J x16 H28.5 J x17 H2
Wheel offset1.18 in (30 mm)1.18 in (30 mm)
Summer tires1,3225/50 R16 92V245/40 R17 91W
or
245/40 R17 91W MOExtended*
2
1Radial-ply tires2Must be used in conjunction with Tire Pressure Monitoring System (U.S. vehicles) or Run Flat Indicator* (Canada vehicles) only.3Must not be used with snow chains.

446 Technical data
Rims and tires
ModelSLK 280 (Sport Package*)
SLK 350 (Sport Package*)SLK 55 AMG
SLK 55 AMG (Performance Package*)
Front axle:
AMG rims (light alloy)7.5 J x 17 H27.5 J x 18 H2
Wheel offset1.46 in (37 mm)1.46 in (37 mm)
Summer tires1,3
1Radial-ply tires
225/45 ZR17 91Y
or
225/45 R17 91W MOExtended*
2
2Must be used in conjunction with Tire Pressure Monitoring System (U.S. vehicles) or Run Flat Indicator* (Canada vehicles) only.
225/40 ZR18 92Y XL (Extra Load)
Rear axle:
AMG rims (light alloy)8.5 J x17 H28.5 J x18 H2
Wheel offset1.18 in (30 mm)1.18 in (30 mm)
Summer tires1,3
3Must not be used with snow chains.
245/40 ZR17 91Y
or
245/40 R17 91W MOExtended*
2
245/35 ZR18 92Y XL (Extra Load)

447 Technical data
Rims and tires
Spare wheel
ModelAll models
(except SLK 55 AMG with Performance Package*)
Rim (light alloy)4.5 B x 17 H2
Wheel offset0.47 in (12 mm)
Collapsible tire145/70-17 92P1
1Must not be used with snow chains.
!Please compare the recommended tire
inflation pressure for your vehicle with the tire
inflation pressure on the yellow label located on
the spare wheel rim.
If the tire inflation pressure on the yellow label
on the spare wheel rim differs from the values
given in this Operator’s Manual, inflate the
collapsible tire to the recommended tire inflation
pressure given on the yellow label on the spare
wheel rim.iPlease note that the tire inflation pressure of
the collapsible tire differs from the tire inflation
pressure of the road tires.
Inflate the collapsible tire to approximately
51 psi (3.5 bar).
iThe SLK 55 AMG with Performance
Package* does not have a spare wheel. The
SLK 55 AMG with Performance Package* is
equipped with TIREFIT (
page 408).

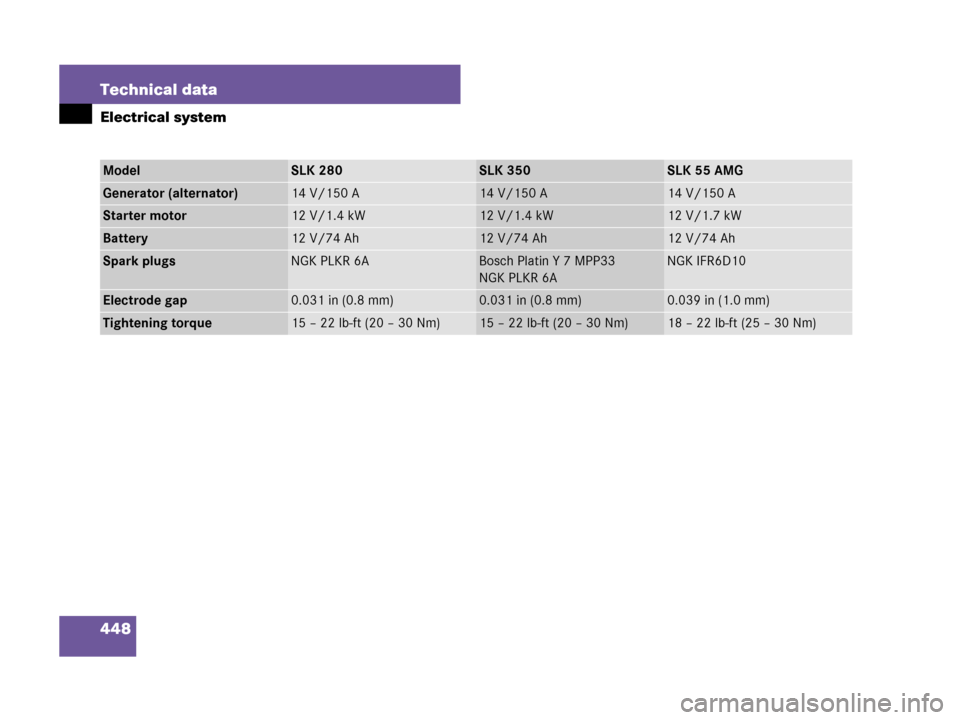

448 Technical data
Electrical system
ModelSLK 280SLK 350SLK 55 AMG
Generator (alternator)14 V/150 A14 V/150 A14 V/150 A
Starter motor12 V/1.4 kW12 V/1.4 kW12 V/1.7 kW
Battery12 V/74 Ah12 V/74 Ah12 V/74 Ah
Spark plugsNGK PLKR 6ABosch Platin Y 7 MPP33
NGK PLKR 6ANGK IFR6D10
Electrode gap0.031 in (0.8 mm)0.031 in (0.8 mm)0.039 in (1.0 mm)
Tightening torque15 – 22 lb-ft (20 – 30 Nm)15 – 22 lb-ft (20 – 30 Nm)18 – 22 lb-ft (25 – 30 Nm)

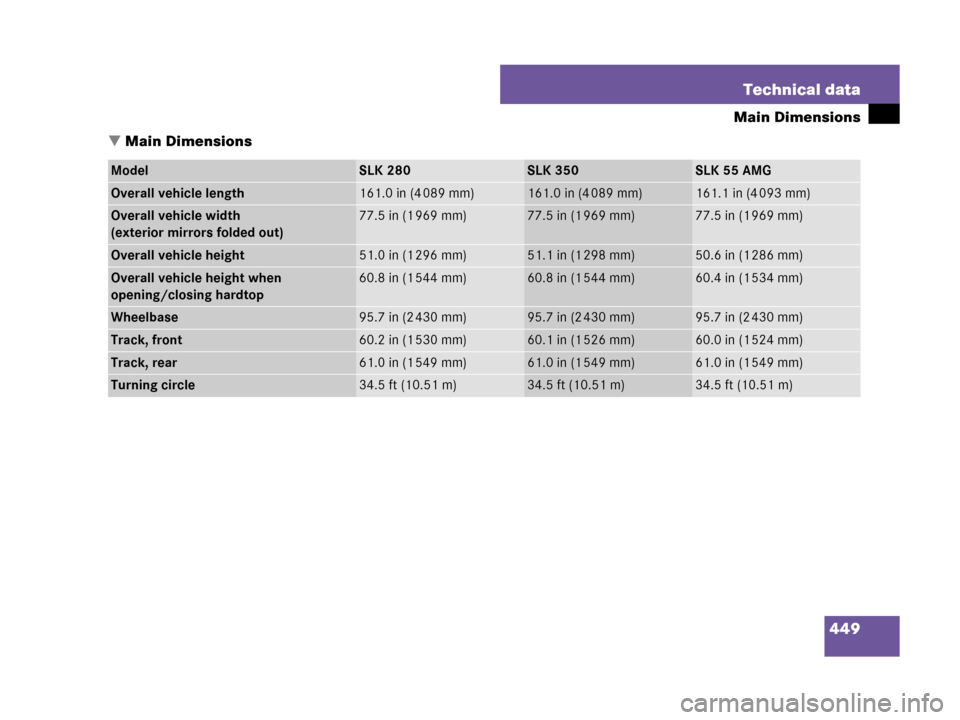

449 Technical data
Main Dimensions
Main Dimensions
ModelSLK 280SLK 350SLK 55 AMG
Overall vehicle length161.0 in (4 089 mm)161.0 in (4 089 mm)161.1 in (4 093 mm)
Overall vehicle width
(exterior mirrors folded out)77.5 in (1 969 mm)77.5 in (1 969 mm)77.5 in (1 969 mm)
Overall vehicle height51.0 in (1 296 mm)51.1 in (1 298 mm)50.6 in (1 286 mm)
Overall vehicle height when
opening/closing hardtop60.8 in (1 544 mm)60.8 in (1 544 mm)60.4 in (1 534 mm)
Wheelbase95.7 in (2 430 mm)95.7 in (2 430 mm)95.7 in (2 430 mm)
Track, front60.2 in (1 530 mm)60.1 in (1 526 mm)60.0 in (1 524 mm)
Track, rear61.0 in (1 549 mm)61.0 in (1 549 mm)61.0 in (1 549 mm)
Turning circle34.5 ft (10.51 m)34.5 ft (10.51 m)34.5 ft (10.51 m)
