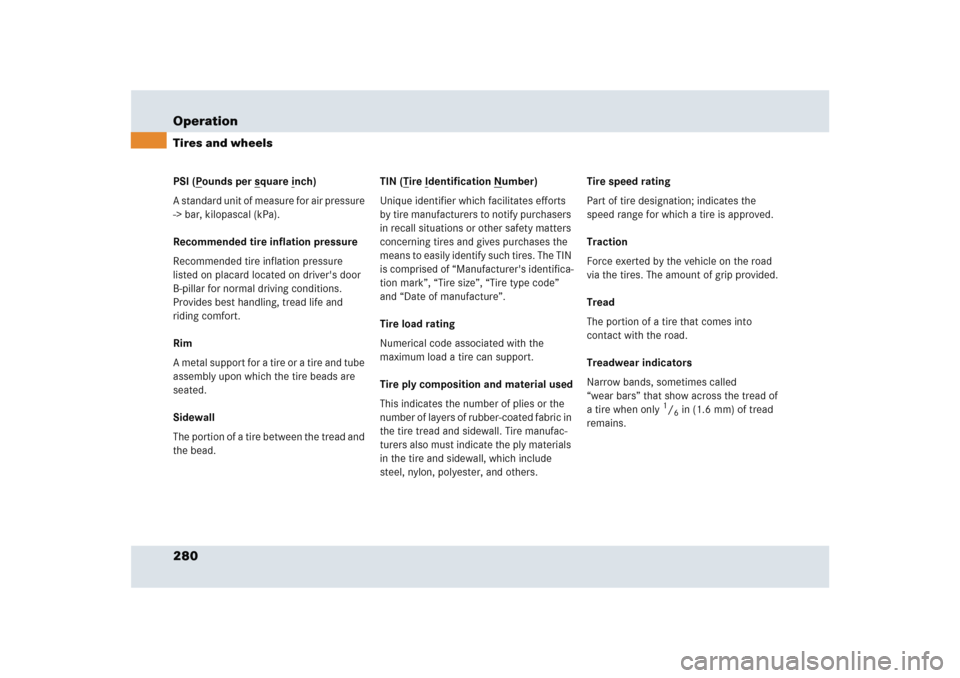

280 OperationTires and wheelsPSI (P
ounds per s
quare i
nch)
A standard unit of measure for air pressure
-> bar, kilopascal (kPa).
Recommended tire inflation pressure
Recommended tire inflation pressure
listed on placard located on driver's door
B-pillar for normal driving conditions.
Provides best handling, tread life and
riding comfort.
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated.
Sidewall
The portion of a tire between the tread and
the bead.TIN (T
ire I
dentification N
umber)
Unique identifier which facilitates efforts
by tire manufacturers to notify purchasers
in recall situations or other safety matters
concerning tires and gives purchases the
means to easily identify such tires. The TIN
is comprised of “Manufacturer's identifica-
tion mark”, “Tire size”, “Tire type code”
and “Date of manufacture”.
Tire load rating
Numerical code associated with the
maximum load a tire can support.
Tire ply composition and material used
This indicates the number of plies or the
number of layers of rubber-coated fabric in
the tire tread and sidewall. Tire manufac-
turers also must indicate the ply materials
in the tire and sidewall, which include
steel, nylon, polyester, and others.Tire speed rating
Part of tire designation; indicates the
speed range for which a tire is approved.
Traction
Force exerted by the vehicle on the road
via the tires. The amount of grip provided.
Tread
The portion of a tire that comes into
contact with the road.
Treadwear indicators
Narrow bands, sometimes called
“wear bars” that show across the tread of
a tire when only
1/6in (1.6 mm) of tread
remains.

281 Operation
Tires and wheels
Uniform Tire Quality Grading Standards
A tire information system that provides
consumers with ratings for a tire’s traction,
temperature and treadwear. Ratings are
determined by tire manufacturers using
government testing procedures. The
ratings are molded into the sidewall of the
tire.
Vehicle capacity weight
Rated cargo and luggage load plus
68 kilograms (150 lbs) times the vehicle’s
designated seating capacity.
Vehicle maximum load on the tire
Load on an individual tire that is
determined by distributing to each axle its
share of the maximum loaded vehicle
weight and dividing it by two.
Rotating tires
Tire rotation can be performed on vehicles
with tires of the same dimension all
around. If your vehicle is equipped with
tires of the same dimension all around,
tires can be rotated, observing a front-to-rear rotation pattern that will
maintain the intended rotation (spinning)
direction of the tire (
page 256).
In some cases, such as when your vehicle
is equipped with mixed-size tires (different
tire dimension front vs. rear), tire rotation
is not possible.
If applicable to your vehicle's tire configu-
ration, tires can be rotated according to
the tire manufacturer's recommended in-
tervals in the tire manufacturer's warranty
pamphlet located in your vehicle literature
portfolio. If none is available, tires should
be rotated every 3000 to 6000 miles
(5000 to 10 000 km), or sooner if neces-
sary, according to the degree of tire wear.
The same rotation (spinning) direction
must be maintained (page 256).
Rotate tires before the characteristic tire
wear pattern becomes visible (shoulder
wear on front tires and tread center wear
on rear tires).
!A wheel change should only be carried
out at an authorized Mercedes-Benz
Center. Otherwise there is a danger of
damaging the vehicle by jacking it up
incorrectly.Warning!
G
Rotate front and rear wheels only if the tires
are of the same dimension.
If your vehicle is equipped with mixed-size
tires (different tire dimensions front vs.
rear), tire rotation is not possible.

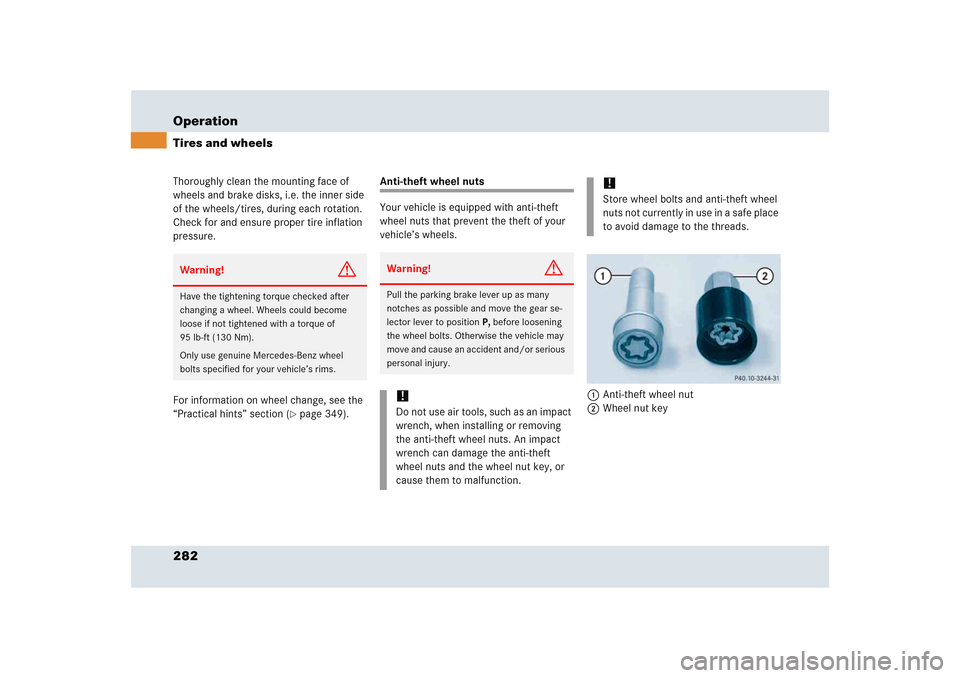

282 OperationTires and wheelsThoroughly clean the mounting face of
wheels and brake disks, i.e. the inner side
of the wheels/tires, during each rotation.
Check for and ensure proper tire inflation
pressure.
For information on wheel change, see the
“Practical hints” section (
page 349).
Anti-theft wheel nuts
Your vehicle is equipped with anti-theft
wheel nuts that prevent the theft of your
vehicle’s wheels.
1Anti-theft wheel nut
2Wheel nut key
Warning!
G
Have the tightening torque checked after
changing a wheel. Wheels could become
loose if not tightened with a torque of
95 lb-ft (130 Nm).
Only use genuine Mercedes-Benz wheel
bolts specified for your vehicle’s rims.
Warning!
G
Pull the parking brake lever up as many
notches as possible and move the gear se-
lector lever to positionP, before loosening
the wheel bolts. Otherwise the vehicle may
move and cause an accident and/or serious
personal injury. !Do not use air tools, such as an impact
wrench, when installing or removing
the anti-theft wheel nuts. An impact
wrench can damage the anti-theft
wheel nuts and the wheel nut key, or
cause them to malfunction.
!Store wheel bolts and anti-theft wheel
nuts not currently in use in a safe place
to avoid damage to the threads.

283 Operation
Tires and wheels

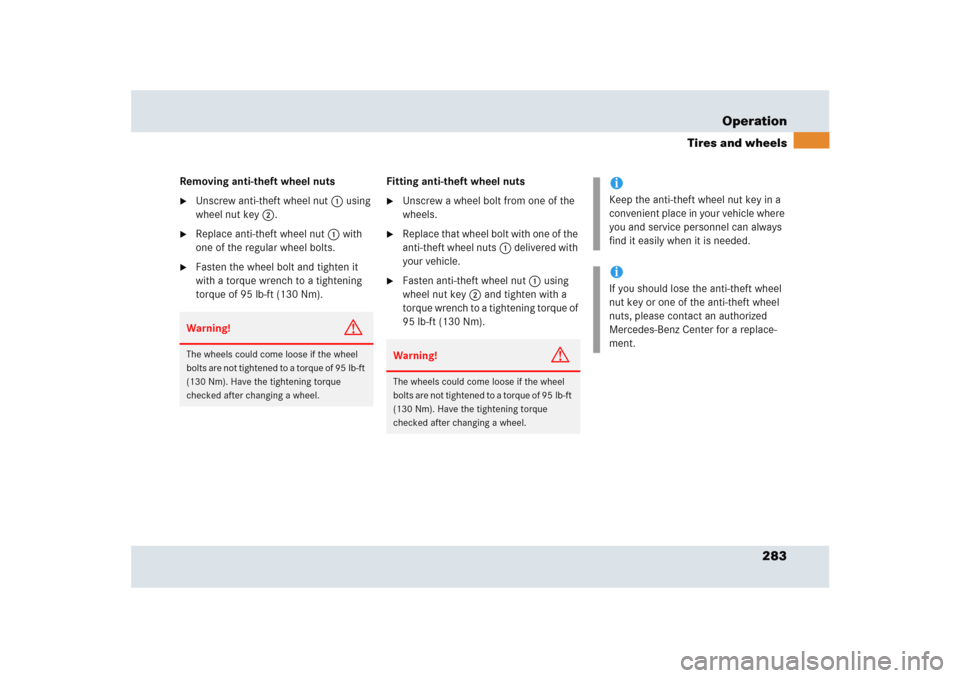

Removing anti-theft wheel nuts
Unscrew anti-theft wheel nut1 using
wheel nut key2.

Replace anti-theft wheel nut1 with
one of the regular wheel bolts.

Fasten the wheel bolt and tighten it
with a torque wrench to a tightening
torque of 95 lb-ft (130 Nm).Fitting anti-theft wheel nuts

Unscrew a wheel bolt from one of the
wheels.

Replace that wheel bolt with one of the
anti-theft wheel nuts1 delivered with
your vehicle.

Fasten anti-theft wheel nut1 using
wheel nut key2 and tighten with a
torque wrench to a tightening torque of
95 lb-ft (130 Nm).
Warning!
G
The wheels could come loose if the wheel
bolts are not tightened to a torque of 95 lb-ft
(130 Nm). Have the tightening torque
checked after changing a wheel.
Warning!
G
The wheels could come loose if the wheel
bolts are not tightened to a torque of 95 lb-ft
(130 Nm). Have the tightening torque
checked after changing a wheel.
iKeep the anti-theft wheel nut key in a
convenient place in your vehicle where
you and service personnel can always
find it easily when it is needed.iIf you should lose the anti-theft wheel
nut key or one of the anti-theft wheel
nuts, please contact an authorized
Mercedes-Benz Center for a replace-
ment.

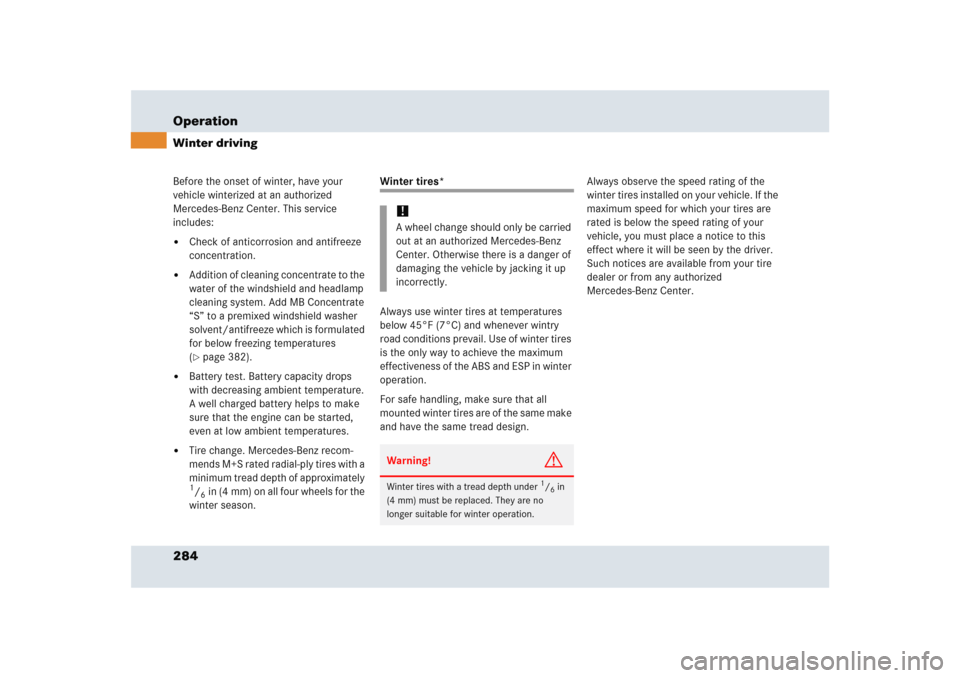

284 OperationWinter drivingBefore the onset of winter, have your
vehicle winterized at an authorized
Mercedes-Benz Center. This service
includes:

Check of anticorrosion and antifreeze
concentration.


Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
“S” to a premixed windshield washer
solvent/antifreeze which is formulated
for below freezing temperatures
(page 382).


Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to make
sure that the engine can be started,
even at low ambient temperatures.


Tire change. Mercedes-Benz recom-
mends M+S rated radial-ply tires with a
minimum tread depth of approximately 1/6in (4 mm) on all four wheels for the
winter season.
Winter tires*
Always use winter tires at temperatures
below 45°F (7°C) and whenever wintry
road conditions prevail. Use of winter tires
is the only way to achieve the maximum
effectiveness of the ABS and ESP in winter
operation.
For safe handling, make sure that all
mounted winter tires are of the same make
and have the same tread design.Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your
vehicle, you must place a notice to this
effect where it will be seen by the driver.
Such notices are available from your tire
dealer or from any authorized
Mercedes-Benz Center.
!A wheel change should only be carried
out at an authorized Mercedes-Benz
Center. Otherwise there is a danger of
damaging the vehicle by jacking it up
incorrectly.Warning!
G
Winter tires with a tread depth under
1/6in
(4 mm) must be replaced. They are no
longer suitable for winter operation.

285 Operation
Winter driving

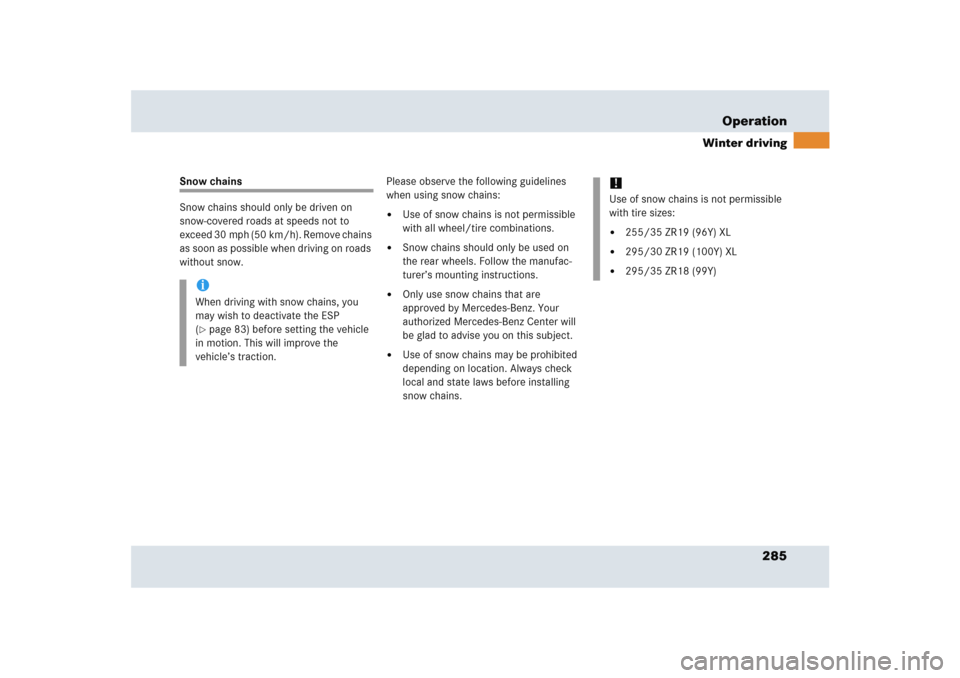

Snow chains
Snow chains should only be driven on
snow-covered roads at speeds not to
exceed 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.Please observe the following guidelines
when using snow chains:


Use of snow chains is not permissible
with all wheel/tire combinations.


Snow chains should only be used on
the rear wheels. Follow the manufac-
turer’s mounting instructions.


Only use snow chains that are
approved by Mercedes-Benz. Your
authorized Mercedes-Benz Center will
be glad to advise you on this subject.


Use of snow chains may be prohibited
depending on location. Always check
local and state laws before installing
snow chains.
iWhen driving with snow chains, you
may wish to deactivate the ESP
(page 83) before setting the vehicle
in motion. This will improve the
vehicle’s traction.
!Use of snow chains is not permissible
with tire sizes:

255/35 ZR19 (96Y) XL


295/30 ZR19 (100Y) XL


295/35 ZR18 (99Y)

286 OperationMaintenanceIn order to maintain the performance and
safety of your SLR, we strongly recom-
mend that you have your vehicle serviced
by an authorized Mercedes-Benz Center,
every 12 months, even if the vehicle has
covered less than 10 000 miles
(15 000 km) in that time.
The maintenance service indicator will
notify you when your next maintenance
service is due within the next 12 months or
10 000 miles (15 000 km), whichever
comes sooner.
Failure to have the vehicle maintained in
accordance with the Maintenance Booklet
and maintenance service indicator at the
designated times/mileage will result in
vehicle damage not covered by the
Mercedes-Benz Limited Warranty.Before your next maintenance service is
due, one of the following messages will ap-
pear in the right multifunction display while
you are driving or when you switch on the
ignition:
Service in.. days
Service in.. km

When the maintenance service is due, the
display message Service Due now!
ap-
pears.Clearing the maintenance service
indicator
1Reset button
The service display is automatically
cleared after 30 seconds. You can also
clear it yourself.
Press reset button 1.

287 Operation
Maintenance
Maintenance service term exceeded
If you have exceeded the suggested ser-
vice term, you will see the following mes-
sage in the right multifunction display:Service exceeded by .. days
Service exceeded by .. kmAny authorized Mercedes-Benz Center will
reset the maintenance service indicator
following a completed maintenance
service.
Calling up the service due date
Switch on the ignition (
page 40).
The standard display of the control
system appears (
page 117).

Press button k or j on the
multifunction steering wheel until the
maintenance service indicator service
symbol 9 appears in the left multi-
function display and the service dead-
line appears in the right multifunction
display.
iYou should not disconnect the consum-
er battery if you do not intend to use
your SLR for a longer period. Instead,
maintain the condition of the battery by
using the battery charger approved by
Mercedes-Benz for use on the SLR and
supplied with the car (
page 356).
This charger automatically controls the
charge rate, and can be left connected
to the car for long periods without dam-
age to the battery.
If the battery supplying the vehicle’s
electrical consumers is disconnected,
the days of disconnection will not be in-
cluded in the count shown by the ser-
vice indicator. To arrive at the true
service deadline, you will need to sub-
tract these days from the days shown
in the service indicator.
Do not confuse the maintenance
service indicator with the engine oil
level indicator:.

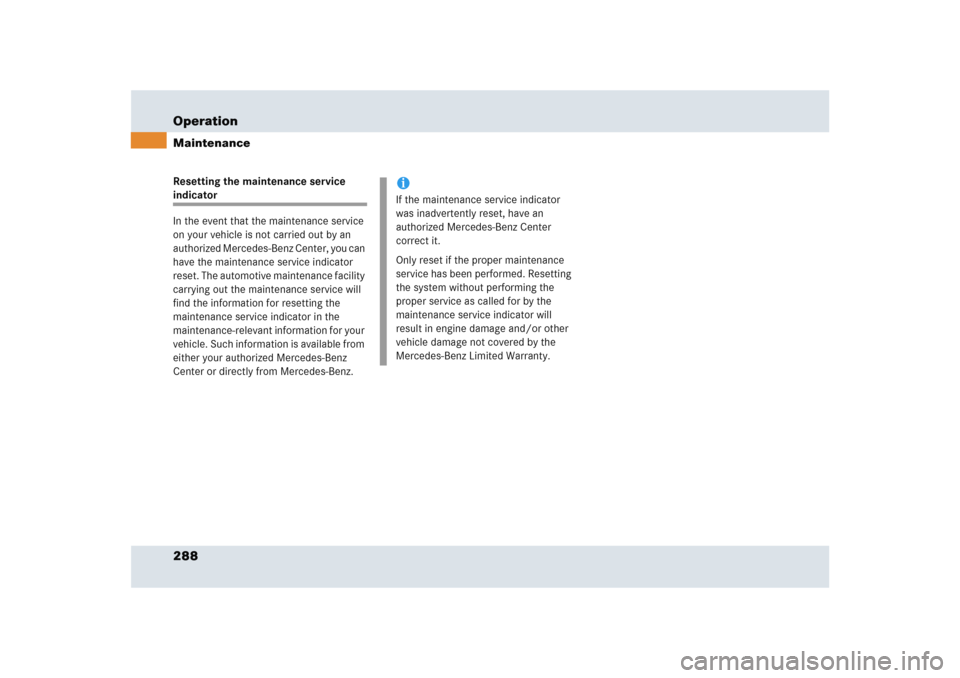

288 OperationMaintenanceResetting the maintenance service indicator
In the event that the maintenance service
on your vehicle is not carried out by an
authorized Mercedes-Benz Center, you can
have the maintenance service indicator
reset. The automotive maintenance facility
carrying out the maintenance service will
find the information for resetting the
maintenance service indicator in the
maintenance-relevant information for your
vehicle. Such information is available from
either your authorized Mercedes-Benz
Center or directly from Mercedes-Benz.
iIf the maintenance service indicator
was inadvertently reset, have an
authorized Mercedes-Benz Center
correct it.
Only reset if the proper maintenance
service has been performed. Resetting
the system without performing the
proper service as called for by the
maintenance service indicator will
result in engine damage and/or other
vehicle damage not covered by the
Mercedes-Benz Limited Warranty.

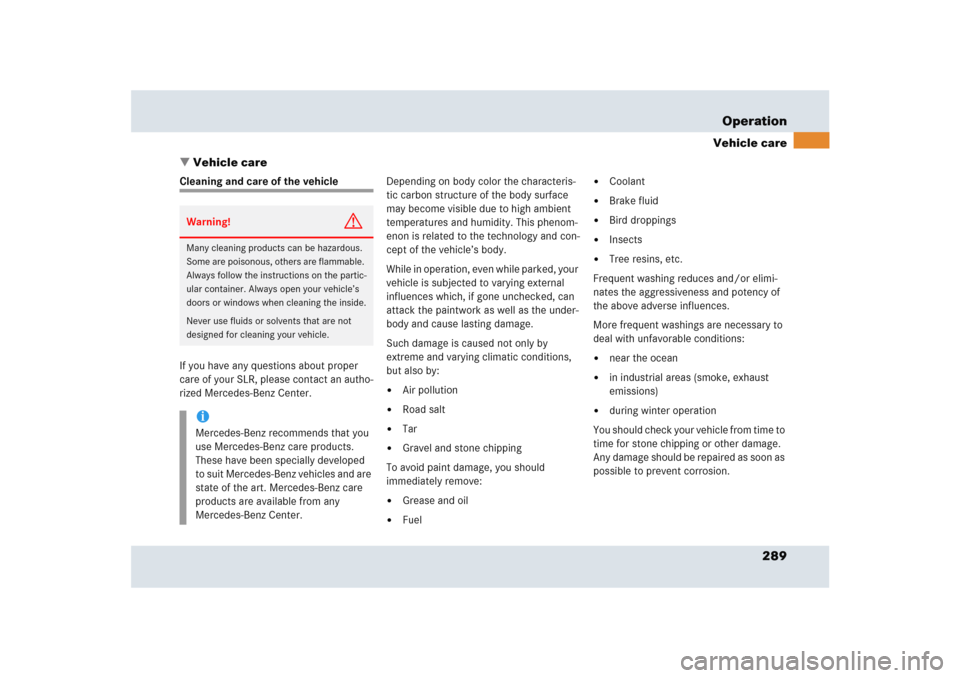

289 Operation
Vehicle care
Vehicle care
Cleaning and care of the vehicle
If you have any questions about proper
care of your SLR, please contact an autho-
rized Mercedes-Benz Center.Depending on body color the characteris-
tic carbon structure of the body surface
may become visible due to high ambient
temperatures and humidity. This phenom-
enon is related to the technology and con-
cept of the vehicle’s body.
While in operation, even while parked, your
vehicle is subjected to varying external
influences which, if gone unchecked, can
attack the paintwork as well as the under-
body and cause lasting damage.
Such damage is caused not only by
extreme and varying climatic conditions,
but also by:


Air pollution


Road salt


Tar


Gravel and stone chipping
To avoid paint damage, you should
immediately remove:


Grease and oil


Fuel


Coolant


Brake fluid


Bird droppings


Insects


Tree resins, etc.
Frequent washing reduces and/or elimi-
nates the aggressiveness and potency of
the above adverse influences.
More frequent washings are necessary to
deal with unfavorable conditions:


near the ocean


in industrial areas (smoke, exhaust
emissions)


during winter operation
You should check your vehicle from time to
time for stone chipping or other damage.
Any damage should be repaired as soon as
possible to prevent corrosion.
Warning!
G
Many cleaning products can be hazardous.
Some are poisonous, others are flammable.
Always follow the instructions on the partic-
ular container. Always open your vehicle’s
doors or windows when cleaning the inside.
Never use fluids or solvents that are not
designed for cleaning your vehicle.iMercedes-Benz recommends that you
use Mercedes-Benz care products.
These have been specially developed
to suit Mercedes-Benz vehicles and are
state of the art. Mercedes-Benz care
products are available from any
Mercedes-Benz Center.
