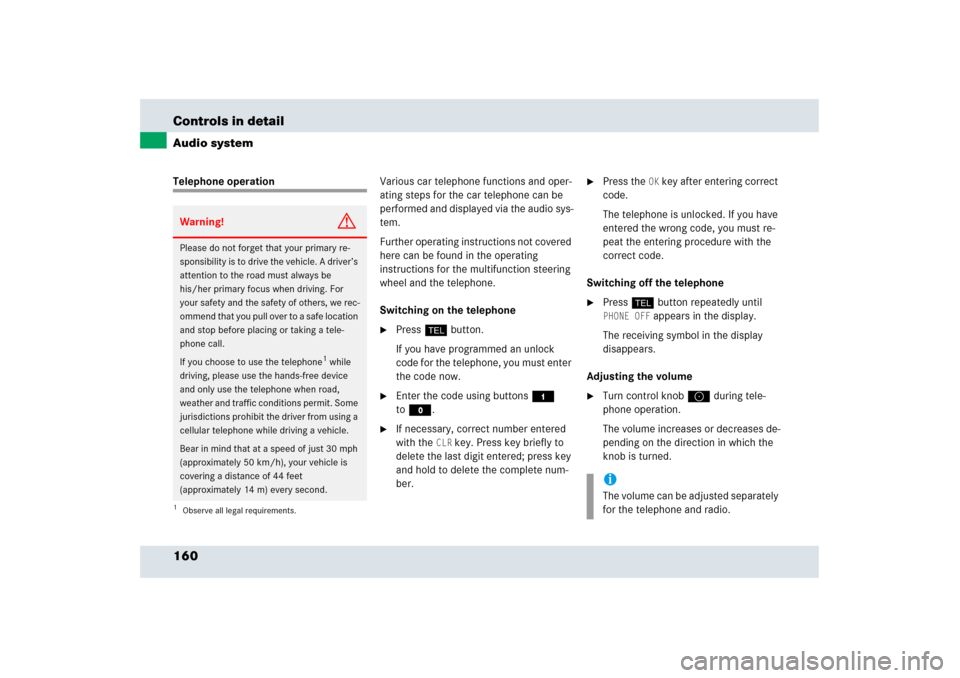

160 Controls in detailAudio systemTelephone operationVarious car telephone functions and oper-
ating steps for the car telephone can be
performed and displayed via the audio sys-
tem.
Further operating instructions not covered
here can be found in the operating
instructions for the multifunction steering
wheel and the telephone.
Switching on the telephone

Pressh button.
If you have programmed an unlock
code for the telephone, you must enter
the code now.

Enter the code using buttons4
toM.

If necessary, correct number entered
with the
CLR
key. Press key briefly to
delete the last digit entered; press key
and hold to delete the complete num-
ber.

Press the
OK key after entering correct
code.
The telephone is unlocked. If you have
entered the wrong code, you must re-
peat the entering procedure with the
correct code.
Switching off the telephone

Pressh button repeatedly until PHONE OFF
appears in the display.
The receiving symbol in the display
disappears.
Adjusting the volume

Turn control knoba during tele-
phone operation.
The volume increases or decreases de-
pending on the direction in which the
knob is turned.
Warning!
G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
1Observe all legal requirements.
iThe volume can be adjusted separately
for the telephone and radio.

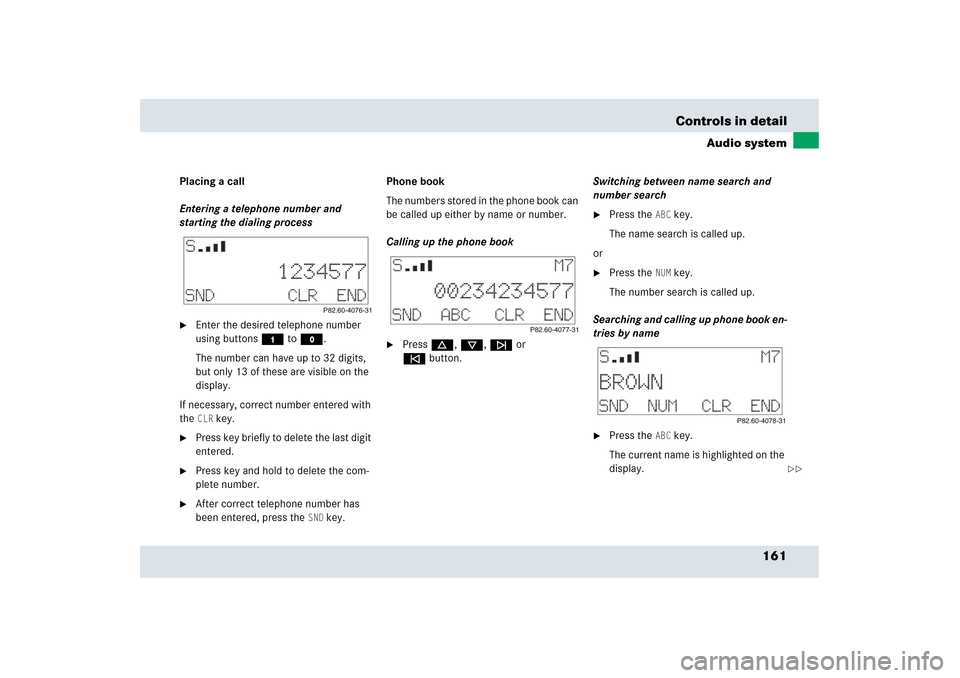

161 Controls in detail
Audio system
Placing a call
Entering a telephone number and
starting the dialing process
Enter the desired telephone number
using buttons4 toM.
The number can have up to 32 digits,
but only 13 of these are visible on the
display.
If necessary, correct number entered with
the CLR
key.

Press key briefly to delete the last digit
entered.

Press key and hold to delete the com-
plete number.

After correct telephone number has
been entered, press the
SND
key.Phone book
The numbers stored in the phone book can
be called up either by name or number.
Calling up the phone book

Pressd, c, f or
ebutton.Switching between name search and
number search

Press the
ABC
key.
The name search is called up.
or

Press the
NUM
key.
The number search is called up.
Searching and calling up phone book en-
tries by name

Press the
ABC
key.
The current name is highlighted on the
display.

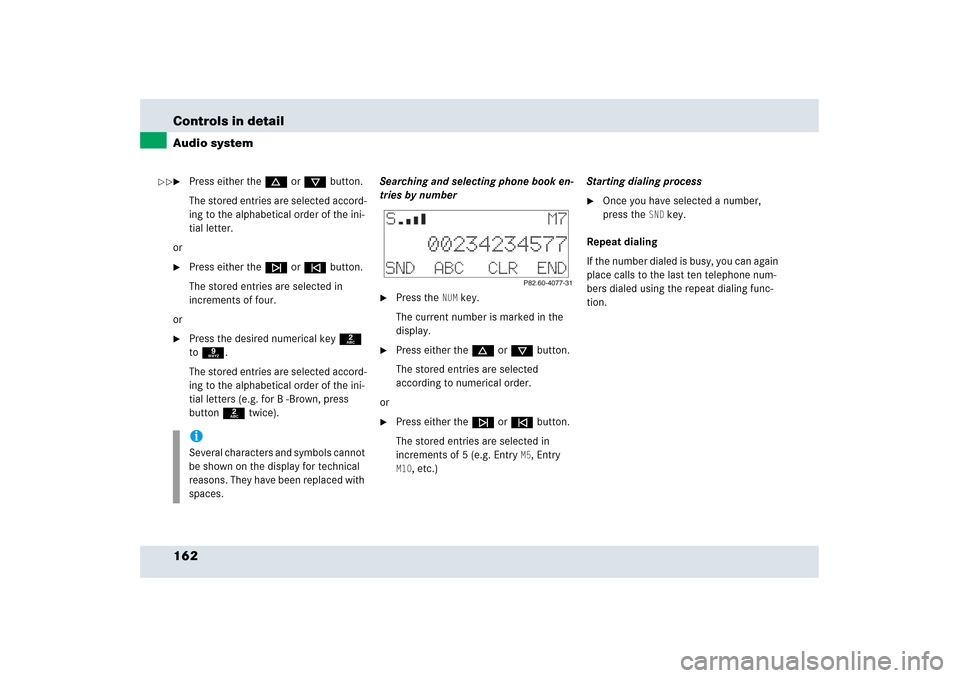

162 Controls in detailAudio system
Press either thed or cbutton.
The stored entries are selected accord-
ing to the alphabetical order of the ini-
tial letter.
or

Press either thef or ebutton.
The stored entries are selected in
increments of four.
or

Press the desired numerical key2
to9.
The stored entries are selected accord-
ing to the alphabetical order of the ini-
tial letters (e.g. for B -Brown, press
button2 twice).Searching and selecting phone book en-
tries by number

Press the
NUM
key.
The current number is marked in the
display.

Press either thed or cbutton.
The stored entries are selected
according to numerical order.
or

Press either thef or ebutton.
The stored entries are selected in
increments of 5 (e.g. Entry
M5, Entry
M10
, etc.)Starting dialing process

Once you have selected a number,
press the
SND
key.
Repeat dialing
If the number dialed is busy, you can again
place calls to the last ten telephone num-
bers dialed using the repeat dialing func-
tion.
iSeveral characters and symbols cannot
be shown on the display for technical
reasons. They have been replaced with
spaces.

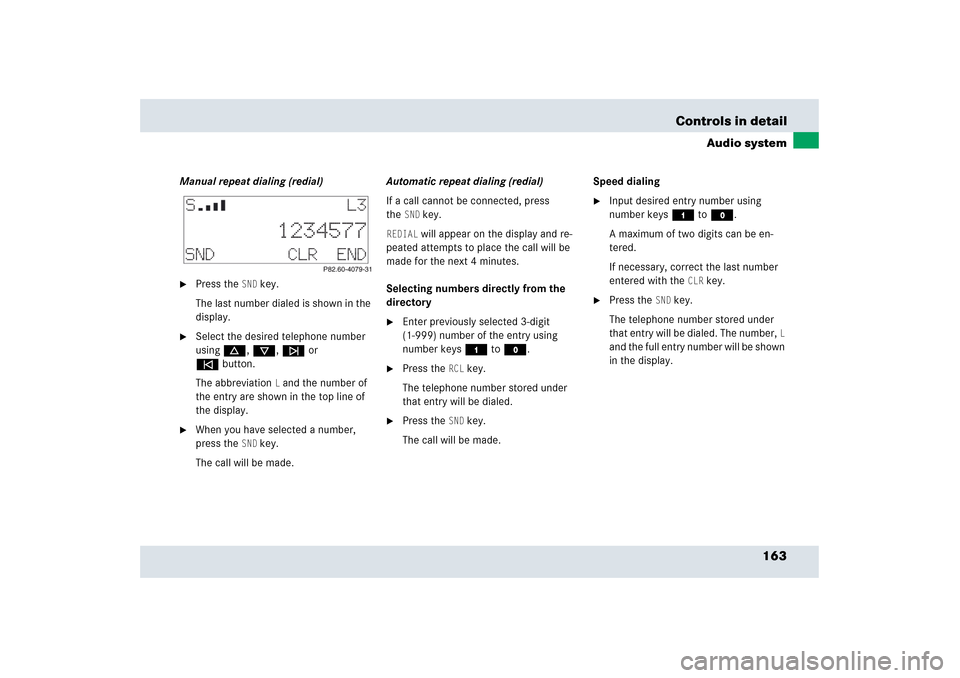

163 Controls in detail
Audio system
Manual repeat dialing (redial)
Press the
SND
key.
The last number dialed is shown in the
display.

Select the desired telephone number
usingd, c, f or
ebutton.
The abbreviation
L and the number of
the entry are shown in the top line of
the display.

When you have selected a number,
press the
SND
key.
The call will be made.Automatic repeat dialing (redial)
If a call cannot be connected, press
the
SND
key.
REDIAL
will appear on the display and re-
peated attempts to place the call will be
made for the next 4 minutes.
Selecting numbers directly from the
directory

Enter previously selected 3-digit
(1-999) number of the entry using
number keys4 toM.

Press the
RCL
key.
The telephone number stored under
that entry will be dialed.

Press the
SND
key.
The call will be made.Speed dialing

Input desired entry number using
number keys4 toM.
A maximum of two digits can be en-
tered.
If necessary, correct the last number
entered with the
CLR
key.

Press the
SND
key.
The telephone number stored under
that entry will be dialed. The number,
L
and the full entry number will be shown
in the display.

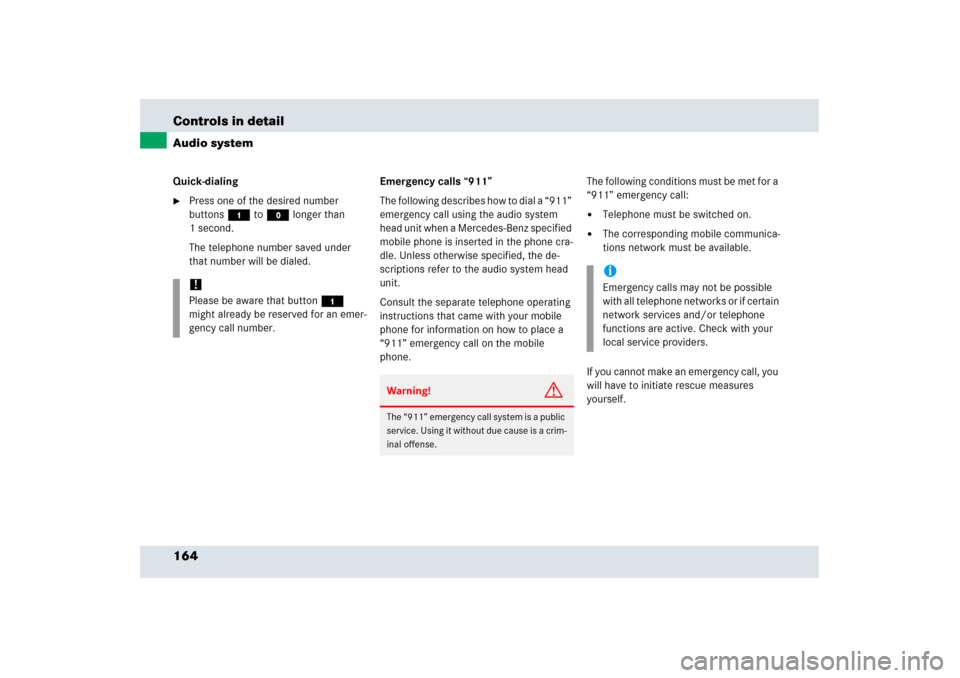

164 Controls in detailAudio systemQuick-dialing
Press one of the desired number
buttons4 toM longer than
1 second.
The telephone number saved under
that number will be dialed.Emergency calls “911”
The following describes how to dial a “911”
emergency call using the audio system
head unit when a Mercedes-Benz specified
mobile phone is inserted in the phone cra-
dle. Unless otherwise specified, the de-
scriptions refer to the audio system head
unit.
Consult the separate telephone operating
instructions that came with your mobile
phone for information on how to place a
“911” emergency call on the mobile
phone. The following conditions must be met for a
“911” emergency call:


Telephone must be switched on.


The corresponding mobile communica-
tions network must be available.
If you cannot make an emergency call, you
will have to initiate rescue measures
yourself.
!Please be aware that button4
might already be reserved for an emer-
gency call number.
Warning!
G
The “911” emergency call system is a public
service. Using it without due cause is a crim-
inal offense.
iEmergency calls may not be possible
with all telephone networks or if certain
network services and/or telephone
functions are active. Check with your
local service providers.

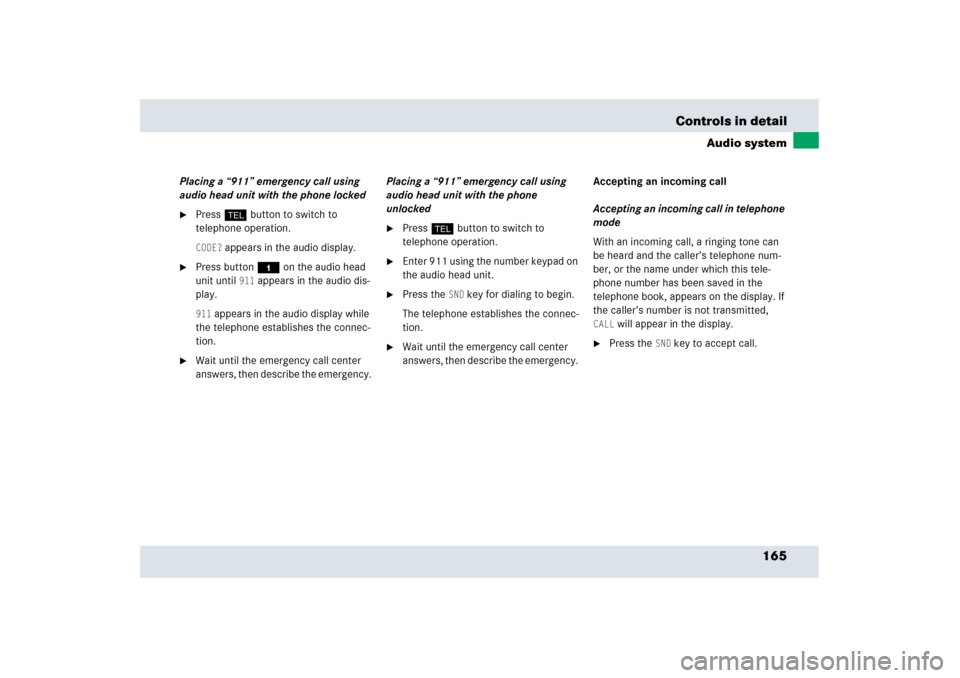

165 Controls in detail
Audio system
Placing a “911” emergency call using
audio head unit with the phone locked
Press hbutton to switch to
telephone operation. CODE?
appears in the audio display.

Press button4 on the audio head
unit until
911
appears in the audio dis-
play.
911
appears in the audio display while
the telephone establishes the connec-
tion.

Wait until the emergency call center
answers, then describe the emergency. Placing a “911” emergency call using
audio head unit with the phone
unlocked

Press hbutton to switch to
telephone operation.

Enter 911 using the number keypad on
the audio head unit.

Press the
SND
key for dialing to begin.
The telephone establishes the connec-
tion.

Wait until the emergency call center
answers, then describe the emergency. Accepting an incoming call
Accepting an incoming call in telephone
mode
With an incoming call, a ringing tone can
be heard and the caller’s telephone num-
ber, or the name under which this tele-
phone number has been saved in the
telephone book, appears on the display. If
the caller’s number is not transmitted,
CALL
will appear in the display.

Press the
SND
key to accept call.

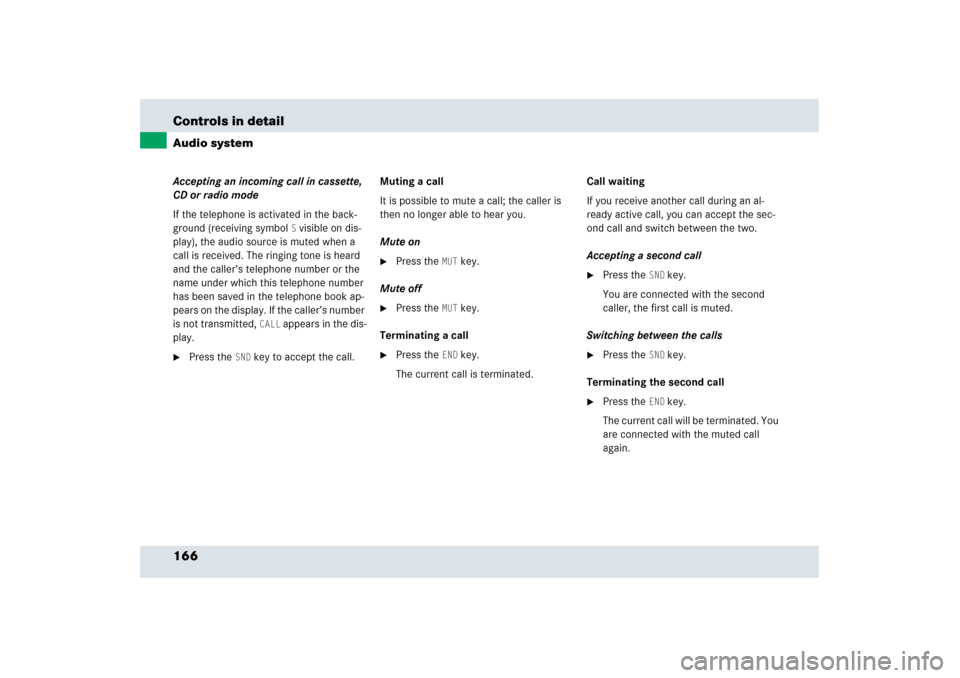

166 Controls in detailAudio systemAccepting an incoming call in cassette,
CD or radio mode
If the telephone is activated in the back-
ground (receiving symbol
S visible on dis-
play), the audio source is muted when a
call is received. The ringing tone is heard
and the caller’s telephone number or the
name under which this telephone number
has been saved in the telephone book ap-
pears on the display. If the caller’s number
is not transmitted,
CALL
appears in the dis-
play.

Press the
SND
key to accept the call.Muting a call
It is possible to mute a call; the caller is
then no longer able to hear you.
Mute on

Press the
MUT
key.
Mute off

Press the
MUT
key.
Terminating a call

Press the
END
key.
The current call is terminated.Call waiting
If you receive another call during an al-
ready active call, you can accept the sec-
ond call and switch between the two.
Accepting a second call

Press the
SND
key.
You are connected with the second
caller, the first call is muted.
Switching between the calls

Press the
SND
key.
Terminating the second call

Press the
END
key.
The current call will be terminated. You
are connected with the muted call
again.

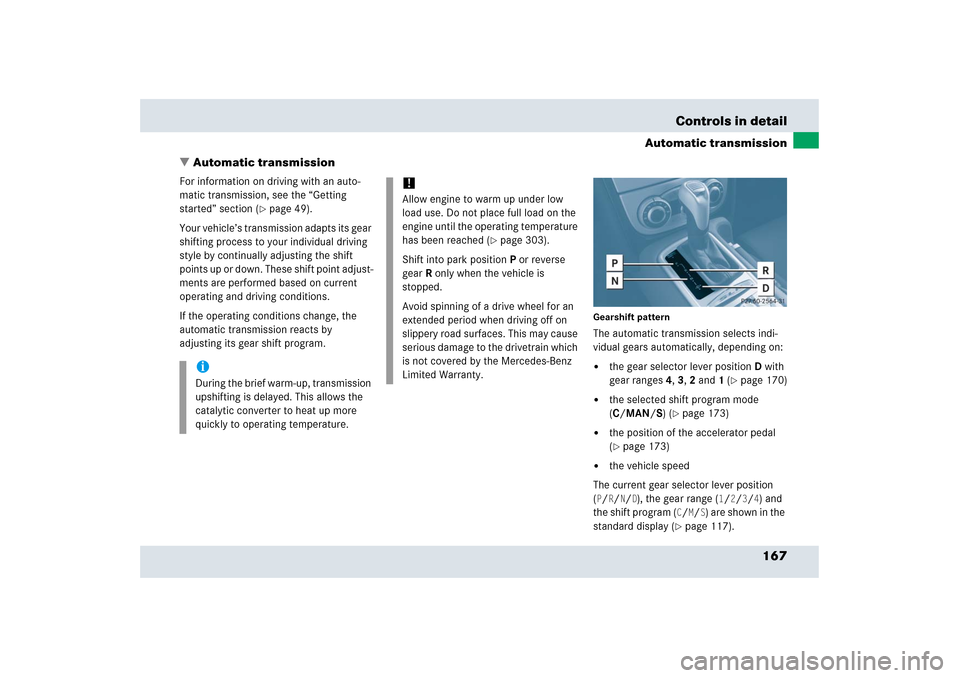

167 Controls in detail
Automatic transmission
Automatic transmission
For information on driving with an auto-
matic transmission, see the “Getting
started” section (
page 49).
Your vehicle’s transmission adapts its gear
shifting process to your individual driving
style by continually adjusting the shift
points up or down. These shift point adjust-
ments are performed based on current
operating and driving conditions.
If the operating conditions change, the
automatic transmission reacts by
adjusting its gear shift program.
Gearshift patternThe automatic transmission selects indi-
vidual gears automatically, depending on:

the gear selector lever position D with
gear ranges 4, 3, 2 and 1 (
page 170)


the selected shift program mode
(C/MAN/S)(
page 173)


the position of the accelerator pedal
(page 173)


the vehicle speed
The current gear selector lever position
(
P/R/N/D), the gear range (
1/2/3/4) and
the shift program (
C/M/S) are shown in the
standard display (
page 117).
iDuring the brief warm-up, transmission
upshifting is delayed. This allows the
catalytic converter to heat up more
quickly to operating temperature.
!Allow engine to warm up under low
load use. Do not place full load on the
engine until the operating temperature
has been reached (
page 303).
Shift into park position P or reverse
gearR only when the vehicle is
stopped.
Avoid spinning of a drive wheel for an
extended period when driving off on
slippery road surfaces. This may cause
serious damage to the drivetrain which
is not covered by the Mercedes-Benz
Limited Warranty.

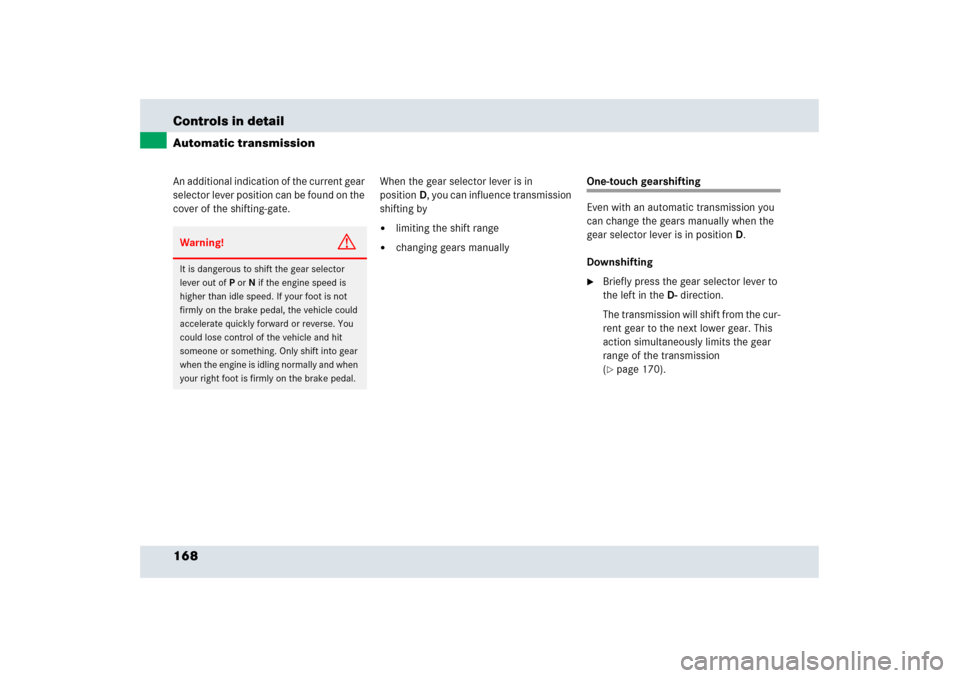

168 Controls in detailAutomatic transmissionAn additional indication of the current gear
selector lever position can be found on the
cover of the shifting-gate.When the gear selector lever is in
positionD, you can influence transmission
shifting by


limiting the shift range


changing gears manually
One-touch gearshifting
Even with an automatic transmission you
can change the gears manually when the
gear selector lever is in positionD.
Downshifting
Briefly press the gear selector lever to
the left in theD-direction.
The transmission will shift from the cur-
rent gear to the next lower gear. This
action simultaneously limits the gear
range of the transmission
(page 170).
Warning!
G
It is dangerous to shift the gear selector
lever out ofP orN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.

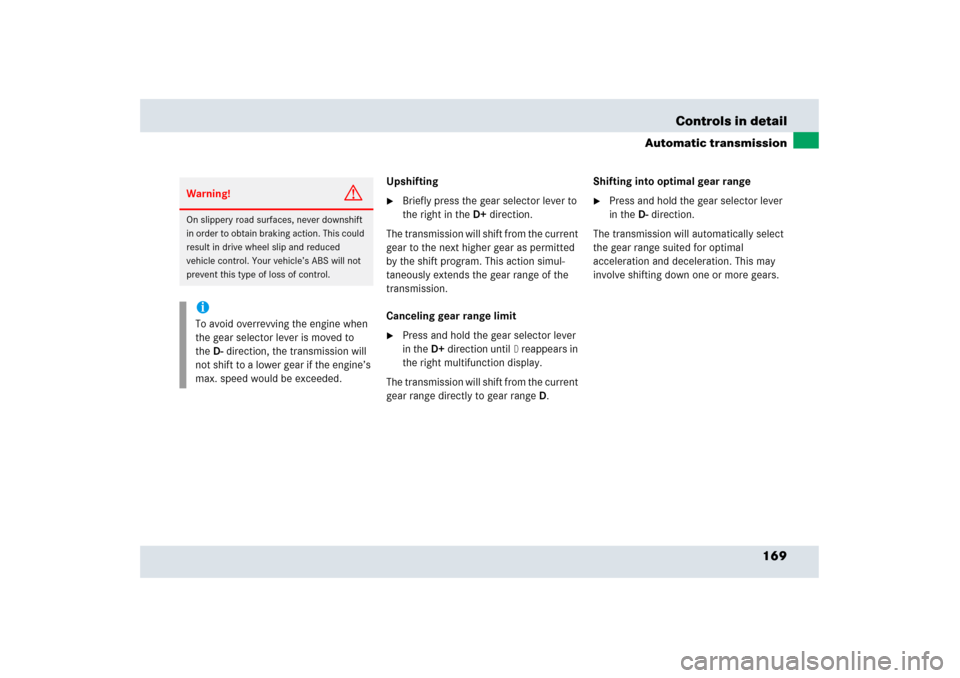

169 Controls in detail
Automatic transmission
Upshifting
Briefly press the gear selector lever to
the right in theD+direction.
The transmission will shift from the current
gear to the next higher gear as permitted
by the shift program. This action simul-
taneously extends the gear range of the
transmission.
Canceling gear range limit

Press and hold the gear selector lever
in theD+direction until
D reappears in
the right multifunction display.
The transmission will shift from the current
gear range directly to gear rangeD.Shifting into optimal gear range

Press and hold the gear selector lever
in theD-direction.
The transmission will automatically select
the gear range suited for optimal
acceleration and deceleration. This may
involve shifting down one or more gears.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.iTo avoid overrevving the engine when
the gear selector lever is moved to
theD-direction, the transmission will
not shift to a lower gear if the engine’s
max. speed would be exceeded.
