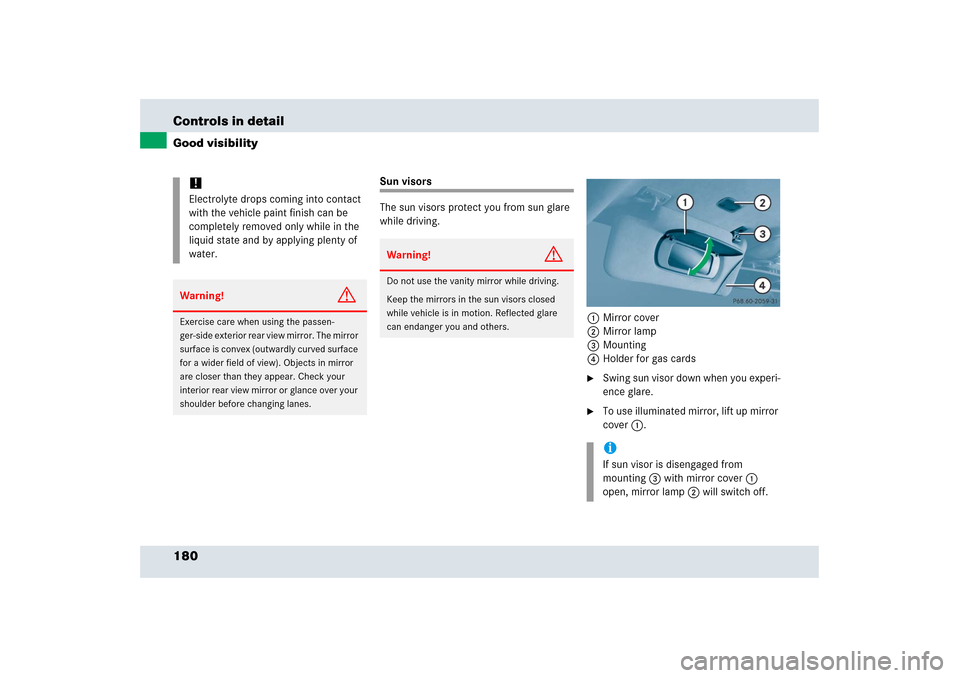

180 Controls in detailGood visibility
Sun visors
The sun visors protect you from sun glare
while driving.
1Mirror cover
2Mirror lamp
3Mounting
4Holder for gas cards

Swing sun visor down when you experi-
ence glare.

To use illuminated mirror, lift up mirror
cover1.
!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state and by applying plenty of
water.Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your
interior rear view mirror or glance over your
shoulder before changing lanes.
Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.
iIf sun visor is disengaged from
mounting3 with mirror cover1
open, mirror lamp2 will switch off.

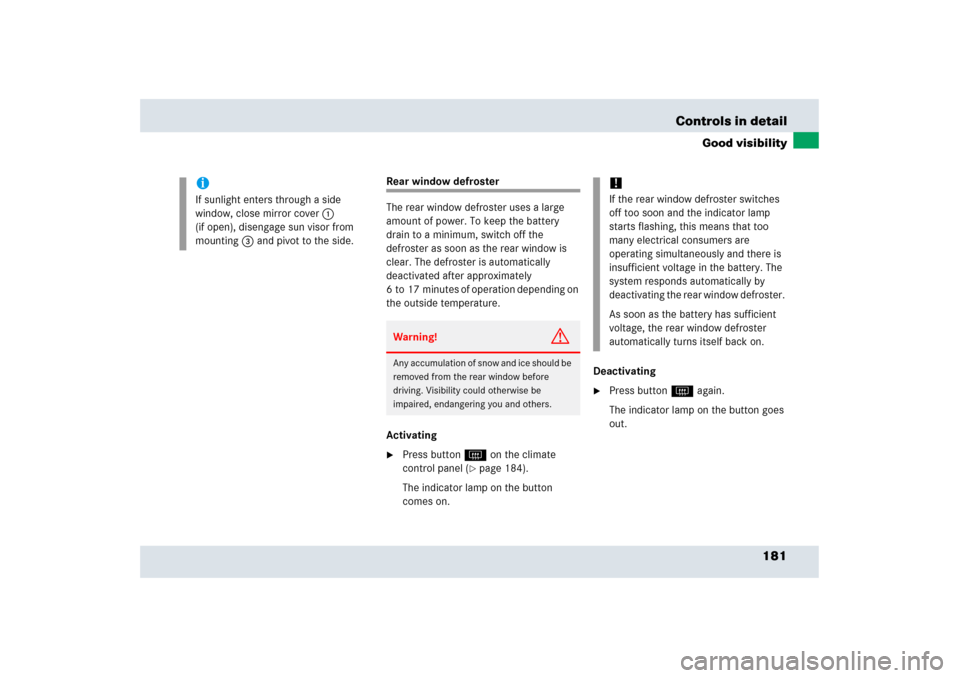

181 Controls in detail
Good visibility
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the
defroster as soon as the rear window is
clear. The defroster is automatically
deactivated after approximately
6 to 17 minutes of operation depending on
the outside temperature.
Activating
Press buttonF on the climate
control panel (
page 184).
The indicator lamp on the button
comes on.Deactivating

Press buttonF again.
The indicator lamp on the button goes
out.
iIf sunlight enters through a side
window, close mirror cover1
(if open), disengage sun visor from
mounting3 and pivot to the side.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before
driving. Visibility could otherwise be
impaired, endangering you and others.
!If the rear window defroster switches
off too soon and the indicator lamp
starts flashing, this means that too
many electrical consumers are
operating simultaneously and there is
insufficient voltage in the battery. The
system responds automatically by
deactivating the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster
automatically turns itself back on.

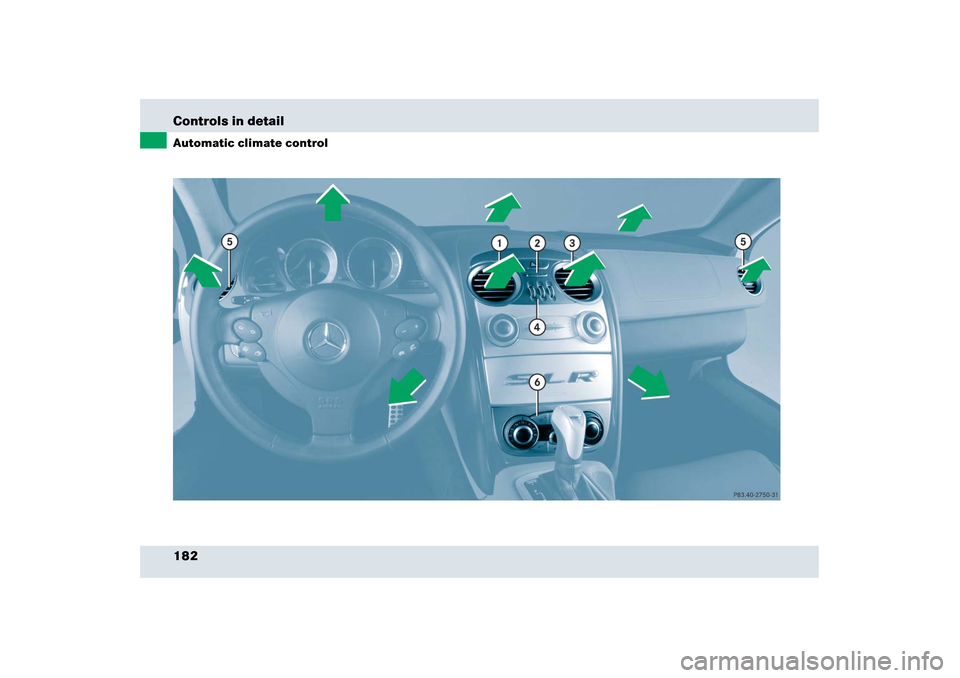

182 Controls in detailAutomatic climate control

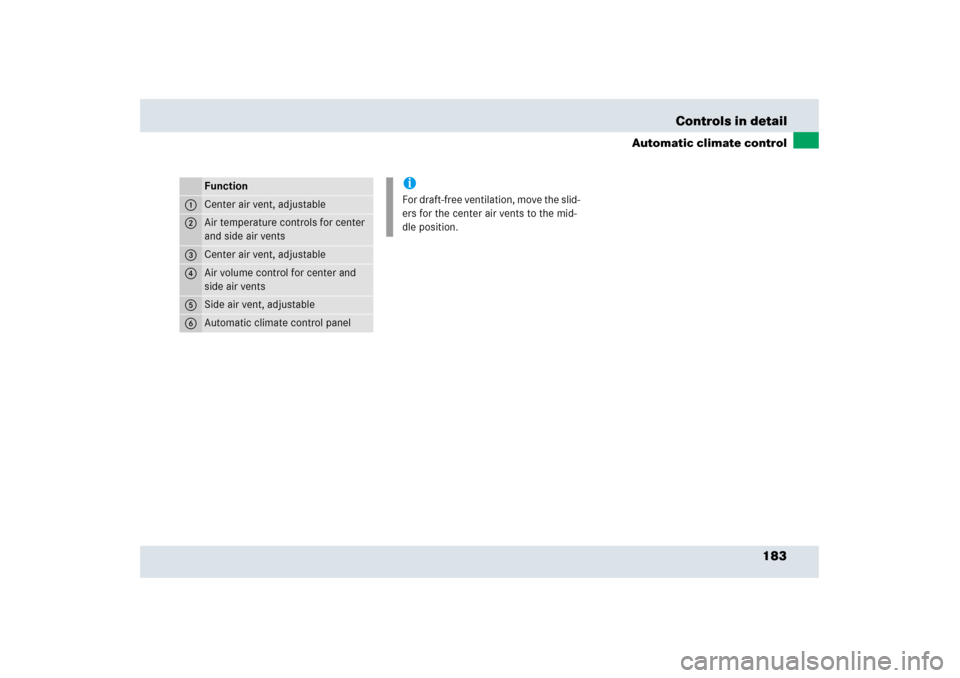

183 Controls in detail
Automatic climate control
Function
1
Center air vent, adjustable
2
Air temperature controls for center
and side air vents
3
Center air vent, adjustable
4
Air volume control for center and
side air vents
5
Side air vent, adjustable
6
Automatic climate control panel
iFor draft-free ventilation, move the slid-
ers for the center air vents to the mid-
dle position.

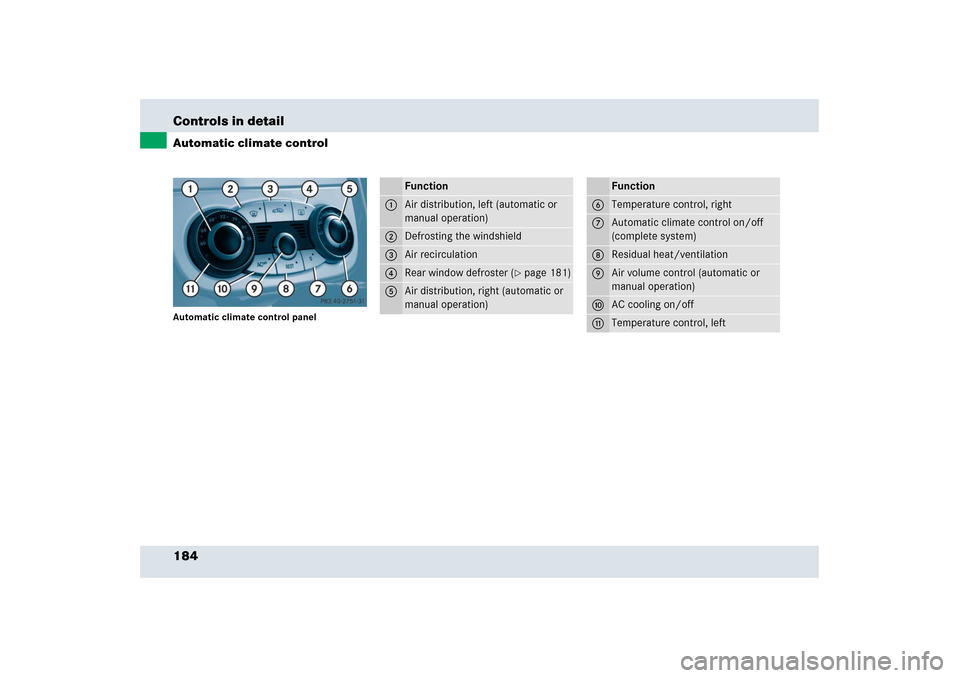

184 Controls in detailAutomatic climate controlAutomatic climate control panel
Function
1
Air distribution, left (automatic or
manual operation)
2
Defrosting the windshield
3
Air recirculation
4
Rear window defroster (
page 181)
5
Air distribution, right (automatic or
manual operation)
Function
6
Temperature control, right
7
Automatic climate control on/off
(complete system)
8
Residual heat/ventilation
9
Air volume control (automatic or
manual operation)
a
AC cooling on/off
b
Temperature control, left

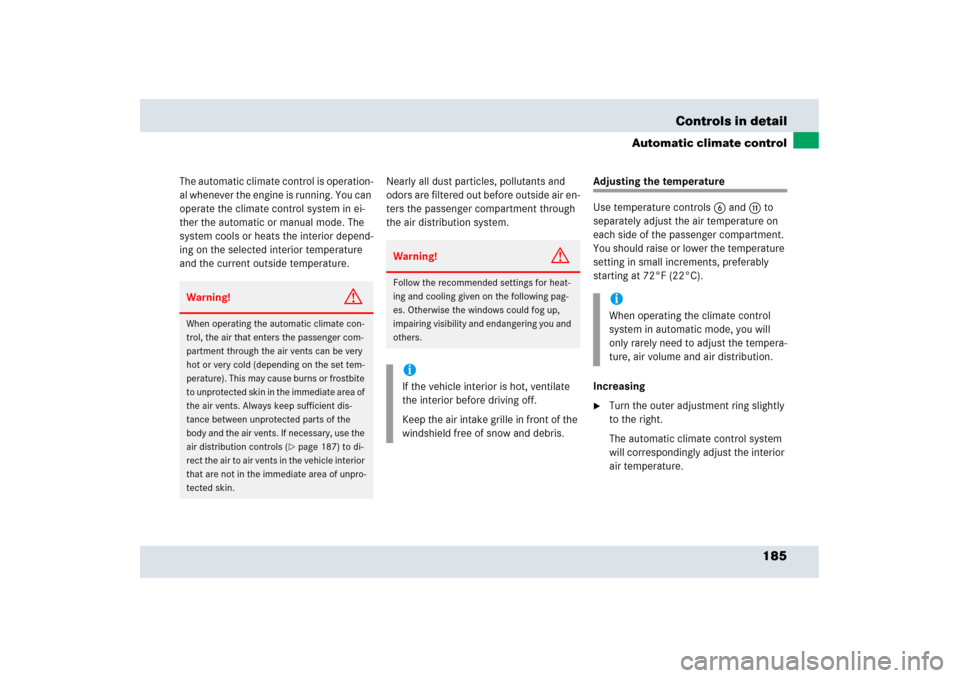

185 Controls in detail
Automatic climate control
The automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control system in ei-
ther the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
Adjusting the temperature
Use temperature controls6 andb to
separately adjust the air temperature on
each side of the passenger compartment.
You should raise or lower the temperature
setting in small increments, preferably
starting at 72°F (22°C).
Increasing
Turn the outer adjustment ring slightly
to the right.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Warning!
G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents can be very
hot or very cold (depending on the set tem-
perature). This may cause burns or frostbite
to unprotected skin in the immediate area of
the air vents. Always keep sufficient dis-
tance between unprotected parts of the
body and the air vents. If necessary, use the
air distribution controls (
page 187) to di-
rect the air to air vents in the vehicle interior
that are not in the immediate area of unpro-
tected skin.
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.iIf the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.
iWhen operating the climate control
system in automatic mode, you will
only rarely need to adjust the tempera-
ture, air volume and air distribution.

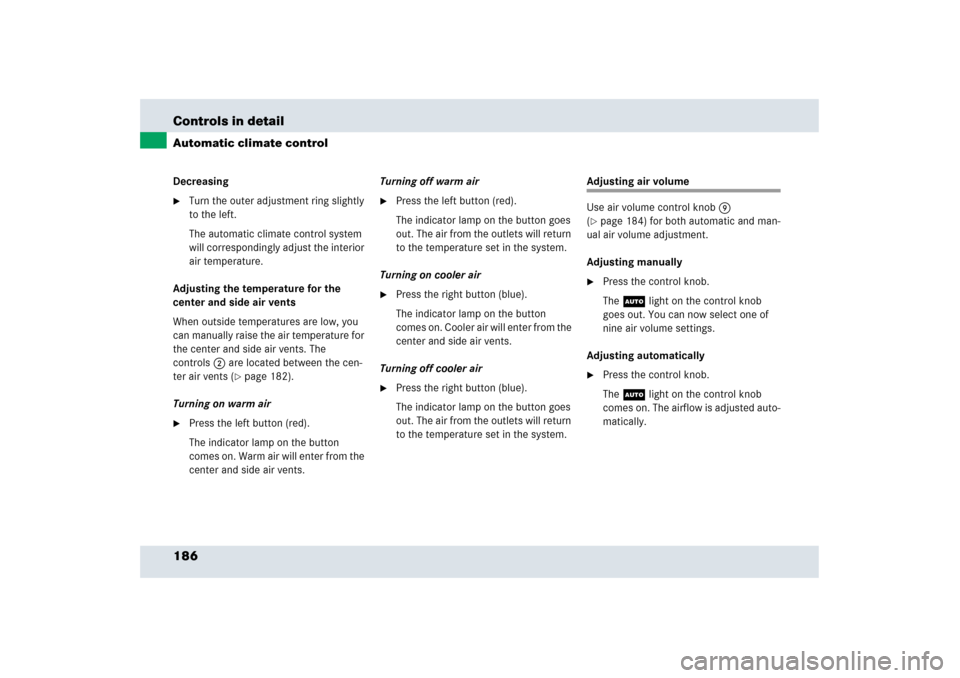

186 Controls in detailAutomatic climate controlDecreasing
Turn the outer adjustment ring slightly
to the left.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Adjusting the temperature for the
center and side air vents
When outside temperatures are low, you
can manually raise the air temperature for
the center and side air vents. The
controls2 are located between the cen-
ter air vents (
page 182).
Turning on warm air

Press the left button (red).
The indicator lamp on the button
comes on. Warm air will enter from the
center and side air vents.Turning off warm air

Press the left button (red).
The indicator lamp on the button goes
out. The air from the outlets will return
to the temperature set in the system.
Turning on cooler air

Press the right button (blue).
The indicator lamp on the button
comes on. Cooler air will enter from the
center and side air vents.
Turning off cooler air

Press the right button (blue).
The indicator lamp on the button goes
out. The air from the outlets will return
to the temperature set in the system.
Adjusting air volume
Use air volume control knob9
(page 184) for both automatic and man-
ual air volume adjustment.
Adjusting manually

Press the control knob.
The U light on the control knob
goes out. You can now select one of
nine air volume settings.
Adjusting automatically

Press the control knob.
The U light on the control knob
comes on. The airflow is adjusted auto-
matically.

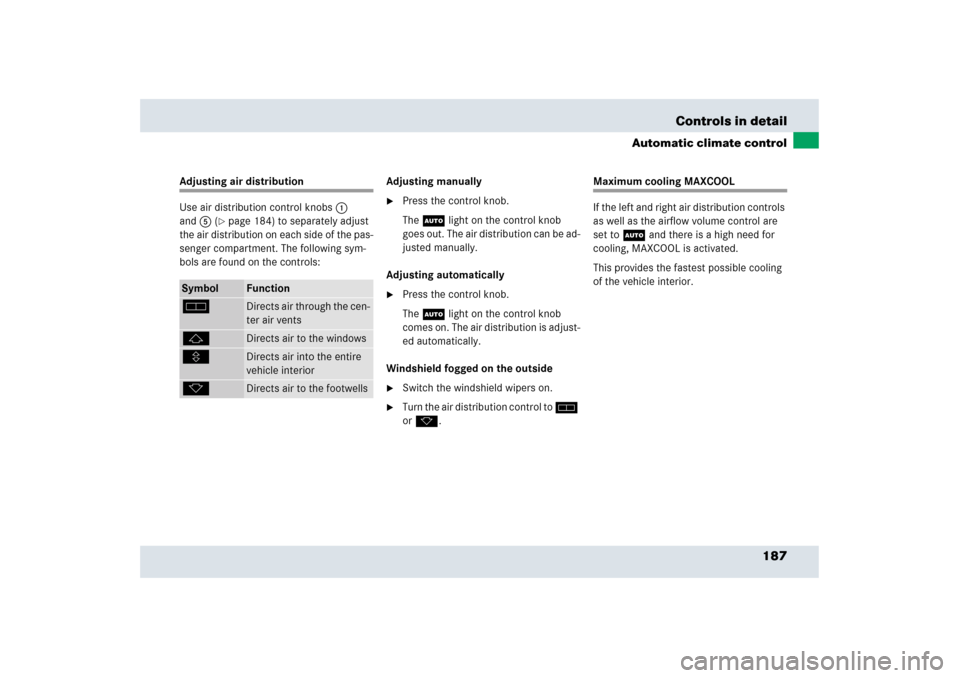

187 Controls in detail
Automatic climate control
Adjusting air distribution
Use air distribution control knobs1
and5 (
page 184) to separately adjust
the air distribution on each side of the pas-
senger compartment. The following sym-
bols are found on the controls:Adjusting manually

Press the control knob.
The U light on the control knob
goes out. The air distribution can be ad-
justed manually.
Adjusting automatically

Press the control knob.
The U light on the control knob
comes on. The air distribution is adjust-
ed automatically.
Windshield fogged on the outside

Switch the windshield wipers on.

Turn the air distribution control to h
or k.
Maximum cooling MAXCOOL
If the left and right air distribution controls
as well as the airflow volume control are
set to U and there is a high need for
cooling, MAXCOOL is activated.
This provides the fastest possible cooling
of the vehicle interior.
Symbol
Function
h
Directs air through the cen-
ter air vents
j
Directs air to the windows
V
Directs air into the entire
vehicle interior
k
Directs air to the footwells

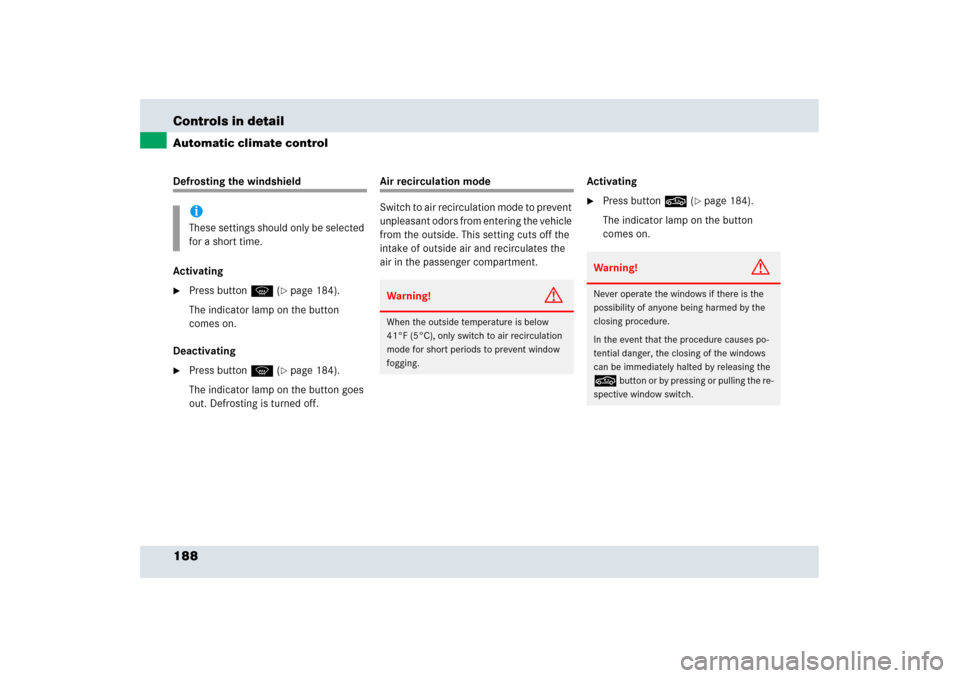

188 Controls in detailAutomatic climate controlDefrosting the windshield
Activating
Press button P (
page 184).
The indicator lamp on the button
comes on.
Deactivating

Press button P (
page 184).
The indicator lamp on the button goes
out. Defrosting is turned off.
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside. This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.Activating

Press button , (
page 184).
The indicator lamp on the button
comes on.
iThese settings should only be selected
for a short time.
Warning!
G
When the outside temperature is below
41°F (5°C), only switch to air recirculation
mode for short periods to prevent window
fogging.
Warning!
G
Never operate the windows if there is the
possibility of anyone being harmed by the
closing procedure.
In the event that the procedure causes po-
tential danger, the closing of the windows
can be immediately halted by releasing the ,
button or by pressing or pulling the re-
spective window switch.

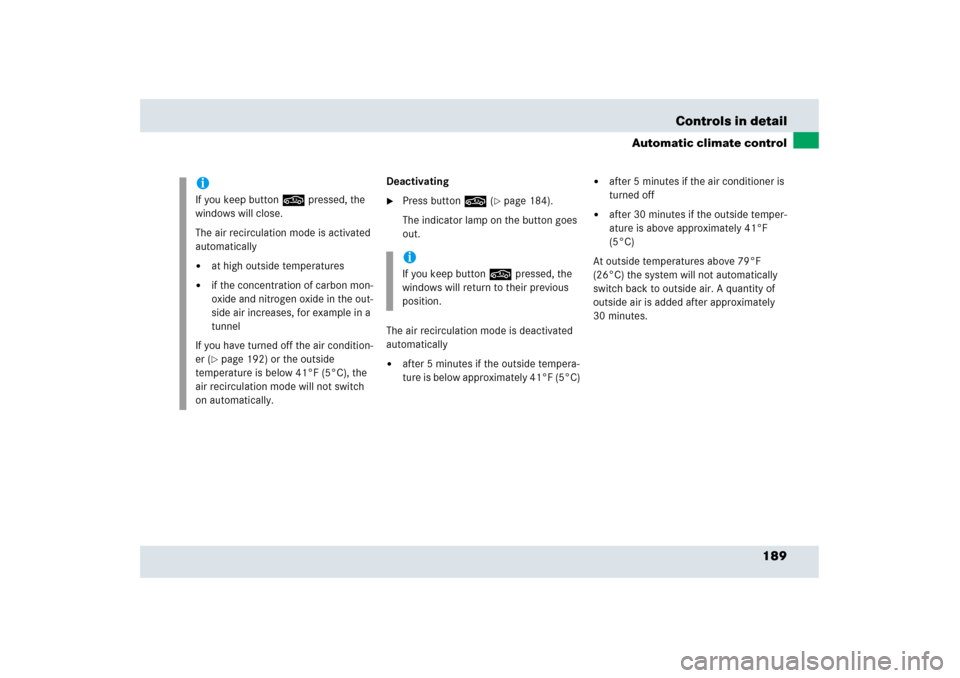

189 Controls in detail
Automatic climate control
Deactivating
Press button , (
page 184).
The indicator lamp on the button goes
out.
The air recirculation mode is deactivated
automatically


after 5 minutes if the outside tempera-
ture is below approximately 41°F (5°C)


after 5 minutes if the air conditioner is
turned off


after 30 minutes if the outside temper-
ature is above approximately 41°F
(5°C)
At outside temperatures above 79°F
(26°C) the system will not automatically
switch back to outside air. A quantity of
outside air is added after approximately
30 minutes.
iIf you keep button , pressed, the
windows will close.
The air recirculation mode is activated
automatically

at high outside temperatures


if the concentration of carbon mon-
oxide and nitrogen oxide in the out-
side air increases, for example in a
tunnel
If you have turned off the air condition-
er (page 192) or the outside
temperature is below 41°F (5°C), the
air recirculation mode will not switch
on automatically.
iIf you keep button , pressed, the
windows will return to their previous
position.
