MERCEDES-BENZ SLR 2006 R199 Service Manual

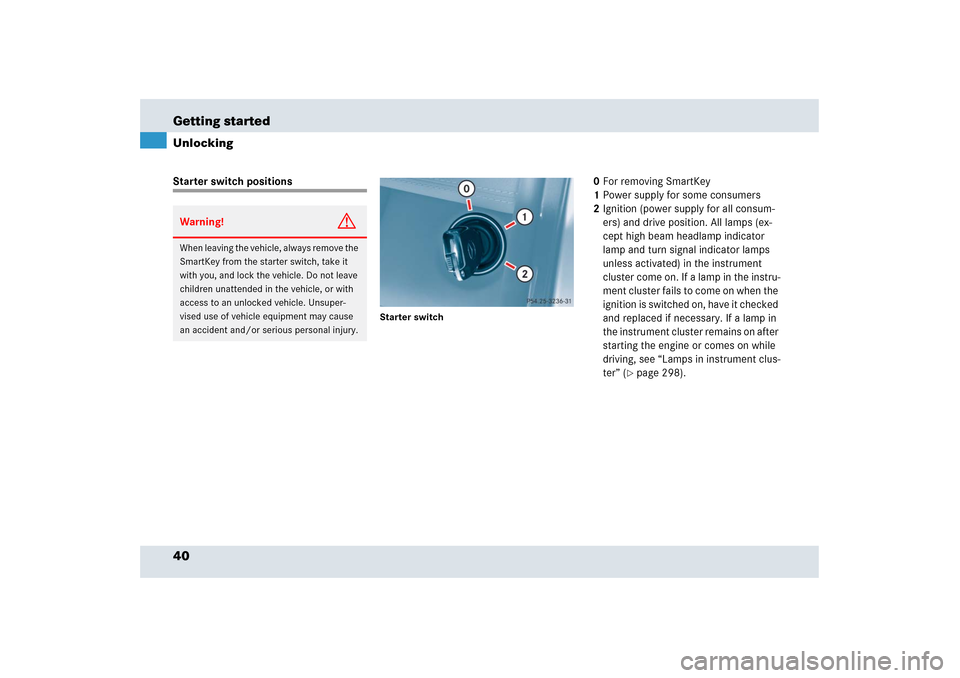

40 Getting startedUnlockingStarter switch positions
Starter switch
0For removing SmartKey
1Power supply for some consumers
2Ignition (power supply for all consum-
ers) and drive position. All lamps (ex-
cept high beam headlamp indicator
lamp and turn signal indicator lamps
unless activated) in the instrument
cluster come on. If a lamp in the instru-
ment cluster fails to come on when the
ignition is switched on, have it checked
and replaced if necessary. If a lamp in
the instrument cluster remains on after
starting the engine or comes on while
driving, see “Lamps in instrument clus-
ter” (
page 298).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.

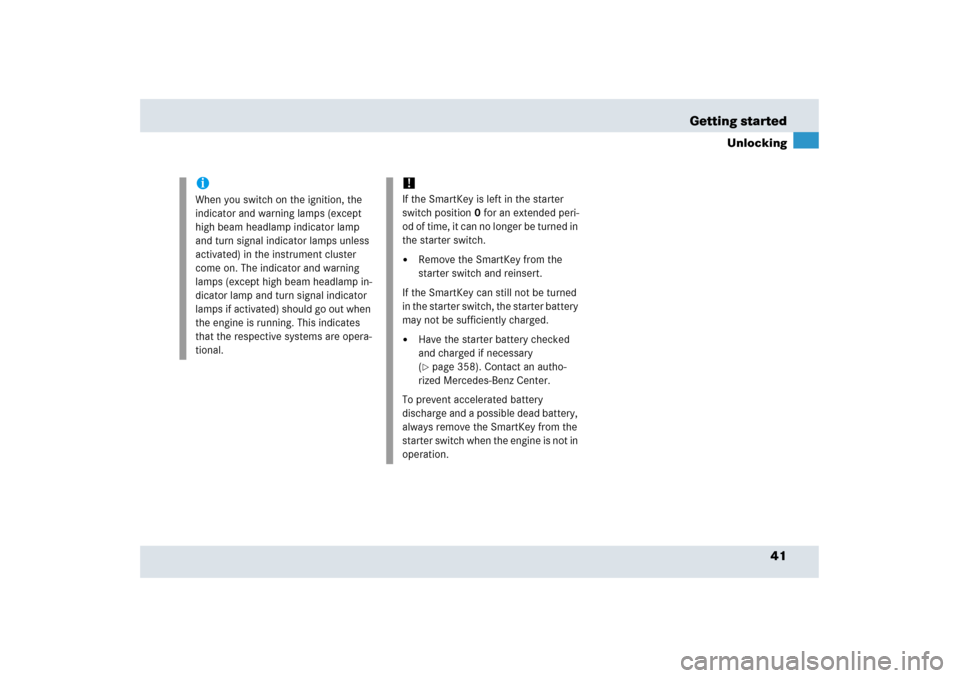

41 Getting started
Unlocking
iWhen you switch on the ignition, the
indicator and warning lamps (except
high beam headlamp indicator lamp
and turn signal indicator lamps unless
activated) in the instrument cluster
come on. The indicator and warning
lamps (except high beam headlamp in-
dicator lamp and turn signal indicator
lamps if activated) should go out when
the engine is running. This indicates
that the respective systems are opera-
tional.
!If the SmartKey is left in the starter
switch position0 for an extended peri-
od of time, it can no longer be turned in
the starter switch.

Remove the SmartKey from the
starter switch and reinsert.
If the SmartKey can still not be turned
in the starter switch, the starter battery
may not be sufficiently charged.


Have the starter battery checked
and charged if necessary
(page 358). Contact an autho-
rized Mercedes-Benz Center.
To prevent accelerated battery
discharge and a possible dead battery,
always remove the SmartKey from the
starter switch when the engine is not in
operation.

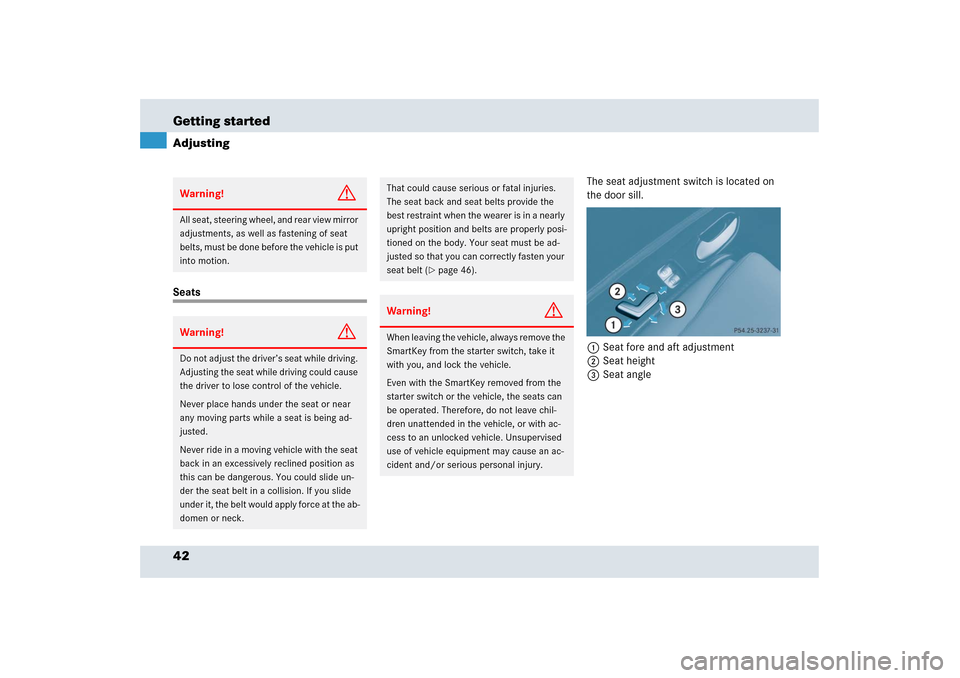

42 Getting startedAdjustingSeatsThe seat adjustment switch is located on
the door sill.
1Seat fore and aft adjustment
2Seat height
3Seat angleWarning!
G
All seat, steering wheel, and rear view mirror
adjustments, as well as fastening of seat
belts, must be done before the vehicle is put
into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck.
That could cause serious or fatal injuries.
The seat back and seat belts provide the
best restraint when the wearer is in a nearly
upright position and belts are properly posi-
tioned on the body. Your seat must be ad-
justed so that you can correctly fasten your
seat belt (
page 46).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch or the vehicle, the seats can
be operated. Therefore, do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and/or serious personal injury.

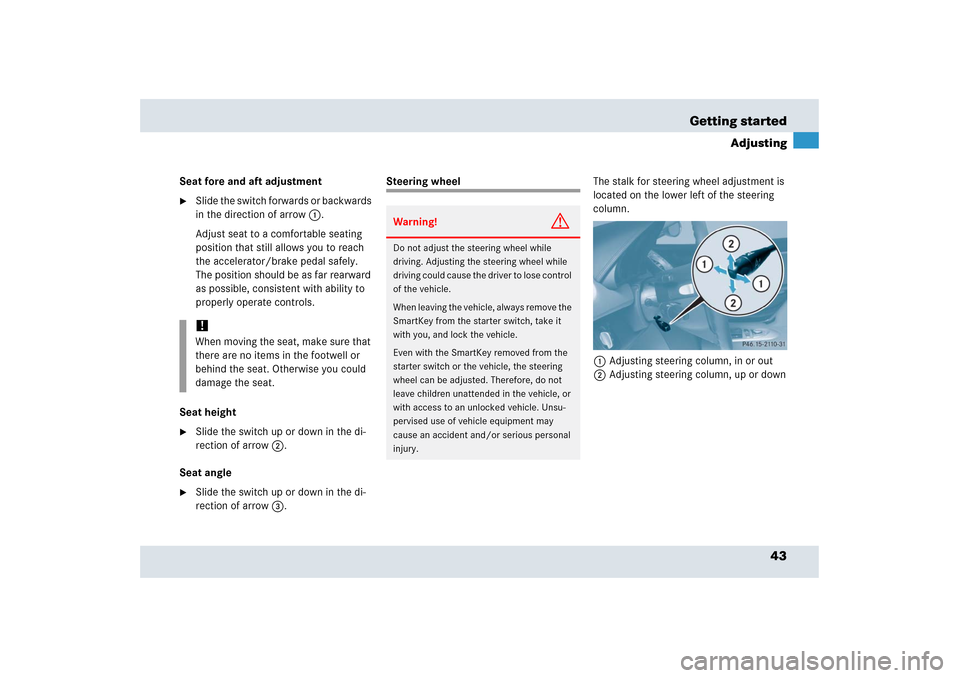

43 Getting started
Adjusting
Seat fore and aft adjustment
Slide the switch forwards or backwards
in the direction of arrow 1.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator/brake pedal safely.
The position should be as far rearward
as possible, consistent with ability to
properly operate controls.
Seat height

Slide the switch up or down in the di-
rection of arrow 2.
Seat angle

Slide the switch up or down in the di-
rection of arrow 3.
Steering wheelThe stalk for steering wheel adjustment is
located on the lower left of the steering
column.
1Adjusting steering column, in or out
2Adjusting steering column, up or down
!When moving the seat, make sure that
there are no items in the footwell or
behind the seat. Otherwise you could
damage the seat.
Warning!
G
Do not adjust the steering wheel while
driving. Adjusting the steering wheel while
driving could cause the driver to lose control
of the vehicle.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch or the vehicle, the steering
wheel can be adjusted. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.

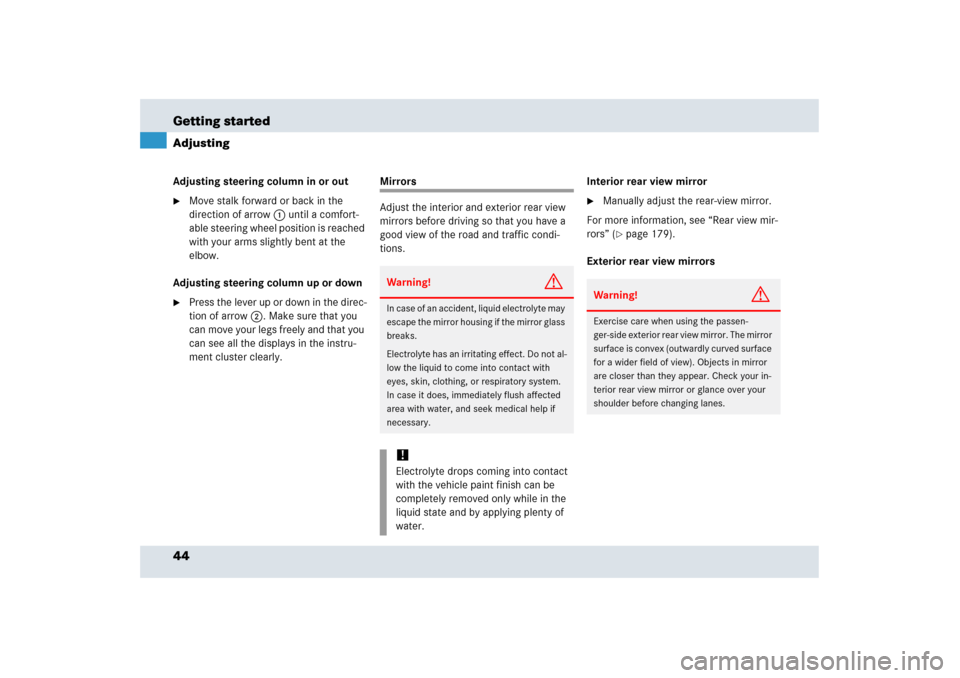

44 Getting startedAdjustingAdjusting steering column in or out
Move stalk forward or back in the
direction of arrow1 until a comfort-
able steering wheel position is reached
with your arms slightly bent at the
elbow.
Adjusting steering column up or down

Press the lever up or down in the direc-
tion of arrow 2. Make sure that you
can move your legs freely and that you
can see all the displays in the instru-
ment cluster clearly.
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Interior rear view mirror

Manually adjust the rear-view mirror.
For more information, see “Rear view mir-
rors” (
page 179).
Exterior rear view mirrors
Warning!
G
In case of an accident, liquid electrolyte may
escape the mirror housing if the mirror glass
breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state and by applying plenty of
water.
Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
terior rear view mirror or glance over your
shoulder before changing lanes.

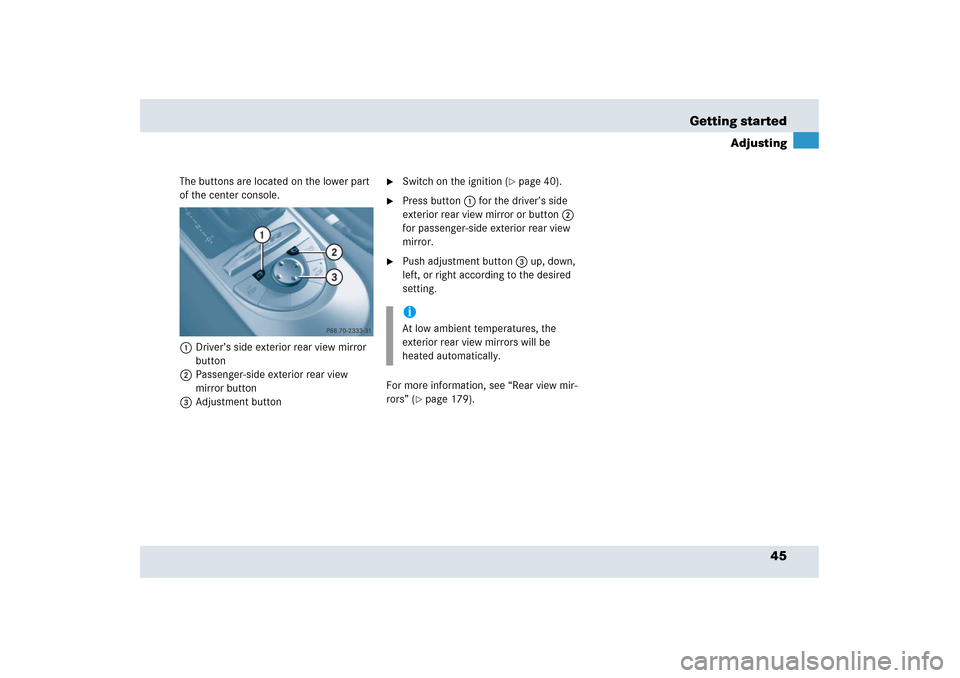

45 Getting started
Adjusting
The buttons are located on the lower part
of the center console.
1Driver’s side exterior rear view mirror
button
2Passenger-side exterior rear view
mirror button
3Adjustment button

Switch on the ignition (
page 40).

Press button1 for the driver’s side
exterior rear view mirror or button2
for passenger-side exterior rear view
mirror.

Push adjustment button3 up, down,
left, or right according to the desired
setting.
For more information, see “Rear view mir-
rors” (
page 179).
iAt low ambient temperatures, the
exterior rear view mirrors will be
heated automatically.

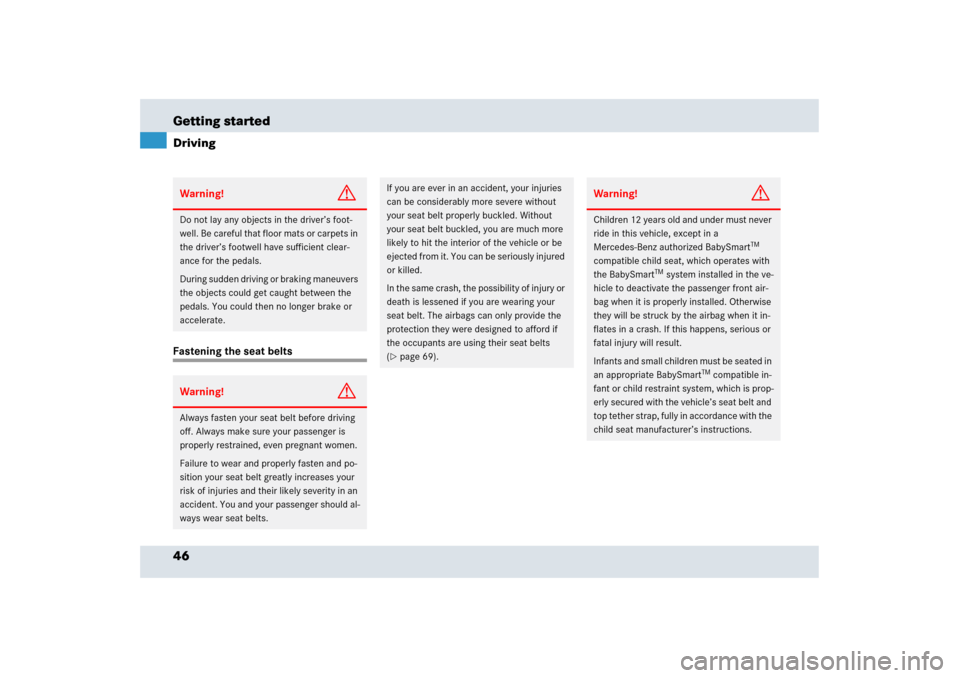

46 Getting startedDrivingFastening the seat beltsWarning!
G
Do not lay any objects in the driver’s foot-
well. Be careful that floor mats or carpets in
the driver’s footwell have sufficient clear-
ance for the pedals.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate.Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passenger is
properly restrained, even pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passenger should al-
ways wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The airbags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(page 69).
Warning!
G
Children 12 years old and under must never
ride in this vehicle, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
Infants and small children must be seated in
an appropriate BabySmart
TM compatible in-
fant or child restraint system, which is prop-
erly secured with the vehicle’s seat belt and
top tether strap, fully in accordance with the
child seat manufacturer’s instructions.

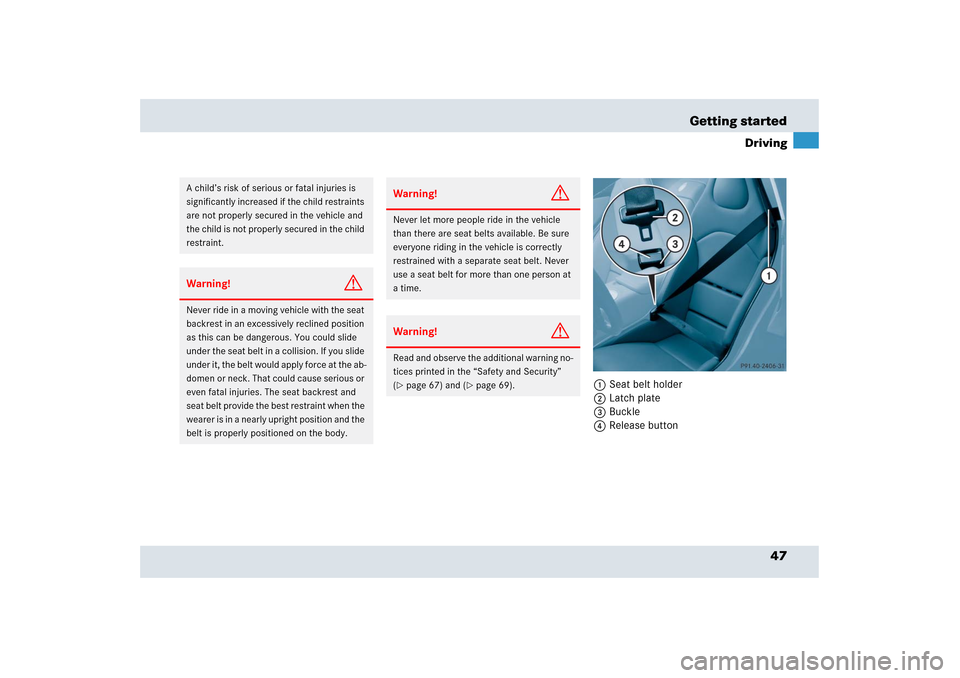

47 Getting started
Driving
1Seat belt holder
2Latch plate
3Buckle
4Release button
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
(page 67) and (
page 69).

48 Getting startedDriving
Pull the belt smoothly from seat belt
holder 1.

Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.

Push latch plate2 into buckle3 until
it clicks.

If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Proper use of seat belts


Do not twist the belt when fastening.


Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm.


Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.


Place the seat backrest in a nearly up-
right position.


Never use a seat belt for more than one
person at a time.


Do not fasten a seat belt around a per-
son and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer’s instructions.


Check your seat belt during travel to
make sure that it is properly
positioned.


Make sure that the seat belt is always
fitted snugly. Take special care of this
when wearing loose clothing.
Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.

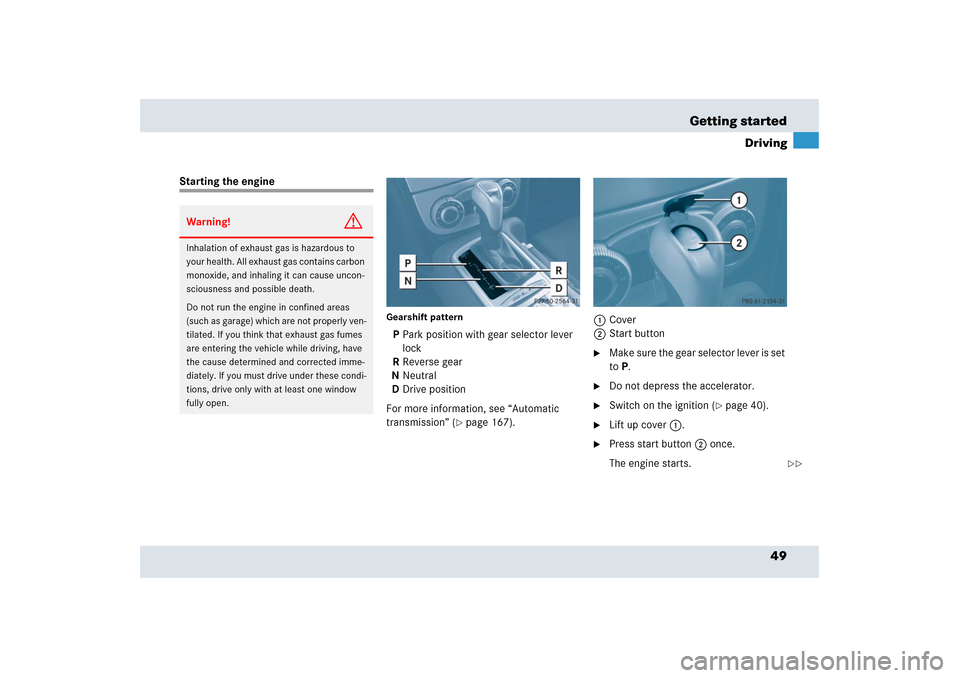

49 Getting started
Driving
Starting the engine
Gearshift pattern P Park position with gear selector lever
lock
R Reverse gear
N Neutral
D Drive position
For more information, see “Automatic
transmission” (
page 167).1Cover
2Start button

Make sure the gear selector lever is set
toP.

Do not depress the accelerator.

Switch on the ignition (
page 40).

Lift up cover1.

Press start button2 once.
The engine starts.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and possible death.
Do not run the engine in confined areas
(such as garage) which are not properly ven-
tilated. If you think that exhaust gas fumes
are entering the vehicle while driving, have
the cause determined and corrected imme-
diately. If you must drive under these condi-
tions, drive only with at least one window
fully open.
