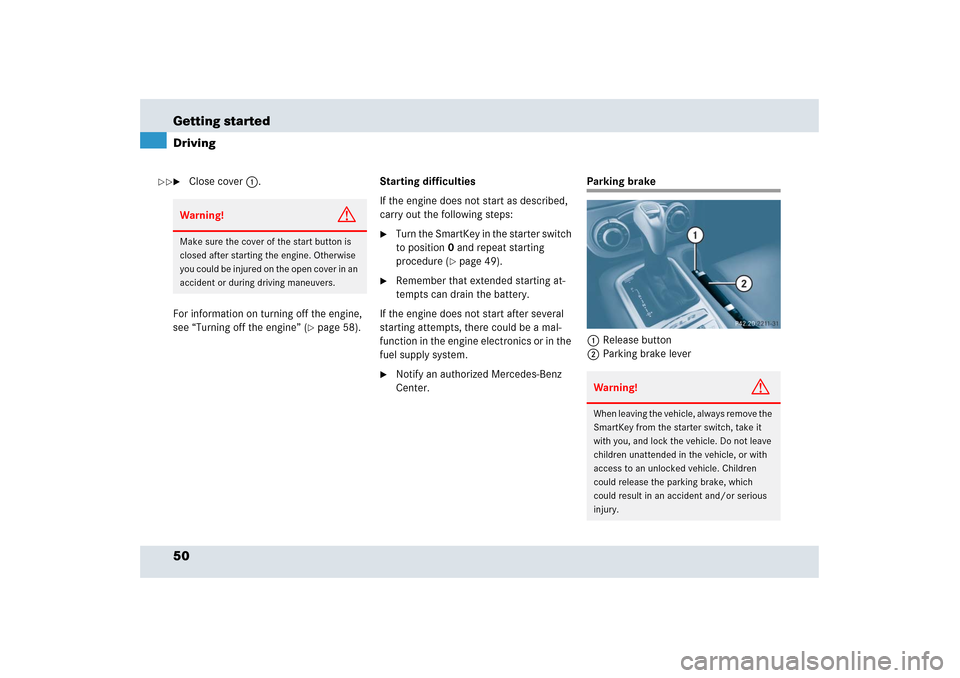

50 Getting startedDriving
Close cover1.
For information on turning off the engine,
see “Turning off the engine” (
page 58).Starting difficulties
If the engine does not start as described,
carry out the following steps:

Turn the SmartKey in the starter switch
to position0 and repeat starting
procedure (
page 49).

Remember that extended starting at-
tempts can drain the battery.
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Center.
Parking brake
1Release button
2Parking brake lever
Warning!
G
Make sure the cover of the start button is
closed after starting the engine. Otherwise
you could be injured on the open cover in an
accident or during driving maneuvers.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake, which
could result in an accident and/or serious
injury.


51 Getting started
Driving

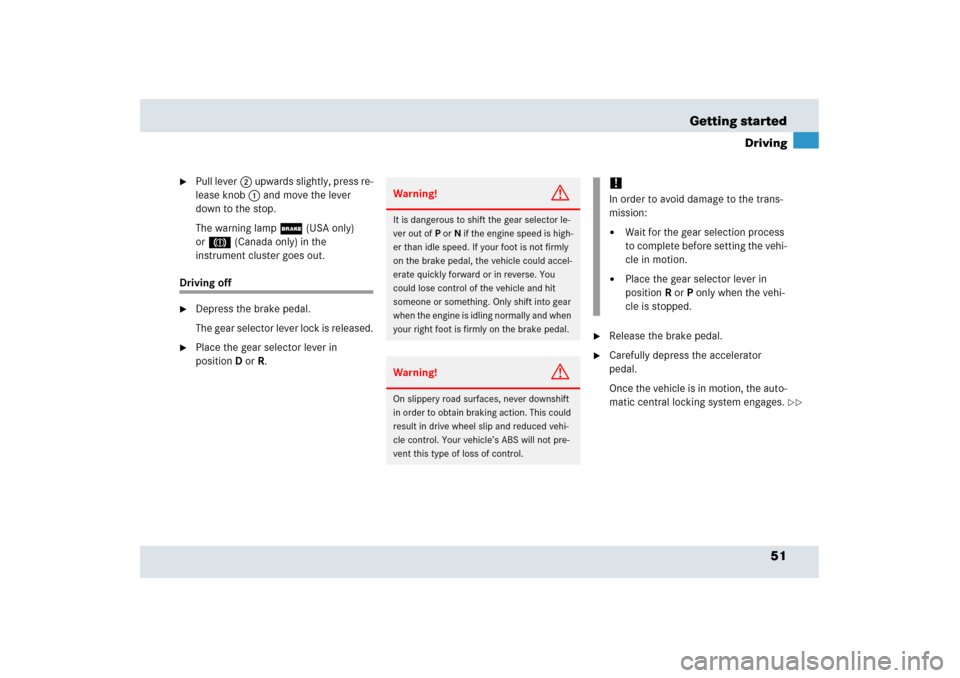

Pull lever2 upwards slightly, press re-
lease knob1 and move the lever
down to the stop.
The warning lamp; (USA only)
or3 (Canada only) in the
instrument cluster goes out.
Driving off
Depress the brake pedal.
The gear selector lever lock is released.

Place the gear selector lever in
positionD orR.

Release the brake pedal.

Carefully depress the accelerator
pedal.
Once the vehicle is in motion, the auto-
matic central locking system engages.
Warning!
G
It is dangerous to shift the gear selector le-
ver out ofP orN if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
!In order to avoid damage to the trans-
mission:

Wait for the gear selection process
to complete before setting the vehi-
cle in motion.


Place the gear selector lever in
positionR or P only when the vehi-
cle is stopped.


52 Getting startedDrivingAfter a cold start, the transmission engag-
es at a higher revolution. This allows the
catalytic converter to reach its operating
temperature earlier.

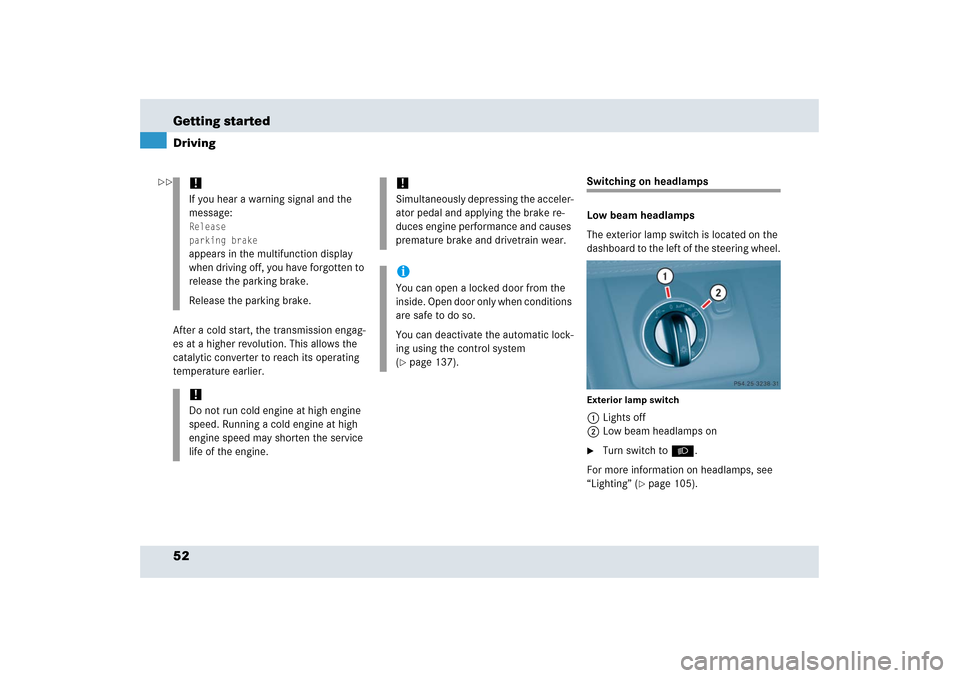

Switching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch1Lights off
2Low beam headlamps on
Turn switch toB.
For more information on headlamps, see
“Lighting” (
page 105).
!If you hear a warning signal and the
message:Release
parking brakeappears in the multifunction display
when driving off, you have forgotten to
release the parking brake.
Release the parking brake.!Do not run cold engine at high engine
speed. Running a cold engine at high
engine speed may shorten the service
life of the engine.
!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
You can deactivate the automatic lock-
ing using the control system
(page 137).


53 Getting started
Driving

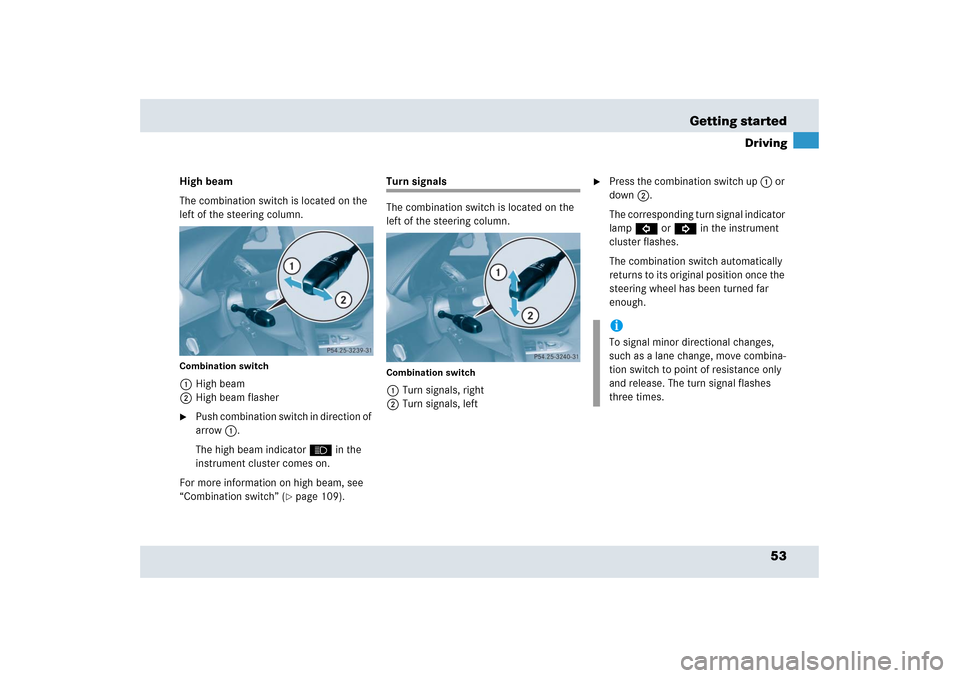

High beam
The combination switch is located on the
left of the steering column.Combination switch1High beam
2High beam flasher
Push combination switch in direction of
arrow1.
The high beam indicatorA in the
instrument cluster comes on.
For more information on high beam, see
“Combination switch” (
page 109).
Turn signals
The combination switch is located on the
left of the steering column.Combination switch1Turn signals, right
2Turn signals, left

Press the combination switch up 1 or
down 2.
The corresponding turn signal indicator
lampL orK in the instrument
cluster flashes.
The combination switch automatically
returns to its original position once the
steering wheel has been turned far
enough.iTo signal minor directional changes,
such as a lane change, move combina-
tion switch to point of resistance only
and release. The turn signal flashes
three times.

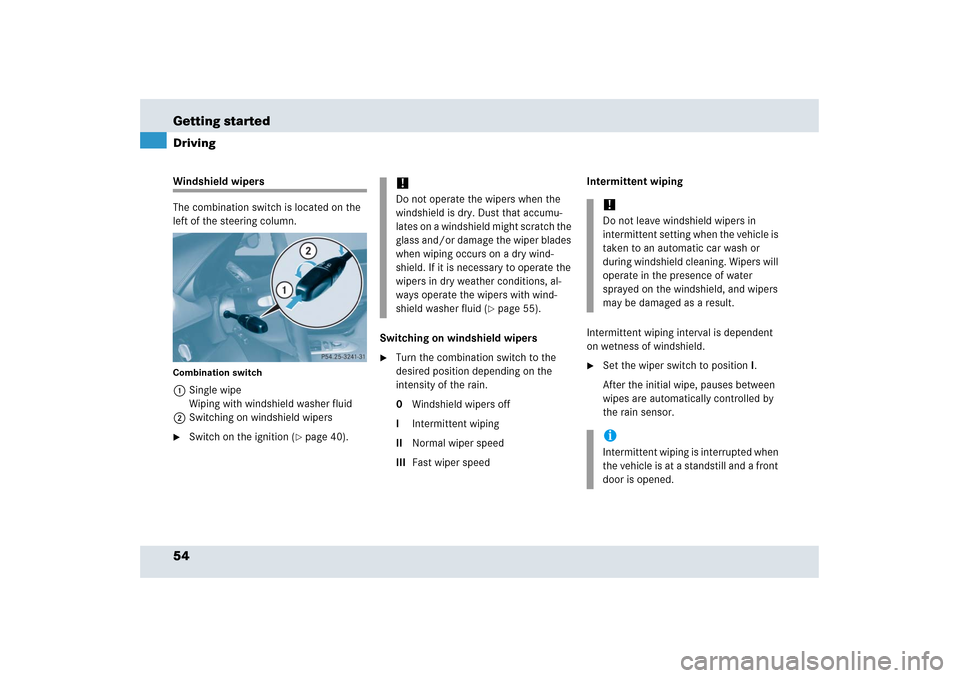

54 Getting startedDrivingWindshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Single wipe
Wiping with windshield washer fluid
2Switching on windshield wipers
Switch on the ignition (
page 40).Switching on windshield wipers

Turn the combination switch to the
desired position depending on the
intensity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speedIntermittent wiping
Intermittent wiping interval is dependent
on wetness of windshield.

Set the wiper switch to positionI.
After the initial wipe, pauses between
wipes are automatically controlled by
the rain sensor.
!Do not operate the wipers when the
windshield is dry. Dust that accumu-
lates on a windshield might scratch the
glass and/or damage the wiper blades
when wiping occurs on a dry wind-
shield. If it is necessary to operate the
wipers in dry weather conditions, al-
ways operate the wipers with wind-
shield washer fluid (
page 55).
!Do not leave windshield wipers in
intermittent setting when the vehicle is
taken to an automatic car wash or
during windshield cleaning. Wipers will
operate in the presence of water
sprayed on the windshield, and wipers
may be damaged as a result.iIntermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened.

55 Getting started
Driving

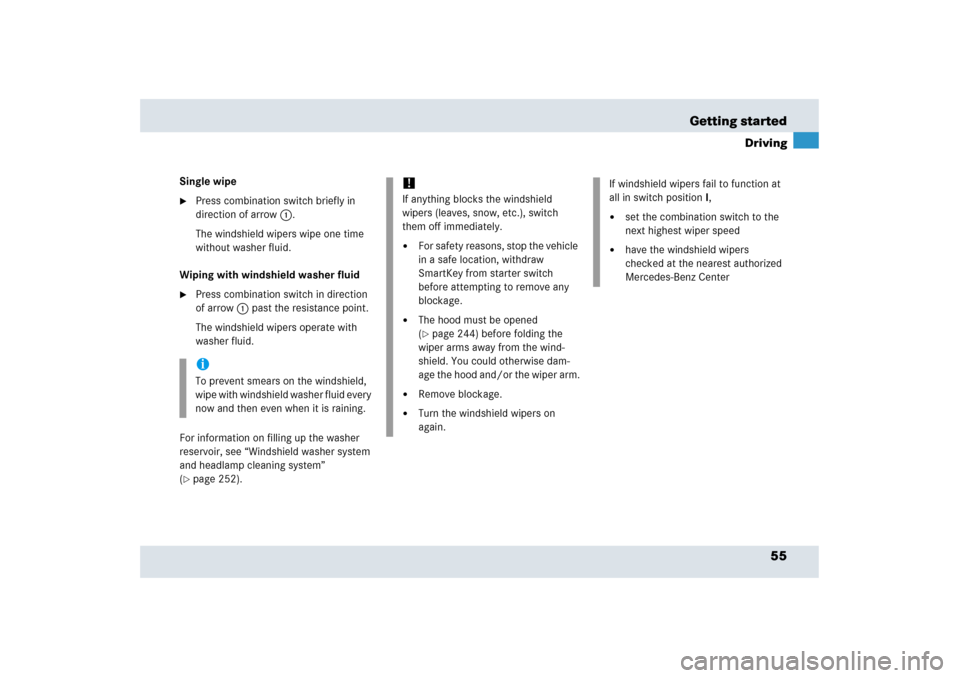

Single wipe
Press combination switch briefly in
direction of arrow1.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid

Press combination switch in direction
of arrow1 past the resistance point.
The windshield wipers operate with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 252).iTo prevent smears on the windshield,
wipe with windshield washer fluid every
now and then even when it is raining.
!If anything blocks the windshield
wipers (leaves, snow, etc.), switch
them off immediately.

For safety reasons, stop the vehicle
in a safe location, withdraw
SmartKey from starter switch
before attempting to remove any
blockage.


The hood must be opened
(page 244) before folding the
wiper arms away from the wind-
shield. You could otherwise dam-
age the hood and/or the wiper arm.


Remove blockage.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,

set the combination switch to the
next highest wiper speed


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center

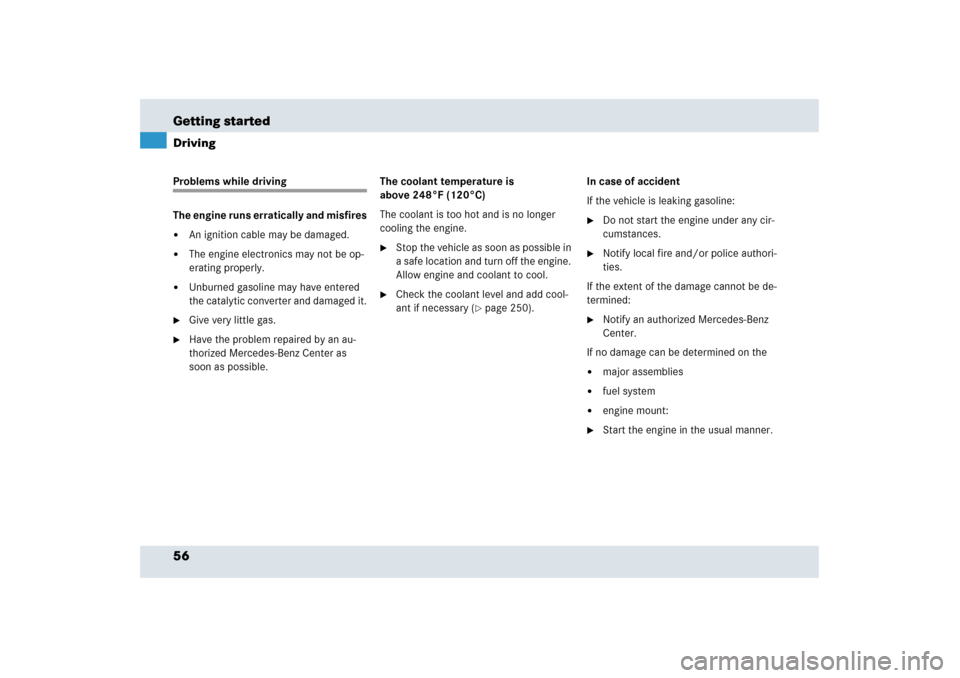

56 Getting startedDrivingProblems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.The coolant temperature is
above 248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible in
a safe location and turn off the engine.
Allow engine and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 250).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.

57 Getting started
Parking and locking

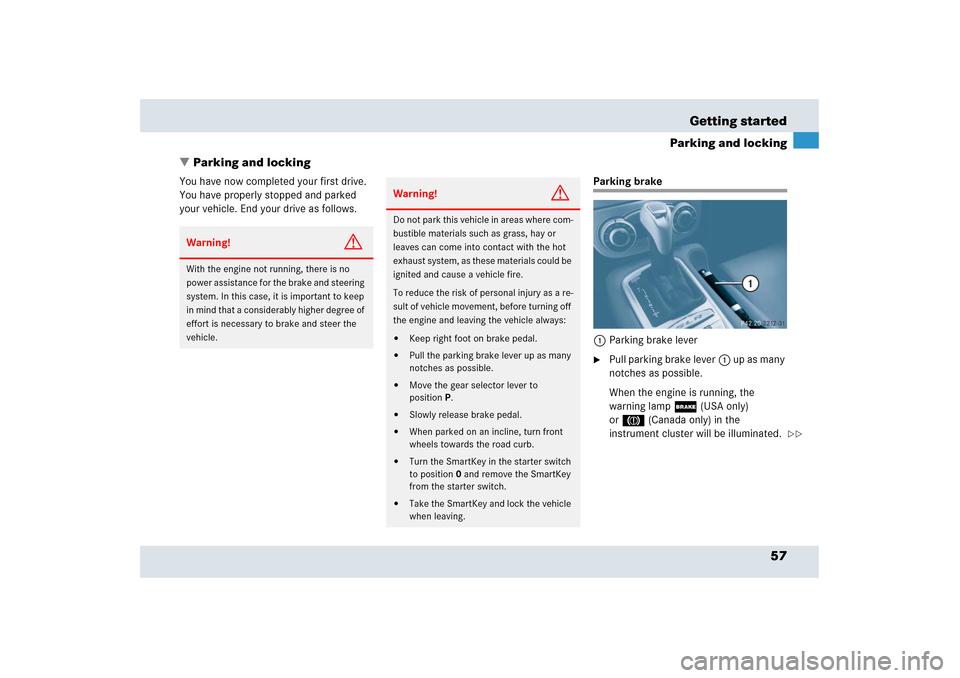

Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Parking brake
1Parking brake lever
Pull parking brake lever1 up a s m a ny
notches as possible.
When the engine is running, the
warning lamp; (USA only)
or3(Canada only) in the
instrument cluster will be illuminated.
Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
system. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Pull the parking brake lever up as many
notches as possible.


Move the gear selector lever to
positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards the road curb.


Turn the SmartKey in the starter switch
to position0 and remove the SmartKey
from the starter switch.


Take the SmartKey and lock the vehicle
when leaving.


58 Getting startedParking and locking
Switching off headlamps
Turn the exterior lamp switch
toM(
page 52).
For more information on headlamps, see
“Lighting” (
page 105).
Turning off the engine
Place the gear selector lever in
positionP.

Turn the SmartKey in the starter switch
to position0 and remove the SmartKey
from the starter switch.
The immobilizer is activated.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever from
positionP, either of which could result in an
accident and/or serious injury.
Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP (
page 49).
When parked on an incline, turn front wheels
towards the road curb.
iAlways set the parking brake in addi-
tion to shifting to positionP.
On slopes, turn the front wheels to-
wards the road curb. iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.

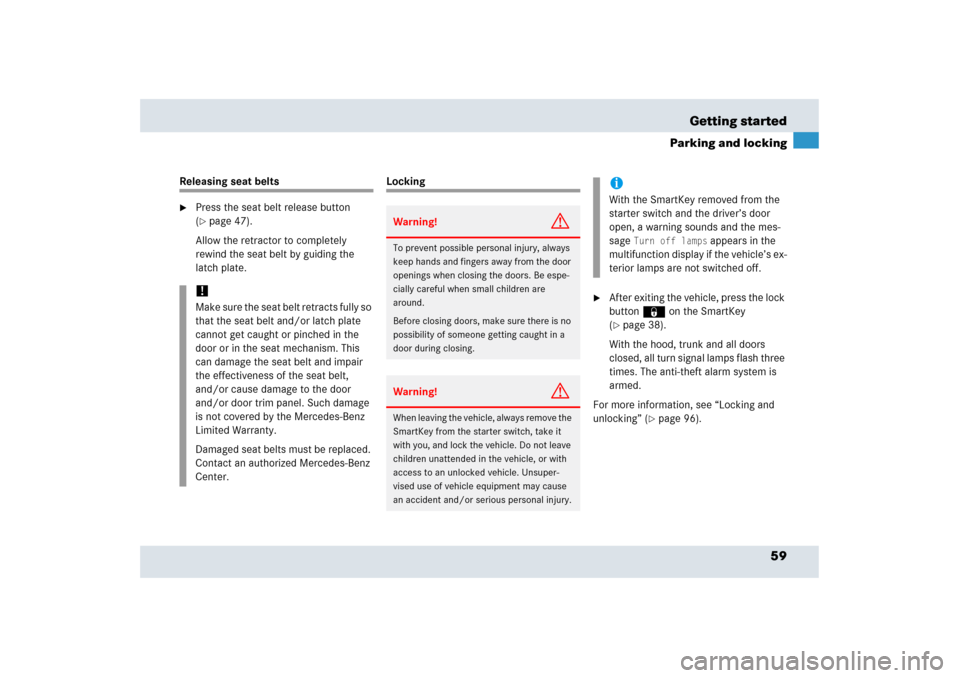

59 Getting started
Parking and locking
Releasing seat belts
Press the seat belt release button
(page 47).
Allow the retractor to completely
rewind the seat belt by guiding the
latch plate.
Locking

After exiting the vehicle, press the lock
button‹ on the SmartKey
(page 38).
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 96).
!Make sure the seat belt retracts fully so
that the seat belt and/or latch plate
cannot get caught or pinched in the
door or in the seat mechanism. This
can damage the seat belt and impair
the effectiveness of the seat belt,
and/or cause damage to the door
and/or door trim panel. Such damage
is not covered by the Mercedes-Benz
Limited Warranty.
Damaged seat belts must be replaced.
Contact an authorized Mercedes-Benz
Center.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
iWith the SmartKey removed from the
starter switch and the driver’s door
open, a warning sounds and the mes-
sage
Turn off lamps
appears in the
multifunction display if the vehicle’s ex-
terior lamps are not switched off.
