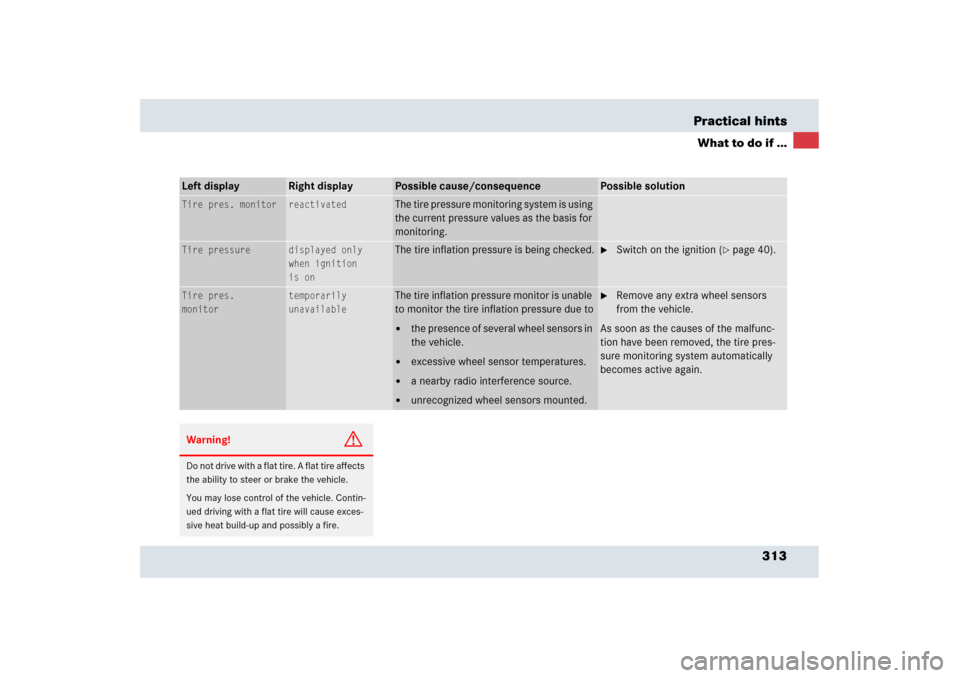

313 Practical hints
What to do if ...
Left display
Right display
Possible cause/consequence
Possible solution
Tire pres. monitor
reactivated
The tire pressure monitoring system is using
the current pressure values as the basis for
monitoring.
Tire pressure
displayed only
when ignition
is on
The tire inflation pressure is being checked.

Switch on the ignition (
page 40).
Tire pres.
monitor
temporarily
unavailable
The tire inflation pressure monitor is unable
to monitor the tire inflation pressure due to

the presence of several wheel sensors in
the vehicle.


excessive wheel sensor temperatures.


a nearby radio interference source.


unrecognized wheel sensors mounted.

Remove any extra wheel sensors
from the vehicle.
As soon as the causes of the malfunc-
tion have been removed, the tire pres-
sure monitoring system automatically
becomes active again.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

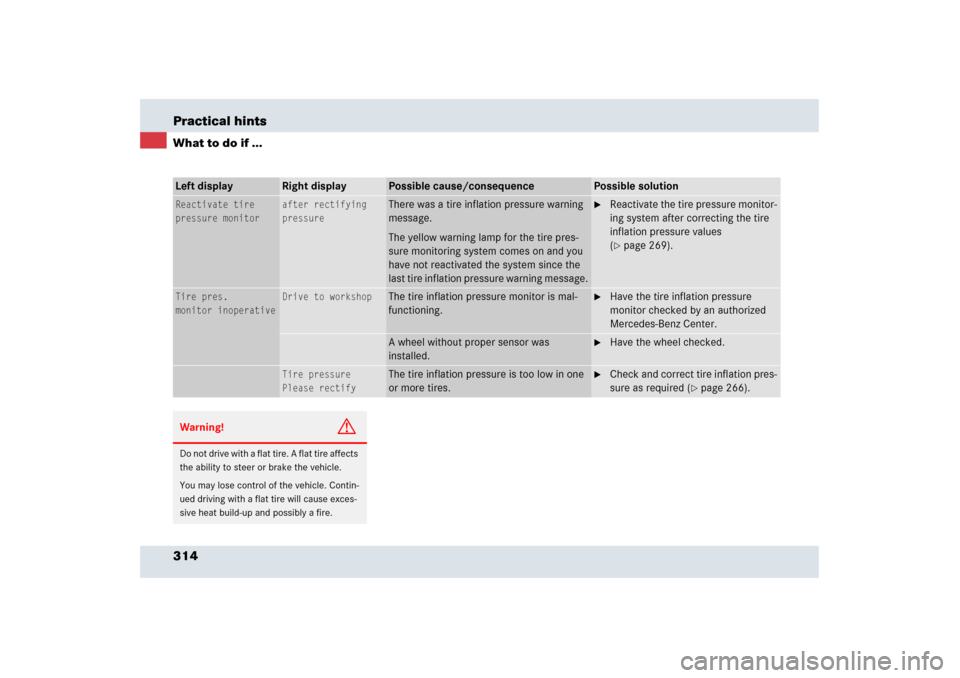

314 Practical hintsWhat to do if ...Left display
Right display
Possible cause/consequence
Possible solution
Reactivate tire
pressure monitor
after rectifying
pressure
There was a tire inflation pressure warning
message.
The yellow warning lamp for the tire pres-
sure monitoring system comes on and you
have not reactivated the system since the
last tire inflation pressure warning message.

Reactivate the tire pressure monitor-
ing system after correcting the tire
inflation pressure values
(page 269).
Tire pres.
monitor inoperative
Drive to workshop
The tire inflation pressure monitor is mal-
functioning.

Have the tire inflation pressure
monitor checked by an authorized
Mercedes-Benz Center.
A wheel without proper sensor was
installed.

Have the wheel checked.
Tire pressure
Please rectify
The tire inflation pressure is too low in one
or more tires.

Check and correct tire inflation pres-
sure as required (
page 266).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

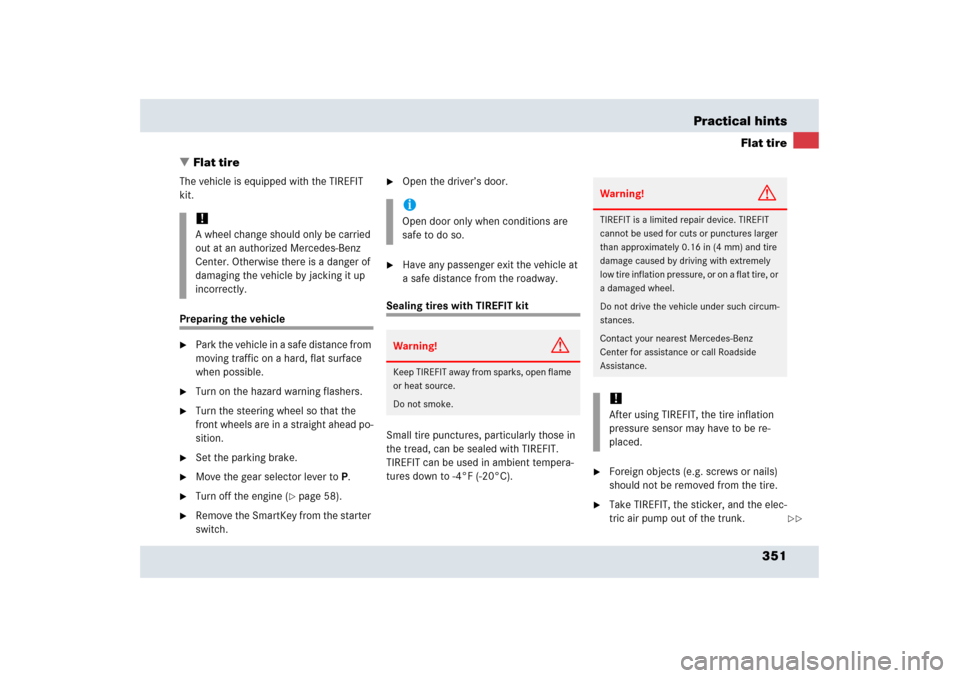

351 Practical hints
Flat tire
Flat tire
The vehicle is equipped with the TIREFIT
kit.Preparing the vehicle
Park the vehicle in a safe distance from
moving traffic on a hard, flat surface
when possible.

Turn on the hazard warning flashers.

Turn the steering wheel so that the
front wheels are in a straight ahead po-
sition.

Set the parking brake.

Move the gear selector lever to P.

Turn off the engine (
page 58).

Remove the SmartKey from the starter
switch.

Open the driver’s door.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Sealing tires with TIREFIT kit
Small tire punctures, particularly those in
the tread, can be sealed with TIREFIT.
TIREFIT can be used in ambient tempera-
tures down to -4°F (-20°C).

Foreign objects (e.g. screws or nails)
should not be removed from the tire.

Take TIREFIT, the sticker, and the elec-
tric air pump out of the trunk.
!A wheel change should only be carried
out at an authorized Mercedes-Benz
Center. Otherwise there is a danger of
damaging the vehicle by jacking it up
incorrectly.
iOpen door only when conditions are
safe to do so.Warning!
G
Keep TIREFIT away from sparks, open flame
or heat source.
Do not smoke.
Warning!
G
TIREFIT is a limited repair device. TIREFIT
cannot be used for cuts or punctures larger
than approximately 0.16 in (4 mm) and tire
damage caused by driving with extremely
low tire inflation pressure, or on a flat tire, or
a damaged wheel.
Do not drive the vehicle under such circum-
stances.
Contact your nearest Mercedes-Benz
Center for assistance or call Roadside
Assistance. !After using TIREFIT, the tire inflation
pressure sensor may have to be re-
placed.

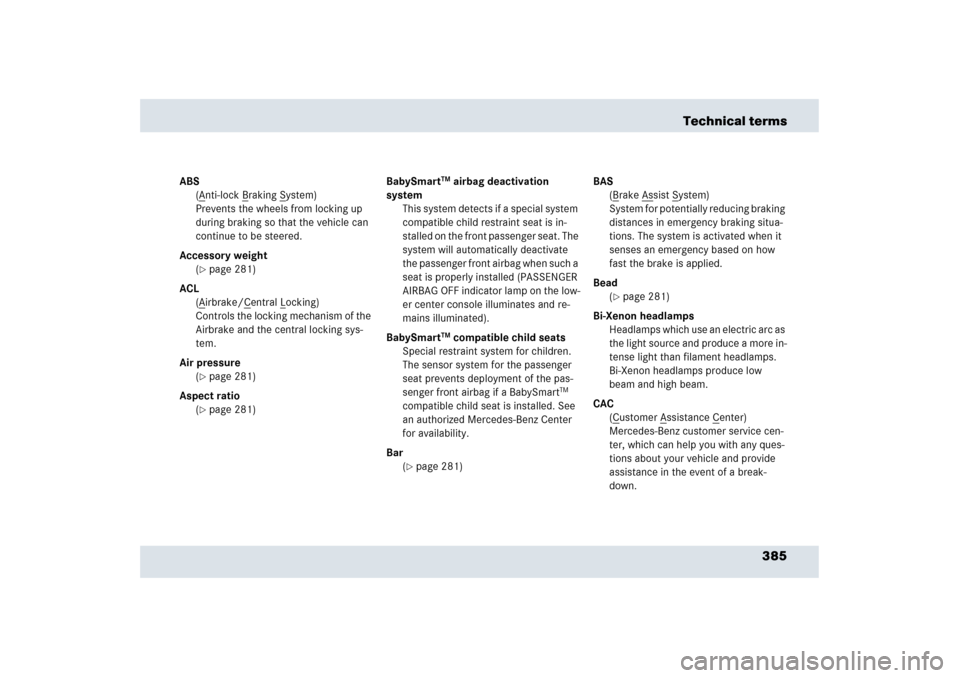

385 Technical terms
ABS
(A
nti-lock B
raking S
ystem)
Prevents the wheels from locking up
during braking so that the vehicle can
continue to be steered.
Accessory weight
(
page 281)
ACL
(Airbrake/C
entral L
ocking)
Controls the locking mechanism of the
Airbrake and the central locking sys-
tem.
Air pressure
(
page 281)
Aspect ratio
(page 281)BabySmart
TM airbag deactivation
system
This system detects if a special system
compatible child restraint seat is in-
stalled on the front passenger seat. The
system will automatically deactivate
the passenger front airbag when such a
seat is properly installed (PASSENGER
AIRBAG OFF indicator lamp on the low-
er center console illuminates and re-
mains illuminated).
BabySmartTM compatible child seats
Special restraint system for children.
The sensor system for the passenger
seat prevents deployment of the pas-
senger front airbag if a BabySmart
TM
compatible child seat is installed. See
an authorized Mercedes-Benz Center
for availability.
Bar
(
page 281)BAS
(B
rake As
sist S
ystem)
System for potentially reducing braking
distances in emergency braking situa-
tions. The system is activated when it
senses an emergency based on how
fast the brake is applied.
Bead
(
page 281)
Bi-Xenon headlamps
Headlamps which use an electric arc as
the light source and produce a more in-
tense light than filament headlamps.
Bi-Xenon headlamps produce low
beam and high beam.
CAC
(Customer A
ssistance C
enter)
Mercedes-Benz customer service cen-
ter, which can help you with any ques-
tions about your vehicle and provide
assistance in the event of a break-
down.

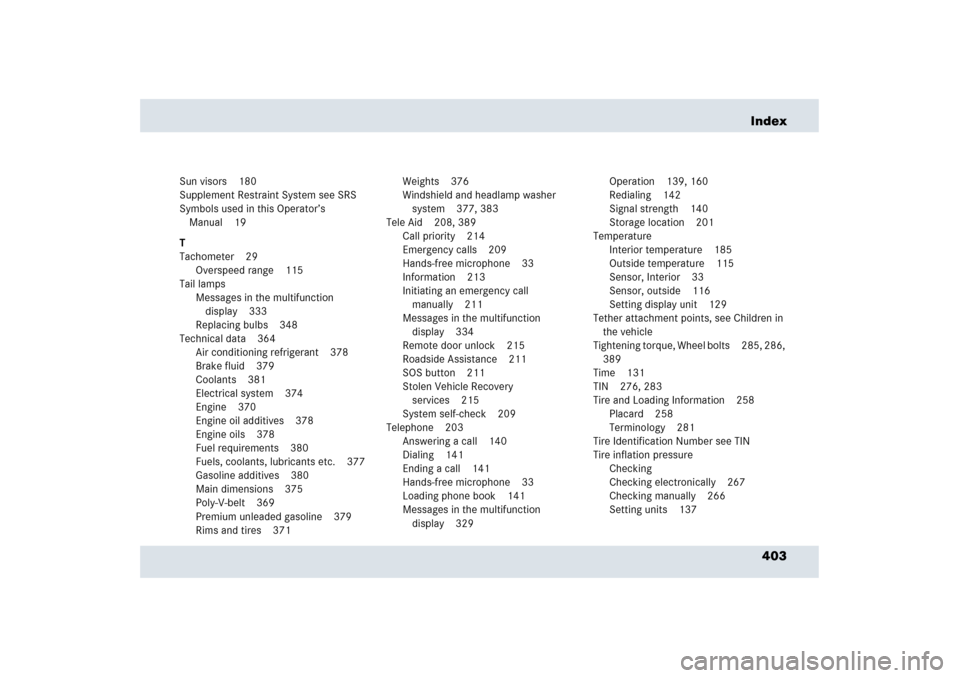

403 Index
Sun visors 180
Supplement Restraint System see SRS
Symbols used in this Operator’s
Manual 19
T
Tachometer 29
Overspeed range 115
Tail lamps
Messages in the multifunction
display 333
Replacing bulbs 348
Technical data 364
Air conditioning refrigerant 378
Brake fluid 379
Coolants 381
Electrical system 374
Engine 370
Engine oil additives 378
Engine oils 378
Fuel requirements 380
Fuels, coolants, lubricants etc. 377
Gasoline additives 380
Main dimensions 375
Poly-V-belt 369
Premium unleaded gasoline 379
Rims and tires 371Weights 376
Windshield and headlamp washer
system 377, 383
Tele Aid 208, 389
Call priority 214
Emergency calls 209
Hands-free microphone 33
Information 213
Initiating an emergency call
manually 211
Messages in the multifunction
display 334
Remote door unlock 215
Roadside Assistance 211
SOS button 211
Stolen Vehicle Recovery
services 215
System self-check 209
Telephone 203
Answering a call 140
Dialing 141
Ending a call 141
Hands-free microphone 33
Loading phone book 141
Messages in the multifunction
display 329Operation 139, 160
Redialing 142
Signal strength 140
Storage location 201
Temperature
Interior temperature 185
Outside temperature 115
Sensor, Interior 33
Sensor, outside 116
Setting display unit 129
Tether attachment points, see Children in
the vehicle
Tightening torque, Wheel bolts 285, 286,
389
Time 131
TIN 276, 283
Tire and Loading Information 258
Placard 258
Terminology 281
Tire Identification Number see TIN
Tire inflation pressure
Checking
Checking electronically 267
Checking manually 266
Setting units 137
