MERCEDES-BENZ SLR 2007 R199 Owner's Manual

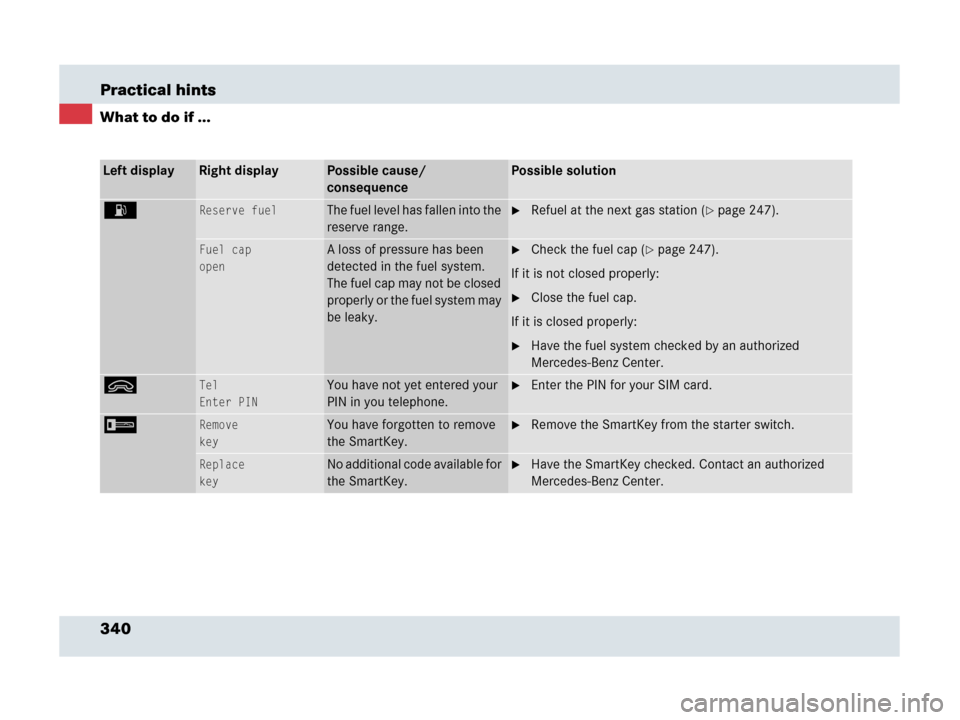

340 Practical hints
What to do if ...
Left displayRight displayPossible cause/
consequencePossible solution
AReserve fuelThe fuel level has fallen into the
reserve range.Refuel at the next gas station (page 247).
Fuel cap
openA loss of pressure has been
detected in the fuel system.
The fuel cap may not be closed
properly or the fuel system may
be leaky.Check the fuel cap (page 247).
If it is not closed properly:
Close the fuel cap.
If it is closed properly:
Have the fuel system checked by an authorized
Mercedes-Benz Center.
ìTel
Enter PINYou have not yet entered your
PIN in you telephone.Enter the PIN for your SIM card.
IRemove
keyYou have forgotten to remove
the SmartKey.Remove the SmartKey from the starter switch.
Replace
keyNo additional code available for
the SmartKey.Have the SmartKey checked. Contact an authorized
Mercedes-Benz Center.

341 Practical hints
What to do if ...
Left displayRight displayPossible cause/
consequencePossible solution
.3rd brake lampThe high mounted brake lamp
is malfunctioning.Contact an authorized Mercedes-Benz Center as soon as
possible.
Brake lamp
left
Auxiliary bulb onThe left brake lamp is malfunc-
tioning. This message will only
appear if a critical number of
LEDs have blown.Contact an authorized Mercedes-Benz Center as soon as
possible.
Brake lamp
right
Auxiliary bulb onThe right brake lamp is mal-
functioning. This message will
only appear if a critical number
of LEDs have blown.Contact an authorized Mercedes-Benz Center as soon as
possible.
Front foglamp
leftThe left front fog lamp is
malfunctioning.Contact an authorized Mercedes-Benz Center as soon as
possible.
Front foglamp
rightThe right front fog lamp is
malfunctioning.Contact an authorized Mercedes-Benz Center as soon as
possible.
Rear foglamp
leftThe left rear fog lamp is
malfunctioning. Contact an authorized Mercedes-Benz Center as soon as
possible.
High beam
leftThe left high beam lamp is
malfunctioning.Contact an authorized Mercedes-Benz Center as soon as
possible.
High beam
rightThe right high beam lamp is
malfunctioning.Contact an authorized Mercedes-Benz Center as soon as
possible.

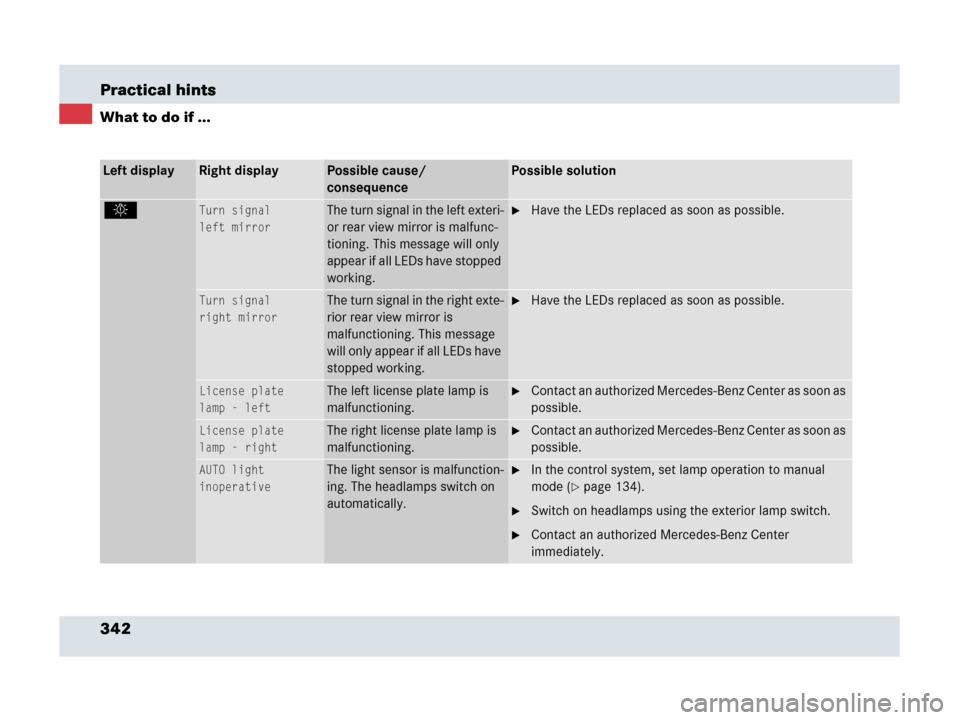

342 Practical hints
What to do if ...
Left displayRight displayPossible cause/
consequencePossible solution
.Turn signal
left mirrorThe turn signal in the left exteri-
or rear view mirror is malfunc-
tioning. This message will only
appear if all LEDs have stopped
working.Have the LEDs replaced as soon as possible.
Turn signal
right mirrorThe turn signal in the right exte-
rior rear view mirror is
malfunctioning. This message
will only appear if all LEDs have
stopped working.Have the LEDs replaced as soon as possible.
License plate
lamp - leftThe left license plate lamp is
malfunctioning.Contact an authorized Mercedes-Benz Center as soon as
possible.
License plate
lamp - rightThe right license plate lamp is
malfunctioning.Contact an authorized Mercedes-Benz Center as soon as
possible.
AUTO light
inoperativeThe light sensor is malfunction-
ing. The headlamps switch on
automatically.In the control system, set lamp operation to manual
mode (
page 134).
Switch on headlamps using the exterior lamp switch.
Contact an authorized Mercedes-Benz Center
immediately.

343 Practical hints
What to do if ...
Left displayRight displayPossible cause/
consequencePossible solution
.Low beam
leftThe left low beam lamp is
malfunctioning.Contact an authorized Mercedes-Benz Center as soon as
possible.
Low beam
rightThe right low beam lamp is
malfunctioning.Contact an authorized Mercedes-Benz Center as soon as
possible.
Marker lamp
front leftThe front left side marker lamp
is malfunctioning.Replace the bulb as soon as possible.
Marker lamp
front rightThe front right side marker
lamp is malfunctioning.Replace the bulb as soon as possible.
Marker lamp
rear leftThe rear left side marker lamp
is malfunctioning.Replace the bulb as soon as possible.
Marker lamp
rear rightThe rear right side marker lamp
is malfunctioning.Replace the bulb as soon as possible.
Parking lamp
front left
Auxiliary bulb onThe left front parking lamp is
malfunctioning. An auxiliary
bulb is being used.Contact an authorized Mercedes-Benz Center as soon as
possible.
Parking lamp
front right
Auxiliary bulb onThe right front parking lamp is
malfunctioning. An auxiliary
bulb is being used.Contact an authorized Mercedes-Benz Center as soon as
possible.

344 Practical hints
What to do if ...
Left displayRight displayPossible cause/
consequencePossible solution
.Reverse lamp
rightThe right backup lamp is
malfunctioning.Contact an authorized Mercedes-Benz Center as soon as
possible.
Reverse lamp
leftThe left backup lamp is
malfunctioning.Contact an authorized Mercedes-Benz Center as soon as
possible.
Tail lamp
left
Auxiliary bulb onThe left tail lamp is malfunc-
tioning. This message will only
appear if a critical number of
LEDs have blown.Contact an authorized Mercedes-Benz Center as soon as
possible.
Tail lamp
right
Auxiliary bulb onThe right tail lamp is malfunc-
tioning. This message will only
appear if a critical number of
LEDs have blown.Contact an authorized Mercedes-Benz Center as soon as
possible.
Turn off
lightsYou have removed the Smart-
Key from the starter switch,
opened the driver’s door and
left the exterior lamps on. Switch off the headlamps.
Turn off lights
or
remove keyThe exterior lamp switch is set
to U and you have forgotten
to take out the SmartKey. The
parking lamps remain switched
on.Switch off the headlamps.
or
Remove the SmartKey from the starter switch.

345 Practical hints
What to do if ...
Left displayRight displayPossible cause/
consequencePossible solution
.Turn signal
front left
Auxiliary bulb onT h e l e f t f r o n t t u r n s i g n a l l a m p i s
malfunctioning. An auxiliary
bulb is being used.Contact an authorized Mercedes-Benz Center as soon as
possible.
Turn signal
front right
Auxiliary bulb onThe right front turn signal lamp
is malfunctioning. An auxiliary
bulb is being used.Contact an authorized Mercedes-Benz Center as soon as
possible.
Turn signal
rear left
Auxiliary bulb onThe left rear turn signal lamp is
malfunctioning. An auxiliary
bulb is being used.Contact an authorized Mercedes-Benz Center as soon as
possible.
Turn signal
rear right
Auxiliary bulb onThe right rear turn signal lamp
is malfunctioning. An auxiliary
bulb is being used.Contact an authorized Mercedes-Benz Center as soon as
possible.

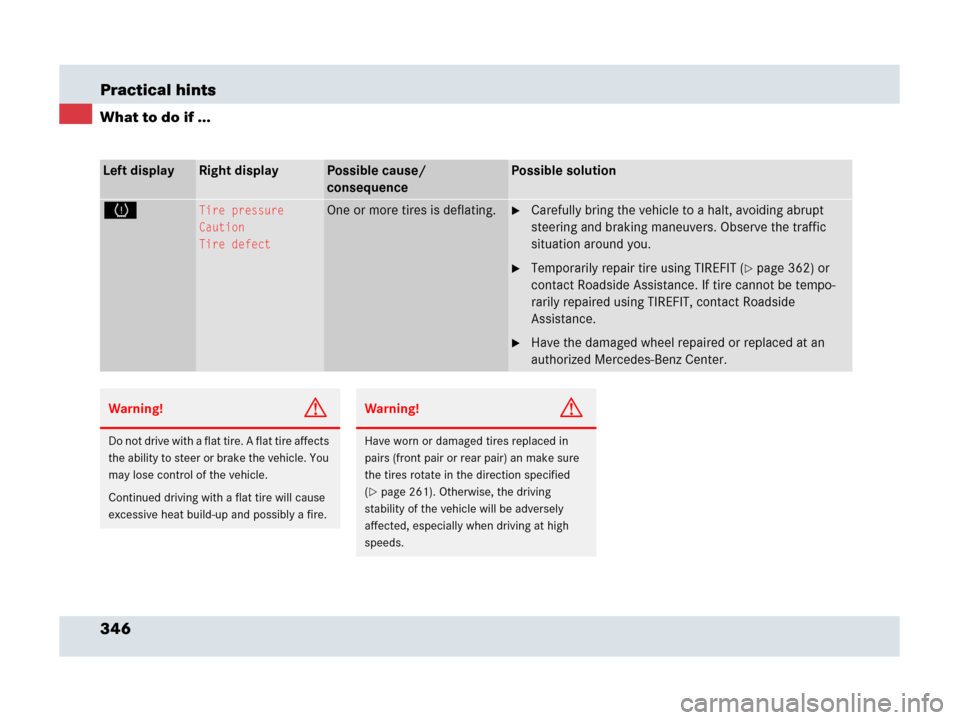

346 Practical hints
What to do if ...
Left displayRight displayPossible cause/
consequencePossible solution
HTire pressure
Caution
Tire defectOne or more tires is deflating.Carefully bring the vehicle to a halt, avoiding abrupt
steering and braking maneuvers. Observe the traffic
situation around you.
Temporarily repair tire using TIREFIT (page 362) or
contact Roadside Assistance. If tire cannot be tempo-
rarily repaired using TIREFIT, contact Roadside
Assistance.
Have the damaged wheel repaired or replaced at an
authorized Mercedes-Benz Center.
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle.
Continued driving with a flat tire will cause
excessive heat build-up and possibly a fire.
Warning!G
Have worn or damaged tires replaced in
pairs (front pair or rear pair) an make sure
the tires rotate in the direction specified
(
page 261). Otherwise, the driving
stability of the vehicle will be adversely
affected, especially when driving at high
speeds.

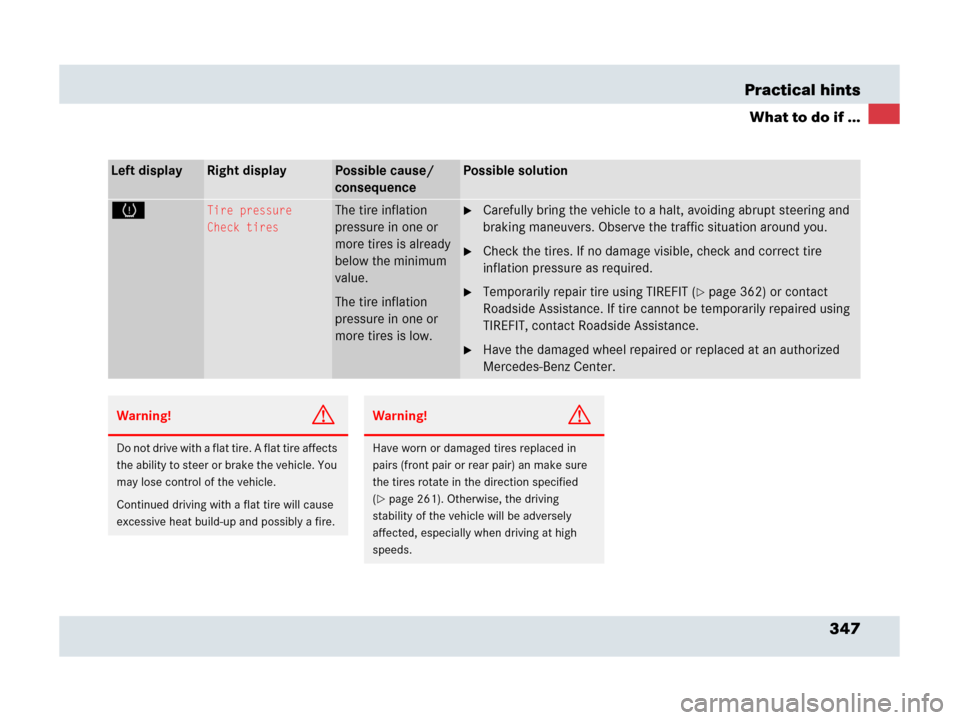

347 Practical hints
What to do if ...
Left displayRight displayPossible cause/
consequencePossible solution
HTire pressure
Check tiresThe tire inflation
pressure in one or
more tires is already
below the minimum
value.
The tire inflation
pressure in one or
more tires is low.Carefully bring the vehicle to a halt, avoiding abrupt steering and
braking maneuvers. Observe the traffic situation around you.
Check the tires. If no damage visible, check and correct tire
inflation pressure as required.
Temporarily repair tire using TIREFIT (page 362) or contact
Roadside Assistance. If tire cannot be temporarily repaired using
TIREFIT, contact Roadside Assistance.
Have the damaged wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle.
Continued driving with a flat tire will cause
excessive heat build-up and possibly a fire.
Warning!G
Have worn or damaged tires replaced in
pairs (front pair or rear pair) an make sure
the tires rotate in the direction specified
(
page 261). Otherwise, the driving
stability of the vehicle will be adversely
affected, especially when driving at high
speeds.

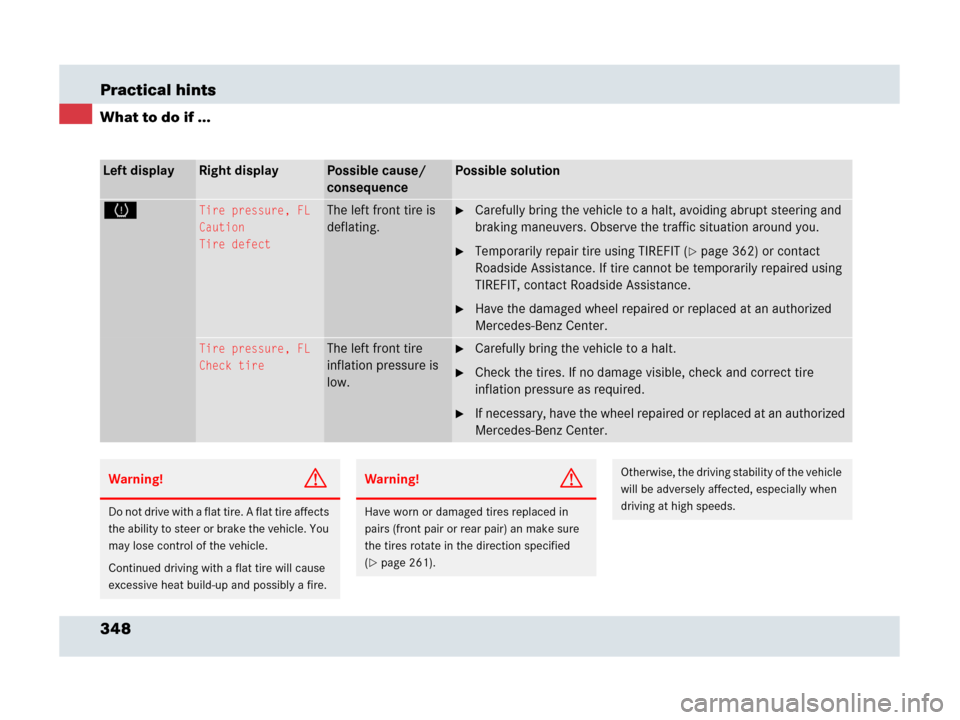

348 Practical hints
What to do if ...
Left displayRight displayPossible cause/
consequencePossible solution
HTire pressure, FL
Caution
Tire defectThe left front tire is
deflating.Carefully bring the vehicle to a halt, avoiding abrupt steering and
braking maneuvers. Observe the traffic situation around you.
Temporarily repair tire using TIREFIT (page 362) or contact
Roadside Assistance. If tire cannot be temporarily repaired using
TIREFIT, contact Roadside Assistance.
Have the damaged wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Tire pressure, FL
Check tireThe left front tire
inflation pressure is
low.Carefully bring the vehicle to a halt.
Check the tires. If no damage visible, check and correct tire
inflation pressure as required.
If necessary, have the wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle.
Continued driving with a flat tire will cause
excessive heat build-up and possibly a fire.
Warning!G
Have worn or damaged tires replaced in
pairs (front pair or rear pair) an make sure
the tires rotate in the direction specified
(
page 261).
Otherwise, the driving stability of the vehicle
will be adversely affected, especially when
driving at high speeds.

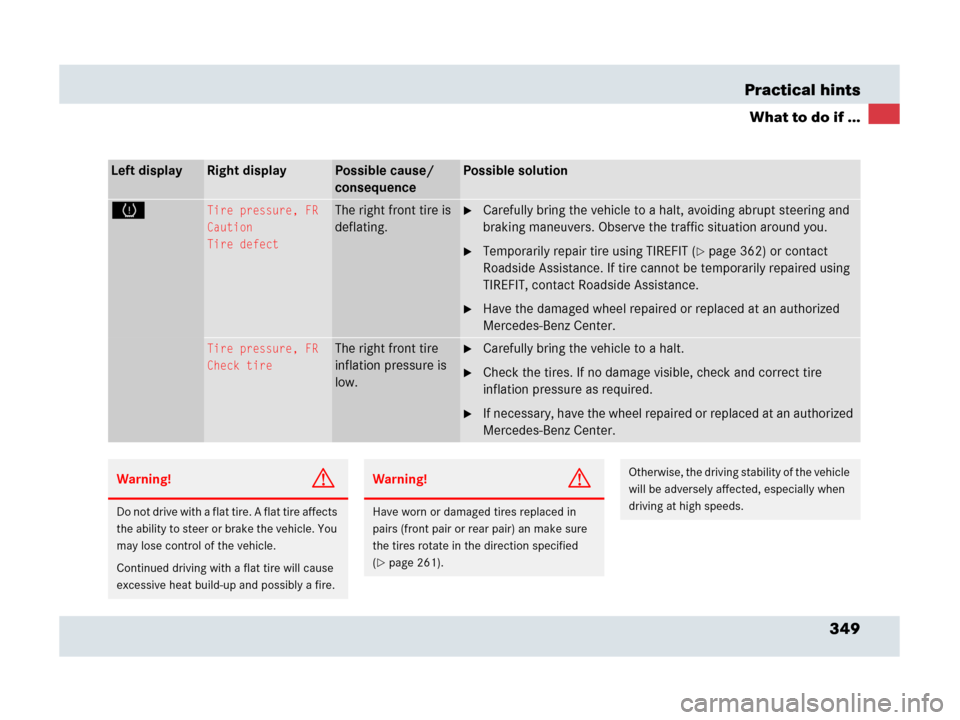

349 Practical hints
What to do if ...
Left displayRight displayPossible cause/
consequencePossible solution
HTire pressure, FR
Caution
Tire defectThe right front tire is
deflating.Carefully bring the vehicle to a halt, avoiding abrupt steering and
braking maneuvers. Observe the traffic situation around you.
Temporarily repair tire using TIREFIT (page 362) or contact
Roadside Assistance. If tire cannot be temporarily repaired using
TIREFIT, contact Roadside Assistance.
Have the damaged wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Tire pressure, FR
Check tireThe right front tire
inflation pressure is
low.Carefully bring the vehicle to a halt.
Check the tires. If no damage visible, check and correct tire
inflation pressure as required.
If necessary, have the wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle.
Continued driving with a flat tire will cause
excessive heat build-up and possibly a fire.
Warning!G
Have worn or damaged tires replaced in
pairs (front pair or rear pair) an make sure
the tires rotate in the direction specified
(
page 261).
Otherwise, the driving stability of the vehicle
will be adversely affected, especially when
driving at high speeds.
