MERCEDES-BENZ SLR 2009 R199 Owner's Manual

221 Controls in detail
Useful features
Stolen Vehicle Recovery services
In the event your vehicle was stolen:
Report the incident to the police.
The police will issue a numbered
incident report.

Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s Tele
Aid system. Once the vehicle is locat-
ed, the Response Center will contact
the local law enforcement and you. The
vehicle’s location will only be provided
to law enforcement.
Garage door opener
The integrated remote control is capable of
operating up to three separately controlled
devices. It provides a convenient way to re-
place up to three hand-held remote con-
trols used to operate devices such as
garage door openers, gate openers, or
other devices compatible with HomeLink
®
or some other systems.
Before the integrated remote control can
be used, it must be programmed to the ga-
rage door opener, gate operator or other
device you wish to operate. See the follow-
ing instructions for programming
information.
i
If the anti-theft alarm or the tow-away alarm
stays on for more than 30 seconds, a call to the
Response Center is initiated automatically by the
Tele Aid system provided Tele Aid service was
subscribed to and properly activated, and that
necessary cellular service and GPS coverage are
available. See anti-theft alarm system
(
page 93) and tow-away alarm (
page 95).

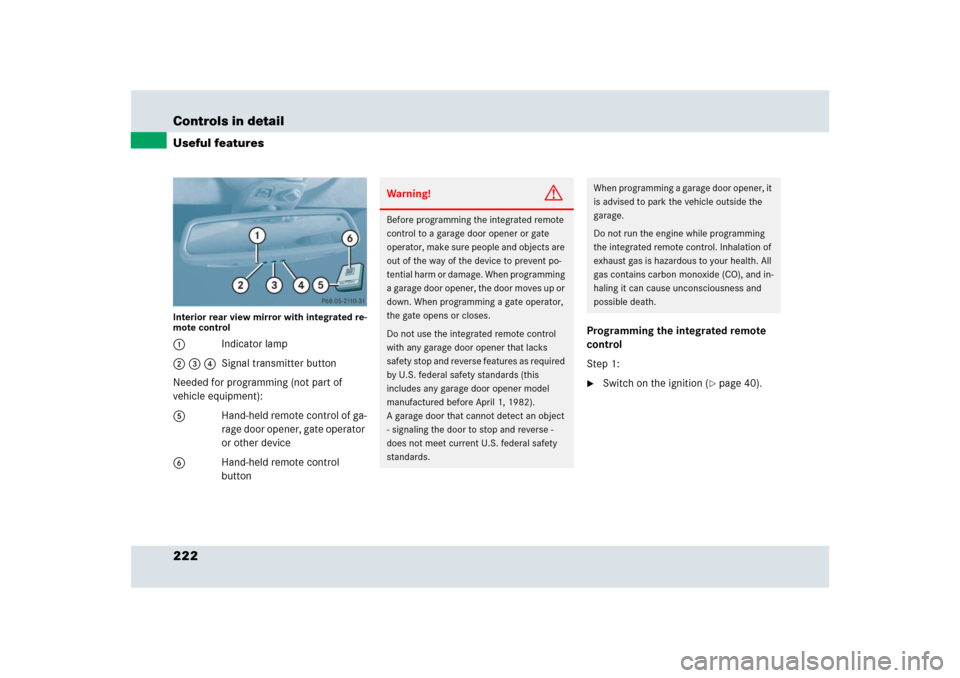

222 Controls in detailUseful featuresInterior rear view mirror with integrated re-
mote control1Indicator lamp
2 3 4Signal transmitter button
Needed for programming (not part of
vehicle equipment):
5Hand-held remote control of ga-
rage door opener, gate operator
or other device
6Hand-held remote control
buttonProgramming the integrated remote
control
Step 1:

Switch on the ignition (
page 40).
Warning!
G
Before programming the integrated remote
control to a garage door opener or gate
operator, make sure people and objects are
out of the way of the device to prevent po-
tential harm or damage. When programming
a garage door opener, the door moves up or
down. When programming a gate operator,
the gate opens or closes.
Do not use the integrated remote control
with any garage door opener that lacks
safety stop and reverse features as required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an object
- signaling the door to stop and reverse -
does not meet current U.S. federal safety
standards.
When programming a garage door opener, it
is advised to park the vehicle outside the
garage.
Do not run the engine while programming
the integrated remote control. Inhalation of
exhaust gas is hazardous to your health. All
gas contains carbon monoxide (CO), and in-
haling it can cause unconsciousness and
possible death.

223 Controls in detail
Useful features
Step 2:
If you have previously programmed a
signal transmitter button and wish to
retain its programming, proceed to
step 3.
If you are programming the integrated
remote control for the first time, press
and hold the two outer signal transmit-
ter buttons2 and4 and release
them only when indicator lamp1
begins to flash after approximately
20 seconds (do not hold the button for
longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory.
If you later wish to program a second
and/or third hand-held transmitter to
the remaining two signal transmitter
buttons, do not repeat this step and
begin directly with step 3.Step 3:

Hold the end of hand-held remote
control5 of the device you wish to
train approximately 2 to 5 in
(5 to12 cm) away from the signal trans-
mitter button (2, 3 or4) to be
programmed, while keeping indicator
lamp1 in view.
Step 4:

Using both hands, simultaneously
press hand-held remote control
button6 and the desired signal trans-
mitter button (2, 3 or4). Do not
release the buttons until step 5 is
completed.
Indicator lamp1 will flash, first slowly
and then rapidly.Step 5:

After indicator lamp1 changes from a
slow to a rapidly flashing light, release
the hand-held remote control button
and the signal transmitter button.
Step 6:

Press and hold the just-trained signal
transmitter button (2, 3 or4) and
observe indicator lamp1.
If the indicator lamp1 stays on
constantly, programming is complete
and your device should activate when
the respective signal transmitter
button (2, 3 or4) is pressed and
released.
Step 7:

To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.
i
Indicator lamp1 flashes immediately the
first time the signal transmitter button is pro-
grammed. If this button has already been
programmed, the indicator lamp will only start
flashing after 20 seconds.
i
If indicator lamp1 flashes rapidly for about
2 seconds and then turns to a constant light,
continue with programming steps 8 through 12
as your garage door opener may be equipped
with the “rolling code” feature.

224 Controls in detailUseful featuresRolling code programming
To train a garage door opener (or other
rolling code devices) with the rolling code
feature, follow these instructions after
completing the “Programming” portion
(steps 1 through 6) of this text. (A second
person may make the following training
procedures quicker and easier.)
Step 8:
Locate “training” button on the garage
door opener motor head unit.
Exact location and color of the button
may vary by garage door opener brand.
Depending on manufacturer, the
“training” button may also be referred
to as “learn”or “smart” button. If there
is difficulty locating the transmitting
button, refer to the garage door opener
Operator’s Manual. Step 9:

Press the “training” button on the ga-
rage door opener motor head unit.
The “training light” is activated.
You have 30 seconds to initiate the
following step.
Step 10:

Return to the vehicle and firmly press,
hold for 2 seconds and release the
programmed signal transmitter button
(2, 3 or4).
Step 11:

Press, hold for 2 seconds and release
same signal transmitter button a
second time to complete the training
process.Step 12:

Confirm the garage door operation by
pressing the programmed signal trans-
mitter button (2, 3 or4).
Step 13:

To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.
Gate operator/Canadian programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
which may not be long enough for the
integrated signal transmitter to pick up the
signal during programming. Similar to this
Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.
If you live in Canada or if you are having
difficulties programming a gate operator
(regardless of where you live) by using the
programming procedures, replace step 4
with the following:
i
Some garage door openers (or other rolling
code equipped devices) may require you to
press, hold for 2 seconds and release the same
signal transmitter button a third time to
complete the training process.

225 Controls in detail
Useful features
Step 4:
Press and hold the signal transmitter
button (2, 3 or4). Do not release
this button until it has been success-
fully trained.

While still holding down the signal
transmitter button (2, 3 or4),
“cycle” your hand-held remote control
button6 as follows: Press and hold
button6 for 2 seconds, then release
it for 2 seconds, and again press and
hold it for 2 seconds. Repeat this se-
quence on the hand-held remote con-
trol until the frequency signal has been
learned. Upon successful training, indi-
cator lamp1 will flash slowly and then
rapidly after several seconds.

Proceed with programming step 5 and
step 6 to complete.Reprogramming a single signal
transmitter button
To program a device using a signal trans-
mitter button previously trained, follow
these steps:

Switch on the ignition (
page 40).

Press and hold the desired signal
transmitter button (2, 3 or4).
Do not release the button.

Indicator lamp1 will begin to flash af-
ter 20 seconds. Without releasing the
signal transmitter button, proceed with
programming starting with step 3.Operation of integrated remote control

Switch on the ignition (
page 40).

Select and press the appropriate inte-
grated signal transmitter button (2,
3 or4) to activate the remote
controlled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.
Erasing the integrated remote control
memory

Switch on the ignition (
page 40).

Simultaneously press and hold outer
signal transmitter buttons2 and 4,
for approximately 20 seconds, until
indicator lamp1 flashes rapidly. Do
not hold for longer than 30 seconds.
The codes of all three channels are
erased.
i
Upon completion of programming the inte-
grated remote control, make sure you retain the
hand-held remote control that came with the ga-
rage door opener, gate operator or other device.
You may need it for use in other vehicles, for fu-
ture programming of an integrated remote con-
trol, or simply for continued use as a hand-held
remote control to operate the respective device
in other situations.
i
If you sell your vehicle, erase the codes of all
three channels.

226 Controls in detailUseful featuresProgramming tips
If you are having difficulty programming
the integrated remote control, here are
some helpful tips:

Check the frequency of the hand-held
remote control5 (typically located on
the reverse side of the remote). The in-
tegrated remote control is compatible
with radio-frequency devices operating
between 280-390 MHz.


Put a new battery in hand-held remote
control5. This will increase the likeli-
hood of the hand-held remote control
sending a faster and more accurate sig-
nal to the integrated remote control.


While performing step 3, hold
hand-held remote control5 at differ-
ent lengths and angles from the signal
transmitter button (2, 3 or4) you
are programming. Attempt varying
angles at the distance of 2 to 5 in
(5 to 12 cm) away or the same angle at
varying distances.


If another hand-held remote control is
available for the same device, try the
programming steps again using that
other hand-held remote control. Make
sure new batteries are in the hand-held
remote control before beginning the
procedure.


Straighten the antenna wire from the
garage door opener assembly. This
may help improve transmitting and/or
receiving signals.
i
Certain types of garage door openers are in-
compatible with the integrated remote control. If
you should experience further difficulties with
programming the integrated remote control,
contact an authorized Mercedes-Benz Center, or
call Mercedes-Benz Customer Assistance
Center (in the USA) at 1-800-FOR-MERCedes, or
Customer Service (in Canada) at
1-800-387-0100.
i
USA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.

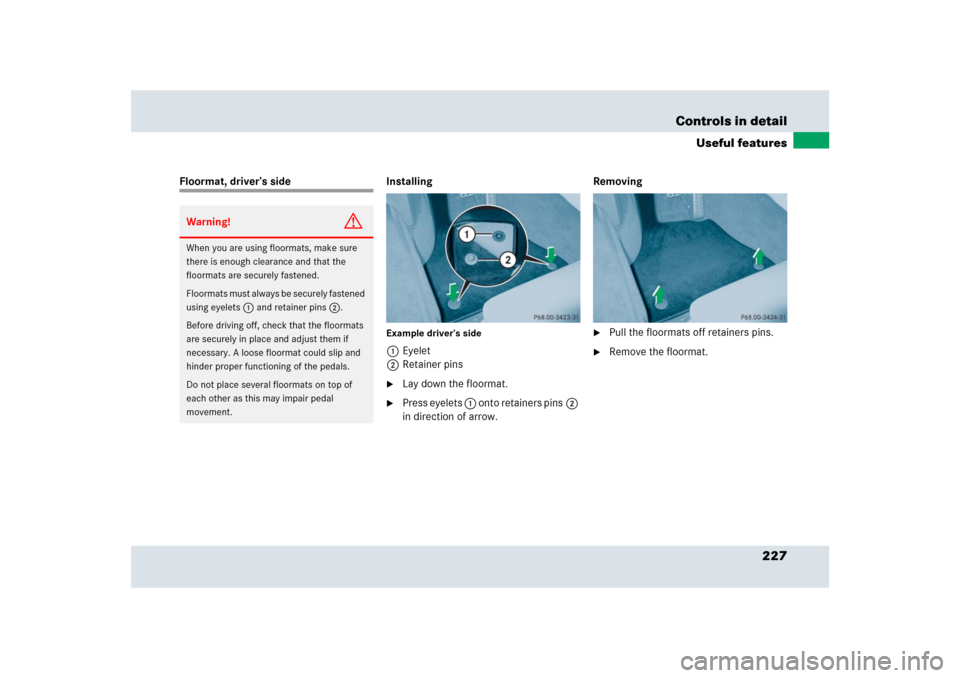

227 Controls in detail
Useful features
Floormat, driver’s side Installing
Example driver’s side1Eyelet
2Retainer pins
Lay down the floormat.

Press eyelets 1 onto retainers pins2
in direction of arrow. Removing

Pull the floormats off retainers pins.

Remove the floormat.
Warning!
G
When you are using floormats, make sure
there is enough clearance and that the
floormats are securely fastened.
Floormats must always be securely fastened
using eyelets1 and retainer pins2.
Before driving off, check that the floormats
are securely in place and adjust them if
necessary. A loose floormat could slip and
hinder proper functioning of the pedals.
Do not place several floormats on top of
each other as this may impair pedal
movement.

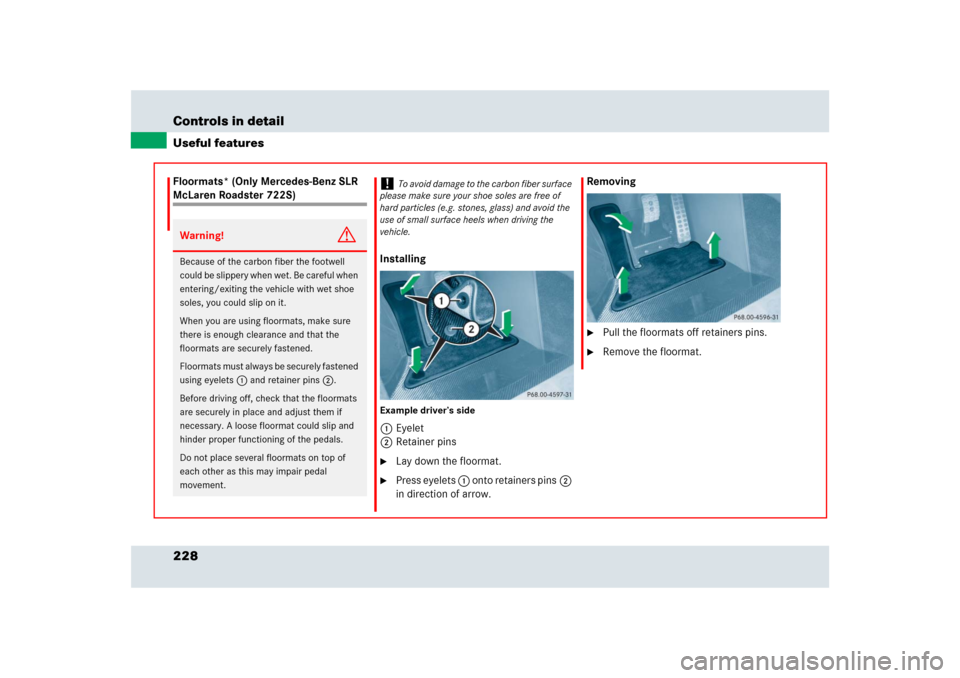

228 Controls in detailUseful featuresFloormats* (Only Mercedes-Benz SLR McLaren Roadster 722S)
Installing
Example driver’s side1Eyelet
2Retainer pins
Lay down the floormat.

Press eyelets 1 onto retainers pins2
in direction of arrow. Removing

Pull the floormats off retainers pins.

Remove the floormat.
Warning!
G
Because of the carbon fiber the footwell
could be slippery when wet. Be careful when
entering/exiting the vehicle with wet shoe
soles, you could slip on it.
When you are using floormats, make sure
there is enough clearance and that the
floormats are securely fastened.
Floormats must always be securely fastened
using eyelets1 and retainer pins2.
Before driving off, check that the floormats
are securely in place and adjust them if
necessary. A loose floormat could slip and
hinder proper functioning of the pedals.
Do not place several floormats on top of
each other as this may impair pedal
movement.
!
To avoid damage to the carbon fiber surface
please make sure your shoe soles are free of
hard particles (e.g. stones, glass) and avoid the
use of small surface heels when driving the
vehicle.

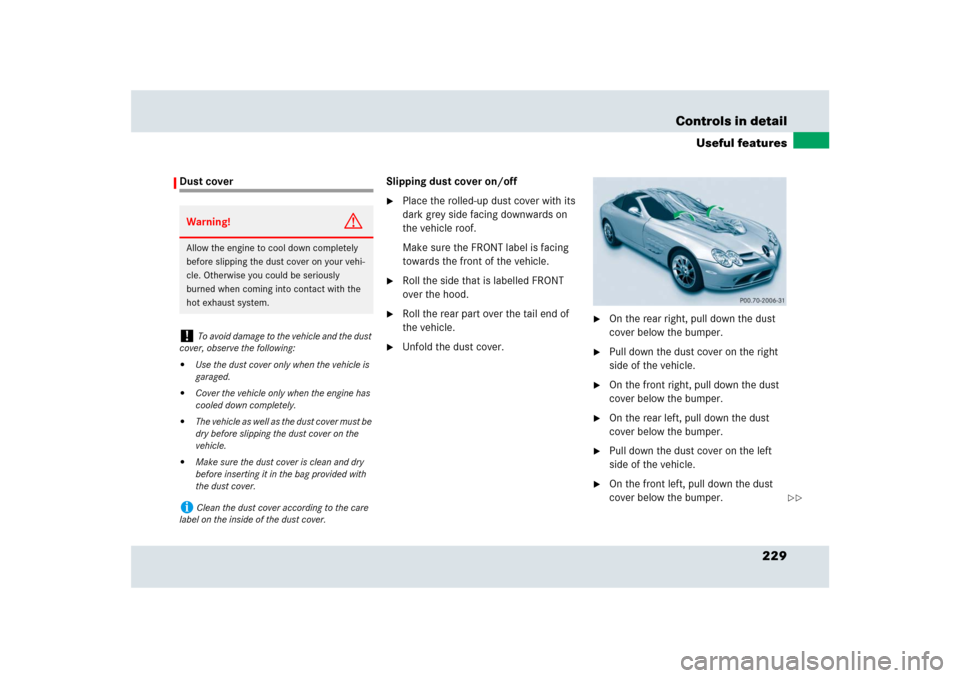

229 Controls in detail
Useful features
Dust cover Slipping dust cover on/off

Place the rolled-up dust cover with its
dark grey side facing downwards on
the vehicle roof.
Make sure the FRONT label is facing
towards the front of the vehicle.

Roll the side that is labelled FRONT
over the hood.

Roll the rear part over the tail end of
the vehicle.

Unfold the dust cover.

On the rear right, pull down the dust
cover below the bumper.

Pull down the dust cover on the right
side of the vehicle.

On the front right, pull down the dust
cover below the bumper.

On the rear left, pull down the dust
cover below the bumper.

Pull down the dust cover on the left
side of the vehicle.

On the front left, pull down the dust
cover below the bumper.
Warning!
G
Allow the engine to cool down completely
before slipping the dust cover on your vehi-
cle. Otherwise you could be seriously
burned when coming into contact with the
hot exhaust system.!
To avoid damage to the vehicle and the dust
cover, observe the following:


Use the dust cover only when the vehicle is
garaged.


Cover the vehicle only when the engine has
cooled down completely.


The vehicle as well as the dust cover must be
dry before slipping the dust cover on the
vehicle.


Make sure the dust cover is clean and dry
before inserting it in the bag provided with
the dust cover.
i
Clean the dust cover according to the care
label on the inside of the dust cover.

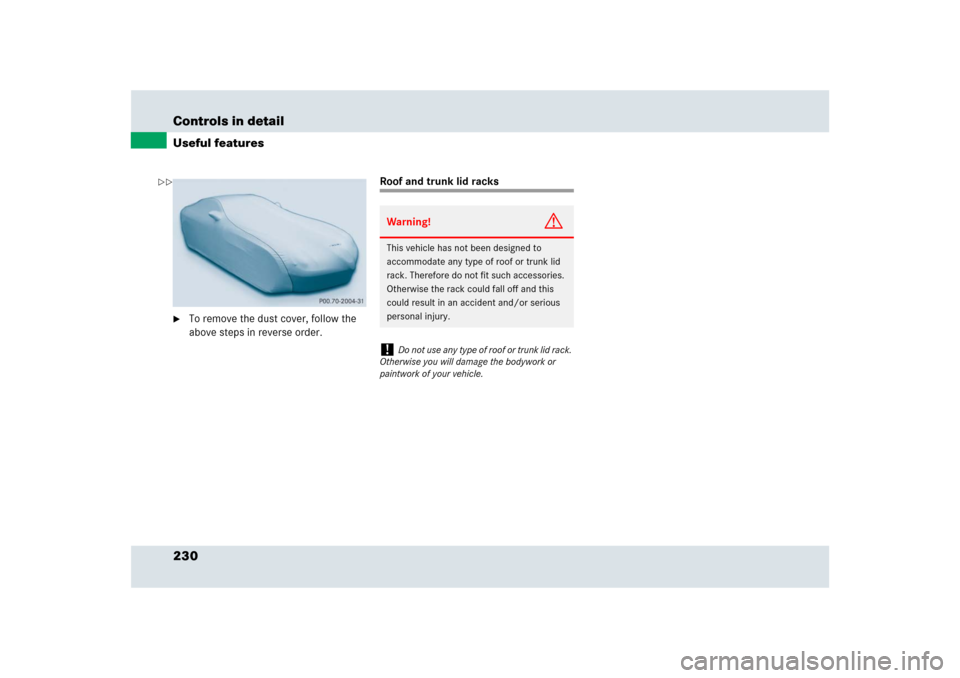

230 Controls in detailUseful features
To remove the dust cover, follow the
above steps in reverse order.
Roof and trunk lid racksWarning!
G
This vehicle has not been designed to
accommodate any type of roof or trunk lid
rack. Therefore do not fit such accessories.
Otherwise the rack could fall off and this
could result in an accident and/or serious
personal injury.!
Do not use any type of roof or trunk lid rack.
Otherwise you will damage the bodywork or
paintwork of your vehicle.
