Page 181 of 288

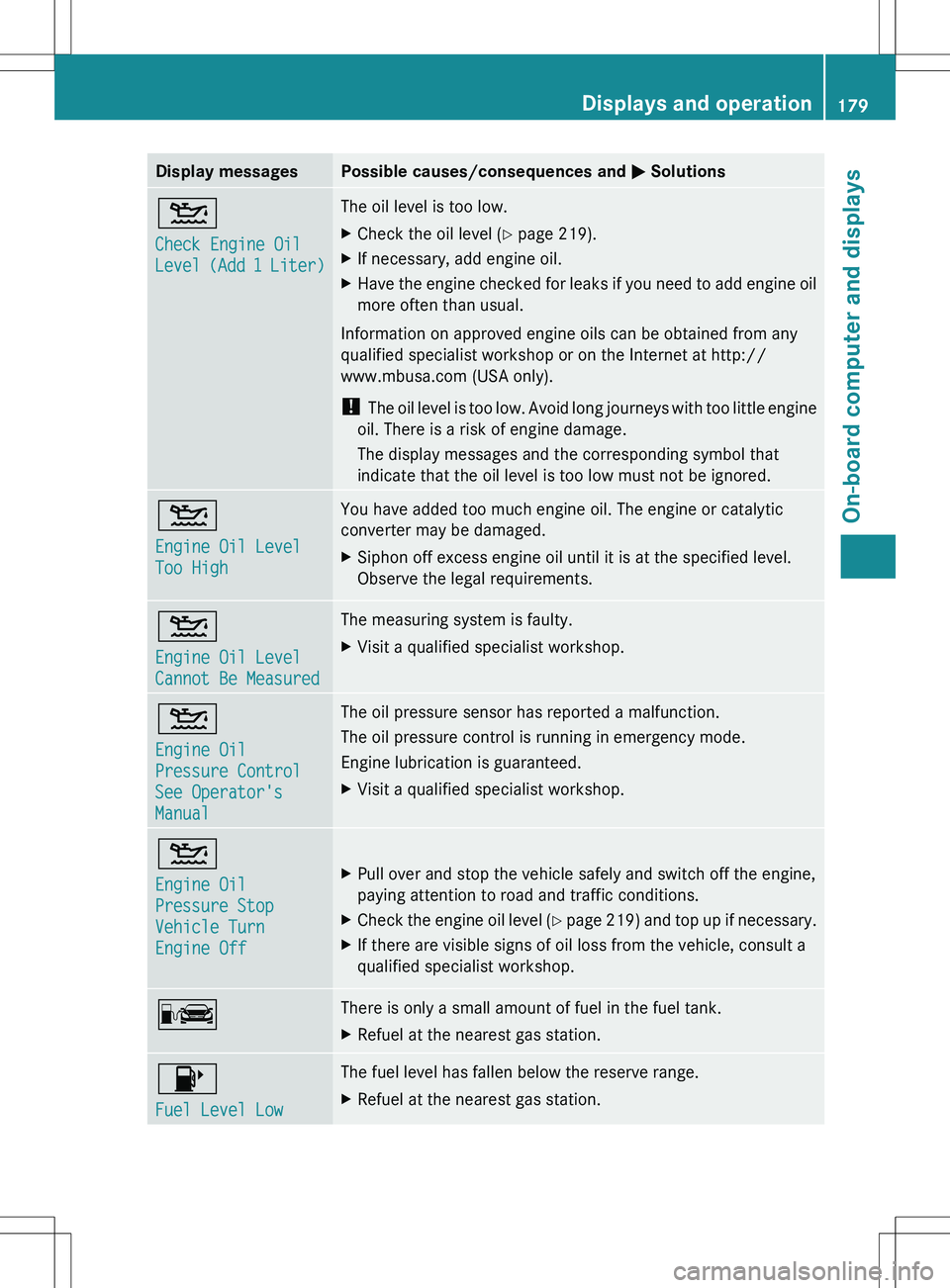

Display messagesPossible causes/consequences and M Solutions4
Check Engine Oil
Level (Add 1 Liter)The oil level is too low.XCheck the oil level ( Y page 219).XIf necessary, add engine oil.XHave the engine checked for leaks if you need to add engine oil
more often than usual.
Information on approved engine oils can be obtained from any
qualified specialist workshop or on the Internet at http://
www.mbusa.com (USA only).
! The oil level is too low. Avoid long journeys with too little engine
oil. There is a risk of engine damage.
The display messages and the corresponding symbol that
indicate that the oil level is too low must not be ignored.
4
Engine Oil Level
Too HighYou have added too much engine oil. The engine or catalytic
converter may be damaged.XSiphon off excess engine oil until it is at the specified level.
Observe the legal requirements.4
Engine Oil Level
Cannot Be MeasuredThe measuring system is faulty.XVisit a qualified specialist workshop.4
Engine Oil
Pressure Control
See Operator's
ManualThe oil pressure sensor has reported a malfunction.
The oil pressure control is running in emergency mode.
Engine lubrication is guaranteed.XVisit a qualified specialist workshop.4
Engine Oil
Pressure Stop
Vehicle Turn
Engine Off XPull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.XCheck the engine oil level (Y page 219) and top up if necessary.XIf there are visible signs of oil loss from the vehicle, consult a
qualified specialist workshop.CThere is only a small amount of fuel in the fuel tank.XRefuel at the nearest gas station.8
Fuel Level LowThe fuel level has fallen below the reserve range.XRefuel at the nearest gas station.Displays and operation179On-board computer and displaysZ
Page 182 of 288

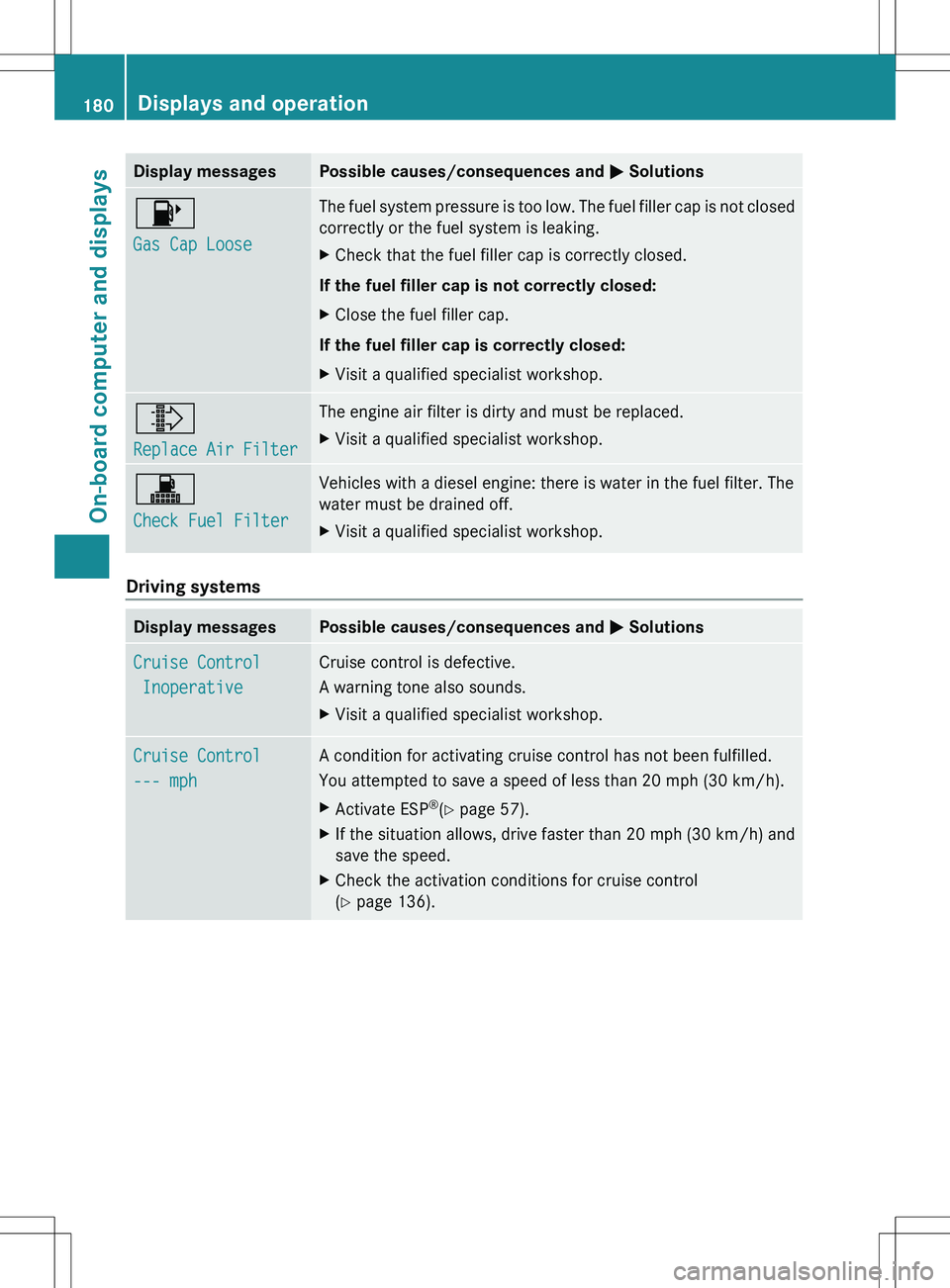

Display messagesPossible causes/consequences and M Solutions8
Gas Cap LooseThe fuel system pressure is too low. The fuel filler cap is not closed
correctly or the fuel system is leaking.XCheck that the fuel filler cap is correctly closed.
If the fuel filler cap is not correctly closed:
XClose the fuel filler cap.
If the fuel filler cap is correctly closed:
XVisit a qualified specialist workshop.¸
Replace Air FilterThe engine air filter is dirty and must be replaced.XVisit a qualified specialist workshop.!
Check Fuel FilterVehicles with a diesel engine: there is water in the fuel filter. The
water must be drained off.XVisit a qualified specialist workshop.
Driving systems
Display messagesPossible causes/consequences and M SolutionsCruise Control
InoperativeCruise control is defective.
A warning tone also sounds.XVisit a qualified specialist workshop.Cruise Control
--- mphA condition for activating cruise control has not been fulfilled.
You attempted to save a speed of less than 20 mph (30 km/h).XActivate ESP ®
(Y page 57).XIf the situation allows, drive faster than 20 mph ( 30 km/h) and
save the speed.XCheck the activation conditions for cruise control
( Y page 136).180Displays and operationOn-board computer and displays
Page 183 of 288

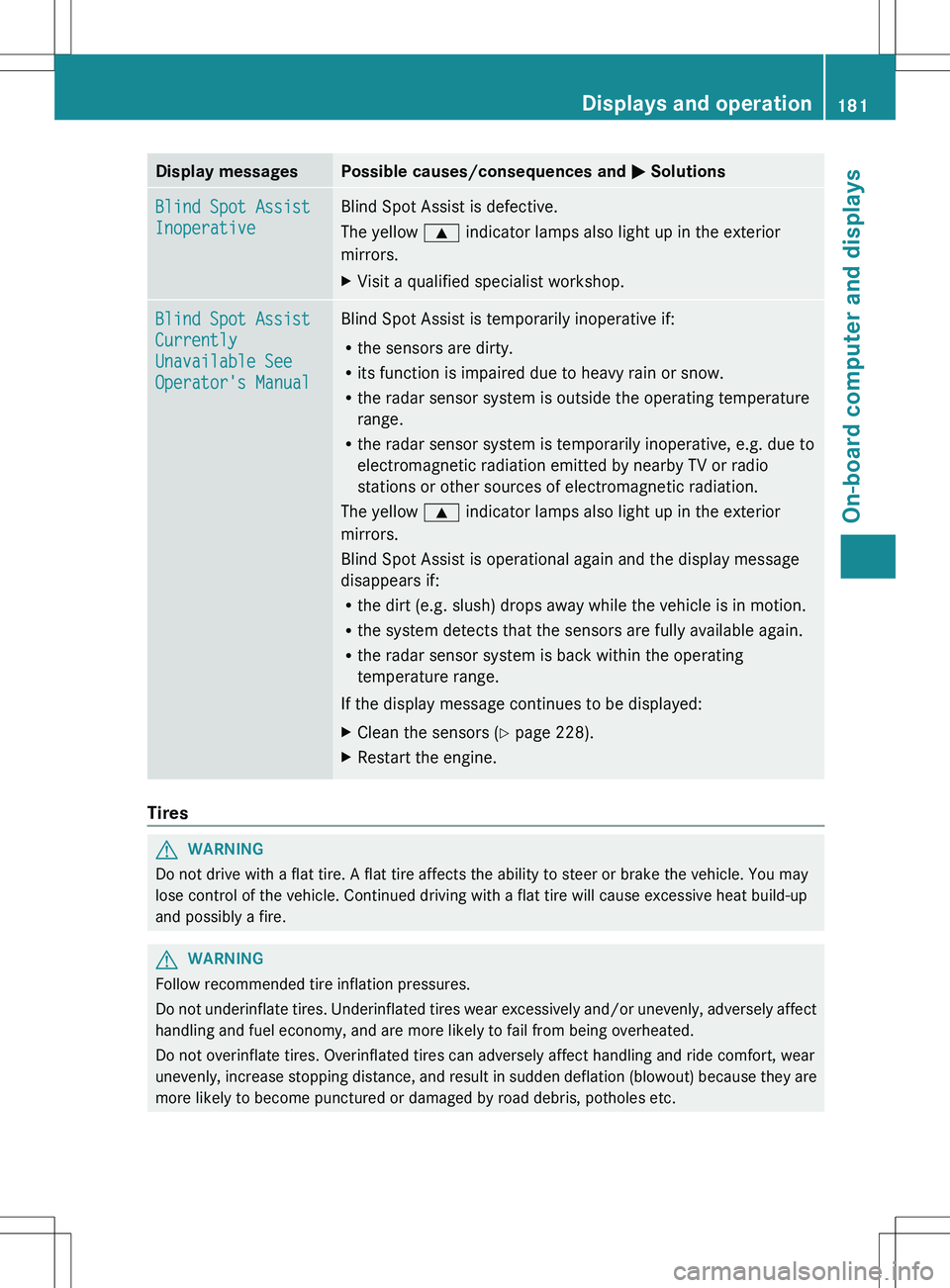

Display messagesPossible causes/consequences and M SolutionsBlind Spot Assist
InoperativeBlind Spot Assist is defective.
The yellow 9 indicator lamps also light up in the exterior
mirrors.XVisit a qualified specialist workshop.Blind Spot Assist
Currently
Unavailable See
Operator's ManualBlind Spot Assist is temporarily inoperative if:
R the sensors are dirty.
R its function is impaired due to heavy rain or snow.
R the radar sensor system is outside the operating temperature
range.
R the radar sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radio
stations or other sources of electromagnetic radiation.
The yellow 9 indicator lamps also light up in the exterior
mirrors.
Blind Spot Assist is operational again and the display message
disappears if:
R the dirt (e.g. slush) drops away while the vehicle is in motion.
R the system detects that the sensors are fully available again.
R the radar sensor system is back within the operating
temperature range.
If the display message continues to be displayed:XClean the sensors ( Y page 228).XRestart the engine.
Tires
GWARNING
Do not drive with a flat tire. A flat tire affects the ability to steer or brake the vehicle. You may
lose control of the vehicle. Continued driving with a flat tire will cause excessive heat build-up
and possibly a fire.
GWARNING
Follow recommended tire inflation pressures.
Do not underinflate tires. Underinflated tires wear excessively and/or unevenly, adversely affect
handling and fuel economy, and are more likely to fail from being overheated.
Do not overinflate tires. Overinflated tires can adversely affect handling and ride comfort, wear
unevenly, increase stopping distance, and result in sudden deflation (blowout) because they are
more likely to become punctured or damaged by road debris, potholes etc.
Displays and operation181On-board computer and displaysZ

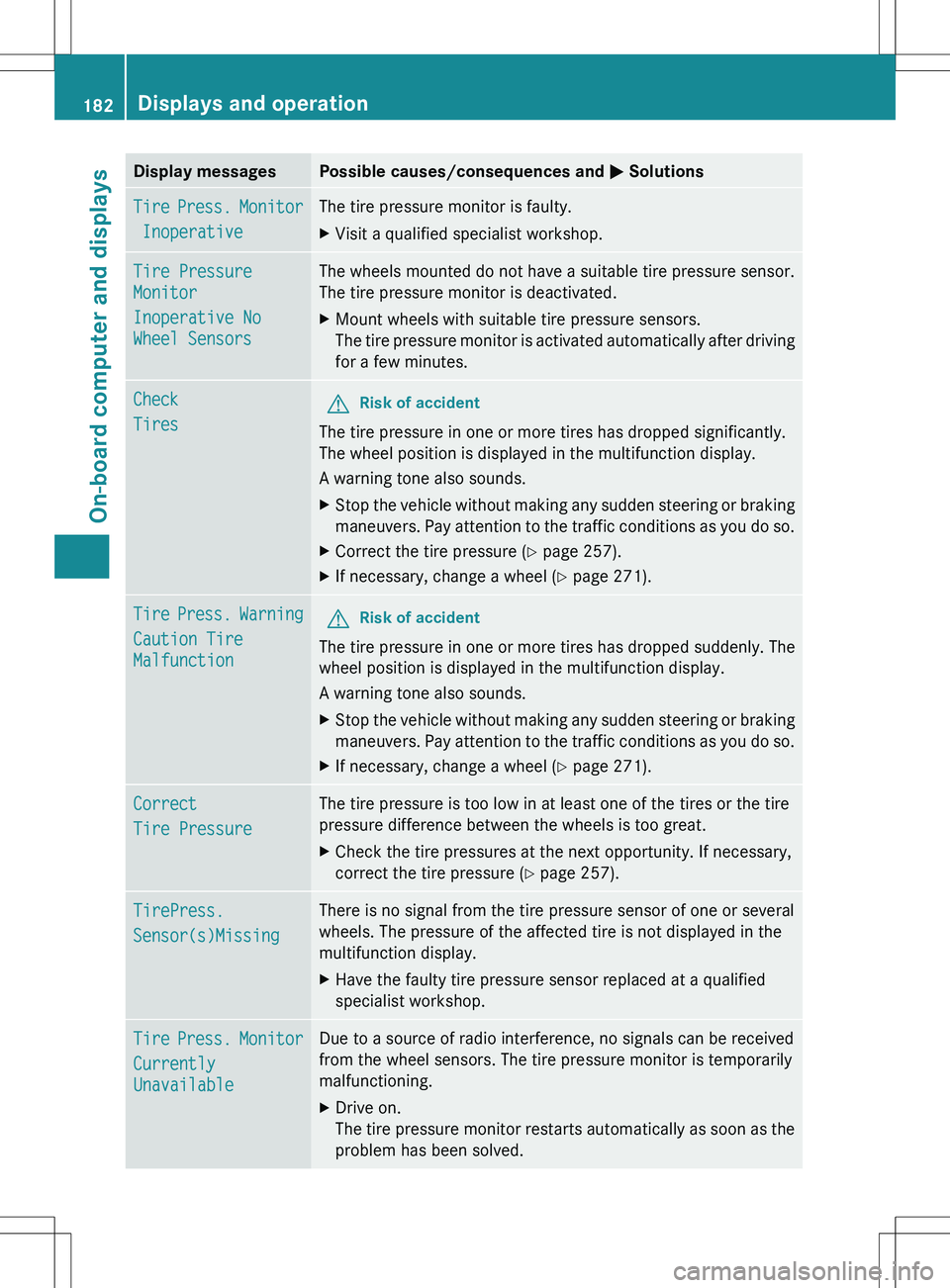

Page 184 of 288
Display messagesPossible causes/consequences and M SolutionsTire Press. Monitor
InoperativeThe tire pressure monitor is faulty.XVisit a qualified specialist workshop.Tire Pressure
Monitor
Inoperative No
Wheel SensorsThe wheels mounted do not have a suitable tire pressure sensor.
The tire pressure monitor is deactivated.XMount wheels with suitable tire pressure sensors.
The tire pressure monitor is activated automatically after driving
for a few minutes.Check
TiresGRisk of accident
The tire pressure in one or more tires has dropped significantly.
The wheel position is displayed in the multifunction display.
A warning tone also sounds.
XStop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.XCorrect the tire pressure ( Y page 257).XIf necessary, change a wheel ( Y page 271).Tire Press. Warning
Caution Tire
MalfunctionGRisk of accident
The tire pressure in one or more tires has dropped suddenly. The
wheel position is displayed in the multifunction display.
A warning tone also sounds.
XStop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.XIf necessary, change a wheel ( Y page 271).Correct
Tire PressureThe tire pressure is too low in at least one of the tires or the tire
pressure difference between the wheels is too great.XCheck the tire pressures at the next opportunity. If necessary,
correct the tire pressure ( Y page 257).TirePress.
Sensor(s)MissingThere is no signal from the tire pressure sensor of one or several
wheels. The pressure of the affected tire is not displayed in the
multifunction display.XHave the faulty tire pressure sensor replaced at a qualified
specialist workshop.Tire Press. Monitor
Currently
UnavailableDue to a source of radio interference, no signals can be received
from the wheel sensors. The tire pressure monitor is temporarily
malfunctioning.XDrive on.
The tire pressure monitor restarts automatically as soon as the
problem has been solved.182Displays and operationOn-board computer and displays

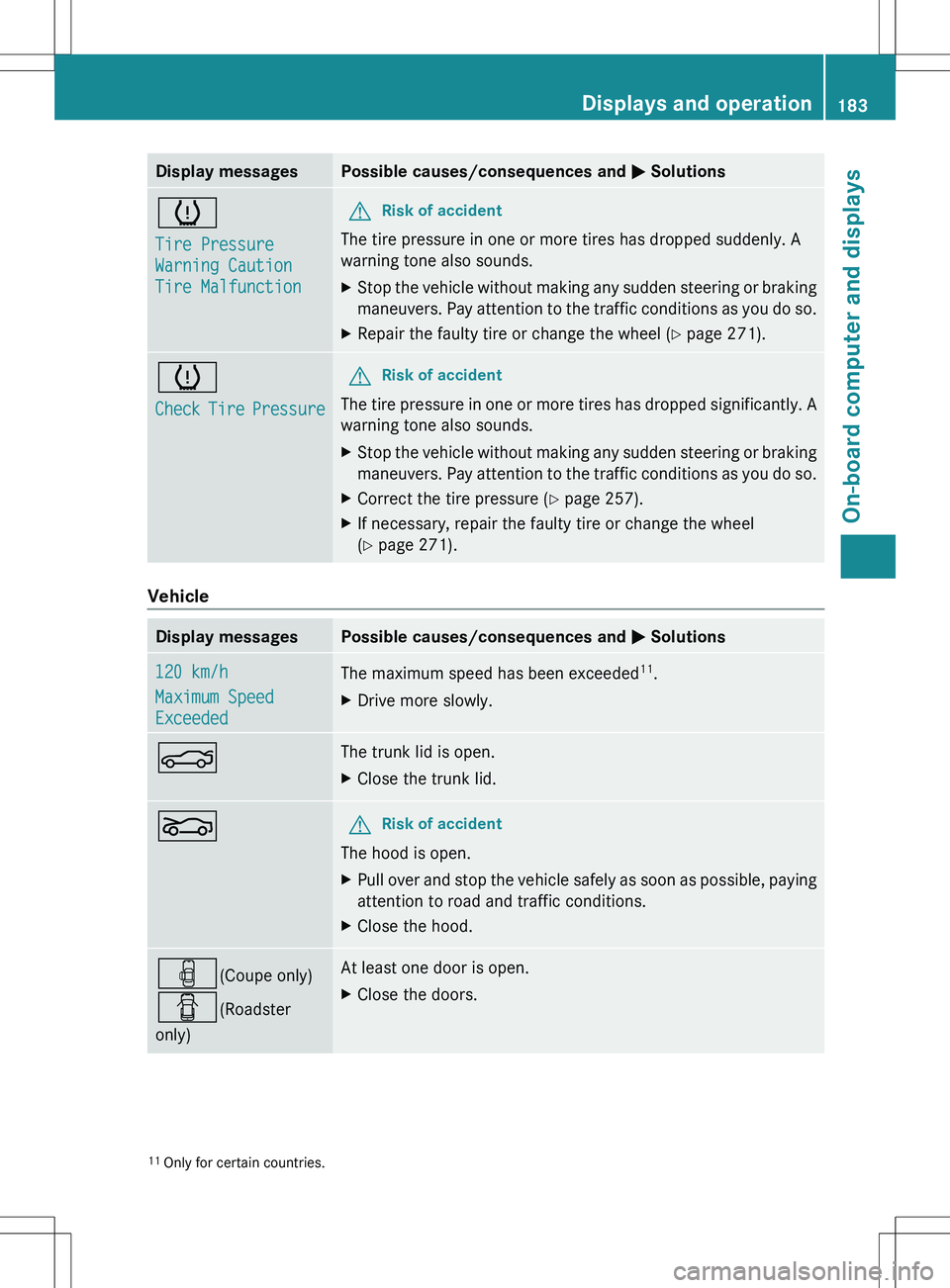

Page 185 of 288
Display messagesPossible causes/consequences and M Solutionsh
Tire Pressure
Warning Caution
Tire MalfunctionGRisk of accident
The tire pressure in one or more tires has dropped suddenly. A
warning tone also sounds.
XStop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.XRepair the faulty tire or change the wheel ( Y page 271).h
Check Tire PressureGRisk of accident
The tire pressure in one or more tires has dropped significantly. A
warning tone also sounds.
XStop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.XCorrect the tire pressure ( Y page 257).XIf necessary, repair the faulty tire or change the wheel
( Y page 271).
Vehicle
Display messagesPossible causes/consequences and M Solutions120 km/h
Maximum Speed
ExceededThe maximum speed has been exceeded 11
.XDrive more slowly.NThe trunk lid is open.XClose the trunk lid.LGRisk of accident
The hood is open.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.XClose the hood.´ (Coupe only)
C (Roadster
only)At least one door is open.XClose the doors.11 Only for certain countries.Displays and operation183On-board computer and displaysZ
Page 186 of 288

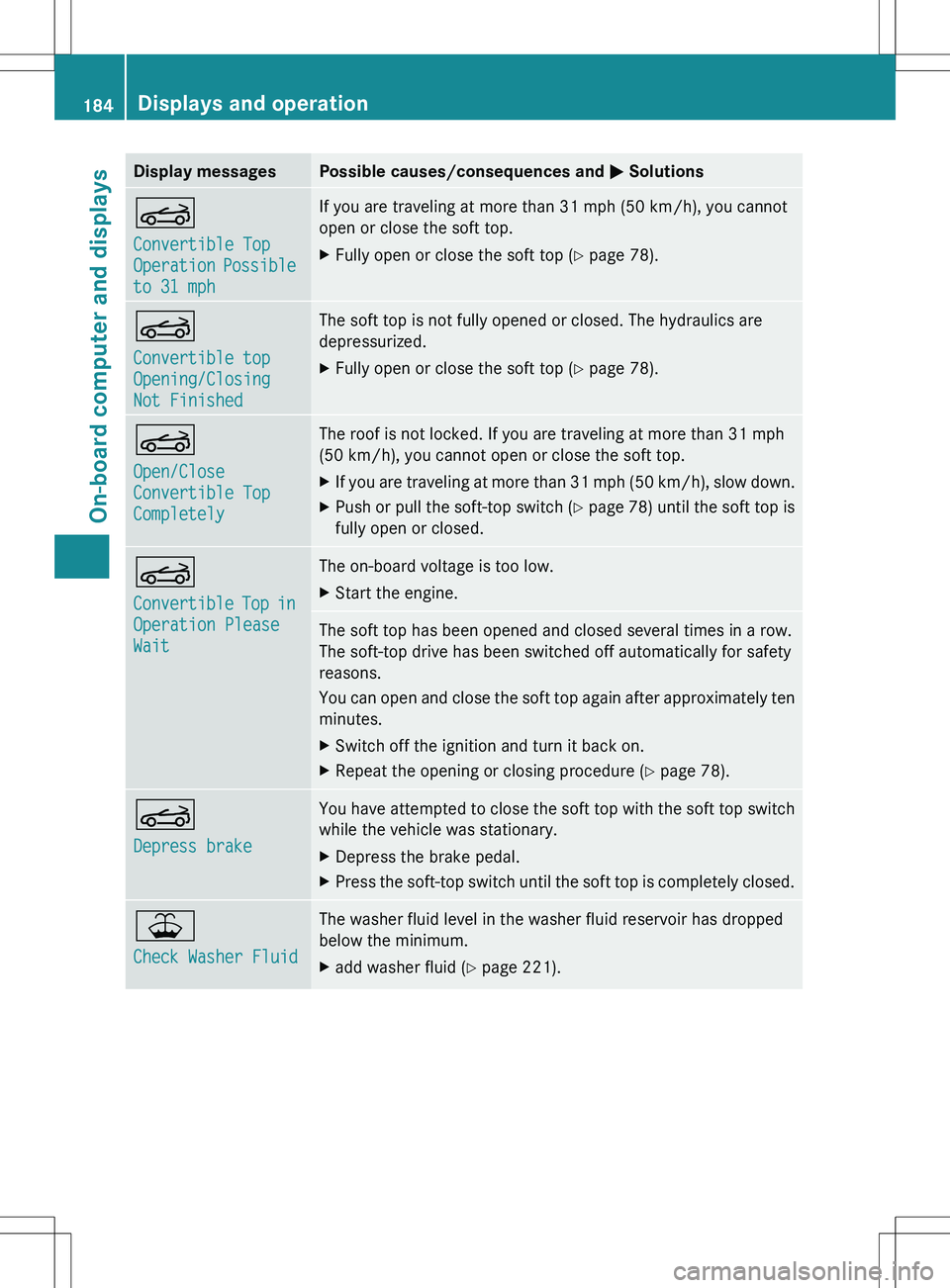

Display messagesPossible causes/consequences and M SolutionsK
Convertible Top
Operation Possible
to 31 mphIf you are traveling at more than 31 mph (50 km/h), you cannot
open or close the soft top.XFully open or close the soft top ( Y page 78).K
Convertible top
Opening/Closing
Not FinishedThe soft top is not fully opened or closed. The hydraulics are
depressurized.XFully open or close the soft top ( Y page 78).K
Open/Close
Convertible Top
CompletelyThe roof is not locked. If you are traveling at more than 31 mph
(50 km/h), you cannot open or close the soft top.XIf you are traveling at more than 31 mph (50 km/h), slow down.XPush or pull the soft-top switch (Y page 78) until the soft top is
fully open or closed.K
Convertible Top in
Operation Please
WaitThe on-board voltage is too low.XStart the engine.The soft top has been opened and closed several times in a row.
The soft-top drive has been switched off automatically for safety
reasons.
You can open and close the soft top again after approximately ten
minutes.XSwitch off the ignition and turn it back on.XRepeat the opening or closing procedure ( Y page 78).K
Depress brakeYou have attempted to close the soft top with the soft top switch
while the vehicle was stationary.XDepress the brake pedal.XPress the soft-top switch until the soft top is completely closed.¥
Check Washer FluidThe washer fluid level in the washer fluid reservoir has dropped
below the minimum.Xadd washer fluid ( Y page 221).184Displays and operationOn-board computer and displays
Page 187 of 288

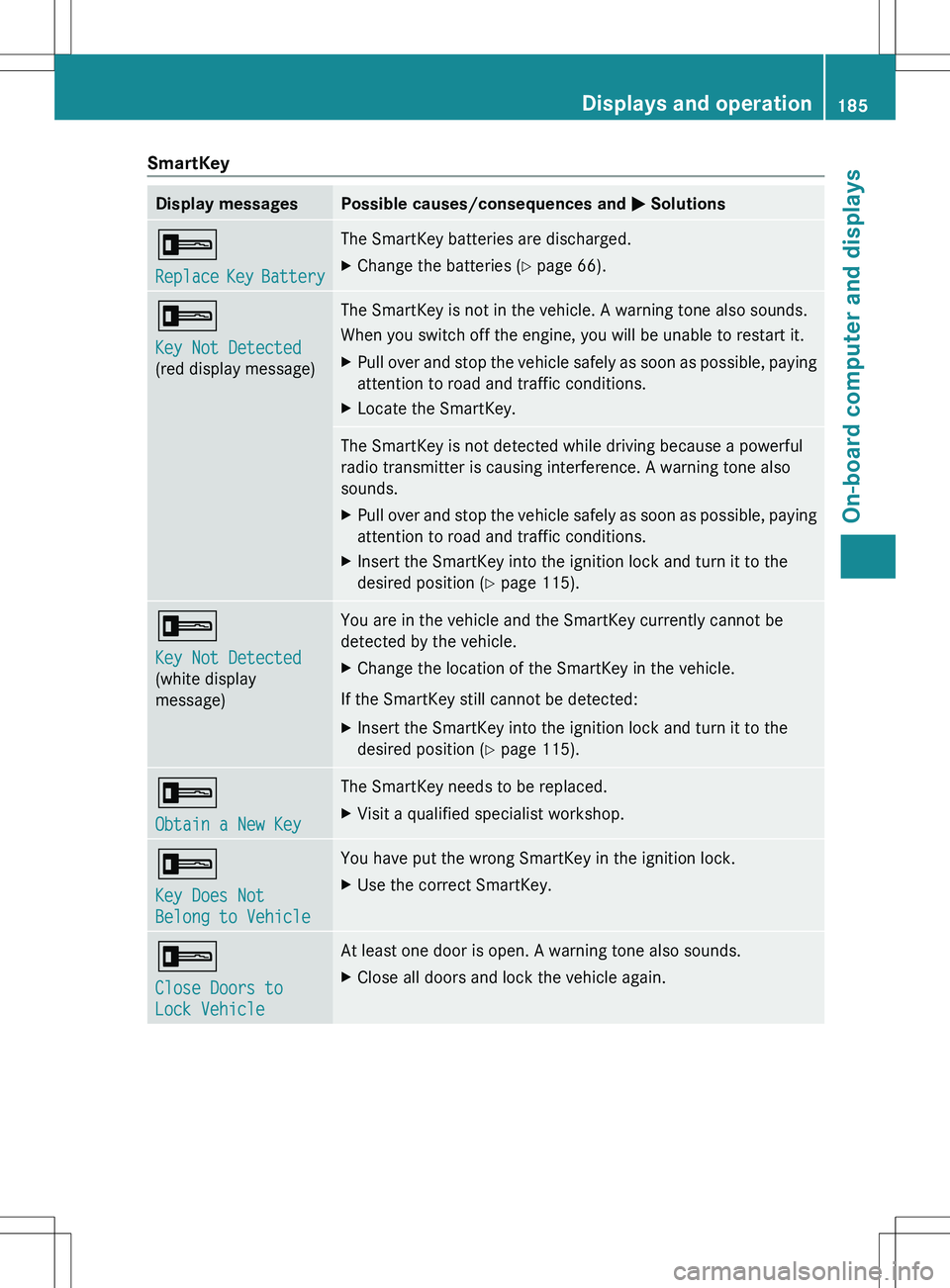

SmartKeyDisplay messagesPossible causes/consequences and M Solutions+
Replace Key BatteryThe SmartKey batteries are discharged.XChange the batteries ( Y page 66).+
Key Not Detected
(red display message)The SmartKey is not in the vehicle. A warning tone also sounds.
When you switch off the engine, you will be unable to restart it.XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.XLocate the SmartKey.The SmartKey is not detected while driving because a powerful
radio transmitter is causing interference. A warning tone also
sounds.XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.XInsert the SmartKey into the ignition lock and turn it to the
desired position ( Y page 115).+
Key Not Detected
(white display
message)You are in the vehicle and the SmartKey currently cannot be
detected by the vehicle.XChange the location of the SmartKey in the vehicle.
If the SmartKey still cannot be detected:
XInsert the SmartKey into the ignition lock and turn it to the
desired position ( Y page 115).+
Obtain a New Key The SmartKey needs to be replaced.XVisit a qualified specialist workshop.+
Key Does Not
Belong to VehicleYou have put the wrong SmartKey in the ignition lock.XUse the correct SmartKey.+
Close Doors to
Lock VehicleAt least one door is open. A warning tone also sounds.XClose all doors and lock the vehicle again.Displays and operation185On-board computer and displaysZ
Page 188 of 288

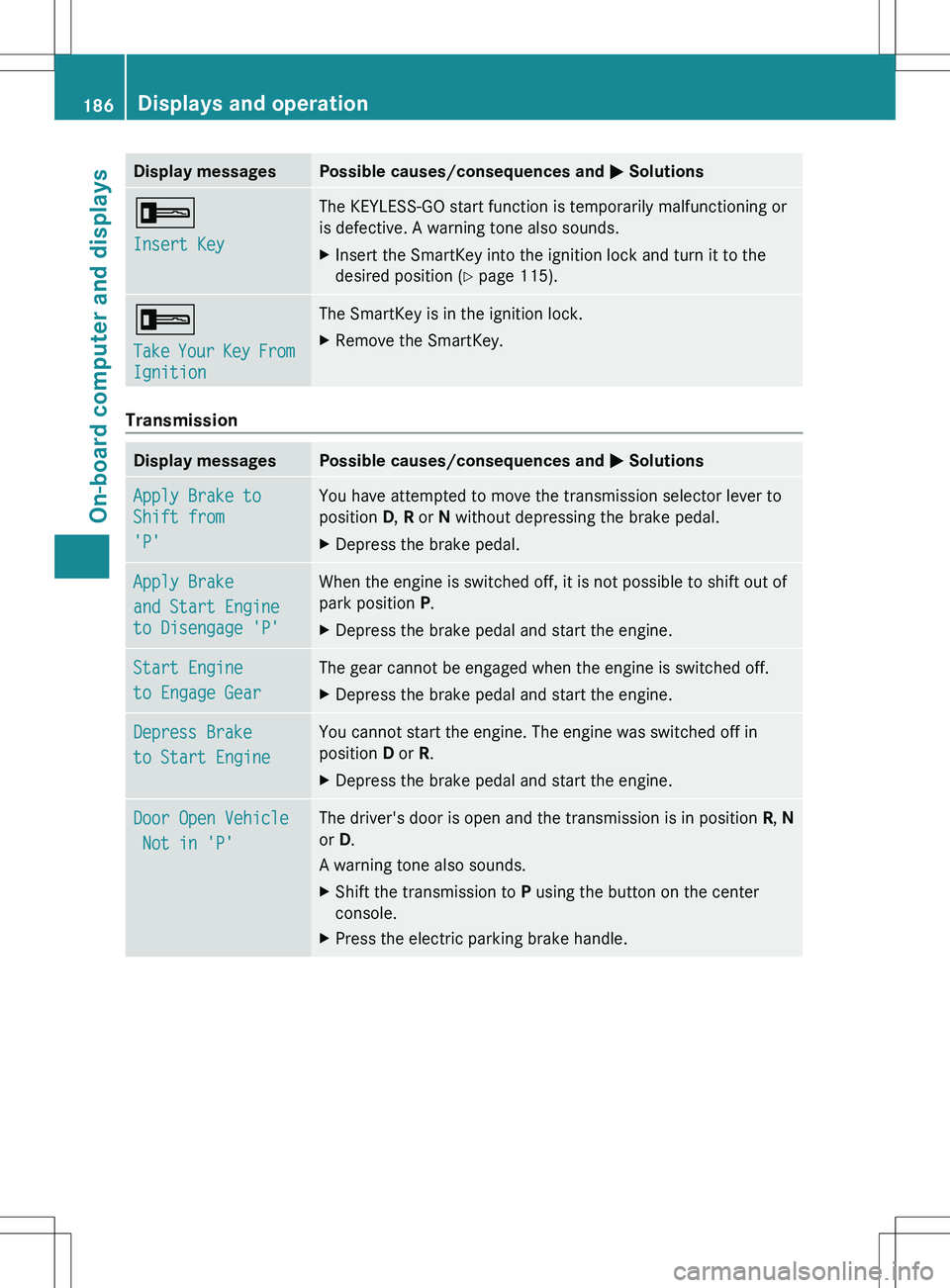

Display messagesPossible causes/consequences and M Solutions+
Insert KeyThe KEYLESS-GO start function is temporarily malfunctioning or
is defective. A warning tone also sounds.XInsert the SmartKey into the ignition lock and turn it to the
desired position ( Y page 115).+
Take Your Key From
IgnitionThe SmartKey is in the ignition lock.XRemove the SmartKey.
Transmission
Display messagesPossible causes/consequences and M SolutionsApply Brake to
Shift from
'P'You have attempted to move the transmission selector lever to
position D, R or N without depressing the brake pedal.XDepress the brake pedal.Apply Brake
and Start Engine
to Disengage 'P'When the engine is switched off, it is not possible to shift out of
park position P.XDepress the brake pedal and start the engine.Start Engine
to Engage GearThe gear cannot be engaged when the engine is switched off.XDepress the brake pedal and start the engine.Depress Brake
to Start EngineYou cannot start the engine. The engine was switched off in
position D or R.XDepress the brake pedal and start the engine.Door Open Vehicle
Not in 'P'The driver's door is open and the transmission is in position R, N
or D.
A warning tone also sounds.XShift the transmission to P using the button on the center
console.XPress the electric parking brake handle.186Displays and operationOn-board computer and displays
Page 189 of 288

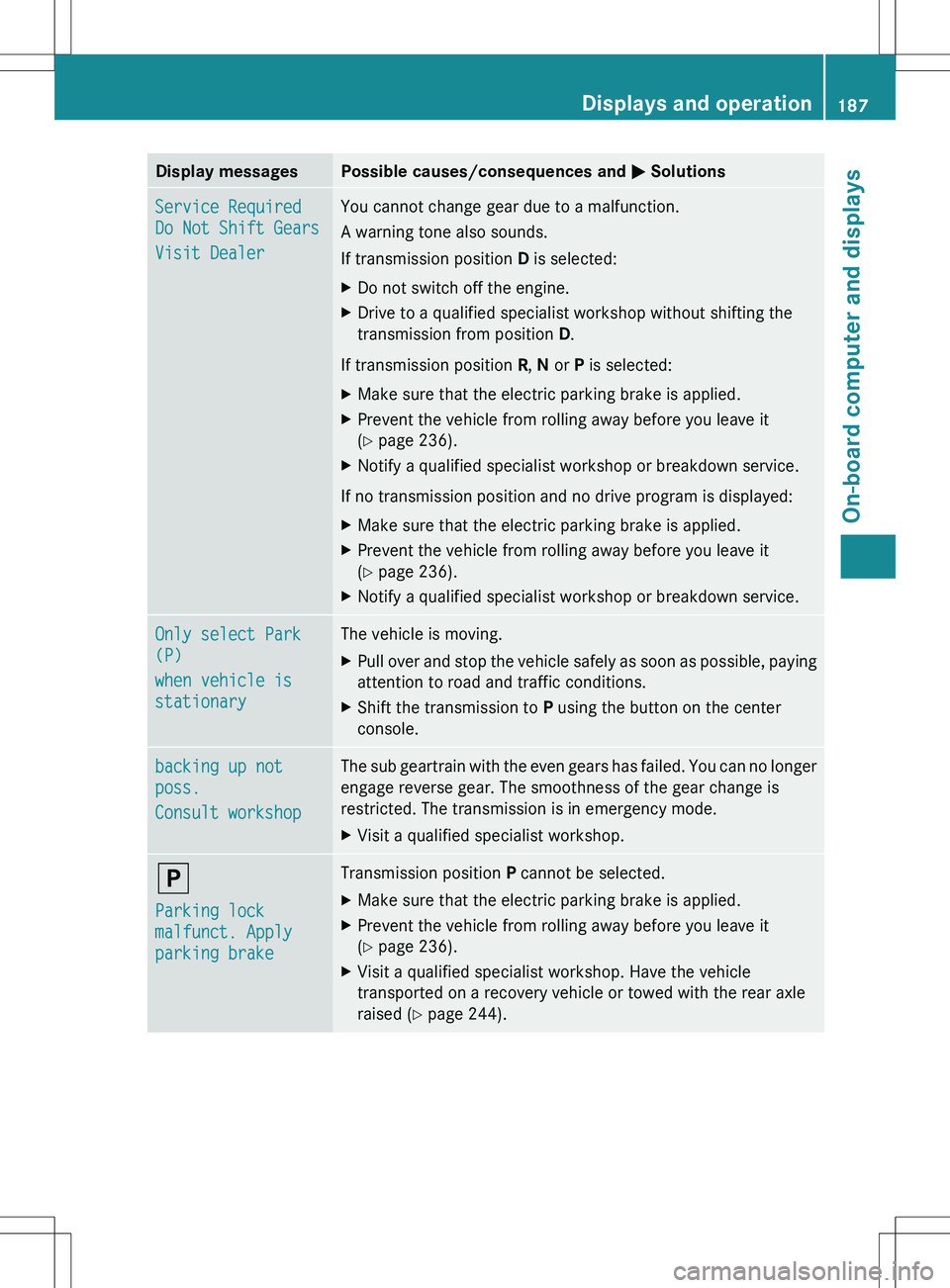

Display messagesPossible causes/consequences and M SolutionsService Required
Do Not Shift Gears
Visit DealerYou cannot change gear due to a malfunction.
A warning tone also sounds.
If transmission position D is selected:XDo not switch off the engine.XDrive to a qualified specialist workshop without shifting the
transmission from position D.
If transmission position R, N or P is selected:
XMake sure that the electric parking brake is applied.XPrevent the vehicle from rolling away before you leave it
( Y page 236).XNotify a qualified specialist workshop or breakdown service.
If no transmission position and no drive program is displayed:
XMake sure that the electric parking brake is applied.XPrevent the vehicle from rolling away before you leave it
( Y page 236).XNotify a qualified specialist workshop or breakdown service.Only select Park
(P)
when vehicle is
stationaryThe vehicle is moving.XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.XShift the transmission to P using the button on the center
console.backing up not
poss.
Consult workshopThe sub geartrain with the even gears has failed. You can no longer
engage reverse gear. The smoothness of the gear change is
restricted. The transmission is in emergency mode.XVisit a qualified specialist workshop.j
Parking lock
malfunct. Apply
parking brakeTransmission position P cannot be selected.XMake sure that the electric parking brake is applied.XPrevent the vehicle from rolling away before you leave it
( Y page 236).XVisit a qualified specialist workshop. Have the vehicle
transported on a recovery vehicle or towed with the rear axle
raised ( Y page 244).Displays and operation187On-board computer and displaysZ
Page 190 of 288

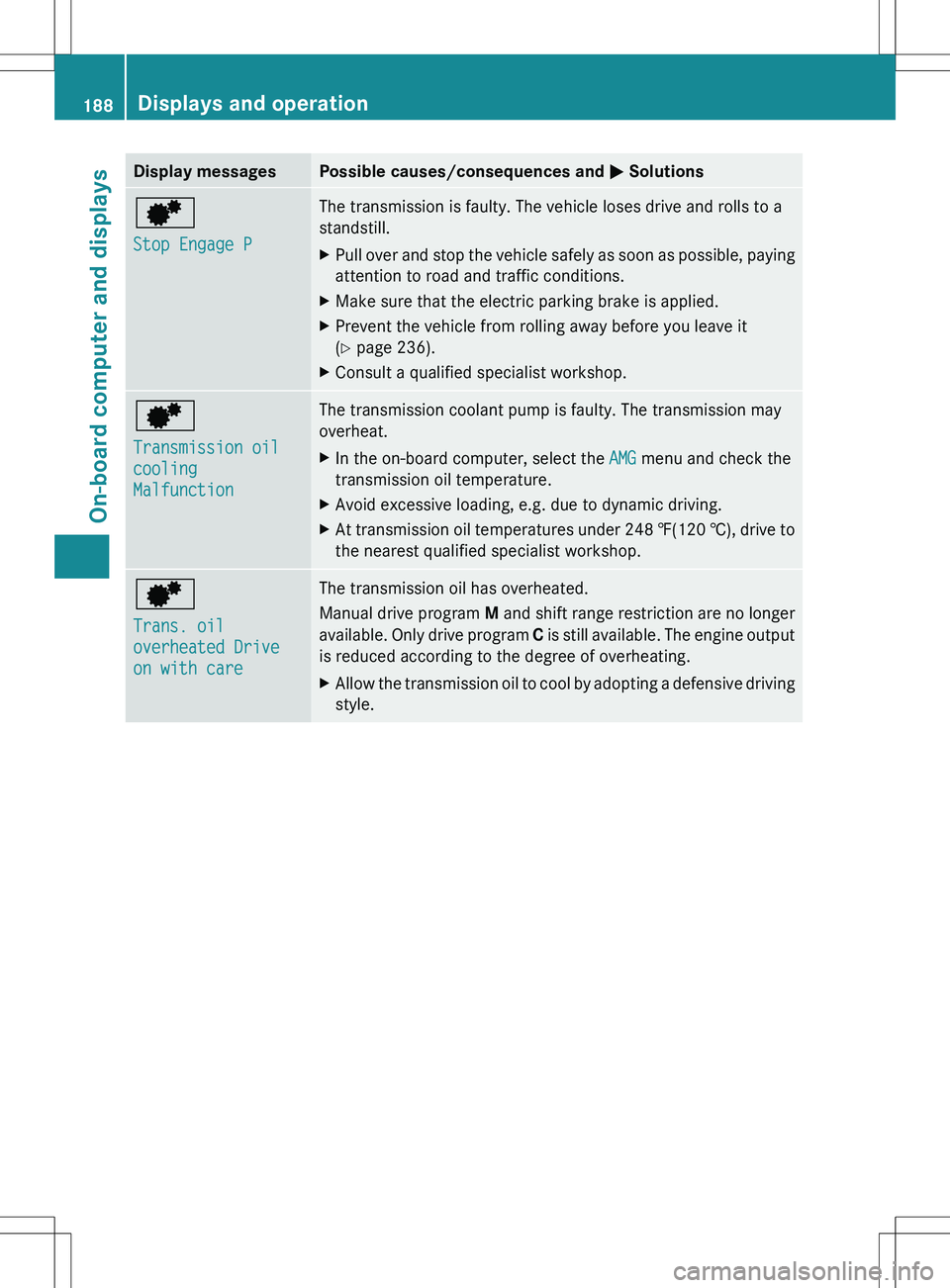

Display messagesPossible causes/consequences and M Solutionsd
Stop Engage PThe transmission is faulty. The vehicle loses drive and rolls to a
standstill.XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.XMake sure that the electric parking brake is applied.XPrevent the vehicle from rolling away before you leave it
( Y page 236).XConsult a qualified specialist workshop.d
Transmission oil
cooling
MalfunctionThe transmission coolant pump is faulty. The transmission may
overheat.XIn the on-board computer, select the AMG menu and check the
transmission oil temperature.XAvoid excessive loading, e.g. due to dynamic driving.XAt transmission oil temperatures under 248 ‡(120 †), drive to
the nearest qualified specialist workshop.d
Trans. oil
overheated Drive
on with careThe transmission oil has overheated.
Manual drive program M and shift range restriction are no longer
available. Only drive program C is still available. The engine output
is reduced according to the degree of overheating.XAllow the transmission oil to cool by adopting a defensive driving
style.188Displays and operationOn-board computer and displays
