MERCEDES-BENZ SPRINTER 2006 Service Manual

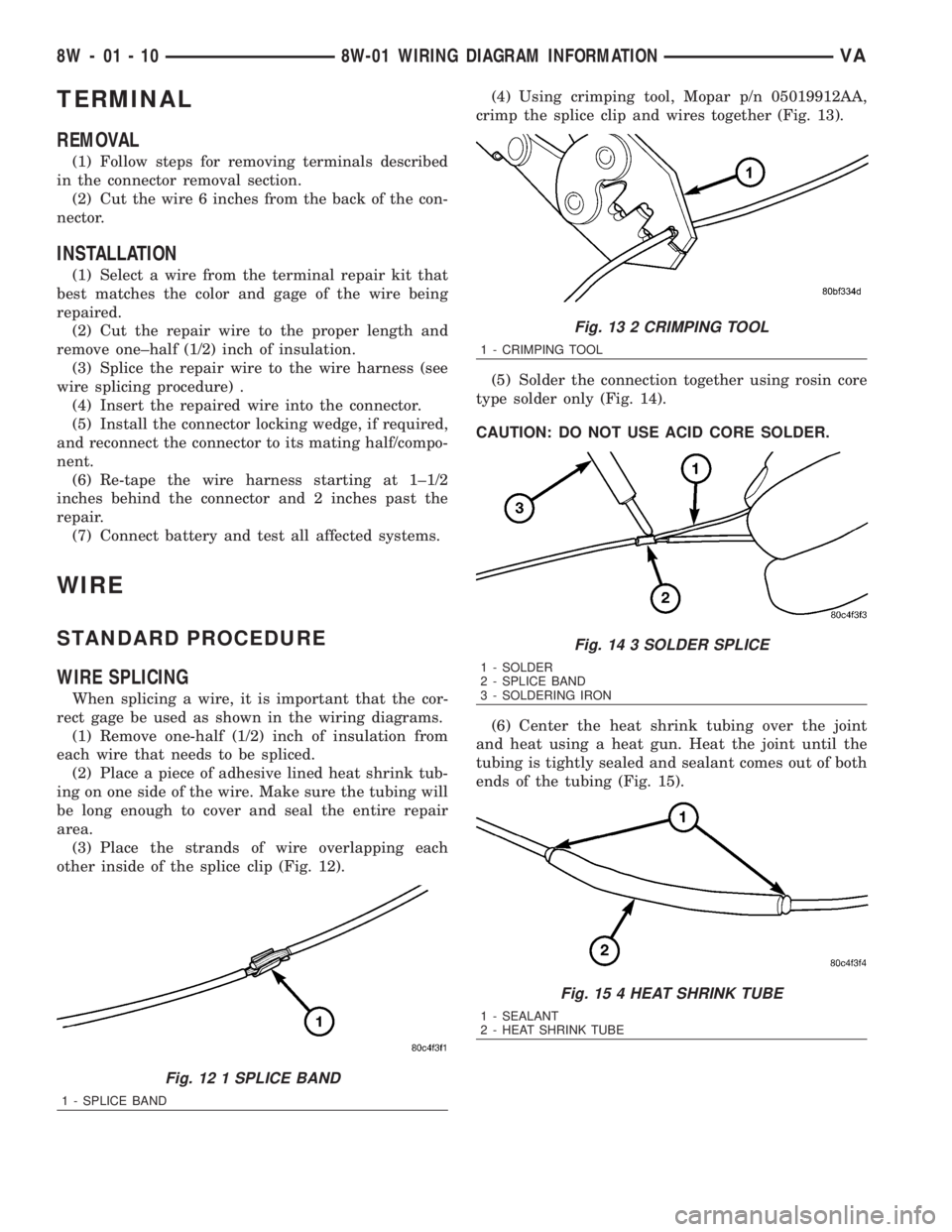

TERMINAL
REMOVAL
(1) Follow steps for removing terminals described
in the connector removal section.
(2) Cut the wire 6 inches from the back of the con-
nector.
INSTALLATION
(1) Select a wire from the terminal repair kit that
best matches the color and gage of the wire being
repaired.
(2) Cut the repair wire to the proper length and
remove one±half (1/2) inch of insulation.
(3) Splice the repair wire to the wire harness (see
wire splicing procedure) .
(4) Insert the repaired wire into the connector.
(5) Install the connector locking wedge, if required,
and reconnect the connector to its mating half/compo-
nent.
(6) Re-tape the wire harness starting at 1±1/2
inches behind the connector and 2 inches past the
repair.
(7) Connect battery and test all affected systems.
WIRE
STANDARD PROCEDURE
WIRE SPLICING
When splicing a wire, it is important that the cor-
rect gage be used as shown in the wiring diagrams.
(1) Remove one-half (1/2) inch of insulation from
each wire that needs to be spliced.
(2) Place a piece of adhesive lined heat shrink tub-
ing on one side of the wire. Make sure the tubing will
be long enough to cover and seal the entire repair
area.
(3) Place the strands of wire overlapping each
other inside of the splice clip (Fig. 12).(4) Using crimping tool, Mopar p/n 05019912AA,
crimp the splice clip and wires together (Fig. 13).
(5) Solder the connection together using rosin core
type solder only (Fig. 14).
CAUTION: DO NOT USE ACID CORE SOLDER.
(6) Center the heat shrink tubing over the joint
and heat using a heat gun. Heat the joint until the
tubing is tightly sealed and sealant comes out of both
ends of the tubing (Fig. 15).
Fig. 12 1 SPLICE BAND
1 - SPLICE BAND
Fig. 13 2 CRIMPING TOOL
1 - CRIMPING TOOL
Fig. 14 3 SOLDER SPLICE
1 - SOLDER
2 - SPLICE BAND
3 - SOLDERING IRON
Fig. 15 4 HEAT SHRINK TUBE
1 - SEALANT
2 - HEAT SHRINK TUBE
8W - 01 - 10 8W-01 WIRING DIAGRAM INFORMATIONVA

8W-02 COMPONENT INDEX
Component Page
A/C Auxiliary Fan..................... 8W-42
A/C Auxiliary Fan Relay................ 8W-42
A/C Compressor Clutch................. 8W-42
A/C Compressor Clutch Relay............ 8W-42
A/C Roof Auxiliary Fan................. 8W-42
A/C Roof Auxiliary Fan Relay............ 8W-42
Accelerator Pedal Position Sensor......... 8W-30
Additional Heat Exchanger.............. 8W-42
Additional Heat Exchanger Relay......... 8W-42
Additional Heat Exchanger Switch........ 8W-42
Air Outlet Temperature Sensor........... 8W-42
Airbag Control Module................. 8W-43
Airbag Squibs........................ 8W-43
Ambient Temperature Sensor............ 8W-42
Anti Icing Switch..................... 8W-42
Ash Receiver Lamp.................... 8W-44
Automatic Temperature Control Module.... 8W-42
Auxiliary Heater Control................ 8W-42
Battery............................. 8W-20
Battery Relay-Auxiliary................ 8W-20
Battery-Auxiliary..................... 8W-20
Beam Select Switch.................... 8W-50
Blower Motor Resistor Block............. 8W-42
Blower Motor-Front.................... 8W-42
Blower Stage I Diode................... 8W-42
Body Plug Connector................... 8W-11
Boost Pressure Sensor.................. 8W-30
Boost Pressure Servomotor.............. 8W-30
Boost Pressure Solenoid................ 8W-30
Brake Fluid Level Switch............... 8W-35
Brake Lamp Switch.................... 8W-35
Brake Lamp Switch 4 Pole.............. 8W-35
Brake Pressure Sensor................. 8W-35
Brake Wear Sensors................... 8W-35
CTEL Antenna Connector............... 8W-55
CTEL Connector...................... 8W-55
Cabin Heater Assembly................. 8W-42
Cabin Heater Module.................. 8W-42
Camshaft Position Sensor............... 8W-30
Center High Mounted Stop Lamp......... 8W-51
Central Timer Module.................. 8W-45
Cigar Lighter......................... 8W-41
Cigar Lighter Lamp................... 8W-44
Circulation Pump..................... 8W-42
Circulation Pump Diode................ 8W-42
Circulation Pump Relay-Cabin Heater
Module........................... 8W-42
Clockspring....................... 8W-41, 43
Controller Antilock Brake............... 8W-35
Courtesy Lamps...................... 8W-44
Crankcase Heater..................... 8W-30
Crankshaft Position Sensor.............. 8W-30Component Page
Cylinder Lock Switch-Driver............. 8W-61
D+ Relays........................ 8W-10, 11
Data Link Connector................... 8W-18
Daytime Running Lamp Relays........... 8W-50
Differential Lock Solenoid Valve.......... 8W-31
Dome Lamp.......................... 8W-44
Door Jamb Switch-Rear................. 8W-61
Door Jamb Switches................... 8W-44
Door Jamb Switches-Sliding............. 8W-61
Door Lock Motor/Ajar Switch Assemblies . . . 8W-61
Dosing Pump......................... 8W-42
EGR Valve........................... 8W-30
Electrohydraulic Control Unit............ 8W-31
Engine Control Module................. 8W-30
Engine Control Relay.................. 8W-31
Engine Coolant Level Switch............. 8W-30
Engine Coolant Temperature Sensor....... 8W-30
Engine Oil Sensor..................... 8W-30
Evaporator Temperature Sensor.......... 8W-42
Fan Stage 1 Relay..................... 8W-42
Fog Lamp Relay...................... 8W-50
Fog Lamp Switch..................... 8W-50
Fuel Injectors........................ 8W-30
Fuel Level Sensor..................... 8W-30
Fuel Pressure Sensor.................. 8W-30
Fuel Pressure Solenoid................. 8W-30
Fuel Pump........................... 8W-30
Fuel Pump Relay...................... 8W-30
Fuel Quantity Control Valve............. 8W-30
Fuel Shutdown Solenoid................ 8W-30
Fuel Temperature Sensor............... 8W-30
Fuse Blocks.................... 8W-10, 11, 30
Fuse/Relay Block...................... 8W-11
Fused Ignition Switch Run-Start Relay..... 8W-11
Fuses......................... 8W-10, 11, 42
Generator........................... 8W-20
Glow Plug Control Module.............. 8W-30
Glow Plugs.......................... 8W-30
Grounds............................ 8W-15
Hazard Warning Switch................ 8W-52
Headlamp Adjust Switch................ 8W-50
Headlamp Assemblies............... 8W-50, 52
Headlamp Switch..................... 8W-50
Heated Seat Modules.................. 8W-63
Heated Seat Switches.................. 8W-63
Heater Timer-Auxiliary................. 8W-42
High Idle Switch...................... 8W-30
High Pressure Switch.................. 8W-42
Hood Ajar Switch..................... 8W-39
Horn............................... 8W-41
Horn Relay.......................... 8W-41
Horn Switch......................... 8W-41
VA8W-02 COMPONENT INDEX 8W - 02 - 1

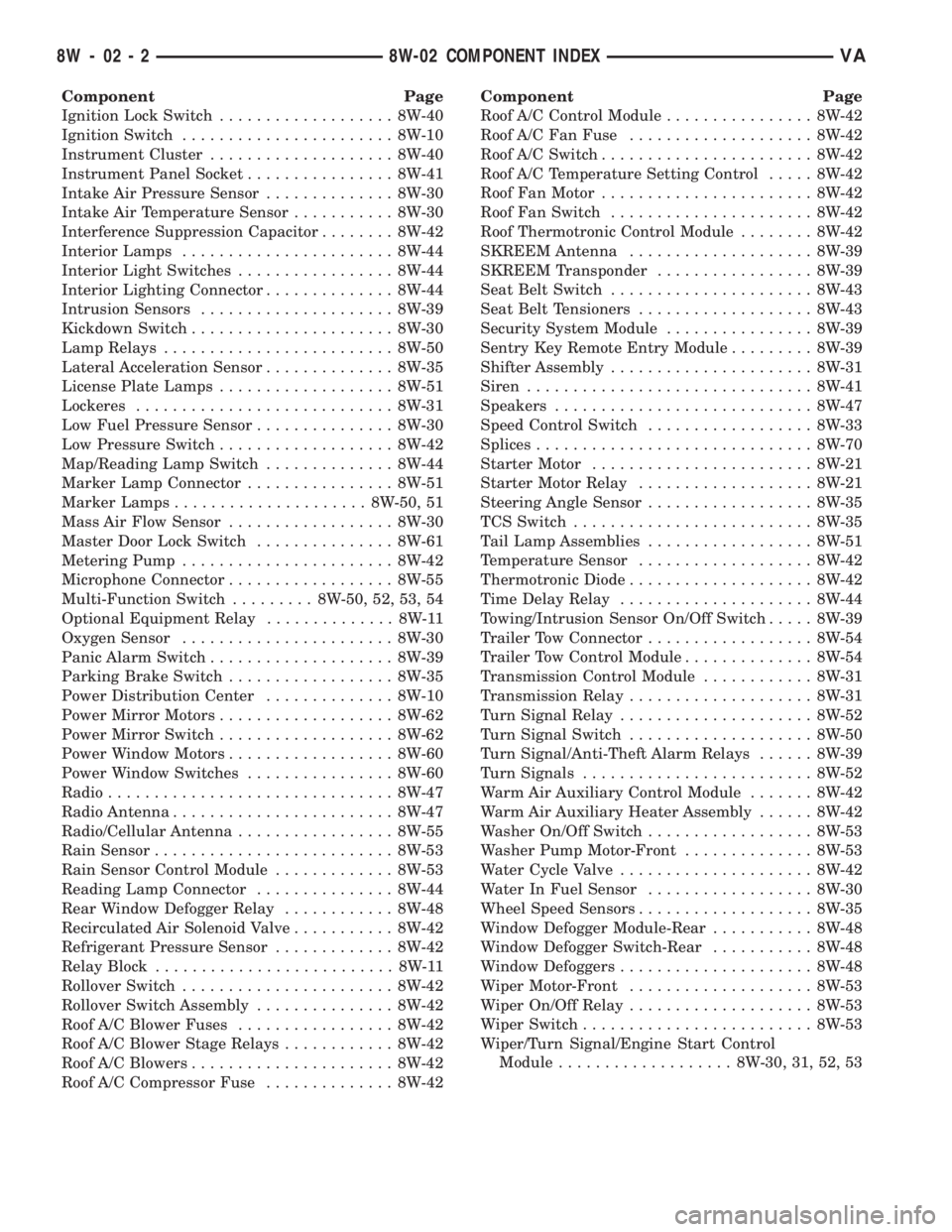

Component Page
Ignition Lock Switch................... 8W-40
Ignition Switch....................... 8W-10
Instrument Cluster.................... 8W-40
Instrument Panel Socket................ 8W-41
Intake Air Pressure Sensor.............. 8W-30
Intake Air Temperature Sensor........... 8W-30
Interference Suppression Capacitor........ 8W-42
Interior Lamps....................... 8W-44
Interior Light Switches................. 8W-44
Interior Lighting Connector.............. 8W-44
Intrusion Sensors..................... 8W-39
Kickdown Switch...................... 8W-30
Lamp Relays......................... 8W-50
Lateral Acceleration Sensor.............. 8W-35
License Plate Lamps................... 8W-51
Lockeres............................ 8W-31
Low Fuel Pressure Sensor............... 8W-30
Low Pressure Switch................... 8W-42
Map/Reading Lamp Switch.............. 8W-44
Marker Lamp Connector................ 8W-51
Marker Lamps..................... 8W-50, 51
Mass Air Flow Sensor.................. 8W-30
Master Door Lock Switch............... 8W-61
Metering Pump....................... 8W-42
Microphone Connector.................. 8W-55
Multi-Function Switch......... 8W-50, 52, 53, 54
Optional Equipment Relay.............. 8W-11
Oxygen Sensor....................... 8W-30
Panic Alarm Switch.................... 8W-39
Parking Brake Switch.................. 8W-35
Power Distribution Center.............. 8W-10
Power Mirror Motors................... 8W-62
Power Mirror Switch................... 8W-62
Power Window Motors.................. 8W-60
Power Window Switches................ 8W-60
Radio............................... 8W-47
Radio Antenna........................ 8W-47
Radio/Cellular Antenna................. 8W-55
Rain Sensor.......................... 8W-53
Rain Sensor Control Module............. 8W-53
Reading Lamp Connector............... 8W-44
Rear Window Defogger Relay............ 8W-48
Recirculated Air Solenoid Valve........... 8W-42
Refrigerant Pressure Sensor............. 8W-42
Relay Block.......................... 8W-11
Rollover Switch....................... 8W-42
Rollover Switch Assembly............... 8W-42
Roof A/C Blower Fuses................. 8W-42
Roof A/C Blower Stage Relays............ 8W-42
Roof A/C Blowers...................... 8W-42
Roof A/C Compressor Fuse.............. 8W-42Component Page
Roof A/C Control Module................ 8W-42
Roof A/C Fan Fuse.................... 8W-42
Roof A/C Switch....................... 8W-42
Roof A/C Temperature Setting Control..... 8W-42
Roof Fan Motor....................... 8W-42
Roof Fan Switch...................... 8W-42
Roof Thermotronic Control Module........ 8W-42
SKREEM Antenna.................... 8W-39
SKREEM Transponder................. 8W-39
Seat Belt Switch...................... 8W-43
Seat Belt Tensioners................... 8W-43
Security System Module................ 8W-39
Sentry Key Remote Entry Module......... 8W-39
Shifter Assembly...................... 8W-31
Siren............................... 8W-41
Speakers............................ 8W-47
Speed Control Switch.................. 8W-33
Splices.............................. 8W-70
Starter Motor........................ 8W-21
Starter Motor Relay................... 8W-21
Steering Angle Sensor.................. 8W-35
TCS Switch.......................... 8W-35
Tail Lamp Assemblies.................. 8W-51
Temperature Sensor................... 8W-42
Thermotronic Diode.................... 8W-42
Time Delay Relay..................... 8W-44
Towing/Intrusion Sensor On/Off Switch..... 8W-39
Trailer Tow Connector.................. 8W-54
Trailer Tow Control Module.............. 8W-54
Transmission Control Module............ 8W-31
Transmission Relay.................... 8W-31
Turn Signal Relay..................... 8W-52
Turn Signal Switch.................... 8W-50
Turn Signal/Anti-Theft Alarm Relays...... 8W-39
Turn Signals......................... 8W-52
Warm Air Auxiliary Control Module....... 8W-42
Warm Air Auxiliary Heater Assembly...... 8W-42
Washer On/Off Switch.................. 8W-53
Washer Pump Motor-Front.............. 8W-53
Water Cycle Valve..................... 8W-42
Water In Fuel Sensor.................. 8W-30
Wheel Speed Sensors................... 8W-35
Window Defogger Module-Rear........... 8W-48
Window Defogger Switch-Rear........... 8W-48
Window Defoggers..................... 8W-48
Wiper Motor-Front.................... 8W-53
Wiper On/Off Relay.................... 8W-53
Wiper Switch......................... 8W-53
Wiper/Turn Signal/Engine Start Control
Module................... 8W-30, 31, 52, 53
8W - 02 - 2 8W-02 COMPONENT INDEXVA

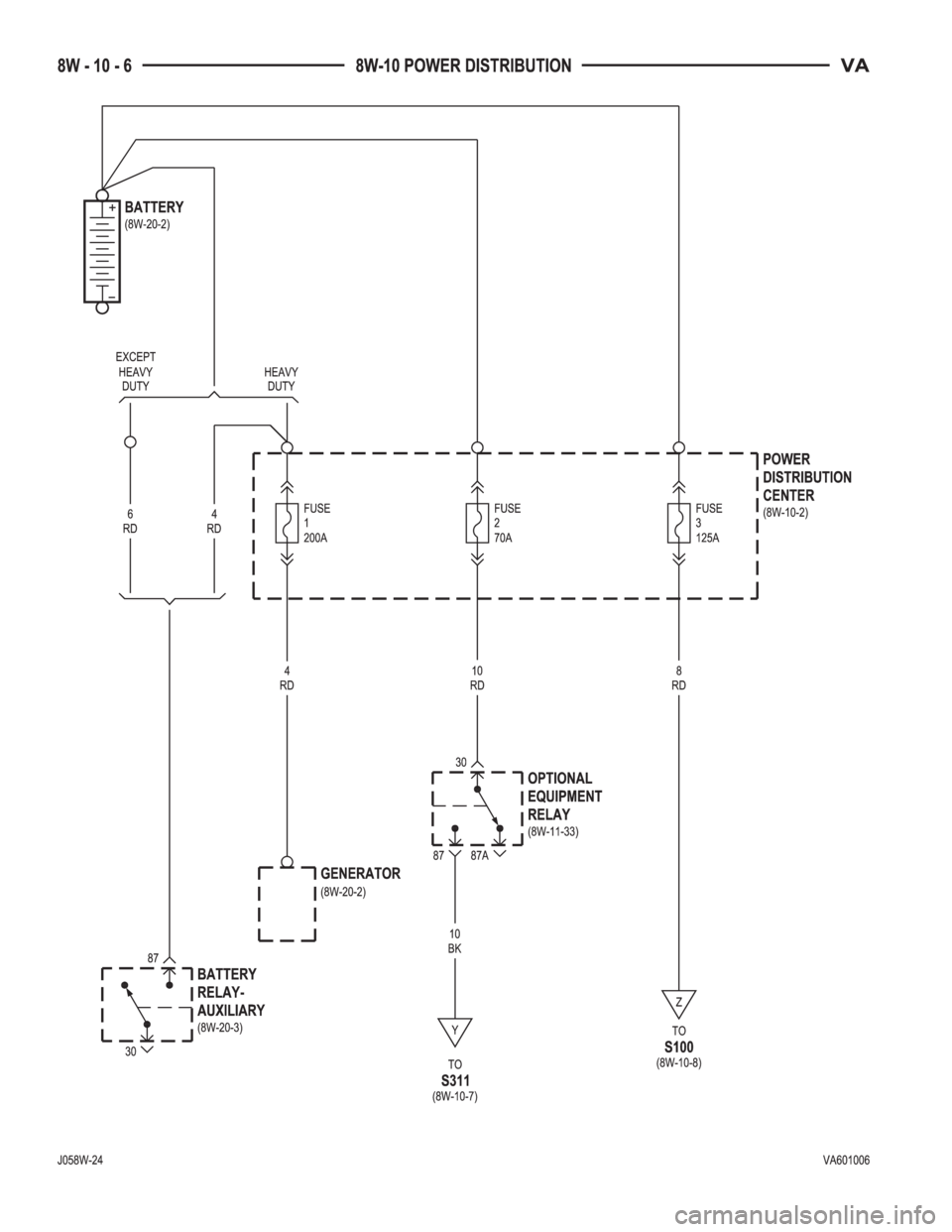

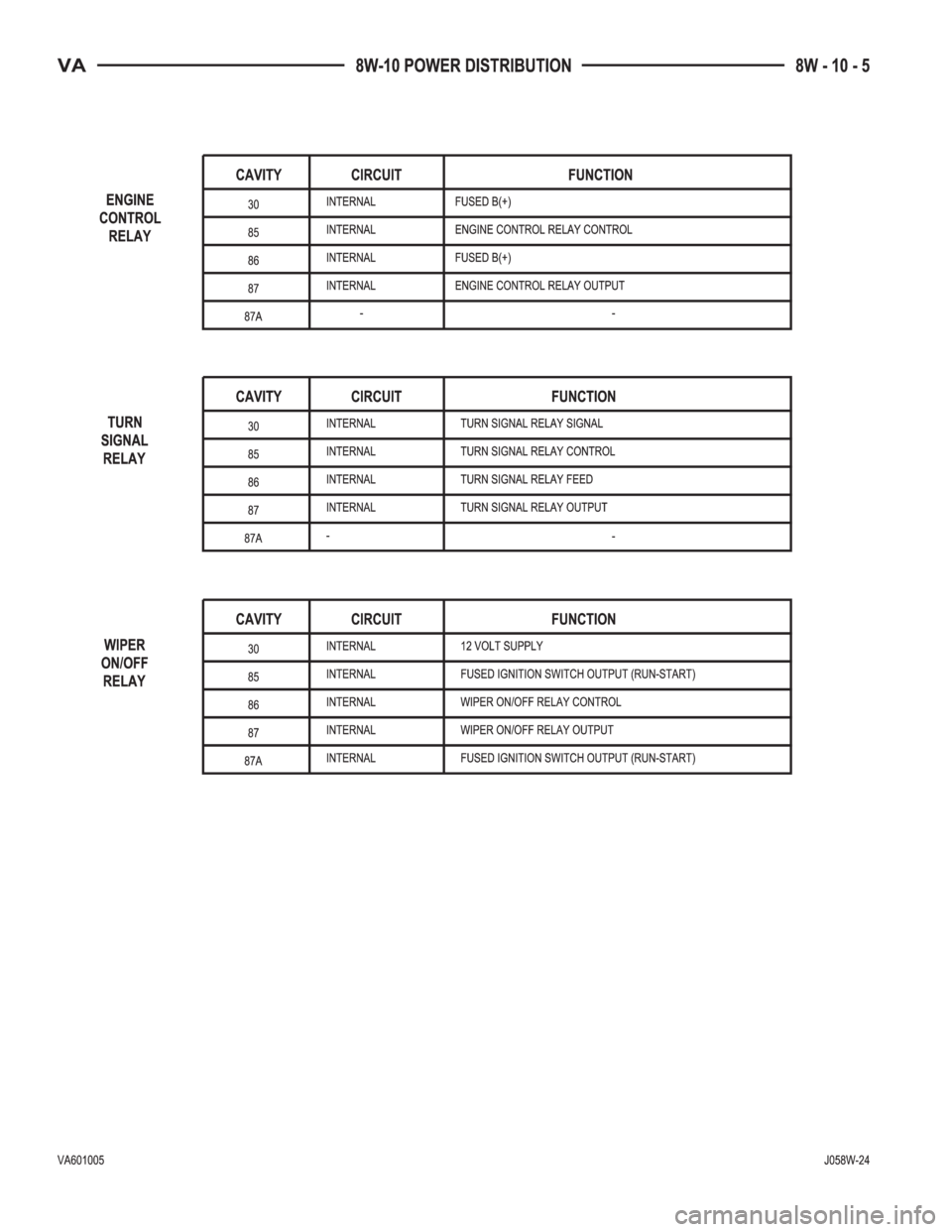

8W-10 POWER DISTRIBUTION
Component Page
A/C Compressor Clutch Relay............. 8W-10-11
A/C Roof Auxiliary Fan Relay............. 8W-10-11
Airbag Control Module................. 8W-10-19
Automatic Temperature Control Module..... 8W-10-30
Auxiliary Heater Control................ 8W-10-23
Battery........................... 8W-10-6, 11
Battery Relay-Auxiliary.................. 8W-10-6
Beam Select Switch.............. 8W-10-12, 18, 28
Blower Motor Resistor Block........... 8W-10-12, 30
Boost Pressure Servomotor............... 8W-10-29
Brake Lamp Switch.................... 8W-10-20
Brake Lamp Switch 4 Pole............... 8W-10-20
Central Timer Module.................. 8W-10-16
Cigar Lighter........................ 8W-10-23
Circulation Pump Diode................. 8W-10-30
Circulation Pump Relay-Cabin Heater
Module........................ 8W-10-22, 30
Courtesy Lamp-Driver Door.............. 8W-10-24
Courtesy Lamp-Left Sliding Door.......... 8W-10-24
Courtesy Lamp-Passenger Door........... 8W-10-24
Courtesy Lamp-Right Sliding Door......... 8W-10-24
Crankcase Heater..................... 8W-10-29
D+ Relay No. 1..................... 8W-10-9, 10
Data Link Connector................... 8W-10-20
Daytime Running Lamp Relay-Left Side . . . 8W-10-10, 27
Daytime Running Lamp Relay-Right Side . . 8W-10-10, 27
Daytime Running Lamps Relay........... 8W-10-25
Dome Lamp......................... 8W-10-24
EGR Valve.......................... 8W-10-29
Engine Control Module....... 8W-10-12, 15, 19, 29, 34
Engine Control Relay............. 8W-10-12, 29, 34
Fog Lamp Relay...................... 8W-10-28
Fuel Pump....................... 8W-10-12, 30
Fuel Pump Relay................... 8W-10-12, 30

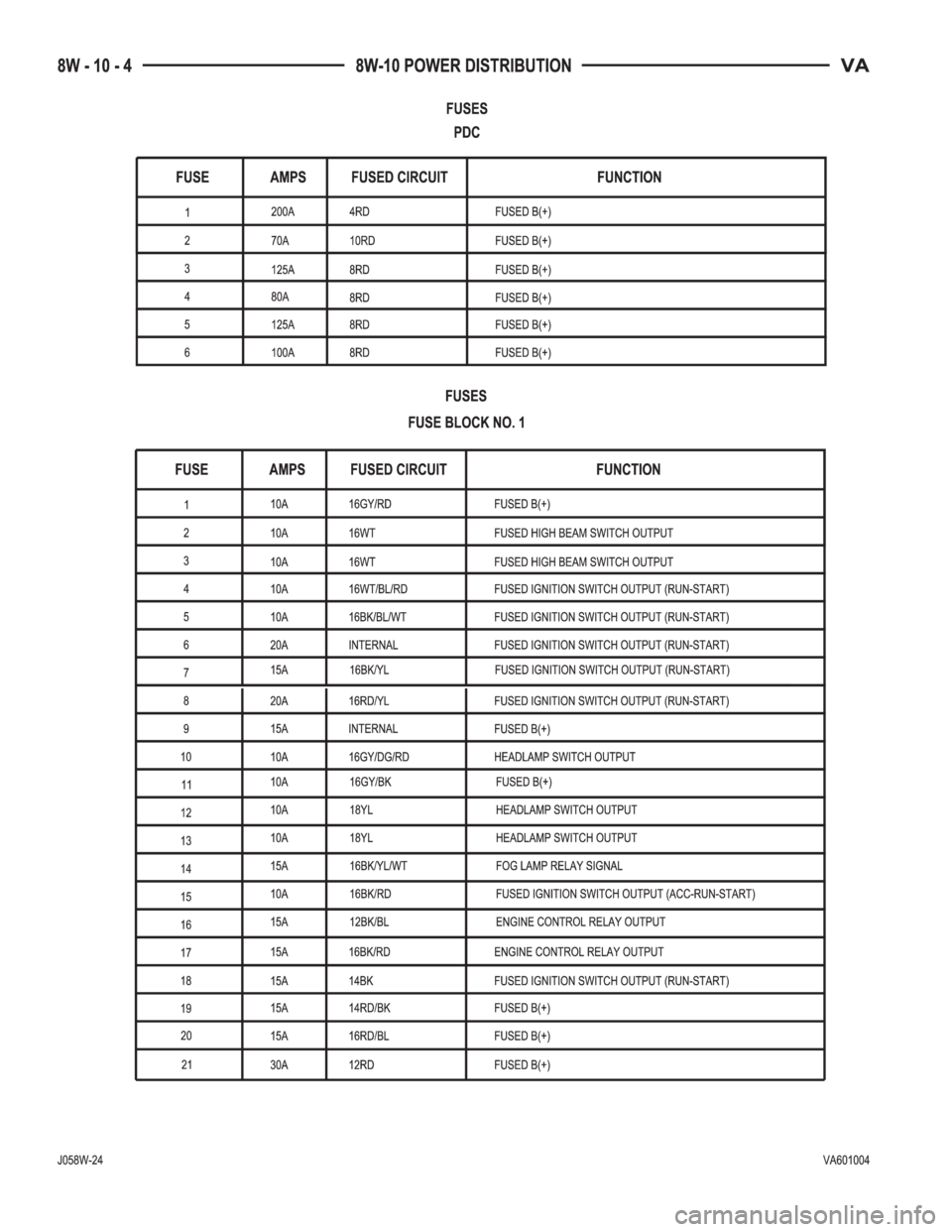

Fuse 1.................. 8W-10-6, 8, 9, 17, 18, 25
Fuse 2....................... 8W-10-6, 8, 11, 18
Fuse 3........................ 8W-10-6, 8, 9, 18
Fuse 4.............. 8W-10-8, 11, 13, 14, 17, 19, 26
Fuse 5.................... 8W-10-8, 9, 11, 14, 20
Fuse 6.................. 8W-10-7, 8, 11, 14, 21, 33
Fuse 7....................... 8W-10-7, 8, 14, 22
Fuse 8....................... 8W-10-7, 9, 12, 23
Fuse 9.................... 8W-10-8, 9, 10, 12, 21
Fuse 10..................... 8W-10-9, 10, 11, 25
Fuse 11........................ 8W-10-9, 10, 26
Fuse 12.......................... 8W-10-7, 27
Fuse 13.......................... 8W-10-7, 27
Fuse 14.......................... 8W-10-7, 28
Fuse 15........................ 8W-10-7, 13, 16
Fuse 16......................... 8W-10-12, 29
Fuse 17......................... 8W-10-12, 29
Fuse 18........................ 8W-10-9, 14, 19
Fuse 19......................... 8W-10-12, 30
Fuse 20........................ 8W-10-7, 12, 30
Fuse 21....................... 8W-10-12, 13, 30
Component Page

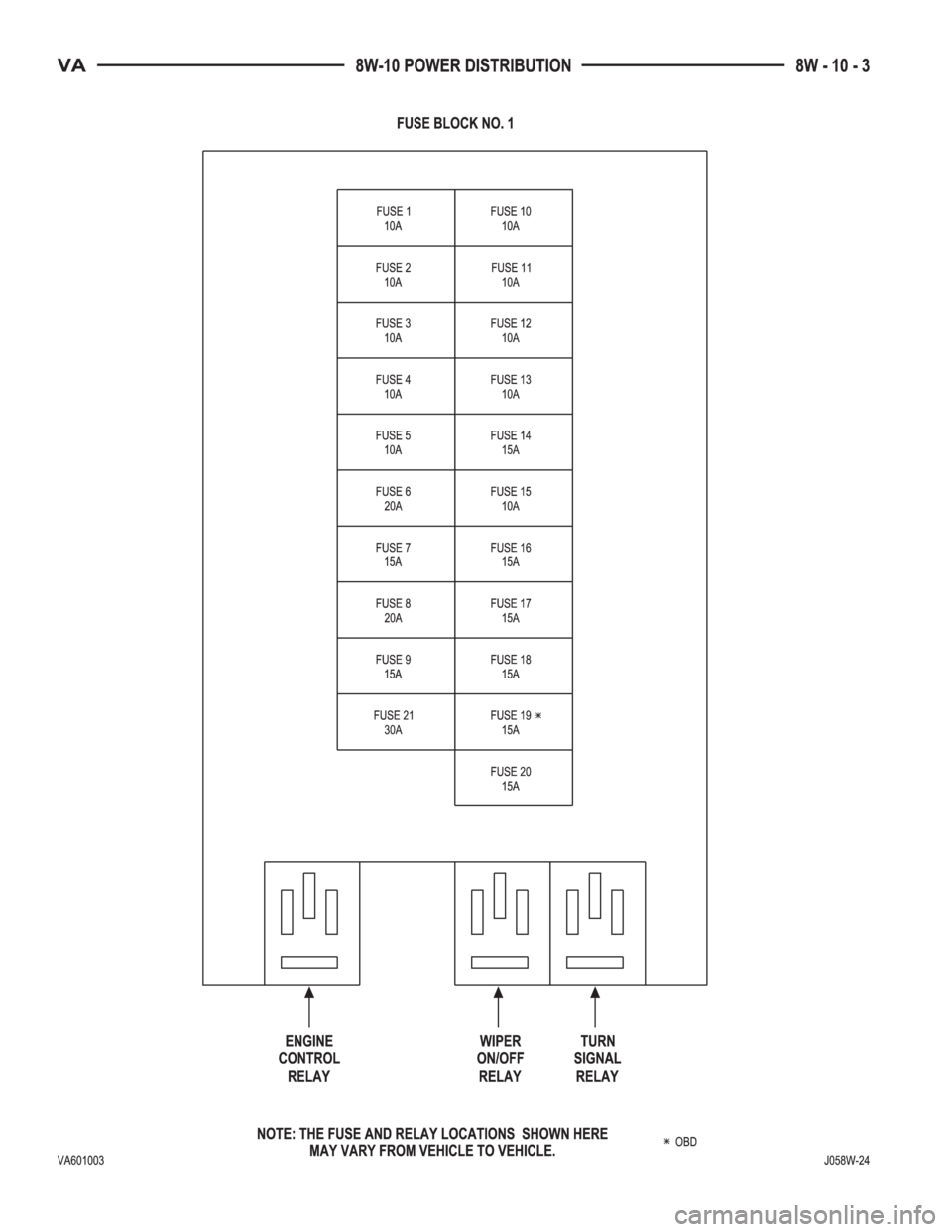

Fuse Block No. 1 . 8W-10-3, 11, 12, 13, 14, 15, 18, 19, 20,
21, 22, 23, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34
Fuse Block No. 2.............. 8W-10-10, 17, 25, 26
Fused Ignition Switch Run-Start Relay...... 8W-10-19
G200........................... 8W-10-31, 32
G202........................... 8W-10-10, 19
Generator........................... 8W-10-6
Glow Plug Control Module............... 8W-10-11
Hazard Warning Switch...... 8W-10-13, 14, 21, 31, 32
Headlamp Assembly-Left........ 8W-10-18, 26, 27, 28
Headlamp Assembly-Right....... 8W-10-17, 18, 27, 28
Headlamp Switch........... 8W-10-12, 18, 25, 26, 27
Horn.............................. 8W-10-22
Horn Relay......................... 8W-10-22
Ignition Switch.................. 8W-10-12, 13, 14
Instrument Cluster............... 8W-10-10, 18, 19
Interior Lamp-Left.................... 8W-10-24
Interior Lamp-Middle Front.............. 8W-10-24
Interior Lamp-Middle Rear.............. 8W-10-24
Interior Lamp-Rear No. 1................ 8W-10-24
Interior Lamp-Rear No. 2................ 8W-10-24
Interior Lamp-Right................... 8W-10-24
Lamp Relay-Left...................... 8W-10-26
Lamp Relay-Right..................... 8W-10-17
Mass Air Flow Sensor.................. 8W-10-22
Multi-Function Switch . . 8W-10-12, 13, 14, 18, 21, 25, 26,
27, 28, 31, 32, 33, 34

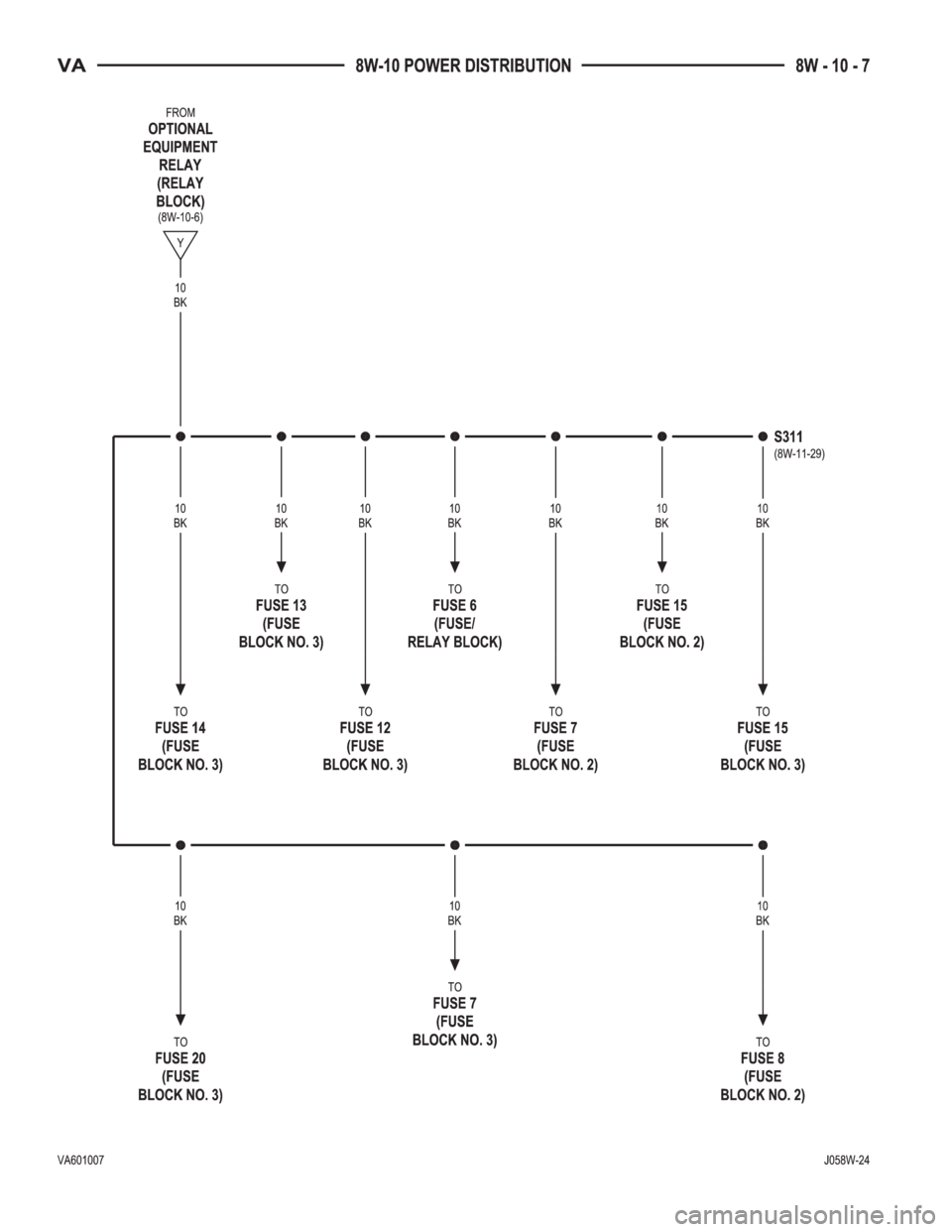

Optional Equipment Relay........... 8W-10-6, 7, 22
Oxygen Sensor....................... 8W-10-29

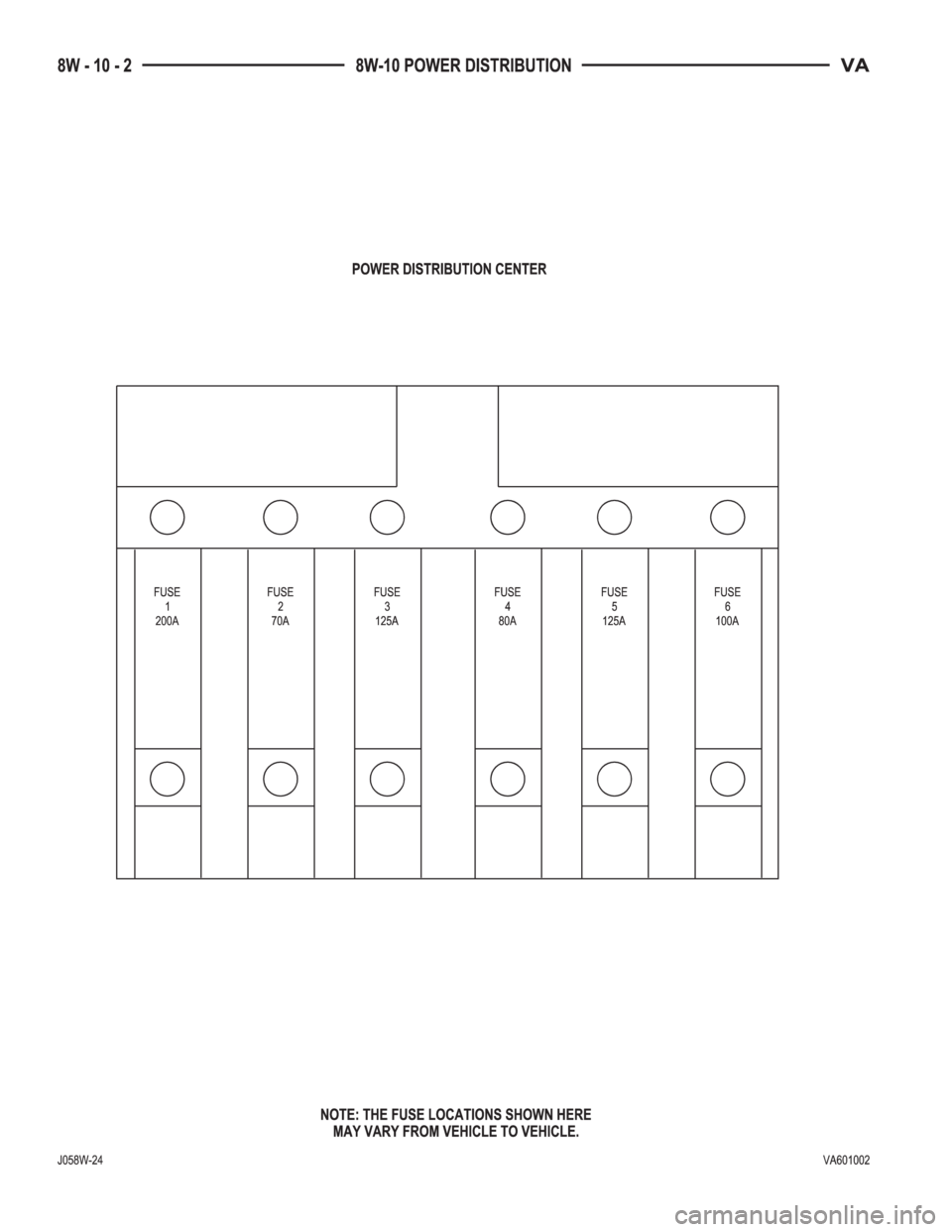

Power Distribution Center........... 8W-10-2, 6, 11
Radio........................... 8W-10-16, 23
Radio/Cellular Antenna................. 8W-10-16
Rain Sensor Control Module.............. 8W-10-33
Sentry Key Remote Entry Module.......... 8W-10-22
Shifter Assembly................... 8W-10-14, 19
Starter Motor..................... 8W-10-11, 15
Starter Motor Relay................... 8W-10-15
Tail Lamp Assembly-Left................ 8W-10-26
Tail Lamp Assembly-Right............... 8W-10-17
Trailer Tow Connector.................. 8W-10-17
Transmission Relay.................... 8W-10-22
Turn Signal Relay..................... 8W-10-31
Turn Signal Switch............... 8W-10-13, 26, 31
Turn Signal/Anti-Theft Alarm Relay-Left..... 8W-10-23
Turn Signal/Anti-Theft Alarm Relay-Right.... 8W-10-23
Washer On/Off Switch............... 8W-10-21, 34
Washer Pump Motor-Front............... 8W-10-34
Window Defogger Switch-Rear............ 8W-10-22
Wiper Motor-Front.................... 8W-10-33
Wiper On/Off Relay................. 8W-10-21, 33
Wiper Switch................... 8W-10-21, 32, 33
Wiper/Turn Signal/Engine Start Control
Module............. 8W-10-14, 21, 31, 32, 33, 34
VA8W-10 POWER DISTRIBUTION 8W - 10 - 1
