8W-30 FUEL/IGNITION SYSTEM
Component Page
Accelerator Pedal Position Sensor.... 8W-30-10, 21
Airbag Control Module................ 8W-30-9
Boost Pressure Sensor............. 8W-30-9, 25
Boost Pressure Servomotor............ 8W-30-24
Boost Pressure Solenoid.............. 8W-30-14

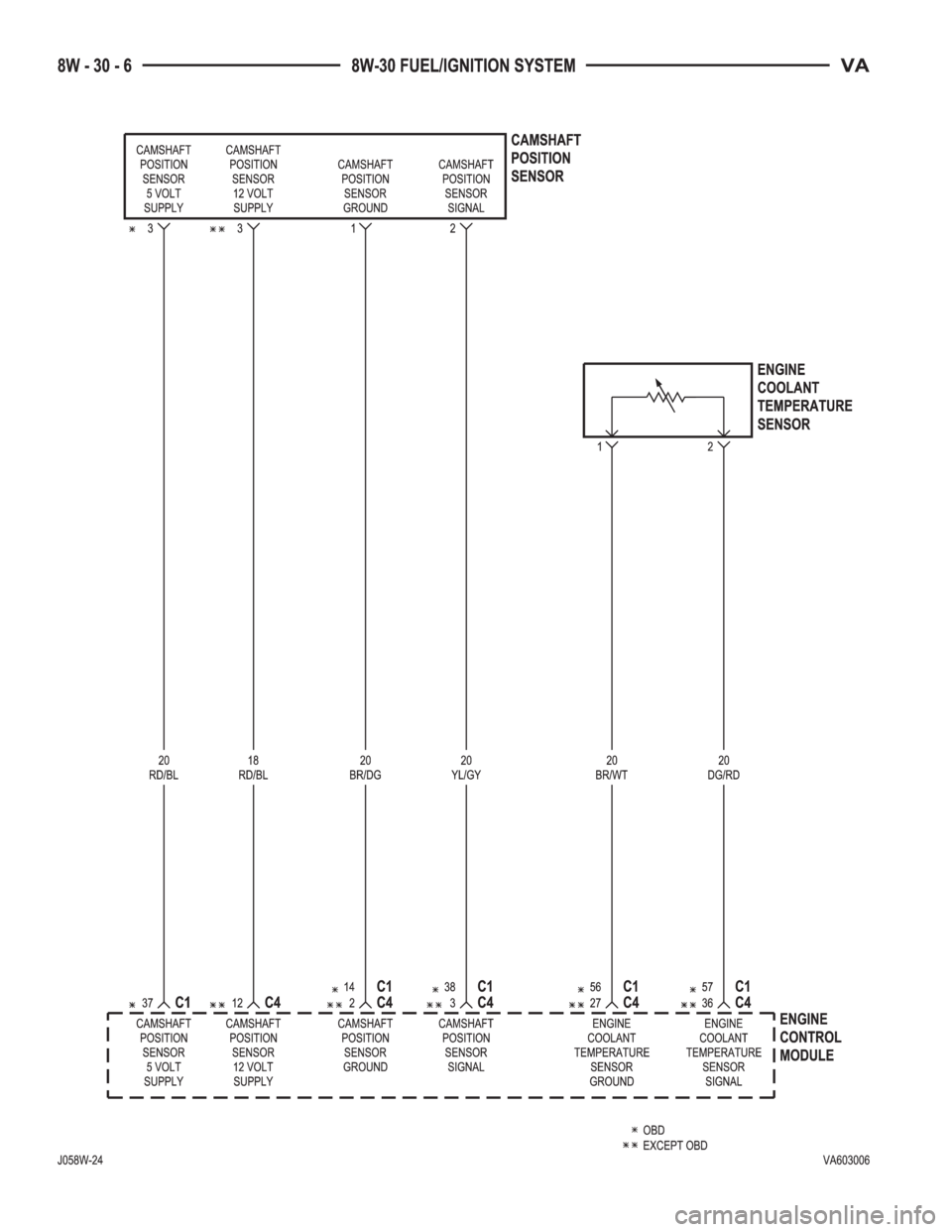

Camshaft Position Sensor.............. 8W-30-6
Central Timer Module................ 8W-30-9
Crankcase Heater................ 8W-30-17, 24

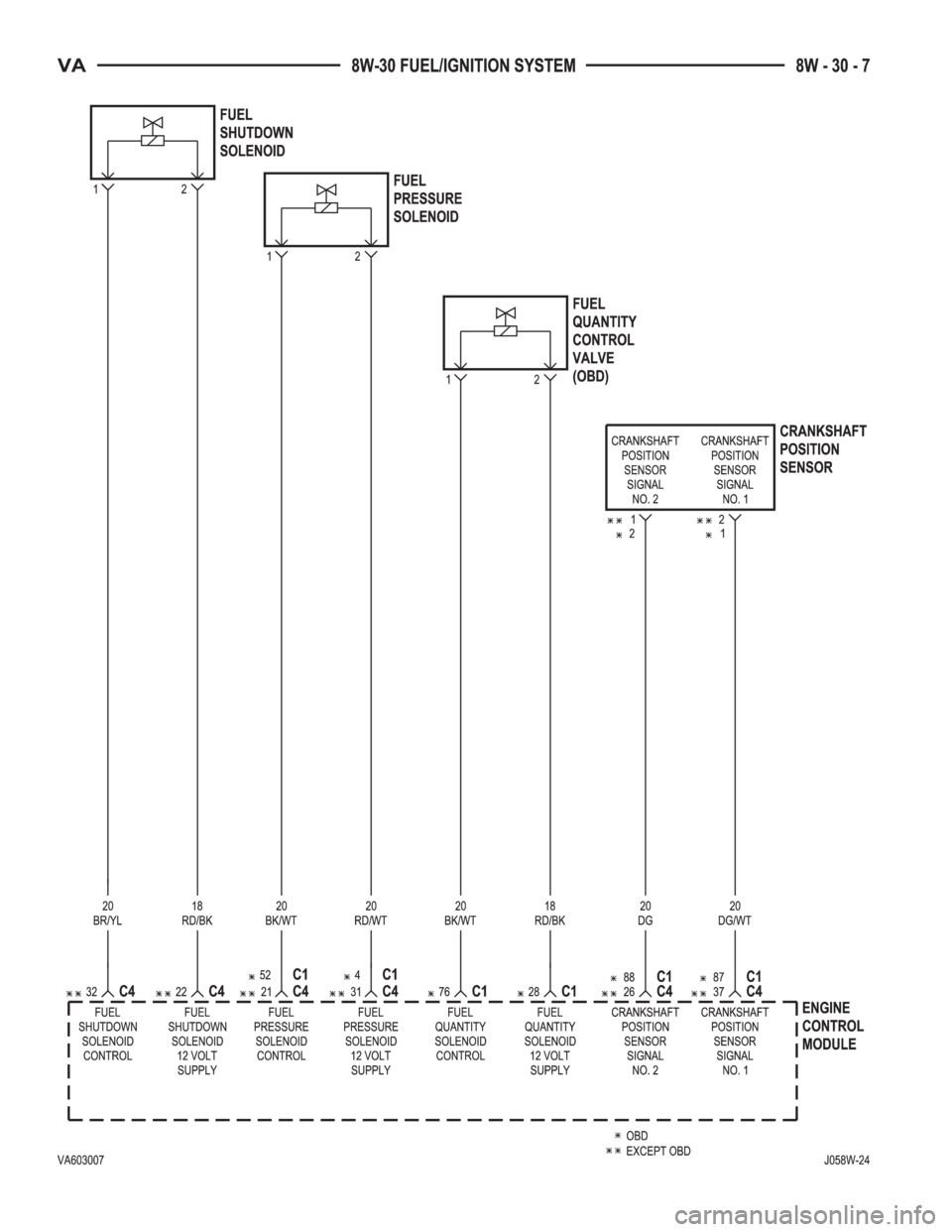

Crankshaft Position Sensor............ 8W-30-7

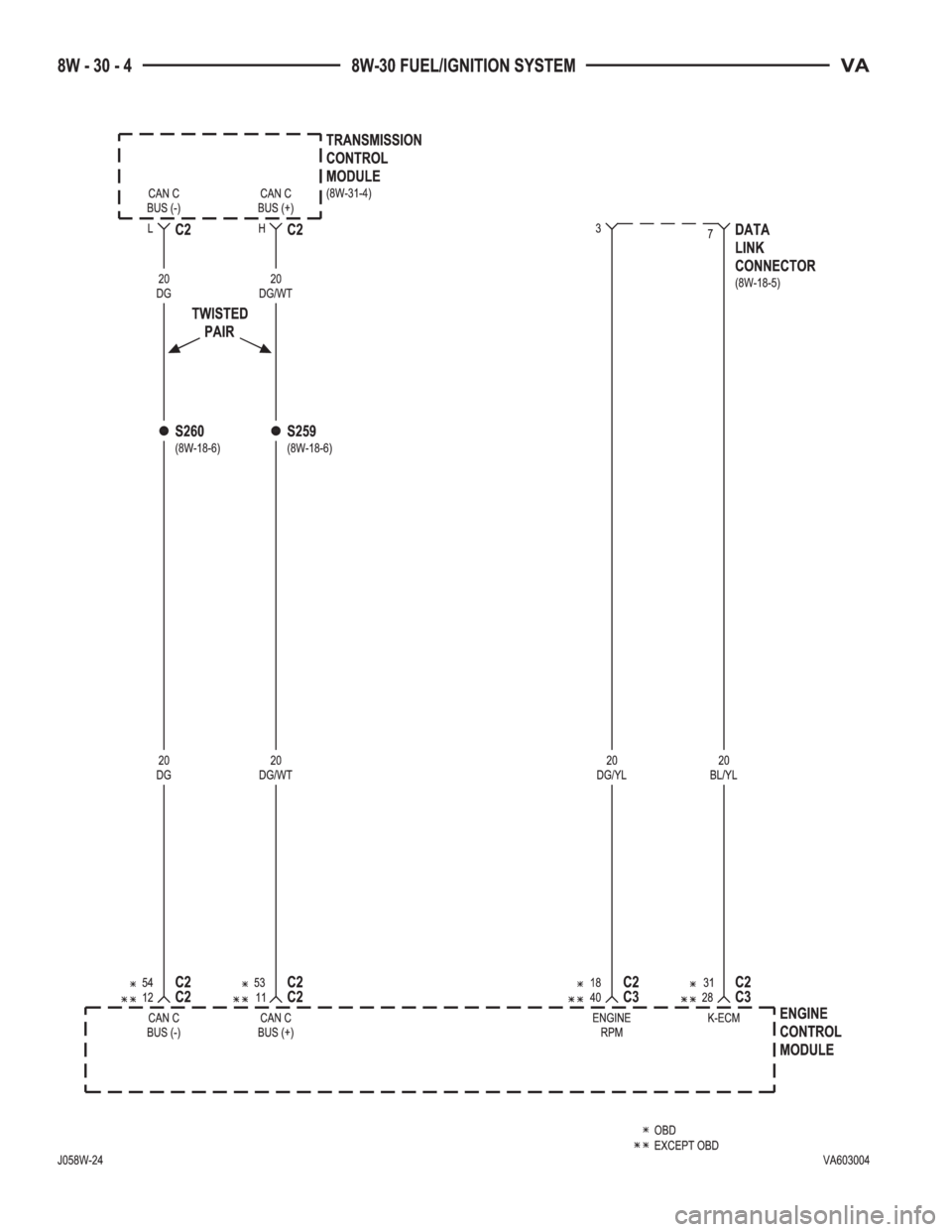

Data Link Connector................. 8W-30-4

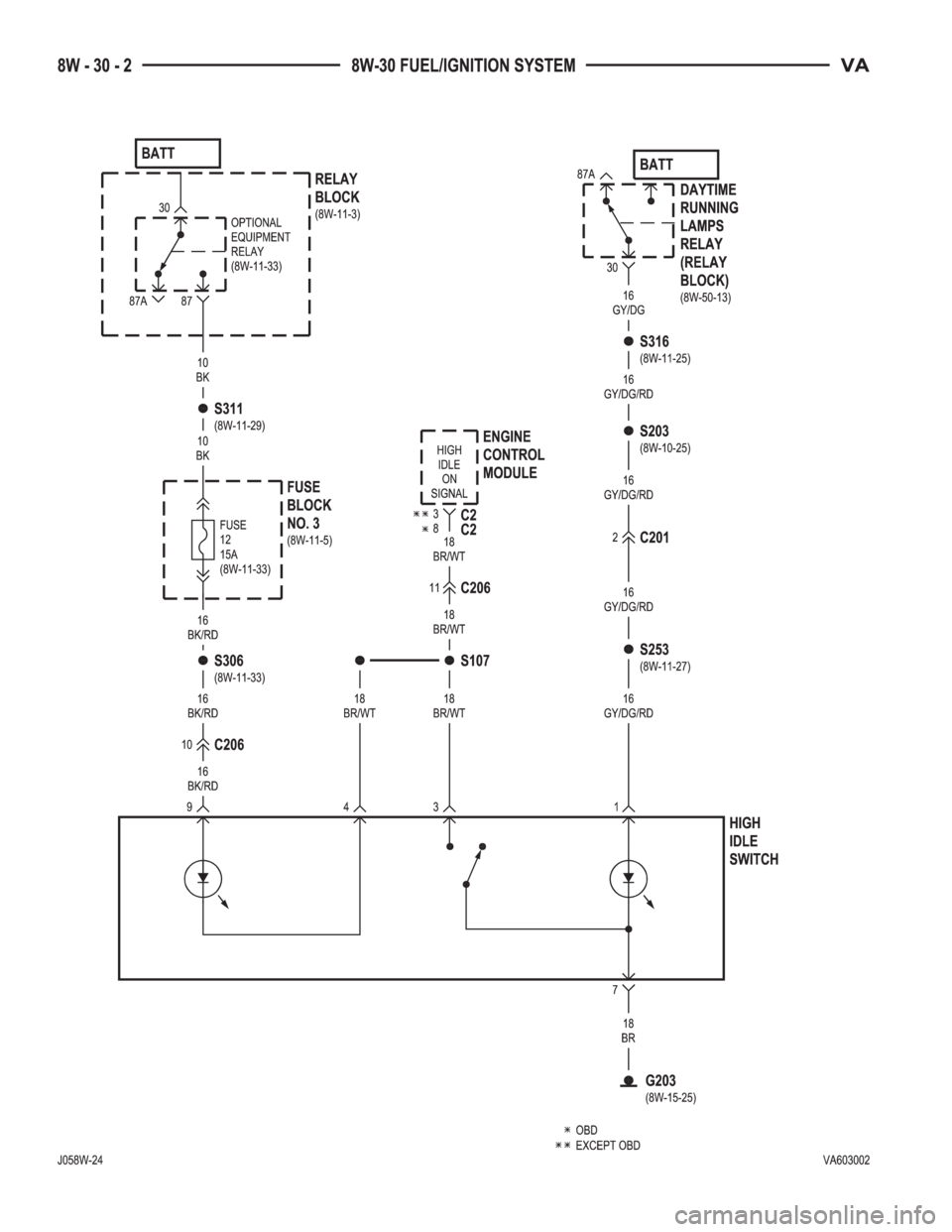

Daytime Running Lamps Relay......... 8W-30-2
EGR Valve..................... 8W-30-17, 24
Engine Control Module . . . 8W-30-2, 4, 5, 6, 7, 8, 9,
10, 11, 12, 13, 14, 15, 16, 17,
18, 19, 20, 21, 22, 23, 24, 25
Engine Control Relay........... 8W-30-8, 17, 24

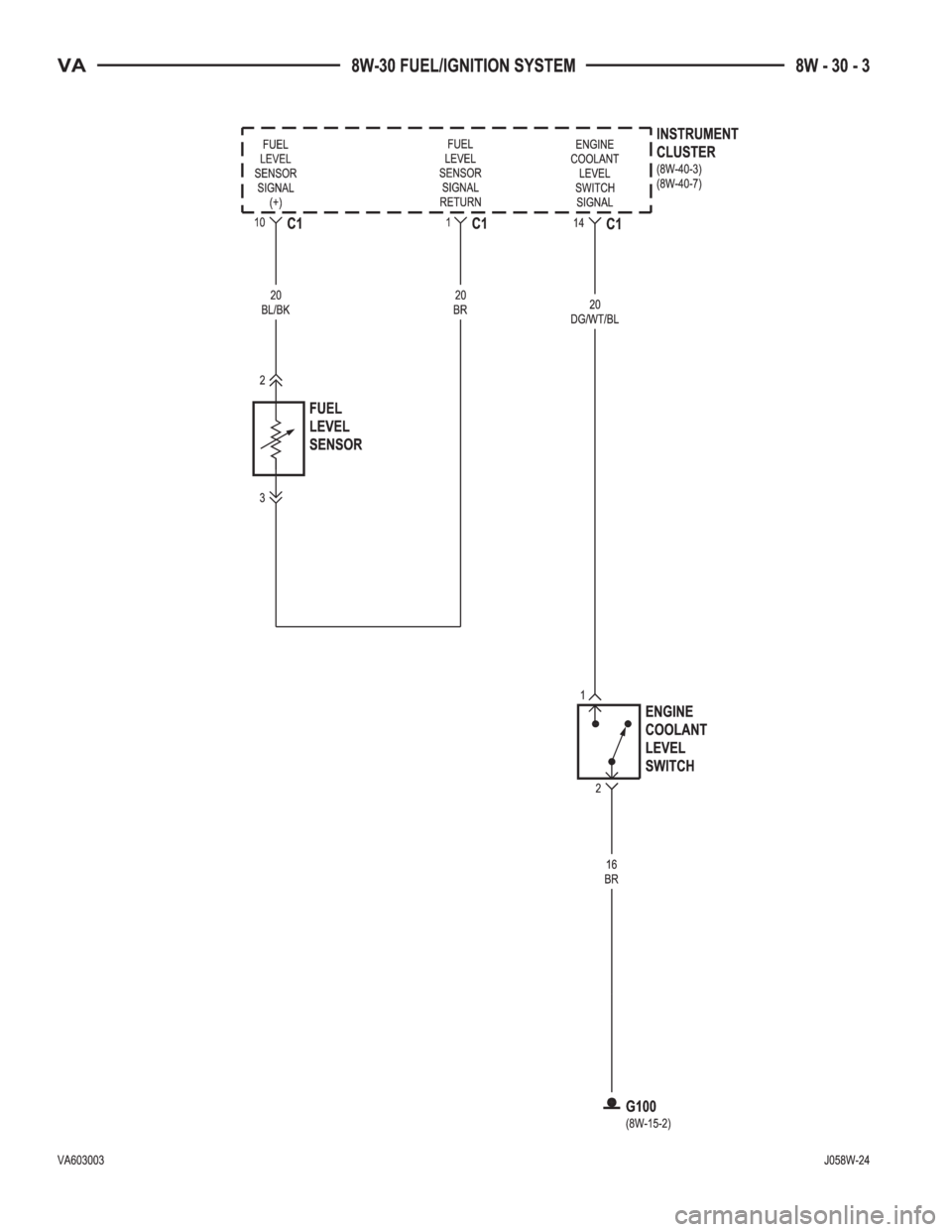

Engine Coolant Level Switch........... 8W-30-3
Engine Coolant Temperature Sensor..... 8W-30-6
Engine Oil Sensor................... 8W-30-17
Fuel Injector No. 1............... 8W-30-15, 22
Fuel Injector No. 2............... 8W-30-16, 23
Fuel Injector No. 3............... 8W-30-15, 22
Fuel Injector No. 4............... 8W-30-15, 22
Fuel Injector No. 5............... 8W-30-16, 23
Fuel Level Sensor.................... 8W-30-3

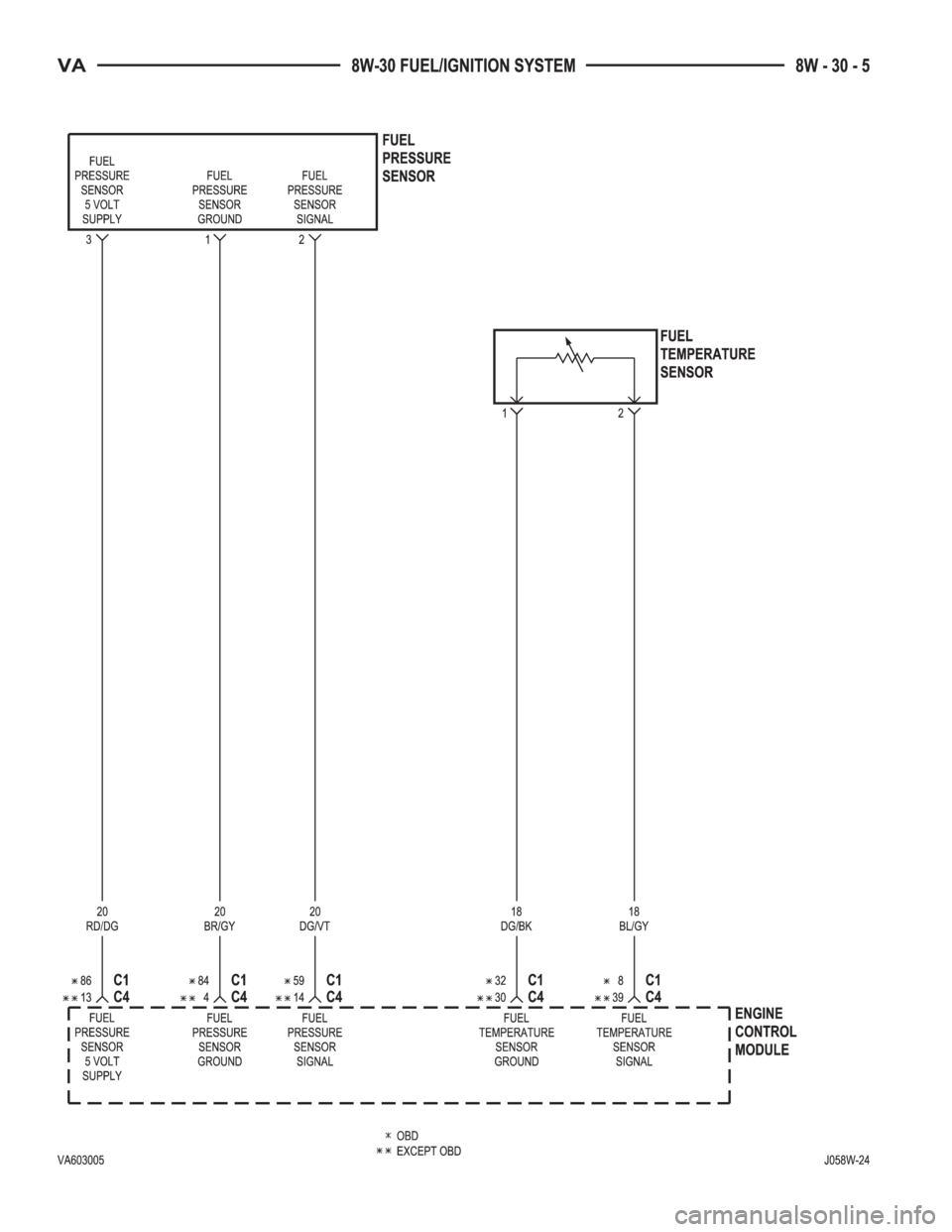

Fuel Pressure Sensor................. 8W-30-5
Fuel Pressure Solenoid................ 8W-30-7
Fuel Pump........................ 8W-30-18
Fuel Pump Relay................... 8W-30-18
Fuel Quantity Control Valve........... 8W-30-7
Fuel Shutdown Solenoid............... 8W-30-7
Fuel Temperature Sensor.............. 8W-30-5
Fuse 5......................... 8W-30-13, 19
Fuse 7............................ 8W-30-20
Fuse 12............................ 8W-30-2Component Page
Fuse 16............................ 8W-30-8
Fuse 17........................ 8W-30-17, 24
Fuse 18............................ 8W-30-9
Fuse 19........................... 8W-30-18
Fuse Block No. 1....... 8W-30-8, 9, 17, 18, 20, 24
Fuse Block No. 3.................... 8W-30-2
G100........................ 8W-30-3, 13, 19
G103............................. 8W-30-17
G200........................... 8W-30-8, 12
G202............................. 8W-30-18
G203.............................. 8W-30-2
Glow Plug Control Module......... 8W-30-13, 19
Glow Plug No. 1................. 8W-30-13, 19
Glow Plug No. 2................. 8W-30-13, 19
Glow Plug No. 3................. 8W-30-13, 19
Glow Plug No. 4................. 8W-30-13, 19
Glow Plug No. 5................. 8W-30-13, 19
High Idle Switch.................... 8W-30-2
Instrument Cluster................... 8W-30-3
Intake Air Pressure Sensor............ 8W-30-20
Intake Air Temperature Sensor...... 8W-30-10, 21
Kickdown Switch................... 8W-30-12
Low Fuel Pressure Sensor............ 8W-30-11
Mass Air Flow Sensor............. 8W-30-14, 20
Optional Equipment Relay............. 8W-30-2
Oxygen Sensor..................... 8W-30-24
Power Distribution Center......... 8W-30-13, 19
Relay Block........................ 8W-30-2
Speed Control Switch................ 8W-30-12
Starter Motor Relay.............. 8W-30-11, 18
Transmission Control Module........... 8W-30-4
Water In Fuel Sensor............. 8W-30-11, 25
Wiper/Turn Signal/Engine Start Control
Module.......................... 8W-30-8
VA8W-30 FUEL/IGNITION SYSTEM 8W - 30 - 1
