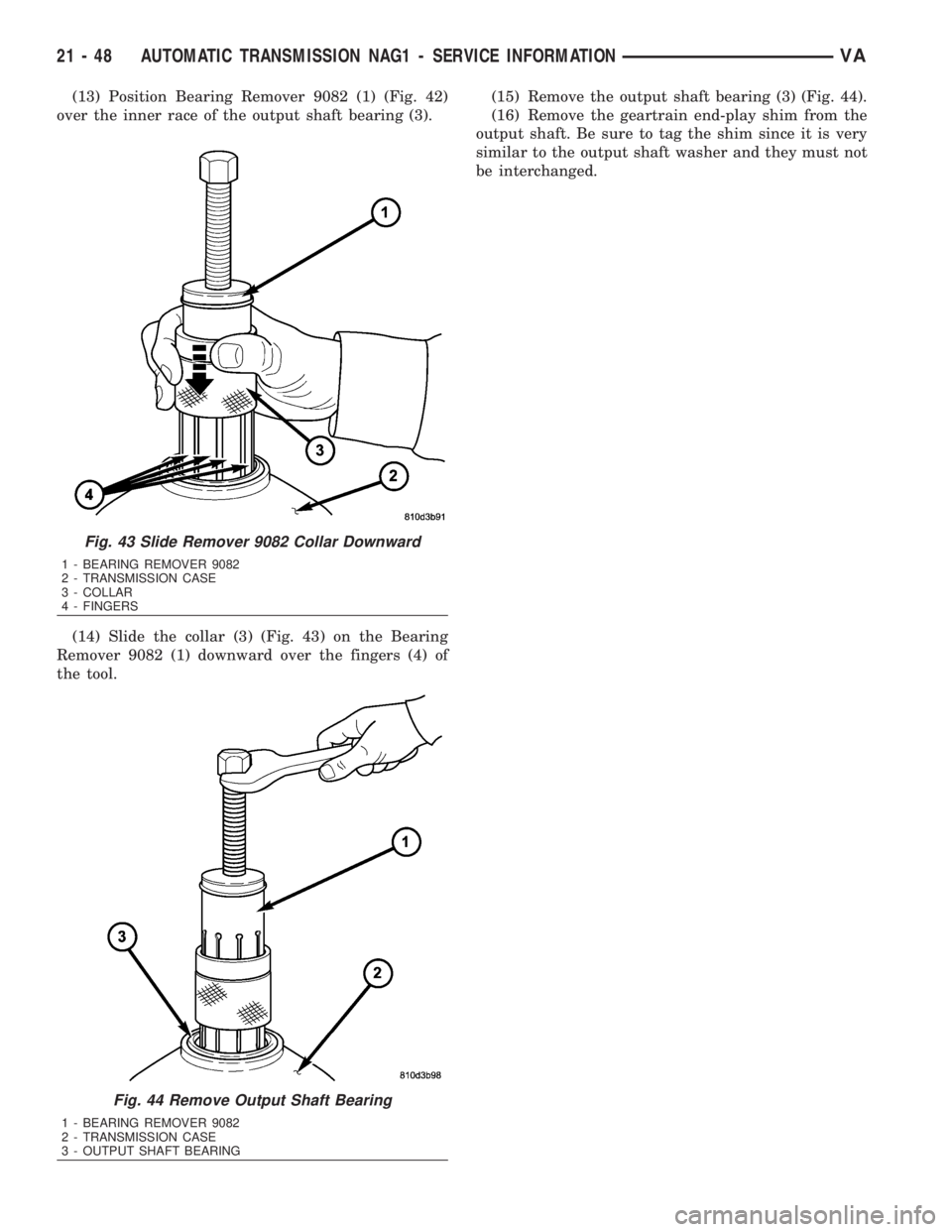

(13) Position Bearing Remover 9082 (1) (Fig. 42)
over the inner race of the output shaft bearing (3).
(14) Slide the collar (3) (Fig. 43) on the Bearing
Remover 9082 (1) downward over the fingers (4) of
the tool.(15) Remove the output shaft bearing (3) (Fig. 44).
(16) Remove the geartrain end-play shim from the
output shaft. Be sure to tag the shim since it is very
similar to the output shaft washer and they must not
be interchanged.
Fig. 43 Slide Remover 9082 Collar Downward
1 - BEARING REMOVER 9082
2 - TRANSMISSION CASE
3 - COLLAR
4 - FINGERS
Fig. 44 Remove Output Shaft Bearing
1 - BEARING REMOVER 9082
2 - TRANSMISSION CASE
3 - OUTPUT SHAFT BEARING
21 - 48 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATIONVA

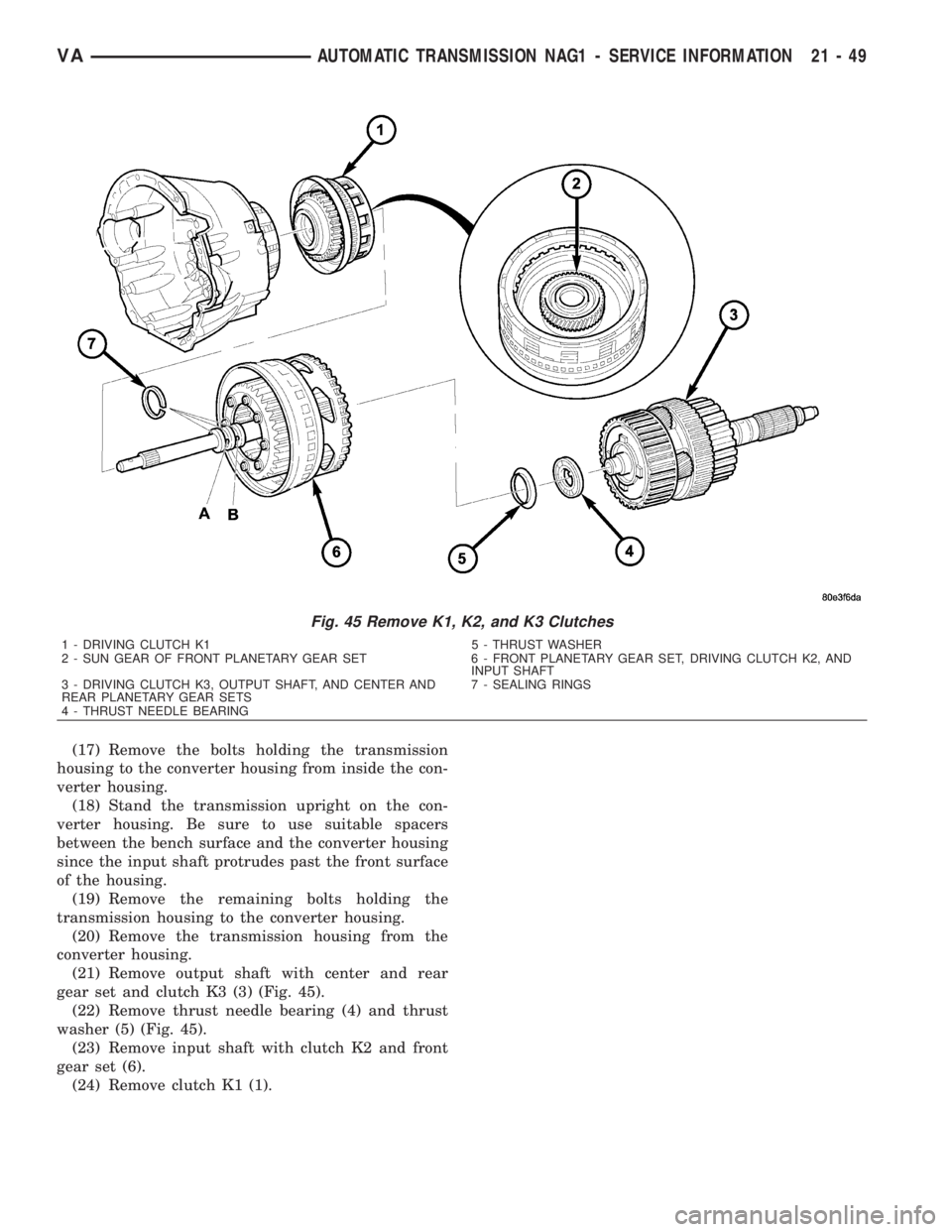

(17) Remove the bolts holding the transmission
housing to the converter housing from inside the con-
verter housing.
(18) Stand the transmission upright on the con-
verter housing. Be sure to use suitable spacers
between the bench surface and the converter housing
since the input shaft protrudes past the front surface
of the housing.
(19) Remove the remaining bolts holding the
transmission housing to the converter housing.
(20) Remove the transmission housing from the
converter housing.
(21) Remove output shaft with center and rear
gear set and clutch K3 (3) (Fig. 45).
(22) Remove thrust needle bearing (4) and thrust
washer (5) (Fig. 45).
(23) Remove input shaft with clutch K2 and front
gear set (6).
(24) Remove clutch K1 (1).
Fig. 45 Remove K1, K2, and K3 Clutches
1 - DRIVING CLUTCH K1 5 - THRUST WASHER
2 - SUN GEAR OF FRONT PLANETARY GEAR SET 6 - FRONT PLANETARY GEAR SET, DRIVING CLUTCH K2, AND
INPUT SHAFT
3 - DRIVING CLUTCH K3, OUTPUT SHAFT, AND CENTER AND
REAR PLANETARY GEAR SETS7 - SEALING RINGS
4 - THRUST NEEDLE BEARING
VAAUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 49

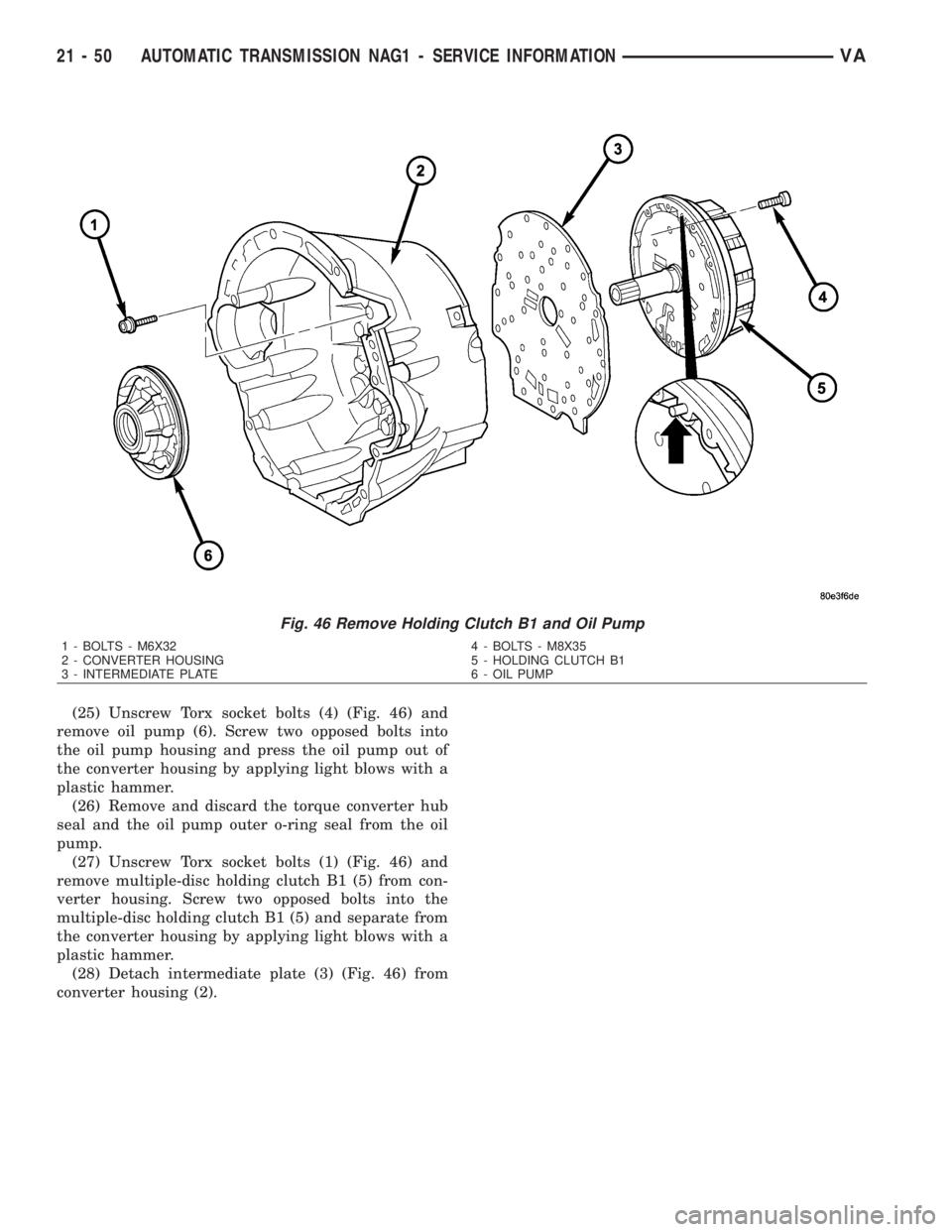

(25) Unscrew Torx socket bolts (4) (Fig. 46) and
remove oil pump (6). Screw two opposed bolts into
the oil pump housing and press the oil pump out of
the converter housing by applying light blows with a
plastic hammer.
(26) Remove and discard the torque converter hub
seal and the oil pump outer o-ring seal from the oil
pump.
(27) Unscrew Torx socket bolts (1) (Fig. 46) and
remove multiple-disc holding clutch B1 (5) from con-
verter housing. Screw two opposed bolts into the
multiple-disc holding clutch B1 (5) and separate from
the converter housing by applying light blows with a
plastic hammer.
(28) Detach intermediate plate (3) (Fig. 46) from
converter housing (2).
Fig. 46 Remove Holding Clutch B1 and Oil Pump
1 - BOLTS - M6X32 4 - BOLTS - M8X35
2 - CONVERTER HOUSING 5 - HOLDING CLUTCH B1
3 - INTERMEDIATE PLATE 6 - OIL PUMP
21 - 50 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATIONVA

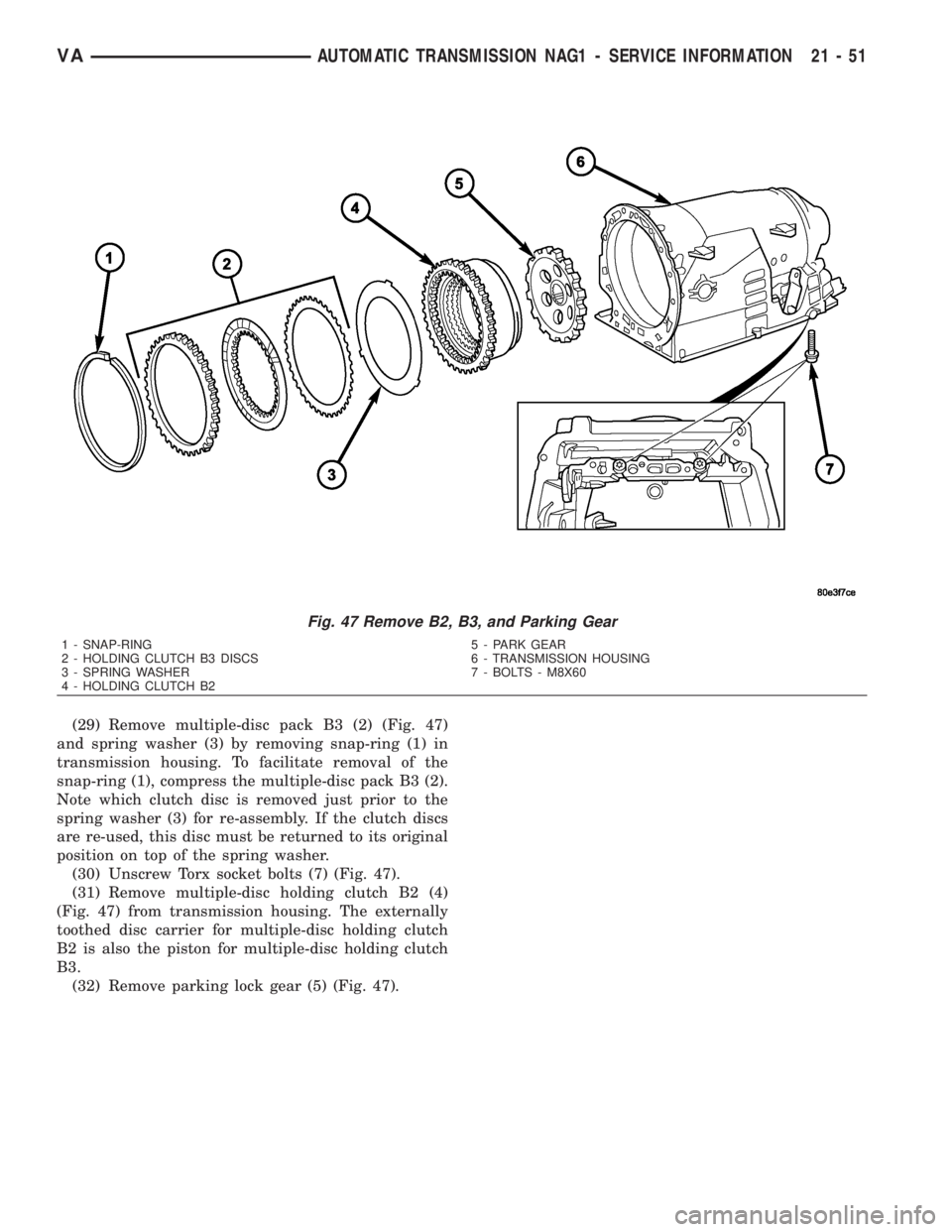

(29) Remove multiple-disc pack B3 (2) (Fig. 47)
and spring washer (3) by removing snap-ring (1) in
transmission housing. To facilitate removal of the
snap-ring (1), compress the multiple-disc pack B3 (2).
Note which clutch disc is removed just prior to the
spring washer (3) for re-assembly. If the clutch discs
are re-used, this disc must be returned to its original
position on top of the spring washer.
(30) Unscrew Torx socket bolts (7) (Fig. 47).
(31) Remove multiple-disc holding clutch B2 (4)
(Fig. 47) from transmission housing. The externally
toothed disc carrier for multiple-disc holding clutch
B2 is also the piston for multiple-disc holding clutch
B3.
(32) Remove parking lock gear (5) (Fig. 47).
Fig. 47 Remove B2, B3, and Parking Gear
1 - SNAP-RING 5 - PARK GEAR
2 - HOLDING CLUTCH B3 DISCS 6 - TRANSMISSION HOUSING
3 - SPRING WASHER 7 - BOLTS - M8X60
4 - HOLDING CLUTCH B2
VAAUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 51

ASSEMBLY
(1) Insert parking lock gear (5) (Fig. 48).
(2) Install multiple-disc holding clutch B2 (4) in
transmission housing (6) (Fig. 48).
(3) Screw in both Torx socket bolts (7). Tighten the
bolts to 16 N´m (141 in.lbs.).
Fig. 48 Install B2, B3, and Parking Gear
1 - SNAP-RING 5 - PARK GEAR
2 - HOLDING CLUTCH B3 DISCS 6 - TRANSMISSION HOUSING
3 - SPRING WASHER 7 - BOLTS - M8X60
4 - HOLDING CLUTCH B2
Fig. 49 Measure B3 Clutch Clearance
1 - OUTER DISC - 6.5 MM
(0.256 IN.)5 - PISTON
2 - OUTER DISCS - 1.8 MM
(0.071 IN.)6 - FRICTION DISCS
3 - OUTER DISCS - 1.8 MM
(0.071 IN.)7 - SNAP-RING
4 - SPRING WASHER 8 - B3 DISC CARRIER
21 - 52 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATIONVA

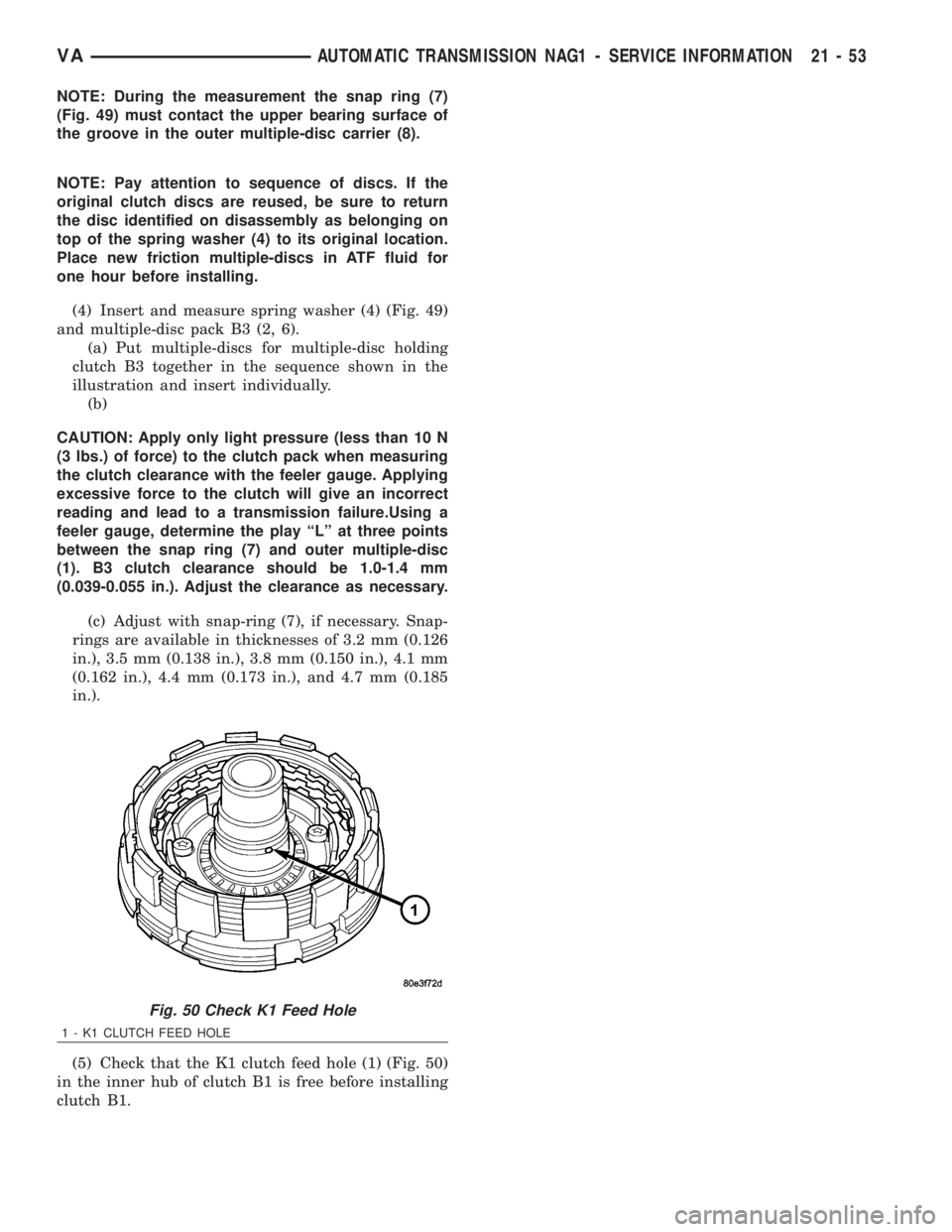

NOTE: During the measurement the snap ring (7)
(Fig. 49) must contact the upper bearing surface of
the groove in the outer multiple-disc carrier (8).
NOTE: Pay attention to sequence of discs. If the
original clutch discs are reused, be sure to return
the disc identified on disassembly as belonging on
top of the spring washer (4) to its original location.
Place new friction multiple-discs in ATF fluid for
one hour before installing.
(4) Insert and measure spring washer (4) (Fig. 49)
and multiple-disc pack B3 (2, 6).
(a) Put multiple-discs for multiple-disc holding
clutch B3 together in the sequence shown in the
illustration and insert individually.
(b)
CAUTION: Apply only light pressure (less than 10 N
(3 lbs.) of force) to the clutch pack when measuring
the clutch clearance with the feeler gauge. Applying
excessive force to the clutch will give an incorrect
reading and lead to a transmission failure.Using a
feeler gauge, determine the play ªLº at three points
between the snap ring (7) and outer multiple-disc
(1). B3 clutch clearance should be 1.0-1.4 mm
(0.039-0.055 in.). Adjust the clearance as necessary.
(c) Adjust with snap-ring (7), if necessary. Snap-
rings are available in thicknesses of 3.2 mm (0.126
in.), 3.5 mm (0.138 in.), 3.8 mm (0.150 in.), 4.1 mm
(0.162 in.), 4.4 mm (0.173 in.), and 4.7 mm (0.185
in.).
(5) Check that the K1 clutch feed hole (1) (Fig. 50)
in the inner hub of clutch B1 is free before installing
clutch B1.
Fig. 50 Check K1 Feed Hole
1 - K1 CLUTCH FEED HOLE
VAAUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 53

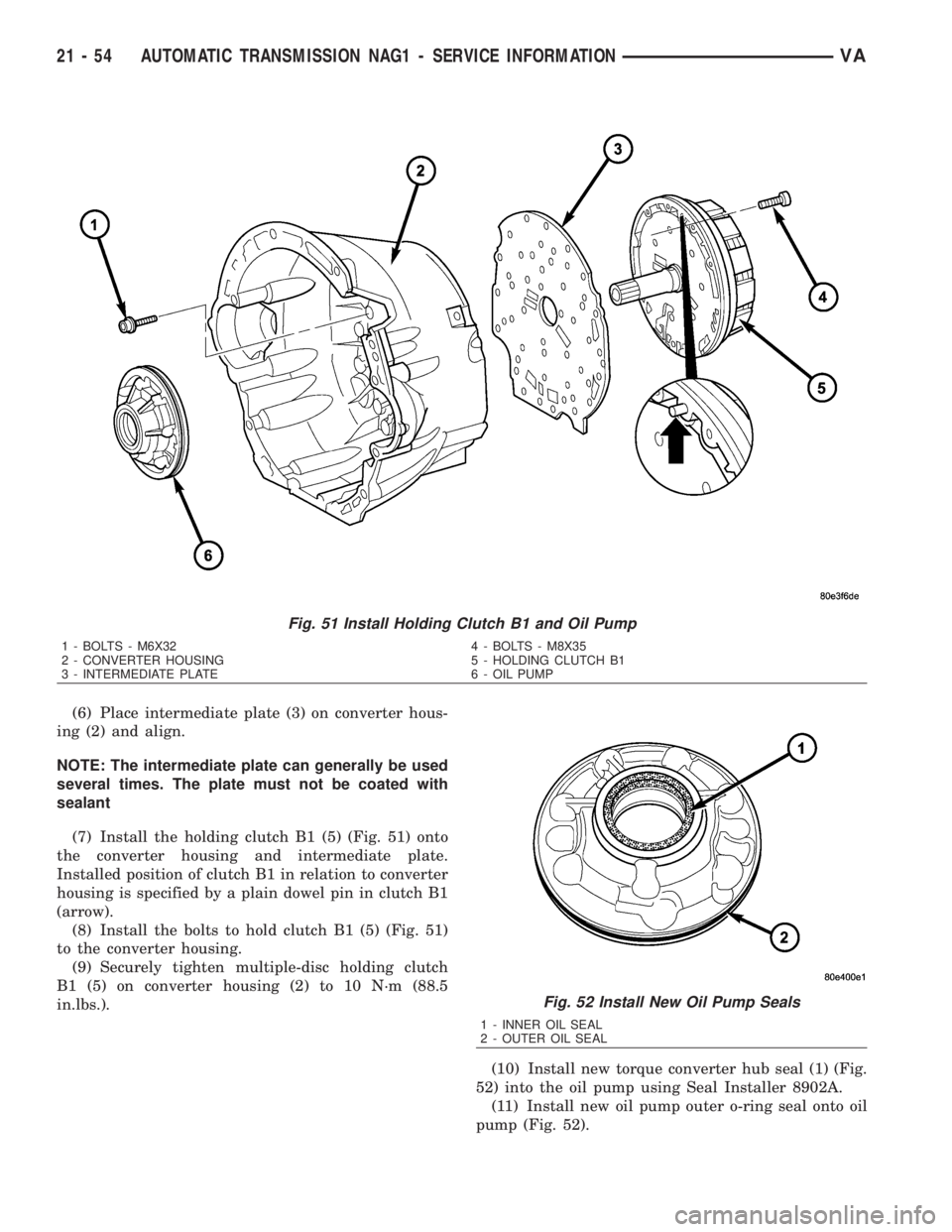

(6) Place intermediate plate (3) on converter hous-
ing (2) and align.
NOTE: The intermediate plate can generally be used
several times. The plate must not be coated with
sealant
(7) Install the holding clutch B1 (5) (Fig. 51) onto
the converter housing and intermediate plate.
Installed position of clutch B1 in relation to converter
housing is specified by a plain dowel pin in clutch B1
(arrow).
(8) Install the bolts to hold clutch B1 (5) (Fig. 51)
to the converter housing.
(9) Securely tighten multiple-disc holding clutch
B1 (5) on converter housing (2) to 10 N´m (88.5
in.lbs.).
(10) Install new torque converter hub seal (1) (Fig.
52) into the oil pump using Seal Installer 8902A.
(11) Install new oil pump outer o-ring seal onto oil
pump (Fig. 52).
Fig. 51 Install Holding Clutch B1 and Oil Pump
1 - BOLTS - M6X32 4 - BOLTS - M8X35
2 - CONVERTER HOUSING 5 - HOLDING CLUTCH B1
3 - INTERMEDIATE PLATE 6 - OIL PUMP
Fig. 52 Install New Oil Pump Seals
1 - INNER OIL SEAL
2 - OUTER OIL SEAL
21 - 54 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATIONVA

(12) Install oil pump (6) and securely tighten.
Tighten the oil pump bolts to 20 N´m (177 in.lbs.).
VAAUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 55

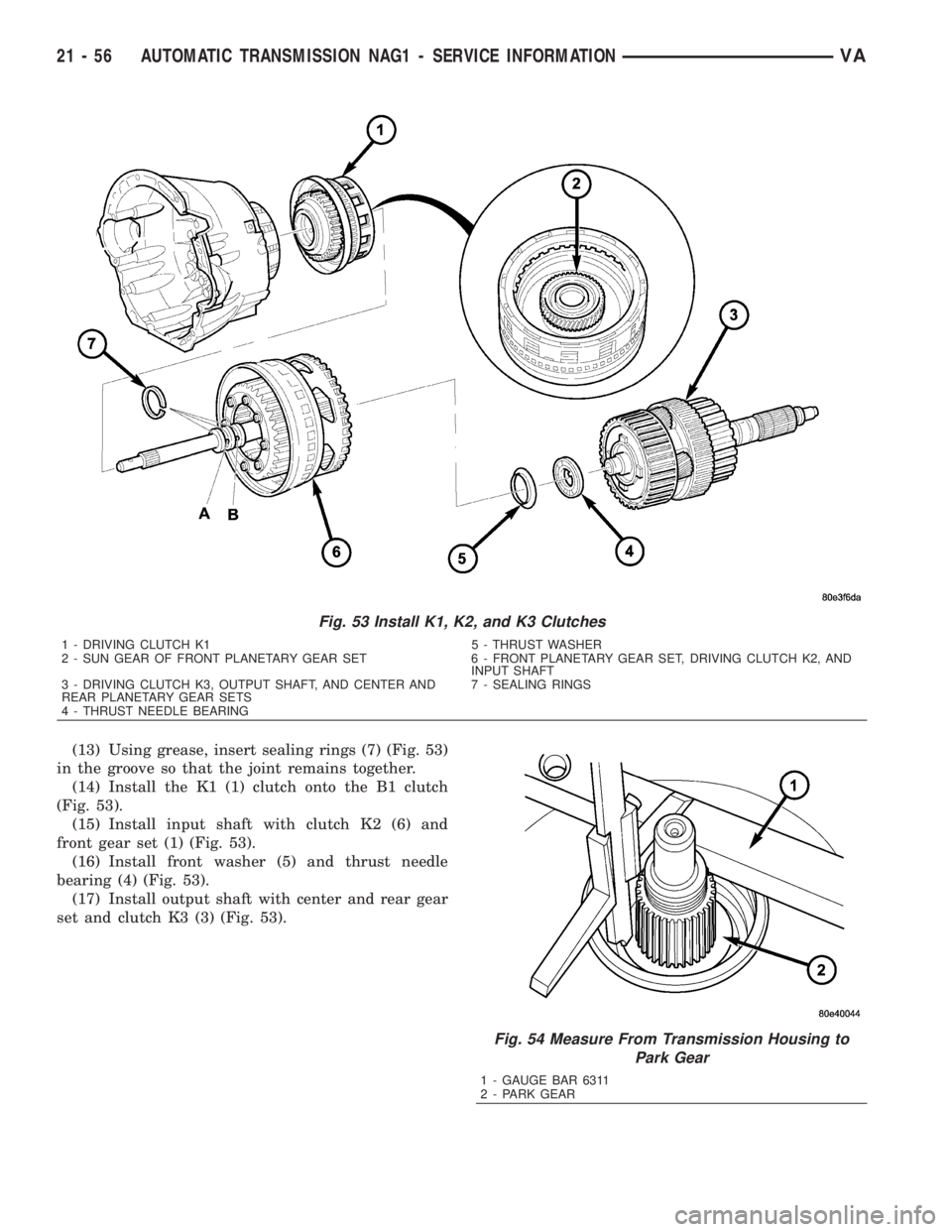

(13) Using grease, insert sealing rings (7) (Fig. 53)
in the groove so that the joint remains together.
(14) Install the K1 (1) clutch onto the B1 clutch
(Fig. 53).
(15) Install input shaft with clutch K2 (6) and
front gear set (1) (Fig. 53).
(16) Install front washer (5) and thrust needle
bearing (4) (Fig. 53).
(17) Install output shaft with center and rear gear
set and clutch K3 (3) (Fig. 53).
Fig. 53 Install K1, K2, and K3 Clutches
1 - DRIVING CLUTCH K1 5 - THRUST WASHER
2 - SUN GEAR OF FRONT PLANETARY GEAR SET 6 - FRONT PLANETARY GEAR SET, DRIVING CLUTCH K2, AND
INPUT SHAFT
3 - DRIVING CLUTCH K3, OUTPUT SHAFT, AND CENTER AND
REAR PLANETARY GEAR SETS7 - SEALING RINGS
4 - THRUST NEEDLE BEARING
Fig. 54 Measure From Transmission Housing to
Park Gear
1 - GAUGE BAR 6311
2 - PARK GEAR
21 - 56 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATIONVA

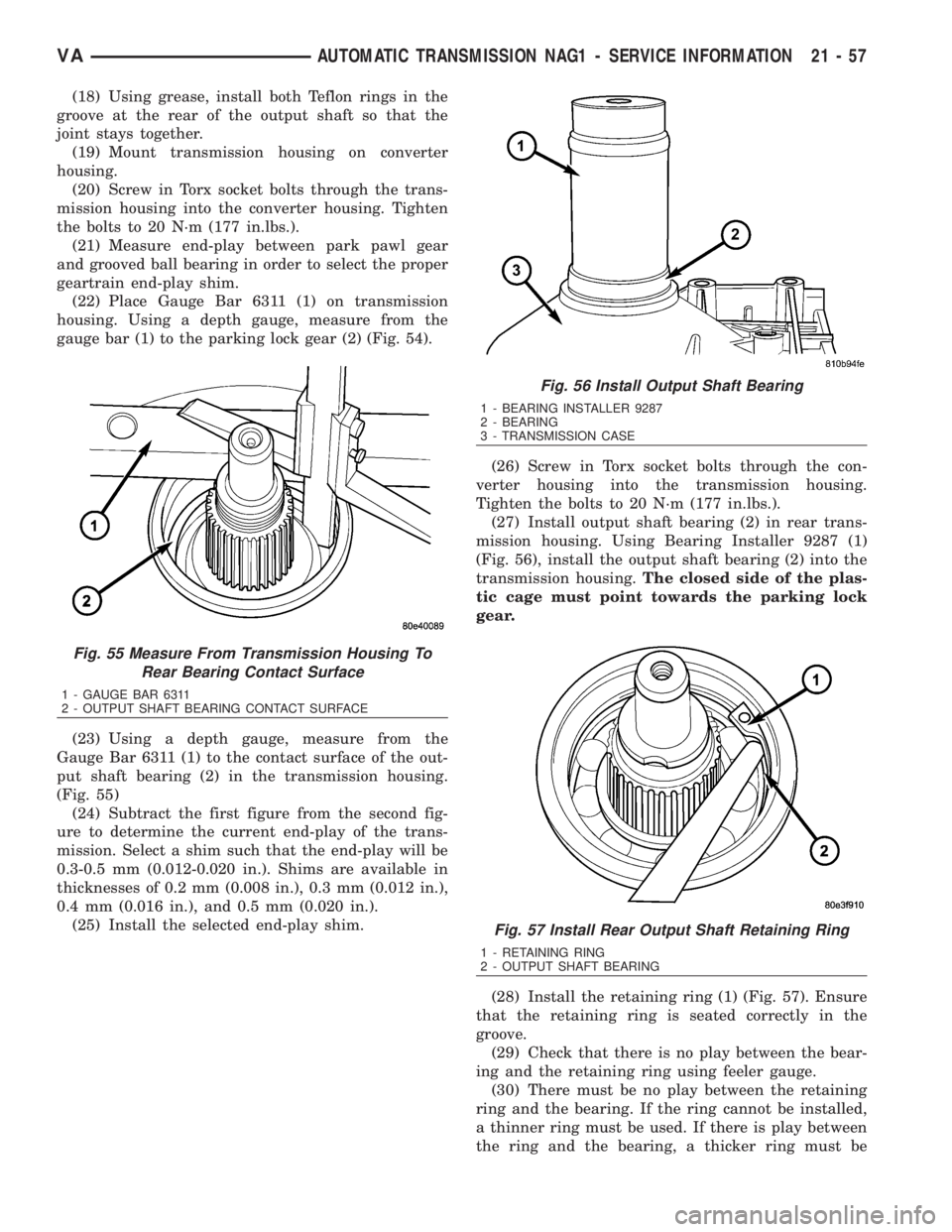

(18) Using grease, install both Teflon rings in the
groove at the rear of the output shaft so that the
joint stays together.
(19) Mount transmission housing on converter
housing.
(20) Screw in Torx socket bolts through the trans-
mission housing into the converter housing. Tighten
the bolts to 20 N´m (177 in.lbs.).
(21) Measure end-play between park pawl gear
and grooved ball bearing in order to select the proper
geartrain end-play shim.
(22) Place Gauge Bar 6311 (1) on transmission
housing. Using a depth gauge, measure from the
gauge bar (1) to the parking lock gear (2) (Fig. 54).
(23) Using a depth gauge, measure from the
Gauge Bar 6311 (1) to the contact surface of the out-
put shaft bearing (2) in the transmission housing.
(Fig. 55)
(24) Subtract the first figure from the second fig-
ure to determine the current end-play of the trans-
mission. Select a shim such that the end-play will be
0.3-0.5 mm (0.012-0.020 in.). Shims are available in
thicknesses of 0.2 mm (0.008 in.), 0.3 mm (0.012 in.),
0.4 mm (0.016 in.), and 0.5 mm (0.020 in.).
(25) Install the selected end-play shim.(26) Screw in Torx socket bolts through the con-
verter housing into the transmission housing.
Tighten the bolts to 20 N´m (177 in.lbs.).
(27) Install output shaft bearing (2) in rear trans-
mission housing. Using Bearing Installer 9287 (1)
(Fig. 56), install the output shaft bearing (2) into the
transmission housing.The closed side of the plas-
tic cage must point towards the parking lock
gear.
(28) Install the retaining ring (1) (Fig. 57). Ensure
that the retaining ring is seated correctly in the
groove.
(29) Check that there is no play between the bear-
ing and the retaining ring using feeler gauge.
(30) There must be no play between the retaining
ring and the bearing. If the ring cannot be installed,
a thinner ring must be used. If there is play between
the ring and the bearing, a thicker ring must be
Fig. 55 Measure From Transmission Housing To
Rear Bearing Contact Surface
1 - GAUGE BAR 6311
2 - OUTPUT SHAFT BEARING CONTACT SURFACE
Fig. 56 Install Output Shaft Bearing
1 - BEARING INSTALLER 9287
2 - BEARING
3 - TRANSMISSION CASE
Fig. 57 Install Rear Output Shaft Retaining Ring
1 - RETAINING RING
2 - OUTPUT SHAFT BEARING
