MERCEDES-BENZ SPRINTER 2006 Service Manual

Symptom:
P0105-INTAKE PRESSURE SENSOR SIGNAL VOLTAGE TOO HIGH
When Monitored and Set Condition:
P0105-INTAKE PRESSURE SENSOR SIGNAL VOLTAGE TOO HIGH
When Monitored: With the ignition on.
Set Condition: Intake Pressure Sensor Signal voltage is 4.9 volts or greater.
POSSIBLE CAUSES
INTERMITTENT CONDITION
INTAKE PRESSURE SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
INTAKE PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE
INTAKE PRESSURE SENSOR GROUND CIRCUIT OPEN
INTAKE PRESSURE SENSOR
POOR CONNECTOR TERMINAL CONTACT
ENGINE CONTROL MODULE (INTERNAL)
ENGINE CONTROL MODULE (SENSOR SIGNAL SHORTED TO VOLTAGE)
TEST ACTION APPLICABILITY
1NOTE: If the ECM detects and stores a DTC, the ECM also stores the
engine/vehicle operating conditions under which the DTC was set. Some of
these conditions are displayed on the DRB at the same time the DTC is
displayed.
NOTE: If DTC P1611, P2306 or P2332 is present with this DTC, diagnose
DTCs P1611, P2306 or P2332 before diagnosing this DTC.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to
duplicate these conditions may assist when checking for an active DTC.
NOTE: Ensure all turbocharger inlet and outlet tubes are connected prop-
erly, without damage and restriction before continuing with this test. Also
ensure the boost pressure servo motor and servo rod are attached and
functioning properly.
NOTE: If a Boost Pressure Servo Motor DTC is present with this DTC,
diagnose that DTC before continuing.
Turn the ignition on.
With the DRB, erase ECM DTCs.
Cycle the ignition key on and off several times, leaving the key on for at least 10
seconds at a time.
With the DRB, read ECM DTCs.
Did this DTC set again?All
Ye s!Go To 2
No!Go To 8
28
DRIVEABILITY - DIESEL

TEST ACTION APPLICABILITY

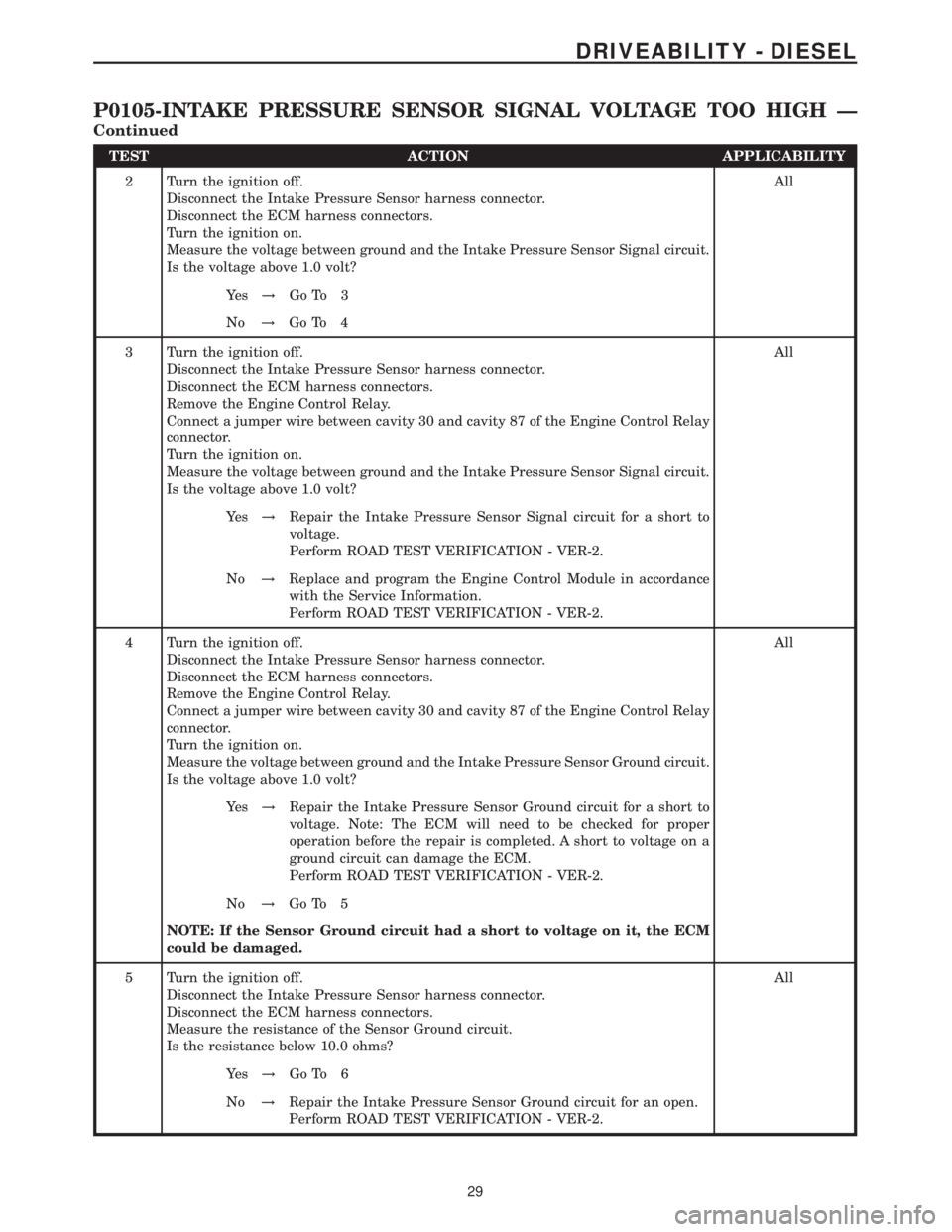

2 Turn the ignition off.
Disconnect the Intake Pressure Sensor harness connector.
Disconnect the ECM harness connectors.
Turn the ignition on.
Measure the voltage between ground and the Intake Pressure Sensor Signal circuit.
Is the voltage above 1.0 volt?All
Ye s!Go To 3
No!Go To 4
3 Turn the ignition off.
Disconnect the Intake Pressure Sensor harness connector.
Disconnect the ECM harness connectors.
Remove the Engine Control Relay.
Connect a jumper wire between cavity 30 and cavity 87 of the Engine Control Relay
connector.
Turn the ignition on.
Measure the voltage between ground and the Intake Pressure Sensor Signal circuit.
Is the voltage above 1.0 volt?All
Ye s!Repair the Intake Pressure Sensor Signal circuit for a short to
voltage.
Perform ROAD TEST VERIFICATION - VER-2.
No!Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
4 Turn the ignition off.
Disconnect the Intake Pressure Sensor harness connector.
Disconnect the ECM harness connectors.
Remove the Engine Control Relay.
Connect a jumper wire between cavity 30 and cavity 87 of the Engine Control Relay
connector.
Turn the ignition on.
Measure the voltage between ground and the Intake Pressure Sensor Ground circuit.
Is the voltage above 1.0 volt?All
Ye s!Repair the Intake Pressure Sensor Ground circuit for a short to
voltage. Note: The ECM will need to be checked for proper
operation before the repair is completed. A short to voltage on a
ground circuit can damage the ECM.
Perform ROAD TEST VERIFICATION - VER-2.
No!Go To 5
NOTE: If the Sensor Ground circuit had a short to voltage on it, the ECM
could be damaged.
5 Turn the ignition off.
Disconnect the Intake Pressure Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the Sensor Ground circuit.
Is the resistance below 10.0 ohms?All
Ye s!Go To 6
No!Repair the Intake Pressure Sensor Ground circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
29
DRIVEABILITY - DIESEL
P0105-INTAKE PRESSURE SENSOR SIGNAL VOLTAGE TOO HIGH Ð
Continued

TEST ACTION APPLICABILITY

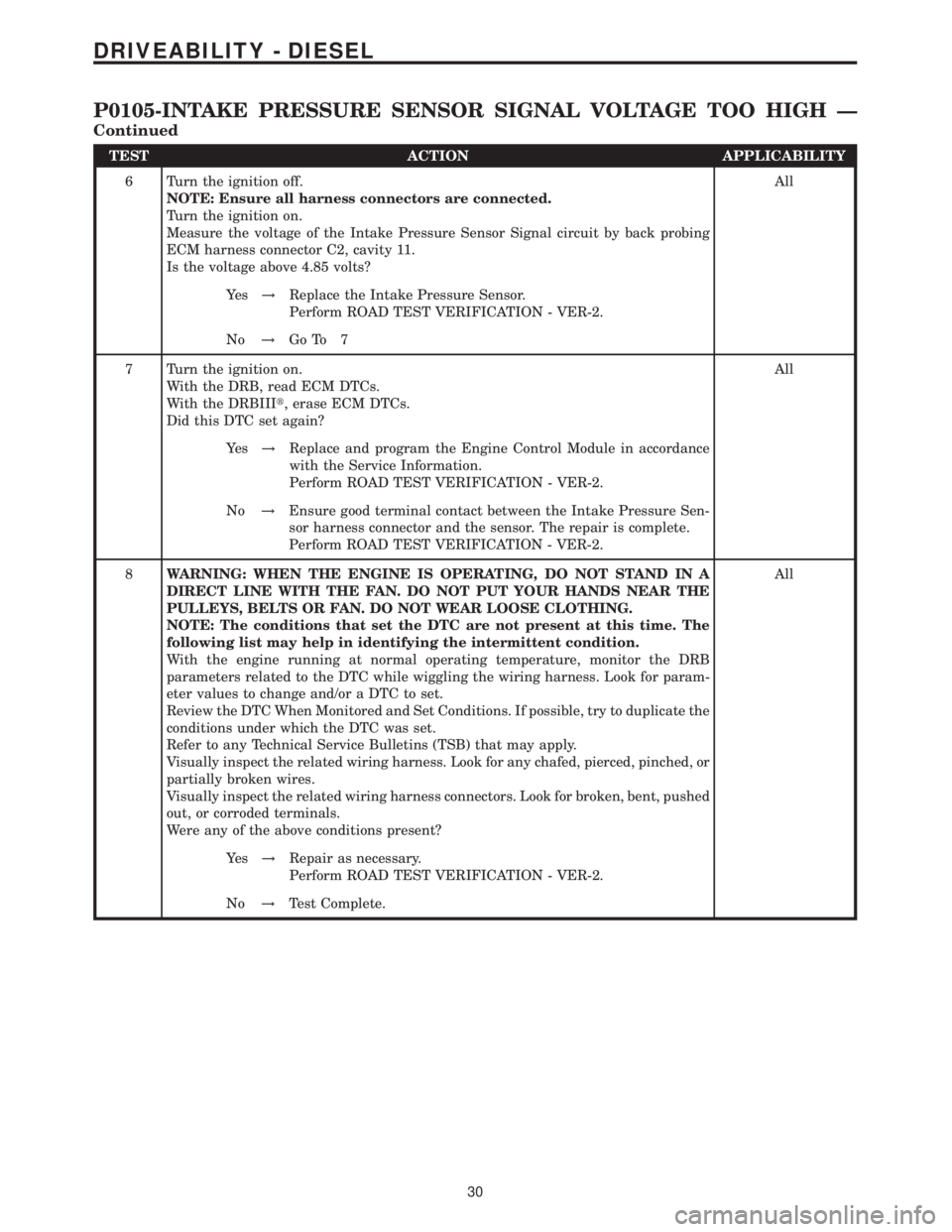

6 Turn the ignition off.
NOTE: Ensure all harness connectors are connected.
Turn the ignition on.
Measure the voltage of the Intake Pressure Sensor Signal circuit by back probing
ECM harness connector C2, cavity 11.
Is the voltage above 4.85 volts?All
Ye s!Replace the Intake Pressure Sensor.
Perform ROAD TEST VERIFICATION - VER-2.
No!Go To 7
7 Turn the ignition on.
With the DRB, read ECM DTCs.
With the DRBIIIt, erase ECM DTCs.
Did this DTC set again?All
Ye s!Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
No!Ensure good terminal contact between the Intake Pressure Sen-
sor harness connector and the sensor. The repair is complete.
Perform ROAD TEST VERIFICATION - VER-2.
8WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s!Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No!Test Complete.
30
DRIVEABILITY - DIESEL
P0105-INTAKE PRESSURE SENSOR SIGNAL VOLTAGE TOO HIGH Ð
Continued

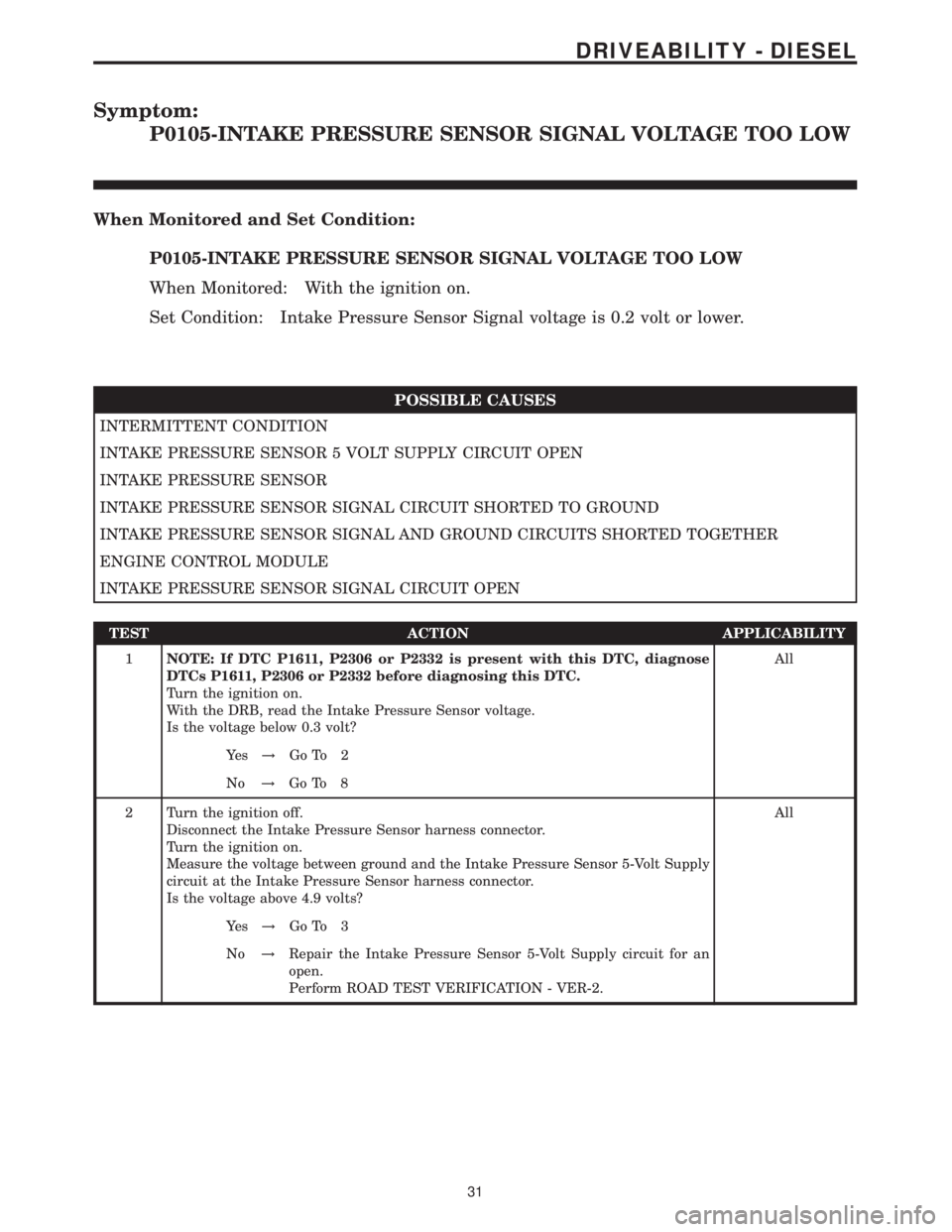

Symptom:
P0105-INTAKE PRESSURE SENSOR SIGNAL VOLTAGE TOO LOW
When Monitored and Set Condition:
P0105-INTAKE PRESSURE SENSOR SIGNAL VOLTAGE TOO LOW
When Monitored: With the ignition on.
Set Condition: Intake Pressure Sensor Signal voltage is 0.2 volt or lower.
POSSIBLE CAUSES
INTERMITTENT CONDITION
INTAKE PRESSURE SENSOR 5 VOLT SUPPLY CIRCUIT OPEN
INTAKE PRESSURE SENSOR
INTAKE PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
INTAKE PRESSURE SENSOR SIGNAL AND GROUND CIRCUITS SHORTED TOGETHER
ENGINE CONTROL MODULE
INTAKE PRESSURE SENSOR SIGNAL CIRCUIT OPEN
TEST ACTION APPLICABILITY
1NOTE: If DTC P1611, P2306 or P2332 is present with this DTC, diagnose
DTCs P1611, P2306 or P2332 before diagnosing this DTC.
Turn the ignition on.
With the DRB, read the Intake Pressure Sensor voltage.
Is the voltage below 0.3 volt?All
Ye s!Go To 2
No!Go To 8
2 Turn the ignition off.
Disconnect the Intake Pressure Sensor harness connector.
Turn the ignition on.
Measure the voltage between ground and the Intake Pressure Sensor 5-Volt Supply
circuit at the Intake Pressure Sensor harness connector.
Is the voltage above 4.9 volts?All
Ye s!Go To 3
No!Repair the Intake Pressure Sensor 5-Volt Supply circuit for an
open.
Perform ROAD TEST VERIFICATION - VER-2.
31
DRIVEABILITY - DIESEL

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Intake Pressure Sensor harness connector.
Turn the ignition on.
Connect a jumper wire between the Intake Pressure Sensor Signal circuit and the
Intake Pressure Sensor 5-Volt Supply circuit.
With the DRB, read the Intake Pressure Sensor voltage.
Is the Intake Pressure Sensor voltage above 4.5 volts?All
Ye s!Replace the Intake Pressure Sensor.
Perform ROAD TEST VERIFICATION - VER-2.
No!Go To 4
4 Turn the ignition off.
Disconnect the Intake Pressure Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance between ground and the Intake Pressure Sensor Signal
circuit.
Is the resistance above 1000 ohms?All
Ye s!Go To 5
No!Repair the Intake Pressure Sensor Signal circuit for a short to
ground.
Perform ROAD TEST VERIFICATION - VER-2.
5 Turn the ignition off.
Disconnect the Intake Pressure Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance between the Intake Pressure Sensor Signal circuit and
Sensor Ground circuit.
Is the resistance above 1000 ohms?All
Ye s!Go To 6
No!Repair the Intake Pressure Sensor Signal circuit for a short to the
Sensor Ground circuit.
Perform ROAD TEST VERIFICATION - VER-2.
6 Turn the ignition off.
Disconnect the Intake Pressure Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the Intake Pressure Sensor Signal circuit.
Is the resistance below 10.0 ohms?All
Ye s!Go To 7
No!Repair the Intake Pressure Sensor Signal circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
7 If there are no possible causes remaining, view repair. All
Repair
Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
32
DRIVEABILITY - DIESEL
P0105-INTAKE PRESSURE SENSOR SIGNAL VOLTAGE TOO LOW Ð
Continued

TEST ACTION APPLICABILITY
8WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s!Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No!Test Complete.
33
DRIVEABILITY - DIESEL
P0105-INTAKE PRESSURE SENSOR SIGNAL VOLTAGE TOO LOW Ð
Continued

Symptom List:
P0110-INTAKE AIR TEMP SENSOR SIGNAL VOLTAGE TOO HIGH
P2063-INTAKE AIR TEMP SENSOR CIRCUIT SIGNAL VOLTAGE
TOO HIGH
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be P0110-INTAKE AIR TEMP
SENSOR SIGNAL VOLTAGE TOO HIGH.
When Monitored and Set Condition:
P0110-INTAKE AIR TEMP SENSOR SIGNAL VOLTAGE TOO HIGH
When Monitored: With the ignition on.
Set Condition: The Intake Air Temperature Sensor Signal voltage is above 4.83 volts.
P2063-INTAKE AIR TEMP SENSOR CIRCUIT SIGNAL VOLTAGE TOO HIGH
When Monitored: With the ignition on.
Set Condition: The Intake Air Temperature Sensor Signal voltage is above 4.83 volts.
POSSIBLE CAUSES
CHECK FOR ACTIVE DTC
INTERMITTENT CONDITION
INTAKE AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE
INTAKE AIR TEMP SENSOR GROUND CIRCUIT OPEN
INTAKE AIR TEMP SENSOR SIGNAL CIRCUIT OPEN
ENGINE CONTROL MODULE
TEST ACTION APPLICABILITY
1NOTE: If the ECM detects and stores a DTC, the ECM also stores the
engine/vehicle operating conditions under which the DTC was set. Some of
these conditions are displayed on the DRB at the same time the DTC is
displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to
duplicate these conditions may assist when checking for an active DTC.
Turn the ignition on.
With the DRB, erase ECM DTCs.
Turn the ignition off for 10 seconds.
Turn the ignition on.
Monitor the DRB for ECM DTCs.
Did this DTC set again?All
Ye s!Go To 2
No!Go To 5
34
DRIVEABILITY - DIESEL

TEST ACTION APPLICABILITY

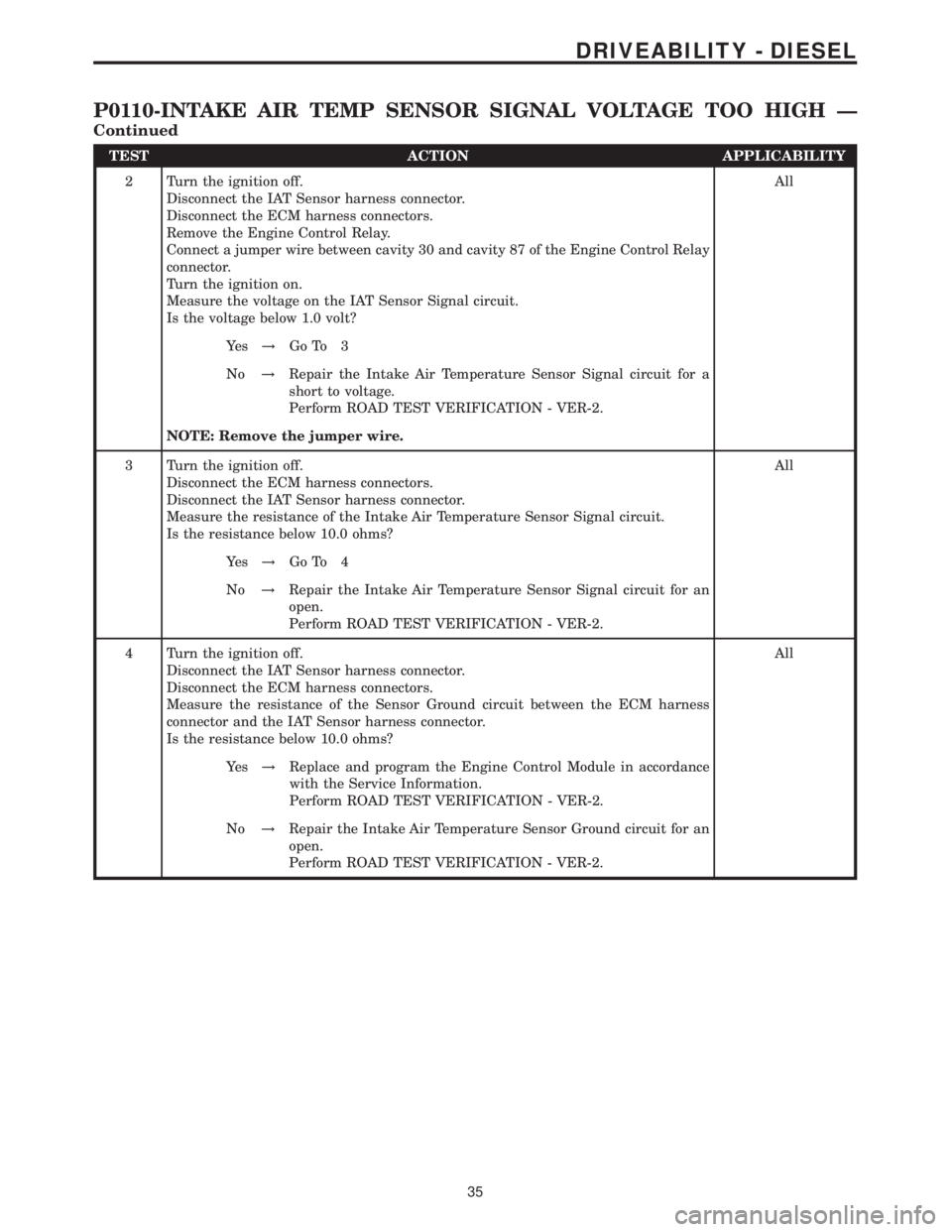

2 Turn the ignition off.
Disconnect the IAT Sensor harness connector.
Disconnect the ECM harness connectors.
Remove the Engine Control Relay.
Connect a jumper wire between cavity 30 and cavity 87 of the Engine Control Relay
connector.
Turn the ignition on.
Measure the voltage on the IAT Sensor Signal circuit.
Is the voltage below 1.0 volt?All
Ye s!Go To 3
No!Repair the Intake Air Temperature Sensor Signal circuit for a
short to voltage.
Perform ROAD TEST VERIFICATION - VER-2.
NOTE: Remove the jumper wire.
3 Turn the ignition off.
Disconnect the ECM harness connectors.
Disconnect the IAT Sensor harness connector.
Measure the resistance of the Intake Air Temperature Sensor Signal circuit.
Is the resistance below 10.0 ohms?All
Ye s!Go To 4
No!Repair the Intake Air Temperature Sensor Signal circuit for an
open.
Perform ROAD TEST VERIFICATION - VER-2.
4 Turn the ignition off.
Disconnect the IAT Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the Sensor Ground circuit between the ECM harness
connector and the IAT Sensor harness connector.
Is the resistance below 10.0 ohms?All
Ye s!Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
No!Repair the Intake Air Temperature Sensor Ground circuit for an
open.
Perform ROAD TEST VERIFICATION - VER-2.
35
DRIVEABILITY - DIESEL
P0110-INTAKE AIR TEMP SENSOR SIGNAL VOLTAGE TOO HIGH Ð
Continued

TEST ACTION APPLICABILITY
5WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s!Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No!Test Complete.
36
DRIVEABILITY - DIESEL
P0110-INTAKE AIR TEMP SENSOR SIGNAL VOLTAGE TOO HIGH Ð
Continued

Symptom List:
P0110-INTAKE AIR TEMP SENSOR SIGNAL VOLTAGE TOO LOW
P2063-INTAKE AIR TEMP SENSOR CIRCUIT SIGNAL VOLTAGE
TOO LOW
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be P0110-INTAKE AIR TEMP
SENSOR SIGNAL VOLTAGE TOO LOW.
When Monitored and Set Condition:
P0110-INTAKE AIR TEMP SENSOR SIGNAL VOLTAGE TOO LOW
When Monitored: With the ignition on.
Set Condition: The Intake Air Temperature Sensor Signal voltage is below 0.073 volt for
more than 60 seconds.
P2063-INTAKE AIR TEMP SENSOR CIRCUIT SIGNAL VOLTAGE TOO LOW
When Monitored: With the ignition on.
Set Condition: The Intake Air Temperature Sensor Signal voltage is below 0.073 volt for
more than 60 seconds.
POSSIBLE CAUSES
INTERMITTENT CONDITION
IAT SENSOR
INTAKE AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
INTAKE AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO SENSOR GROUND
ENGINE CONTROL MODULE
TEST ACTION APPLICABILITY
1NOTE: If the ECM detects and stores a DTC, the ECM also stores the
engine/vehicle operating conditions under which the DTC was set. Some of
these conditions are displayed on the DRB at the same time the DTC is
displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to
duplicate these conditions may assist when checking for an active DTC.
Turn the ignition on.
With the DRB, erase ECM DTCs.
Monitor the DRB for ECM DTCs for at least 2 minutes.
Did this DTC set again?All
Ye s!Go To 2
No!Go To 6
37
DRIVEABILITY - DIESEL
