MERCEDES-BENZ SPRINTER 2006 Service Manual

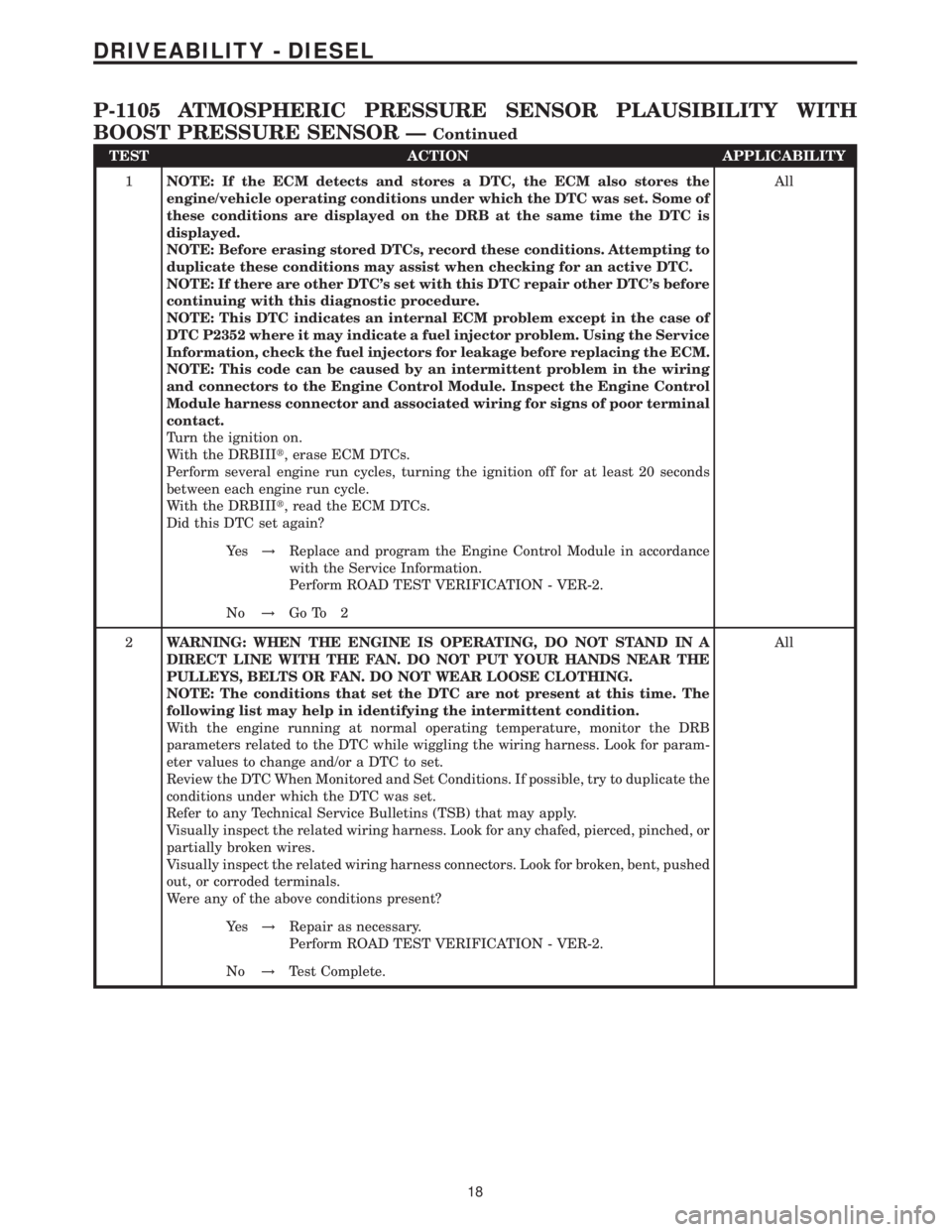

TEST ACTION APPLICABILITY
1NOTE: If the ECM detects and stores a DTC, the ECM also stores the
engine/vehicle operating conditions under which the DTC was set. Some of
these conditions are displayed on the DRB at the same time the DTC is
displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to
duplicate these conditions may assist when checking for an active DTC.
NOTE: If there are other DTC's set with this DTC repair other DTC's before
continuing with this diagnostic procedure.
NOTE: This DTC indicates an internal ECM problem except in the case of
DTC P2352 where it may indicate a fuel injector problem. Using the Service
Information, check the fuel injectors for leakage before replacing the ECM.
NOTE: This code can be caused by an intermittent problem in the wiring
and connectors to the Engine Control Module. Inspect the Engine Control
Module harness connector and associated wiring for signs of poor terminal
contact.
Turn the ignition on.
With the DRBIIIt, erase ECM DTCs.
Perform several engine run cycles, turning the ignition off for at least 20 seconds
between each engine run cycle.
With the DRBIIIt, read the ECM DTCs.
Did this DTC set again?All
Ye s!Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
No!Go To 2

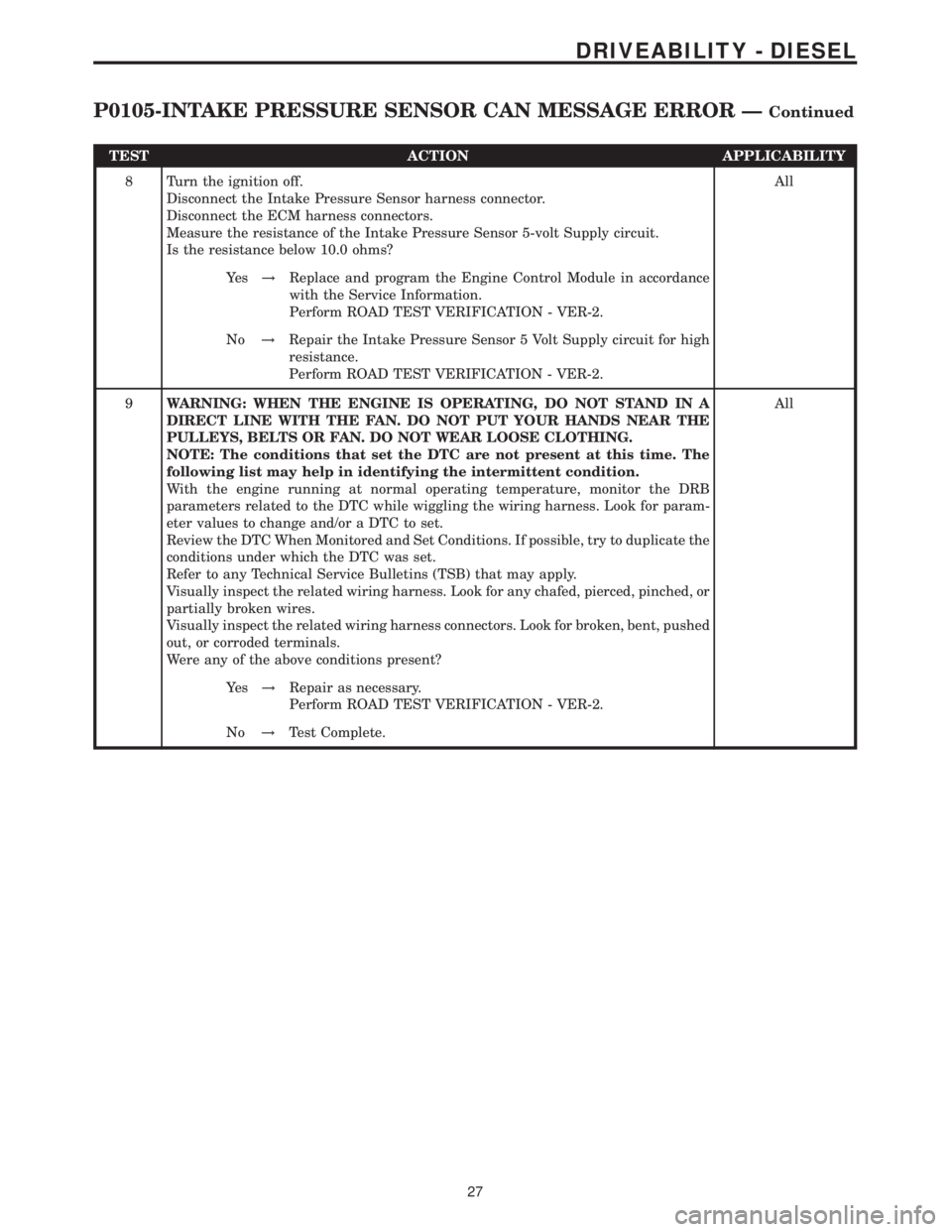

2WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s!Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No!Test Complete.
18
DRIVEABILITY - DIESEL
P-1105 ATMOSPHERIC PRESSURE SENSOR PLAUSIBILITY WITH
BOOST PRESSURE SENSOR Ð
Continued

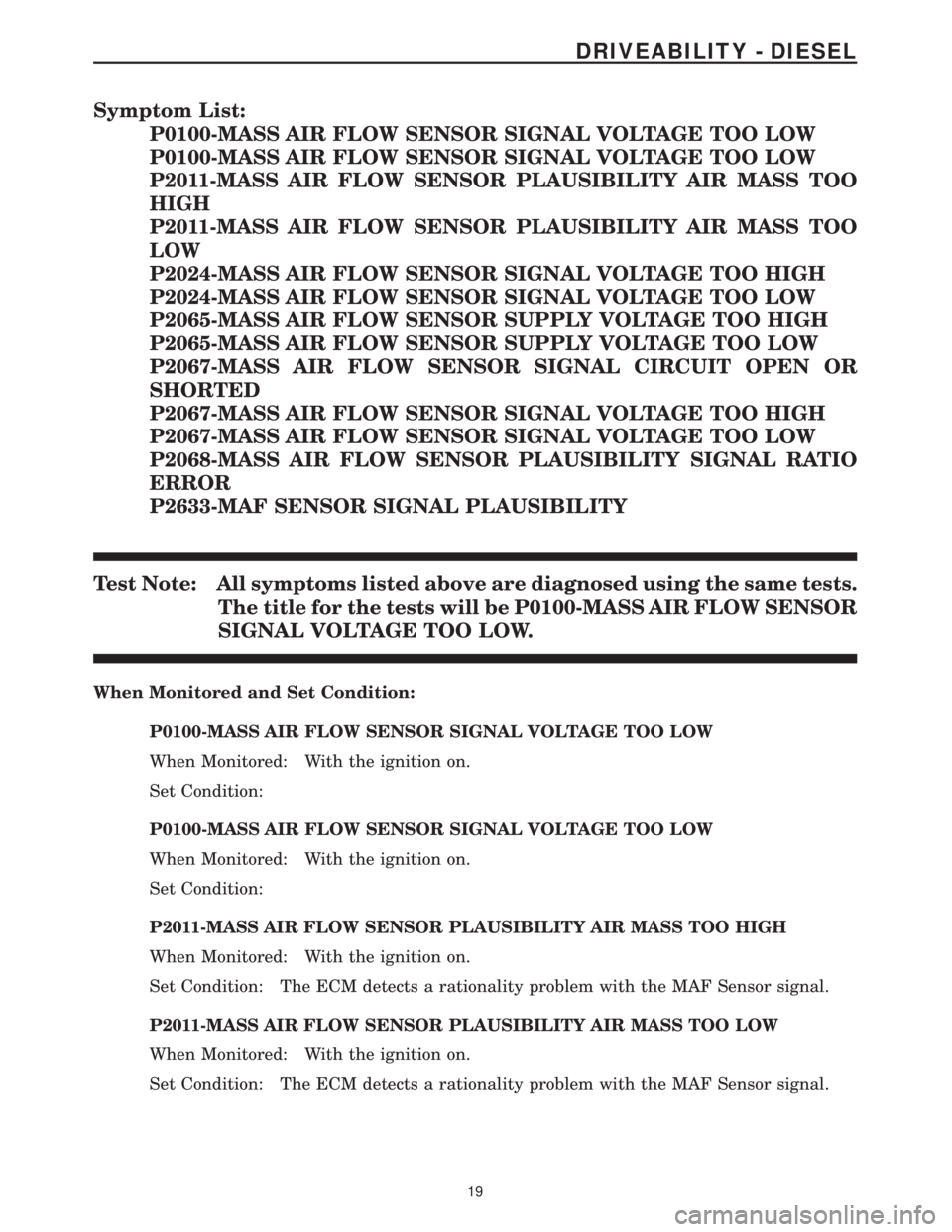

Symptom List:
P0100-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW
P0100-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW
P2011-MASS AIR FLOW SENSOR PLAUSIBILITY AIR MASS TOO
HIGH
P2011-MASS AIR FLOW SENSOR PLAUSIBILITY AIR MASS TOO
LOW
P2024-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO HIGH
P2024-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW
P2065-MASS AIR FLOW SENSOR SUPPLY VOLTAGE TOO HIGH
P2065-MASS AIR FLOW SENSOR SUPPLY VOLTAGE TOO LOW
P2067-MASS AIR FLOW SENSOR SIGNAL CIRCUIT OPEN OR
SHORTED
P2067-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO HIGH
P2067-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW
P2068-MASS AIR FLOW SENSOR PLAUSIBILITY SIGNAL RATIO
ERROR
P2633-MAF SENSOR SIGNAL PLAUSIBILITY
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be P0100-MASS AIR FLOW SENSOR
SIGNAL VOLTAGE TOO LOW.
When Monitored and Set Condition:
P0100-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW
When Monitored: With the ignition on.
Set Condition:
P0100-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW
When Monitored: With the ignition on.
Set Condition:
P2011-MASS AIR FLOW SENSOR PLAUSIBILITY AIR MASS TOO HIGH
When Monitored: With the ignition on.
Set Condition: The ECM detects a rationality problem with the MAF Sensor signal.
P2011-MASS AIR FLOW SENSOR PLAUSIBILITY AIR MASS TOO LOW
When Monitored: With the ignition on.
Set Condition: The ECM detects a rationality problem with the MAF Sensor signal.
19
DRIVEABILITY - DIESEL

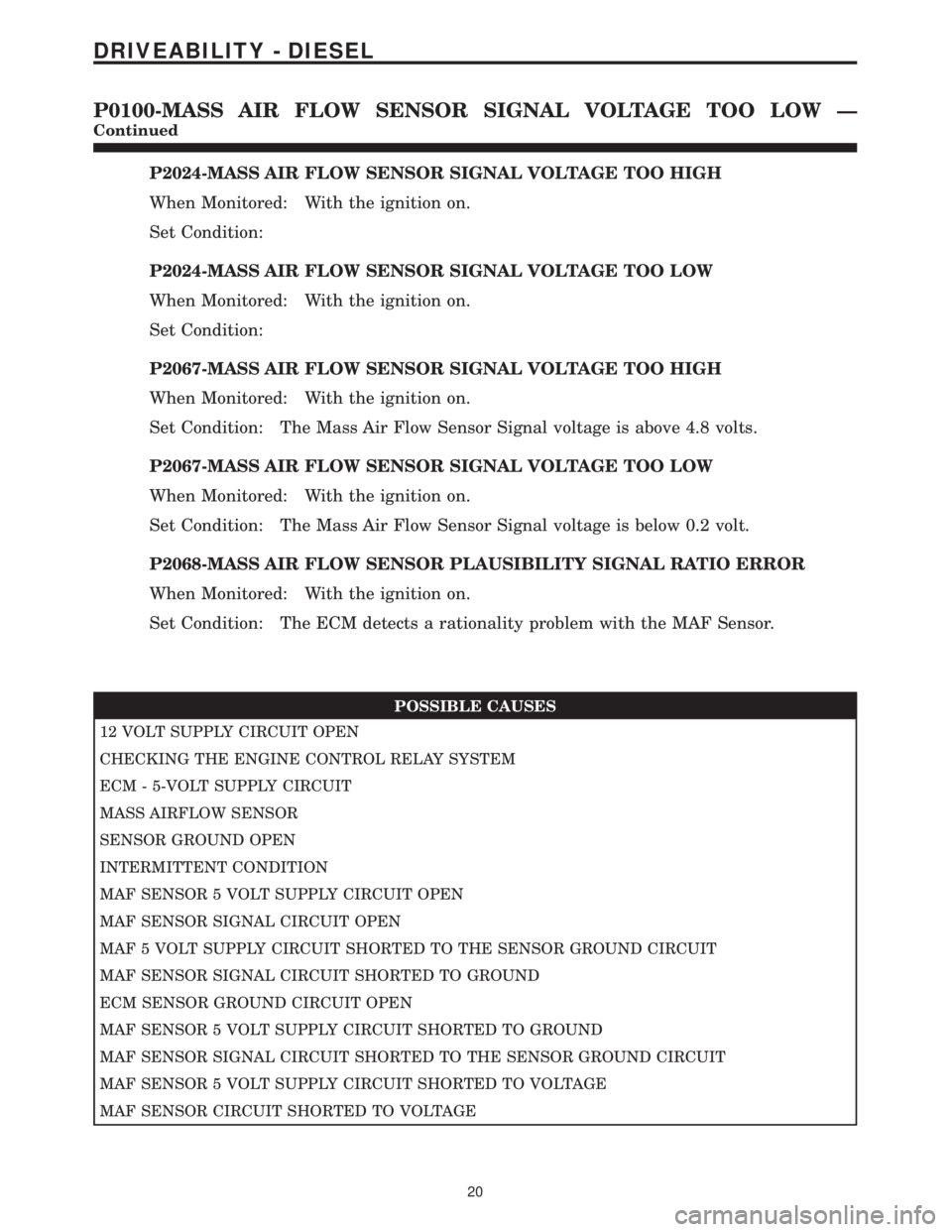

P2024-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO HIGH
When Monitored: With the ignition on.
Set Condition:
P2024-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW
When Monitored: With the ignition on.
Set Condition:
P2067-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO HIGH
When Monitored: With the ignition on.
Set Condition: The Mass Air Flow Sensor Signal voltage is above 4.8 volts.
P2067-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW
When Monitored: With the ignition on.
Set Condition: The Mass Air Flow Sensor Signal voltage is below 0.2 volt.
P2068-MASS AIR FLOW SENSOR PLAUSIBILITY SIGNAL RATIO ERROR
When Monitored: With the ignition on.
Set Condition: The ECM detects a rationality problem with the MAF Sensor.
POSSIBLE CAUSES
12 VOLT SUPPLY CIRCUIT OPEN
CHECKING THE ENGINE CONTROL RELAY SYSTEM
ECM - 5-VOLT SUPPLY CIRCUIT
MASS AIRFLOW SENSOR
SENSOR GROUND OPEN
INTERMITTENT CONDITION
MAF SENSOR 5 VOLT SUPPLY CIRCUIT OPEN
MAF SENSOR SIGNAL CIRCUIT OPEN
MAF 5 VOLT SUPPLY CIRCUIT SHORTED TO THE SENSOR GROUND CIRCUIT
MAF SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
ECM SENSOR GROUND CIRCUIT OPEN
MAF SENSOR 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
MAF SENSOR SIGNAL CIRCUIT SHORTED TO THE SENSOR GROUND CIRCUIT
MAF SENSOR 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
MAF SENSOR CIRCUIT SHORTED TO VOLTAGE
20
DRIVEABILITY - DIESEL
P0100-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW Ð
Continued

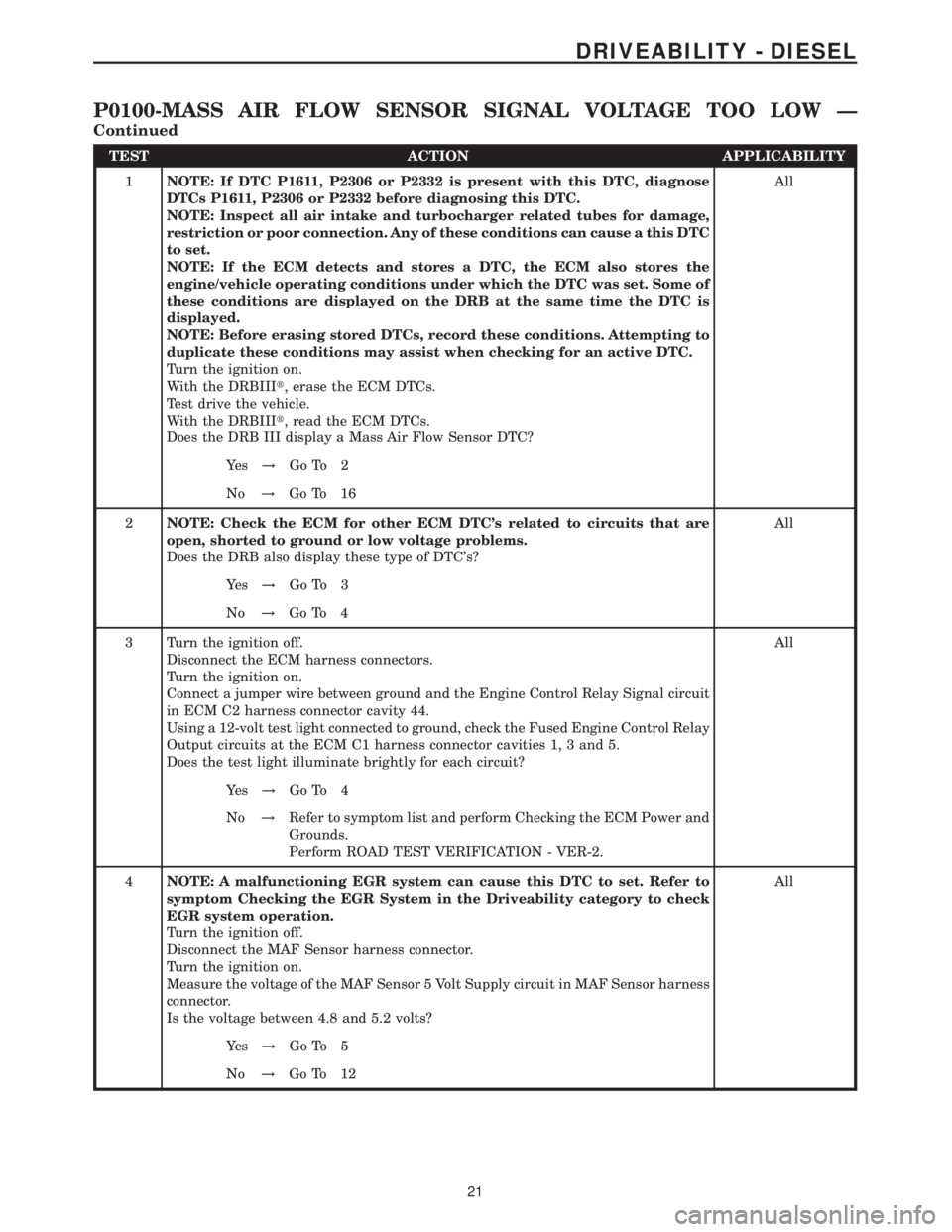

TEST ACTION APPLICABILITY
1NOTE: If DTC P1611, P2306 or P2332 is present with this DTC, diagnose
DTCs P1611, P2306 or P2332 before diagnosing this DTC.
NOTE: Inspect all air intake and turbocharger related tubes for damage,
restriction or poor connection. Any of these conditions can cause a this DTC
to set.
NOTE: If the ECM detects and stores a DTC, the ECM also stores the
engine/vehicle operating conditions under which the DTC was set. Some of
these conditions are displayed on the DRB at the same time the DTC is
displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to
duplicate these conditions may assist when checking for an active DTC.
Turn the ignition on.
With the DRBIIIt, erase the ECM DTCs.
Test drive the vehicle.
With the DRBIIIt, read the ECM DTCs.
Does the DRB III display a Mass Air Flow Sensor DTC?All
Ye s!Go To 2
No!Go To 16
2NOTE: Check the ECM for other ECM DTC's related to circuits that are
open, shorted to ground or low voltage problems.
Does the DRB also display these type of DTC's?All
Ye s!Go To 3
No!Go To 4
3 Turn the ignition off.
Disconnect the ECM harness connectors.
Turn the ignition on.
Connect a jumper wire between ground and the Engine Control Relay Signal circuit
in ECM C2 harness connector cavity 44.
Using a 12-volt test light connected to ground, check the Fused Engine Control Relay
Output circuits at the ECM C1 harness connector cavities 1, 3 and 5.
Does the test light illuminate brightly for each circuit?All
Ye s!Go To 4
No!Refer to symptom list and perform Checking the ECM Power and
Grounds.
Perform ROAD TEST VERIFICATION - VER-2.
4NOTE: A malfunctioning EGR system can cause this DTC to set. Refer to
symptom Checking the EGR System in the Driveability category to check
EGR system operation.
Turn the ignition off.
Disconnect the MAF Sensor harness connector.
Turn the ignition on.
Measure the voltage of the MAF Sensor 5 Volt Supply circuit in MAF Sensor harness
connector.
Is the voltage between 4.8 and 5.2 volts?All
Ye s!Go To 5
No!Go To 12
21
DRIVEABILITY - DIESEL
P0100-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW Ð
Continued

TEST ACTION APPLICABILITY

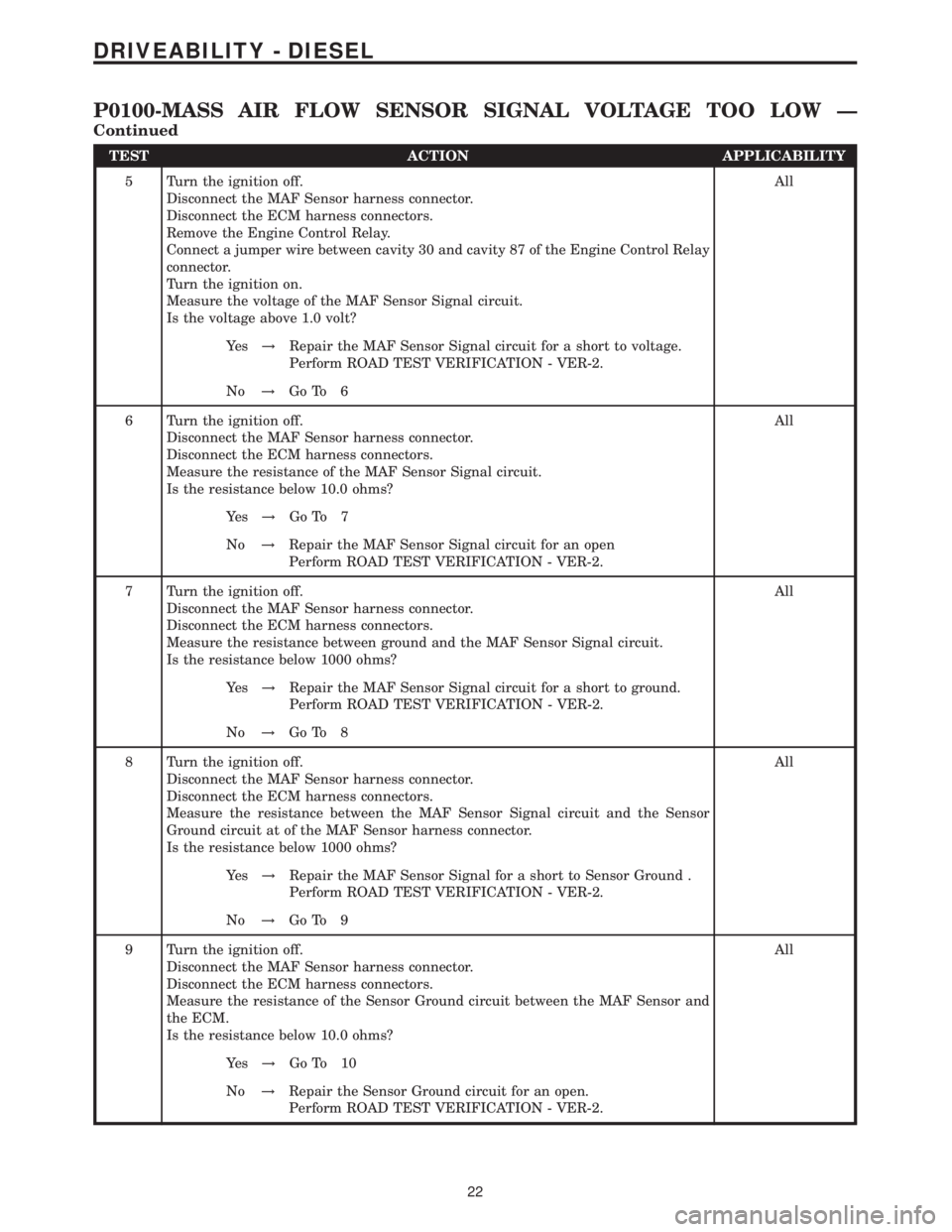

5 Turn the ignition off.
Disconnect the MAF Sensor harness connector.
Disconnect the ECM harness connectors.
Remove the Engine Control Relay.
Connect a jumper wire between cavity 30 and cavity 87 of the Engine Control Relay
connector.
Turn the ignition on.
Measure the voltage of the MAF Sensor Signal circuit.
Is the voltage above 1.0 volt?All
Ye s!Repair the MAF Sensor Signal circuit for a short to voltage.
Perform ROAD TEST VERIFICATION - VER-2.
No!Go To 6
6 Turn the ignition off.
Disconnect the MAF Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the MAF Sensor Signal circuit.
Is the resistance below 10.0 ohms?All
Ye s!Go To 7
No!Repair the MAF Sensor Signal circuit for an open
Perform ROAD TEST VERIFICATION - VER-2.
7 Turn the ignition off.
Disconnect the MAF Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance between ground and the MAF Sensor Signal circuit.
Is the resistance below 1000 ohms?All
Ye s!Repair the MAF Sensor Signal circuit for a short to ground.
Perform ROAD TEST VERIFICATION - VER-2.
No!Go To 8
8 Turn the ignition off.
Disconnect the MAF Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance between the MAF Sensor Signal circuit and the Sensor
Ground circuit at of the MAF Sensor harness connector.
Is the resistance below 1000 ohms?All
Ye s!Repair the MAF Sensor Signal for a short to Sensor Ground .
Perform ROAD TEST VERIFICATION - VER-2.
No!Go To 9
9 Turn the ignition off.
Disconnect the MAF Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the Sensor Ground circuit between the MAF Sensor and
the ECM.
Is the resistance below 10.0 ohms?All
Ye s!Go To 10
No!Repair the Sensor Ground circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
22
DRIVEABILITY - DIESEL
P0100-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW Ð
Continued

TEST ACTION APPLICABILITY

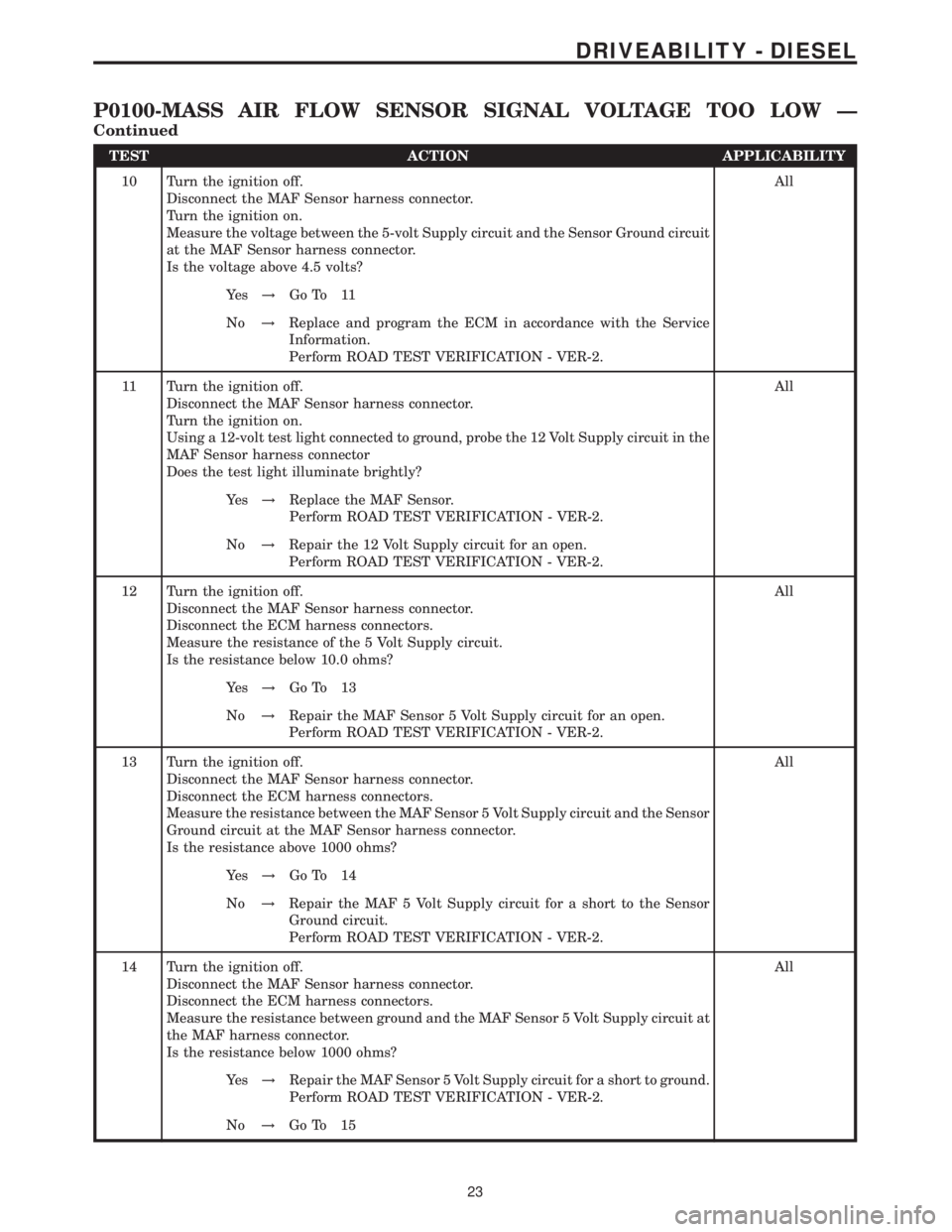

10 Turn the ignition off.
Disconnect the MAF Sensor harness connector.
Turn the ignition on.
Measure the voltage between the 5-volt Supply circuit and the Sensor Ground circuit
at the MAF Sensor harness connector.
Is the voltage above 4.5 volts?All
Ye s!Go To 11
No!Replace and program the ECM in accordance with the Service
Information.
Perform ROAD TEST VERIFICATION - VER-2.
11 Turn the ignition off.
Disconnect the MAF Sensor harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, probe the 12 Volt Supply circuit in the
MAF Sensor harness connector
Does the test light illuminate brightly?All
Ye s!Replace the MAF Sensor.
Perform ROAD TEST VERIFICATION - VER-2.
No!Repair the 12 Volt Supply circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
12 Turn the ignition off.
Disconnect the MAF Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the 5 Volt Supply circuit.
Is the resistance below 10.0 ohms?All
Ye s!Go To 13
No!Repair the MAF Sensor 5 Volt Supply circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
13 Turn the ignition off.
Disconnect the MAF Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance between the MAF Sensor 5 Volt Supply circuit and the Sensor
Ground circuit at the MAF Sensor harness connector.
Is the resistance above 1000 ohms?All
Ye s!Go To 14
No!Repair the MAF 5 Volt Supply circuit for a short to the Sensor
Ground circuit.
Perform ROAD TEST VERIFICATION - VER-2.
14 Turn the ignition off.
Disconnect the MAF Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance between ground and the MAF Sensor 5 Volt Supply circuit at
the MAF harness connector.
Is the resistance below 1000 ohms?All
Ye s!Repair the MAF Sensor 5 Volt Supply circuit for a short to ground.
Perform ROAD TEST VERIFICATION - VER-2.
No!Go To 15
23
DRIVEABILITY - DIESEL
P0100-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW Ð
Continued

TEST ACTION APPLICABILITY

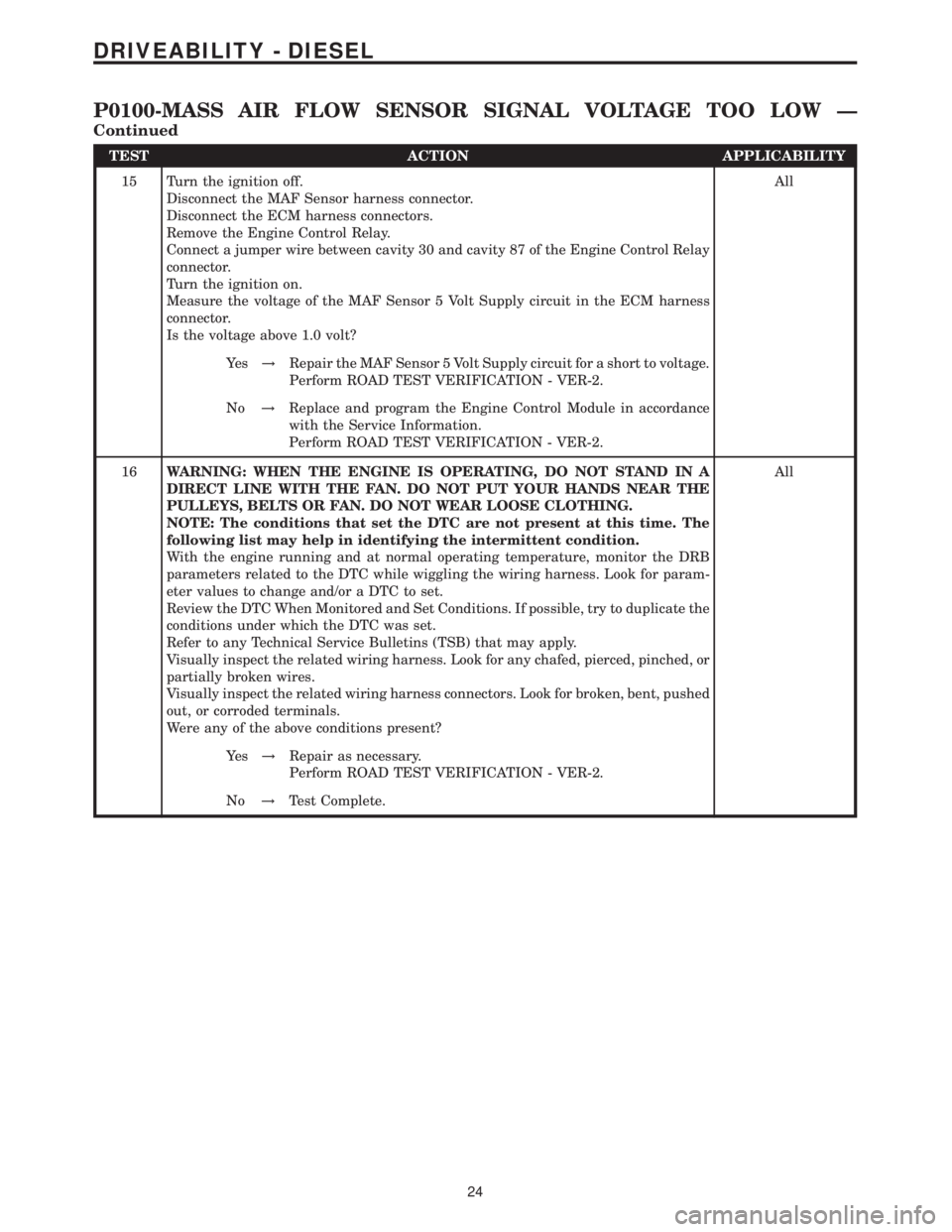

15 Turn the ignition off.
Disconnect the MAF Sensor harness connector.
Disconnect the ECM harness connectors.
Remove the Engine Control Relay.
Connect a jumper wire between cavity 30 and cavity 87 of the Engine Control Relay
connector.
Turn the ignition on.
Measure the voltage of the MAF Sensor 5 Volt Supply circuit in the ECM harness
connector.
Is the voltage above 1.0 volt?All
Ye s!Repair the MAF Sensor 5 Volt Supply circuit for a short to voltage.
Perform ROAD TEST VERIFICATION - VER-2.
No!Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
16WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running and at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s!Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No!Test Complete.
24
DRIVEABILITY - DIESEL
P0100-MASS AIR FLOW SENSOR SIGNAL VOLTAGE TOO LOW Ð
Continued

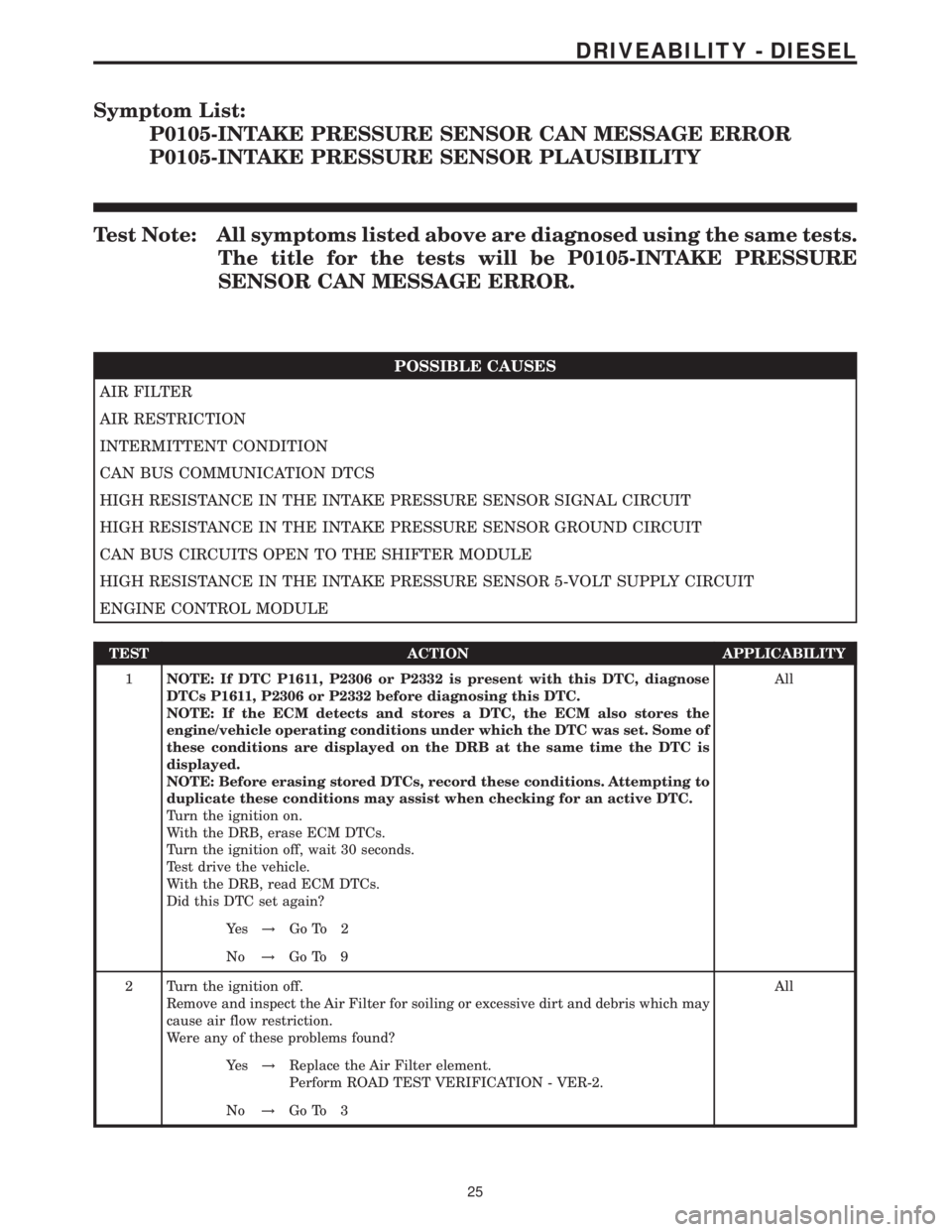

Symptom List:
P0105-INTAKE PRESSURE SENSOR CAN MESSAGE ERROR
P0105-INTAKE PRESSURE SENSOR PLAUSIBILITY
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be P0105-INTAKE PRESSURE
SENSOR CAN MESSAGE ERROR.
POSSIBLE CAUSES
AIR FILTER
AIR RESTRICTION
INTERMITTENT CONDITION
CAN BUS COMMUNICATION DTCS
HIGH RESISTANCE IN THE INTAKE PRESSURE SENSOR SIGNAL CIRCUIT
HIGH RESISTANCE IN THE INTAKE PRESSURE SENSOR GROUND CIRCUIT
CAN BUS CIRCUITS OPEN TO THE SHIFTER MODULE
HIGH RESISTANCE IN THE INTAKE PRESSURE SENSOR 5-VOLT SUPPLY CIRCUIT
ENGINE CONTROL MODULE
TEST ACTION APPLICABILITY
1NOTE: If DTC P1611, P2306 or P2332 is present with this DTC, diagnose
DTCs P1611, P2306 or P2332 before diagnosing this DTC.
NOTE: If the ECM detects and stores a DTC, the ECM also stores the
engine/vehicle operating conditions under which the DTC was set. Some of
these conditions are displayed on the DRB at the same time the DTC is
displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to
duplicate these conditions may assist when checking for an active DTC.
Turn the ignition on.
With the DRB, erase ECM DTCs.
Turn the ignition off, wait 30 seconds.
Test drive the vehicle.
With the DRB, read ECM DTCs.
Did this DTC set again?All
Ye s!Go To 2
No!Go To 9
2 Turn the ignition off.
Remove and inspect the Air Filter for soiling or excessive dirt and debris which may
cause air flow restriction.
Were any of these problems found?All
Ye s!Replace the Air Filter element.
Perform ROAD TEST VERIFICATION - VER-2.
No!Go To 3
25
DRIVEABILITY - DIESEL

TEST ACTION APPLICABILITY

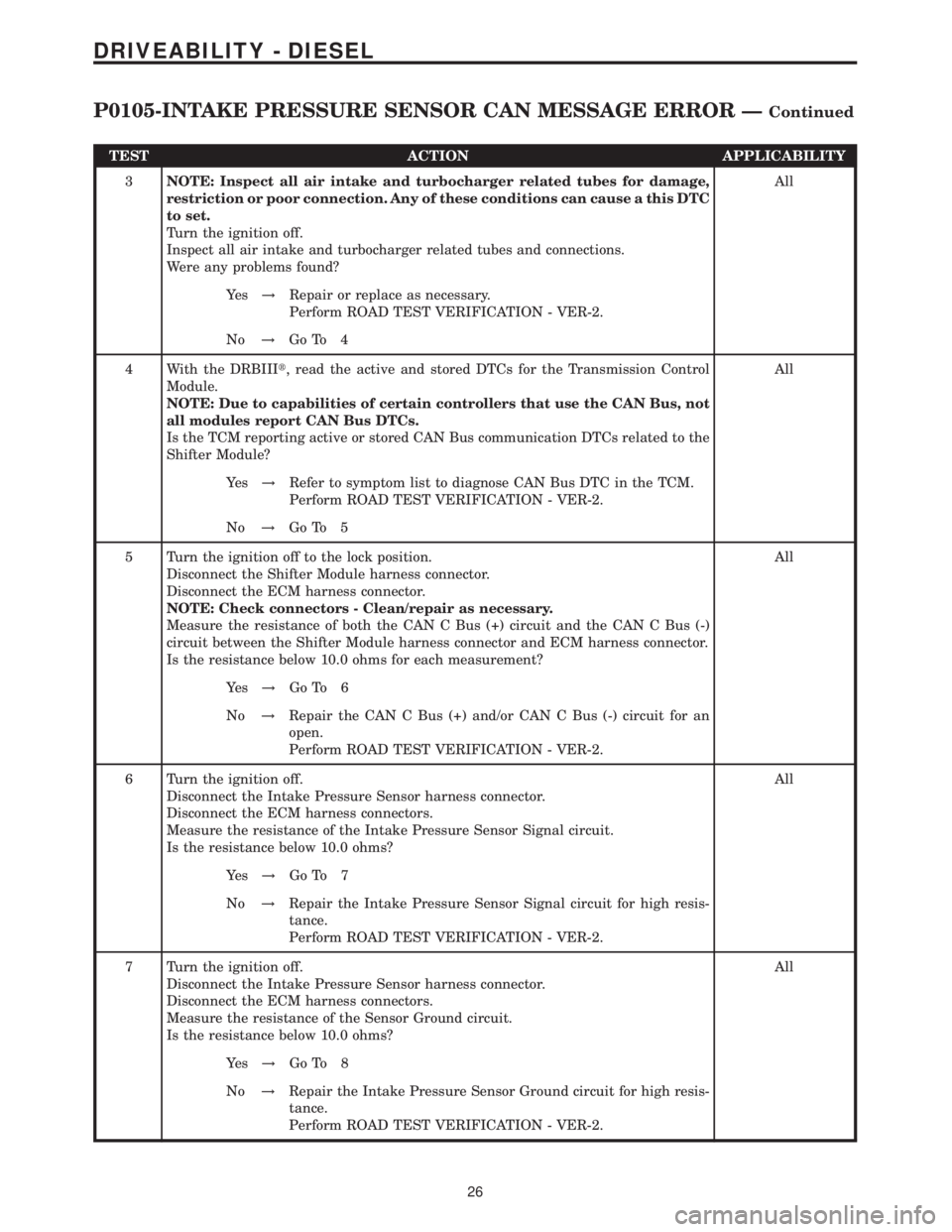

3NOTE: Inspect all air intake and turbocharger related tubes for damage,
restriction or poor connection. Any of these conditions can cause a this DTC
to set.
Turn the ignition off.
Inspect all air intake and turbocharger related tubes and connections.
Were any problems found?All
Ye s!Repair or replace as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No!Go To 4
4 With the DRBIIIt, read the active and stored DTCs for the Transmission Control
Module.
NOTE: Due to capabilities of certain controllers that use the CAN Bus, not
all modules report CAN Bus DTCs.
Is the TCM reporting active or stored CAN Bus communication DTCs related to the
Shifter Module?All
Ye s!Refer to symptom list to diagnose CAN Bus DTC in the TCM.
Perform ROAD TEST VERIFICATION - VER-2.
No!Go To 5
5 Turn the ignition off to the lock position.
Disconnect the Shifter Module harness connector.
Disconnect the ECM harness connector.
NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance of both the CAN C Bus (+) circuit and the CAN C Bus (-)
circuit between the Shifter Module harness connector and ECM harness connector.
Is the resistance below 10.0 ohms for each measurement?All
Ye s!Go To 6
No!Repair the CAN C Bus (+) and/or CAN C Bus (-) circuit for an
open.
Perform ROAD TEST VERIFICATION - VER-2.
6 Turn the ignition off.
Disconnect the Intake Pressure Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the Intake Pressure Sensor Signal circuit.
Is the resistance below 10.0 ohms?All
Ye s!Go To 7
No!Repair the Intake Pressure Sensor Signal circuit for high resis-
tance.
Perform ROAD TEST VERIFICATION - VER-2.
7 Turn the ignition off.
Disconnect the Intake Pressure Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the Sensor Ground circuit.
Is the resistance below 10.0 ohms?All
Ye s!Go To 8
No!Repair the Intake Pressure Sensor Ground circuit for high resis-
tance.
Perform ROAD TEST VERIFICATION - VER-2.
26
DRIVEABILITY - DIESEL
P0105-INTAKE PRESSURE SENSOR CAN MESSAGE ERROR ÐContinued

TEST ACTION APPLICABILITY
8 Turn the ignition off.
Disconnect the Intake Pressure Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the Intake Pressure Sensor 5-volt Supply circuit.
Is the resistance below 10.0 ohms?All
Ye s!Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
No!Repair the Intake Pressure Sensor 5 Volt Supply circuit for high
resistance.
Perform ROAD TEST VERIFICATION - VER-2.
9WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s!Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No!Test Complete.
27
DRIVEABILITY - DIESEL
P0105-INTAKE PRESSURE SENSOR CAN MESSAGE ERROR ÐContinued
