Page 13 of 22

MERCEDES-BENZ SPRINTER 2015  MY15 Fuse Allocation Supplement Configuration
Fuses
Fuse block F55/3
No. Consumer Fuse
rating 1 Mirror setting/rear win-
dow defroster 5 A
2 Rear window wiper 30 A
3 Auxiliary heating, digital
timer/rear view cam-
era/neutral gate s

Page 14 of 22

MERCEDES-BENZ SPRINTER 2015  MY15 Fuse Allocation Supplement Fuse block F55/4
No. Consumer Fuse
rating 10 Terminal 30, body/
equipment manufac-
turer 25 A
11 Terminal 15, body/
equipment manufac-
turer 15 A
12 D+, body/equipment
manufacturer 10 A
13 Fuel pump F

Page 15 of 22

MERCEDES-BENZ SPRINTER 2015  MY15 Fuse Allocation Supplement Fuse block F55/6
No. Consumer Fuse
rating 28 SRB starter relay (fuse
and relay module)
3, 6
Starter for electrical sup- ply support using the
additional battery 25 A
29 Terminal 87 (7), gas sys-
tem,

Page 16 of 22

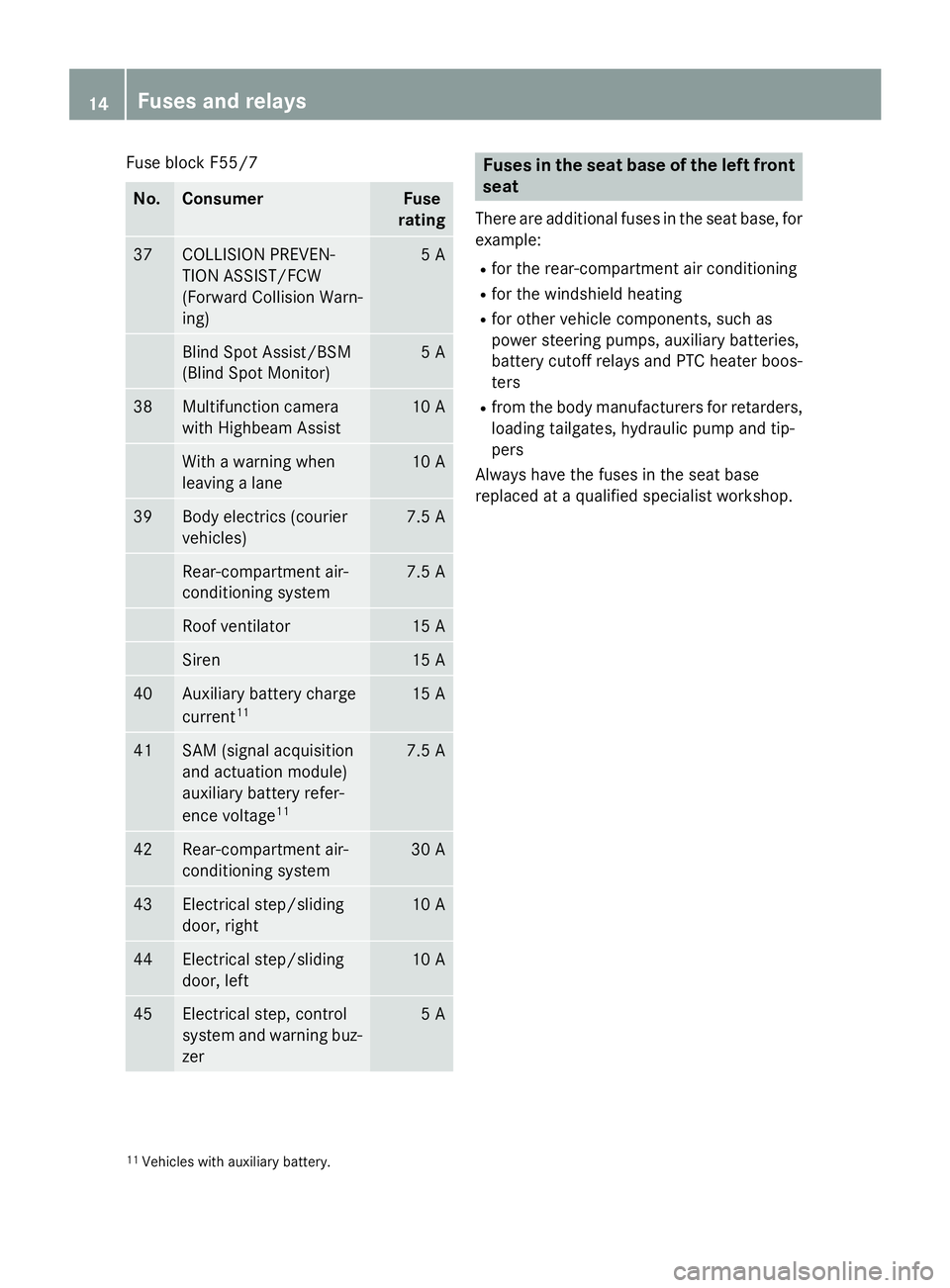

MERCEDES-BENZ SPRINTER 2015  MY15 Fuse Allocation Supplement Fuse block F55/7
No. Consumer Fuse
rating 37 COLLISION PREVEN-
TION ASSIST/FCW
(Forward Collision Warn-
ing) 5 A
Blind Spot Assist/BSM
(Blind Spot Monitor) 5 A
38 Multifunction camera
with Highbeam As

Page 17 of 22

MERCEDES-BENZ SPRINTER 2015  MY15 Fuse Allocation Supplement Relays in the seat base of the left front seat
No. Relays Description
R1 K6
Starter relay, right-hand drive
6R2 K41 Load relief relay, terminal 15
R3 K41/5 Starter relay, terminal 15
R4 K64
K110 Secon

Page 18 of 22

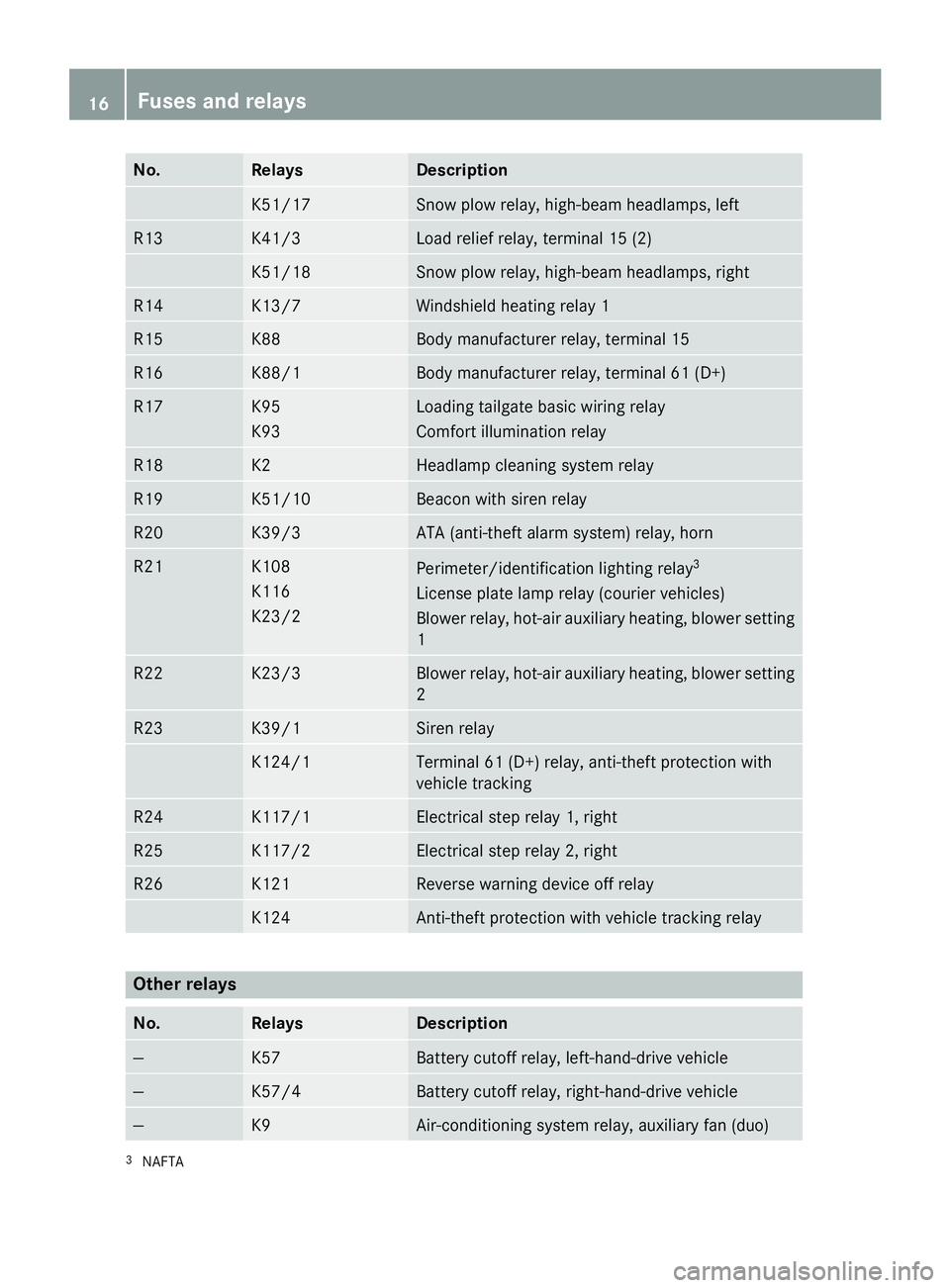

MERCEDES-BENZ SPRINTER 2015  MY15 Fuse Allocation Supplement No. Relays Description
K51/17 Snow plow relay, high-beam headlamps, left
R13 K41/3 Load relief relay, terminal 15 (2)
K51/18 Snow plow relay, high-beam headlamps, right
R14 K13/7 Windshield heating re

Page 19 of 22

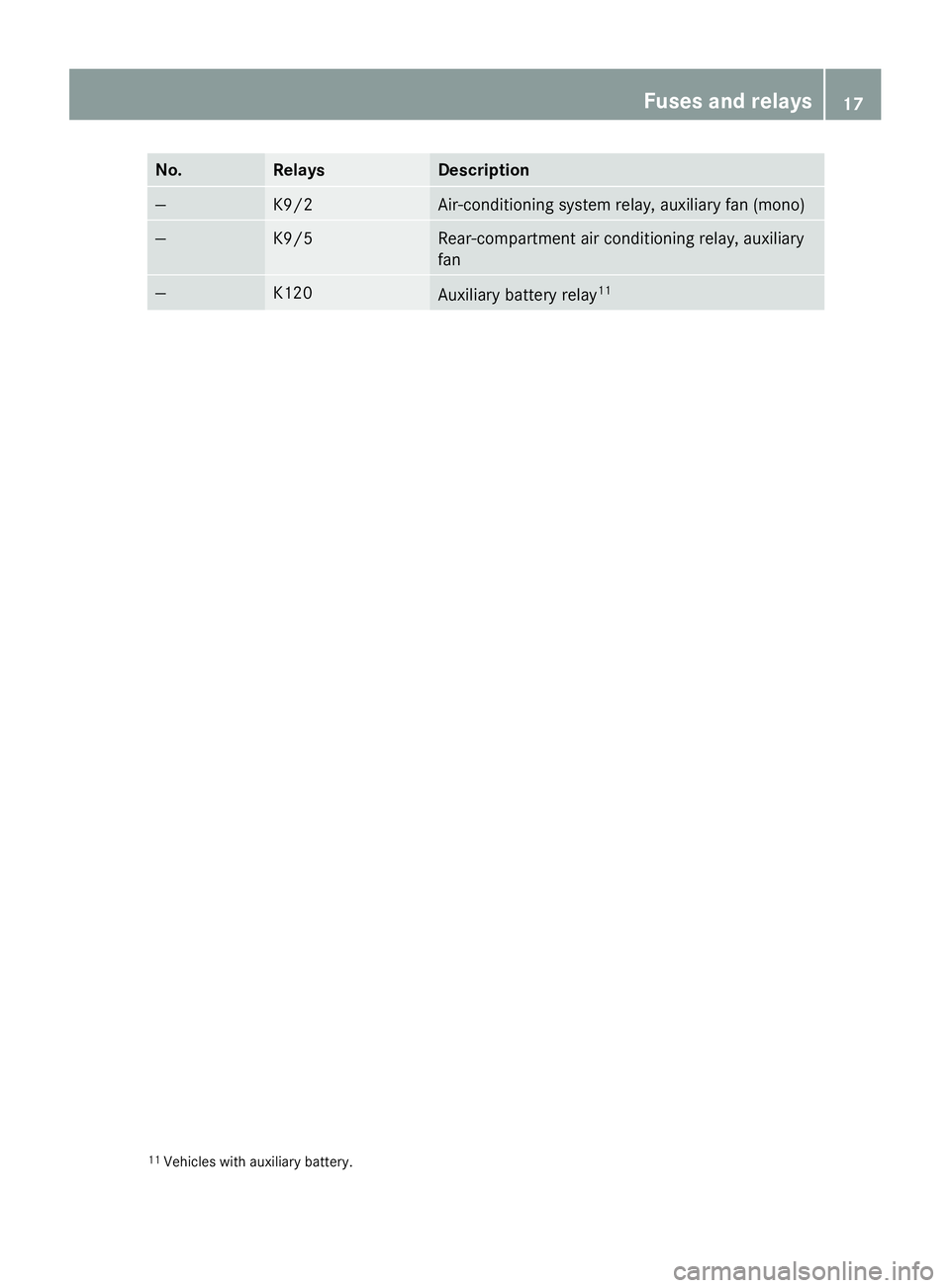

MERCEDES-BENZ SPRINTER 2015  MY15 Fuse Allocation Supplement No. Relays Description
— K9/2 Air-conditioning system relay, auxiliary fan (mono)
— K9/5 Rear-compartment air conditioning relay, auxiliary
fan
— K120
Auxiliary battery relay
1111
Vehicles with
