sensor MERCEDES-BENZ SPRINTER 2015 MY15 Fuse Allocation Supplement

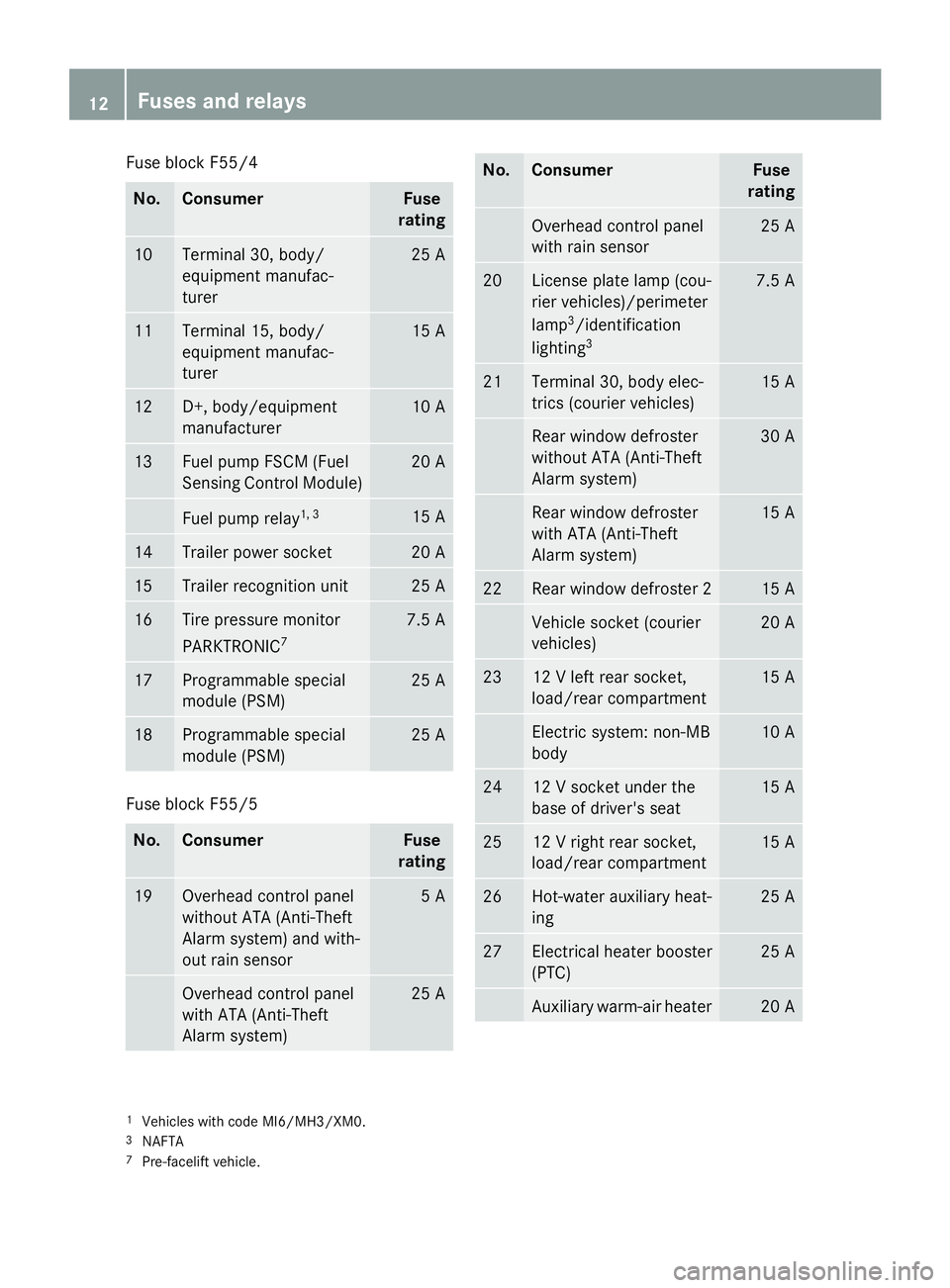

Fuse block F55/4
No. Consumer Fuse
rating 10 Terminal 30, body/
equipment manufac-
turer 25 A
11 Terminal 15, body/
equipment manufac-
turer 15 A
12 D+, body/equipment
manufacturer 10 A
13 Fuel pump FSCM (Fuel
Sensing Control Module) 20 A
Fuel pump relay
1, 3 15 A
14 Trailer power socket 20 A
15 Trailer recognition unit 25 A
16 Tire pressure monitor
PARKTRONIC
7 7.5 A
17 Programmable special
module (PSM) 25 A
18 Programmable special
module (PSM) 25 A
Fuse block F55/5
No. Consumer Fuse
rating 19 Overhead control panel
without ATA (Anti-Theft
Alarm system) and with-
out rain sensor 5 A
Overhead control panel
with ATA (Anti-Theft
Alarm system) 25 A No. Consumer Fuse
rating Overhead control panel
with rain sensor 25 A
20 License plate lamp (cou-
rier vehicles)/perimeter
lamp
3
/identification
lighting 3 7.5 A
21 Terminal 30, body elec-
trics (courier vehicles) 15 A
Rear window defroster
without ATA (Anti-Theft
Alarm system) 30 A
Rear window defroster
with ATA (Anti-Theft
Alarm system) 15 A
22 Rear window defroster 2 15 A
Vehicle socket (courier
vehicles) 20 A
23 12 V left rear socket,
load/rear compartment 15 A
Electric system: non-MB
body 10 A
24 12 V socket under the
base of driver's seat 15 A
25 12 V right rear socket,
load/rear compartment 15 A
26 Hot-water auxiliary heat-
ing 25 A
27 Electrical heater booster
(PTC) 25 A
Auxiliary warm-air heater 20 A
1
Vehicles with code MI6/MH3/XM0.
3 NAFTA
7 Pre-facelift vehicle. 12
Fuses and relays
