Page 11 of 38

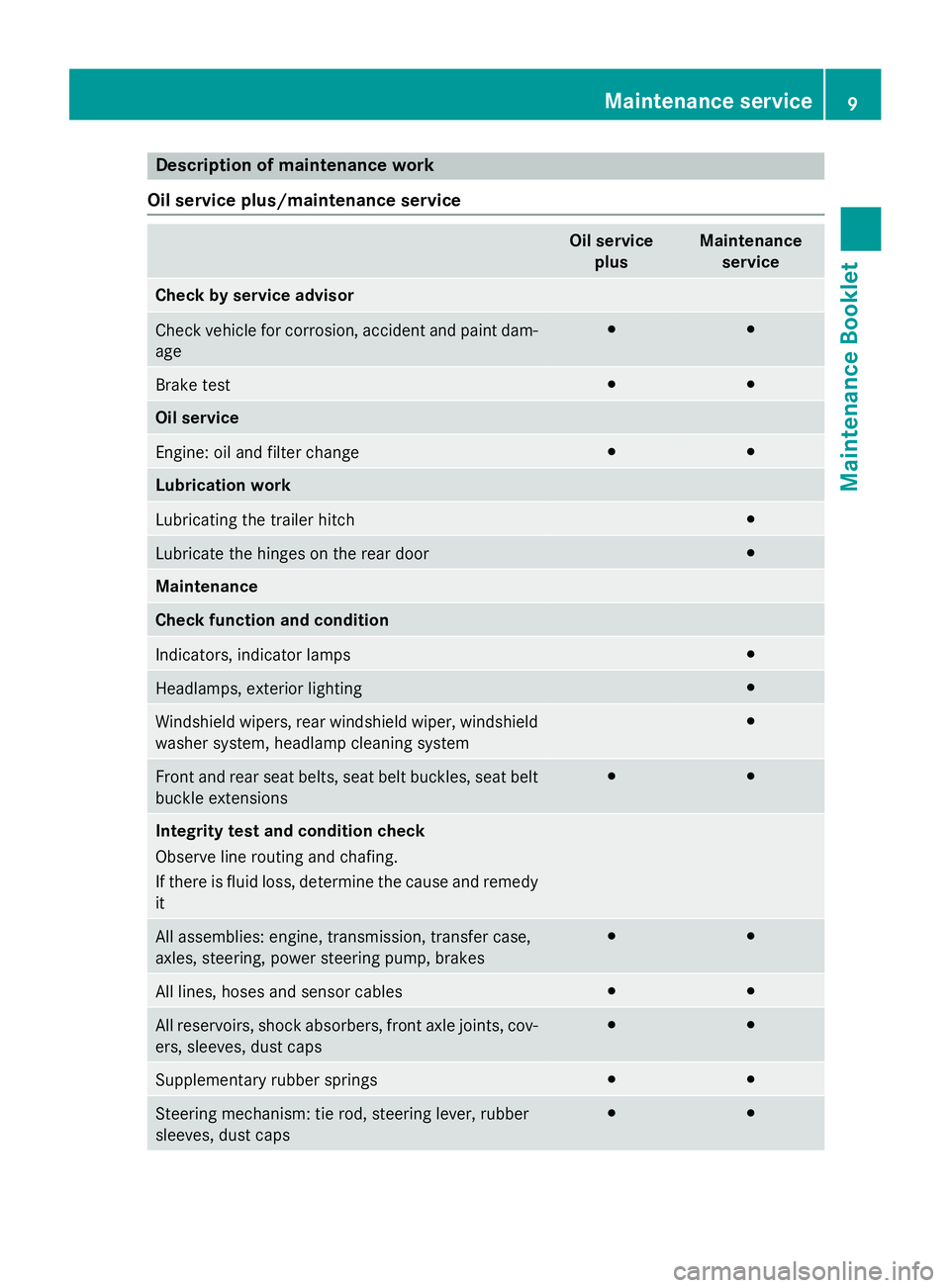

Description of maintenance work
Oil service plus/maintenance service Oil service
plus Maintenance
service Check by service advisor
Check vehicle for corrosion, accident and paint dam-
age ^ ^
Brake test
^ ^
Oil service
Engine: oil and filter change
^ ^
Lubrication work
Lubricating the trailer hitch
^
Lubricate the hinges on the rear door
^
Maintenance
Check function and condition
Indicators, indicator lamps
^
Headlamps, exterior lighting
^
Windshield wipers, rear windshield wiper, windshield
washer system, headlamp cleaning system ^
Front and rear seat belts, seat belt buckles, seat belt
buckle extensions ^ ^
Integrity test and condition check
Observe line routing and chafing.
If there is fluid loss, determine the cause and remedy
it All assemblies: engine, transmission, transfer case,
axles, steering, power steering pump, brakes
^ ^
All lines, hoses and sensor cables
^ ^
All reservoirs, shock absorbers, front axle joints, cov-
ers, sleeves, dust caps ^ ^
Supplementary rubber springs
^ ^
Steering mechanism: tie rod, steering lever, rubber
sleeves, dust caps
^ ^Maintenance service
9Maintenance Booklet
Page 12 of 38

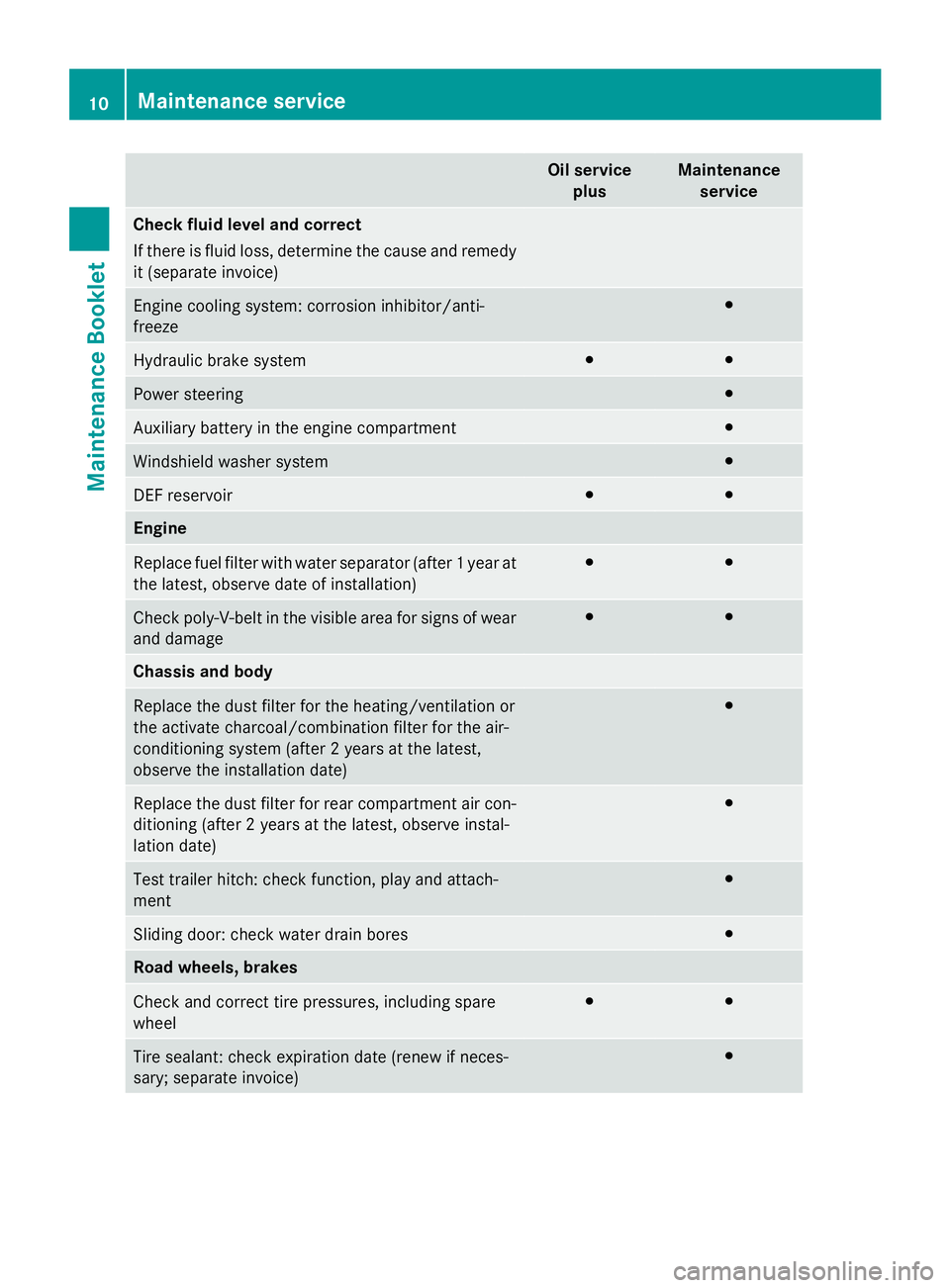

Oil service
plus Maintenance
service Check fluid level and correct
If there is fluid loss, determine the cause and remedy
it (separate invoice) Engine cooling system: corrosion inhibitor/anti-
freeze
^
Hydraulic brake system
^ ^
Power steering
^
Auxiliary battery in the engine compartment
^
Windshield washer system
^
DEF reservoir
^ ^
Engine
Replace fuel filter with water separator (after 1 year at
the latest, observe date of installation) ^ ^
Check poly-V-belt in the visible area for signs of wear
and damage ^ ^
Chassis and body
Replace the dust filter for the heating/ventilation or
the activate charcoal/combination filter for the air-
conditioning system (after 2 years at the latest,
observe the installation date) ^
Replace the dust filter for rear compartment air con-
ditioning (after 2 years at the latest, observe instal-
lation date) ^
Test trailer hitch: check function, play and attach-
ment ^
Sliding door: check water drain bores
^
Road wheels, brakes
Check and correct tire pressures, including spare
wheel ^ ^
Tire sealant: check expiration date (renew if neces-
sary; separate invoice)
^10
Maintenance serviceMaintenance Booklet
Page 13 of 38

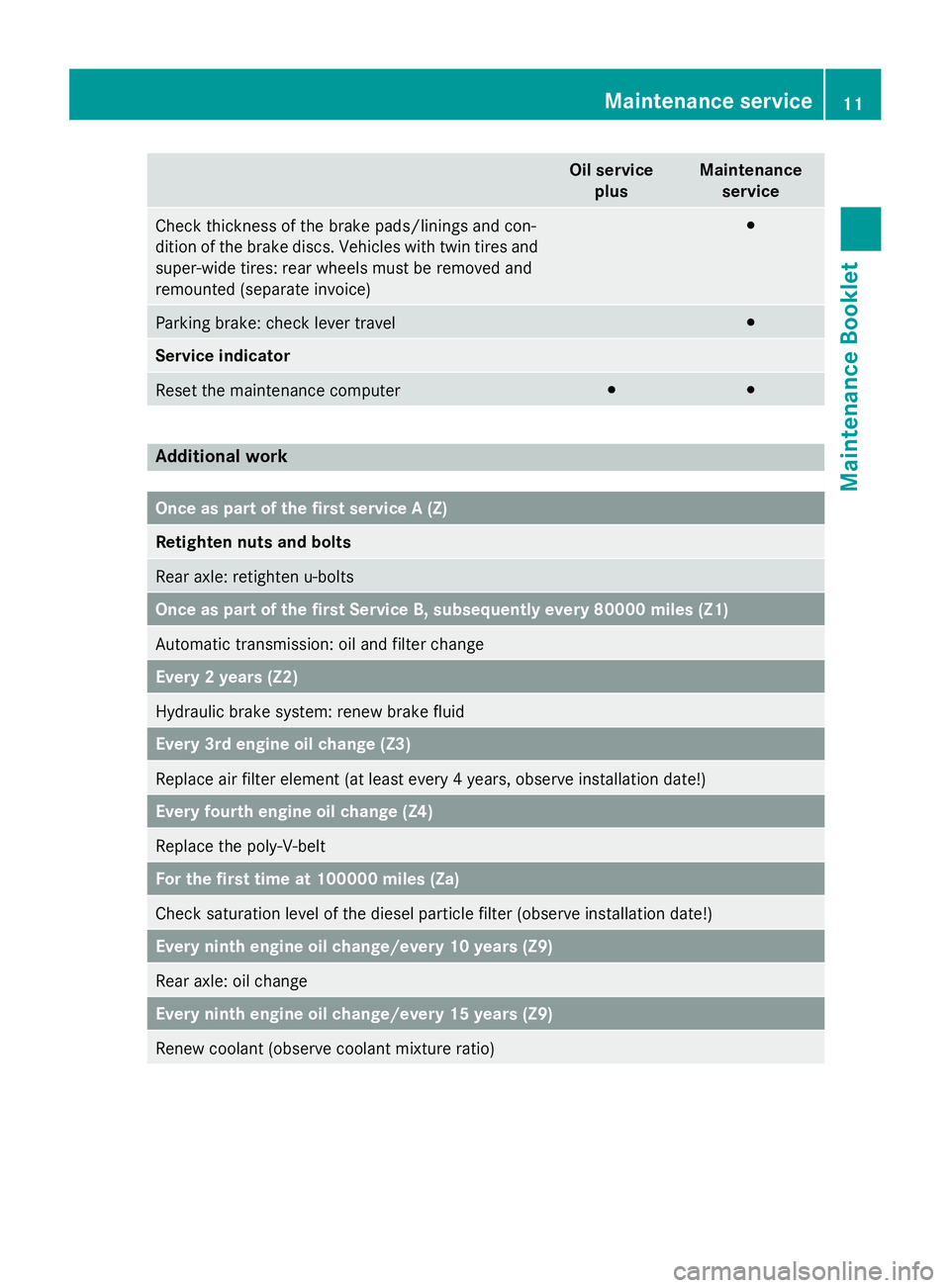

Oil service
plus Maintenance
service Check thickness of the brake pads/linings and con-
dition of the brake discs. Vehicles with twin tires and
super-wide tires: rear wheels must be removed and
remounted (separate invoice) ^
Parking brake: check lever travel
^
Service indicator
Reset the maintenance computer
^ ^
Additional work
Once as part of the first service A (Z)
Retighten nuts and bolts
Rear axle: retighten u-bolts
Once as part of the first Service B, subsequently every 80000 miles (Z1)
Automatic transmission: oil and filter change
Every 2 years (Z2)
Hydraulic brake system: renew brake fluid
Every 3rd engine oil change (Z3)
Replace air filter element (at least every 4 years, observe installation date!)
Every fourth engine oil change (Z4)
Replace the poly-V-belt
For the first time at 100000 miles (Za)
Check saturation level of the diesel particle filter (observe installation date!)
Every ninth engine oil change/every 10 years (Z9)
Rear axle: oil change
Every ninth engine oil change/every 15 years (Z9)
Renew coolant (observe coolant mixture ratio) Maintenance service
11Maintenance Booklet
Page 14 of 38

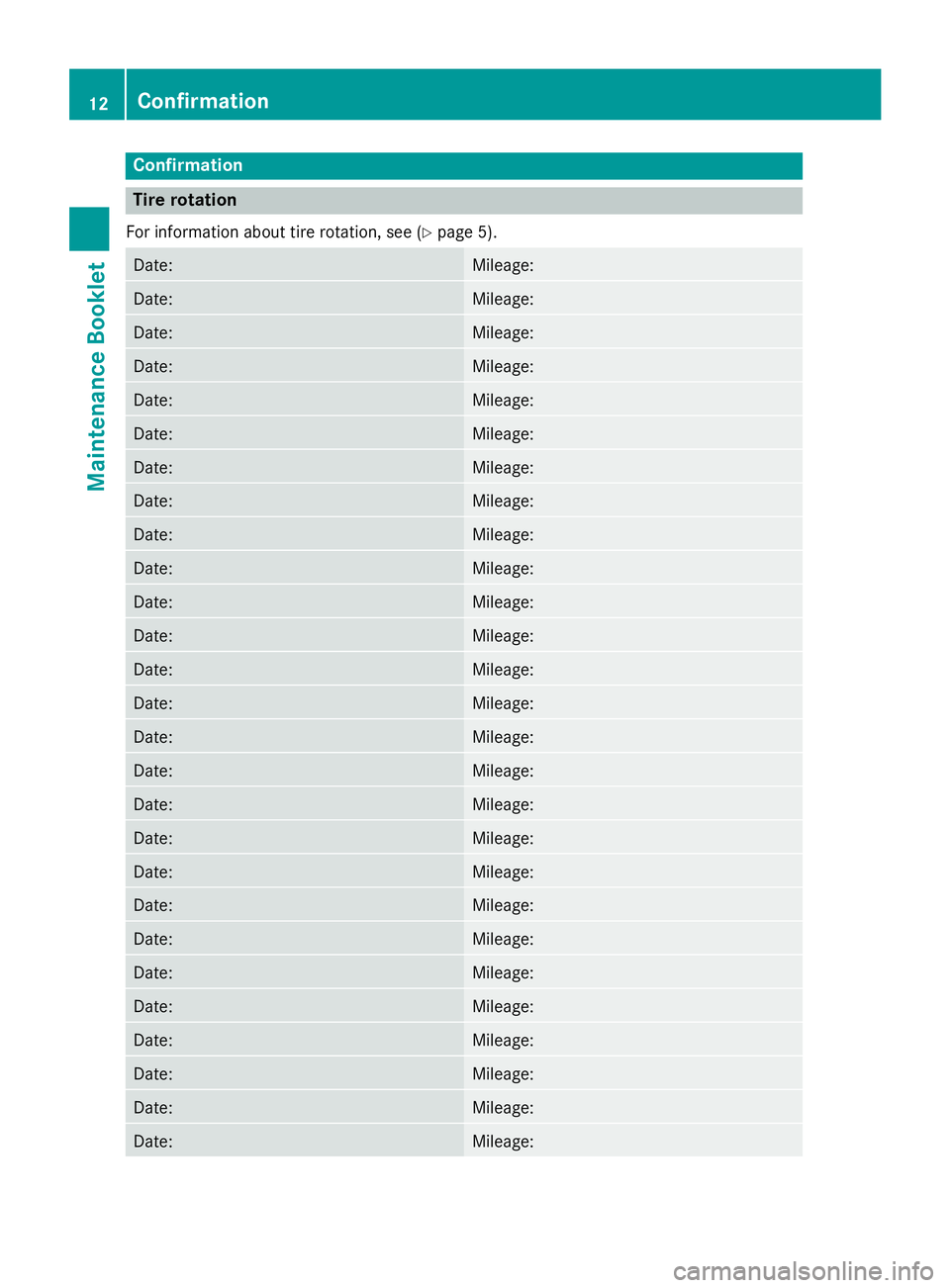

Confirmation
Tire rotation
For information about tire rotation, see (Y page 5).Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:12
ConfirmationMaintenance Booklet
Page 15 of 38

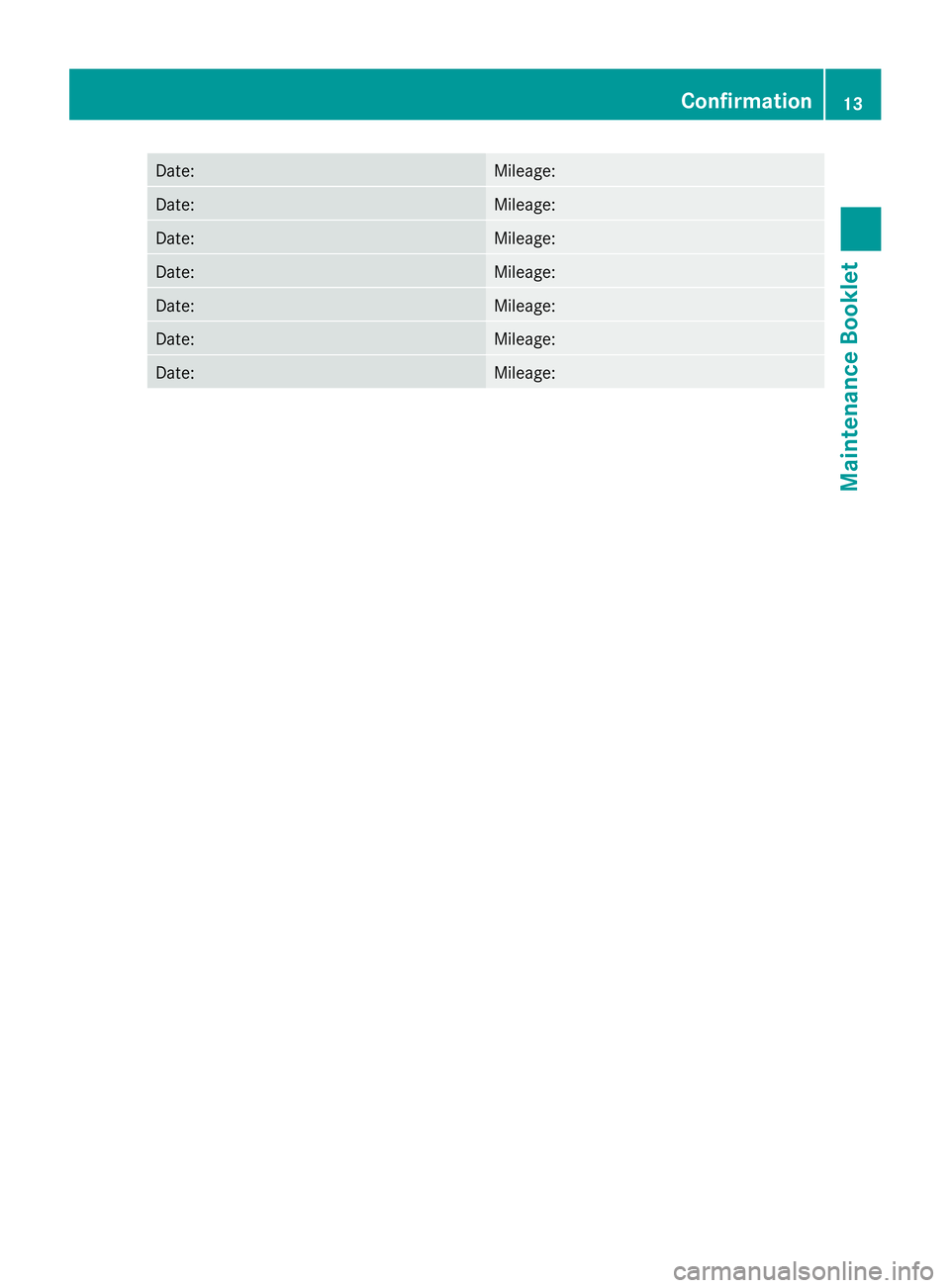

Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage:
Date: Mileage: Confirmation
13Maintenance Booklet
Page 16 of 38

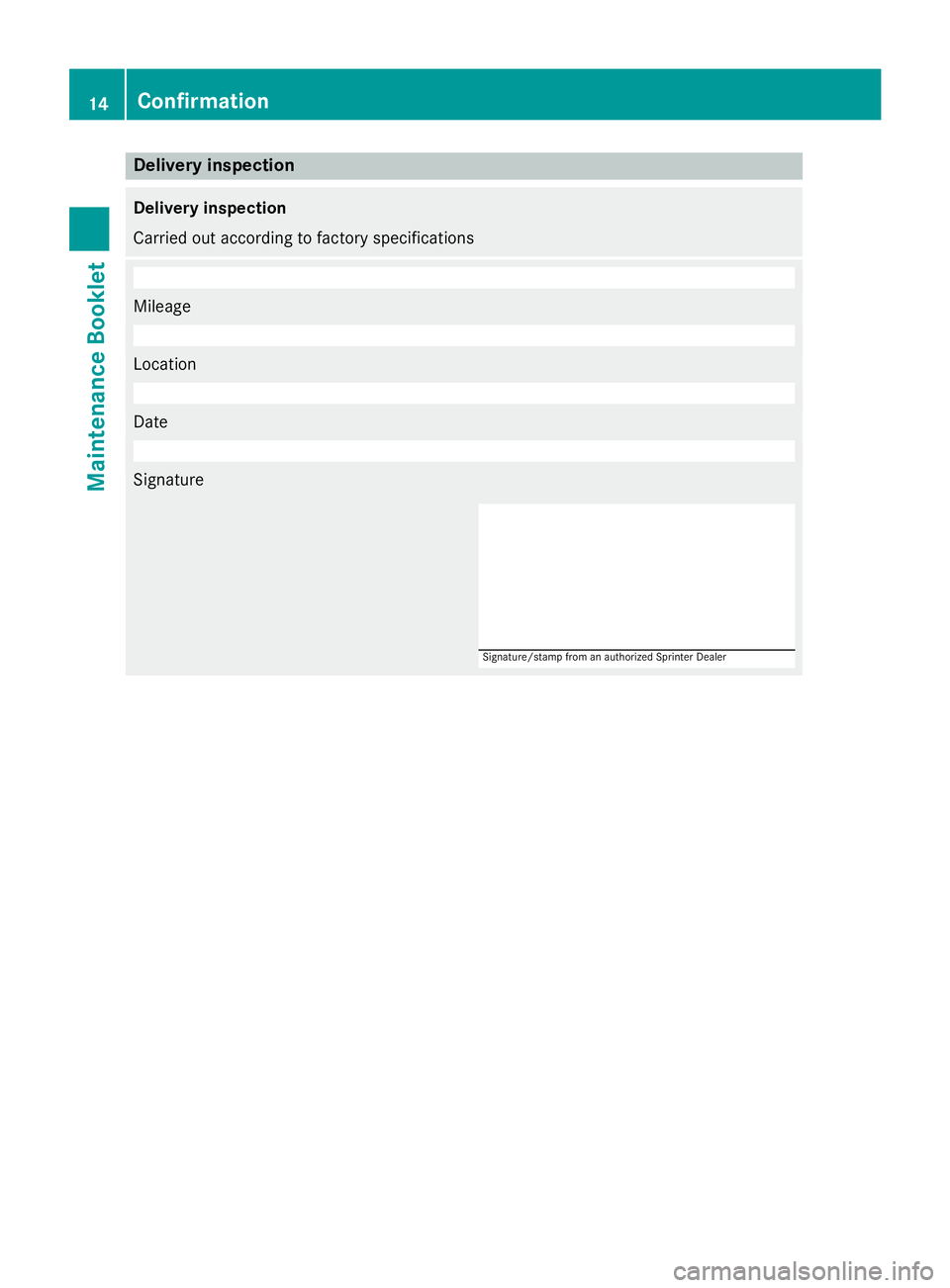

Delivery inspection
Delivery inspection
Carried out according to factory specifications
Mileage
Location
Date
Signature
Signature/stamp from an authorized Sprinter Dealer14
Confir
mationMaintenanc e Booklet
Page 17 of 38

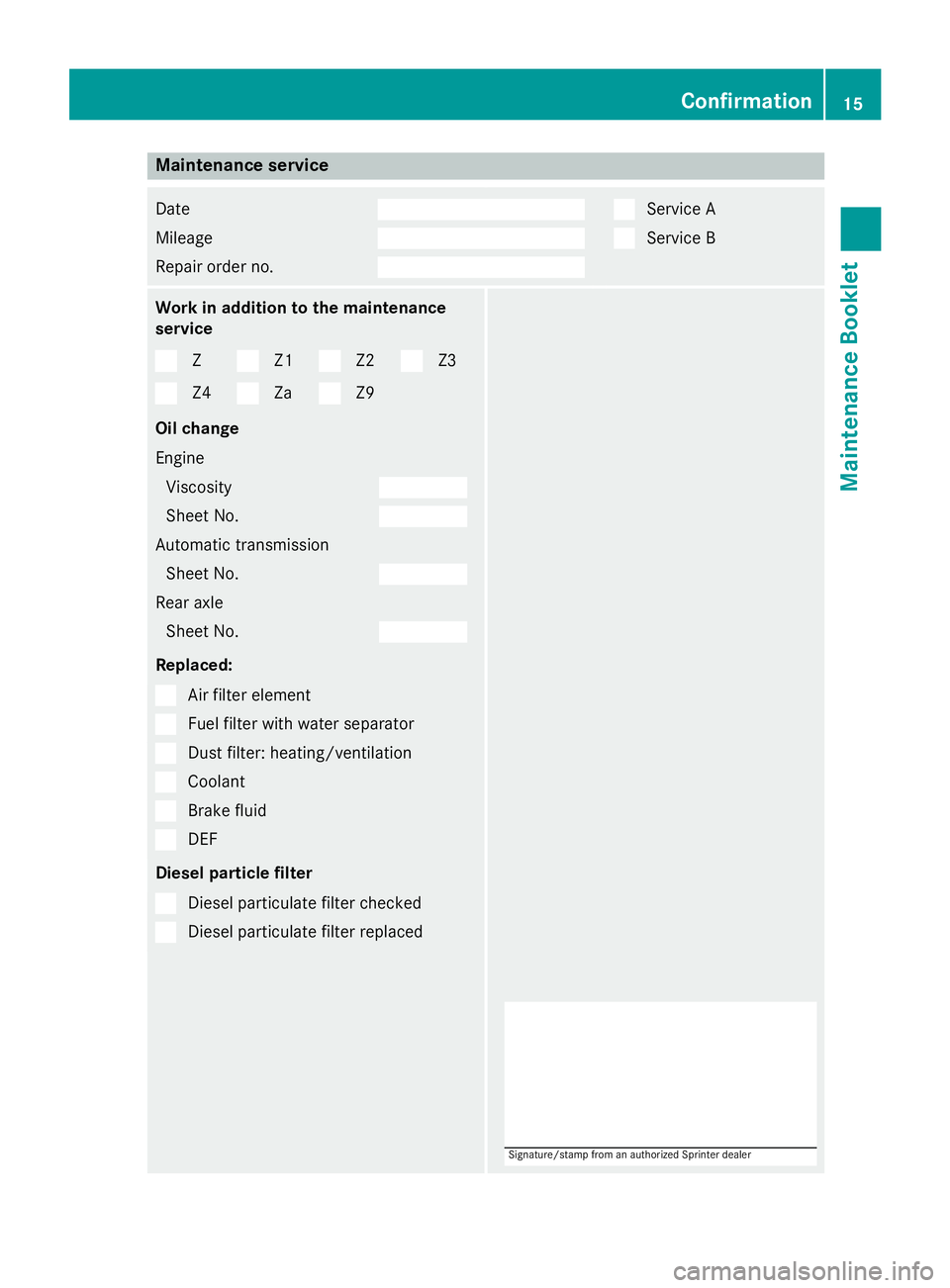

Maintenance service
Date
Mileage
Repair order no. Service A
Service B
Work in addition to the maintenance
service
Z Z1 Z2 Z3
Z4 Za Z9
Oil change
Engine Viscosity Sheet No.
Automatic transmission
Sheet No. Rear axle
Sheet No. Replaced:
Air filter element
Fuel filter with water separator
Dust filter: heating/ventilation
Coolant
Brake fluid
DEF
Diesel particle filter Diesel particulate filter checked
Diesel particulate filter replaced
Signature/stamp from an authorized Sprinter dealer Confirmation
15Maintenance Booklet
Page 18 of 38

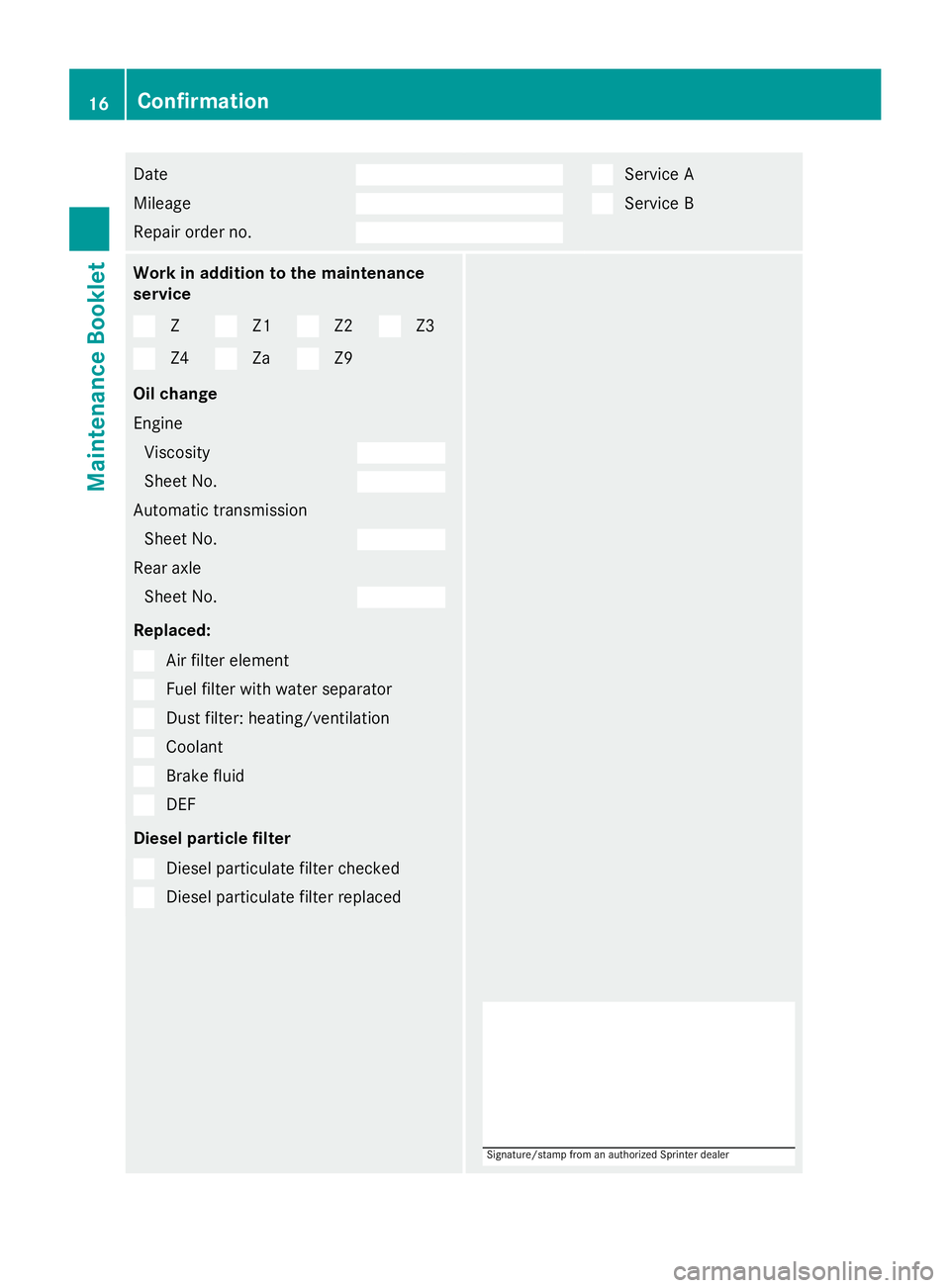

Date
Mileage
Repair order no. Service A
Service B
Work in addition to the maintenance
service
Z Z1 Z2 Z3
Z4 Za Z9
Oil change
Engine Viscosity Sheet No.
Automatic transmission
Sheet No. Rear axle
Sheet No. Replaced:
Air filter element
Fuel filter with water separator
Dust filter: heating/ventilation
Coolant
Brake fluid
DEF
Diesel particle filter Diesel particulate filter checked
Diesel particulate filter replaced
Signature/stamp from an authorized Sprinter dealer16
ConfirmationMaintenance Booklet

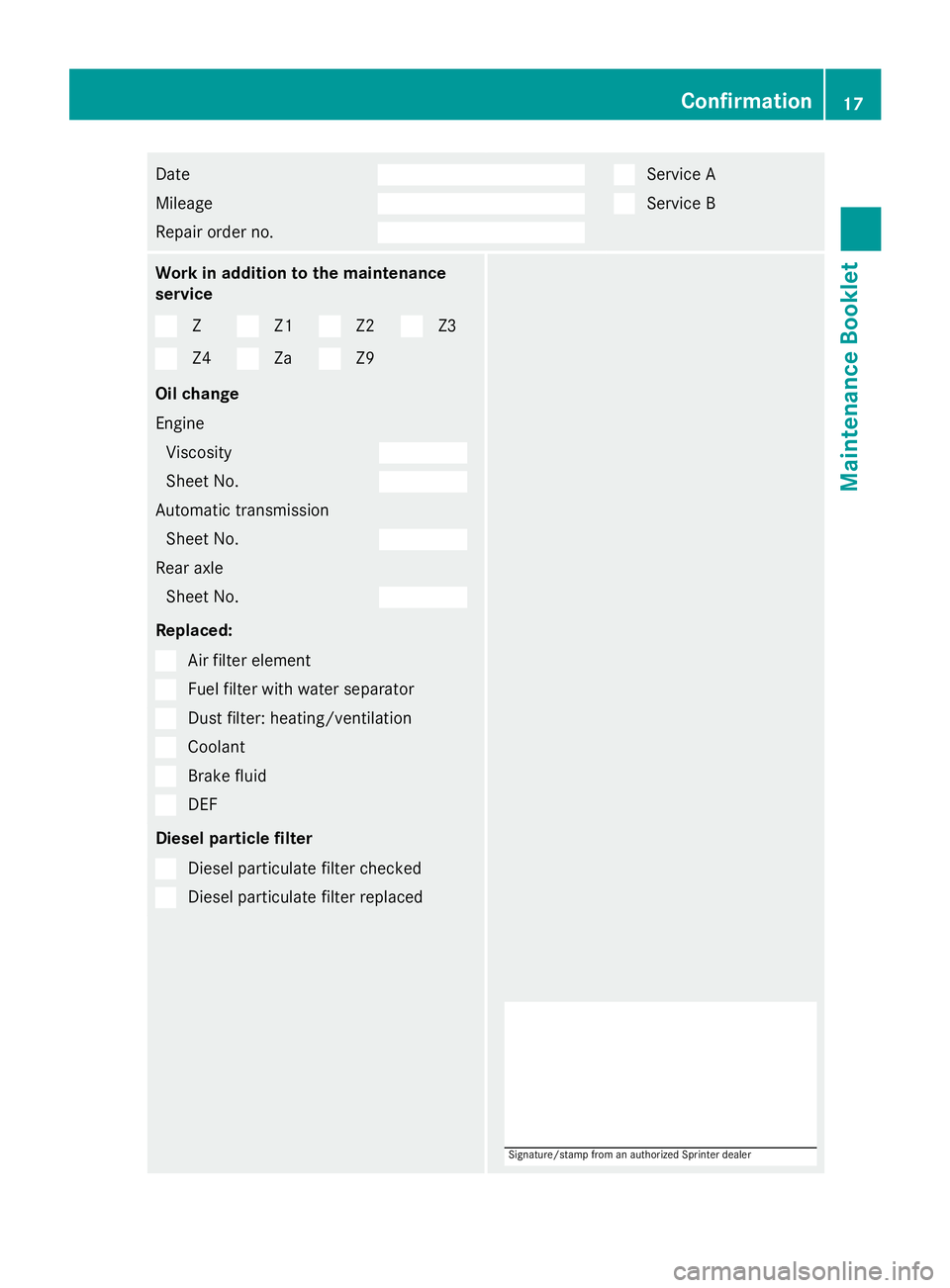

Page 19 of 38
Date
Mileage
Repair order no. Service A
Service B
Work in addition to the maintenance
service
Z Z1 Z2 Z3
Z4 Za Z9
Oil change
Engine Viscosity Sheet No.
Automatic transmission
Sheet No. Rear axle
Sheet No. Replaced:
Air filter element
Fuel filter with water separator
Dust filter: heating/ventilation
Coolant
Brake fluid
DEF
Diesel particle filter Diesel particulate filter checked
Diesel particulate filter replaced
Signature/stamp from an authorized Sprinter dealer Confirmation
17Maintenance Booklet
Page 20 of 38
Date
Mileage
Repair order no. Service A
Service B
Work in addition to the maintenance
service
Z Z1 Z2 Z3
Z4 Za Z9
Oil change
Engine Viscosity Sheet No.
Automatic transmission
Sheet No. Rear axle
Sheet No. Replaced:
Air filter element
Fuel filter with water separator
Dust filter: heating/ventilation
Coolant
Brake fluid
DEF
Diesel particle filter Diesel particulate filter checked
Diesel particulate filter replaced
Signature/stamp from an authorized Sprinter dealer18
ConfirmationMaintenance Booklet
