door lock MERCEDES-BENZ SPRINTER 2020 MY20 with 7” screen

1
Combination swit ch
Tu rn signals →
85
High beam →
85
Wi ndshield wipe rs →
95
Re ar wind owwiper →
95
2 Steering wheel buttons →
175
3 DIRECT SELEC Tlever →
12 2
4 Inside rearvie wmirror →
98
5 Overhea dcontrol panel →
87
6 DIN sl ot,e .g. form ounting a
ta ch ograph or thet imer fort he
st ationar yheater
7 Sun screen →
98
8 Co-d rive r's po werw indow
switch →
60
9 Central locking →
49
A Stow agec ompartment co ver→
24 2
B Co-driver' sstowa ge compart‐
men tort achograph housing
C Cup holders →
78
D Climat econtrol sy stem →
99
E MBUX multimedia sy stem dis‐
play →
185
F MBUX multimedia sy stem con‐
trol elements →
187 G
12Vsocket →
80
H 230 Vsocket
I Opens and closes thee lectric
sliding door →
52
J Hazar dwarning lamps →
85
K Vehicles wit hKEYLESSS TART:
ke ys lot →
11 0
L USB port →
77
M Start/ stop button →
11 0
N Right-hand swit chpanel
Ac tivates/deacti vatesa ll-wheel
drive →
12 5
Engages/disengages LOW
RANGE →
12 6
Ac tivates/deacti vatesD SR →
127
Ra ises/lo wersthev ehicle le vel→
12 9
Ac tivates/deacti vatesp ower
ta ke -off
Ac tivates/deacti vatesw orking
speed control (ADR) →
167
Ac tivates/deacti vatesc argo
compartment ventilation →
108
Ac tivates/deacti vatest he
ro tating beacon
O Steering wheel gearshif tpad‐
dles →
124 6
Atag lanc e–Cockpit

Door control panel in
vehicles wit helectricall yadjus table seats
1 Toadjus tthe outside mir rors →
97
2 Toactivate/deactivat ethe cen‐
tra llocking sy stem →
50
3 Toswitc hseat heating on/off →
76
4 Toadjus tthe front seats elec‐
tronically →
67
5 Tooperat ethe memor yfunc‐
tion →
69 6
Toopen adoor →
49
7 Toopen/close ther ight-ha nd
side window →
58
8 Toopen/close thel eft-hand
side window →
58 16
Atag lanc e–Door control panel

Door control panel
vehicles without electricall yadjus table seats
1 Toadjus tthe outside mir rors →
97
2 Toactivate/deactivat ethe cen‐
tra llocking sy stem →
50
3 Toswitc hseat heating on/off →
76
4 Toopen adoor →
49 5
Toopen/close ther ight-ha nd
side window →
58
6 Toopen/close thel eft-hand
side window →
58 At
ag lanc e–D oorc ontrol panel 17

&
WARNING Risk of inju ryor deat hdueto
damaged or modified seat belts
Seat belts cann otprov ide pr otection in the
fo llowing situations:
R The seat belt is damaged, has been modi‐
fied, is extremely di rty, bleached or dyed
R The seat belt buckle is damaged or
ex treme lydirty
R Modification shave been made tothe
Emergency Tensioning Device ,sea tb elt
anchorag eorseatb eltr etra ctor
Sea tbelts ma ysustain non-visible damag ein
an accident, e.g .due toglass splin ters.
Modified or damaged seat belts could tear or
fa il in thee vent of an accident, fore xamp le.
Modified Emer gency Tensioning Device smay
be depl oyed unintentionally or no tfunction as
intended. #
Neverm odify thes eat belts, Emer gency
Te nsioning Devices, sea tbelta ncho‐
ra ge sors eat belt retractors. #
Makesur ethat thes eat belts ar enot
damaged, ar enotwo rnand ar eclean. #
Alwaysh ave thes eat belts checked
immediatel yafter an accident at aquali‐
fi ed specialis tworks hop. Only use seat belts whic
hhave been appr ovedfor
yo ur vehicle bythes ales or ganization name don
th ei nside front co ver. &
WARNING Risk of inju ryor deat hfrom
deplo yedp yrot echni cEmergency Ten‐
sioning Devices
Py rotech nic Emergency Tensioning Devices
th at ha vebeen deplo yeda reno longer opera‐
tional and ar eunable toper form their inten‐
ded pr otectiv efunction. #
Therefore, ha vedeplo yedp yrot echnic
Emergenc yTensioning Devices immedi‐
ately replaced at aqualified specialist
wo rkshop. Fo
ry our saf etya nd that of your passengers, it is
re commended that youh ave thev ehicle towe dto
aq ualified specialis tworks hop af terana ccident. *
NO
TEDama gecaused bytrapping the
seat belt If an unused seat belt is no
tfully retracted ,it
ma ybecome trappe dinthe door or in the
seat mechanism. #
Alwayse nsur ethat an unused seat belt
is fully retracted. Fa
stening and adju sting seat belts If
th es eat belt is pulled quickl yors harply,the
seat belt retractor lo cks. The seat belt stra pc an‐
no tbep ulled out an yfurther. #
Alwayse ngag eseat belt tongue 2ofthe
seat belt int oseat belt buckle 1ofthec or‐
re sponding seat. #
Press and hold thes eat belt outle trelease
and slide seat belt outlet 3intot he desired
position. #
Letgooft he seat belt outle trelease and
ensur ethat seat belt outlet 3locksinto
position.
Ve hicles with single co-driver seat:
* NO
TEDepl oyment of theE mer gency Ten‐
sioning Device when thef ront-passenger
seat is unoccupied If
th es eat belt tongu eise ngaged in thes eat
belt buckle of theu noccupied front-passen ger
seat, theE mer gency Tensioning Device may
also depl oyinthee vent of an accident along
wi th other sy stems. #
Onlyone person should use eac hseat
belt at an yone time. 34
Occupant saf ety

SmartK
ey Note
sonr adio connection softhekey &
DANG ER Risk of fata linjur ytop ersons
wit hm edical devices from thee lectro‐
magnetic radiation of thes tart/s topb ut‐
ton
Pe rsons wit hmedical devices, e.g. pacemak‐
er sord efibrillators:
When youo perat ethe start/ stop button, a
ra dio connection is es tablished between the
ke ya nd thev ehicle.
The electromagnetic radiation can af fect the
functionality of amedical device. #
Befor eoperating thev ehicle, consult
yo ur doc torort he manufacturer of the
medica ldevice abou tany possible
ef fects of emissions from suc hsystems. De
tection rang eofa ntenna of KEYLESS-
ST AR Tfunction Overvie
wofkeyfunctions &
WARNING Risk of accident and inju ry
due tochildren lef tunat tende dint he
ve hicle
If ch ildren ar eleftu nat tende dint hevehicle,
th ey could:
R Ope ndoors,t hereb yendangering other
persons or road users.
R Getout and be stru ck byoncomin gtraf‐
fi c.
R Ope rate ve hicle equipment and become
trapped, fore xamp le. In addition
,the children could also se tthe
ve hicle in motion, fore xamp leby:
R Releasing thep arking brake.
R Changing thet ransmission position.
R Startin gthe vehicle. #
Neverlea ve children unat tende dint he
ve hicle. #
When leaving thev ehicle, alw ayst ake
th ek eywit hyou and loc kthe vehicle. #
Keep thev ehicle keyo ut of reac hof
ch ildren. *
NO
TEDama getothek eycaused bymag‐
netic fields #
Keep thek eyaway from strong mag‐
netic fields. 1
Tolock
2 Battery checkl amp
3 Tounlo ck
4 Tounlo ckcargo compa rtment (sliding doors
and rear-en ddoors)/ tounlo ckand open/
close electric slidin gdoors
5 Emer gency key
The key's factor ysetting enables youtoc entrally
loc ka nd unloc kthe following components:
R thed rive r's door and thec o-driver's door
R thes liding doors
R ther ear-end doors
% If
yo udon otopen thev ehicle within appr ox‐
imatel y40s econds of unlocking, thev ehicle
will loc kagain and anti-thef tprotection will
be armed again. 46
Opening and closing

Do no
tkeep thek eytoge ther wit helectronic devi‐
ces or me tallic objects. This can af fect thek ey's
functionalit y.
% If
th eb atter ychec klam pd oes no tlight up
when youp ress the 0036 or0037 button, the
batter yisdischar ged.
Re place thek eybat tery ( / pag e47). Ac
tivating/deactivatin gthe acoustic lo cking
ve rification signal Multimedi
asystem:
4 © 5
Settings 5
Vehicle #
Activat eord eacti vate Acoustic Lock . Changin
gthe unlockin gsettings The
keyh asthef ollowing adjus table unlocking
functions:
R Unloc kc entrally
R Unloc kthe driver's door (vehicles without
partition or wit hcab)
R Unloc kthe driver's door and co-driver's door
(vehicles wit hpartition) #
Toswitc hbetwe en thes ettings: press and
hold the0036 and0037 buttons at thes ame
time fora pproxima tely six seconds until the
batter ychec klam pflashes twice.
When theu nlocking function is selected fort he
driver's door or thed rive r's and co-driver door:
R Pressing the0036 button asecon dtime
unloc ksthev ehicle cent rally Re
ducing the energy consum ption of the
SmartK ey If
yo udon otuse thev ehicle or aSmartK eyforan
ex tende dperiod ,you ma ydeactivat ethe KEY‐
LESS STAR Tfunctio nofthe SmartK ey. #
Todeactivate: pressthe0037 button on the
SmartK eytwice in quicks uccession.
The batter ychec klam pont he SmartK ey
light supt wicequickl yand onc efor longer. #
Toactivate: press anybutton on theS mart‐
Ke y.
When startin gthe vehicle wit hthe SmartK eyin
th es lotint he shif tconsole, theS martK eyfunc‐
tions ar eactivated auto matically. Re
moving and inse rting them echanical key #
Toremo ve: press release button 2.
Mechanical key1is pushed slight ly out. #
Pull me chanical key1out co mplete ly. #
Toinser t:press release button 2. #
Slide mechanical key1in co mplete ly unti lit
engages. Re
placing the keyb attery &
DANG ER Serious damag etohealth
caused byswallowing batteries
Batteries contain toxic and cor rosiv es ubs tan‐
ces. Swallowing batterie smaycause serious
damag etohealth.
Ther eisar isk offata linjur y. #
Keep batteries out of ther eac hofc hil‐
dren. #
If batteries ar eswallowe d, seek medical
attention immediately. +
ENVIRONMEN
TALN OTE Environmental
damag ecaused byimproper disposal of
batteries Bat
teries contain pollutants. It is
illegal todispose of them wit hthe household
ru bbish. #
Dispose of batteries in an
environmen tallyr esponsibl emanner.
Ta ke dischar gedb atteries toaq ualified
specialis tworks hop or toac ollection
poin tfor used batteries. Opening and closing
47

Doors
Un
locking and opening thed oor from inside #
Tounlo ckand open thef ront door: pull
door handle 2.
Lockin gpin1 pops up when thed oor is
unloc ked. #
Open thed oor. The
0036 symbol indicates that ther ear door is
unloc ked. #
Tounlo ckand open ther ear door: pull
opening le ver1and open ther ear door.
When thed oor unloc ks,latch 2moves
fo rw ard.
The 0036 symbo lisvisible. #
Toclose: pullther ear door closed bythe
door handle. #
Tolock: slide latch 2down.
The 0037 symbol is visible. Locking
thed oor centrall yfromi nside &
WARNING Risk of accident and injury
du etoc hildren lef tunat tende dint he
ve hicle
If ch ildren ar eleftu nat tende dint hevehicle,
th ey could:
R Ope ndoors,t hereb yendangering other
persons or road users.
R Getout and be stru ck byoncomin gtraf‐
fi c.
R Ope rate ve hicle equipment and become
trapped, fore xamp le.
In addition ,the children could also se tthe
ve hicle in motion, fore xamp leby:
R Releasing thep arking brake.
R Changing thet ransmission position.
R Startin gthe vehicle. #
Neverlea ve children unat tende dint he
ve hicle. #
When leaving thev ehicle, alw ayst ake
th ek eywit hyou and loc kthe vehicle. #
Keep thev ehicle keyo ut of reac hof
ch ildren. &
WARNING Risk offata linjur ydue to
ex posur etoextreme hea torcoldint he
ve hicle
If people –particular lych ildren –areexposed
to extreme temp eratures overane xtended
perio doft ime,ther eisar isk of serious or
eve nfatal injur y. #
Neverlea ve anyone –p articularly chil‐
dren –unat tende dint hevehicle. #
Neverlea ve animals in thev ehicle unat‐
te nded. Lo
cking and unlocking manually
Yo uc an use thec ent rallockin gbuttons tocen‐
trally loc kand unloc kthe entir evehicle from the
inside.
The central lockin gbuttons ar elocated in the
driver's and co-driver's doors. Openin
gand closing 49

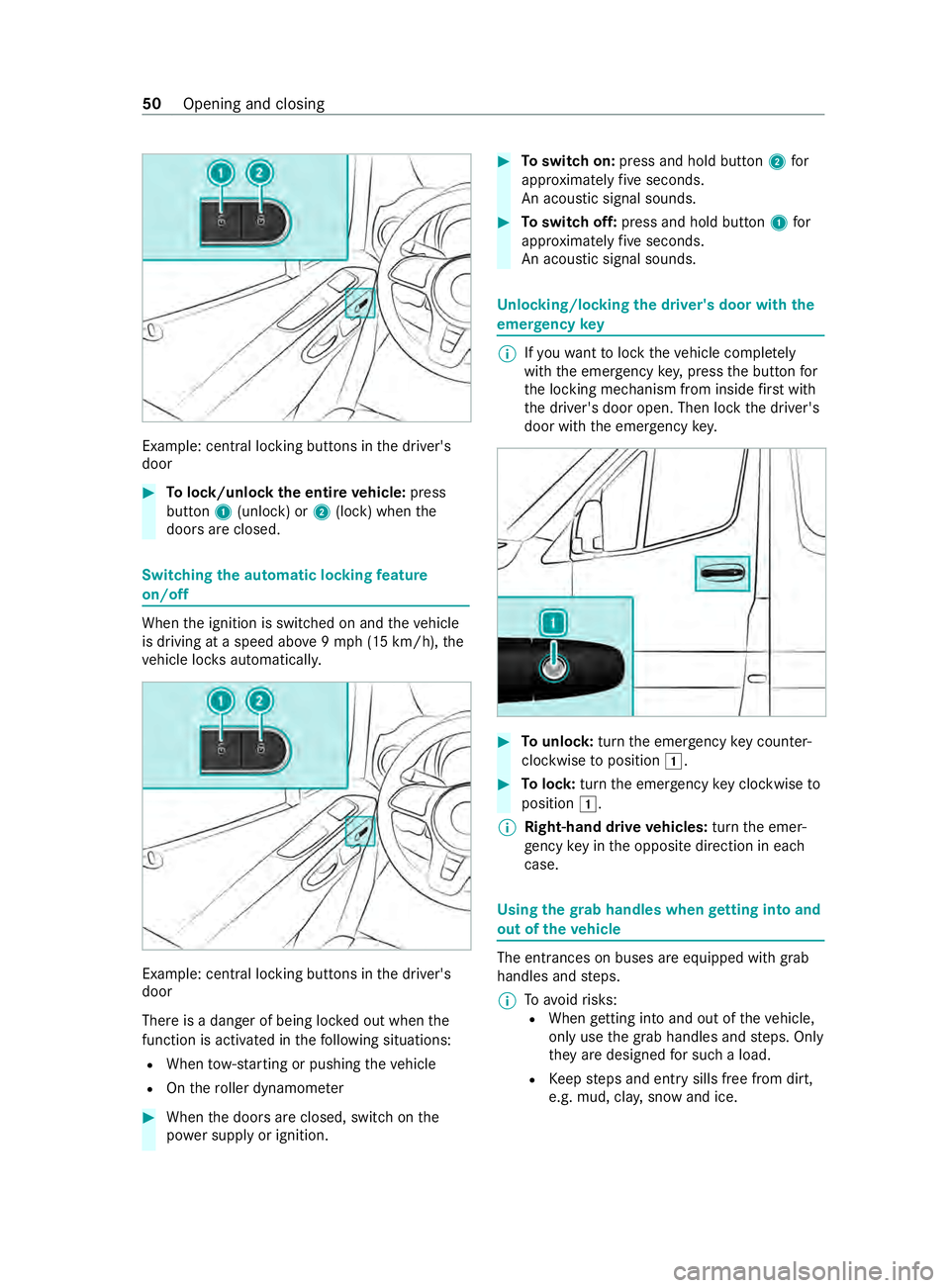

Example: central lo
cking buttons in thed rive r's
door #
Tolock/unloc kthe entir evehicle: press
but ton 1(unlock) or 2(lock) when the
door sareclosed. Switching
thea utomatic locking feature
on/off When
thei gnition is switched on and thev ehicle
is driving at aspeed abo ve9m ph (1 5km/h), the
ve hicle loc ksautomaticall y. Example: central lo
cking buttons in thed rive r's
door
Ther eisad anger of being loc kedo ut when the
function is activated in thef ollowing situations:
R When tow- startin gorp ushingthe vehicle
R Onther oller dynamo meter #
When thed oor sareclosed, switc honthe
po we rsupp lyor ignition. #
Toswitc hon:press and hold button 2for
appr oximately five seconds.
An acoustic signal sounds. #
Toswitc hoff:press and hold button 1for
appr oximately five seconds.
An acoustic signal sounds. Un
locking/locking thed rive r's door wit hthe
eme rgency key %
If
yo uw ant toloc kthe vehicle comple tely
wi th th eemer gency key,press theb utton for
th el ocking mechanism from inside firs tw ith
th ed rive r's door open. Then loc kthe driver's
door wit hthe emergency key. #
Tounlo ck:turnthe emergency keyc ounter-
clo ckwise toposition 0047. #
Tolock: turnthe emergency keyc lock wise to
position 0047.
% Right-han
ddrive ve hicles: turnthe emer‐
ge ncy keyint he opposit edirection in each
case. Using
theg rabh andle swheng ettin gintoa nd
out of thev ehicle The ent
rances on buse sareequipped wit hgrab
handles and steps.
% To
avo idrisks:
R When getting int oand ou tofthevehicle,
only use theg rabh andles and steps. Only
th ey ared esigned fors uchal oad.
R Keep steps and entry sills free from dirt,
e.g. mud, cla y,sno wand ice. 50
Opening and closing

%

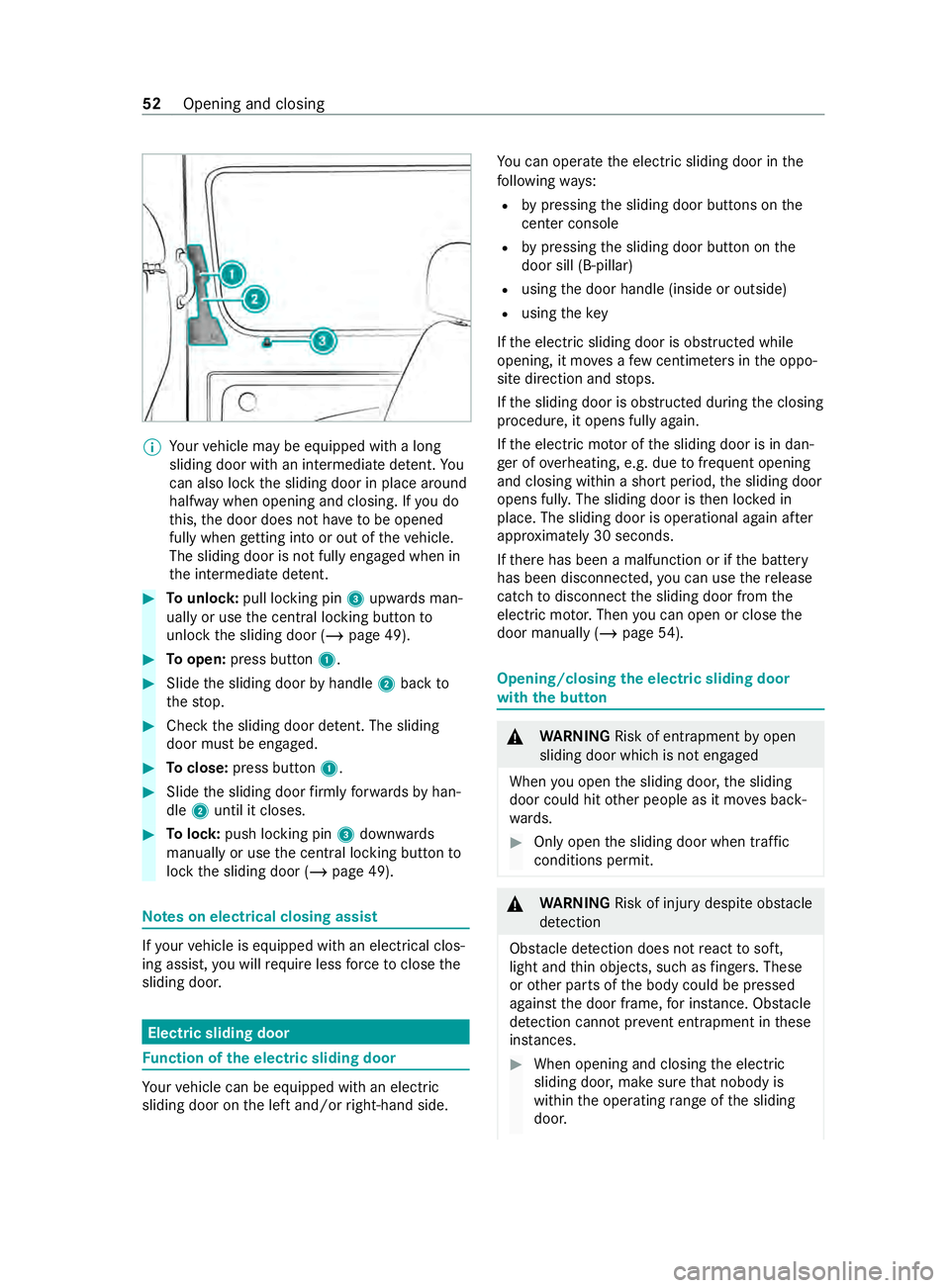

Yo
ur vehicle ma ybeequipped wit halong
sliding door wit hanintermediat edetent. Yo u
can also loc kthe sliding door in place around
halfw aywhen opening and closing. If youdo
th is, thed oor does no thave tobe opened
fully when getting int ooroutofthev ehicle.
The sliding door is no tfull ye ngaged when in
th ei ntermediat edetent. #
Tounlo ck:pull lo cking pin 3upwards man‐
ually or use thec ent rallockin gbutton to
unlo ckthes liding door (/ page49). #
Toopen: press button 1. #
Slide thes liding door byhandle 2bac kto
th es top. #
Chec kthe sliding door de tent. The sliding
doo rmustb ee ngaged. #
Toclose: press button 1. #
Slidethe sliding door firm lyforw ards byhan‐
dle 2until it closes. #
Tolock: push lockin gpin3 down wards
manually or use thec ent rallockin gbutton to
loc kthe sliding door (/ page49). Note
sone lectrical closing assist If
yo ur vehicle is equipped wit hanelectrical clos‐
ing assist, youw illrequ irel ess forc etoc losethe
sliding door. Electric sliding door
Fu
nction of thee lectric sliding door Yo
ur vehicle can be equipped wit hanelectric
sliding door on thel efta nd/or right-han dside. Yo
uc an operat ethe electric sliding door in the
fo llowing ways:
R bypressing thes liding door buttons on the
center console
R bypressing thes liding door button on the
door sill (B-pillar)
R using thed oor handle (inside or outside)
R using thek ey
If th ee lectric sliding door is obstructed while
opening, it mo vesaf ewcentim eter sint he oppo‐
sit ed irection and stops.
If th es liding door is obstructed during thec losing
procedure, it opens fully again.
If th ee lectric mo toroft he sliding door is in dan‐
ge rofo verheating, e.g. due tofrequent opening
and closing within ashor tperiod, thes liding door
opens fully .The sliding door is then loc kedin
place. The sliding door is operational again af ter
appr oximatel y30seconds.
If th er eh as been amalfunction or if theb attery
has been disconnected, youc an use ther elease
catc htod isconnect thes liding door from the
electric mo tor.Then youc an open or close the
door manually (/ page54). Opening/closing
thee lectric sliding door
wit hthe button &
WARNING Risk of entrapment byopen
sliding door whic hisnotengaged
When youo pen thes liding door ,the sliding
door could hit other people as it mo vesb ack‐
wa rds. #
Only open thes liding door when tra ffic
condition spermit. &
WARNING Risk of inju rydespit eobstacle
de tection
Obs tacle de tection doe snotreact tosoft,
light and thin objects, suc hasfingers. These
or other parts of theb ody could be pressed
agains tthe door frame, fori ns tance. Obs tacle
de tection canno tpreve nt entrapment in these
ins tances. #
Whe nopening and closing thee lectric
sliding door ,makes uret hat nobody is
within theo perating rang eoft he sliding
door. 52
Opening and closing

#

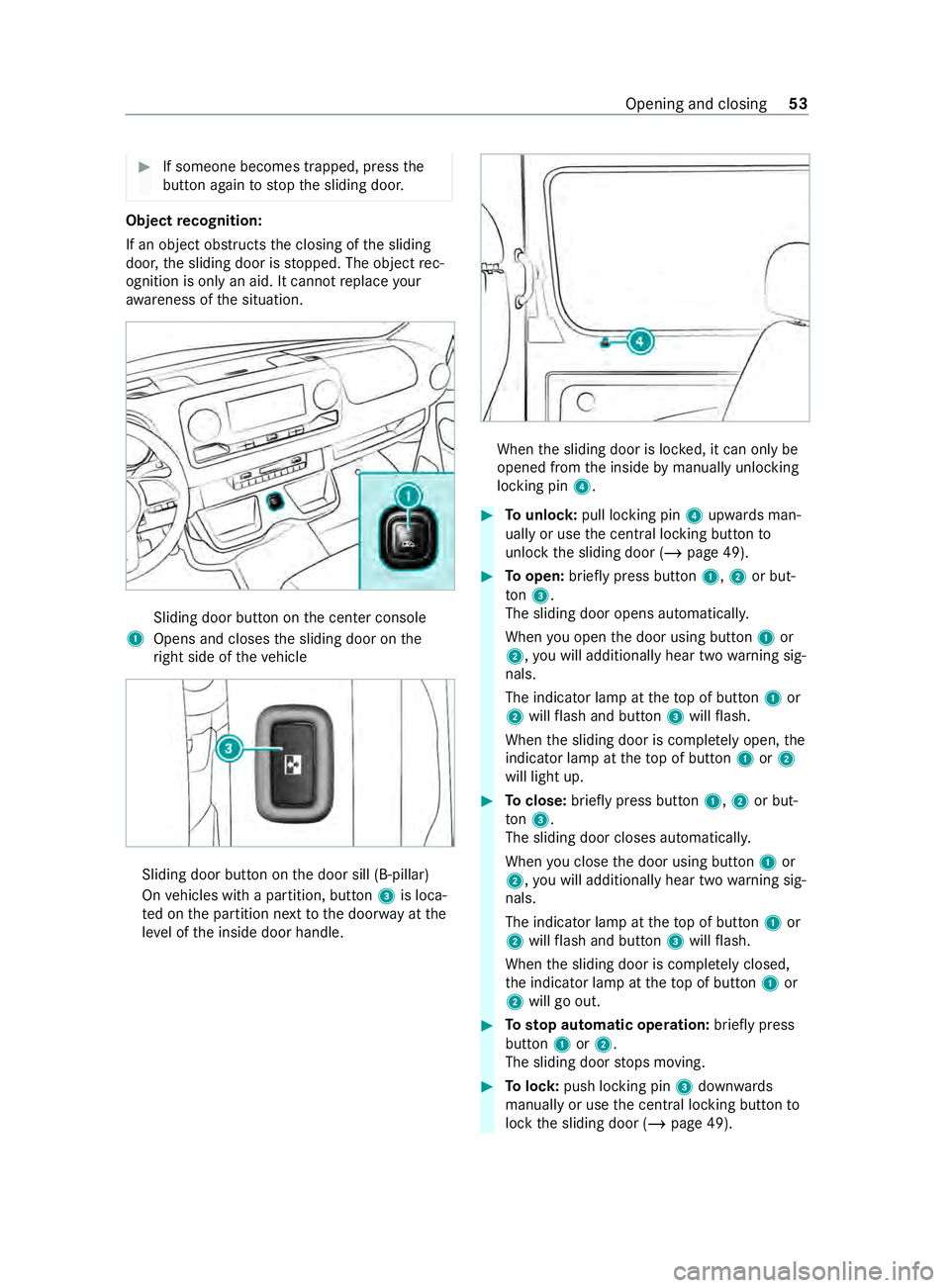

If someone becomes trapped, press the
button again tostop thes liding door. Object
recognition:
If an object obstruct sthe closing of thes liding
door ,the sliding door is stopped. The object rec‐
ognition is only an aid. It canno treplace your
aw areness of thes ituation. Sliding door button on
thec enter console
1 Opens and closes thes liding door on the
ri ght side of thev ehicle Sliding door button on
thed oor sill (B-pillar)
On vehicles wit hapartition, button 3is loca‐
te dont he partition next tothed oor wayatt he
le ve loft he inside door handle. When
thes liding door is loc ked, it can onl ybe
opened from thei nside bymanually unlocking
locking pin 4. #
Tounlo ck:pull lo cking pin 4upwards man‐
ually or use thec ent rallockin gbutton to
unlo ckthes liding door (/ page49). #
Toopen: briefly press button 1,2or but‐
ton 3.
The sliding doo ropens au tomatical ly.
When youo pen thed oor using button 1or
2,y ou will additi onallyhear tw owarning sig‐
nals.
The indicator lam patthetopofb utton 1or
2 will flash and button 3will flash.
When thes liding door is comple tely open, the
indicator lam patthetopofb utton 1or2
will light up. #
Toclose: briefly press button 1,2or but‐
ton 3.
The sliding doo rcloses au tomatical ly.
When youc lose thed oor using button 1or
2,y ou will additi onallyhear tw owarning sig‐
nals.
The indicator lam patthetopofb utton 1or
2 will flash and button 3will flash.
When thes liding door is comple tely closed,
th ei ndicator lam patthetopofb utton 1or
2 will go out. #
Tosto pautomati coperation: brieflyp ress
but ton 1or2.
The sliding doo rstops moving. #
Tolock: push lockin gpin3 down wards
manually or use thec ent rallockin gbutton to
loc kthe sliding door (/ page49). Opening and closing
53
