ECU MERCEDES-BENZ SPRINTER 2020 MY20 with no MMS Operator’s Manual

#

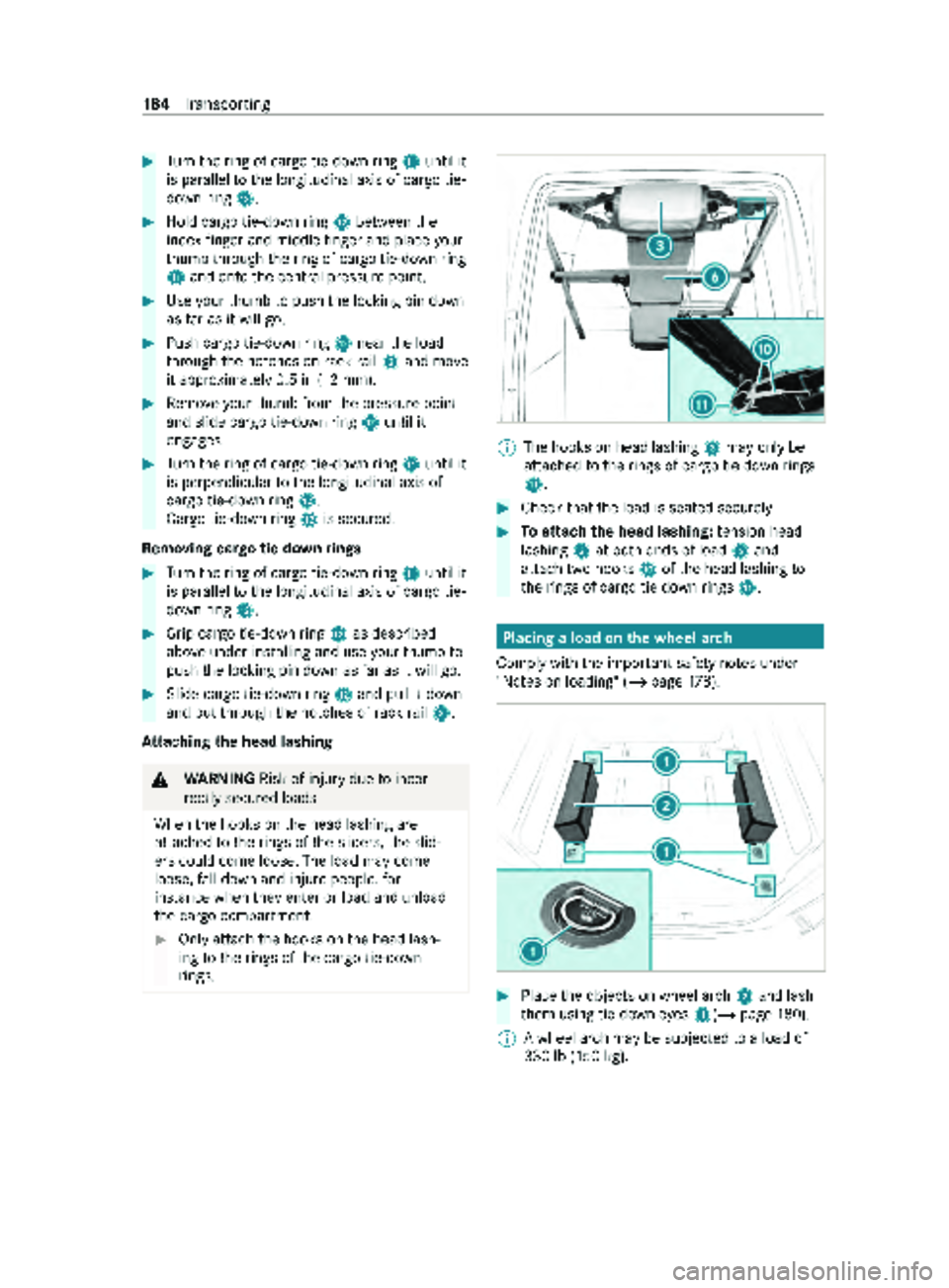

Turn ther ing of carg otie-down ring B unti lit
is pa rallel tothel ongitudinal axis of cargo tie-
down ring C. #
Holdcargo tie-down ring C between the
inde xfinger an dmiddlefinger an dplace your
th umb thro ugh ther ing of carg otie-down ring
B and ont othe centra lpressur epoint. #
Use your thumb topush thel ocking pin down
as farasitw illg o. #
Push cargo tie-down ring C nea rthe load
th ro ugh then otch es on rack rail2 and mo ve
it appr oximately 0.5 in (1 2mm). #
Remo veyour thumb from thep ressur epoint
and slide cargo tie-down ring C unti lit
engages. #
Turn ther ing of carg otie-down ring B unti lit
is pe rpendicular tothel ongitudinal axis of
cargo tie-down ring C.
Cargo tie-down ring C is secu red.
Re moving cargo tie down rings #
Turn ther ing of carg otie-down ring B unti lit
is pa rallel tothel ongitudinal axis of cargo tie-
down ring C. #
Grip cargo tie-down ring C as described
ab ove unde rins talling and use your thumb to
push thel ocking pin down as farasitw illg o. #
Slide cargo tie-down ring C and pull it down
and ou tthrough then otch es of rack rail2.
At tachin gthe hea dlashing &
WARNING Risk of inju rydue toincor‐
re ctly secu redl oads
When theh ook sont he head lashing are
attached tother ing soft he sliders, thes lid‐
er sc ould come loose. The load ma ycome
loose, fall down and injur epeople, for
ins tance when they enter or load and unload
th ec argo compartment. #
Onlyattach theh ook sont he head lash‐
ing tother ing soft he cargo tie-down
ri ngs. %
The hoo
kson head lashing 3mayonlybe
attached tother ing sofc argo tie down rings
B. #
Chec kthat thel oad is seated securel y. #
Toattac hthe hea dlashing: tensio nhead
lashing 3at bo thends of load 6and
attac htwo hooks Aoftheh ead lashing to
th er ing sofc argo tie down rings B. Placing
aloa dont he wheel ar ch
Compl ywitht he impor tant sa fety no tesu nder
"No tesonl oading" (/ page178). #
Place theo bject sonw heel ar ch2 and lash
th em using tie-down eyes 1(/ page180).
% Aw
heel ar chma ybes ubjected toaload of
33 0lb( 150k g). 184
Transporting

#
Inthee vent of afireint he engine com‐
partment, keep theh ood closed and call
th ef ires ervice. &
WARNING Risk of inju rydue tomoving
parts
Cer tainc omponents in thee ngine compart‐
ment ma ycontinue tomo veor suddenly
mo veagain even af tert he ignition has been
switched off, e.g. thec ooler fan.
Ma kesur eoft hefollowing befor eperform ing
ta sk sint he engine compartment: #
Switc hthe ignition off. #
Nevertouc hthe danger zone sur round‐
ing movin gcomponent parts ,e.g.t he
ro tatio na reaoft hefan. #
Remo vejewe lrya nd watches. #
Keep items of clo thing and hair away
from moving parts. &
WARNING Risk of inju ryfrom touching
component parts unde rvoltage
The ignition sy stem and thef uel injection sys‐
te mw orku nde rhigh voltage. If yout ouch
component parts whic hareunde rvoltage,
yo uc oul drecei vean electric shoc k. #
Nevertouc hcomponent parts of the
ignition sy stem or thef uel injection sys‐
te mw hen thei gnition is switched on. Liv
ec omponents of thef uel injection sy stem
include thei njec tors,for example.
Liv ec omponent softhe ignition sy stem include
th ef ollowing, fore xamp le:
R Ignitio ncoils
R Spar kplug connec tors
R Diagnostic soc ket &
WARNING Risk of bu rnsf romh otcom‐
ponent parts in thee ngine compartment
Cer tainc omponents in thee ngine compart‐
ment can be very hot, e.g. thee ngine, the
ra diator and parts of thee xhau stsystem. #
Allowthe engine tocool down and only
to uc hc omponent parts desc ribed in the
fo llowing. If
yo uh ave tocar ryout an yworkint he engine
compartment, touc ho nlyt he following compo‐
nents:
R Hood
R Engine oil filler openin gcap
R Washer fluid reser voir cap
R Coolant expansion reser voir cap &
WARNING Risk of inju ryfrom using the
windshield wiper swhile thee ngine hood
is open
When thee ngine hood is open and thew ind‐
shield wiper saresetinm otion, youc an be
trapped bythew iper linkage. #
Alwayss witc hoffthew indshield wipers
and ignition befor eopening thee ngine
hood. #
Park thev ehicle in asafel ocation and on a
le ve ls urface if possible. #
Switc hoffthee ngine. #
Secur ethe vehicle agains trolling away. &
WARNING Risk of inju rywhen theh ood
is opened
When youo pen theh ood, it ma ysuddenly
drop int othe end position.
Ther eisar isk of injur yfor an yone in the
hood's rang eofm ovement. #
Befor ereleasing theh ood, ensur ethat
th es uppor tisfirmlyseatedint he
holder. #
Open theh ood onl ywhen ther eisn o-
one in theh ood's rang eofm ovement. 18 6
Maintenance and care

Fi
lling up thew indshield washer sy stem &
WARNING Risk of bu rnsf romh otcom‐
ponent parts in thee ngine compartment
Cer tainc omponents in thee ngine compart‐
ment can be very hot, e.g. thee ngine, the
ra diator and parts of thee xhau stsystem. #
Allowthe engine tocool down and only
to uc hc omponent parts desc ribed in the
fo llowing. If
yo uh ave tocar ryout an yworkint he engine
compartment, touc ho nlyt he following compo‐
nents:
R Hood
R Engine oil filler openin gcap
R Washer fluid reser voir cap
R Coolant expansion reser voir cap &
WARNING Danger of bu rnsw hen open‐
ing theh ood
If yo uo pen theh ood when thee ngine has
ove rheated or during afireint he engine com‐
partment, youc oul dc om eintoc ontact wi th
ho tg ases or other escaping operating fluids. #
Befor eopening theh ood, allo wthe
engine tocool down. #
Inthee vent of afireint he engine com‐
partment, keep theh ood closed and call
th ef ires ervice. &
WARNING ‑Riskoff irea nd injur yfrom
windshiel dwashe rconcentrate
Wi ndshield washer concentrat eishighlyflam‐
mable. It could ignit eifitcomes int ocontact
wi th hote ngine component parts or the
ex haus tsystem. #
Mak esuret hat no windshield washer
concentrat espills out next tothef iller
opening. *
NO
TEDama getothee xterio rlighting
due tounsuitable windshield washer fluid Uns
uitable windshield washer fluid ma ydam‐
ag et he plastic sur face of thee xterio rlighting. #
Onlyuse windshield washer fluids that
ar ea lso suitable foru se on plast ic sur‐
fa ces, e.g. MB SummerFit or MB Winter‐
Fit. Ad
ding washer fluid Wa
sher fluid reser voir (e xamp le) #
Pre-mix thew ashe rfluid in thec orrect mixing
ra tio in acontainer. #
Park thev ehicle on alevel sur face and secu re
it agains trolling away ( /pag e140). #
Ope nthe hood (/ page185). #
Pullthe cap of thew ashe rfluid con tainer 1
upwards bythet ab. #
Pour in thep re-mixed washer fluid. #
Press cap 1onto thef iller openin guntil it
audibly engages. #
Close theh ood (/ page185).
% Mix
thew ashe rfluid wit hwindshield washer
concentrat eallye ar round. Compl ywitht he
information about windshield washer fluid in
th et echnical dat a(/ pag e254).
% Compl
ywitht he fur ther information about
windshield washer fluid (/ page254) Cleaning
thew ater drain valveoft he air
intak ebox &
WARNING Risk of inju rydue tomoving
parts
Cer tainc omponents in thee ngine compart‐
ment ma ycontinue tomo veor suddenly
mo veagain even af tert he ignition has been
switched off, e.g. thec ooler fan.
Ma kesur eoft hefollowing befor eperform ing
ta sk sint he engine compartment: #
Switc hthe ignition off. Maintenance and care
191

#
Nevertouc hthe danger zone sur round‐
ing movin gcomponent parts ,e.g.t he
ro tatio na reaoft hefan. #
Remo vejewe lrya nd watches. #
Keep items of clo thing and hair away
from moving parts. &
WARNING Risk of bu rnsf romh otcom‐
ponent parts in thee ngine compartment
Cer tainc omponents in thee ngine compart‐
ment can be very hot, e.g. thee ngine, the
ra diator and parts of thee xhau stsystem. #
Allowthe engine tocool down and only
to uc hc omponent parts desc ribed in the
fo llowing. If
yo uh ave tocar ryout an yworkint he engine
compartment, touc ho nlyt he following compo‐
nents:
R Hood
R Engine oil filler openin gcap
R Washer fluid reser voir cap
R Coolant expansion reser voir cap #
Open theh ood (/ page185). #
Remo vedirtfromw ater drain valve 2 of air
intak ebox1 . Draining
thef uel filter &
WARNING Danger of fire and explosion
due tofuel
Fu els ar ehighly flammable. #
It is essential toavoid fire ,o pen flames,
smokin gand creating spar ks. #
Befor efilling up, switc hoffthee ngine,
and, if applicable, thea uxiliar yheating. &
WARNING Risk offire and explosion due
to fuel
Fu els ar ehighly flammable. Ther eisarisk of
fi re and explosion due tocontact wi thhot
component parts. #
Allowthe engine and thee xhau stsys‐
te mtoc ool down. *
NO
TEEngine damag eduetodela yed
drainag eofthe fuel filter Ve
hicles with adiese lengine: delayed
drainag eofthe fuel filter can lead toengine
damage.
If the 003A indicator lam plights up, drain the
fuel filter immediately. +
ENVIRONMENTAL
NOTEEnvironmental
pollution du etodisposal in anon-envi‐
ro nmental ly-friendly manner #
Dispose of thew ater/fuel mixtur einan
environmentally-friendly manner. OM642 engine
#
Park thev ehicle in asafel ocation and secure
it agains trolling away. #
Switc hoffthea uxiliar yheating
(/ page106). #
Switc hoffthee ngine. #
Open theh ood (/ page185). 19 2
Maintenance and care

&
WARNING Risk ofexplosion during
ch argin gprocess and startin gassis tance
During thec harging process and starting
assis tance, theb atter ymayrelease an explo‐
siv eg as mixture. #
Avoid fire ,o pen flames ,creating spar ks
and smoking. #
Mak esuret hat ther eiss ufficient venti‐
lation du ring thec harging process and
during startin gassis tance. #
Do no tlea no verab atter y. &
WARNING Risk ofexplosion from afro‐
zen battery
Ad ischar gedb atter ymayfreeze at temp era‐
tures slightl yabove or belo wfreezing point.
During startin gassis tance or batter ycharg‐
ing, batter ygas can be released. #
Alwaysa llowab atterytot hawb efore
ch argin gitorp erform ing startin gassis‐
ta nce. If
th ew arning /indicator lamps do no tlight up in
th ei nstrument displa yaround or belo wfreezing
point, it is very likel ythat thed ischarged battery
has frozen.
In this case, obser vethef ollowing points:
R Do no tgivet he vehicle startin gassis tance or
ch arge theb attery
R The service lif eofabatterythat has been
th awe dmaybe reduced drastically
R The start-up behavior ma ydeteriorate, partic‐
ularly at lo wtemperatures
R It is recommended that youh ave athawed
batter ychec kedataq ualified specialis twork‐
shop
* NO
TEDama gecaused bynume rous or
ex tende dattempts tostar tt he engine Numerous or
extende dattempts tostar tt he
engine ma ydamag ethe catalytic con verter
due tonon-combu sted fuel. #
Avoid numerous and extende dattem pts
to star tt he engine. When jump-s
tarting and chargin gthe batteries,
obser vethef ollowing points:
R Onlyuse undamaged jumper cables/ charging
cable swithas ufficient cross-sectio nand
insula tedt erminal clamps
R Non-insulated parts of thet erminal clamps
mus tnotcom eintoc ontact wi thother me tal
parts while thej umper cables/charging
cables ar econnected totheb attery/jump-
st ar tc onnectio npoint
R The jumper cables/chargin gcable smustn ot
com eintoc ontact wi thanyp arts whic hmay
mo vewhen thee ngine is running
R Alwaysm akes uret hat neither youn orthe
batter yiselectros tatically charged
R Alwaysk eep away from fire and open flames
R Do no tlean overab attery
R When charging: only use abatter ychar ger
th at has been tested and appr ovedby
Mercedes-Benza ndread theo perating
instruction sfor your charge rb efor echarging
th eb atteries
Obser vethea dditional following point sduring
st artin gassis tance:
R Startin gassis tance ma yonly be pr ovided
using batteries wit hanominal voltag eof12V
R The vehicles mus tnot to uche acho ther
R Vehicles with agasoline engine: only per‐
fo rm startin gassis tance when thee ngine and
ex haus tsystema recold #
Vehicles with abatter ymain switch: check
whe ther theb atter ymain switc hisinserted
( / pag e120) #
Secur ethe vehicle using thep arking brake. #
Vehicles with automatic transmission:
shif tthe transmission toposition 005D. #
Switc hoffthei gnition and all electrical con‐
sumers. #
Open theh ood (/ page185). Breakdown assi
stance 203

Example: jump-s
tart connection
% Right-hand driv
evehicle: thej ump-s tart
connection ma ybeonthe opposit eside. #
Remo vethec ove rfromt he positiv eterminal
on thed onor batter y. #
First,c onnec tthe positiv eterminal clam pof
th ej umper cables/charging cables tothe
positiv eterminal of theo ther vehicle's bat‐
te ry. #
With positiv eterminal clamp 2ofthe
jumper cable/charging cable ,slide ther ed
pr otectiv ecap on jump-s tarting connection
1 bac kwithac lockwise turn. #
Connect theo ther positiv eterminal clam pto
th ep ositiv eterminal of jump-s tart connection
1. #
During starting assistance: star tt he engine
of thed onor vehicle and le titrun at idle
speed. #
Firs t, connect then egativ eterminal clam pof
th ej umper cable/charging cable tothen ega‐
tiv ep ole of thed onor batter y. #
Connec tthe other negativ eterminal clam pof
th ej umper cable/charging cable toag round
po int on your ow nv ehicle (a bar emetal part
in thee ngine compartment). #
During starting assistance: star tt he engine
on your ow nv ehicle. #
When charging: star tt he chargin gprocess. #
During starting assistance: lett he engine
ru nf or afew minutes. #
During starting assistance: beforediscon‐
necting thej umper cable, switc honanelec‐
trical consumer on your ow nv ehicle, e.g. the
re ar wind owheater or lighting. When
thes tartin ga ssis tance/charging proces sis
comple te: #
Remo vethej umper cables/charging cables
in reve rseo rder:first then egativ eclam pfrom
th eg round point in thee ngine compartment,
th en then egativ eclam pfromt he donor bat‐
te ry.T he nt he positiv eclam pfromt he posi‐
tiv et erminal of jump-s tart connection 1,
th en thep ositiv eclam poft he donor batter y.
The redp rotectiv ecap springs bac ktoits ini‐
tial position when positiv eterminal clamp 2
is disconnected from jump-s tarting connec‐
tion 1.
Yo uc an obtain fur ther information at aqualified
specialis tworks hop. Installing/removing
thef loor co vering (vehi‐
cles with rear wheel drive) &
WARNING Risk of accident du eto
object sinthe driver's foot we ll
Object sinthe driver's foot we ll ma yimp ede
pedal tr avel or bloc kadepressed pedal.
This jeopardizes theo perating and road
saf etyoft hevehicle. #
Stow all object sinthevehicle securely
so that they canno tget intot he driver's
fo ot we ll. #
Ensur efloor mats and carpets cannot
slip and pr ovide suf ficient room fort he
pedals. #
Do no tlay multiple floor mats or carpets
on topofo ne ano ther. #
Switc hoffall electrical consumers. 204
Breakdown assis tance

Pe
rm issible towing me thods Bo
th axle sont he
gr ound Fr
ont axle raised Re
ar axle raised
Ve hicles wit hauto‐
matic transmission and
re ar-wheel drive Ye
s, no fur ther than
31 miles (50 km) at
31 mp h(50 km/h) Ye
s, no fur ther than
31 miles (50 km) at
31 mp h(50 km/h) Ye
s, if thes teering
wheel is fixe dint he
center position wit ha
st eering wheel lock
Ve hicles wit hall-wheel
drive Ye
s, no fur ther than
31 miles (50 km) at
31 mp h(50 km/h) No
NoTo
toww ithar aisedaxle: towing should be per‐
fo rm ed byatow ing compan y. To
wing away thev ehicle wit hbotha xleson
th eg round #
Obser vethen otes on permissible towing
me thods (/ page207). #
Mak esuret hat theb atter yisc onnected and
ch arge d.
When theb atter yisd ischar ged, thef ollowing sit‐
uations occur:
R The engine canno tbestarted.
R It is no tpossible torelease or appl ythe elec‐
tric parking brake.
R Vehicles with automatic transmission: the
automatic transmission canno tbeshiftedto
position 005Cor005D.
* NO
TEDama gedue to to wing away at
exc essivel yhigh speeds or overlong dis‐
ta nces The driv
etra in could be damaged when towing
at exc essively high speeds or over long dis‐
ta nces. #
Atow ing speed of 30 mph(50 km/h)
mus tnotbe exc eeded. #
Atow ing distanc eof30miles (50 km)
mus tnotbe exc eeded. %
Ve
hicles with automatic transmission
and rear wheel drive: ifth er eisam alfunc‐
tion, thea utomatic transmission ma ybe
loc kedinp osition 005D. If
th ea utomatic transmission cann otbe shif‐
te dtop osition 005C,transpor tthe vehicle
(/ page210).At ow ing vehicle wit hlifting
equipment is requ ired forv ehicle transport. &
WARNING Risk of accident whe ntow ing
av ehicle whic histoo heavy
If th ev ehicle being tow- star tedort owed
aw ay is heavier than thep ermissible gross
mass of your vehicle, thef ollowing situations
can occur:
R The towing eyem aybecome de tach ed.
R The vehicle/trailer combination may
swer veoreve noverturn. #
If ano ther vehicle is tow- star tedor
to we da way,its weight mus tnotexc eed
th ep ermissible gross mass of your own
ve hicle. If
av ehicle needs tobe towe dort ow st arted, its
we ight should no tbegreater that thep ermissible
gross mass of thet ow ing vehicle. #
Information on thev ehicle's permissible gross
mass can be found on thev ehicle identifica‐
tion plat e(/pag e245). #
Vehicles with automatic transmission: do
no to pen thed rive r's or co-driver door ,asthe
automatic transmission will automatically
shif ttop osition 005D. #
Installth et ow ing eye( /pag e211). #
Secu rethet ow ing device. 208
Breakdown assis tance

*
NO
TEDama gedue toincor rect connec‐
tion of thet ow bar #
Onlyconnec tthe towr ope or towb arto
th et ow ing eyes. %
Yo
uc an also secur ethe towing devic etothe
trailer hitch.
* NO
TEDama geand risk of accident when
to wing wit hatow ro pe Ther
eisar isk of an accident if youdon ot
obse rves afet ya nd pr otectiv emeasures when
to wing using atow ro pe.
Obser vethef ollowing points when towing
wit hat ow ro pe: #
Secur ethe towr ope on thes ame side
on bo thvehicles, if possible. #
Mak esuret he towr ope does not
exc eed thel egally prescribed length. #
Mar kthe towr ope in them iddle, e.g.
wit haw hitec loth (30 x30c m). This
makes other road user sawarethat a
ve hicle is being towe d. #
Obser vetheb rake lamps of thet ow ing
ve hicle while driving. Alw aysm aintain a
dis tance that ensures thet ow ro pe does
no ts ag. #
Do no tuse steel cables or chains to tow
yo ur vehicle. Otherwise, youc oul dd am‐
ag et he vehicle. #
Deactivat eautomatic locking (/ page50). #
Do no tactivat ethe HOLD function. #
Deactivat ethe tow- aw ay alar m(/pag e62). #
Deactivat eActiv eBrake Assi st (/ pag e150). #
Vehicles with automatic transmission:
shif tthe automatic transmission toposition
005C. #
Release thep arking brake. &
WARNING Risk of accident du etolimi‐
te ds afet y-re lated function sduring the
to wing process
Saf ety-re lated function sarelimited or no lon‐
ge ra vailable in thef ollowing situations:
R thei gnition is switched off.
R theb rake system or po wersteering sys‐
te mism alfunctioning.
R thee nergy suppl yorthe on-boar delectri‐
cal sy stem is malfunctioning.
When your vehicle is then towe da way,signifi‐
cantly mor eeffor tm aybe requ ired tosteer
and brak ethan is normally required. #
Use atow bar. #
Mak esuret hat thes teering wheel can
mo vefreely ,befor etow ing thev ehicle
aw ay. *
NO
TEDama gedue toexc essiv etractive
po wer If
yo up ullaway sharpl y,thet ractiv epower
ma ybet oo high and thev ehicles could be
damaged. #
Pull away slowl yand smoo thly. To
wing avehicle wit hthe front or rear axle
ra ised *
NO
TEDama gewhen thei gnition is
switched on If
yo ul eave thei gnition switched on when
to wing thev ehicle wit hthe front or rear axle
ra ised, ESP ®
actuation can damag ethe brake
sy stem. #
The ignition mus tbeswitched off. *
NO
TEDama gedue toincor rect remo val
or ins tallation of thep ropeller shafts When ins
talling thep ropeller shafts, they can
be damaged if youdon otuse ne wscrew s.
Alw aysu se ne wscrew sw hen ins talling the
propeller shafts.
Onl yhave thep ropeller shafts ins talled or
re mo vedbyq ualified, skilled personnel. Breakd
owna ssis tance 209

%
If
th ef ront axle is damaged, raise thev ehicle
at thef ront axle and if ther ear axle is dam‐
aged, raise thev ehicle at ther ear axle.
% Ve
hicles with automatic transmission
and rear-wheel drive: ifth er eisam alfunc‐
tion, thea utomatic transmission ma ybe
loc kedinp osition 005D.
If th ea utomatic transmission cann otbe shif‐
te dtop osition 005C,transpor tthe vehicle
(/ page210).At ow ing vehicle wit hlifting
equipment is requ ired forv ehicle transport. #
Obser vethen otes on permissible towing
me thods (/ page207). #
The propeller shafts tothed rive axles must
be remo vedift he maximum permissible tow‐
ing dis tance is exceeded. #
Vehicles with automatic transmission:
shif tthe automatic transmission toposition
005C. #
Release thep arking brake. #
Switc hoffthei gnition. Loading
thev ehicle fort ransport #
Obser vethen otes on permissible towing
me thods (/ page208, 209). #
Connect thet ow bar tothet ow ing eyetol oad
th ev ehicle. #
Vehicles with automatic transmission:
shif tthe automatic transmission toposition
005C.
% Ve
hicles with automatic transmission: in
th ee vent of damag etothe electrics, the
automatic transmissio nmaybe loc kedin
position 005D.Toshifttop osition 005C,provide
th eo n-boar delectrical sy stem wit hpower
( / pag e202). #
Load thev ehicle ont othe transpor ter. #
Vehicles with automatic transmission:
shif tthe automatic transmission toposition
005D. #
Use thep arking brak etosecurethe vehicle
agains trolling away. #
Only secur ethe vehicle bythew heels. Ve
hicles with all-wheel drive/vehicles with
automatic transmission #
Mak esuret hat thef ront and rear axle scome
to rest on thes ame transpor tatio nv ehicle.
* NO
TEDama getothed rive trai ndueto
incor rect positioning #
Do no tpositio nthe vehicle abo vethe
connection point of thet ranspor tvehi‐
cle. *
NO
TEVehicle damag eduetoimproper
loading An all-wheel driv
evehicle ma ybedamaged if
it is tilted, pushed or mo vedw hile being loa‐
ded using ahydraulic plat form. #
When loading avehicle wit hall-wheel
drive, thev ehicle should onl ybemoved
and positioned byits ownp owe r. #
The vehicle and thes urface it is posi‐
tione dons hould no longer be mo ved
when thek eyisremo vedorift he door
is open. To
wing eyes torage location The
towing eyeisl ocated in thev ehicle tool kit in
th ef ront-passen gerfootwell (/ page212). 210
Breakdown assis tance

*
NO
TEDama geor malfunction scaused by
moisture Moistur
emaycause dama getothee lectrical
sy stem or cause it tomalfunction. #
When thef use bo xisopen, mak esure
th at no moistur ecan enter thef use box. #
When closing thef use box, mak esure
th at thes eal of thel id is positioned cor‐
re ctly on thef use box. If
th en ew fuse whic hhas been inser teda lso
blo ws,have thec ause traced and rectified at a
qu alified specialis tworks hop.
Mak esureoft hefollowing befor ereplacing a
fuse:
R thev ehicle is secured suc hthat it does not
ro llaw ay
R all electrical consume rsares wit ched off
R thei gnition is switched off
The fuses ar elocated in various fuse bo xes:
R fuse bo xinthe front-passenger foot we ll
(/ page212 )
R fuse bo xinthe seat base of thed rive r's seat
(/ page212 ) Opening
thef useb oxinthes eat base of the
dr iver's seat #
Toopen: press down and unclip fasteners 1
on thec over. #
Remo vethec ove r. #
Toclose: pressthec over firm ly in tothes eat
base until fasteners 1clip in. Opening and closing
thef useb oxinthec o-
driver's foot we ll Opening
thef useb ox #
Unlocking andremoving thes towa ge com‐
partment co verint he co-driver's foot we ll
(/ page213). Example
:vehicle tool kit insert #
Liftthe inser tatmarke dp ositions 1. #
Pull thei nser tout of clips 2.
Closing thef useb ox #
Slide thei nser tint oc lips 2. #
Close thei nser tbyp ressing on mar kedp osi‐
tions 1. #
Put on thes towa ge compartment co verint he
co-d rive r's foot we ll and loc kit(/pag e213). Ve
hicl etool kit Information on
thev ehicle tool kit The
vehicle tool kit is located in thes towa ge com‐
partment in thef ootwell on thef ront-passenger
side (/ page213).
Th ev ehicle tool kit contains:
R atow ing eye
R ascrew driver wit hTorx, Phillips and slotted
bits
The vehicle tool kit ma yalso contain thef ollow‐
ing, fore xamp le:
R an open-en dwrench
R awheel wrench 212
Breakdown assis tance
