sensor MERCEDES-BENZ V-CLASS MPV 2021 Owner's Manual

Ra
dio equipment appr oval of the tyre pres‐
sure monitoring sy stem
Ra dio equipment appr oval numbers Countr
yRadio equipment appr oval
number
Argentina CNC: H-12336
Model: Schrader HSW4
Brazil MODELO: GG4
AN
ATEL: 0381-13-8001
Es te equipamento opera em
caráter secundário, is toé, não
te m direito à pr oteção contra in‐
te rferência prejudicial, mesmo de
es tações do mesmo tipo e não
pode causar inter ferê ncia a sis te‐
mas operando em caráter pri‐
mário.
Jordan Kingdom of Jordan Type appr oval
fo rTy re Pressure Sensor and ECU
Manufacturer: Schrader Elect ron‐
ics Ltd.
Model: Mercedes HS Snap in 433
MHz
Ty pe Appr oval Numb er:
TRC/LPD/20 13/48
Ty pe Appr oval Numb er: LPD
Morocco AGREE PAR L'ANRT MA ROC
MR7907 ANRT 20 13
Date d'agrement: 05/03/20 13
Moldo va Count
ry Radio equipment appr oval
number
Philip‐
pines NTC
Ty
pe Appr oved.
No: ESD-13 06995C
Singapore Complies with IDA Standards
DA -103365
Sou th
Africa TA
-20 13/461
United
Arab Emi‐
ra tes
Abu Dhabi
and Dubai TRA
Re
gis tere d No: ER0 104996/13
Dealer No: DA00470 74/10 Changing a wheel
Note
s on selecting, fitting and replacing tyres Yo
u can ask for information rega rding permit ted
wheel/tyre combinations at a qualified specialist
wo rkshop. &
WARNING Risk of injury thro ugh incor‐
re ct sizes of wheels and tyres
If wheels and tyres of the wrong size are fit‐
te d, the wheel brakes or components in the
brake sy stem and in the wheel suspension
may be damaged. #
Alwaysre place wheels and tyres with
th ose that fulfil the specifications of the
original part.
Fo r wheels, pay attention tothefo llowing:
R Designation
R Type
Fo r tyres, pay attention tothefo llowing:
R Designation
R Manufacturer
R Type 256
Wheels and tyres

The use of wheel spacers or brake dust
shields is not permitted and
results in the
in va lidation of theve hicle's general ope rating
pe rm it.
R Ve
hicles with a tyre pressure monitoring
sy stem: allfitted wheels mu stbe equipped
with functioning sensors forth e tyre pressure
monitoring sy stem.
R Attemp eratures below 10°C use winter tyres
or all-season tyres with the M+S marking on
all wheels.
Wi nter tyres bearing the004D snowflake sym‐
bol in addition tothe M+S marking pr ovide
th e best possible grip in wintry road condi‐
tions.
R For M+S tyres, only use tyres with the same
tread.
R Obser vethe maximum permissible speed for
th e M+S tyres fitted.
If th is is below theve hicle's maximum per‐
missible speed, this must be indicated in an
appropriate label in the driver's field of vision.
R Run in new tyres at moderate speeds forthe
fi rs t10 0 km.
R Replace the tyres af ter six years at the latest,
re ga rdless of wear.
Fo r more information on wheels and tyres, con‐
ta ct a qualified specialist workshop.
Also obser vethefo llowing fur ther related sub‐
jects:
R Notes on tyre pressure (/ page 250)
R Tyre pressure table (/ page 251)
R Notes on the emer gency spa rewheel
(/ page 265) Note
s onchanging wheels &
WARNING Risk of injury thro ugh dif fer‐
ent wheel sizes
Inter changing the front and rear wheels can
se verely impair the driving characteristics.
The disk brakes or wheel suspension compo‐
nents may also be damaged. #
Only inter change the front and rear
wheels if the wheels and tyres ha vethe
same dimensions. Inter
changing the front and rear wheels if the
wheels or tyres ha vediffere nt dimensions can
re nder thege neral ope rating pe rmit in valid.
On vehicles with the same front and rear wheel
size, you can inter change the wheels every 5,000
to 10,000 km depending on thewe ar. Ensure the
direction of rotation is maintained forth e wheels.
It is imperative toobser vethe instructions and
saf ety no tes on "Changing a wheel" when doing
so. Size categories of wheels
The de
term ined vehicle speed is displa yed in the
instrument clus ter and is impor tant for control‐
ling the driving saf ety sy stems and driving sys‐
te ms. The display accuracy of the speedome ter
and the odome ter is legally prescribed. De term in‐
ing the speed is dependent on the tyre size or the
ro lling circumference of the tyres. The rim diame‐
te r is alw ays specified in inches.
Fo rth is reason, theve hicle contro l units can be
coded forth efo llowing wheel size categories: Wheel size category 1
19
5/65 R 16 C
205/65 R 16 C
225/60 R 16 C
225/55 R 17 C
225/55 R 17XL
24 5/45 R 18XL Wheel size category 2
225/55 R
17XL
235/55 R 17XL
24 5/55 R 17XL
24 5/45 R 18XL
24 5/50 R 18XL
24 5/45 R 19XL %
Mercedes-Benz
recommends that youstay
within a wheel size category when changing a
tyre. In this wa y,yo uav oid recoding the con‐
trol units. 258
Wheels and tyres

Fi
tting a new wheel Re
quirements
R The wheel is remo ved (/ page 260). &
WARNING Risk of accident from losing a
wheel
Oiled or greased wheel bolts can cause the
wheel bolts tocome loose, as too can dam‐
aged wheel bolts or wheel hub thre ads. #
Never oil or grease theth re ads. #
Intheeve nt of damage totheth re ads,
con tact a qualified specialist workshop
immediatel y. #
Have the damaged wheel bolts or dam‐
aged hub thre ads replaced. #
Do not continue driving. &
WARNING Risk of injury from tightening
wheel bolts and nuts
If yo u tighten the wheel bolts or wheel nuts
when theve hicle is raised, the jack could tip. #
Only tighten wheel bolts or wheel nuts
when theve hicle is on the ground. #
Obser vethe information on thech oice of
tyres (/ page 256). #
Obser vethe instructions and saf ety no tes on
ch anging a wheel (/ page 256).#
For saf etyre asons, only use wheel bolts or
wheel nuts which ha vebeen appr ovedby
Mercedes-Benz and forth e wheel in question. #
Clean the wheel and wheel hub contact sur fa‐
ces. Lo
weri ngtheve hicle af ter a wheel change &
WARNING Risk of accident due toincor‐
re ct tigh tening torque
The wheels could come loose if the wheel
bolts or wheel nuts are not tightened tothe
prescribed torque. #
Ensu rethat the wheel bolts or wheel
nuts are tightened tothe prescribed
tightening torque. #
Ifyo u are not sure, do not mo vethe
ve hicle. Contact a qualified specialist
wo rkshop and ha vethe tightening tor‐
qu ech ecked immediately. Re
quirements:
R The new wheel has been fitted (/ page 261). #
Place the adap ter and thera tchet on the hex‐
agon head nut of the jack such that the letter‐
ing AB/DOWN is visible. #
Tolowe r the vehicle: turnthera tchet of the
jack anti-clo ckwise. #
Steel wheels: tightenth e wheel bolts or
wheel nuts evenly in a crosswise pattern in
th e sequence indicated (1 to5 ) and to a
maximum of 200 Nm. #
Light-alloy wheels: tightenthe wheel bolts
or wheel nuts evenly in a crosswise pattern in
th e sequence indicated (1 to5 ) and to a
maximum of 180 Nm. #
Che ckthe tyre pressure of the newly fitted
wheel and adjust it if necessa ry.
Ve hicles with the tyre pressure monitor sys‐
te m: allfitted wheels mu stbe equipped with
functioning sensors. #
Retighten the wheel bolts tothe specified
tightening torque af terth eve hicle has been
driven 50 km.
% When using a wheel or spare wheel with a
new or newly painted disk wheel, ha
vethe
wheel bolts or wheel nuts retightened again
af te r appro ximately 1,000 to5,000 km.
Obser vethe specified tightening torque. Infor
mation on wheel and tyre combinations
Gene ral no tes
Information on tyres, wheels and permissible
combinations can be obtained at a qualified spe‐
cialist workshop.
The smaller the cross-section of a tyre of a spe‐
cific wheel size, thewo rseth e driving comfort on
poor road sur faces. Ride and damp ing comfort
are reduced and therisk increases that when you
drive over obs tacles, damage towheels and tyres
may result. Wheels and tyres
261

Spare wheel
Note
s onthe emer gency spare wheel and
spare wheel Spare wheel:
wheel and tyre dimensions as well
as the type of tyre cor respond totheot her fitted
wheels.
A fitted spa rewheel changes the driving charac‐
te rist ics and bears risks. &
WARNING Risk of accident due toincor‐
re ct wheel and tyre dimensions
Driving with th e spare wheel fitted can
se verely impair theve hicle's driving charac‐
te rist ics.
To avo idrisks, obser vethefo llowing points: #
Drive carefully #
Neverfit more than one spare wheel
which is dif fere nt from the wheel tobe
re placed. #
Only use the spare wheel for a short
period of time. #
Change a spare wheel which is of a dif‐
fere nt size at the nearest qualified spe‐
cialist workshop. Be sure topay atten‐
tion tothe cor rect wheel and tyre
dimensions as well as the tyre type. R
When using a spare wheel (which is dif fere nt
from the wheel tobe replaced) a top speed of
80 km/h must not be exceeded.
R The tyre pressure of the spare wheel must be
ch ecked before starting a journey
(/ page 251).
R Have the emer gency spa rewheel replaced by
a qu alified specialist workshop.
The following should be checkedre gular ly, partic‐
ularly prior tolong journe ys:
R the secure positioning of the spare tyre
R the tyre pressure of the spare wheel (adjust
th e tyre pressure if necessary) (/ page 251)
R thefast enings of the spare wheel brac ket
The spare wheel is located in a spare wheel
brac ket under there ar of theve hicle.
Re place the tyres af ter six years at the latest,
re ga rdless of wear. This also applies tothe spare
wheel.
% If
yo u ha vefitted a spa rewheel, the tyre
pressure monitor will not function forth is wheel. The spare wheel is not equipped with
a sensor
for monitoring tyre pressu re. Fi
tting/ removing the spare wheel Re
moving the spare wheel under the rear of
th eve hicle #
Take the wheel wrench and auxiliary tool for
th e spare wheel lif ter out of theve hicle tool
kit (/ page247). #
Carefully prise off co ver cap 1with a suita‐
ble tool, e.g. a scr ewdriver. Be careful not to
damage the paintwork or the co vering cap
when doing so. #
Push auxilia rytool 2 thro ugh the opening
into the winch guide. #
Attach wheel wrench 3toauxiliary tool 2
fo rth e spare wheel lif ter. #
Turn wheel wrench 3inthe direction of
ar row 5until youfe el resis tance or until the
friction clutch of the winch overwinds.
The spare wheel is lo wered. Wheels and tyres
265

*
NO
TEDama gecaused byincor rect cool‐
ant #
Only add coolant that has been pre‐
mixed with therequ ired antifreeze pro‐
te ction. Information on coolant is
available at thefo llow‐
ing locations:
R inthe Mercedes-Benz Specification for Oper‐
ating Fluids 320.1
- at https://be vo.mercedes-benz.com
- inthe Mercedes-Benz BeVo app
R at a qualified specialist workshop
* NO
TEOverheating at high outside tem‐
peratures If an inapp
ropriate coolant is used, the engine
cooling sy stem is not suf ficiently pr otected
against overheating and cor rosion at high out‐
side temp eratures. #
Always use coolant appr ovedby
Mercedes-Benz . #
Obser vethe instructions in the
Mercedes-Benz Specifications for Oper‐
ating Fluids 320. 1. *
NO
TEPaint wo rkdamage due tocoolant #
Do not spill coolant on painted sur fa‐
ces. Ha
ve the coolant regularly replaced at a qualified
specialist workshop.
No tethe proportion of anti-cor rosion agent/anti‐
freeze in the engine cooling sy stem within thefo l‐
lowing temp erature ranges:
R at least 50% (antifreeze pr otection up to
about -37°C)
R maximum 55% (antifreeze pr otection up to
-45°C)
Capacities, coolant
Coolant capacity Mode
lC apacity
All model sA pprox.10 .4 l
Appr ox.13 .4 l
on vehicles with auxil‐
iary heating Wi
ndscreen washer fluid Note
s on windscreen washer fluid
Obser vethe no tes on operating fluids
(/ page 269). &
WARNING ‑ Risk of fire and injury due to
windscreen washer concentrate
Wi ndscreen washer concentrate is highly
fl ammable. It could ignite if it comes into con‐
ta ct with hot engine component parts or the
ex haust sy stem. #
Make sure that no windscreen washer
concentrate spills out next tothefiller
opening. *
NO
TEDama getotheex terior lighting
due tounsuitable windsc reen washer
fl uid Uns
uitable windsc reen washer fluids may
damage the plastic sur face of theex terior
lighting. #
Only use windscreen washer fluids
which are also suitable for use on plas‐
tic sur faces, e.g. MB SummerFit or MB
Wi nterFit. *
NO
TEBlocked spr aynozzles caused by
mixing windscreen washer fluids #
Do not mix MB SummerFit and MB Win‐
te rFit with other windscreen washer flu‐
ids. Do not use distilled or de-ionised
water.Other‐
wise, thefill le vel sensor may give a false reading.
Re commended windscreen washer fluid:
R Abo vefreezing point: e.g. MB SummerFit
R Below freezing point: e.g. MB WinterFit
Fo rth e cor rect mixing ratio, referto the informa‐
tion on the anti-freeze container.
Mix thewa sher fluid with windsc reen washer fluid
all year round. Re
frigerant Note
s onrefrigerant
Obser vethe no tes on operating fluids
(/ page 269). Te
ch nical da ta275

Display messages
Possible causes/consequences and 0050 0050Solutions #
Comply with the activation conditions forAc tive Dis tance Assi st
DISTRONIC (/ page 162).
Active Distance Assist
Off *A
ctive Dis tance Assi stDISTRONIC has been deacti vated
( / page 162).
In theeve nt of a deacti vation not initia tedby the driver, a warning
to ne sounds as well.
Active Distance Assist
inoperative *A
warning tone also sounds. Active Dis tance Assi stDISTRONIC is
malfunctioning. In addition, BAS may ha vefailed. #
Consult a qualified specialist workshop.
Active Distance Assist
and Limiter inoperative *A
warning tone also sounds. Active Dis tance Assi stDISTRONIC and
th e limiter are malfunctioning. #
Consult a qualified specialist workshop.
Active Distance Assist
suspended *Y
ou are accelerating. Active Dis tance Assi stDISTRONIC does not
inter vene forth e duration of the acceleration process. #
Remo veyour foot from the accelerator pedal.
Ac tive Dis tance Assi stDISTRONIC will be acti vated again.
Active Distance Assist
currently unavailable
See Owner's Manual *A
warning tone also sounds.
Ac tive Dis tance Assi stDISTRONIC has been switched off and is
te mp orarily non-operational.
The following causes are possible:
R The function is impaired due toheavy rain or sno w.
R The radar sensor sy stem is temp orarily non-operational, e.g. due
to electromagnetic radiation close toTV orradio transmitting
st ations or other sources of radiation.
R The sy stem is outside the operating temp erature range.
R The on-board electrical sy stem voltage is too lo w.
If th e causes mentioned abo veno longer apply, the display message
will disappear and Active Dis tance Assi stDISTRONIC will be opera‐
tional again.
If th e display message does not disappear: #
Stop in accordance with the tra ffic conditions. #
Secure theve hicle against rolling away. #
Restart the engine.
Active Distance Assist
available again *A
ctive Dis tance Assi stDISTRONIC is operational again following
te mp orary non-availabilit y.Yo u can now swit chActive Dis tance
Assi stDISTRONIC on again (/ page 163).
Active Brake Assist Func-
tions limited See Own-
er's Manual *A
ctive Brake Assi stis una vailable due toa malfunction. #
Consult a qualified specialist workshop.
Active Brake Assist Func-
tions currently limited
See Owner's Manual *A
ctive Brake Assi stistemp orarily non-operational.
The following causes are possible:
R The sensors in the front bumper are dirty.
R The function is impaired due toheavy rain or sno w. 288
Display messages and warning and indicator lamps

Display messages
Possible causes/consequences and 0050 0050Solutions
R The radar sensor sy stem is temp orarily inoperative, e.g. due to
electromagnetic radiation emitted bynearby TVorradio stations
or other sources of electromagnetic radiation.
R The sy stem is outside the operating temp erature range.
R The on-board electrical sy stem voltage is too lo w.
If th e causes mentioned abo veno longer apply, the display message
will disappear and Active Brake Assi stwill be operational again.
If th e display message does not go out: #
Stop in accordance with the tra ffic conditions. #
Secure theve hicle against rolling away. #
Switch off the engine. #
Clean the sensors in the front bumper (/ page 229). #
Restart the engine.
Radar sensors dirty See
Owner's Manual *A
warning tone also sounds.
At least one of thefo llowing driving sy stems or driving saf ety sys‐
te ms is temp orarily non-operational or operational only on a restric‐
te d basis:
R Active Brake Assi st
R Blind Spot Assist
R Active Dis tance Assi stDISTRONIC
The following causes are possible:
R The sensors in thera diator grille and/or in the bumpers are
dirty.
R The function of the driving sy stem or driving saf ety sy stem is
impaired due toheavy rain or sno w.
If th e causes mentioned abo veno longer apply, the display message
will disappear and the driving sy stems or driving saf ety sy stems will
be operational again.
If th e display message does not disappear: #
Stop in accordance with the tra ffic conditions. #
Secure theve hicle against rolling away. #
Switch off the engine. #
Clean the sensors in thefo llowing places:
R Inthera diator grille
R Inthe front bumper
R Inthere ar bumper #
Restart the engine.
Limiter - - - km/h *T
he limiter cannot be activated while you ha vethe accelera tor pedal
depressed be yond the point of resis tance (ki ckdown). #
If conditions permit, drive at a speed greater than 30 km/h and
st ore the speed. Display messages and
warning and indicator lamps 289

Display messages
Possible causes/consequences and 0050 0050Solutions
Limiter passive *Y
ou ha vethe accelerator pedal depressed be yond the point of
re sis tance. Whilst you are accelerating, the limiter does not cont rol
yo ur speed. #
Remo veyour foot from the accelerator pedal. The limiter will be
re activated and will limit your speed.
Cruise control - - - km/h *A
n acti vation condition for cruise control has not been met.
Fo rex ample, you are aiming tostore a speed below 30 km/h. #
If conditions permit, drive at a speed greater than 30 km/h and
st ore the speed. #
Obser vethe activation conditions for cruise control
(/ page 159).
Cruise co ntrol and Lim-
iter inoperative *A
warning tone also sounds. Cruise control and the limiter are mal‐
functioning. #
Consult a qualified specialist workshop.
Blind Spot Assist not
available when towing a
trailer See Owner's Man-
ual *B
lind Spot Assist is switched off during trailer operation. #
Acknowled gethe display message with the0076 steering wheel
button.
Blind Spot Assist inoper-
ative *B
lind Spot Assist is malfunctioning. #
Consult a qualified specialist workshop.
Blind Spot Assist cur-
rently unavailable See
Owner's Manual *B
lind Spot Assist is temp orarily non-operational.
The following causes are possible:
R The function is impaired due toheavy rain or sno w.
R The radar sensor sy stem is temp orarily non-operational, e.g. due
to electromagnetic radiation close toTV orradio transmitting
st ations or other sources of radiation.
R The sy stem is outside the operating temp erature range.
If th e causes mentioned abo veno longer apply, the display message
will disappear and Lane Keeping Assist will be operational again.
If th e display message does not disappear: #
Stop in accordance with the tra ffic conditions. #
Secure theve hicle against rolling away. #
Switch off the engine. #
Restart the engine.
00C6
--- km/h *D
SR has been switched on but is not acti veas you are driving at a
speed greater than 18 km/h. If you drive at a speed below 18km/h,
DSR will au tomatically brake again tothe set speed.
00C6
Off *D
SRwas deactivated.
If it was not deactivated bythe driver, e.g. due toa malfunction of
th e ESP ®
, a warning tone also sounds. 290
Display messa ges and warning and indicator lamps

Display messages
Possible causes/consequences and 0050 0050Solutions &
WARNING Risk of an accident due toinsuf ficient tyre pres‐
sure
R The tyres can burs t.
R The tyres can wearexcessi velyand/or une venly.
R The driving characteristics as well as thesteering and brak‐
ing may be greatly impaired.
Yo u could then lose cont rol of theve hicle. #
Obser vethere commended tyre pressu res. #
Adjust the tyre pressure if necessar y. #
Stop theve hicle without steering or braking suddenl y.Pa y atten‐
tion tothe tra ffic conditions. #
Secure theve hicle against rolling away. #
Check the tyres. If necessar y,replace the wheel (/ page 259). #
Check the tyre pressure. Cor rect the tyre pressure as neces‐
sary .
Warning tyre defect *T
he tyre pressure in one or more tyres has dropped suddenl y.&
WARNING Risk of an accident from driving wi thaflat tyre
R The tyres can overheat and cause a fire.
R The driving characteristics as well as thesteering and brak‐
ing may be greatly impaired.
Yo u could then lose cont rol of theve hicle. #
Do not drive on with a flat tyre. #
Obse rveth e no tes on flat tyres. #
Stop theve hicle without steering or braking suddenl y.Pa y atten‐
tion tothe tra ffic conditions. #
Secure theve hicle against rolling away. #
Check the tyres. If necessar y,replace the wheel (/ page 259).
Tyre press. monitor cur-
rently unavailable *D
uetoa source of radio inter fere nce, no signals from the tyre pres‐
sure sensors are being received. The tyre pressure monitoring sys‐
te m is temp orarily malfunctioning.
The tyre pressure monitoring sy stem will restart automatically as
soon as the cause has been rectified.
Wheel sensor(s) missing *T
here is no signal from the tyre pressure sensor of at least one tyre.
The display is not showing any pressure value forth e tyre in ques‐
tion. #
Have thefa ulty tyre pressure sensor replaced at a qualified spe‐
cialist workshop.
Tyre pressure monitor
inoperative No wheel
sensors *T
he wheels fitted do not ha vesuitable tyre pressure sensors. The
tyre pressure monitoring sy stem is deactivated. Display messages and
warning and indicator lamps 297

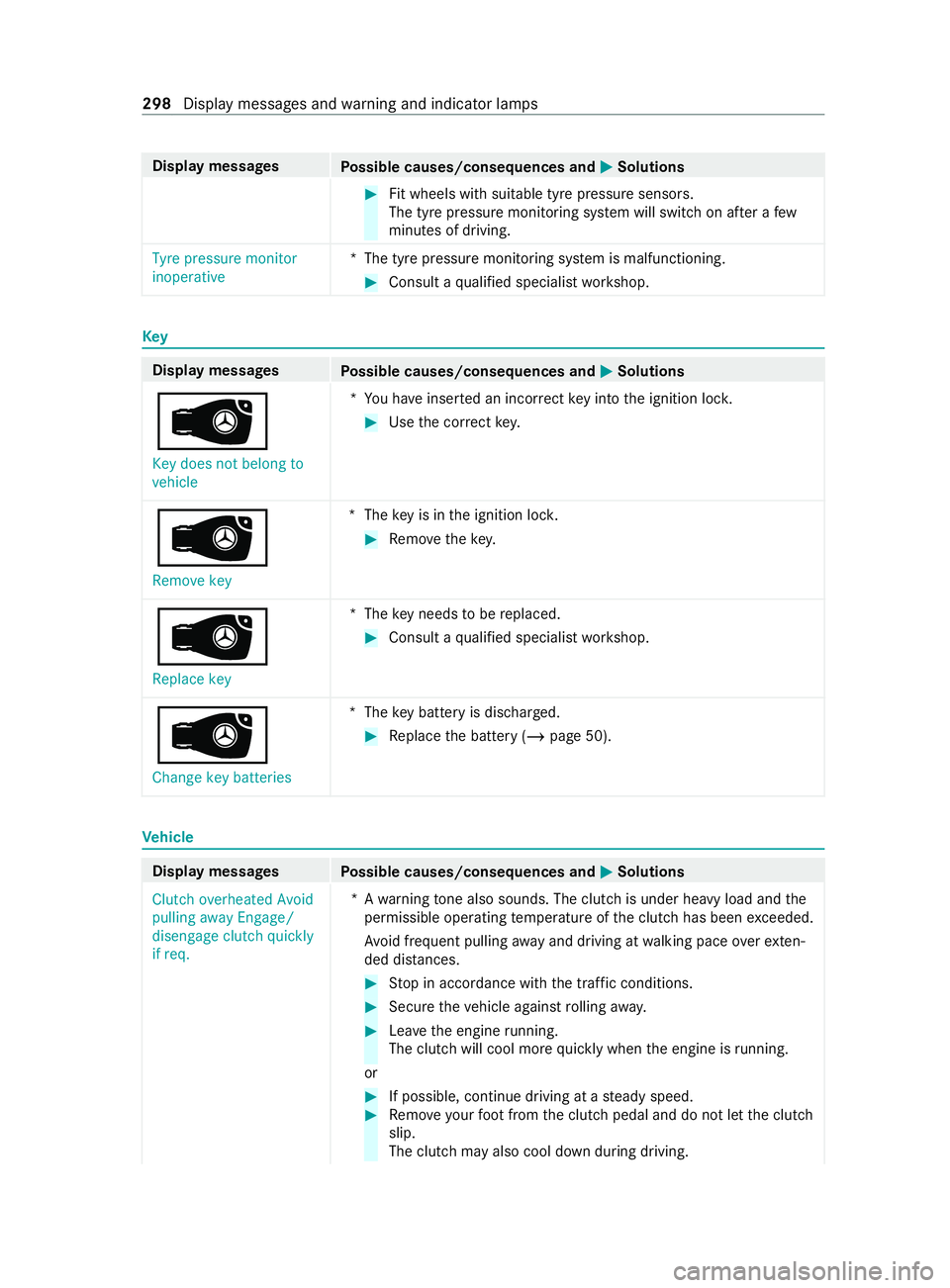

Display messages
Possible causes/consequences and 0050 0050Solutions #
Fit wheels with suitable tyre pressure sensors.
The tyre pressure monitoring sy stem will switch on af ter a few
minutes of driving.
Tyre pressure monitor
inoperative *T
he tyre pressure monitoring sy stem is malfunctioning. #
Consult a qualified specialist workshop. Key
Display messages
Possible causes/consequences and 0050 0050Solutions
00AF
Key does not belong to
vehicle *Y
ou ha veinser ted an incor rect key into the ignition loc k. #
Use the cor rect key.
00AF
Remove key *T
hekey is in the ignition loc k. #
Remo vethekey.
00AF Replace key *T
hekey needs tobe replaced. #
Consult a qualified specialist workshop.
00AF
Change key batteries *T
hekey bat tery is dischar ged. #
Replace the battery (/ page 50). Ve
hicle Display messages
Possible causes/consequences and 0050 0050Solutions
Clutch overheated Avoid
pulling away Engage/
disengage clutch quickly
if req. *A
warning tone also sounds. The clutch is under heavy load and the
permissible operating temp erature of the clutch has been exceeded.
Av oid frequent pulling away and driving at walking pace overex ten‐
ded di stances. #
Stop in accordance with the tra ffic conditions. #
Secure theve hicle against rolling away. #
Leavethe engine running.
The clutch will cool more quickly when the engine is running.
or #
If possible, continue driving at a steady speed. #
Remo veyour foot from the clutch pedal and do not let the clutch
slip.
The clutch may also cool down during driving. 298
Display messages and warning and indicator lamps
