Page 81 of 333
•Perform the following programming procedure yourself:
Note:Ensure the brake pedal is not
pressed during this sequence.
Place the key in the ignition and
cycle from 1 (off) to 3 (on) eight
times in rapid succession within
10 seconds. After doors lock/unlock,
press any control on all transmitters
(up to four). After pressing the
control on each remote transmitter,
the door will lock and unlock. If
programming multiple remote transmitters, you must press the control
buttons on each remote transmitter within seven seconds of each other to
remain in programming mode. When completed, turn the ignition to 1 (off).
All transmittersmustbe programmed at the same time.
•When completed, turn the ignition to the 1 (on) position and wait at
least 20 seconds in order to use the recently programmed
transmitter(s).
•Alltransmittersmustbe programmed during the same programming
cycle. A transmitter that is not programmed within the same
programming cycle will be erased and will no longer operate your
vehicle’s locks. If this occurs, you will have to reprogram all the
transmitters again, as you cannot just “add” a transmitter.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s) or sound the personal alarm.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the on or the accessory positions, or
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control mustnotbe set to theoffposition for the
illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
The battery saver will shut off the interior lamps 30 minutes after the
last door is closed, or after 10 minutes if the last door is left open.
4
3
2
1
Locks and Security
81
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 82 of 333
SECURICODE™ KEYLESS ENTRY SYSTEM (IF EQUIPPED)
With the keyless entry keypad, you
can:
•lock or unlock the vehicle doors
without using the key.
•open the trunk.
See alsoRemote entry systemin this chapter for more information.
Your vehicle has a factory-set 5–digit code that operates the keyless
entry system. You can also program your own 5–digit personal entry
code.
The factory-set code is located:
•On the owner’s wallet card in the glove compartment, or
•at your dealer.
When using the keyless entry keypad, press the middle of each button in
order to ensure a good activation.
Programming a personal entry code
You can program up to three personal codes to unlock your vehicle.
These codes do not replace the permanent code that the authorized
dealer gave you.
To create your own personal entry code:
1. Enter the factory set code.Note:The keypad and the interior lamps
will illuminate when pressed.
2. Within five seconds press 1•2 on the keypad to enter the
programming mode.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. Press 1•2 to store the first personal code.
5. The doors will lock then unlock to confirm programming of the new
code.
To store a second personal code:
1. Enter the factory set code.
2. Within five seconds press 1•2 on the keypad to enter the
programming mode.
3. Enter a second personal 5-digit code. Each number must be entered
within five seconds of each other.
123
45678
90
Locks and Security
82
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 83 of 333
4. Press 3•4 to store the second personal code.
5. The doors will again lock then unlock to confirm programming of the
new code.
To store a third personal code:
1. Enter the factory set code.
2. Within five seconds press 1•2 on the keypad to enter the
programming mode.
3. Enter a third personal 5-digit code. Each number must be entered
within five seconds of each other.
4. Press 5•6 (or 7•8, or 9•0, or wait five seconds) to store the third
personal code.
5. The doors will again lock then unlock to confirm programming of the
new code.
Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Erasing personal code
To erase all of the personal entry codes programmed to a vehicle:
1. Enter the factory-set code.
2. Press and release 1•2 within five seconds of step 1.
3. Press and hold 1•2 for two seconds. All of the vehicle doors will lock
and then unlock to confirm erasure.
Unlocking the doors and releasing the trunk with the keyless entry
system
To unlock the driver door, enter either the factory-set code or personal
code (each digit pressed within five seconds of prior digit). The interior
lamps will illuminate.
•Tounlock all doors,enter the factory-set code or personal code
(driver door unlocks) and press 3•4 within five seconds.
•Torelease the trunk,enter the factory-set code or personal code
(driver door unlocks) and press 5•6 within five seconds.
After the factory-set code or personal code has been entered, you can
unlock all doors (press 3•4) and release the trunk (press 5•6) as
long as the controls are pressed within five seconds of each other.
Locks and Security
83
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 84 of 333
Locking doors with the keyless entry system
It is not necessary to enter the factory-set code prior to locking all doors.
Tolock the doors,press 7•8 and press 9•0 at the same time.
Note:The doors will not lock if the driver door is ajar.
Anti-scan feature
If the wrong code has been entered seven times (35 consecutive button
presses), the keypad will go into an anti-scan mode. This mode disables
the keypad for one minute and the keypad lamp will flash.
The anti-scan feature will turn off after:
•one minute of keypad inactivity.
•pressing the
control on the remote entry transmitter.
•the ignition is turned to the on position.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLockpassive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a “no-start” condition.
This device complies with part 15 of the FCC rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Radio type approval numbers for Immobilizer System PATS XCVR
If the type approval of your immobilizer system is inspected in one of the
countries listed in the following table, refer to the corresponding
approval number:
Immobilizer System PATS XCVR certification numbers
TX Frequency: 134,2 kHz -8,1 dBµA/m @ 10 m
Country Name Type Approval Number
American Samoa (USA) See USA
Bahrain DLM/GEN/18/18/16
Barbados 340/3 Vol.II
Canada CANADA: 3043104475A
China CMII ID:2005DJ0428
Locks and Security
84
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 85 of 333
Immobilizer System PATS XCVR certification numbers
Ghana SPLS / -485 / 2001
Guam (USA) See USA
Jordan 4/U/U/4250
Kenya CCK/ES/100/0
Kuwait M.C/U.S.0 /5/7-12579
Mauritius TA/2005/15
Mayotte (F)
Mexico RLVVIVP03-324
Morocco MR 1299 ANRT 2004
Netherlands Antilles (NL)
Nicaragua NCG-CE-04-004
Northern Mariana Islands See USA
Oman OMA/1265(A) 1308/2001
Puerto Rico See USA
Qatar QTEL/SR/2003/R-276
Saudi Arabia (10/1900)
South Korea R-LPD1-04-0145
Tunisia 269/MAT/2004
United Arabian Emirates 5/10-2/3274/3774
Uruguay 025/FR/2003
USA NT8-15607PAT3XCVR
Zambia CAZ/ENG/CA/2005/02/8
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Your vehicle comes withtwo coded keys; additional coded keys may be
purchased from your authorized dealer. The authorized dealer can
program your spare keys to your vehicle or you can program the keys
yourself. Refer toProgramming spare keysfor instructions on how to
program the coded key.
Note:The SecuriLockpassive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Locks and Security
85
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 86 of 333
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition to the off position, remove
all objects on the key chain away from the coded key and restart the
engine.
Note: Do not leave a duplicate coded key in the vehicle. Always
take your keys and lock all doors when leaving the vehicle.
Anti-theft indicator
The anti-theft indicator is the flashing red indicator located on top of the
dash panel to the left of the steering wheel.
•When the ignition is in the off position, the indicator will flash once
every two seconds to indicate the SecuriLocksystem is functioning
as a theft deterrent.
•When the ignition is in the on position, the indicator will glow for
three seconds to indicate normal system functionality.
If a problem occurs with the SecuriLocksystem, the indicator will flash
rapidly or glow steadily when the ignition is in the on position. If this
occurs, contact your authorized dealer as soon as possible for service.
Automatic arming
The vehicle is armed immediately after switching the ignition to the off
position.
The theft indicator on the instrument panel will flash every two seconds
when the vehicle is armed.
Automatic disarming
Switching the ignition to the on position with acoded keydisarms the
vehicle.
•The theft indicator on the instrument panel will illuminate for three
seconds and then go out.
•If the theft indicator stays on for an extended period of time or
flashes rapidly, contact your authorized dealer as soon as possible.
Locks and Security
86
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 87 of 333
Replacement keys
If your keys are lost or stolen and you don’t have an extra coded key,
you will need to have your vehicle towed to an authorized dealer. The
key codes need to be erased from your vehicle and new coded keys will
need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare keys
A maximum of eight keys can be coded to your vehicle. Only
SecuriLockkeys can be used. To program acoded keyyourself, you
will need two previously programmedcoded keys(keys that already
operate your vehicle’s engine) and the new unprogrammed key(s) readily
accessible for timely implementation of each step in the procedure.
If two previously programmed coded keys are not available, you must
bring your vehicle to your authorized dealer to have the spare coded
key(s) programmed.
Please read and understand the entire procedure before you begin.
1. Insert the first previously
programmedcoded keyinto the
ignition and turn the ignition from 1
(off) to the 3 (on) position
(maintain ignition in 3 (on) for at
least one second).
2. Turn ignition to 1 (off) and
remove the firstcoded keyfrom
the ignition.
3. Within ten seconds of removing
the firstcoded key,insert the second previously programmedcoded
keyinto the ignition and turn the ignition from 1 (off) to the 3 (on)
position (maintain ignition in 3 (on) for at least one second but no more
than ten seconds).
4. Turn the ignition to 1 (off) and remove the secondcoded keyfrom
the ignition.
5. Within twenty seconds of removing the secondcoded key,insert the
new unprogrammed key (new key) into the ignition and turn the ignition
from 1 (off) to the 3 (on) position (maintain ignition in 3 (on) for at
least one second). This step will program your new key.
4
3
2
1
Locks and Security
87
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 88 of 333
6. To program additional new unprogrammed key(s), wait at least
20 seconds and repeat this procedure from Step 1.
If successful, the new coded key(s) will start the vehicle’s engine and the
theft indicator will illuminate for three seconds and then go out.
If not successful, the new coded key(s) will not start the vehicle’s engine
and the theft indicator will flash on and off. You may repeat Steps 1
through 6. If failure repeats, bring your vehicle to your authorized dealer
to have the new spare key(s) programmed.
Locks and Security
88
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 89 of 333

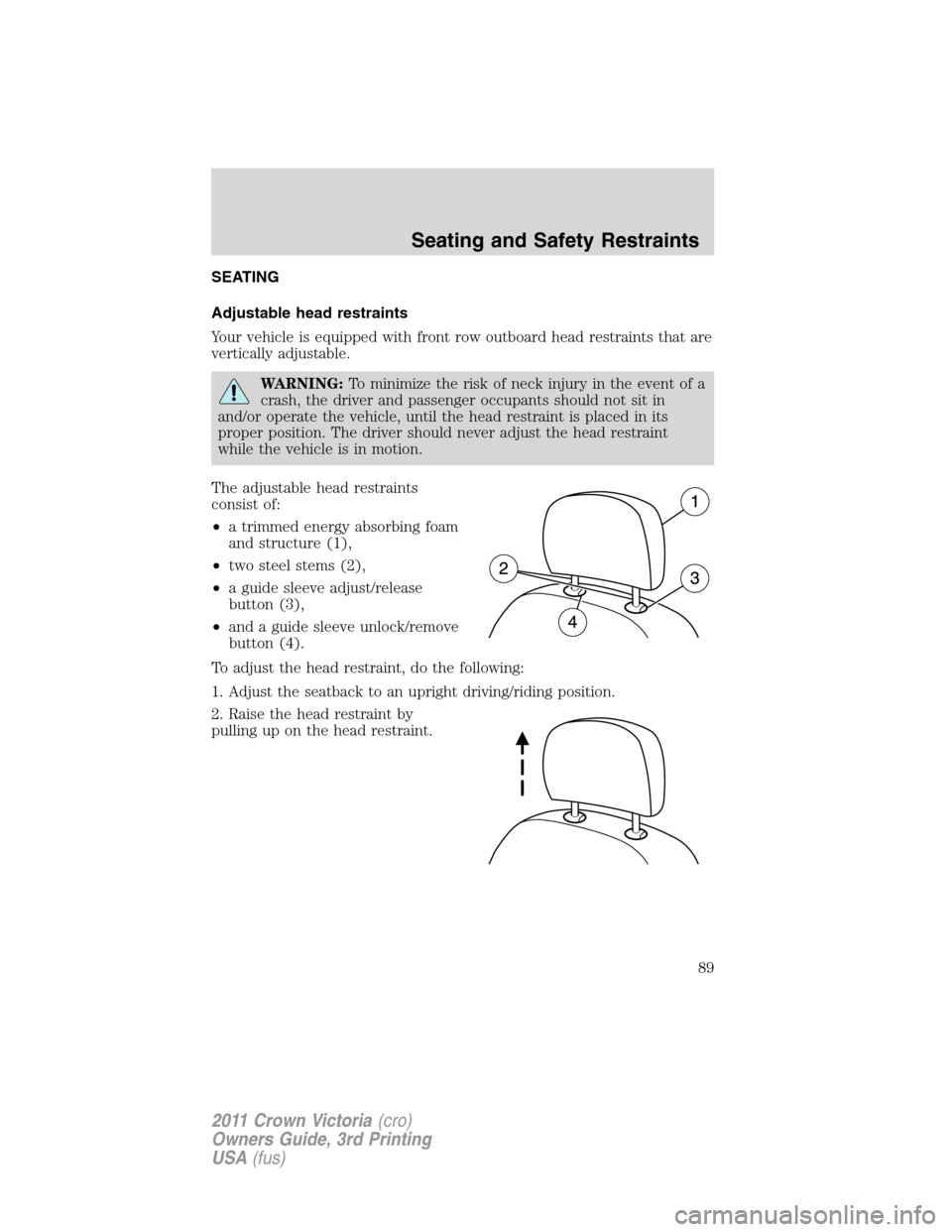

SEATING
Adjustable head restraints
Your vehicle is equipped with front row outboard head restraints that are
vertically adjustable.
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint
while the vehicle is in motion.
The adjustable head restraints
consist of:
•a trimmed energy absorbing foam
and structure (1),
•two steel stems (2),
•a guide sleeve adjust/release
button (3),
•and a guide sleeve unlock/remove
button (4).
To adjust the head restraint, do the following:
1. Adjust the seatback to an upright driving/riding position.
2. Raise the head restraint by
pulling up on the head restraint.
Seating and Safety Restraints
89
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 90 of 333

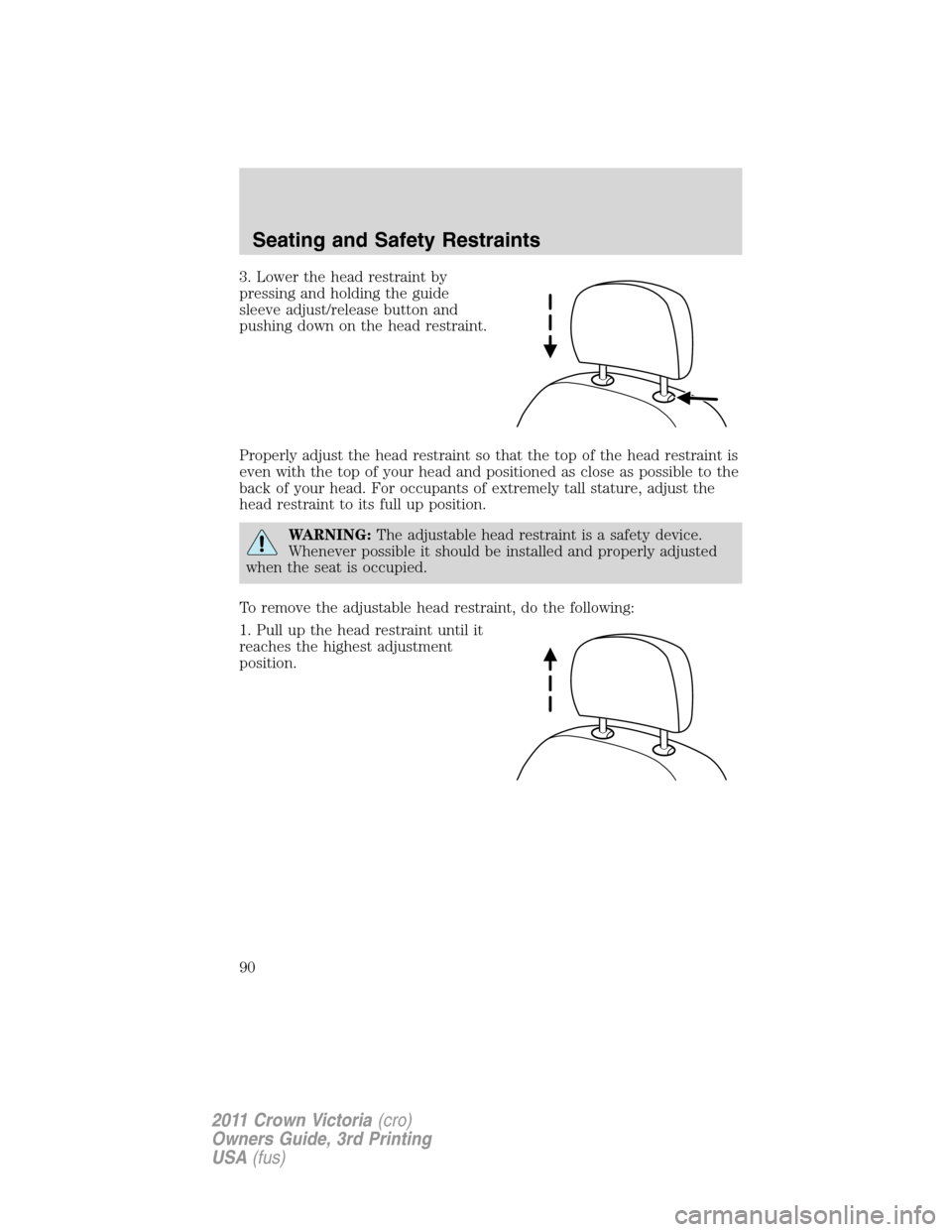

3. Lower the head restraint by
pressing and holding the guide
sleeve adjust/release button and
pushing down on the head restraint.
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
WARNING:The adjustable head restraint is a safety device.
Whenever possible it should be installed and properly adjusted
when the seat is occupied.
To remove the adjustable head restraint, do the following:
1. Pull up the head restraint until it
reaches the highest adjustment
position.
Seating and Safety Restraints
90
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
