Page 41 of 305
38
*
[IS32500( GV)05/96]
If the light is displayed while driving and the
air suspension switch is not turned off, safely
pull off the road as soon as possible. Turn the
ignition switch from ON to OFF and to ON
again. If the light continues to be displayed turn
the air suspension switch (located in the trunk
on the right side) off and take your vehicle to a
dealership for service as soon as possible.
[IS32600( GV)05/96]
one inch art:0010522-A
The check air suspension light
%*
[IS32700( GV)03/96]
Overdrive Off Indicator
[IS32800( GV)05/96]
one inch art:0010733-B
The overdrive off indicator light
*
[IS32900( GV)04/96]
This light tells you that the Transmission Control
Switch (TCS) has been pushed. When the light is
on, the transmission will not shift into overdrive.
Depressing the button will return the vehicle to
ªoverdrive onº mode. The transmission will be
in the ªoverdrive onº mode when the vehicle is
started even if the O/D OFF mode was selected
when the vehicle was last shut off.
File:03rcisg.ex
Update:Tue Jun 11 13:54:07 1996
Page 42 of 305
39 [IS33000( GV)05/96]
NOTE: If the light does not come on when the
TCS is depressed or if the light flashes
when you are driving, have your
vehicle serviced at the first
opportunity. If this condition persists,
damage could occur to the
transmission.
%*
[IS33100( GV)12/95]
Low Washer Fluid Light
*
[IS33200( GV)12/95]
This light comes on when there is less than a
quarter of the container of washer fluid left.
With the ignition ON this light will flash five (5)
times and a tone will sound for one (1) second,
and then the light will remain on.
[IS33300( GV)05/96]

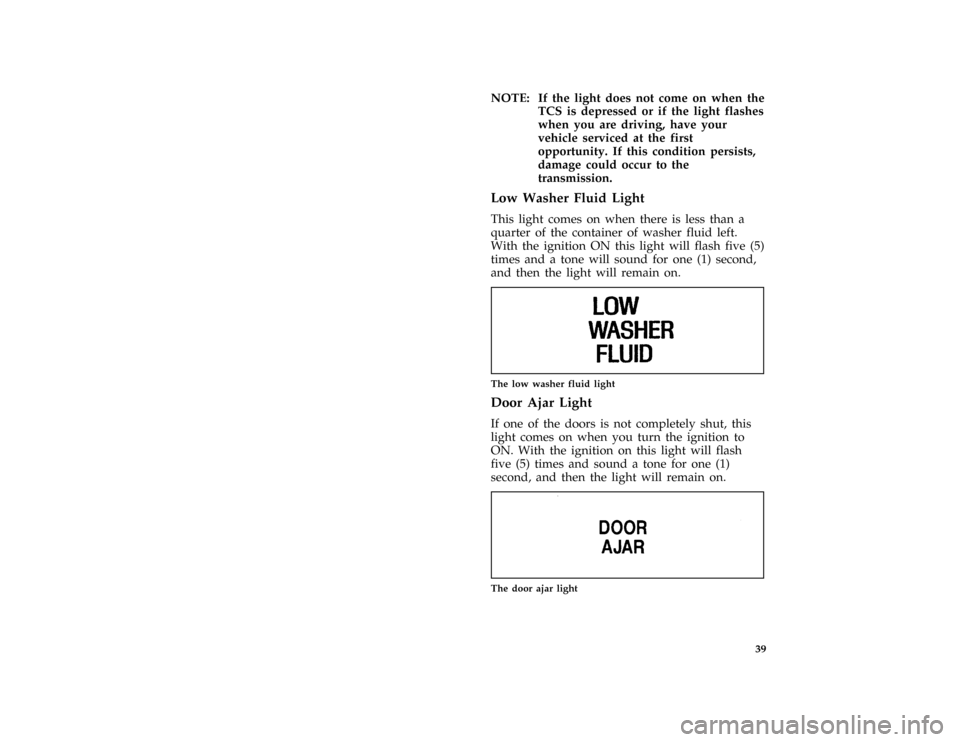

one inch art:0010523-B
The low washer fluid light
%*
[IS33400( GV)12/95]
Door Ajar Light
*
[IS33500( GV)12/95]
If one of the doors is not completely shut, this
light comes on when you turn the ignition to
ON. With the ignition on this light will flash
five (5) times and sound a tone for one (1)
second, and then the light will remain on.
[IS33600( GV)05/96]
one inch art:0010531-A
The door ajar light
File:03rcisg.ex
Update:Tue Jun 11 13:54:07 1996
Page 43 of 305
40 %
*
[IS33700( GV)01/96]
Trunk Ajar Light
*
[IS33800( GV)01/96]
If the trunk is not completely closed, this light
comes on when you turn the ignition to ON.
With the ignition ON this light will flash five (5)
times and sound a tone for one (1) second, and
then the light will remain on.
[IS33900( GV)05/96]

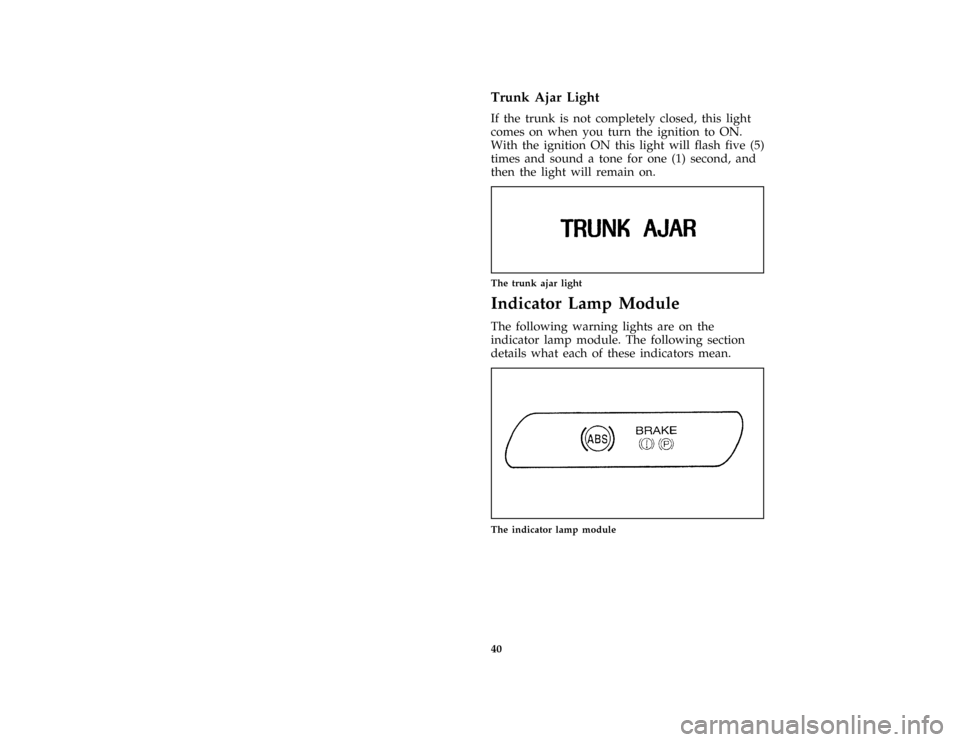

one inch art:0010524-B
The trunk ajar light
[IS34000( GV)03/96]
Indicator Lamp Module
[IS34100( GV)03/96]
The following warning lights are on the
indicator lamp module. The following section
details what each of these indicators mean.
[IS34200( GV)05/96]
one third page art:0011296-C
The indicator lamp module
File:03rcisg.ex
Update:Tue Jun 11 13:54:07 1996
Page 44 of 305
41 % [IS34500( GV)04/96]
Anti-Lock Brake System Light
(If equipped)
*
[IS34600( GV)03/96]
This warning light will go on each time you
start your vehicle. If it remains on for longer
than 5 seconds, you should shut off your engine
and restart. If the anti-lock brake light stays on,
this indicates that the anti-lock feature is
disabled and should receive immediate attention
by a qualified service technician. Normal braking
is not affected unless the brake warning light is
also lit.
*
[IS34700( GV)03/96]
The Anti-Lock Brake System has self-check
capabilities. As previously described, the system
turns on the anti-lock light each time you start
your engine. After the engine is started and the
anti-lock light is out, the system performs
another test the first time the vehicle reaches
14 mph (22 km/h). The system turns on the
Anti-Lock Brake System (ABS) pump motor for
approximately 1/2 second. At this time a
mechanical noise may be heard. This is a normal
part of the self-check feature. If a malfunction is
found during this check the anti-lock light will
come on.
[IS34800( GV)05/96]

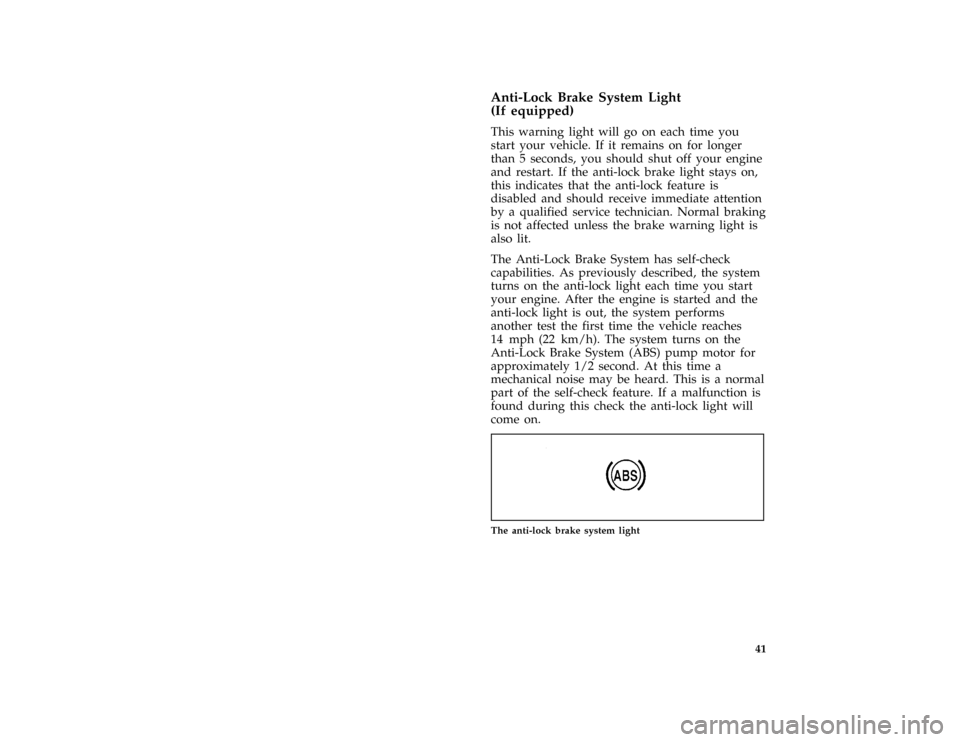

one inch art:0010642-E
The anti-lock brake system light
File:03rcisg.ex
Update:Tue Jun 11 13:54:07 1996
Page 45 of 305
42
*
[IS34900( GV)03/96]
RWARNING
If the anti-lock brake system warning
light remains on or comes on while
driving, have the braking system checked
by a qualified service technician as soon
as possible.
*
[IS35000( GV)03/96]
NOTE: If a fault occurs in the anti-lock
system, and the brake warning light is
not lit, the anti-lock system is disabled
but normal brake function remains
operational.
%*
[IS35100( GV)03/96]
Brake System Light
*
[IS35200( GV)03/96]
The warning light for the brakes can show two
things Ð that the parking brake is not fully
released, or that the brake fluid level is low in
the master cylinder reservoir. If the fluid level is
low, the brake system should be checked by a
qualified service technician.
[IS35300( GV)05/96]

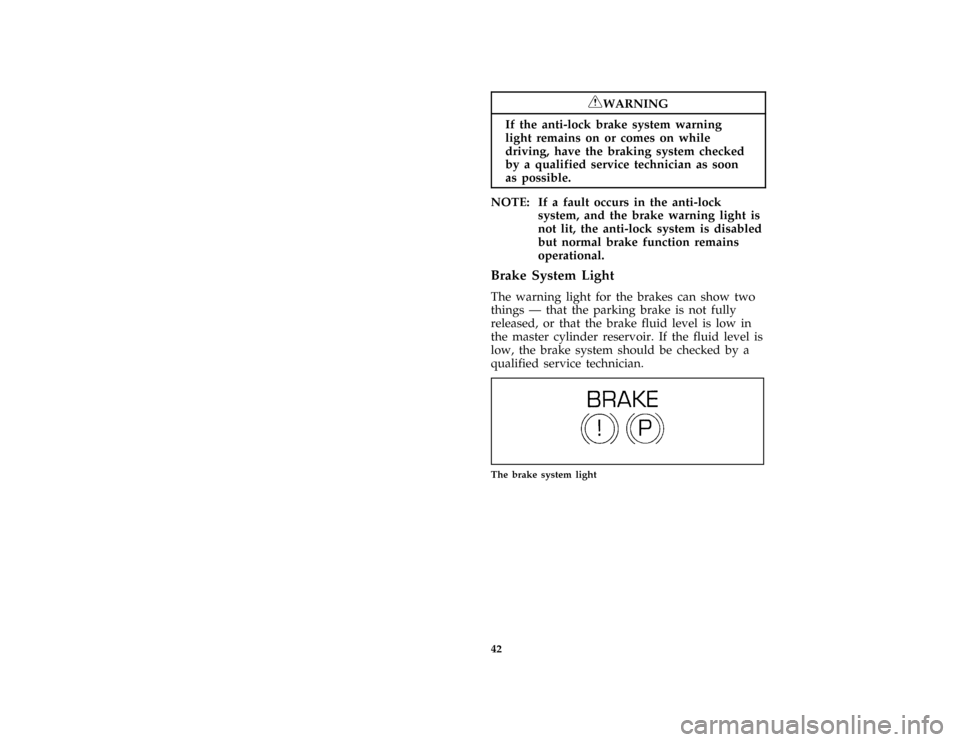

one inch art:0011354-B
The brake system light
File:03rcisg.ex
Update:Tue Jun 11 13:54:07 1996
Page 46 of 305
43 [IS35400( GV)05/96]
This light comes on when the parking brake is
set, or if it is not set, it comes on briefly when
you turn the ignition key to START. It normally
goes off shortly after the engine starts and you
release the parking brake. If the light stays on
after you have fully released the parking brake,
have the hydraulic brake system serviced.
*
[IS35500( GV)03/96]
RWARNING
The BRAKE light indicates that the brakes
may not be working properly. Have the
brakes checked immediately.
File:03rcisg.ex
Update:Tue Jun 11 13:54:07 1996
Page 47 of 305
45
Electronic Sound Systems
% [AS10315( GV)05/94]

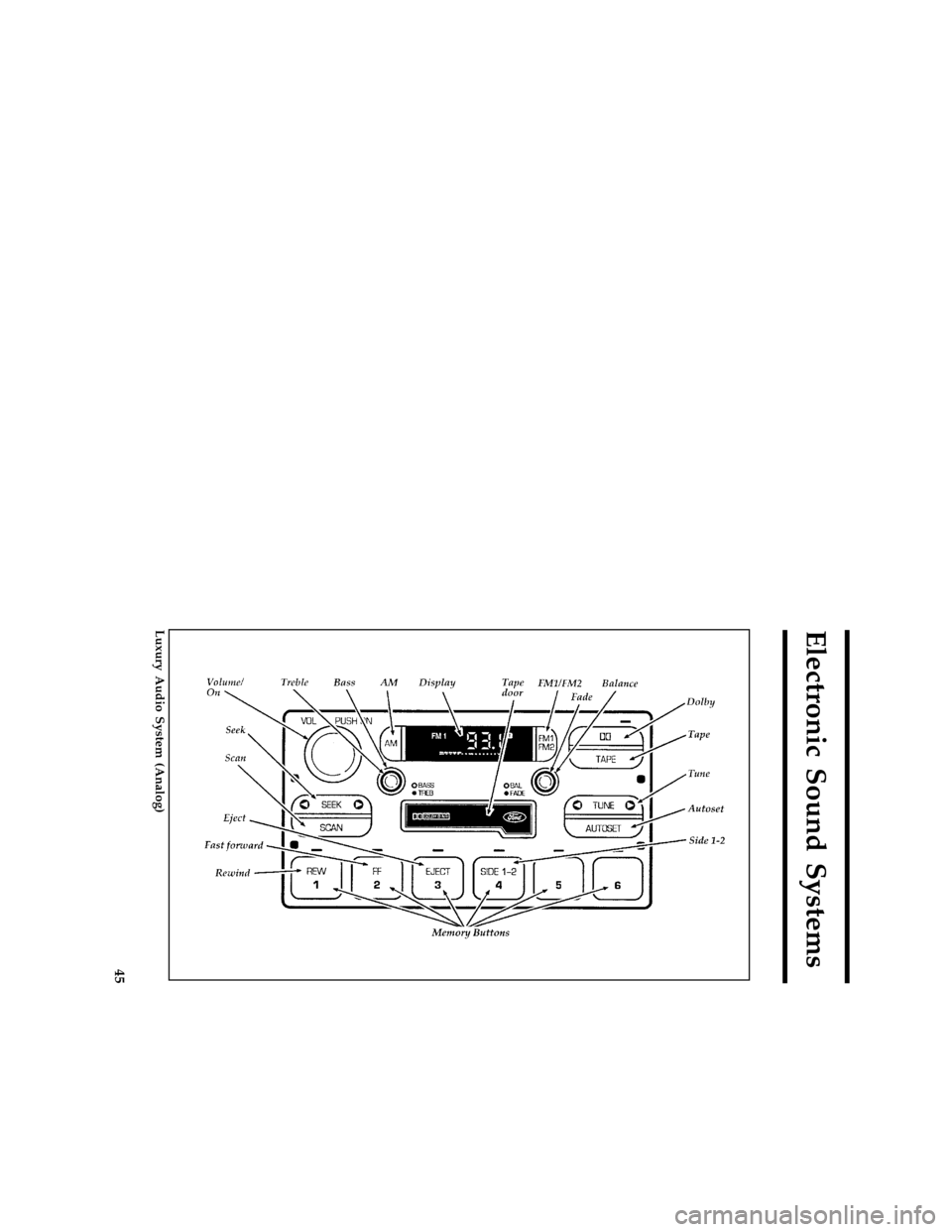

full page art:0060663-A
Luxury Audio System (Analog)
File:04rcasg.ex
Update:Mon Sep 23 08:30:54 1996
Page 48 of 305
46
%*
[AS10319( GV)03/96]
Luxury Audio System
*
[AS10320( GV)03/96]
Using the Controls on Your New Radio
*
[AS10330( GV)03/96]
How to turn the radio on and off
*
[AS10340( GV)03/96]
Press the ªVOL/PUSH ONº knob to turn the
radio on. Press again to turn it off.
*
[AS10351( GV)03/96]
How to adjust the volume
[AS10352( GV)06/95]
Turn the ªVOL/PUSH ONº knob to the right to
increase the volume and to the left to decrease
the volume.
*
[AS10354( GV)03/96]
Selecting the AM or FM frequency band
[AS10355( GV)03/96]
Push the ªAM/FMº button to select the desired
frequency band. Pushing the ªAM/FMº button
causes the frequency band to switch from ªAMº
to ªFM1º to ªFM2º to ªAMº, changing one band
to the next each time the button is pressed.
These functions are used with the station
memory buttons described underHow to tune
radio stations.
%*
[AS10356( GV)03/96]
How to tune radio stations
*
[AS10357( GV)03/96]
There are four ways for you to tune in a
particular station. You can use the ªTUNEº,
ªSEEKº, ªSCANº or memory buttons.
*
[AS10358( GV)03/96]
q
Using the ªTUNEº function
[AS10359( GV)03/95]
You can change the frequency up or down
one increment at a time by pressing and
releasing either the left
bor right
aside of
the ªTUNEº button. To change frequencies
quickly, press and hold down either the right
or left side of the ªTUNEº button.
*
[AS10360( GV)03/96]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or
not a station is present on that frequency.
(SeeAll About Radio Frequenciesin this
section.)
File:04rcasg.ex
Update:Mon Sep 23 08:30:54 1996
Page 49 of 305
47
*
[AS10361( GV)04/96]
q
Using the ªSEEKº function
*
[AS10362( GV)03/96]
Press the right
aside of the ªSEEKº button
to select the next listenable station up the
frequency band. Press the left
bside of the
button to select the next listenable station
down the frequency band. By holding the
button down, listenable stations can be
passed over to reach the desired station.
*
[AS10363( GV)04/96]
q
Using the ªSCANº function
*
[AS10364( GV)03/96]
Pressing the ªSCANº button will begin the
scan mode up the frequency band, stopping
on each listenable station for approximately
five seconds.
*
[AS10365( GV)03/96]
To stop the scan mode on the presently
sampled station, press the ªSCANº button
again.
*
[AS10366( GV)03/96]
q
Setting the station MEMORY PRESET buttons
*
[AS10367( GV)03/96]
Your radio is equipped with 6 station
memory buttons. These buttons can be used
to select up to 6 preset AM stations and 12
FM stations (6 in FM1 and 6 in FM2)
*
[AS10368( GV)08/95]
Follow the easy steps below to set these buttons
to the desired frequencies:
*
[AS10369( GV)03/96]
1. Select a band, then select a frequency.
*
[AS10370( GV)10/95]
2. Press one of the memory preset buttons and
hold the button until the sound returns. That
station is now held in memory on that
button.
*
[AS10371( GV)10/95]
3. Follow the two steps above for each station
memory preset button you want to set.
File:04rcasg.ex
Update:Mon Sep 23 08:30:54 1996
Page 50 of 305
48
*
[AS10372( GV)03/96]
Using the Automatic Memory Store feature
(ªAUTOSETº)
*
[AS10373( GV)03/96]
If the memory buttons have been set, either by
using the Auto Memory Load feature or if you
have set them manually, the system is prepared
to let you use a convenient feature called
Automatic Memory Store.
*
[AS10374( GV)03/96]
With Auto Memory Store, you can continually
set strong stations into your memory buttons
without losing your originally set stations. Your
radio will automatically set your memory
buttons to the strong local stations.
*
[AS10375( GV)03/96]
Activate Auto Memory Store by pushing the
ªAUTOSETº button once. Your radio will set the
first six strong stations of the band you are in
(AM, FM1 or FM2) into the memory buttons.
The display will flash ªAUTOº and display the
autoset icon ªAº while the stations are being set
in the memory buttons.
[AS10376( GV)10/95]
NOTE: If there are fewer than six strong
stations in the frequency band, the
remaining unfilled buttons will store
the last strong station detected on the
band. After all stations have been
filled, the radio will begin playing the
station stored on memory button 1.
*
[AS10377( GV)03/96]
To deactivate the Auto Memory Store mode and
return to the manually-set memory button
stations, simply push the ªAUTOSETº button.
Display will show ªAUTOº then ªOFFº. The
next time Auto Memory Store is activated on
that band, the radio will store the next set of six
strong stations.
