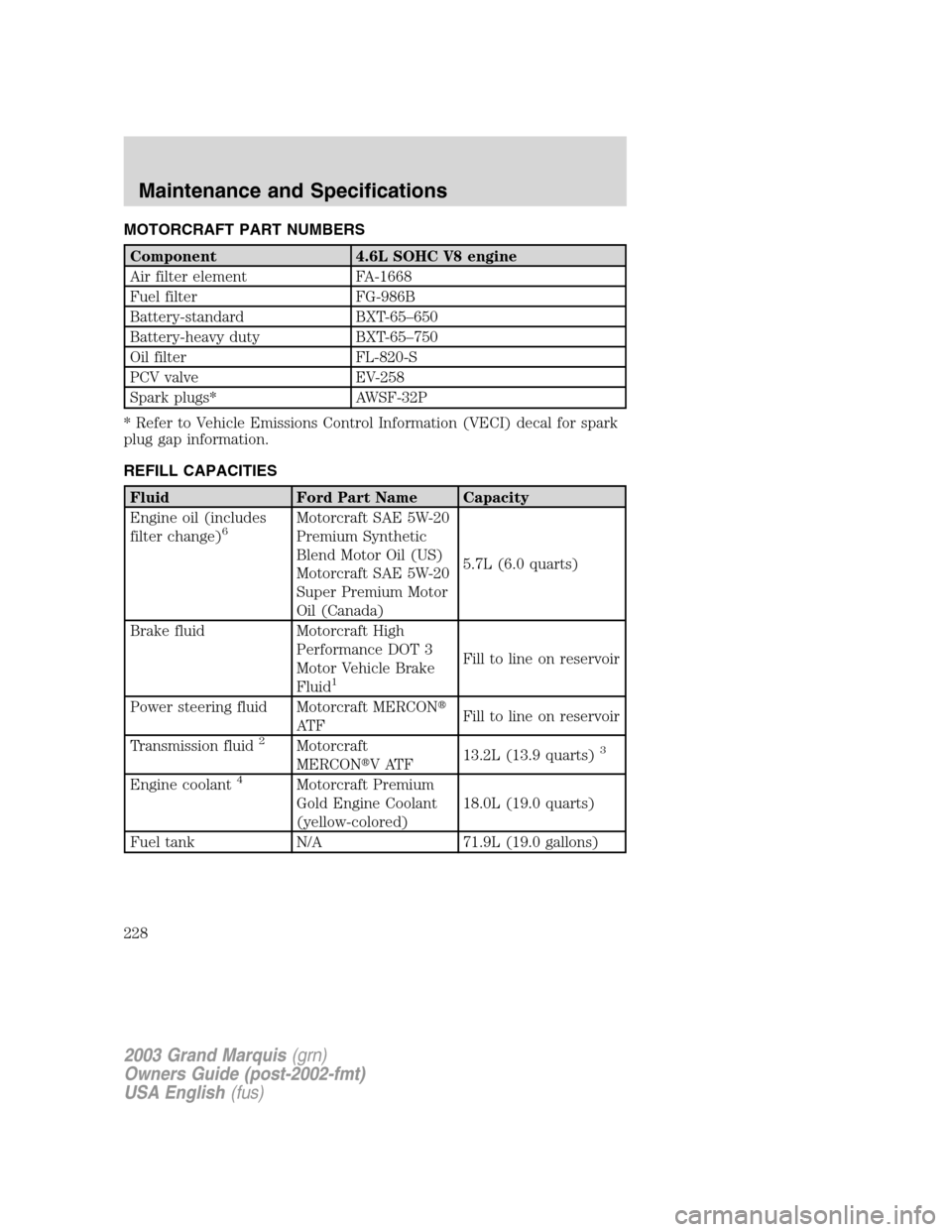

MOTORCRAFT PART NUMBERS
Component 4.6L SOHC V8 engine
Air filter element FA-1668
Fuel filter FG-986B
Battery-standard BXT-65–650
Battery-heavy duty BXT-65–750
Oil filter FL-820-S
PCV valve EV-258
Spark plugs* AWSF-32P
* Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
REFILL CAPACITIES
Fluid Ford Part Name Capacity
Engine oil (includes
filter change)
6Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)5.7L (6.0 quarts)
Brake fluid Motorcraft High
Performance DOT 3
Motor Vehicle Brake
Fluid
1
Fill to line on reservoir
Power steering fluid Motorcraft MERCON
AT FFill to line on reservoir
Transmission fluid
2Motorcraft
MERCONVATF13.2L (13.9 quarts)3
Engine coolant4Motorcraft Premium
Gold Engine Coolant
(yellow-colored)18.0L (19.0 quarts)
Fuel tank N/A 71.9L (19.0 gallons)
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
228

safety belt maintenance .........123
warning light and
chime ...................13, 16, 118–119
Safety seats for children ..........134
Seat belts
(see Safety restraints) .............109
Seats ..........................................105
child safety seats ....................134
cleaning ...................................193
SecuriLock passive
anti-theft system ...............101–103
Servicing your vehicle ..............196
Spare tire (see Changing the
Tire) ...........................................170
Spark plugs, specifications ......228,
231
Specification chart,
lubricants ...........................230–231
Speed control ..............................77
Speedometer ...............................20
Starting your
vehicle ........................142–143, 145
jump starting ..........................175
Steering
speed sensitive .......................151
Steering wheel
controls ..........................64, 77, 81
tilting .........................................64
T
Tires ...........................170, 224–225
changing ..........................170–171
checking the pressure ............225
replacing ..................................226
rotating ....................................225
snow tires and chains ............227
tire grades ...............................225treadwear ................................224
Towing .......................................157
recreational towing .................160
trailer towing ..........................157
wrecker ....................................180
Traction control ........................149
active light ................................13
Traction-lok rear axle ...............155
Transmission .............................151
fluid, checking and adding
(automatic) .............................220
fluid, refill capacities ..............228
lubricant specifications ..230–231
Trip odometer .............................21
Trunk ...........................................93
remote release ....................90, 96
Turn signal ............................14, 56
V
Vehicle dimensions ...................231
Vehicle Identification Number
(VIN) ..........................................233
Vehicle loading ..........................156
Ventilating your vehicle ...........146
W
Warning chimes ...........................16
Warning lights (see Lights) .......10
Washer fluid ..............................198
Water, Driving through .............155
Windows
power .........................................74
Windshield washer fluid and
wipers
checking and adding fluid .....198
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
243
