Service Engine Soon:TheService
Engine Soonindicator light
illuminates when the ignition is first
turned to the on position to check
the bulb and to indicate whether the vehicle is ready for
Inspection/Maintenance (I/M) testing. Normally, the “Service engine
soon” light will stay on until the engine is cranked, then turn itself off if
no malfunctions are present. However, if after 15 seconds the “Service
engine soon” light blinks eight times, it means that the vehicle is not
ready for I/M testing. See theReadiness for Inspection/Maintenance
(I/M) testingin theMaintenance and Specificationschapter.
Solid illumination after the engine is started indicates the On Board
Diagnostics System (OBD-II) has detected a malfunction. Refer toOn
board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer.
WARNING:Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.
Powertrain malfunction
indicator (if equipped):
Illuminates when a powertrain fault
has been detected. Contact your
authorized dealer as soon as possible.
Check fuel cap (if equipped):
Illuminates when the fuel cap may
not be properly installed. Continued
driving with this light on may cause
the Service engine soon warning
light to come on. Refer toFuel
filler capin theMaintenance and Specificationschapter.
Instrument Cluster
13
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the on position
when the engine is not running, or in a position between on and start, or
by applying the parking brake when the ignition is turned to the on
position. If the brake system warning light does not illuminate at this
time, seek service immediately from your authorized dealer. Illumination
after releasing the parking brake indicates low brake fluid level and the
brake system should be inspected immediately by your authorized dealer.
WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Have the vehicle checked by your authorized dealer. Driving extended
distances with the parking brake engaged can cause brake failure and
the risk of personal injury.
Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by your
authorized dealer. Normal braking is still functional unless the brake
warning light also is illuminated.
Airbag readiness:If this light fails
to illuminate when the ignition is
turned to on, continues to flash or
remains on, have the system
serviced immediately by your authorized dealer. A chime will sound
when there is a malfunction in the indicator light.
Safety belt:Reminds you to fasten
your safety belt. A Belt-Minder

chime will also sound to remind you
to fasten your safety belt. Refer to
theSeating and Safety Restraints
chapter to activate/deactivate the Belt-Minder
chime feature.
P!
BRAKE
ABS
Instrument Cluster
14
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

CENTER CONSOLE (IF EQUIPPED)
Your vehicle may be equipped with a variety of console features. These
include:
•Utility compartment
•Power point (inside storage bin)
•Cupholders
•Air vents to the rear seating positions (heat only)
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power point is located under the cup holder and ashtray
drawer in the center stack. The auxiliary power point for five passenger
vehicles is located in the floor console storage bin.
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
•do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
Always keep the power point caps closed when not being used.
Driver Controls
67
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

FUEL PUMP SHUT-OFF SWITCHFUEL
RESET
The fuel pump shut-off switch is a device intended to stop the electric
fuel pump when your vehicle has been involved in a substantial jolt.
After a collision, if the engine cranks but does not start, the fuel pump
shut-off switch may have been activated.
The fuel pump shut-off switch is
located on the left side of the trunk
behind the left rear tail light and the
trunk liner.
Use the following procedure to reset the fuel pump shut-off switch.
1. Turn the ignition to the off position.
2. Check the fuel system for leaks.
3. If no fuel leak is apparent, reset the fuel pump shut-off switch by
pressing the reset button.
4. Turn the ignition to the on position. Pause for a few seconds and
return the key to the off position.
5. Make a further check for leaks in the fuel system.
Roadside Emergencies
191
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
Add the proper mixture of coolant and water to the cooling system by
following these steps:
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture, to
within the COLD FILL RANGE or the FULL COLD level on the reservoir.
If you removed the radiator cap in an overflow system, fill the radiator
until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. Cap must be tightly
installed to prevent coolant loss.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50
(protection to –34°F/–36°C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
Your cooling system may have a leak. Operating an engine with a low
level of coolant can result in engine overheating and possible engine
damage.
Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant since a Ford-approved recycling process is not yet available.
Maintenance and Specifications
241
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

What you should know about fail-safe cooling
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature gauge will move to the H (hot) area.
•Theservice engine soon
indicator light will illuminate.
•The message center (if equipped) will display COOLANT OVER
TEMPERATURE.
•The
symbol will illuminate.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature:
•The engine will completely shut down, causing steering and braking
effort to increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to an authorized dealer as soon as possible to minimize
engine damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high-speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
Maintenance and Specifications
243
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

Refueling
WARNING:Fuel vapor burns violently and a fuel fire can cause
severe injuries. To help avoid injuries to you and others:
•Read and follow all the instructions on the pump island;
•Turn off your engine when you are refueling;
•Do not smoke if you are near fuel or refueling your vehicle;
•Keep sparks, flames and smoking materials away from fuel;
•Stay outside your vehicle and do not leave the fuel pump unattended
when refueling your vehicle — this is against the law in some places;
•Keep children away from the fuel pump; never let children pump
fuel.
•Do not use a cellphone while refueling.
Use the following guidelines to avoid electrostatic charge build-up when
filling an ungrounded fuel container:
•Place approved fuel container on the ground.
•DO NOT fill a fuel container while it is in the vehicle (including the
cargo area).
•Keep the fuel pump nozzle in contact with the fuel container while
filling.
•DO NOT use a device that would hold the fuel pump handle in the fill
position.
Fuel filler cap
When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise until it spins off.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise until it clicks at least once.
If the check fuel cap light
or a CHECK FUEL CAP message comes
on, the fuel filler cap may not be properly installed. The light or message
can come on after several driving events after you’ve refueled your
vehicle.
Maintenance and Specifications
247
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

At the next opportunity, safely pull off of the road, remove the fuel filler
cap, align the cap properly and reinstall it. The check fuel cap
light
or CHECK FUEL CAP message may not reset immediately; it
may take several driving cycles for the check fuel cap light
or CHECK
FUEL CAP message to turn off. A driving cycle consists of an engine
start-up (after four or more hours with the engine off) followed by city
and highway driving.
Continuing to drive with the check fuel cap light
or CHECK FUEL
CAP message on may cause the
light to turn on as well.
If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The customer warranty may
be void for any damage to the fuel tank or fuel system if the
correct genuine Ford, Motorcraft or other certified fuel filler cap
is not used.
WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
WARNING:If you do not use the proper fuel filler cap,
excessive vacuum in the fuel tank may damage the fuel system
or cause the fuel cap to disengage in a collision, which may result in
personal injury.
FFV (Flex Fuel Vehicle) fuel cap
If your vehicle is FFV capable, it will have a yellow colored fuel cap.
Maintenance and Specifications
248
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

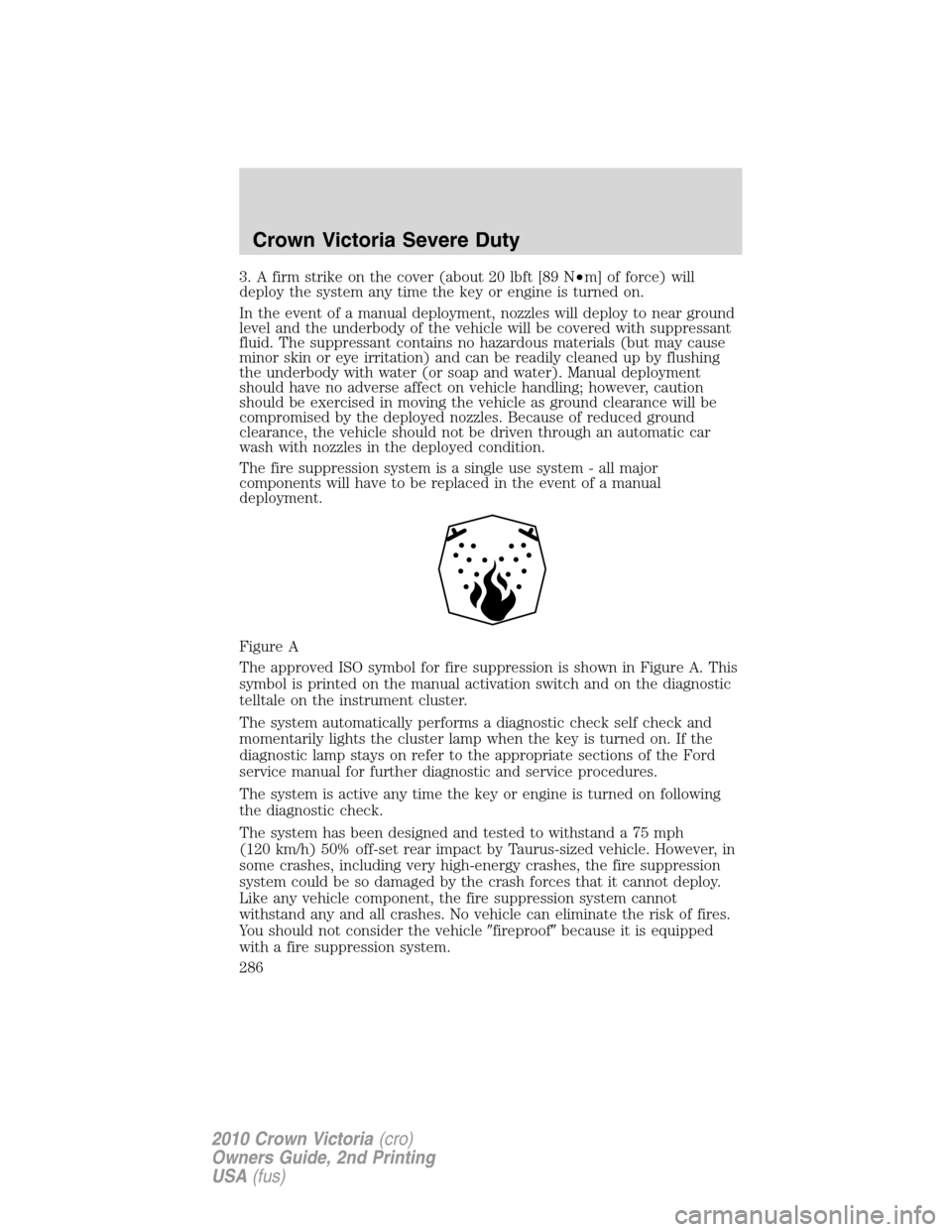

3. A firm strike on the cover (about 20 lbft [89 N•m] of force) will
deploy the system any time the key or engine is turned on.
In the event of a manual deployment, nozzles will deploy to near ground
level and the underbody of the vehicle will be covered with suppressant
fluid. The suppressant contains no hazardous materials (but may cause
minor skin or eye irritation) and can be readily cleaned up by flushing
the underbody with water (or soap and water). Manual deployment
should have no adverse affect on vehicle handling; however, caution
should be exercised in moving the vehicle as ground clearance will be
compromised by the deployed nozzles. Because of reduced ground
clearance, the vehicle should not be driven through an automatic car
wash with nozzles in the deployed condition.
The fire suppression system is a single use system - all major
components will have to be replaced in the event of a manual
deployment.
Figure A
The approved ISO symbol for fire suppression is shown in Figure A. This
symbol is printed on the manual activation switch and on the diagnostic
telltale on the instrument cluster.
The system automatically performs a diagnostic check self check and
momentarily lights the cluster lamp when the key is turned on. If the
diagnostic lamp stays on refer to the appropriate sections of the Ford
service manual for further diagnostic and service procedures.
The system is active any time the key or engine is turned on following
the diagnostic check.
The system has been designed and tested to withstand a 75 mph
(120 km/h) 50% off-set rear impact by Taurus-sized vehicle. However, in
some crashes, including very high-energy crashes, the fire suppression
system could be so damaged by the crash forces that it cannot deploy.
Like any vehicle component, the fire suppression system cannot
withstand any and all crashes. No vehicle can eliminate the risk of fires.
You should not consider the vehiclefireproofbecause it is equipped
with a fire suppression system.
Crown Victoria Severe Duty
286
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

A
ABS (see Brakes) .....................179
Accessory delay ..........................69
Air cleaner filter ...............261–262
Air conditioning ..........................44
Air suspension ...........................183
description ..............................183
Airbag supplemental restraint
system ................................111, 121
and child safety seats ............113
description ......................111, 121
disposal ....................................123
driver airbag ....................114, 122
indicator light .................121, 123
operation .........................114, 122
passenger airbag .............114, 122
side airbag ...............................121
Airbags (police) ........................288
Alternator ..................................272
Antifreeze
(see Engine coolant) ................238
Anti-lock brake system
(see Brakes) ......................179–180
Anti-theft system ........................86
Audio system (see Radio) ..27, 29,
32, 37
Automatic transmission
driving an automatic
overdrive .................................185
fluid, adding ............................258
fluid, checking ........................258
fluid, refill capacities ..............263
fluid, specification ..................263
Police and fleet vehicles ........270
Auxiliary power point .................67Axle
lubricant specifications ..........263
Police and fleet vehicles ........271
refill capacities ........................263
traction lok ..............................184
B
Battery .......................................236
acid, treating emergencies .....236
jumping a disabled battery ....208
maintenance-free ....................236
Police vehicles ........................271
replacement, specifications ...262
servicing ..................................236
Belt-Minder
.............................107
Booster seats .............................138
Brakes ........................................179
anti-lock ...........................179–180
anti-lock brake system (ABS)
warning light ...........................180
fluid, checking and adding ....258
fluid, refill capacities ..............263
fluid, specifications .................263
lubricant specifications ..........263
police .......................................280
shift interlock ..........................184
Bulbs ............................................53
C
Capacities for refilling fluids ....263
Cell phone use ..............................8
Child safety seats ......................128
attaching with tether straps ..136
in front seat ............................129
in rear seat ......................129, 132
LATCH .....................................133
recommendations ...................126
Index
303
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
