WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause extensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulbs work. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Check engine:TheCheck Engine
indicator light illuminates when the
ignition is first turned to the ON
position to check the bulb and to
indicate whether the vehicle is ready for Inspection/Maintenance (I/M)
testing. Normally, the
Check Engine
light will stay on until the engine is
cranked, then turn itself off if no malfunctions are present. However, if
after 15 seconds the
Check Engine
light blinks eight times, it means
that the vehicle is not ready for I/M testing. See theReadiness for
Inspection/Maintenance (I/M) testingin theMaintenance and
Specificationschapter.
Solid illumination after the engine is started indicates the On Board
Diagnostics System (OBD-II) has detected a malfunction. Refer toOn
board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer.
2007 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
10

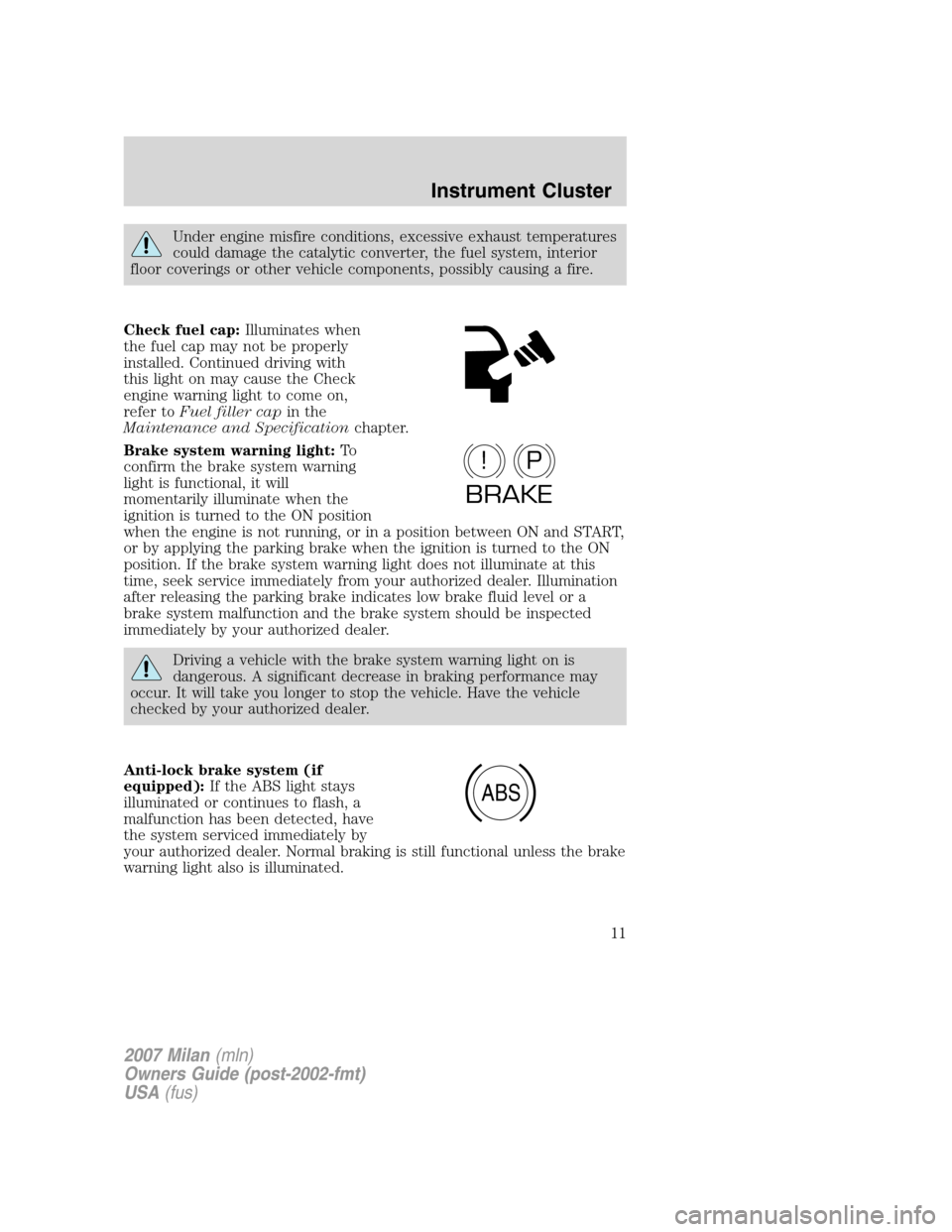

Under engine misfire conditions, excessive exhaust temperatures
could damage the catalytic converter, the fuel system, interior
floor coverings or other vehicle components, possibly causing a fire.
Check fuel cap:Illuminates when
the fuel cap may not be properly
installed. Continued driving with
this light on may cause the Check
engine warning light to come on,
refer toFuel filler capin the
Maintenance and Specificationchapter.
Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the ON position
when the engine is not running, or in a position between ON and START,
or by applying the parking brake when the ignition is turned to the ON
position. If the brake system warning light does not illuminate at this
time, seek service immediately from your authorized dealer. Illumination
after releasing the parking brake indicates low brake fluid level or a
brake system malfunction and the brake system should be inspected
immediately by your authorized dealer.
Driving a vehicle with the brake system warning light on is
dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle
checked by your authorized dealer.
Anti-lock brake system (if
equipped):If the ABS light stays
illuminated or continues to flash, a
malfunction has been detected, have
the system serviced immediately by
your authorized dealer. Normal braking is still functional unless the brake
warning light also is illuminated.
P!
BRAKE
ABS
2007 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
11

and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toBrake system warning
lightin theInstrument Cluster
chapter for information on the brake
system warning light.
Four-wheel anti-lock brake system (ABS) (if equipped)
Your vehicle may be equipped with an Anti-lock Braking System (ABS).
This system helps you maintain steering control during emergency stops
by keeping the brakes from locking. The ABS operates by detecting the
onset of wheel lockup during brake application and compensates for this
tendency. Noise from the ABS pump motor and brake pedal pulsation
may be observed during ABS braking; any pulsation or mechanical noise
you may feel or hear is normal. In addition, the ABS performs a
self-check after you start the engine and begin to drive away. A brief
mechanical noise may be heard during this test. This is normal.
ABS warning lamp
The ABS lamp in the instrument
cluster momentarily illuminates
when the ignition is turned on. If
the light does not illuminate during
start up, remains on or flashes, the
ABS may be disabled and may need to be serviced.
Even when the ABS is disabled and
the ABS light is on, normal braking
is still effective. (If your BRAKE
warning lamp illuminates with the
parking brake released, have your
brake system serviced immediately.)
Using ABS
When hard braking is required, apply continuous force on the brake
pedal; do not pump the brake pedal since this will reduce the
effectiveness of the ABS and will increase your vehicle’s stopping
distance. The ABS will be activated immediately, allowing you to retain
full steering control during hard braking and on slippery surfaces.
However, the ABS does not decrease stopping distance and does not
decrease the time necessary to apply the brakes.
P!
BRAKE
ABS
P!
BRAKE
2007 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
173

Aggressive driving in any road conditions can cause you to lose
control of your vehicle increasing the risk of severe personal
injury or property damage. The occurrence of a Traction Control
event is an indication that at least some of the tires have exceeded
their ability to grip the road; this may lead to an increased risk of loss
of vehicle control, vehicle rollover, personal injury and death. If you
experience a severe road event, SLOW DOWN.
The Traction Controlswitch is
located on the instrument panel.
The Traction Controlsystem will
automatically turn on every time the
ignition is turned off and on. The
Traction Controlsystem should
normally be left on.
If you should become stuck in snow
or ice or on a very slippery road
surface, try switching the Traction
Controlsystem off by pressing the
switch on the instrument panel. Switching the Traction Controlsystem
off may allow excess wheel spin to “dig” the vehicle out and enable a
successful “rocking” maneuver. When the Traction Controlsystem is
off, an indicator light will illuminate and will remain on until the system
is turned back on or the ignition is turned off and on.
If a system fault is detected, the traction control active light will
illuminate, the Traction Controlbutton will not turn the system on or
off and your vehicle should be serviced by an authorized dealer.
STEERING
To help prevent damage to the power steering system:
•Never hold the steering wheel at its furthest turning points (until it
stops) for more than a few seconds when the engine is running.
•Do not operate the vehicle with a low power steering pump fluid level
(below the MIN mark on the reservoir).
•Some noise is normal during operation. If excessive, check for low
power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
2007 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
175

when you are driving over sand, apply the accelerator slowly and avoid
spinning your wheels. If the vehicle does slide, steer in the direction of
the slide until you regain control of the vehicle.
If the engine or transmission is submerged in water, their fluids should
be checked and changed, if necessary.
Driving through deep water may damage the engine or
transmission.
If the front or rear axle is submerged in water, the axle lubricant and
PTU (Power Transfer Unit) lubricant should be checked and changed if
necessary.
After driving through mud, clean off residue stuck to rotating driveshafts
and tires. Excess mud stuck on tires and rotating driveshafts causes an
imbalance that could damage drive components.
“Tread Lightly” is an educational
program designed to increase public
awareness of land-use regulations
and responsibilities in our nations
wilderness areas. Ford Motor
Company joins the U.S. Forest Service and the Bureau of Land
Management in encouraging you to help preserve our national forest and
other public and private lands by “treading lightly.”
Driving on hilly or sloping terrain
Although natural obstacles may make it necessary to travel diagonally up
or down a hill or steep incline, you should always try to drive straight up
or straight down.Avoid driving crosswise or turning on steep
slopes or hills.A danger lies in losing traction, slipping sideways and
possibly rolling over. Whenever driving on a hill, determine beforehand
the route you will use. Do not drive over the crest of a hill without
seeing what conditions are on the other side. Do not drive in reverse
over a hill without the aid of an observer.
When climbing a steep slope or hill, start in a lower gear rather than
downshifting to a lower gear from a higher gear once the ascent has
started. This reduces strain on the engine and the possibility of stalling.
If you do stall out, do not try to turnaround because you might roll over.
It is better to back down to a safe location.
Apply just enough power to the wheels to climb the hill. Too much
power will cause the tires to slip, spin or lose traction, resulting in loss of
vehicle control.
2007 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
186

If you have run out of fuel:
•You may need to cycle the ignition from OFF to ON several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal.
•Normally, adding one gallon of fuel is enough to restart the engine. If
the vehicle is out of fuel and on a steep grade, more than one gallon
may be required.
•The
indicator may come on. For more information on the “check
engine” or the “service engine soon” indicator, refer toWarning lights
and chimesin theInstrument Clusterchapter.
ESSENTIALS OF GOOD FUEL ECONOMY
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,000 miles
(1,600 km) of driving (engine break-in period). You will get a more
accurate measurement after 2,000 miles-3,000 miles (3,000 km–5,000 km).
Filling the tank
The advertised fuel capacity of the fuel tank on your vehicle is equal to
the rated refill capacity of the fuel tank as listed in theMaintenance
product specifications and capacitiessection of this chapter.
The advertised capacity is the amount of the indicated capacity and the
empty reserve combined. Indicated capacity is the difference in the
amount of fuel in a full tank and a tank when the fuel gauge indicates
empty. Empty reserve is the small amount of fuel remaining in the fuel
tank after the fuel gauge indicates empty.
The amount of usable fuel in the empty reserve varies and should
not be relied upon to increase driving range. When refueling your
vehicle after the fuel gauge indicates empty, you might not be
able to refuel the full amount of the advertised capacity of the
fuel tank due to the empty reserve still present in the tank.
For consistent results when filling the fuel tank:
•Turn the engine/ignition switch to the off position prior to refueling,
an error in the reading will result if the engine is left running.
2007 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
249

•Idling for long periods of time (greater than one minute) may waste
fuel.
•Anticipate stopping; slowing down may eliminate the need to stop.
•Sudden or hard accelerations may reduce fuel economy.
•Slow down gradually.
•Driving at reasonable speeds (traveling at 55 mph [88 km/h] uses
15% less fuel than traveling at 65 mph [105 km/h]).
•Revving the engine before turning it off may reduce fuel economy.
•Using the air conditioner or defroster may reduce fuel economy.
•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle may reduce fuel economy at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
2007 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
251

A
Accessory delay ..........................67
Air cleaner filter ...............261–263
Air conditioning ....................41, 43
Airbag supplemental restraint
system ........................120, 129, 132
and child safety seats ............122
description ..............120, 129, 132
disposal ....................................135
driver airbag ............122, 130, 133
indicator light .........128, 131, 134
operation .................122, 130, 133
passenger airbag .....122, 130, 133
side airbag ...............................129
All Wheel Drive (AWD),
driving off road .........................182
Antifreeze
(see Engine coolant) ................238
Anti-lock brake system
(see Brakes) ..............................173
Anti-theft system ..................95, 98
arming the system ....................98
disarming a triggered system ..99
triggering ...................................99
Audio system (see Radio) ...20, 25
Automatic transaxle
fluid, adding ............................256
fluid, checking ........................256
Automatic transmission
driving an automatic
overdrive .........................178–179
fluid, adding ....................258, 261
fluid, checking ................258, 261
fluid, refill capacities ..............265
fluid, specification ..................265Auxiliary Input Jack ...................32
Axle
lubricant specifications ..........265
B
Battery .......................................236
acid, treating emergencies .....236
jumping a disabled battery ....204
maintenance-free ....................236
replacement, specifications ...263
servicing ..................................236
Belt-Minder.............................115
Brakes ........................................172
anti-lock ...................................173
anti-lock brake system (ABS)
warning light ...........................173
fluid, checking and adding ....256
fluid, refill capacities ..............265
fluid, specifications .................265
lubricant specifications ..........265
parking ....................................174
shift interlock ..........................176
Break-in period .............................5
Bulbs ............................................51
C
Capacities for refilling fluids ....265
Cassette tape player ...................20
Cell phone use ..............................7
Changing a tire .........................198
Child safety restraints ..............135
child safety belts ....................135
Child safety seats ......................139
attaching with tether straps ..143
in front seat ............................140
in rear seat ..............................140
2007 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Index
273

Engine oil ..................................231
change oil soon warning,
message center .......................231
checking and adding ..............231
dipstick ....................................231
filter, specifications ........235, 263
recommendations ...................235
refill capacities ........................265
specifications ..........................265
Exhaust fumes ..........................172
F
Fail safe cooling ........................243
Fluid capacities .........................265
Foglamps .....................................48
Four-Wheel Drive vehicles
driving off road .......................183
Fuel ............................................244
calculating fuel
economy ............................75, 249
cap ...........................................246
capacity ...................................265
choosing the right fuel ...........247
comparisons with EPA fuel
economy estimates .................252
detergent in fuel .....................248
filling your vehicle
with fuel ..................244, 246, 249
filter, specifications ........244, 263
fuel pump shut-off switch .....191
improving fuel economy ........249
octane rating ...................248, 268
quality ......................................248
running out of fuel .................248
safety information relating
to automotive fuels ................244
Fuel pump shut-off switch .......191
Fuses ..................................191–192G
Gas cap (see Fuel cap) ............246
Gas mileage
(see Fuel economy) .................249
Gauges .........................................13
H
Hazard flashers .........................190
Head restraints .........................100
Headlamps ...................................47
aiming ..................................49–50
autolamp system .......................47
bulb specifications ....................52
daytime running lights .............48
flash to pass ..............................49
high beam .................................49
replacing bulbs .........................52
turning on and off ....................47
Heating
heating and air conditioning
system ...........................39, 41, 43
Hood ..........................................227
How to get going ........................16
I
Ignition ...............................169, 268
Illuminated visor mirror .............63
Infant seats
(see Safety seats) .....................139
Inspection/maintenance (I/M)
testing ........................................254
Instrument panel ........................65
cleaning ...................................222
cluster ........................................10
lighting up panel and
interior .......................................49
2007 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Index
275

J
Jack ............................................198
positioning ...............................198
storage .....................................198
Jump-starting your vehicle ......204
K
Keyless entry system
autolock .....................................85
Keys .......................................82, 96
positions of the ignition .........169
L
Lamps
autolamp system .......................47
bulb replacement
specifications chart ..................52
daytime running light ...............48
fog lamps ...................................48
headlamps .................................47
headlamps, flash to pass ..........49
instrument panel, dimming .....49
interior lamps ...........................51
replacing bulbs .........................52
Lane change indicator
(see Turn signal) ........................51
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........173
Load limits .................................162
Locks
autolock .....................................85
childproof ..................................88
doors ..........................................84
Lubricant specifications ...........265
Lug nuts ....................................203
Lumbar support, seats .............101M
Manual transmission .................181
fluid capacities ........................265
lubricant specifications ..........265
reverse .....................................182
Message center ...........................74
english/metric button ...............79
system check button ................78
warning messages .....................79
Mirrors .........................................68
automatic dimming rearview
mirror ........................................67
heated ........................................68
side view mirrors (power) .......68
Moon roof ....................................72
Motorcraft parts ........224, 244, 263
N
Navigation system .......................38
O
Octane rating ............................248
Oil (see Engine oil) ..................231
P
Parking brake ............................174
Parts (see Motorcraft parts) ....263
Passenger Occupant
Classification Sensor .................107
Power distribution box
(see Fuses) ...............................195
Power door locks ........................84
Power mirrors .............................68
Power point .................................65
2007 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Index
276
