adding oil Mercury Milan 2009 Owner's Manuals

•3.0L DOHC V6 Duratec engine
•If required, add engine oil to the engine. Refer toAdding engine oil
in this chapter.
•2.3L I4 engine
•3.0L DOHC V6 Duratec engine
•Do not overfill the engine with oil. Oil levels above this mark
may cause engine damage.If the engine is overfilled, some oil must be
removed from the engine by an authorized dealer.
7. Put the dipstick back in and ensure it is fully seated.
On 2.3L I4 engine, be sure the
notch in the dipstick flange is
aligned with the V on the engine
when it is reinserted.
2009 Milan(mln)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
273

Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal operating range, add
only certified engine oil of the recommended viscosity. Remove the
engine oil filler cap and use a funnel to pour the engine oil into the
opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
normal operating range on the engine oil level dipstick.
4. Install the dipstick and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
until it stops.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level dipstick and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil
Only use oils “Certified For Gasoline Engines” by the American
Petroleum Institute (API). An oil with this trademark symbol conforms
to the current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine and engine’s warranty, use Motorcraft SAE 5W-20
or an equivalent SAE 5W-20 oil meeting Ford specification
WSS-M2C930-A.SAE 5W-20 oil provides optimum fuel economy and
durability performance meeting all requirements for your
vehicle’s engine.
2009 Milan(mln)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
274

FILL RANGE” in the coolant reservoir. If the level falls below, add
coolant per the instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
•Proper function of calibrated gauges.
When the engine is cold, check the
level of the engine coolant in the
reservoir.
•The engine coolant should be at the “FULL COLD” level or within the
“COLD FILL RANGE” as listed on the engine coolant reservoir
(depending upon application).
•Refer toscheduled maintenance informationfor service interval
schedules.
•Be sure to read and understandPrecautions when servicing your
vehiclein this chapter.
If the engine coolant has not been checked at the recommended interval,
the engine coolant reservoir may become low or empty. If the reservoir is
low or empty, add engine coolant to the reservoir. Refer toAdding
engine coolantin this chapter.
Note:Automotive fluids are not interchangeable; do not use engine
coolant, antifreeze or windshield washer fluid outside of its specified
function and vehicle location.
Adding engine coolant
When adding coolant, make sure it is a 50/50 mixture of engine coolant
and distilled water. Add the mixture to the coolant reservoir,when the
engine is cool,until the appropriate fill level is obtained.
COLD FILL RANGE
2009 Milan(mln)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
278

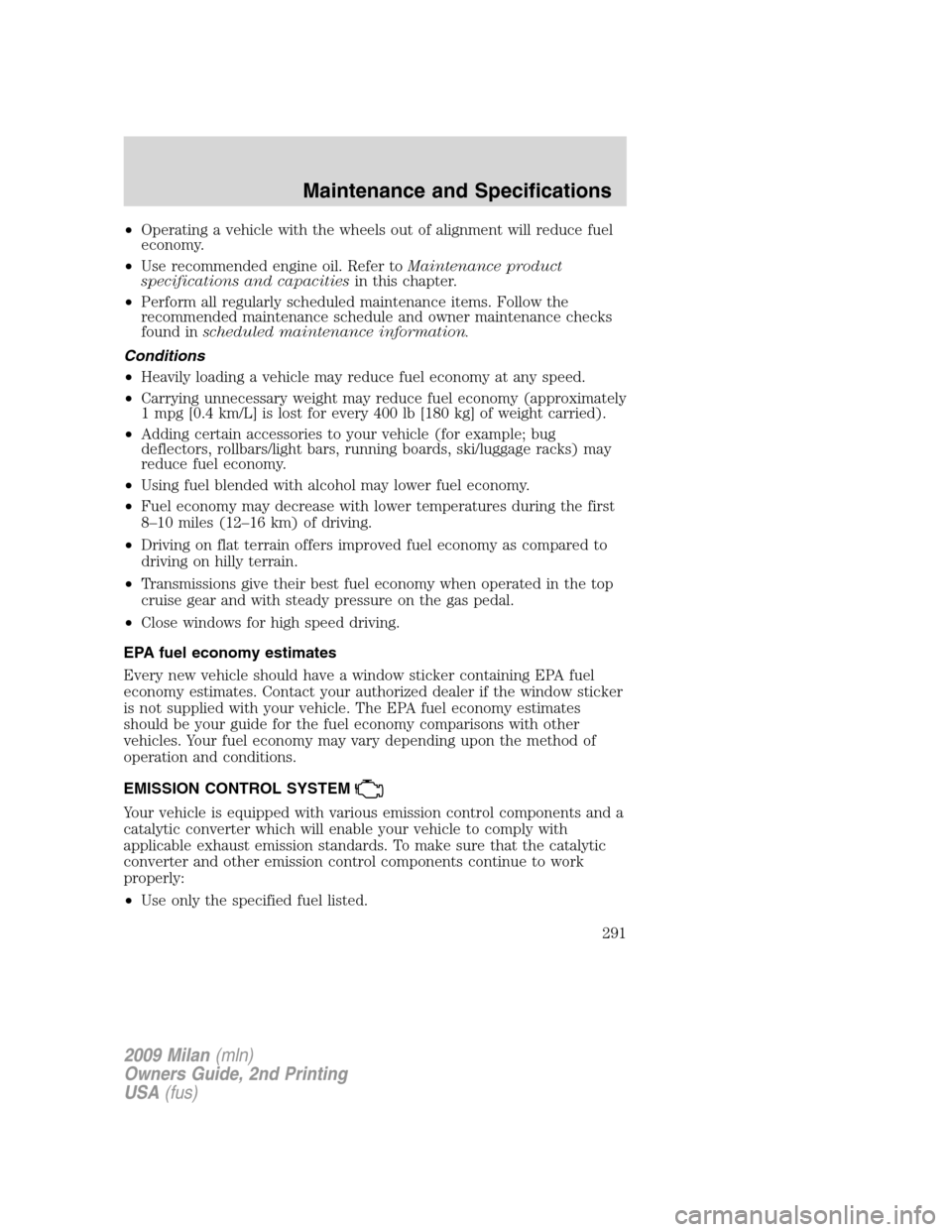

•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle may reduce fuel economy at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example; bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Close windows for high speed driving.
EPA fuel economy estimates
Every new vehicle should have a window sticker containing EPA fuel
economy estimates. Contact your authorized dealer if the window sticker
is not supplied with your vehicle. The EPA fuel economy estimates
should be your guide for the fuel economy comparisons with other
vehicles. Your fuel economy may vary depending upon the method of
operation and conditions.
EMISSION CONTROL SYSTEM
Your vehicle is equipped with various emission control components and a
catalytic converter which will enable your vehicle to comply with
applicable exhaust emission standards. To make sure that the catalytic
converter and other emission control components continue to work
properly:
•Use only the specified fuel listed.
2009 Milan(mln)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
291

in rear seat ..............................161
LATCH .....................................164
recommendations ...................158
Child safety seats - booster
seats ...........................................169
Cleaning your vehicle
engine compartment ..............259
instrument panel ....................261
interior .....................................262
plastic parts ............................260
washing ....................................257
waxing .....................................258
wheels ......................................258
wiper blades ............................261
Climate control (see Air
conditioning or Heating) ......48, 50
Clock ............................................73
Clock adjust
6-CD in dash .............................31
AM/FM/CD .................................24
Clutch
fluid ..........................................295
operation while driving ..........217
recommended shift speeds ....217
Compass, electronic
set zone adjustment .................90
Console ........................................72
overhead ....................................72
Controls
power seat ...............................122
steering column ........................80
Coolant
checking and adding ..............277
refill capacities ................281, 304
specifications ..........................304
Cruise control
(see Speed control) ....................77
Cupholder(s) .............................127Customer Assistance ................227
Ford Extended
Service Plan ............................254
Getting assistance outside the
U.S. and Canada .....................254
Getting roadside assistance ...227
Getting the service
you need .................................250
Ordering additional owner’s
literature .................................255
Utilizing the
Mediation/Arbitration
Program ...................................253
D
Daytime running lamps
(see Lamps) ................................55
Dipstick
automatic transmission
fluid ..................................296–297
engine oil .................................270
Driving under special
conditions ..................216, 222, 224
sand .........................................223
snow and ice ...........................225
through water .................223, 226
E
Electronic message center .........87
Emergencies, roadside
jump-starting ..........................242
Emission control system ..........291
Engine ........................................307
cleaning ...................................259
coolant .....................................277
fail-safe cooling .......................282
idle speed control ...................275
lubrication specifications .......304
refill capacities ........................304
2009 Milan(mln)
Owners Guide, 2nd Printing
USA(fus)
Index
313

service points ..................267–268
starting after a collision .........228
Engine block heater .................202
Engine oil ..................................270
change oil soon warning,
message center .......................270
checking and adding ..............270
dipstick ....................................270
filter, specifications ........274, 303
recommendations ...................274
refill capacities ........................304
specifications ..........................304
Event data recording ....................7
Exhaust fumes ..........................202
F
Fail safe cooling ........................282
Fluid capacities .........................304
Fog lamps ....................................55
Four-Wheel Drive vehicles
driving off road .......................221
Fuel ............................................283
calculating fuel
economy ............................89, 288
cap ...........................................286
capacity ...................................304
choosing the right fuel ...........287
comparisons with EPA fuel
economy estimates .................291
detergent in fuel .....................288
filling your vehicle
with fuel ..................283, 286, 289
filter, specifications ........283, 303
fuel pump shut-off switch .....228
improving fuel economy ........288
octane rating ...................287, 307
quality ......................................287
running out of fuel .................288safety information relating to
automotive fuels .....................283
Fuel pump shut-off switch .......228
Fuses ..................................229–230
G
Gas cap (see Fuel cap) ............286
Gas mileage
(see Fuel economy) .................288
Gauges .........................................16
H
Hazard flashers .........................228
Headlamps ...................................54
aiming ........................................57
autolamp system .......................54
bulb specifications ....................60
daytime running lights .............55
flash to pass ..............................56
high beam .................................56
replacing bulbs .........................61
turning on and off ....................54
Heating
heating and air conditioning
system ...........................46, 48, 50
Homelink wireless control
system ..........................................84
Hood ..........................................266
How to get going ........................18
I
Ignition ...............................199, 307
Illuminated visor mirror .............71
Infant seats
(see Safety seats) .....................160
2009 Milan(mln)
Owners Guide, 2nd Printing
USA(fus)
Index
314
