objects may fall down into the defroster outlets and block airflow, in
addition to damaging the climate control system.
To aide in side window defogging/demisting in cold weather conditions:
1. Select
2. Set the temperature control to full heat
3. Select A/C
4. Set the fan speed to High
5. Direct the outer panel vents towards the side windows
In order to increase the airflow to the outer panel vents, close the
central panel vents.
Do not place objects on top of the instrument panel, as these
objects may become projectiles in a collision or sudden stop.
Auxiliary climate controls (if equipped)
Your vehicle may be equipped with auxiliary climate controls which are
located in the overhead console of the first row and in the headliner for
second row seating. The auxiliary climate control feature provides
increased capacity to quickly heat or cool your vehicle.
If your vehicle is equipped with a manual heating and air conditioning
system, the auxiliary climate controls are dependent on the main climate
control system. If the main climate control system is in the OFF position,
the auxiliary climate controls will not work.
If your vehicle is equipped with a DEATC system, the auxiliary climate
controls are independent of the main climate control system. If the main
climate control system is in the OFF position, the auxiliary climate
controls will still work. However, the A/C function will not operate unless
the A/C control has been selected on the main climate control system.
Controls and features
49

Frontauxiliary control
For the rear auxiliary climate
controls to function, the front
auxiliary climate control must be set
to REAR.
To control the auxiliary climate
control system from the front
controls, turn the fan speed control
knob to the desired speed.
Turn the temperature control to
regulate the air temperature.
Press the mode selector once to
select air distribution through the
overhead vents. The
icon will
illuminate on the temperature
selector.
Press the mode selector again to select air distribution through the floor
vents. The
icon will illuminate on the temperature selector. Only the
auxiliary control head (front or rear) that is active will have the indicator
lights functioning.
4 3 2
REAR0
Controls and features
50

Rear auxiliary climate controls (if equipped)
The rear auxiliary climate controls
are located in the headliner of the
second row seating.
Ensure that the front auxiliary
control is turned to REAR to enable
the rear climate controls.
Turn the fan speed control to the
desired fan speed.
Turn the temperature control to
regulate the air temperature.
Press the mode selector once to
select air distribution through the
overhead vents. The
icon will
illuminate on the temperature
selector.
4 3 2 1 0
Controls and features
51

Press the mode selector again to select air distribution through the floor
vents. The
icon will illuminate on the temperature selector. Only the
auxiliary control head (front or rear) that is active will have the indicator
lights functioning.
Floor console climate controls (if equipped)
Depending on the equipment package, your vehicle may be equipped
with floor console climate control capabilities.
The floor console climate control system allows the rear passengers to
select a mode of airflow distribution through the floor console. However,
air temperature and fan speed are controlled by the main climate control
system.
Controls and features
52

Heated outside mirrorsR(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Fold-away mirrors
Pull the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
CENTER CONSOLE
Your vehicle may be equipped with a
variety of console features. These
include:
•Utility compartment with
cassette/compact disc storage
•Auxiliary power point
•Cupholders
•Tissue box holder
Use only soft cups in the cupholder. Hard objects can injure you
in a collision.
Controls and features
97

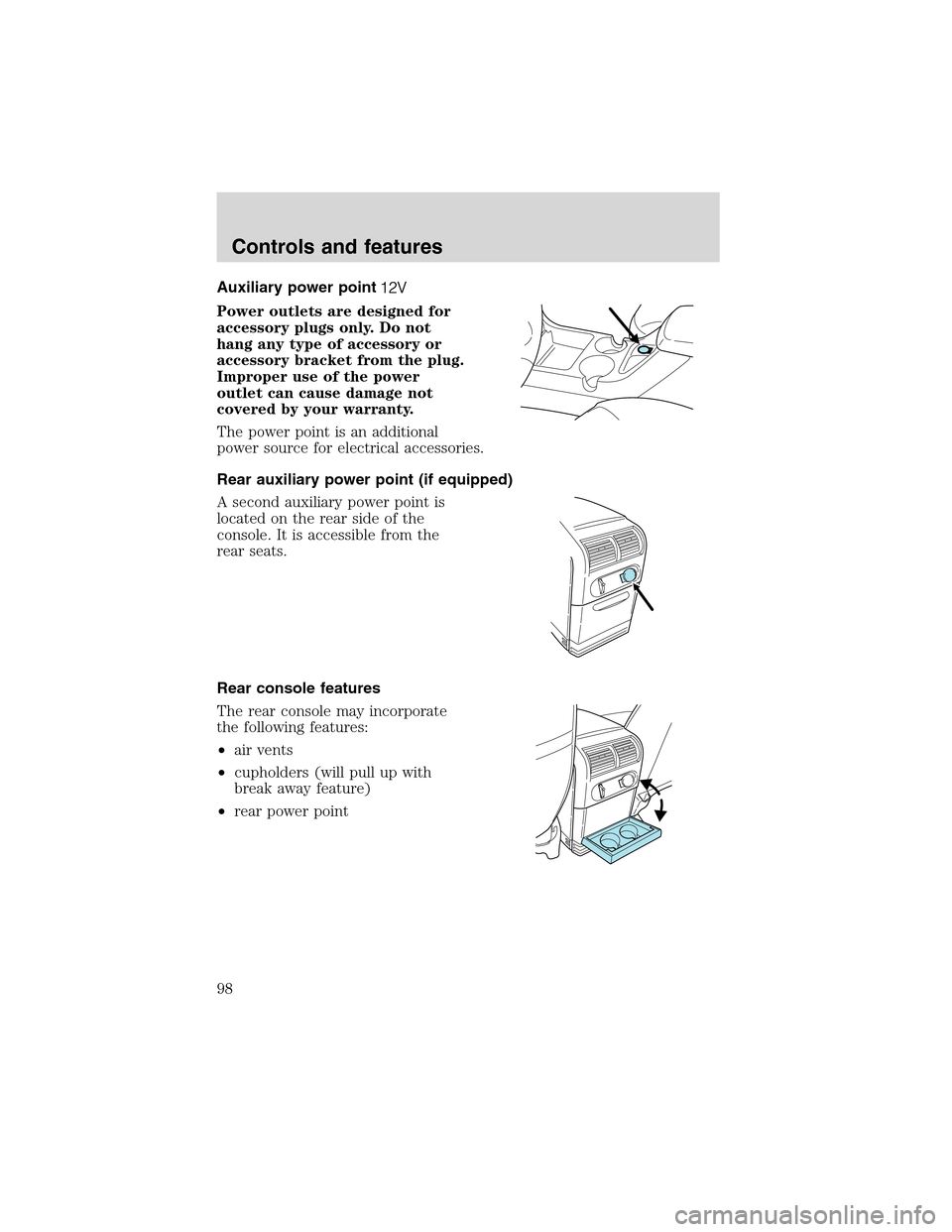

Auxiliarypower point
Power outlets are designed for
accessory plugs only. Do not
hang any type of accessory or
accessory bracket from the plug.
Improper use of the power
outlet can cause damage not
covered by your warranty.
The power point is an additional
power source for electrical accessories.
Rear auxiliary power point (if equipped)
A second auxiliary power point is
located on the rear side of the
console. It is accessible from the
rear seats.
Rear console features
The rear console may incorporate
the following features:
•air vents
•cupholders (will pull up with
break away feature)
•rear power point
Controls and features
98

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
11—Not used (spare)
12 5A Foglamp switch, 4x4 module
13 5A Overdrive cancel switch, Flex fuel sender
14 5A PATS module
15 5A Rear wiper module, Cluster, TPMS
16 5A Power mirror, Manual climate control,
TPMS
17 15A Delayed acc. coil, Battery saver, Interior
lamps (front and rear), Glove
compartment lamp
18 10A Left horn
19 10A RCM, PAD indicator
20 5A PATS, Driver seat switch, Memory switch,
Driver seat module, BSM, Sunload sensor
21 5A Instrument cluster, Compass, Flasher coil
22 10A ABS, IVD Controller
23 15A Brake pedal position switch, Driver brake
applied relay, Redundant cruise deactivate
switch
24 15A Cigar lighter, OBD II
25 5A Mode-Temperature actuator for auxiliary
climate control, Trailer tow battery charge
coil
26 7.5A Park aid, Brake shift interlock, Approach
lamp relay coil, IVD switch
27 7.5A Electrochromatic mirror, Digital
transmission range sensor - backup lamps
28 5A Radio (Start)/DVD (Start)
29 10A Digital transmission range sensor, PWR
feed to fuse #28 (Start feed)
30 5A Daytime Running Lamps (DRL), Remote
solenoid, DEATC climate controller
Roadside emergencies
209

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
19 20A** High beam relay
20 30A** Electric brake
21 30A** Front wiper motor
22 20A** Autolamp; Low beam
23 30A** Ignition switch
24 20A* Rear fog lamps (Export only)
25–Not used
26 15A* Fuel pump
27 20A* Trailer tow lamps
28 20A* Horn relay
29 60A** PJB
30 20A** Rear wiper motor
31—Not used
32—Not used
33 30A** Auxiliary blower motor
34 30A** Power seats, Adjustable pedals
35 20A** Rear power point
36 40A** Blower motor
37 15A* A/C clutch relay/Transmission
38 15A* Coil on plug
39 15A* Injectors/Fuel pump relay
40 15A* PTEC power
41 15A* HEGO, VMV, CMS, PTEC
42 10A* Right low beam
43 10A* Left low beam
44 15A* Front foglamps
45 5A* Brake pressure switch
46 20A* High beams
47—Horn relay
48—Fuel pump relay
49—High beam relay
Roadside emergencies
213

The relays are coded as follows:
Fuse/Relay Location Description
Relay 14 Not used
Relay 15 Trailer tow back- up lamps
Relay 16 Not used
Relay 17 Not used
Relay 18 Not used
Relay 19 Trailer tow park lamps
Relay 20 Trailer tow battery charge
Relay 21 Not used
Relay 22 Approach lamps
Relay 23 Not used
Diode 3 Not used
Diode 4 Not used
Auxiliary relay box
(Canadian vehicles equipped with AdvanceTrac
only)
The relay box is located on the front
right fender well underneath the
speed control module.
Roadside emergencies
215

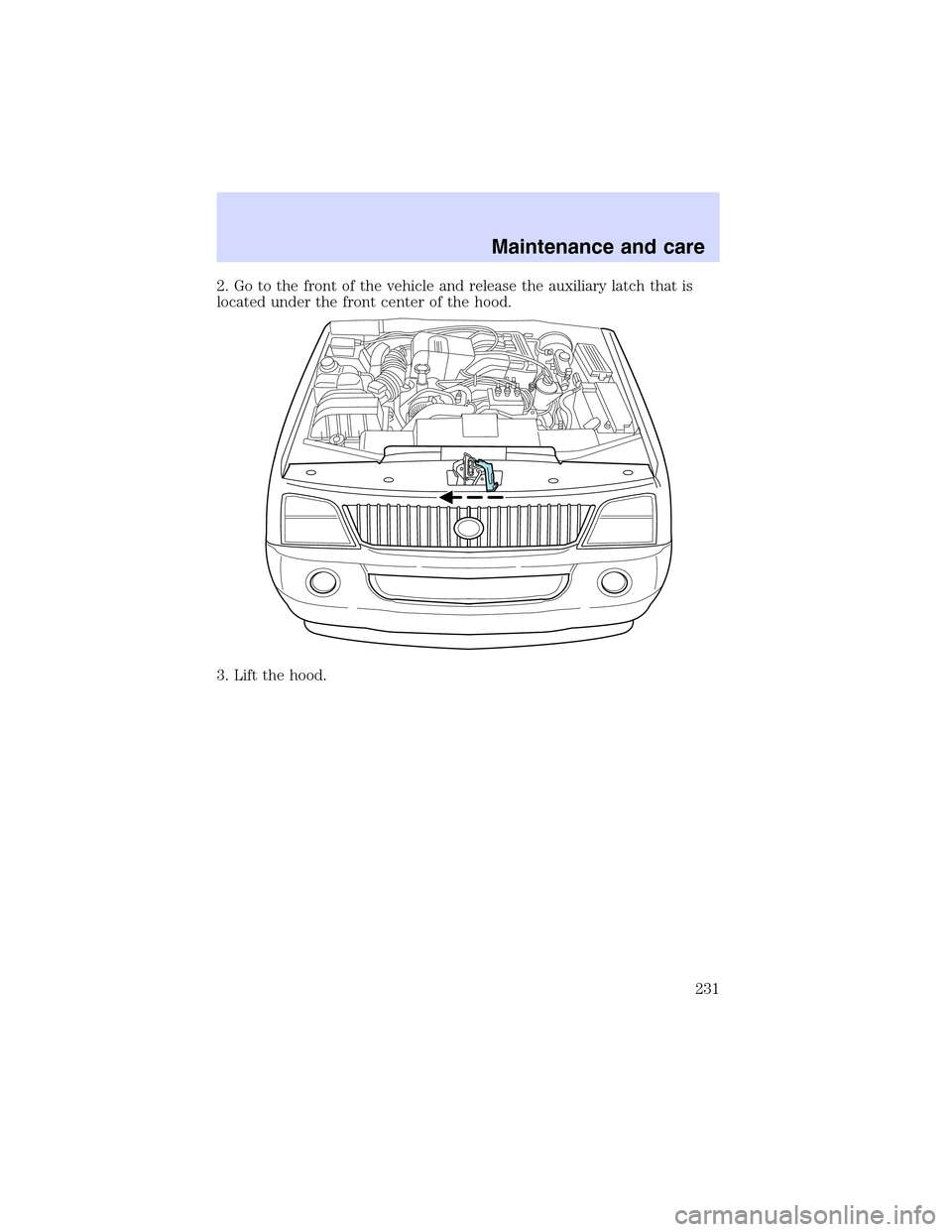

2.Go to the front of the vehicle and release the auxiliary latch that is
located under the front center of the hood.
3. Lift the hood.
Maintenance and care
231
